Read before installing For help please visit honeywellhome.com RTH111

Thermostat Heat Off Cool Auto On Fan

Identify System Type This thermostat is compatible with the following systems:• Gas, oil or electric furnace• Central air conditioner• Hot water system with or without pump• Millivolt system• Central heating and cooling system• Heat pump without auxiliary/backup heat Do you need assistance? We are here to help. Call 1-800-468-1502 for wiring assistance before returning the thermostat to the store. This thermostat cannot be used on heat pumps with

backup heat or on multistage systems.2

NOTICE: To avoid possible compressor damage, do not run air

conditioner if the outside temperature drops below 50 °F (10 °C).

ATTENTION: MERCURY RECYCLING NOTICE This product does not contain mercury.

However, this product may replace a product

that contains mercury. Mercury and products

containing mercury should not be discarded in

For more information on how and where to

properly recycle a thermostat containing

mercury in the United States, please refer to the

Thermostat Recycling Corporation at

www.thermostat-recycle.org.

For mercury thermostat recycling in Canada,

please refer to Switch the Stat at

www.switchthestat.ca

NO MERCURY SANS MERCURE Hg RTHXXXX M32707

For assistance with this product, please visit

Or call Resideo Customer Care toll-free at

To save time, please note your model

number and date code before calling.

Pull at bottom to remove thermostat from

Turn thermostat over to find model number

Advanced Installation 8

About your new thermostat

Controls and Home screen

1 Turn Off Power to Heating/Cooling System

Heating/cooling system

Do not remove wallplate yet

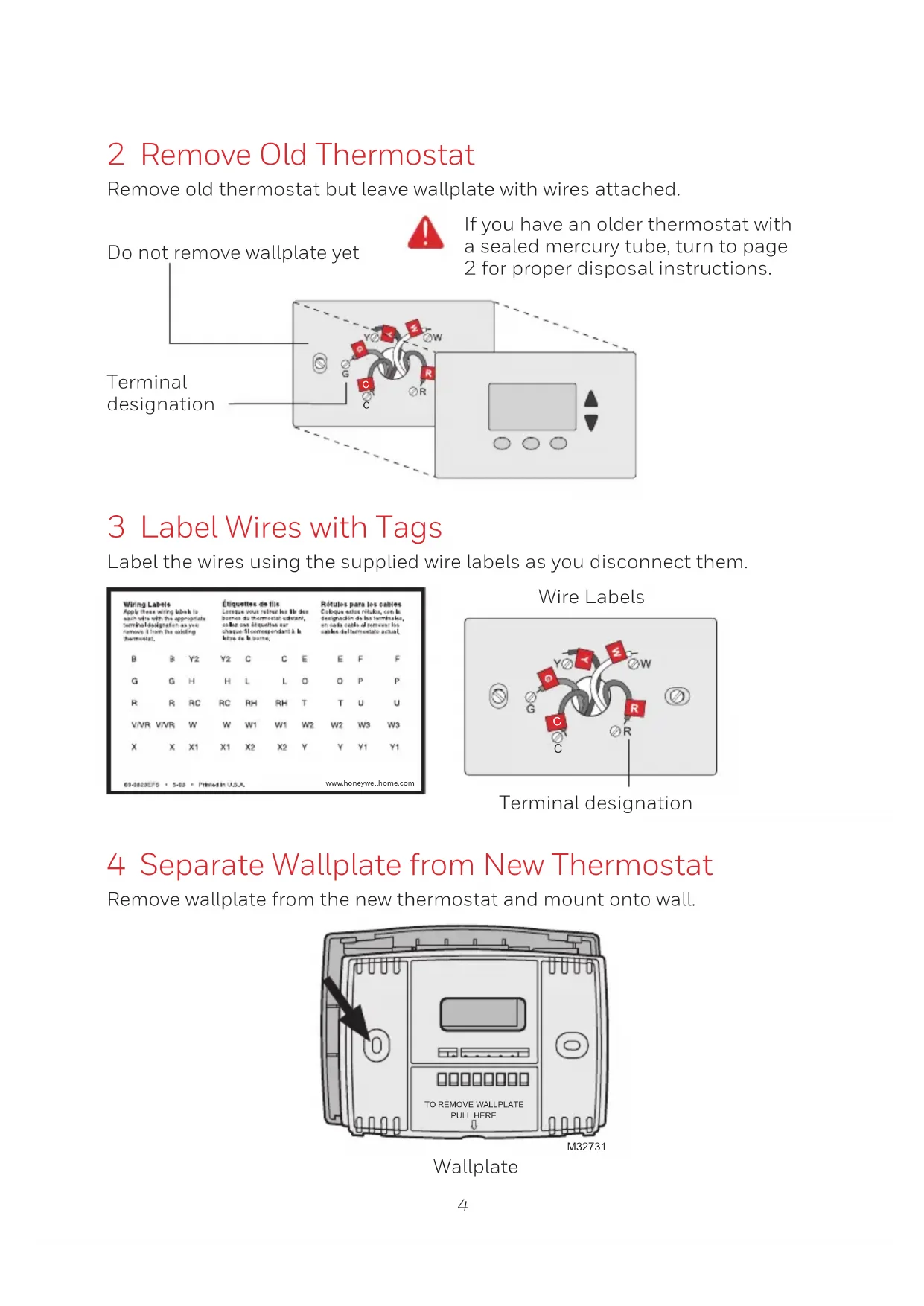

3 Label Wires with Tags

Label the wires using the supplied wire labels as you disconnect them.

If you have an older thermostat with

a sealed mercury tube, turn to page

2 for proper disposal instructions.

Terminal designation

Remove old thermostat but leave wallplate with wires attached.

4 Separate Wallplate from New Thermostat

Remove wallplate from the new thermostat and mount onto wall.

TO REMOVE WALLPLATE PULL HERE Wallplate5

Mount the new wallplate using the included screws and anchors.

Drill 3/16-in. (4,76 mm ) holes for drywall

Drill 3/32-in. (2,38 mm ) holes for plaster

Simply match wire labels.

If labels do not match letters on the thermostat, check “Alternate Wiring” on

page 6 and connect to terminal as shown (see notes, below).

We are here to help. Call 18004681502 for wiring assistance. W/AuxNotUsed M32714

If labels do not match letters on the thermostat, check the chart below and

connect to terminal as shown here (see notes, below).

If wires will be connected to both R and Rc terminals, remove metal

Do not use C or X. Wrap bare end of wire with electrical tape.

If you have a heat pump without auxiliary/backup heat connect O or B,

not both. If you do not have a heat pump, do not connect B. Wrap bare

end of wire with electrical tape.

Place a jumper (piece of wire) between Y and W if you are using a heat

pump without auxiliary/backup heat.

Install two AAA alkaline batteries.

8 Set fan operation switch

Move the switch to the proper setting:

Gas or Oil: For gas or oil heating systems,

leave the fan operation switch in this factory-

set position (for systems that control the fan in

Electric or Heat Pump: Change the switch

to this setting for heat pump or electric heat

systems. (This setting is for systems that allow

the thermostat to control the fan in a call

for heat, if a fan wire is connected to the G

10 Turn Power Back On

Turn the power back on to

the heating/cooling system.

Circuit breaker box Heating/cooling system

11 If your system type is...

If your system type is: q Single Stage Heat and Coolq Heat Only or Cool Only Congratulations, you’re done!

If you are not sure of your system type or if you have other

questions, call us toll-free at 18004681502. This thermostat works on single stage 24 volt or 750 mV systems. It will NOT work on multi-stage systems. Advanced Installation

Enter System Setup To enter system setup, press and hold both the s and t buttons until the display changes (approximately 5 seconds). Changing Settings

1. Press the s or t button to change the setting. 2. Press the s and t buttons simultaneously for one second to advance to the next function.3. When the last function is displayed, press the s and t buttons to save any changes and exit the menu. M33589 Heat Off Cool Auto On Fan

NOTE: If you do not press any button for 60 seconds while you are in the

setup menu, the thermostat automatically saves any changes made and exits

Press the s or t button to Setting

5 select your heating system and

optimize its operation

5 Gas or oil furnace: Use this setting if you have a standard gas or

oil furnace that is less than 90% efficient.

6 Electric furnace: Use this setting if you have any type of electric

3 Heat pump, hot water or high-efficiency furnace:

Use this setting if you have a hot water system or a gas furnace of

greater than 90% efficiency.

2 Gas/oil steam or gravity system: Use this setting if you

have a steam or gravity heat system.

14 select Fahrenheit or Celsius

* Compressor Protection: This feature forces the compressor to wait approximately 5 minutes

before restarting, to prevent equipment damage. During the wait time, the message “Cool On” or

“Heat On” is displayed on screen.

About your new thermostat

Your new Resideo thermostat has been designed to give you many years of

reliable service and easy-to-use, push-button climate control.

• Displays ambient (measured) temperature at all times

• One-touch access to setpoint temperature

• Built-in compressor protection10

is set to the system

Fan Switch is used to control your fan.

In “Auto” mode, the fan runs only when the

heating or cooling system is on.

If set to “On,” the fan runs continuously.

Appears when the setpoint

temperature is displayed.

The ambient (measured)

temperature is normally

displayed. To view the

setpoint temperature,

press the Up or Down

button once. The setpoint

temperature will appear

Cool on: Cooling system is on.

Heat on: Heating system is on.

When Cool On is flashing, compressor

protection is engaged (see page

Built-in compressor protection

This feature helps prevent damage

to the compressor in your air

conditioning or heat pump system.

Damage can occur if the compressor

is restarted too soon after shutdown.

This feature forces the compressor to

wait 5 minutes before restarting.

During the wait time, the display will

flash the message Cool On (or Heat

On if you have a heat pump). When

the safe wait time has elapsed, the

message stops flashing and the

compressor turns on.

Install two fresh AAA batteries when

Lo Batt flashes on the screen. Lo

Batt appears for 60 days before the

batteries are depleted.

Replace batteries once a year, or

when you will be away for more than a

Most settings are stored in non-

volatile (permanent) memory. Only

the clock and the day must be set

after you replace the batteries.

remove thermostat from

over, insert fresh AAA

Set the System switch to Off before removing

the batteries. Otherwise, the heating/cooling

system could remain activated even when

batteries are removed. RTHXXXX M32707

If you have difficulty with your thermostat, please try the following

suggestions. Most problems can be corrected quickly and easily.

• Make sure fresh AAA alkaline batteries are correctly

• Set system switch to Heat. Make sure the temperature is

set higher than the Inside temperature.

• Set system switch to Cool. Make sure the temperature is

set lower than the Inside temperature.

• Wait 5 minutes for the system to respond.

Verify the system switch is set to Heat or Cool mode. The

thermostat should allow you to change the setpoint within

the following ranges:

• Heat: 40° to 90°F (4.5° to 32°C).

• Cool: 50° to 99°F (10° to 37°C).

• Compressor protection feature is engaged. Wait

5 minutes for the system to restart safely, without

damage to the compressor.

• Set the System switch to Heat, and set the temperature

level above the current room temperature.

• Set the System switch to Cool, and set the temperature

level below the current room temperature.

For assistance with this product, please visit honeywellhome.com or call

Resideo Customer Care toll-free at 18004681502.

W Heating 20 VAC30 VAC 1.0 A W Power Pile Heating 750 mV DC 100 mA DC Y Compressor 20 VAC30 VAC 1.0 A O Changeover, Cooling 20 VAC30 VAC 0.5 A B Changeover, Heating 20 VAC30 VAC 0.5 A G Fan 20 VAC30 VAC 0.5 A13

1-year limited warranty

Resideo warrants this product, excluding battery, to be free from defects in

workmanship or materials, under normal use and service, for a period of one (1) year

from the date of first purchase by the original purchaser. If at any time during the

warranty period the product is determined to be defective due to workmanship or

materials, Resideo shall repair or replace it (at Resideo’s option).

If the product is defective,

(i) return it, with a bill of sale or other dated proof of purchase, to the place from which

you purchased it; or

(ii) call Resideo Customer Care at 18004681502. Customer Care will make the

determination whether the product should be returned to the following address:

Resideo Return Goods, 1985 Douglas Dr. N., Golden Valley, MN 55422, or whether a

replacement product can be sent to you.

This warranty does not cover removal or reinstallation costs. This warranty shall not

apply if it is shown by Resideo that the defect was caused by damage which occurred

while the product was in the possession of a consumer.

Resideo’s sole responsibility shall be to repair or replace the product within the terms

stated above. RESIDEO SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING,

DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential

damages, so this limitation may not apply to you.

THIS WARRANTY IS THE ONLY EXPRESS WARRANTY RESIDEO MAKES ON THIS PRODUCT. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED TO THE ONE YEAR DURATION OF THIS WARRANTY. Some states do

not allow limitations on how long an implied warranty lasts, so the above limitation may

This warranty gives you specific legal rights, and you may have other rights which vary

from state to state. If you have any questions concerning this warranty, please write

Resideo Customer Care, 1985 Douglas Dr, Golden Valley, MN 55422 or call

www.resideo.com 33-00137EF—01 M.S. 09-19 |

Printed in United States

This product is manufactured by Resideo Technologies, Inc., Golden Valley, MN,

©2019 Resideo Technologies, Inc. The Honeywell Home trademark is used under

license from Honeywell International Inc. All rights reserved.

33-00137EF-01Heat Off Cool Auto On Fan

TO REMOVE WALLPLATE PULL HERE Plaque murale5
