BIFINETT KH 1130 SET BATTEUR ELECTRIQUE - Electric mixer KOMPERNASS - Free user manual and instructions

Product type	Electric stand mixer with immersion blender
Brand	KOMPERNASS
Model	BIFINETT KH 1130 SET
Rated voltage	230 V ~ 50 Hz
Rated power	300 W
Protection class	II (double insulation)
Number of speeds	5 speeds + Turbo function
Included accessories	Stainless steel beaters (×2), stainless steel dough hooks (×2), immersion blender, mixing bowl, scraper, cable clip
Main functions	Knead, mix, beat, whisk, blend, puree
Using the immersion blender	Only usable with the Turbo button; do not use for hard foods (coffee, ice cubes, etc.)
Bowl capacity	About 2/3 of the bowl to avoid overflow; recommended mixing container height: 18 cm, diameter 11 cm
Continuous use time	Maximum 10 minutes; after 5 minutes, let it rest for a few minutes
Maintenance and cleaning	Housing: damp cloth; beaters and hooks: dishwasher safe; immersion blender: do not immerse, clean the lower part under running water
Safety	Automatic stop when releasing the Turbo button; beater locking device; blender knife very sharp (caution)
Warranty	3 years from date of purchase
Customer service	SOFIM (France): 01 47 70 66 66 ; I.T.S.w. bv (Belgium): 03 541 37 60
Weight	Approximately 1.2 kg (estimated)
Dimensions (L×W×H)	Approximately 20 × 15 × 25 cm (estimated)

Frequently Asked Questions - BIFINETT KH 1130 SET BATTEUR ELECTRIQUE KOMPERNASS

How to install the beaters or hooks on the mixer?

Insert the beaters or hooks into the corresponding holes on the mixer until they click into place. For the hooks, insert the one with the gear wheel into the hole marked with a gear wheel. Use the ejection button ⑫ to remove them.

How to use the immersion blender?

Open the safety device ③ at the back of the mixer, insert the immersion blender until it clicks, then screw it in to secure it. Use it only with the Turbo button ⑪; the appliance stops as soon as you release the button. Do not use it for hard foods like ice cubes or coffee beans.

What are the power and voltage of the appliance?

The mixer operates at a voltage of 230 V ~ 50 Hz and has a rated power of 300 W. It is protection class II (double insulation).

Can I wash the accessories in the dishwasher?

Yes, the beaters ⑭ and hooks ⑮ are dishwasher safe. The immersion blender ⑬ must not be immersed; clean only the lower part under running water. The housing is cleaned with a damp cloth.

What is the recommended continuous use time?

Do not use the appliance for more than 10 minutes continuously. After 5 minutes of use, especially with the immersion blender, let it rest for a few minutes to avoid overheating.

How to adjust the speed?

Turn the speed control ① to the right to choose from 5 speeds. Speed 1 is for mixing soft ingredients, speed 5 for beating egg whites or whipped cream. The Turbo button ⑪ gives full power (equivalent to speed 5).

What to do if the dough sticks to the bowl?

Turn off the appliance, then use the provided scraper ⑯ to remove leftovers from the edges of the bowl. Never scrape while the appliance is running.

How to store the power cord?

Use the provided cable clip ⑰ to wrap the cable around the appliance or base for neat storage.

Is the appliance under warranty?

Yes, the appliance comes with a 3-year warranty from the date of purchase. In case of a defect, return it in its original packaging with the receipt to the service center indicated in the manual.

Can I blend hot foods?

It is not recommended to blend hot foods (above 60°C) as this could damage the appliance. The immersion blender is designed for lukewarm or cold foods. Make sure not to fill the container more than 2/3 full to avoid splashes.

USER MANUAL BIFINETT KH 1130 SET BATTEUR ELECTRIQUE KOMPERNASS

GB Operating and safety instructions Page 9

Product catalog image showing 17 items including a plastic container, plastic tool holder, and wire coil (no text or labels visible)

White biolineft cleaning machine with two plastic cups, labeled parts 1 and 2 (no text or symbols on the device itself)

3

Hand using a white hand mixer with a bucket in the background (no visible text or symbols)

4

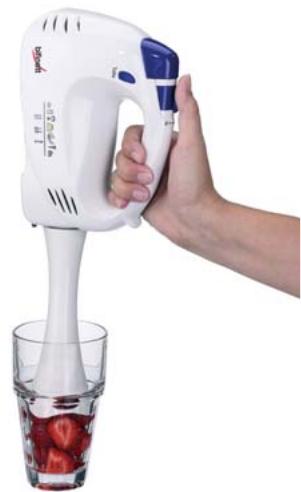

Hand holding a white spray gun with blue handle, partially filled with red liquid in a glass (no text or symbols visible)

Handmixer-Set KH 1130

This Handmixer set is suitable for kneading dough, mixing liquids (e.g. fruit juice), whipping cream and for blending fruits. All other uses or modification of the set are not intended by the manufacturer and could entail risk of damage or injury.

List of parts

① speed control
② mains cable and plug
③ insert appliance for blending rod
④ release button for Handmixer
⑤ support
⑥ housing
⑦ base
⑧ stand
⑨ mixing bowl
⑩ support release button
⑪ turbo button
⑫ ejection key
⑬ blending rod
⑭ stainless steel beater
⑮ stainless steel kneading hook
⑯ scraper
⑰ fixing clip

Important safety instructions.

• Read the instructions for use carefully before using the appliance for the first time and keep these safely for subsequent use.
  Always ensure that any other person wishing to use the appliance first reads these instructions.
• Check whether the appliance is complete immediately when you have unpacked the set. Ensure that all parts are present and correct according to the list of parts.
• Never allow children play with or handle electrical appliances without supervision. Children cannot appreciate the grave risks of damage and injury resulting from incorrect handling.
• Never use the Handmixer outdoors. The appliance is intended exclusively for domestic and kitchen use.
  • Make sure that the plug is disconnected after each use and before cleaning the appliance. Care must be taken that the device cannot be switched on accidentally.
  • Always switch off the appliance before replacing the accessory parts.
• Examine the device and all parts for visible damage or faults. Full safety of the appliance can be guaranteed only when it is in perfect condition.

Warning:

Never switch on the device if parts are damaged or are missing. Serious damage and injury can otherwise occur.

- Ensure that all repairs are carried out by a specialist. In case of faults, please consult the service partner in your home country (see Guarantee).

Warning:

Avoid all contact with the beater blades, kneading hooks or the knife of the blending rod when the appliance is in

operation. Make sure that long hair, scarves, etc. never hang over the attachments. Carelessness can lead to serious injury!

- Never fix attachments with different functions to the appliance at the same time.

Caution!

The knife on the blending rod is sharp. Care must therefore be exercised at all times when handling the rod.

- The power cable must never come close to or in contact with hot parts of the appliance or other sources of heat. Never leave the mains lying on edges or corners.

Warning:

A damaged power cable can lead to electric shocks!

Speeds settings

0 Device is switched off

1 Good starting speed for mixing "soft" ingredients, such as flour, butter, etc.

2 Best speed for mixing liquid ingredients

3 Ideal speed for mixing cake and bread dough

4 For creaming butter, sugar, deserts and sweets, etc.

5 For beating white of egg, cake icing, for mashing boiled potatoes, whipping cream, etc.

Turbo · Same speed as setting "5"

• This button puts the entire performance of your appliance at your disposal immediately.
• For operating the blending rod

Use of the appliance.

Use of beater blades ⑭ and kneading hooks ⑮

Preparation

1. Clean the attachments ( ⑬ , ⑭ , ⑮ ) and the mixing bowl ⑨ before the first use.
2. Slide the beater blades ⑭ or kneading hooks ⑮ into the appliance until they are secure and you hear a distinct locking sound.
   Always insert the kneading hook with the cogwheel into the intended opening in the Handmixer (indicated with a cogwheel).
3. Unlock the mixer support ⑤ by pressing the support release button ⑩ and fold the support upward (Fig. ②).
4. Remove the mixing bowl ⑨ and fill with ingredients according to the quantities required (Fig. ②).
5. Replace the mixing bowl ⑨ onto the appliance stand ⑧.
6. Press the support release button ⑩ and fold the support ⑤ down.
7. Place the Handmixer onto the support ⑤.
8. Connect the plug ② to the mains.

Kneading / beater blades

1. To start the mixer, turn the speed control ① to the right. You can choose from between 5 speed settings or the turbo button ⑪ (see Chapter "Speed settings").
2. During the mixing operation, flour sometimes gets stuck to the mixing bowl. If this happens, always turn off the appliance immediately. Use the enclosed scraper 16 to

remove any remaining dough or flour from the side and edge of the bowl.

1. When you wish to remove the contents of the bowl, first switch off the Handmixer. Then press the support release button ⑩, fold the support ⑤ upwards and take the mixing bowl ⑨ from the stand ⑧.

2. Press the unlocking button ④ to remove the Handmixer and then press ejection button ⑫ in order to release the beater blades ⑮ or kneading rods.

Use of the blending rod ⑬

Preparation

1. You will find the insert position for the blending rod at the back of the Handmixer ③. This is covered for safety reasons. Before attaching the blending rod you must first open the safety device ③.

2. Press the rod in until this locks into position and then twist until secure.

Blending

1. The blending rod ⑬ is operated exclusively with the turbo button ⑪ (see Chapter "Speed settings"). Hold the turbo button ⑪ down during use. As soon as you release this button the motor will stop.

2. In order to prevent overflowing, ensure that the blending vessel is never more than 23 full. We recommend a vessel of approx. 18 cm in height and with a diameter of approx. 11 cm.

3. To ensure that ingredients get ideally mixed, the material to be blended must cover at least the bottom section of the blending rod.

4. Do not switch on the mixer until you have lowered the rod into the material to be blended.

5. Never use the blending rod for hard materials, such as coffee beans, ice cubes, sugar, cereals, chocolate, raw potatoes, etc.

6. When you are finished using the Handmixer, return the speed control ① to the "0" position and disconnect the plug.

7. To clean the blending rod screw out of the inset position ②.

- The enclosed fixing clip can be used for holding the power cable.

Caution!

1. Always allow the Handmixer to rest for a few minutes after every 5 minutes of constant use – in particular after using the blending rod ⑬.

2. Never keep the appliance in constant operation for more than 10 minutes!

3. Never dip the blending rod ⑬ into water. Clean only the bottom part with knife under flowing water.

Cleaning

1. Make sure the plug is disconnected before cleaning the appliance.
2. Clean the housing ⑥ only with a damp cloth and if necessary with a mild cleaning agent.
3. Beater blades ⑭ or kneading hook ⑮ can be cleaned under running water or in the dishwasher.
4. We recommend that all attachments be cleaned directly after use. This will prevent food residues accumulating and remove the risk of germs.

Disposal

The packing consists of 100% environment-friendly materials, which you can dispose of at your local recycling points.

Please enquire from your local or municipal authorities regarding ways of disposing old household appliances.

Technical Data

Nominal voltage: 230 V\~50 Hz

Nominal output: 300 W

Protection class: II / 回

This appliance is protected by a 3-year guarantee from the day it is purchased. This appliance was produced with great care and tested before leaving our factory. If, however, you discover any defects or functioning faults, please return the device with the original packing together with the sales receipt to the service address listed for your country.

Damage resulting from unprofessional treatment or handling and wear parts are not covered by this guarantee.

Beaver Electronic Services · The Lodge, Premier Business Park Long Street, Walsall · West Midlands, WS2 9DY Tel.: [phone] · Fax: [phone]

IRL GUARANTEE

This appliance is protected by a 3-year guarantee from the day it is purchased. This appliance was produced with great care and tested before leaving our factory. If, however, you discover any defects or functioning faults, please return the device with the original packing together with the sales receipt to the service address listed for your country. Damage resulting from unprofessional treatment or handling and wear parts are not covered by this guarantee.

Irish Connection Ltd · 8 St Mary's Place · Howth, Co. Dublin Tel [phone] · Fax: [phone]
