Product Type	Battery-powered portable stereo amplifier
Brand	Roland
Model	Mobile Cube
Rated output power	2 × 2.5 W
Speakers	2 × 10 cm (4 inches)
Dimensions	280 (L) × 108 (D) × 177 (H) mm
Weight (with batteries)	2.5 kg
Power supply	6 LR6 (AA) batteries or PSB AC adapter (optional)
Power consumption	175 mA at 9 V DC
Battery life (alkaline)	Approximately 15 hours of continuous use
Microphone inputs	1 × 6.35 mm jack (MIC)
Instrument/keyboard/guitar inputs	2 × 6.35 mm jacks (L/MONO GUITAR, R) stereo
Auxiliary inputs	Stereo mini-jack and RCA Phono (AUX IN)
Headphone output	Stereo mini-jack (PHONES)
Controls	Volume (MIC and INSTRUMENT), type selector, CHORUS, CENTER CANCEL, TONE, DELAY/REVERB
Built-in effects	Spatial chorus, Delay, Stereo reverb
Sound types for electric guitar	Clean, Overdrive, Distortion
Center Cancel function	Removes centered sounds (vocals, solo) for karaoke or practice
Microphone stand mounting	Compatible 10 mm and 15 mm threading (adapter included for 15 mm)
Included accessories	Strap, 6 LR6 batteries, owner's manual
Available options	PSB-120/PSB-230EU/PSB-230UK/PSB-240A AC adapter

Frequently Asked Questions - MOBILE CUBE ROLAND

What types of batteries should I use in the Mobile Cube?

Use only LR6 (AA) zinc-carbon or alkaline batteries. Do not mix new and used batteries, or different types of batteries.

What is the battery life?

With alkaline batteries, battery life is approximately 15 hours of continuous use. This may vary depending on usage conditions.

Can I use the amplifier with an AC adapter?

Yes, a PSB series AC adapter (sold separately) can be connected to the DC IN jack. Use only an adapter from this series to avoid damage.

How to avoid feedback (howling) with the microphone?

To reduce feedback, change the microphone orientation, move it away from the speakers, or lower the volume set by the VOLUME knob on the MIC channel.

What sound types are available for an electric guitar?

The type selector on E-GUITAR offers three sounds: CLEAN (clean sound), OVERDRIVE (natural distortion), and DIST (stronger distortion).

How does the Center Cancel function work?

The CENTER CANCEL switch removes sounds at the center of the stereo source (vocals, guitar solo) on the AUX IN input. Ideal for karaoke or instrumental practice.

Can I connect headphones to the Mobile Cube?

Yes, plug stereo headphones into the PHONES jack. When headphones are plugged in, the speakers are automatically muted.

What effects are built into the amplifier?

The Mobile Cube offers a spatial CHORUS effect, DELAY (echo), and stereo REVERB. These effects apply to the MIC and KEYBOARD/INSTRUMENT/GUITAR channels.

Can I use a microphone stand with the Mobile Cube?

Yes, the Mobile Cube can be mounted on a microphone stand with a 10 mm or 15 mm thread. For a 15 mm stand, remove the adapter located under the unit. The total height should not exceed 125 cm, and the stand base must be at least 63 cm wide.

What to do if sound is distorted or cuts out at high volume?

This may occur when the battery charge is low. Replace the batteries or use the AC adapter. The power indicator dims when batteries are weak.

USER MANUAL MOBILE CUBE ROLAND

Thank you, and congratulations on your choice of the Roland MOBILE CUBE battery-powered stereo Amplifier.

Before using this unit, carefully read the sections entitled:

• USING THE UNIT SAFELY (p. 2–3)
• IMPORTANT NOTES (p. 4)

These sections provide important information concerning the proper operation of the unit.

Additionally, in order to feel assured that you have gained a good grasp of every feature provided by your new unit, Owner's manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.

Main Features

The MOBILE CUBE is a portable, compact, battery-powered multi-purpose stereo amp that's easy to use anywhere and anytime.

Easily portable stereo mobile amp with 5 W of output power

A compact stereo amp with two newly developed 10 cm (4 inch) speakers and 5 W (2.5 W + 2.5 W) of output power.

Since the MOBILE CUBE can operate for approximately fifteen hours on six AA alkaline batteries, you can use it anywhere.

A multi-purpose amp that accepts three types of input

• Dedicated microphone input
• Multi-purpose input for keyboard, recorder, or guitar
- AUX input for CD/ MP3 player or the audio output of your PC

By combining these three inputs, the MOBILE CUBE will meet the needs of a wide range of applications, including instrumental practice, outdoor performance, or even a simple PA system.

Internal effects processor provides reverb / delay and chorus

You can easily apply a high-quality effect with just a single knob or button. The chorus is of a stereo design that generates a spatially synthesized chorus effect, producing a spacious feel.

Center Cancel function lets you eliminate the vocal or guitar solo from the playback of a music CD

With a single button you can enjoy using a music CD or other audio source from the AUX IN input as a “minus-one” song for karaoke or practicing your instrument.

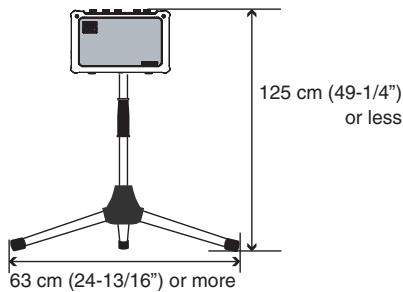

Can be attached to a microphone stand

You can mount the MOBILE CUBE on a commercially available microphone stand, and use it as a monitor or simple PA that can be placed just where you need it.

USING THE UNIT SAFELY

INSTRUCTIONS FOR THE PREVENTION OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS

About ⚠️ WARNING and ⚠️ CAUTION Notices

	Used for instructions intended to alert the user to the risk of death or severe injury should the unit be used improperly.
	Used for instructions intended to alert the user to the risk of injury or material damage should the unit be used improperly.* Material damage refers to damage or other adverse effects caused with respect to the home and all its furnishings, as well to domestic animals or pets.

About the Symbols

Symbol	The △ symbol alerts the user to important instructions or warnings. The specific meaning of the symbol is determined by the design contained within the triangle. In the case of the symbol at left, it is used for general cautions, warnings, or alerts to danger.
Cable	The ⊗ symbol alerts the user to items that must never be carried out (are forbidden). The specific thing that must not be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the unit must never be disassembled.
FUT2	The ● symbol alerts the user to things that must be carried out. The specific thing that must be done is indicated by the design contained within the circle. In the case of the symbol at left, it means that the power-cord plug must be unplugged from the outlet.

ALWAYS OBSERVE THE FOLLOWING

! WARNING

- Do not open (or modify in any way) the unit or its AC adaptor.

- Do not attempt to repair the unit, or replace parts within it (except when this manual provides specific instructions directing you to do so). Refer all servicing to your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the "Information" page.

- Never use or store the unit in places that are:

• Subject to temperature extremes (e.g., direct sunlight in an enclosed vehicle, near a heating duct, on top of heat-generating equipment); or are
• Damp (e.g., baths, washrooms, on wet floors); or are
• Humid; or are
• Exposed to rain; or are
• Dusty; or are
• Subject to high levels of vibration.

- Make sure you always have the unit placed so it is level and sure to remain stable. Never place it on stands that could wobble, or on inclined surfaces.

- Use only the specified AC adaptor, and make sure the line voltage at the installation matches the input voltage specified on the AC adaptor's body. Other AC adaptors may use a different polarity, or be designed for a different voltage, so their use could result in damage, malfunction, or electric shock.

! WARNING

- Use only the attached power-supply cord. Also, the supplied power cord must not be used with any other device.

- Do not excessively twist or bend the power cord, nor place heavy objects on it. Doing so can damage the cord, producing severed elements and short circuits. Damaged cords are fire and shock hazards!

- This unit, either alone or in combination with an amplifier and headphones or speakers, may be capable of producing sound levels that could cause permanent hearing loss. Do not operate for a long period of time at a high volume level, or at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should immediately stop using the unit, and consult an audiologist.

- Do not allow any objects (e.g., flammable material, coins, pins); or liquids of any kind (water, soft drinks, etc.) to penetrate the unit.

- In households with small children, an adult should provide supervision until the child is capable of following all the rules essential for the safe operation of the unit.

- Protect the unit from strong impact. (Do not drop it!)

- Never expose battery to excessive heat such as sunshine, fire or the like.

WARNING

- Immediately turn the power off, remove the AC adaptor from the outlet, and request servicing by your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the “Information” page when:

• The AC adaptor, the power-supply cord, or the plug has been damaged; or
  • If smoke or unusual odor occurs
• Objects have fallen into, or liquid has been spilled onto the unit; or
• The unit has been exposed to rain (or otherwise has become wet); or
• The unit does not appear to operate normally or exhibits a marked change in performance.

- Do not force the unit's power-supply cord to share an outlet with an unreasonable number of other devices. Be especially careful when using extension cords—the total power used by all devices you have connected to the extension cord's outlet must never exceed the power rating (watts/amperes) for the extension cord. Excessive loads can cause the insulation on the cord to heat up and eventually melt through.

- Before using the unit in a foreign country, consult with your retailer, the nearest Roland Service Center, or an authorized Roland distributor, as listed on the “Information” page.

- Batteries must never be recharged, heated, taken apart, or thrown into fire or water.

CAUTION

- The unit and the AC adaptor should be located so their location or position does not interfere with their proper ventilation.

- Always grasp only the plug on the AC adaptor cord when plugging into, or unplugging from, an outlet or this unit.

- Whenever you suspect the possibility of lightning in your area, disconnect the AC adaptor from the outlet.

- Before cleaning the unit, turn off the power and unplug the AC adaptor from the outlet (p. 10).

- Never climb on top of, nor place heavy objects on the unit.

CAUTION

- At regular intervals, you should unplug the AC adaptor and clean it by using a dry cloth to wipe all dust and other accumulations away from its prongs. Also, disconnect the power plug from the power outlet whenever the unit is to remain unused for an extended period of time. Any accumulation of dust between the power plug and the power outlet can result in poor insulation and lead to fire.

- Try to prevent cords and cables from becoming entangled. Also, all cords and cables should be placed so they are out of the reach of children.

- Never handle the AC adaptor or its plugs with wet hands when plugging into, or unplugging from, an outlet or this unit.

- Before moving the unit, disconnect the AC adaptor and all cords coming from external devices.

- If used improperly, batteries may explode or leak and cause damage or injury. In the interest of safety, please read and observe the following precautions (p. 5).

• Carefully follow the installation instructions for batteries, and make sure you observe the correct polarity.
• Avoid using new batteries together with used ones. In addition, avoid mixing different types of batteries.
• Remove the batteries whenever the unit is to remain unused for an extended period of time.
• If a battery has leaked, use a soft piece of cloth or paper towel to wipe all remnants of the discharge from the battery compartment. Then install new batteries. To avoid inflammation of the skin, make sure that none of the battery discharge gets onto your hands or skin. Exercise the utmost caution so that none of the discharge gets near your eyes. Immediately rinse the affected area with running water if any of the discharge has entered the eyes.
• Never keep batteries together with metallic objects such as ballpoint pens, necklaces, hairpins, etc.

- Used batteries must be disposed of in compliance with whatever regulations for their safe disposal that may be observed in the region in which you live.

- Should you remove screw, keep them in a safe place out of children's reach, so there is no chance of them being swallowed accidentally.

IMPORTANT NOTES

Power Supply: Use of Batteries

• When installing or replacing batteries, always turn off the power on this unit and disconnect any other devices you may have connected. This way, you can prevent malfunction and/or damage to speakers or other devices.
• Batteries are supplied with the unit. The life of these batteries may be limited, however, since their primary purpose was to enable testing.
• Before connecting this unit to other devices, turn off the power to all units. This will help prevent malfunctions and/or damage to speakers or other devices.
• The AC adaptor will begin to generate heat after long hours of consecutive use. This is normal, and is not a cause for concern.
• Do not connect this unit to same electrical outlet that is being used by an electrical appliance that is controlled by an inverter (such as a refrigerator, washing machine, microwave oven, or air conditioner), or that contains a motor. Depending on the way in which the electrical appliance is used, power supply noise may cause this unit to malfunction or may produce audible noise. If it is not practical to use a separate electrical outlet, connect a power supply noise filter between this unit and the electrical outlet.
• The use of an AC adaptor is recommended as the unit's power consumption is relatively high. Should you prefer to use batteries, please use the alkaline type.

Placement

• Using the unit near power amplifiers (or other equipment containing large power transformers) may induce hum. To alleviate the problem, change the orientation of this unit; or move it farther away from the source of interference.
• This device may interfere with radio and television reception. Do not use this device in the vicinity of such receivers.
• Noise may be produced if wireless communications devices, such as cell phones, are operated in the vicinity of this unit. Such noise could occur when receiving or initiating a call, or while conversing. Should you experience such problems, you should relocate such wireless devices so they are at a greater distance from this unit, or switch them off.

• Do not expose the unit to direct sunlight, place it near devices that radiate heat, leave it inside an enclosed vehicle, or otherwise subject it to temperature extremes. Excessive heat can deform or discolor the unit.

• When moved from one location to another where the temperature and/or humidity is very different, water droplets (condensation) may form inside the unit. Damage or malfunction may result if you attempt to use the unit in this condition. Therefore, before using the unit, you must allow it to stand for several hours, until the condensation has completely evaporated.

• Depending on the material and temperature of the surface on which you place the unit, its rubber feet may discolor or mar the surface. You can place a piece of felt or cloth under the rubber feet to prevent this from happening. If you do so, please make sure that the unit will not slip or move accidentally.

Maintenance

• For everyday cleaning wipe the unit with a soft, dry cloth or one that has been slightly dampened with water. To remove stubborn dirt, use a cloth impregnated with a mild, non-abrasive detergent. Afterwards, be sure to wipe the unit thoroughly with a soft, dry cloth.
• Never use benzine, thinners, alcohol or solvents of any kind, to avoid the possibility of discoloration and/or deformation.

Additional Precautions

• Use a reasonable amount of care when using the unit's buttons, sliders, or other controls; and when using its jacks and connectors. Rough handling can lead to malfunctions.
• When connecting / disconnecting all cables, grasp the connector itself—never pull on the cable. This way you will avoid causing shorts, or damage to the cable's internal elements.
• To avoid disturbing your neighbors, try to keep the unit's volume at reasonable levels. You may prefer to use headphones, so you do not need to be concerned about those around you (especially when it is late at night).
• When you need to transport the unit, package it in the box (including padding) that it came in, if possible. Otherwise, you will need to use equivalent packaging materials.
• Some connection cables contain resistors. Do not use cables that incorporate resistors for connecting to this unit. The use of such cables can cause the sound level to be extremely low, or impossible to hear. For information on cable specifications, contact the manufacturer of the cable.

Getting ready to use

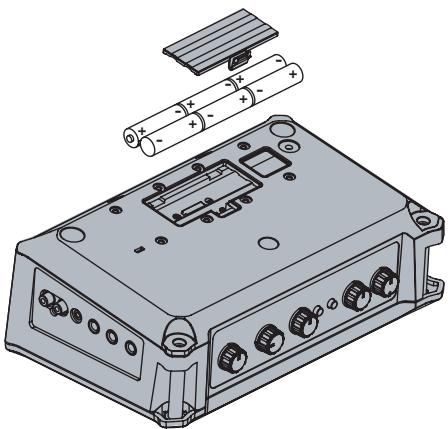

Inserting Batteries

The MOBILE CUBE can also be powered with six AA batteries. Insert the batteries as shown in the figure, making sure that the batteries are oriented correctly.

* Use only manganese or alkaline batteries.
* When closing the lid of the battery compartment, first insert the catches on the lid into the matching cavities, then push the lid down firmly until you hear a click

Technical illustration of an electronic device with exploded view showing internal components and battery pack (no text or symbols)

Using Batteries

Please note the following points.

* If there are batteries in the unit while an AC adaptor is being used, normal operation will continue should the line voltage be interrupted (power cord disconnection).
* When installing or replacing batteries, always turn off the power on this unit and disconnect any other devices you may have connected. This way, you can prevent malfunction and/or damage to speakers or other devices.
* Expected battery life under continuous use: Alkaline: approx. 15 hours This figure will vary depending on the actual conditions of use.
* When operating on battery power only, the unit's indicator will become dim when battery power gets too low. Replace the battery as soon as possible.
* Avoid using new batteries together with used ones. In addition, avoid mixing different types of batteries.

Using the AC Adaptor (Option)

Refet to "Connecting the AC adaptor"(p. 9).

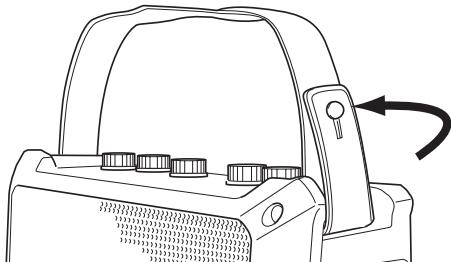

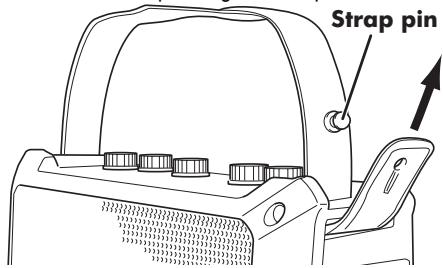

Attaching the Strap

1. Pass the strap through the strap holder.

1. Secure the strap to the strap pin.

Technical line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols present)

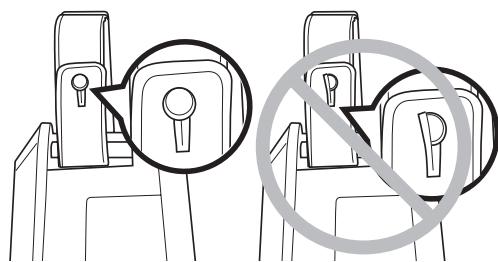

Attach the strap securely so that it does not easily become detached. If the strap is loose, and you use it that way when carrying the MOBILE CUBE, the amp could be dropped, possibly resulting in damage or injury.

Diagram showing two views of a device with a lock and a prohibition symbol (no text or labels)

Use only the provided strap.

The included strap is meant for exclusive use with the MOBILE CUBE. Do not use this strap for other products.

* Do not spin or swing the MOBILE CUBE while holding it by the strap. This is extremely dangerous, as it may cause the strap to become detached; or, if the motion is repeated enough, may even break the strap.

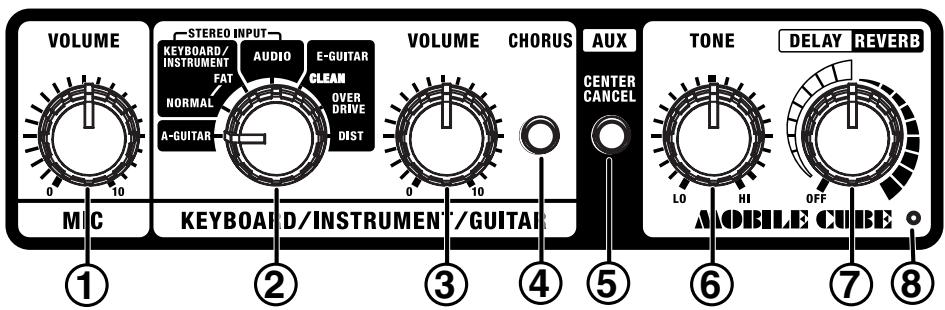

Control panel

MIC

This is a dedicated microphone input. It can be used simultaneously with KEYBOARD/ INSTRUMENT/ GUITAR and AUX.

1. VOLUME Knob

Adjusts the microphones volume.

* Howling could be produced depending on the location of microphones relative to speakers. This can be remedied by:

1. Changing the orientation of the microphone(s).
2. Relocating microphone(s) at a greater distance from speakers.
3. Lowering volume levels.

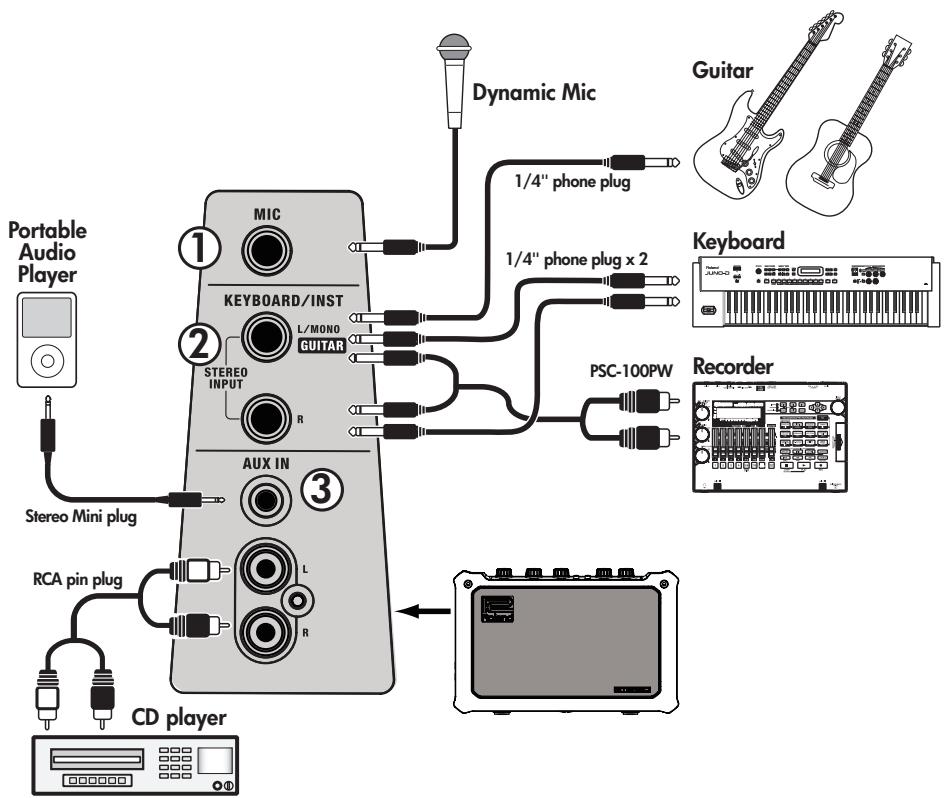

KEYBOARD/INSTRUMENT/GUITAR

This accommodates any type of input, including a keyboard or other electronic musical instrument, a recorder or audio device, or an acoustic guitar or electric guitar.

2. Type Switch

Set this to the type of device that you've connected to the KEYBOARD/ INST jack.

A-GUITAR

Select this if you've connected an acoustic guitar that has a pickup

Use the L/ MONO GUITAR jack to make connections. The R jack cannot be used.

KEYBOARD/INSTRUMENT

(stereo input is supported)

Select this if you've connected an instrument such as a keyboard or a guitar multi-effects device. You can choose either a NORMAL or FAT tone.

NORMAL

This provides flat tonal response.

FAT

This provides a powerful tone with boosted midrange.

AUDIO (stereo input is supported)

Select this if you've connected an audio device, a recorder, or a mixer. This is ideal for monitoring the mixed sound.

E-GUITAR

Select this if you've connected an electric guitar. Three types of sound are available: CLEAN, OVERDRIVE, and DIST (distortion). Use the L/ MONO GUITAR jack to make the connection. The R jack cannot be used.

CLEAN

This provides a bright, clear sound.

OVERDRIVE

Natural distortion sound similar to that obtained by turning an amp's volume up completely.

DIST (DISTORTION)

Harder distortion than OVERDRIVE.

3. VOLUME Knob

This adjusts the volume of the device connected to the Keyboard/Instrument/Guitar input jack(s).

4. CHORUS Switch

Pressing the CHORUS switch will turn on the chorus effect.

The MOBILE CUBE's chorus effect is a spatially synthesized chorus that takes advantage of stereo playback to generate an expansive sensation.

What's spatially synthesized chorus

With spatially synthesized chorus, a method available only in stereo, the chorus effect is created by taking the sound from the right speaker (from which the effect sound is output), and the sound from the left speaker (which outputs the direct sound), and then mixing them in the actual space. This creates a greater lateral spread than that produced when the sounds are mixed electronically, providing a more natural sense of breadth.

AUX

5. CENTER CANCEL Switch

Pressing the CENTER CANCEL switch will eliminate sounds (such as vocals or guitar solos) located in the center of the stereo source from the music CD or other device connected to AUX IN. This is convenient when you want to use the source for karaoke or for guitar practice.

* For some stereo sources, it may not be possible to obtain a sufficient cancellation effect.

TONE and DELAY/REVERB

* The effect applies only to the device connected to MIC and to the KEYBOARD/INSTRUMENT/GUITAR input jacks.

6. TONE Knob

This adjusts the tone. Turn the knob clockwise for a brighter tone; to get a milder tone, turn the knob counterclockwise.

7. DELAY/REVERB Knob

Turn this knob to DELAY or REVERB to switch to that effect. Turn the knob to adjust the amount of effect applied.

DELAY

Turn the knob to change the time and amount of delay effects.

What's DELAY

A delay is a little bit like an echo, and by repeating the original sound after it is played, this effect can add a sense of spaciousness and depth to the sound. In addition, when this effect is applied to instruments that play melodies, it can make their performance sound smoother or can add an extra bounce to their rhythm.

REVERB (Stereo REVERB)

Spacious-sounding stereo reverb is provided. Turn the knob to adjust the reverb level.

What's REVERB

By adding reverberation to a sound, this effect imbues the sound with a sense of spaciousness and depth.

8. Power Indicator

This indicator lights when the unit is turned on.

* When operating on battery power only, the unit's indicator will become dim during play when battery power gets too low.
* Sounds may distort easily or may cut off when played at high volume as the battery power begins to fade, but this is normal and does not indicate a malfunction. In such instances, either replace the batteries or use the AC adaptor (sold separately).

Side Panel (Left)

1. MIC (Microphone input Jack)

Connect your microphone here.

2. KEYBOARD/INST (Keyboard / Instrument / Guitar Jack)

Connect your electronic musical instrument, guitar, recorder, or audio device to these jacks. Stereo input is supported.

* When connection cables with resistors are used, the volume level of equipment connected to the inputs may be low. If this happens, use connection cables that do not contain resistors.

3. AUX IN (External Input Jacks)

Connect your portable audio player or similar device to these jacks.

Either stereo mini-plug or RCA phono connection is supported.

* To adjust the volume, use the controls of the connected device.

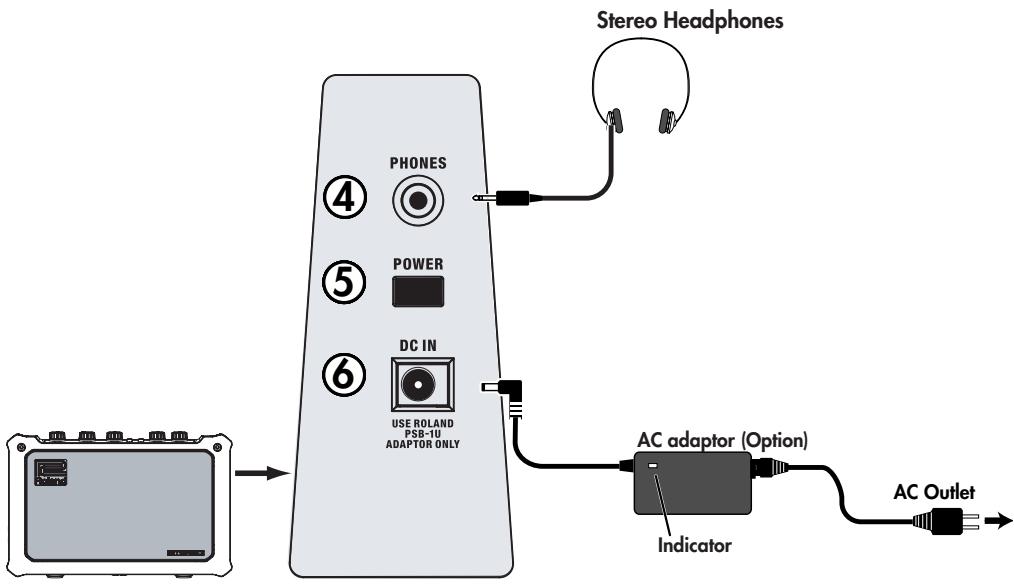

Side Panel (Right)

4. PHONES (Stereo headphones Jack)

Connect stereo headphones to this jack. It supports stereo output.

* No sound is played through the unit's speaker while the PHONES jack is in use.

5. POWER (POWER Switch)

Turns the power on and off.

* This unit is equipped with a protection circuit. A brief interval (a few seconds) after power up is required before the unit will operate normally.
* Even with the volume all the way down, you may still hear some sound when the power is switched on, but this is normal, and does not indicate a malfunction.
* Depending on the knob settings, the volume at first may be too high when the power is turned on. Always be sure to turn down the volume before switching on the power.

6. DC IN (AC Adaptor Jack)

Connect the included AC adopter to this jack. Connecting the AC adaptor

* Use only the PSB-series AC adaptor. Use of other AC adaptors may damage the amp or result in other problems.
* Place the AC adaptor so the side with the indicator (see illustration) faces upwards and the side with textual information faces downwards. The indicator will light when you plug the AC adaptor into an AC outlet.

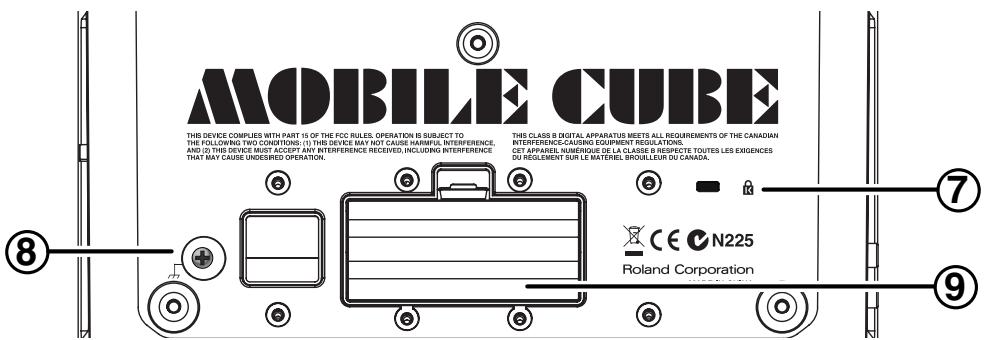

Rear Panel

7. Security Slot (K)

http://www.kensington.com/

8. Grounding terminal

Depending on the circumstances of a particular setup, you may experience a discomforting sensation, or perceive that the surface feels gritty to the touch when you touch this device, microphones connected to it, or the metal portions of other objects, such as guitars. This is due to an infinitesimal electrical charge, which is absolutely harmless. However, if you are concerned about this, connect the ground terminal (see figure) with an external ground. When the unit is grounded, a slight hum may occur, depending on the particulars of your installation. If you are unsure of the connection method, contact the nearest Roland Service Center, or an authorized

Roland distributor, as listed on the "Information" page.

Unsuitable places for connection

• Water pipes (may result in shock or electrocution)
  • Gas pipes (may result in fire or explosion)
• Telephone-line ground or lightning rod (may be dangerous in the event of lightning)

* Due to interference from external devices or the power outlet to which you're connected, a noticeable amount of noise may be emitted from this unit. Connecting the ground terminal with an external ground can reduce such noise.

9. Battery Compartment

Insert six AA batteries. Refet to "Inserting Batteries"(p. 5).

* Use only manganese or alkaline batteries (LR6). You cannot use any other type of battery. The use of alkaline batteries are recommended as the unit's power consumption is relatively high.

Switching the Power On and Off

* Once the connections have been completed, turn on power to your various devices in the order specified. By turning on devices in the wrong order, you risk causing malfunction and/or damage to speakers and other devices.

1. Make sure that all volume controls on the MOBILE CUBE and connected devices are set to 0.

2. Turn on all the devices connected to the MOBILE CUBE's INPUT and AUX IN jacks.

3. Turn on the MOBILE CUBE.

4. Make sure that all volume controls on the MOBILE CUBE and connected devices are set to 0.

5. Turn on all the devices connected to the MOBILE CUBE's INPUT and AUX IN jacks.

6. Turn on the MOBILE CUBE.

7. Adjust the volume levels for the devices.

8. Before switching off the power, lower the volume on each of the devices in your system and then TURN OFF the devices in the reverse order to which they were switched on.
   * To prevent malfunction and/or damage to speakers or other devices, always turn down the volume, and turn off the power on all devices before making any connections.

Using a Microphone Stand

By using a microphone stand, you can mount the MOBILE CUBE at the optimal height for use as a monitor speaker or simple PA device. The microphone stand holder supports a diameter of either 3/8 inch or 5/8 inch. If you're using the MOBILE CUBE with a 5/8 inch microphone stand, remove the microphone stand adaptor from the bottom of the unit.

* If you're not using a microphone stand, be sure to attach the microphone stand adaptor to prevent leakage of sound (air).
* When turning the unit upside-down, get a bunch of newspapers or magazines, and place them under the four corners or at both ends to prevent damage to the buttons and controls. Also, you should try to orient the unit so no buttons or controls get damaged.
* When turning the unit upside-down, handle with care to avoid dropping it, or allowing it to fall or tip over.

Requirements when using a microphone stand

As shown in the illustration below, you must use a microphone stand that will be no higher than 125 cm (including the MOBILE CUBE), and whose legs can be opened to a maximum width of 63 cm or more.

* Using a microphone stand that does not meet the specifications above may result in damage to equipment or injury due to the stand tipping over.
* When using MOBILE CUBE with a microphone stand, the microphone stand must be carefully placed so it is level and sure to remain stable.
* Cables connected to MOBILE CUBE should be given enough slack to prevent accidents that might result from someone tripping over them.
* To prevent accidents due to falls, do not place any object on the MOBILE CUBE when it's mounted on a microphone stand.
* After attaching the MOBILE CUBE to the microphone stand, check to make sure that it is stable before you use it.

Main Specifications

MOBILE-CUBE:

BATTERY POWERED STEREO AMPLIFIER

● Rated Power Output

2.5 W + 2.5 W

● Nominal Input Level (1 kHz)

MIC Channel: -50 dBu

KEYBORAD/ INSTRUMENT/ GUITAR

Channel: -10 dBu

AUX IN: -10 dBu

- Speakers

10 cm (4 inches) x 2

Controls

POWER Switch

TONE Knob

DELAY/REVERB Knob

MIC Channel

• VOLUME Knob

KEYBORAD/INSTRUMENT/GUITAR Channel

• TYPE Switch
  • VOLUME Knob
• CHORUS Switch

Aux

- Center CANCEL Switch

- Indicator

Power

- Connectors

MIC Channel

- Input Jacks (1/4" phone type)

KEYBOARD/INSTRUMENT/GUITAR Channel

• Input Jack L/MONO, GUITAR (1/4" phone type)
• Input Jack R (1/4" phone type)

OTHERS

• AUX IN Jacks (Stereo miniature phone type, RCA phono type)
  • PHONES Jack (Stereo miniature phone type)
  • DC IN (AC Adaptor Jack)

● Power Supply

DC 9 V: Dry Battery (LR6 (AA) type) x 6 or AC Adaptor (optional)

● Current Draw

175 mA (DC9V)

- Dimensions

● Weight (including Battery)

2.5 kg

5 lbs 9 oz

- Accessories

Strap

Dry Battery (LR6 (AA) type) x 6

Owner's Manual

- Options

AC Adaptor

(PSB-120/PSB-230EU/PSB-230UK/PSB-240A)

* 0 dBu = 0.775 Vrms
* In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.

Technical illustration of an electronic device with exploded view showing battery pack and internal components (no text or symbols)

Technical line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols present)

Technical illustration of a mechanical device with a magnified inset showing a key inserted into a housing (no text or symbols present)

Technical illustration of an electronic device casing with internal components and battery pack (no text or symbols)

Technical line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols present)

Diagram showing two views of a device with a lock and a prohibition symbol (no text or labels)

Technical illustration of an electronic device with exploded view showing internal components and battery pack (no text or symbols)

Technical line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical device with two magnified views showing internal components (no text or symbols)

11-1/16 (L) x 4-1/4 (P) x 7 (A) pollici

Technical illustration of an electronic device with exploded view showing internal components and battery pack (no text or symbols)

Technical line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols present)

Diagram showing two views of a device with a lock and a prohibition symbol (no text or labels)

Utilice exclusivamente la correa suministrada.

Technical illustration of an electronic device with labeled ports and components (no text or symbols)

Usando as pilhas

Technical line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols present)

Diagram showing two views of a backpack with a magnified inset highlighting the lock mechanism (no text or symbols present)

Technical line drawing of a device casing with a mounted sensor or probe inserted (no text or symbols)

Technical illustration of an electronic device with exploded view showing internal components and battery pack (no text or symbols)

Technical line drawing of a mechanical clamp or bracket with a curved arrow indicating rotation (no text or symbols present)

IMPORTANT: THE WIRES IN THIS MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE.

BLUE: NEUTRAL

BROWN: LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

Under no circumstances must either of the above wires be connected to the earth terminal of a three pin plug.

For EU Countries

This product complies with the requirements of EMC Directive 2004/108/EC.

For the USA

FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Unauthorized changes or modification to this system can void the users authority to operate this equipment.

This equipment requires shielded interface cables in order to meet FCC class B Limit.

For Canada

NOTICE

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

AVIS

This symbol indicates that in EU countries, this product must be collected separately from household waste, as defined in each region. Products bearing this symbol must not be discarded together with household waste.

Al Fanny Trading Office 9, EBN Hagar Al Askalany Street, ARD E1 Golf, Heliopolis, Cairo 11341, EGYPT TEL: [phone]

REUNION

Maison FO - YAM Marcel 25 Rue Jules Hermann, Chaudron - BP79 97 491 Ste Clotilde Cedex, REUNION ISLAND TEL: [phone]

SOUTH AFRICA

T.O.M.S. Sound & Music (Pty)Ltd. 2 ASTRON ROAD DEN JOHANNESBURG ZA 2 SOUTH AFRICA TEL: [phone]

Paul Bothner(PTY)Ltd. Royal Cape Park, Unit 24 Londonderry Road, Ottery 7800 Cape Town, SOUTH AFRICA TEL: [phone]

ASIA

CHINA

Roland Shanghai Electronics Co., Ltd. 5F. No.1500 Pingliang Road Shanghai 200090, CHINA TEL: [phone]

Roland Shanghai Electronics Co., Ltd. (BEIJING OFFICE) 10F. No.18 3 Section Anhuaxil Chaoyang District Beijing 100011 CHINA TEL: [phone]

HONG KONG

Tom Lee Music Co., Ltd. Service Division 22-32 Pun Shan Street, Ts Wan, New Territories, HONG KONG TEL: [phone]

Parsons Music Ltd. 8th Floor, Railway Plaza, 39 Chatham Road South, T.S.T, Kowloon, HONG KONG TEL: [phone]

INDIA

Rivera Digitec (India) Pvt. Ltd. 411, Nirman Kendra Mahalaxmi Flats Compound Off. Dr. Edwin Moses Road, Mumbai-400011, INDIA TEL: [phone]

INDONESIA

PT Citra IntiRama Jl. Cideng Timur No. 15J-15O Jakarta Pusat INDONESIA TEL: [phone]

KOREA

Cosmos Corporation 1461-9, Seocho-Dong, Seocho Ku, Seoul, KOREA TEL: [phone]

MALAYSIA

Roland Asia Pacific Sdn. Bhd. 45-1, Block C2, Jalan PJU 1/39, Dataran Prima, 47301 Petaling Jaya, Selangor, MALAYSIA TEL: [phone]

VIET NAM

Suoi Nhac Company, Ltd 370 Cach Mang Thang Tam St. Dist.3, Ho Chi Minh City, VIET NAM TEL: [phone]

PHILIPPINES

G.A. Yupangco & Co. Inc. 339 Gil J. Puyat Avenue Makati, Metro Manila 1200, PHILIPPINES TEL: [phone]

SINGAPORE

SWEE LEE MUSIC

COMPANY PTE. LTD.

150 Sims Drive,

SINGAPORE 387381

TEL: [phone]

TAIWAN

ROLAND TAIWAN

ENTERPRISE CO., LTD. Room 5, 9fl. No. 112 Chung Shan N.Road Sec.2, Taipei, TAIWAN, R.O.C. TEL: [phone]

THAILAND

Theera Music Co., Ltd. 100-108 Soi Verng Nakornkasem, New Road,Sumpantawongse, Bangkok 10100 THAILAND

TEL: [phone]

AUSTRALIA/ NEW ZEALAND

AUSTRALIA/

NEW ZEALAND

Roland Corporation

Australia Pty., Ltd.

38 Campbell Avenue Dee Why West. NSW 2099 AUSTRALIA

For Australia Tel: [phone] For New Zealand Tel: [phone]

CENTRAL/LATIN AMERICA

ARGENTINA

Instrumentos Musicales S.A. Av.Santa Fe 2055 (1123) Buenos Aires ARGENTINA TEL: [phone]

BARBADOS

A&B Music Supplies LTD 12 Webster Industrial Park Wildey, St.Michael, Barbados TEL: [phone]

BRAZIL

Roland Brasil Ltda. Rua San Jose, 780 Sala B Parque Industrial San Jose Cotia - Sao Paulo - SP, BRAZIL TEL: [phone]

CHILE

Comercial Fancy II S.A. Rut.: 96.919.420-1 Nataniel Cox #739, 4th Floor Santiago - Centro, CHILE TEL: [phone]

COLOMBIA

Centro Musical Ltda. Cra 43 B No 25 A 41 Bododega 9 Medellin, Colombia TEL: [phone]

COSTA RICA

JUAN Bansbach Instrumentos Musicales Ave.1. Calle 11, Apartado 10237, San Jose, COSTA RICA TEL: [phone]

CURACAO

Zeelandia Music Center Inc. Orionweg 30 Curacao, Netherland Antilles TEL:[phone]

DOMINICAN REPUBLIC

Instrumentos Fernando Giraldez Calle Proyecto Central No.3 Ens.La Esperilla Santo Domingo, Dominican Republic TEL:[phone]

ECUADOR

Mas Musika Rumichaca 822 y Zaruma Guayaquil - Ecuador TEL:[phone]

EL SALVADOR

OMNI MUSIC 75 Avenida Norte y Final Alameda Juan Pablo II, Edificio No.4010 San Salvador, EL SALVADOR TEL: [phone]

GUATEMALA

Casa Instrumental Calzada Roosevelt 34-01, zona 11 Ciudad de Guatemala Guatemala TEL:[phone]

HONDURAS

Almacen Pajaro Azul S.A. de C.V. BO.Paz Barahona 3 Ave.11 Calle S.O San Pedro Sula, Honduras TEL: [phone]

MARTINIQUE

Roland Ireland G2 Calmount Park, Calmount Avenue, Dublin 12 Republic of IRELAND TEL: [phone]

ITALY

Roland Italy S. p. A. Viale delle Industrie 8, 20020 Arese, Milano, ITALY TEL: [phone]

NORWAY

Roland Scandinavia Avd. Kontor Norge Lilleakerveien 2 Postboks 95 Lilleaker N-0216 Oslo NORWAY TEL: [phone]

POLAND

ROLAND POLSKA SP. Z O.O. UL. Gibraltar 4. PL-03 664 Warszawa POLAND TEL: [phone]

PORTUGAL

Roland Iberia, S.L. Portugal Office Cais das Pedras, 8/9-1 Dto 4050-465, Porto, PORTUGAL TEL: [phone] ROMANIA FBS LINES Piata Libertatii 1, 535500 Gheorgheni, ROMANIA TEL: [phone]

RUSSIA

MuTek Dorozhnaya ul.3,korp.6 117 545 Moscow, RUSSIA TEL: [phone]

SLOVAKIA

MOCO INC. No.41 Nike St., Dr.Shariyati Ave., Roberoye Cerahe Mirdamad Tehran, IRAN TEL: [phone]

ISRAEL

Halilit P. Greenspoon & Sons Ltd. 8 Retzif Ha'alia Hashnia St. Tel-Aviv-Yafo ISRAEL TEL: [phone]

JORDAN

Technical Light & Sound Center

Rawda, Abdul Qader Jazairi St. Bldg. No. 21, P.O.BOX 13520, Damascus, SYRIA TEL: [phone]

TURKEY

ZUHAL DIS TICARET A.S. Galip Dede Cad. No.37 Beyoglu - Istanbul / TURKEY TEL: [phone]

U.A.E.

Zak Electronics & Musical Instruments Co. L.L.C. Zabeel Road, Al Sherooq Bldg., No. 14, Ground Floor, Dubai, U.A.E. TEL: [phone]

NORTH AMERICA

CANADA

Roland Canada Ltd.

(Head Office)

5480 Parkwood Way Richmond B. C., V6V 2M4 CANADA

TEL: [phone]

Roland Canada Ltd.

(Toronto Office)

170 Admiral Boulevard

Mississauga On L5T 2N6 CANADA

CANADA TEL: [phone]

U. S. A.

Roland Corporation U.S. 5100 S. Eastern Avenue Los Angeles, CA 90040-2938, U.S.A.

TEL: [phone]
