USER MANUAL BD 2422 S/HA HOTPOINT

Instructions for use

(Model information)

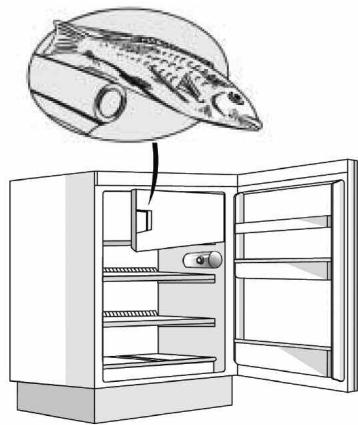

The compartment with zero temperature Activ0 is designed specifically for checking low temperatures and proper humidity for longer storage of products (e.g., meat, fish, fruits and vegetables).

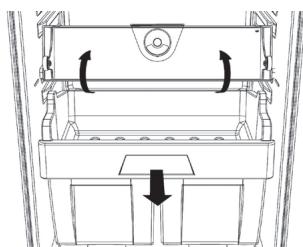

To remove the compartment with zero temperature,

follow these steps:

- To facilitate cleaning, we recommend emptying (if possible) the lower drawer; - Switch off the compartment; - Remove the compartment by turning it upwards; - Take out the white plastic shelf under the compartment;

Note: The top shelf and side holders are removable.

To use the compartment with zero temperature again, carefully insert the white plastic shelf under the compartment, then insert the drawer and activate the function. To increase the volume of the refrigerator compartment and reduce energy consumption, it is recommended to switch off the compartment with zero temperature and remove it.

From time to time, clean the compartment and its parts with a cloth soaked in warm water (do not immerse the white shelf or drawer in water) with a neutral detergent intended for cleaning refrigerators. Do not use abrasive cleaners.

Before cleaning the compartment (even from the outside), it is necessary to remove the drawer and disconnect the electrical supply to the compartment.

Technical assistance of service centers

Before contacting a service center:

Switch the appliance back on to check if the fault is resolved. If not, switch it off again and repeat the procedure after an hour.

If after checking according to the troubleshooting table and switching on the appliance it still does not function correctly, contact a service center and clearly describe the problem, specifying:

The fault; Model;

Serial number of the device (indicated on the nameplate inside the device); - service number (if available) (number after the word SERVICE on the nameplate inside the device).

SERVICE

0000 000 0000

Note:

Re-hanging the door, performed by a service center representative, is not considered warranty service.

ANFAI PET PAIДАЛAHY

Smoking hazard warning.

Electric shock hazard. Do not touch with wet hands.

Expert: If the smoking compartment is not cleaned, the temperature of the smoking compartment may rise and cause a fire hazard.

SMOKING COMPARTMENT MAINTENANCE

AND CLEANING

Clean the smoking compartment with a damp cloth and mild detergent. Do not use abrasive cleaners. To prevent water from entering the appliance, do not use excessive water.

Before cleaning, unplug the appliance and let it cool down.

Do not immerse the appliance in water (see figure).

Before cleaning, unplug the appliance from the power outlet and let it cool down.

Lamp type: HPM (mercury vapor lamp)

Before replacing the lamp, turn off the power and wait for the lamp to cool down. Do not touch the lamp with bare hands, as oils from the skin can damage it. The lamp should only be replaced by qualified personnel during maintenance and repair operations.

1st type)

To replace the lamp, first remove it from the socket, then wait at least 5 minutes for it to cool down before handling.

• Lamp power (max. 25W)

Lamp type

Mercury vapor

• High-pressure mercury vapor lamp (for single lamps) only for qualified maintenance personnel

High-pressure mercury vapor lamp

2nd type)

If the high-pressure mercury vapor lamps need to be replaced, contact qualified maintenance personnel.

High-pressure mercury vapor lamps are used in the lamp fixtures, providing bright light and long service life.

LAMP REPLACEMENT PROCEDURE

Turn off the power, wait for the lamp to cool down, then remove the old lamp and install the new one. Ensure the lamp is securely seated. Do not touch the glass envelope of the new lamp with bare hands; use a clean cloth or gloves.

WHEN REPLACING THE LAMP

The device is designed to operate with the specified containers. Do not use containers that are not intended for this purpose. If the device is used with other containers, it may be necessary to use an adapter (available as an accessory).

Cleaning and maintenance

Clean the device and containers after each use.

The device can be cleaned in the dishwasher.

Any remaining liquid in the container should be removed before cleaning. Rinse the container with water and then clean it in the dishwasher.

The device can be cleaned with a mild detergent, which is safe for food contact surfaces.

Warning: Do not immerse the device in water.

Warning: The temperature of the device, the temperature of the liquid, and the ambient temperature can affect the temperature of the device. Place the device away from heat sources.

Warning: In case of malfunction, the device may produce condensation. In such cases, dry the device and containers with a soft cloth, and allow the device to dry completely before storing.

Descaling (for models with a boiler)

To descale, remove the water tank and empty it. To descale the boiler, you can use a descaling solution (available as an accessory) or a mixture of water and vinegar.

Use only food-safe descaling agents.

(for models with a boiler)

To descale the boiler, follow the instructions in the manual. Do not use abrasive cleaners. If the descaling solution is not available, you can use a mixture of water and vinegar.

Cleaning and maintenance

The device can be used without a grounding conductor (grounded terminal) if it is not possible to ground it. Within 24 hours, the grounding conductor must be connected to the grounding terminal. To provide the possibility of grounding the device, the grounding terminal is located on the rear panel. The grounding conductor must be connected before use. To avoid electric shock, do not touch the grounding conductor.

Making connections

From the mains (junction box) take 2/3 of the wire length and connect it to the grounding terminal. To remove the wire, press the clamp or pull the wires out. Removing the cover (rear panel)

Remove the screws on the rear panel, then take off the cover. To make it easier to connect the wires, the grounding terminal is located on the cover.

After connecting the wires to the terminal or connectors, check the connections carefully.

Connecting the grounding conductor

The grounding conductor can also be connected to the grounding terminal. Within 24 hours, the grounding conductor must be connected to the grounding terminal as described in the instructions.

How to connect the grounding conductor:

- Place the conductor under the screw (Figure 1) or under the terminal (Figure 2) and tighten. - When connecting the grounding conductor to the grounding terminal, maintain a distance of 20 mm from the conductor and place it in the middle of the terminal (Figures 1 and 2).

Figure 1

Figure 2

Connecting the grounding conductor

(rear panel)

For quick connection, the wires can be inserted into the holes on the rear panel.

Baca ylrinep ywiin Kbipaydbi Tzy3inyi Kaibntbi Kaafan 6onbl Ta6bina.

KbipaydbH MeIepi Jxhe XnHaanybOpTa KaIdaiNapbHa XHe ecIKTH aBbIy XnJIIRHe baIaNbHcTb e3repei. CybIpaK TemnepaTyPAHbOpHaTy Hemece, KOnKeIMDi BOJCa, epity bapbcHda TaFamdpabH CaKaTaNbIH y3ApTu YwIH XblDAM My3daTy cyHKUraCbH (KbICka HyCKaybIKbKa paAHb3) TaFamdpabMy3daTy 6enlMIHe anyad H 6ypbH 4 cAfTaKa KocbHb3. Epy wH KybpInbH bEwipH3 xHe JeXwIKTepr dAnbHb3. My3DaTbIFan TafamDbCybIK Jepre caIbHb3. KbpaydbH epYiHe MymkiHdiKy 6epy Wih ecKi t aWbIK KaNDbpBlb3. EpiTy 6bpicHda cydbH aBybH 6oNbIDpmay ywH My3aTy 6enlMIHH actbHa ciHpriMaTaHb Tecen, OHbl KyyeJI Typde CbIFIN OTbIPy ycblHJaDbI.

MzdaTy 6eJIIMiHIn iUki KafbIH Ta3anaHbI 3 XeHe KaKcbJIaI KeTIpiH3.

KpybIJIbIbI KocbiHbI3 XeHe TaFamdapbl KaTApOpHbHa caJIbIbI3.

M¥3ДATY JCYNECIH TOKTATY (ynlire 6aɪnaNbICTbl)

KbIPAYdbI TOKTATY KJYIECI (yrrire 6aIIaHbICTb KoJIkeITIMdi) My3daty 6eIimi yuiin epitydi OhaJIaTaDbI. KbIPAYdbI TOKTATY KypalbI (1-cypeT) My3daty 6eIimiHne ty3iNETIH KbIPaydbI XnHay yuH JkacalraH xHe Obl aIbIn, Ta3aIay OHa, CoHdbIKTaH ON My3dAty 6eImiHIn IwKi KafbH epiTy yaKbITbH KbICkapTaDbI.

KbIPAYIbI TOKTATY KypaJIbIHdaFbI KbIPayIbI aJIbIN TacTay yuH TeMeHne KepceTIJreH ta3anay pacimIn opbIHdaHbI3.

KbIPAYdbI TOKTATY KYPALbIH TA3AJIAY PocIMI

• My3daTkbIb6eJIIMiHIEciriH aIbIbI3 xHe KOFaPbI kEwIKTi aJIbIbI3 (2-cpeT). -KbIPAYIbI TOKTATY KpaIbIH (3-cypeT) aKbIpaTbIHbI3 Da, TeMeHJderi eHneK cepere KyIaI KaJImaybIH KaJaFaIaIan, aJIbIHbI3 (4-cypeT). Eceptne: Erep KypaI KbICTbIPbIbIH KaIca HeMeCe aJIbHybl KnbIH 6oJcA, OHbl anyfTa TbIPbcnHaB3, 6ipak My3aDaty 6eJIIMHiToJIk epITinyiH KaJIFaTbIPbIHbI3.
• My3daTy 6eJIIMiHIn ecirH Ka6bIbIbI3.
• KypaIaIbI KblpaIyI bIaIbI aIbIH (biCTbIK eMEc) cyIbIH acTbIHda IaIO apKblIbI Ta3aJIaHbI3 (5-cyper).
• KypaIbI KeNTipiH3 XHe PnactIK 6eNikTepiH Kymcak MaTameH CyptiH3. -7-A cypetihne KepceTJiren YbfbHKJI Kepnepre KpaanDbOpHaTy apkbJbn KaetaHri3iH3 XHe KpaanDbH TetirH JOfapbdaftyCTaftbIHTapmeh 6ekitih3 (7-B cypet). KorapfblkawiktiKaetaehri3iH3de, My3dATkbll6eJIIMiHcicirHka6bIb13.

KbIPAYdI TOKTATy KypaIbIH e3diirHeH, My3daTkbl 6eimin epityci3 ta3anay MymkiH 6oJaIb. KblPAYdI TOKTATy KypaIbIH xyneI type Ta3anay My3daTy 6eimin ToIbIK epity KaXeTTinirH a3aiTyfMaMymkiHdk Bepei.

EckepTne: eHIM CnnaTtAmanapbl, coHbIH iuiHne KeIemi XeHe KyaTbI KbIPAYDbI TOKTATy KpaBbHcb3 ecTeTenei.

«HÖΠДΙΚ ΓΡΑДΥС» ΒΘЛIMI (унгire ьаипьICTы)

The “Hπdkrpauc” six-way valve (meat, fat, tongue, heart, liver) is designed to be opened at low temperatures to prevent the valve from freezing.

If the activated carbon filter has been used, it must be replaced before the next use; otherwise, the valve may not operate correctly.

Cleaning and maintenance

The temperature of the cleaning water should not exceed 0°C.

For cleaning, press the button shown in the figure and hold it for more than one second to open the drain valve.

To clean the valve, press and hold the button for more than one second. To drain the valve, press the button briefly.

To replace the “Hπdkrpauc” filter, follow these steps:

• Set the valve to the cleaning position
• When the temperature is between +2°C and +6°C
• “Hπdkrpauc” filter replacement instructions
• If the device has additional functions: Stand-by, Cooling-Off, Vacation (if available), turn them off before cleaning.

Warning:

• If the valve is frozen, do not force it; contact a qualified technician. If the valve is damaged or leaking, turn off the water supply immediately. Do not operate the valve if it is frozen.
• Do not disassemble the valve; if necessary, contact a service center.
• If the valve is not used for a long time, the temperature of the water in the valve may drop below the set temperature. In this case, the water may freeze and damage the valve (e.g., cracks, deformation).

Warnings: Before operating the device and connecting it to the mains, it is necessary to read all safety instructions. If this is not done, the device may malfunction. The device must be installed at a distance of at least 1 meter from walls and other objects, and the ventilation openings must not be blocked. To prevent the device from tipping over, it must be placed on a stable surface.

To turn on the device:

Follow these steps:

- To turn on the device, press the power button (and hold it if necessary). - The device will turn on - The indicator light will illuminate - The device will start operating

Caution: Do not touch the hot surfaces or perform any maintenance while the device is in operation.

To turn off the device, press and hold the power button until the indicator light turns off.

To adjust the temperature and fan speed, use the control buttons on the device.

Clean the device regularly with a soft, dry cloth (after unplugging it) and do not use abrasive cleaners. Do not immerse the device in water or any other liquid.

Before cleaning, always unplug the device and allow it to cool down.

TECHNICAL SERVICE

Before contacting technical service:

Check if the power cord is properly connected to the outlet. If not, plug it in and try again after a few minutes. If the device still does not work after checking the connections and plugging it in, contact technical service and provide them with the model and serial number.

Device model - type

Device type and serial number (as shown on the rating plate) (if available) (The serial number is located on the back of the device, after the word SERVICE)

SERVICE

Corner:

Technical data plate is located on the inner side, the circular plate indicates the technical data of the device.

USING THE APPLIANCE

Connect the appliance to the power supply.

In models with electronic control, a sound signal may sound. To turn off the sound signal, press the button to turn off the sound signal. Install an anti-odor filter in the ventilator to reduce unpleasant odors, as shown on the packaging (the filter is supplied with the appliance).

Note. After switching on the appliance, wait 4-5 hours before the temperature inside reaches the required value for proper food storage.

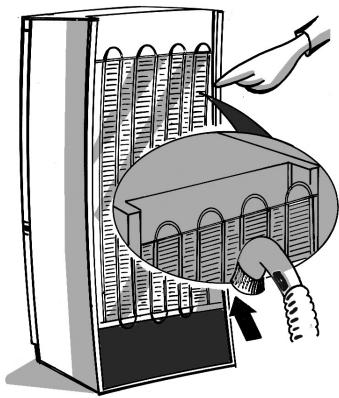

CLEANING AND MAINTENANCE

Regularly clean the appliance with a soft cloth and warm water with a mild neutral detergent suitable for cleaning the interior surfaces of the refrigerator. Do not use abrasive cleaners. To ensure proper drainage of thawed water, regularly clean the drain hole located on the rear panel of the refrigerator compartment and the container for fruits and vegetables, using the tool supplied with the appliance (see figure).

Before performing any cleaning or maintenance work

When cleaning the appliance, unplug it from the socket or disconnect it from the power supply.

REPLACING THE LAMP OR LED INDICATOR (depending on the model)

Before replacing the lamp, unplug the appliance from the power supply. Then follow the instructions depending on the type of lamp, as they differ for each model of the appliance. Replace the old lamp with a new one (their functions are identical). The lamp can be purchased by contacting the customer service center or an authorized dealer.

Lamp type 1.

To remove the lamp, unscrew it counterclockwise, as shown in the figure. Wait 5 minutes before repeating the procedure.

If the light indicators are damaged (as shown in the figure below), they must be replaced. Contact the Customer Technical Support Center.

Light indicators last longer than traditional bulbs, ensuring better lighting and no harm to the surrounding environment.

Instructions for use

Fridge with freezer compartment

DEUTSCH	Gebrauchsanweisung	Seite 4
FRANÇAIS	Mode d'emploi	Page 10
ENGLISH	Instructions	Page 16
NEDERLANDS	Gebruiksaanwijzing	Pagina 22

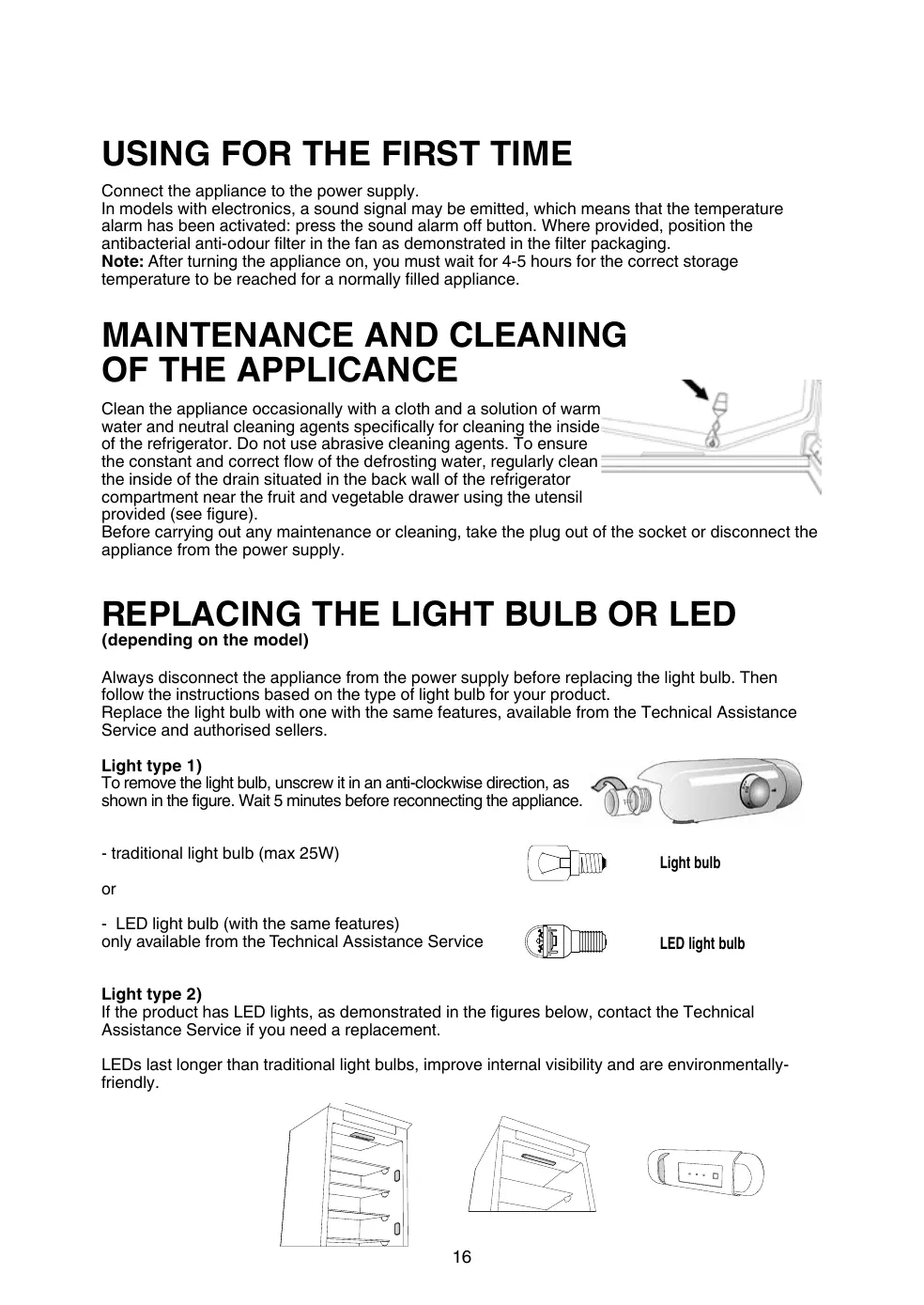

USING FOR THE FIRST TIME

Connect the appliance to the power supply.

In models with electronics, a sound signal may be emitted, which means that the temperature alarm has been activated: press the sound alarm off button. Where provided, position the antibacterial anti-odour filter in the fan as demonstrated in the filter packaging.

Note: After turning the appliance on, you must wait for 4-5 hours for the correct storage temperature to be reached for a normally filled appliance.

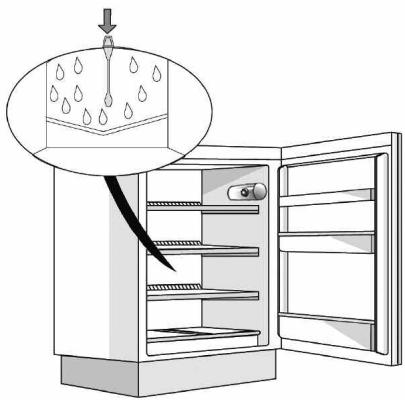

MAINTENANCE AND CLEANING OF THE APPLICANCE

Clean the appliance occasionally with a cloth and a solution of warm water and neutral cleaning agents specifically for cleaning the inside of the refrigerator. Do not use abrasive cleaning agents. To ensure the constant and correct flow of the defrosting water, regularly clean the inside of the drain situated in the back wall of the refrigerator compartment near the fruit and vegetable drawer using the utensil provided (see figure).

Before carrying out any maintenance or cleaning, take the plug out of the socket or disconnect the appliance from the power supply.

REPLACING THE LIGHT BULB OR LED

(dependently on the model)

Always disconnect the appliance from the power supply before replacing the light bulb. Then follow the instructions based on the type of light bulb for your product.

Replace the light bulb with one with the same features, available from the Technical Assistance Service and authorised sellers.

Light type 1)

To remove the light bulb, unscrew it in an anti-clockwise direction, as shown in the figure. Wait 5 minutes before reconnecting the appliance.

• traditional light bulb (max 25W)

Light bulb

or

• LED light bulb (with the same features)

only available from the Technical Assistance Service

LED light bulb

Light type 2)

If the product has LED lights, as demonstrated in the figures below, contact the Technical Assistance Service if you need a replacement.

LEDs last longer than traditional light bulbs, improve internal visibility and are environmentally-friendly.

IN THE EVENT OF NON-USE OF THE APPLICANCE

Disconnect the appliance from the power supply, empty it, defrost it (if necessary) and clean it. Keep the doors slightly ajar to let air circulate inside the compartments. By doing this, you avoid the development of mould and bad odours.

IN THE EVENT OF AN INTERRUPTION TO THE POWER SUPPLY

Keep the doors closed so the food stays cold for as long as possible. Do not re-freeze food that has partially defrosted. If there is a prolonged power cut, the black out alarm may also activate (in products with electronics).

REFRIGERATOR COMPARTMENT

The refrigerator compartment allows for the storage of fresh food and drink.

The refrigerator compartment defrosts completely automatically.

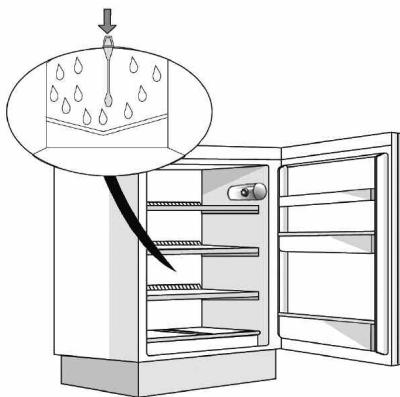

The occasional presence of drops of water on the internal back wall of the compartment is a sign of the automatic defrosting phase. The defrosting water is channelled into a drain and then collected in a container, where it evaporates.

Depending on the model, the product may be equipped with a special "Zero Degrees" compartment, which is ideal for storing fresh meat and fish.

Warning: do not clean refrigerator accessories in a dishwasher.

Note: the ambient temperature, how often the doors are opened and the position of the appliance may affect the internal temperatures in the two compartments. Set the temperatures depending on these factors.

Note: in very humid conditions, condensation may form in the refrigerator compartment, especially on the glass shelves. In this case, it is recommended that you close containers with liquids in (e.g. a pot of stock), wrap up food with a high water content (e.g. vegetables) and turn on the fan, if there is one.

Removing the fruit and vegetable drawer (depending on the model)

Pull the drawer outwards as far as it will go, lift it up and take it out.

To make it easier to remove the fruit and vegetable drawer, it may be necessary to empty (and possibly remove) the two lower door shelves and then continue to remove the drawer.

Fan and antibacterial anti-odour filter (depending on the model)

The fan allows for the even distribution of the temperatures inside the compartments and, consequently, better preservation of the food and reduction of excess humidity. Do not obstruct the ventilation area. The fan can be turned on/off manually (see the Quick Guide); if it is turned on, it operates automatically when necessary.

FREEZER COMPARTMENT

Model with separate freezer compartment

The freezer compartment allows for the storage of frozen food (for the period indicated on the packaging) and the freezing of fresh food. The quantity of fresh food that can be frozen in 24 hours is written on the rating plate. Arrange the fresh food in the freezing area inside the freezer compartment (see Quick Guide), leaving enough space around the food packages to allow air to circulate freely. It is advisable that you do not re-freeze food that has partially defrosted. It is important to wrap the food in a way that prevents the ingress of water, humidity or condensation.

Making ice cubes

Fill 2/3 of the ice tray (if available) with water and put it back in the freezer compartment. Do not use sharp or pointed objects to remove the ice under any circumstances.

Removing the drawers (depending on the model)

Pull the drawers outwards as far as they will go, lift them up and remove them. To get more volume, the freezer compartment can be used without the drawers.

Make sure that the door is closed properly after putting the food back on the grilles/shelves.

Models with an internal product compartment

In the freezer compartment you can also freeze fresh food. The quantity of fresh food that can be frozen in 24 hours is written on the rating plate.

How to freeze fresh food:

• arrange the food on the grille, if present (figure 1), or directly on the bottom of the compartment (figure 2)
• put the food in the middle of the compartment without it coming into contact with food that is already frozen, keeping a distance of about 20 mm (figure 1 and 2).

Figure 1

Figure 2

HOW TO DEFROST THE FREEZER COMPARTMENT

depending on the model)

For frost free models it is not necessary to carry out any defrosting procedures.

For other models, the build up of frost is a normal occurrence.

The quantity and speed of frost accumulation varies depending on the ambient conditions and how often the door is opened. It is advisable to set the temperature colder or, if available, turn on the quick freeze function (see Quick Guide) four hours before removing the food from the freezer compartment, to prolong the preservation of the food during the defrosting phase. To defrost, turn the appliance off and remove the drawers. Put the frozen food in a cool place. Leave the door open to allow the frost to melt. To prevent the water from escaping during the defrost, it is advised that you place an absorbent cloth on the bottom of the freezer compartment and wring it out regularly.

Clean the inside of the freezer compartment and dry it carefully.

Turn the appliance back on and put the food back inside.

STOP FROST SYSTEM (depending on the model)

The STOP FROST SYSTEM (available depending on the model) facilitates the defrost procedure for the freezer compartment. The STOP FROST accessory (figure 1) is designed to collect some of the frost that forms in the freezer compartment and it is easy to remove and clean, therefore reducing the time needed to defrost the inside of the freezer compartment.

To remove the frost on the STOP FROST accessory follow the cleaning procedure demonstrated below.

PROCEDURE TO CLEAN THE STOP FROST ACCESSORY

• Open the freezer compartment door and remove the upper drawer (figure 2).
• Unfasten the STOP FROST accessory (figure 3) and remove it (figure 4), taking care not to drop it on the glass shelf below. Note: if the accessory is jammed or difficult to remove, do not keep trying to remove it, but proceed with the complete defrost of the freezer compartment.
• Close the door to the freezer compartment.
• Remove the frost on the accessory by rinsing it under running (not hot) water (figure 5).
• Let the accessory drip dry and dry the plastic parts with a soft cloth.
• Reinsert the accessory by placing the back part on the projections shown in figure 7-A, then refasten the handle of the accessory to the clasps above (figure 7-B).
• Reinsert the upper drawer and close the door to the freezer compartment.

It is possible to clean the STOP FROST accessory on its own without completely defrosting the freezer compartment. Cleaning the STOP FROST accessory regularly helps to reduce the need to completely defrost the freezer compartment.

Note: the product specifications, including volume and energy, are calculated without the STOP FROST accessory.

"ZERO DEGREES" COMPARTMENT

(depending on the model)

The "Zero Degrees" compartment is specifically designed to maintain a low temperature and the correct humidity to preserve fresh food for longer (for example, meat, fish, fruits and winter vegetables).

Humidity control technology coupled with Activ0° provides the best food preservation when the food is not completely packed.

Turning on and turning off the compartment

The internal temperature of the compartment is approximately 0°C when the compartment is turned on.

To turn on the compartment, press the button shown in the figure for more than one second until the symbol lights up.

The lit symbol means that the compartment is working. Press the button again for more than one second to turn off the compartment. To turn off the compartment completely, you must remove the drawer.

For the correct functioning of the "Zero Degrees" compartment, it is necessary that:

• the refrigerator compartment is turned on
• the temperature is between +2°C and +6°C
• the drawer in the "Zero Degrees" compartment must be inserted for it to be turned on
• one of the following special functions is not selected: Stand-by, Cooling-Off, Vacation (if present), in this case, remove the food contained in it.

Note:

• if the symbol does not light up when you turn on the compartment, check that the drawer is properly inserted; if the problem persists contact the authorised Technical Assistance Service.
• if the compartment is turned on and the drawer is open, the symbol in the control panel may automatically turn off. The symbol will light up again when the drawer is inserted
• regardless of the state of the compartment, you may hear a faint noise, which you should consider as normal
• when the compartment is not in operation, the temperature inside it depends on the general temperature of the refrigerator compartment. In this case, it is advised that fruits and vegetables that are not sensitive to cold (berries, apples, apricots, carrots, spinach, lettuce, etc.) are stored in it.

Important: if the compartment is turned on and food with a high water content is present, condensation may form on the shelves. In this case, turn the function off temporarily.

Be careful when positioning food and containers that are small in size on the upper shelf of the "Zero Degrees" compartment in order to prevent them accidentally falling between the shelf and the back wall of the refrigerator compartment.

Removing the "Zero Degrees" compartment:

Carry out the following steps:

• to make it easier to remove the compartment, we recommend that you empty (and possibly remove) the lower door shelves
• turn off the compartment
• remove the compartment by rotating it upwards
• remove the white plastic shelf under the compartment

Note: it is not possible to remove the upper shelf and side supports.

To use the "Zero Degrees" compartment again, carefully reposition the white plastic shelf under the compartment before inserting the drawer and turning the function back on.

To have a larger refrigerator volume and to reduce energy consumption, it is recommended that you turn off the "Zero Degrees" compartment and remove the compartment.

Clean the compartment and its components occasionally using a cloth and a solution of warm water (taking care not to submerge the white plastic shelf under the drawer) and neutral cleaning agents specifically for cleaning the inside of the refrigerator. Do not use abrasive cleaning agents.

Before cleaning the compartment (also externally) it is necessary to remove the drawer to disconnect the electrical supply for the compartment.

TECHNICAL ASSISTANCE SERVICE

Before contacting the Technical Assistance Service:

Restart the appliance to check if the problem has been solved. If not, disconnect the appliance again and repeat the procedure after one hour.

If, after having completed the checks listed in the guide for malfunctions and after restarting the appliance, your appliance continues to function incorrectly, contact the Technical Assistance Service, clearly describing the problem and stating:

• the type of malfunction the model
• the type and serial number of the appliance (written on the rating plate)
• the Service number (if available) (the number that is after the word SERVICE on the rating plate placed inside the appliance)

SERVICE

0000 000 0000

Note:

Reversing the doors of the appliance, if carried out by the Technical Assistance Service, is not considered as a warranty claim.

Nederland Home Product Service (ATAG)

P.O. Box 249

6920 AE Duiven

COMPARTMENT WITH ZERO TEMPERATURE

(depending on model)

• Traditional bulb (max. 25 W)

Bulb

or

• LED bulb (with same functions) can only be obtained from a service center

Bulb for LED indicator lights

Bulb type 2)

(depending on model)

Before replacing the lamp bulb, disconnect the appliance from the power supply.

Screw the lamp counterclockwise to remove it from the product.

Replacement lamps with the same characteristics are available from the technical support department or from the dealer.

Lamp type 1)

To remove the lamp, turn the counterclockwise arrow as shown in the figure.

Wait 5 minutes before screwing it back in.

• Standard lamp (max. 25 W)

Lamp

N

• Halogen lamp (with the same characteristics) available from the technical support department.

Halogen lamp

Lamp type 2)

If the product is equipped with a halogen lamp, as shown in the figure below, contact the technical support department if you need a replacement lamp.

Halogen lamps consume more energy than standard lamps, but they provide better light quality and are more environmentally friendly.

Interior of the product

In the freezer compartment, you can freeze and store fresh food. The amount of fresh food that can be frozen in 24 hours is indicated on the rating plate.

How to store food:

• Store the food on the shelves, if available (Figure 1), or directly in the lower part of the compartment (Figure 2).
• Place the food in the center of the compartment so that it does not come into contact with food that is already frozen, maintaining a distance of about 20 mm (Figures 1 and 2).

Figure 1

Figure 2

DEFROSTING THE FREEZER COMPARTMENT (depending on model)

For models with a no-frost system, it is not necessary to perform defrosting procedures.

For other models, manual defrosting is normal.

The amount and speed of defrosting vary depending on the operating conditions and the opening frequency of the door. It is recommended to set the temperature to a lower setting, and if available, activate the fast freeze function (see the quick guide) a few hours before removing food from the compartment and the freezer, to preserve the food during the defrosting phase. To defrost, unplug the appliance. Place the frozen food in a cool place. Leave the door open to allow the frost to melt. To avoid water spillage during defrosting, it is recommended to place an absorbent cloth in the lower part of the freezer compartment and to wring it out regularly.

Clean the inside of the freezer compartment and dry it carefully.

Plug the appliance back in and put the food back inside.

(depending on model)

The compartment, called "zero degrees", is specially designed to maintain a temperature and humidity level suitable for preserving fresh food for a longer time (e.g., meat, fish, poultry, and green vegetables).

The humidity control technology, combined with active circulation, ensures better preservation of food when it is not fully packaged.

Switching the compartment on and off

The temperature in the drawer is approximately 0°C, and the drawer is closed.

To open the drawer, press the button shown in the figure for more than one second until the light symbol turns on.

The light symbol indicates that the drawer is working. Press the button again for more than one second to close the drawer. To close the drawer completely, you must wait a moment.

For the correct functioning of the "Zero Degree" drawer, it is necessary:

• The refrigerator compartment must be switched on
• The temperature must be between +2°C and +6°C
• The drawer must be placed correctly so that it can be switched on
• One of the special functions must not be selected: Ready, Cool-Down, Vacation (if present), in which case the food is stored at a different temperature.

Note:

• If the symbol does not light up when you switch on the drawer, check that the drawer is correctly placed; if the problem persists, contact the technical assistance service. If the drawer is switched on and the drawer is open, the control symbol may switch off automatically. The symbol will light up again when the drawer is placed back.
• Regardless of the state of the drawer, you may hear a slight noise, which should be considered normal.
• When the drawer is not working, the temperature inside it depends on the ambient temperature in the refrigerator compartment. In this case, we recommend storing foods that are not sensitive to cold (e.g., dairy products, onions, garlic, carrots, spinach, parsley, etc.) in it.

Important: If the drawer is switched on and there is food with high water content, condensation may form on the shelves. In this case, switch off the function temporarily. Wipe dry before placing food and containers of small size on the upper shelf of the "Zero Degree" drawer, to prevent them from falling between the shelf and the back wall of the refrigerator compartment.

Removing the "Zero Degree" drawer:

Remove the special shelves:

To remove the drawer, we recommend that you remove (or possibly remove) the door shelves - except the drawer - remove the drawer by closing it upwards - remove the white plastic filter under the drawer.

Warning: The drawer may not be able to be removed.

To reuse the drawer, place the white plastic filter under the drawer, press the drawer and perform the function.

To increase the volume in the refrigerator and reduce energy consumption, it is recommended to remove the drawer and take it out.

Clean the drawer and its components using a cloth and a solution of warm water (and pay attention to avoid damaging the white plastic filter under the drawer) and a mild cleaning agent, specially designed for cleaning the interior of the refrigerator. Do not use abrasive cleaning agents.

Before cleaning the drawer (and the outside), it is necessary to remove the drawer to disconnect the connection to the drawer.

CUSTOMER SERVICE DEPARTMENT

Before contacting the customer service department:

Restart the device to check if the problem is resolved. If not, switch off the device again and repeat the procedure after one hour.

If after the checks, the fault persists, contact the customer service department, describe the problem and provide:

Fault description Model

Serial number (see the data plate) - service number (if any) (see the data plate, placed inside the device)

SERVICE 00000000000

Note:

Repair of the device, if carried out by the customer service department, is not considered a warranty claim.

Българсн	Инструкции за у鞘тpeба	Станица 4
HRVAT	Uputama za uporabu	Stranica 10
ROMÁNă	Instruktiuni de/utilizare	Pagina 16
SRPSKI	Uputstvo za upotrebu	Strana 22

FIRST USE

• the refrigerator compartment should be switched on
• temperature is between +2°C and +6°C
• the drawer in the "Zero degrees" compartment should be inserted to enable switching on - the degree of the relationship between the two types of oedema is unknown. - the degree of the relationship between the two types of oedema is unknown. - the degree of the relationship between the two types of oedema is unknown. - the degree of the relationship between the two types of oedema is unknown. - the degree of the relationship between the two types of oedema is unknown. - the degree of the relationship between the two types of oedema is unknown. - the degree of the relationship between the two types of oedema is not known.

Note:

Perform these steps:

Models with internal compartment

(LED)

(1)

(1) = 0. C₄²

() 0 4

g

(LED)

() (LED)

(204

Therefore c(0,1) . c(1,0)

(1)

.

STOP FROST

STOP FROST

a

a. STOP FROST

STOP FROST

()

(2) (3) STOP FROST

(Jall) Vacation 日 (Jill) Cooling-Off. (Jill) Stand-by: 1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789

(1)

0

(ajll a jgdl) glldll gjglg jglg 1 (jglg jglg) (jglg) SERVICE

SERVICE 00000000000

Therefore, 4k > 3l.

Jn nn nnnn nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

Aidl oedull a

aaii oolal a jay jllj 10 ai i 11 12 ai kwl lil la ay jed jj 13 aclw al jy jg jz jz jz jkwl

Therefore, SΔ = SΔ.

j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j 1 j

gge jclj 4i jll scllal l jy jnil

a. iii j 1

Jall

jI

Gebrauchsanweisung

Instructions for use

Switching on the appliance

1. Plug in the appliance
2. When the appliance is plugged in, it is normally factory set to a temperature of 5°C.

Adjusting the temperature

For temperature adjustment, see the enclosed product sheet.

Note:

Ambient air temperature, the frequency of door opening, the introduction of hot food and unsuitable appliance positioning can all affect the internal temperature of the refrigerator, which may differ from that shown on the display.

Storing food in the refrigerator compartment:

Cover food to prevent it drying out. The distance between the shelves and the rear wall inside the refrigerator ensures the free circulation of air. Do not place food in direct contact with the rear wall of the refrigerator compartment. Do not place hot food in the refrigerator. Store liquids in closed containers.

Important:

Storing vegetables with a high water content can cause condensation to form on the glass shelves; this will not affect the correct operation of the appliance.

MEAT & FISH BOX (depending on model)

The Meat & Fish box was designed specially to keep foods fresher for longer, without altering nutritional values or original freshness. Do not store fruit or vegetables in this box, as the temperature may drop below 0°C, causing water contained in the food to freeze.

Temperature Adjustment

The temperature inside the Meat & Fish box is indicated by the position of the arm on the door of the box, and depends on the general temperature of the refrigerator compartment.

We recommend setting the temperature of the refrigerator compartment between +2° and +6°. To work out if the temperature inside the Meat & Fish box is correct, refer to the pictures below:

When the arm points to the left, you need to raise the temperature in the refrigerator compartment.

When the arm is in the middle, the temperature is ok.

When the arm points to the right, you need to lower the temperature in the refrigerator compartment.

Important: when the function is activated and foods with a high water content are present, condensation may form on the shelves. In this case, disable the function temporarily.

Removing the Meat & Fish compartment:

To ensure correct operation of the product, adequate preservation of food and to optimise energy consumption, it is advisable not to remove the Meat & Fish compartment if the symbol (see Quick Guide) is not present on the control panel. In all other cases, the Meat & Fish compartment can be removed to obtain more space inside the refrigerator.

Proceed as follows:

1. Remove the compartment drawer (Figure 1).
2. Remove the drawer cover by releasing the bottom side clips (Figure 2).

To reinstate the Meat & Fish compartment, make sure to refit the drawer cover before inserting the drawer and reactivating operation.

1. Press the "Meat & Fish compartment function" button on the control panel for 3 seconds, until the yellow indicator goes off.

To optimise energy consumption, it is advisable to deactivate the Meat & Fish compartment and remove its components (except the shelf above the crisper drawers).

Fig. 1

Fig. 2

"ZERO DEGREES" BOX (depending on the model)

The "Zero Degrees" box is specifically designed to maintain a low temperature and a suitable humidity level, in order to keep foods fresher for longer (e.g. meat, fish, fruit and winter vegetables).

Activating and deactivating the box

The temperature inside the box, when active, is approximately 0°C.

To activate the compartment, press the button shown in the figure for more than 1 second, until the symbol lights up.

The symbol lit indicates that the compartment is functioning. Press the button again for more than 1 second to deactivate the compartment.

The following factors are vital for the "Zero Degrees" box to work properly:

• the refrigerator compartment must be switched on
• the temperature of the refrigerator compartment must be between +2°C and +6°C
• the box must be inserted to enable activation
• no special functions must have been selected (Standby, Cooling-Off, Vacation – where applicable).

If one of these special functions has been selected, the "Zero Degrees" box must be deactivated manually, and any fresh food inside it removed. If manual deactivation does not take place, the box will be deactivated automatically after 8 hours.

Note:

• if the symbol does not light up when the box is activated, check that the box is properly inserted; if the problem persists, contact your nearest authorized After-sales Service
• if the box is active and the drawer open, the symbol on the control panel may be deactivated automatically. If the drawer is inserted, the symbol will become active again
• Irrespective of the state of the box, a slight noise may be heard: this is normal and is not a cause for concern.
• When the box is not active, the temperature inside it depends on the general temperature inside the refrigerator compartment. In this case, we recommend it is used to store fruit and vegetables which are not sensitive to cold temperatures (fruits of the forest, apples, apricots, carrots, spinach, lettuce, etc.).

Important: If the function is activated and food with high water content is present, condensate may form on the shelves. In this case, temporarily deactivate the function.

When placing small containers and food products on the top shelf of the "zero degrees" compartment, make sure they do not accidentally fall between the drawer and the back of the refrigerator compartment.

Removing the "Zero Degrees" box:

The "Zero Degrees" box can be removed to create more space inside the refrigerator. In this case proceed as follows:

• To facilitate removal, we recommend emptying (and if necessary, removing) the two lower door trays.
• Switch off the box.
• Pull out the drawer and the white plastic shelf underneath the box.

Note: the upper shelf and the side supports cannot be removed.

To restore "Zero Degrees" box operation, make sure you replace the white plastic shelf underneath the box before inserting the drawer and reactivating the function. To optimise energy consumption, we recommend you deactivate the "Zero Degrees" box and remove it.

Clean the box and all its parts regularly, using a cloth and a solution of warm water and neutral detergent specifically formulated for refrigerator interiors (take care not to immerse the white plastic shelf underneath the box in water).

Before cleaning the box (including the outside), remove the drawer so as to disconnect the box from the electricity supply.

Never use abrasive detergents.

HOW TO USE THE FREEZER COMPARTMENT (if present)

The freezer compartment **** can also be used for freezing fresh food. The quantity of fresh food that can be frozen in 24 hours is shown on the rating plate.

Freezing fresh food

• The recommended position for fresh food is that indicated in Fig. 1, if a wire shelf is present, or that in Fig. 2 for models with no wire shelf.
• Place food in the middle of the compartment, * making sure it does not touch already frozen food, but is placed at a distance of approx. 20 mm (fig. 1 and 2).

The table alongside shows the recommended maximum storage time for frozen fresh foods.

When purchasing frozen food products:

• Make sure the packaging is not damaged, since the product quality may have deteriorated. If the package is swollen or has damp patches, it may not have been stored under optimal conditions and defrosting may have already begun.
• When shopping, leave frozen food purchases until last and transport the products in a thermally insulated cool bag.
• Place the items in the compartment as soon as you get home.
• If food has defrosted even partially, do not re-freeze it. Consume within 24 hours.
• Avoid, or reduce temperature variations to the minimum. Respect the best-before date on the package. Always follow the storage instructions on the frozen food packages.

Making ice cubes

• Fill the ice cube tray 2/3 full and place it in the compartment ****.
• Do not use sharp or pointed instruments to detach the tray if it is stuck to the bottom of the compartment.
• Bend the ice tray slightly to remove the cubes.

Fig. 1 Fig. 2

1-3
4-7
8-12

HOW TO DEFROST THE APPLIANCE

Before defrosting the appliance, unplug it or switch off the power at the mains. Defrosting of the refrigerator compartment is completely automatic. Droplets of water on the rear wall of the refrigerator compartment indicate that the periodic automatic defrost cycle is in progress. The defrost water is automatically routed to a drain outlet and into a container from which it evaporates.

Clean the defrost water drain outlet regularly using the tool supplied with the appliance in order to ensure defrost water is removed correctly. (Fig. 1)

Defrosting the compartment (if present)

Defrost the × × × compartment once or twice a year or when ice formation is excessive. It is perfectly normal for ice to form. The amount of ice which forms and the rate at which it accumulates will vary depending on ambient conditions and the frequency with which the freezer door is opened. Ice formation is concentrated at the top of the compartment and does not affect the efficiency of the appliance.

If possible, defrost the freezer when it is nearly empty.

• Remove the food from the freezer compartment and group together in a cool place or in a cool bag.
• Leave the door open to allow the frost to melt.
• Clean the interior of the freezer with a sponge and warm water and/or neutral detergent. Do not use abrasive substances.
• Rinse the interior and dry thoroughly.
• Put the food back into the freezer.
• Close the door.

Plug the appliance back in and switch on, following the instructions in chapter "How to operate the refrigerator compartment". The settings and selections made prior to switching off will be restored.

Fig. 1

CLEANING AND MAINTENANCE

Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the electrical power supply.

• Clean the inside of the refrigerator compartment periodically with a sponge dampened in warm water and/or neutral detergent. Rinse and dry with a soft cloth. Do not use abrasive products.
• The separators must not be washed in water but simply cleaned with a damp sponge.
• Clean the inside of the freezer compartment when defrosting.
• Clean the air vents and condenser at the rear of the appliance regularly with a vacuum cleaner or brush.
• Clean the outside with a damp cloth. Do not use abrasive products, scourers, stain-removers (e.g. trichlorethylene acetone) or vinegar.

Prolonged disuse

1. Empty the refrigerator.
2. Disconnect the appliance from the mains power supply.
3. Defrost and clean the interior.
4. In the event of prolonged disuse, leave the appliance door open to prevent mould, odours and oxidation from forming.
5. Clean the appliance.
6. Clean the inside of the low temperature compartment (where present) when defrosting.
7. Clean the inside of the refrigerator compartment periodically with a sponge dampened in warm water and/or neutral detergent. Rinse and dry with a soft cloth. Do not use abrasive products.

AFTER-SALES SERVICE

Before contacting the After-Sales Service:

1. See if you can solve the problem yourself with the help of the Trouble-shooting guide.
2. Switch the appliance off and then on again to check if the problem has been eliminated. If it has not, switch it off again and repeat the operation after one hour.
3. If the problem persists after this course of action, contact After-sales Service.

Specify:

the type of fault the appliance model

• The Service number (the number after the word SERVICE on the rating plate inside the appliance)
• Your full address
• Your telephone number and area code

SERVICE

0000 000 0000

Note:

The direction of door opening can be changed. If this operation is performed by After-sales Service it is not covered by the warranty.

INSTALLATION

• Install the appliance away from heat sources. Installation in a hot environment, direct exposure to the sun or installation near heat sources (heaters, radiators, cookers) will increase power consumption and should therefore be avoided.
• If this is not possible, the following minimum distances must be respected:
• 30 cm from coal or paraffin stoves; -3 cm from electric and/or gas stoves.
• Fit the spacers (if supplied) on the rear of the condenser positioned at the back of the appliance.
• Install the appliance in a dry, well-ventilated place, and ensure it is level, using the front adjustment feet if necessary. Clean the interior.
• Fit the accessories.
• Regulations require that the appliance be earthed. The manufacturer declines all liability for injury to persons or animals and for damage to property resulting from failure to observe the above procedures and reminders.
• If the plug and socket are not of the same type, have the socket replaced by a qualified electrician.
• Do not use extension leads or adapters.

Disconnecting the appliance

It must be possible to disconnect the appliance by unplugging it or by means of a two-pole switch fitted upline of the socket.

Electrical connection

• Electrical connections must be made in accordance with local regulations.
• Voltage and power consumption are indicated on the rating plate inside the appliance.

ELECTRICAL CONNECTION FOR GREAT BRITAIN AND IRELAND ONLY

Warning - this appliance must be earthed

Fuse replacement

If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A.S.T.A. approved fuse to BS 1362 type and proceed as follows:

1. Remove the fuse cover (A) and fuse (B).
2. Fit replacement 13A fuse into fuse cover.
3. Refit both into plug.

Important:

The fuse cover must be refitted when changing a fuse and if the fuse cover is lost the plug must not be used until a correct replacement is fitted.

Correct replacement are identified by the colour insert or the colour embossed in words on the base of the plug.

Replacement fuse covers are available from your local electrical store.

For the Republic of Ireland only

The information given in respect of Great Britain will frequently apply, but a third type of plug and socket is also used, the 2-pin, side earth type.

Socket outlet / plug (valid for both countries)

If the fitted plug is not suitable for your socket outlet, please contact After-sales Service for further instruction.

Please do not attempt to change plug yourself. This procedure needs to be carried out by a qualified technician in compliance with the manufactures instructions and current standard safety regulations.

HOW TO OPERATE THE REFRIGERATOR COMPARTMENT

MEAT AND FISH COMPARTMENT

(with the drawer)

STARTING THE APPLIANCE

CLEANING AND MAINTENANCE

Temperature regulation

Regulating the temperature

A. Chiller compartment

Preparing ice cubes

Fill the ice cube tray with water up to 3/4 full and place it on the bottom of the low-temperature compartment.

If the tray freezes to the bottom of the low-temperature compartment, do not attempt to detach it with sharp or pointed instruments.

DEFROSTING AND CLEANING THE LOW-TEMPERATURE COMPARTMENT

To ensure the appliance operates efficiently, it is recommended to defrost the low-temperature compartment at least twice a year, or when the frost layer on its walls reaches 3 mm. You can defrost the freezer even when it contains frozen products.

1. Remove all products from the freezer, wrap them in newspaper, and place them tightly together in a cool place or in a thermal bag.
2. Disconnect the appliance from the power supply.
3. Leave the doors open to speed up the melting of the ice.
4. Remove the melted water with a sponge.
5. Clean the compartment with a sponge soaked in a warm solution of neutral detergent. Do not use abrasive agents.
6. Rinse with water, then dry all surfaces thoroughly.
7. Warning: Do not use sharp or pointed instruments to remove the ice. Do not artificially heat the low-temperature compartment with a hair dryer.

CLEANING THE REFRIGERATOR COMPARTMENT

Regularly defrost the refrigerator compartment. Defrosting of the refrigerator compartment occurs automatically.

Water drops on the back inner wall of the refrigerator compartment indicate that automatic defrosting is in progress. The water flows through the drain hole into a special container where it evaporates.

Do not use abrasive agents.

CLEANING AND CARE

• Periodically clean the ventilation grilles and the evaporator on the back side of the appliance with a vacuum cleaner or a brush.
• Wash the appliance with a soft cloth.

During prolonged absence

1. Remove products from the refrigerator and low-temperature compartments.
2. Disconnect the appliance from the power supply.
3. Defrost the low-temperature compartment, wipe and dry both compartments thoroughly.
4. Leave the doors open to prevent the formation of unpleasant odors.

ENERGY SAVING TIPS

• Do not place the appliance near heat sources or in direct sunlight, and do not install it near radiators or hot plates, as all this leads to increased energy consumption.
• Do not block the appliance's ventilation openings. To defrost products, place them in the cold compartment to use the cold given off by frozen products. Reduce the frequency and duration of door openings. Do not place hot products in the cold compartment. Do not leave the low-temperature compartment door open.

TROUBLESHOOTING

1. The appliance does not work.

• Check the power supply. Is the plug properly inserted into the socket?
• Is the voltage present in the wall?
• Has the fuse blown?
• Is the thermostat in the correct position?

2. Insufficient temperature in the compartments.

- Is the door not closed properly? - Is the appliance installed near a heat source? - Incorrect thermostat settings? - Are the ventilation grilles blocked?

3. Temperature too low in the cold compartment.

• Incorrect thermostat settings?

5. The internal light does not work.

Perform the checks indicated in point 1, then

• Disconnect the appliance from the electrical supply. Replace the blown bulb. The wattage of the new bulb must match the original or not exceed the maximum value (W) indicated next to the socket. To remove the bulb, turn it counterclockwise as shown in the figure.

It is not necessary to install the fuse cover in place. If the cover was lost, do not use the plug until a replacement cover is installed.

Keep frozen products at the recommended storage temperature.

Recommended storage terms for frozen products. Before purchasing.

When buying frozen products, follow these instructions:

- Make sure the packaging is not damaged, as this can lead to product deterioration. If the packaging is damaged or has holes, it is possible that the product was defrosted due to poor storage conditions. - When shopping, buy frozen products last and transfer them to a thermal bag. Place the product in the low-temperature compartment as soon as possible. - If products have partially thawed, do not refreeze them. Such products should be consumed within one to two days. - Avoid or minimize temperature fluctuations.

Consume the product within the period of best quality, the expiration date is indicated on the packaging.

Follow the storage conditions for frozen products as indicated on the packaging.

Freezing the freezer compartment

• Fill the freezer compartment with water up to 3/4 and place it in the lower part of the low-temperature compartment.

It is forbidden to use sharp objects to remove the ice from the lower part of the compartment, as this may damage it.

Defrosting the low-temperature compartment

For optimal productivity, it is recommended to defrost the low-temperature compartment at least once a year or when the ice layer on the walls is about 3 mm thick. If possible, defrost the freezer compartment when it is almost empty.

1. Remove products from the freezer compartment, wrap them in newspaper and place them in a cool place or in a cooler bag.
2. Turn off the device from the power source.
3. Leave the door open so that the ice can melt.
4. Remove the melted water.
5. Use a soft cloth and neutral detergent to clean the appliance. Do not use abrasive agents.
6. Wipe it dry thoroughly.

• Note. Do not attempt to open it with sharp metal instruments; do not expose the appliance to high temperatures from external sources.

Cleaning the refrigerator compartment

Periodically clean the interior surfaces of the refrigerator compartment.

Defrosting of the refrigerator compartment occurs automatically.

Water from the rear wall inside the refrigerator compartment flows into a drain hole, then into a container where it evaporates.

Regularly drain water from the defrost drain hole using a suitable tool supplied with the appliance. Before performing any maintenance, disconnect the appliance from the power supply.

Use a sponge soaked in warm water and/or neutral detergent. Rinse and wipe with a damp cloth. Do not use abrasive agents.

Cleaning and maintenance

Regularly clean the ventilation openings and the condenser on the rear wall of the appliance with a brush or vacuum cleaner. Clean the exterior surfaces with a damp cloth.

During periods of prolonged absence

1. Remove all food from the refrigerator and the low-temperature compartment.
2. Disconnect the appliance from the power supply.
3. Defrost the low-temperature compartment, clean and dry the interior of the appliance.
4. They did not approve the opening of the deposit, as they did not meet the requirements.

The following sequence of actions is recommended:

• If the product is frozen, it may be thawed at room temperature. If the product is needed urgently or if the water is hot, it can be thawed in cold water or in a microwave oven. When purchasing the product, check the packaging for integrity and the expiration date.
• Do not refreeze the product after thawing. If the product has thawed, do not refreeze it. Store it in the refrigerator for up to 24 hours.
• Do not exceed the minimum temperature or lower it. Do not store the product below the recommended temperature.
• Do not use the product if the packaging is damaged or if the expiration date has passed.

How to prepare the dough

Mix the dough with 3/4 of the water at the recommended temperature. If the dough is too dry, add more water or use a little more water.

FOR LOW TEMPERATURE COOKING, USE THE FOLLOWING METHOD

For best results, the dough should be at the recommended temperature. If possible, let it rest for 3 minutes before baking.

1. Remove the dough from the package and place it on a baking sheet or in a baking dish.
2. Bake the dough at the recommended temperature.
3. To make the crust crispy, brush it with oil.
4. Rinse the dough with water. 5. Clean the dough with a damp cloth and then dry it. Do not use any other cleaning agents.
5. Wash your hands and the dough.

Caution: Do not use the device if the power cord or plug is damaged; do not touch the device with wet hands.

INTENDED USE

INTENDED USE

Use the device only for its intended purpose.

The device is intended for household use only.

The water tank must be filled with clean water before use. Do not use the device without water in the tank.

Do not add any cleaning agents to the water; use only clean water.

When operating the device, keep it away from flammable materials.

Do not use the device if it has been dropped or damaged.

• Do not use the device if it is not working properly. Contact a service center.

CLEANING AND MAINTENANCE

Clean the device with a soft, dry cloth. Do not use water or other liquids.

For household use only

1. Unplug the device and let it cool down. 2. Clean the device with a soft, dry cloth. 3. Do not immerse the device in water or any other liquid. 4. Do not open the device to avoid electric shock.

POWER SUPPLY

If the device is not heating to the required temperature, check the following: the heating element may be faulty, the thermostat may be set incorrectly, or the power supply may be interrupted. Ensure the device is clean and free of dust. To check, measure the temperature with a thermometer. Do not attempt to open the casing. Do not touch the heating element while it is hot.

TROUBLESHOOTING

1. The device is not heating up.

Is the power cord properly connected? Is it plugged into a working outlet? - Is the main power switch on? - Is the safety thermostat tripped? - Is the thermostat set correctly?

2. The temperature of the heating element is too low.

Is the device overheating? Is the heating element properly positioned? - Are the thermostat parameters correct? Or are there any blockages?

3. The temperature of the heating element is too high.

• Are the thermostat parameters correct?

4. Water is leaking from the heating element.

• Is the seal damaged?

5. The device is making unusual noises.

If the problem persists, contact customer service.

Disconnect the device from the power supply. - Check the voltage and power specifications as indicated on the rating plate. - To replace the heating element, follow the steps shown in the figure.

6. The heating element is not heating up.

• Is the heating element properly connected?

Eckertne:

• The device is designed for cutting round holes in pipes (for connecting to the water supply system and draining...) - this is the device's purpose.

SERVICE (MAINTENANCE)

Contact the service organization:

1. If the device is damaged, contact the seller. 2. To replace the device, contact the seller. If this is not possible, dispose of the device properly and contact us within one hour. 3. If the issue is not resolved after the replacement, contact the service organization.

Provide the following information:

the device's serial number, model, and service code (indicated on the rating plate on the device),

SERVICE (MAINTENANCE) code (if specified),

your full name, phone number, and email address.

SERVICE

0000 000 0000

Eckertne:

The device is intended for cutting holes. This operation is performed by the service organization, and it is not recommended to do it yourself.

INSTALLATION

Place the device away from heat sources (at least 30 cm from stoves and heating devices, and 3 cm from electric stoves). Place the device on a flat, stable surface. Keep the device away from water sources. Clean the device regularly (remove dust and dirt). - Ensure proper ventilation.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• If the mains cable and socket do not match, contact a qualified electrician. Do not use adapters or extension cords.

Replacing the plug

To replace the plug, it is necessary to remove the fuse cover and the fuse from the plug.

ELECTRICAL CONNECTION

Electrical connections must be made by a qualified electrician. The plug and socket must be suitable for the current rating shown on the rating plate. If the plug is not suitable for the socket, the plug must be replaced.

FOR UK AND IRELAND ONLY ELECTRICAL CONNECTION

Warning: This appliance must be earthed.

Replacing the fuse

If the appliance is fitted with a 13 amp BS 1363 plug, to replace the fuse, use a 13 amp BS 1362 fuse approved by A.S.T.A. and proceed as follows:

1. Remove the fuse cover (A) and the fuse (B).
2. Fit the 13 amp fuse into the fuse cover.
3. Refit the fuse cover.

Note:

When replacing the fuse, the fuse cover must be refitted. If the fuse cover is lost, the plug must not be used until a replacement fuse cover is fitted.

The appliance is intended for household use and should be used in accordance with the instructions provided.

The manufacturer shall not be liable for any damage caused by improper use of the electrical cables.

For the Republic of Kazakhstan

Socket / Power plug (for two-pin plug)

If the power plug does not fit the socket, contact the service center for assistance. Do not modify the plug yourself. This procedure must be performed by qualified technicians in accordance with the standards and regulations.

Gebrauchsanweisung Instructions for use Mode d'emploi Gebruiksaanwijzing Istruzioni per l'uso

Brugsanvisning Bruksanvisning Käyttöohje Manuel d'utilisation Instruções para o uso

The appliance you have just bought, marked by the symbol ★★★★, allows the freezing of fresh and cooked food, the production of ice cubes, and the storage of frozen food. Please read these instructions carefully, as they include a description of your appliance and useful hints to enable you to achieve the best performance required to freeze fresh food and to store already frozen food.

DESCRIPTION OF THE APPLIANCE (Fig. 1) Control panel

A) Operation control lamp (green light) B) Temperature control lamp (red alarm light) C) Temperature control knob (thermostat) D) Open door alarm switch (if present) E) Baskets (freezing-in and storage baskets) F) Storage basket only. G) Eutectic system: remove from drawer F and insert into the high compartment E to optimise the product's consumption.

Some models are supplied with containers filled with cooling liquid (eutectics).

INSTALLATION

Ensure that the appliance is not damaged. Transit damages must be reported to your dealer within 24 hours of receipt of the appliance. The appliance should not be installed close to heat sources such as cookers, central heating, boilers, sunlight, etc. It must however be located in a well ventilated dry space.

Attention: Accessibility to the plug has to be guaranteed even after installation of the appliance to disconnect it, if required. Alternatively, connect the appliance to the mains by means of a two-pole switching device with contact separation of 3 mm situated in an accessible position.

ELECTRICAL CONNECTION AND OPERATION

Please check that the voltage indicated on the rating plate situated inside the compartment corresponds to the voltage in your home. The earthing of this appliance is compulsory by law. The manufacturer will accept no liability for injury to persons or damage to objects arising from the non observance of this requirement.

When the appliance is plugged in, if the thermostat knob is not set to symbol , the green and the red lamps (A) and (B) (Fig. 1) light up. The green control light always remains alight and indicates the operation of the appliance. The red control light remains alight until the set operation temperature has been attained. It lights up again when the temperature inside the freezer rises due to frequent or prolonged door opening, and when the appliance has been loaded with fresh food to be frozen.

ADJUSTMENT OF THE TEMPERATURE

The thermostat (Fig. 1) controls the temperature inside the appliance. Position · indicates that the operation of appliance is interrupted. The ideal storage temperature of frozen food for a long time is -18°C . In normal ambient conditions (temperature between +20°C and +25°C ), we suggest you adjust the thermostat control knob to a middle position. To obtain colder or warmer temperatures than -18°C , turn the thermostat control knob to the highest or lowest setting respectively. We remind you that internal temperatures are affected by the location of the appliance, the temperature of the surrounding air, the frequency of the door opening. The setting of the thermostat may have to be varied to allow for these factors. To check the temperature of the food stored, place the thermometer (if delivered) under the food; if it is placed on the food it will indicate the temperature of the air which does not correspond to that of the food stored.

USE OF THE FREEZER COMPARTMENT

This appliance is equipped with an acoustic alarm which sounds when the door is left open (if present).

FREEZING IN (Fig. 2)

The amount of fresh food which can be frozen in a 24 hours period at an ambient temperature of +25° C is stated on the rating plate.

Do not store warm foods in the freezer. Never re-freeze partially or completely defrosted foods. Prepare and wrap foods to be frozen in aluminium or plastic foils or place them in appropriate containers. Label the packets indicating the freezing-in date and the contents. The freezer compartment maintains the storage temperature for 15 hours approx. even in case of power failure.

We suggest however you leave the door closed during this time.

Fizzy drinks should not be frozen and some products, such as flavoured water ices, should not be consumed too cold.

Note: Due to the efficiency of the door seal, it is not always possible to open the freezer door immediately after closing it. Wait some minutes before trying to open it.

PRODUCTION OF ICE CUBES

Fill the ice cube trays 3/4 full with water and place them in the low temperature compartment. If the trays stick to the bottom of the compartment, do not detach them with sharp or cutting instruments, which could damage the appliance. If necessary, use the handle of a spoon. To remove ice cubes from plastic trays, bend them slightly.

Attention: Do not eat ice cubes or ice lollies immediately after removal from the low temperature compartment as they may cause cold burns.

STORAGE OF FROZEN FOOD

When buying frozen food, it is suggested to use thermal bags or cold boxes. They should be the last purchases made and should be well wrapped in newspaper. When home, store them in the compartment with the least possible delay. In any case, these foods have to be used within the date printed on the packet.

THAWING

Here are some basic suggestions:

Raw vegetables: Do not thaw - put straight into boiling water and cook as usual.

Meat (large cuts): Thaw in the refrigerator without unwrapping them. Before cooking, leave at room temperature for some hours.

(Small cuts): Thaw at room temperature or cook directly.

Fish: Thaw in the refrigerator without unwrapping or cook directly before being completely thawed.

Previously cooked food: Re-heat in the oven without removing from its aluminium container.

Fruit: Thaw in the refrigerator.

DEFROSTING

Generally you need to defrost two or three times a year when the layer of frost reaches a 3 mm thickness. We suggest you periodically remove the frost from the freezing plate by means of a plastic scraper. Avoid using sharp or cutting instruments. Defrosting should be carried out when the quantity of food stored is minimum. Wrap the frozen food into several layers of newspaper (or in a cover) and place them in the refrigerator or in a cool place. Adjust the thermostat control knob to position, disconnect the appliance from the mains and leave the door open. Remove the baskets by pulling forward and up. Do not use commercial defrosting products as they could contain dangerous components. At completion of defrosting, clean and dry the appliance carefully. Reconnect the freezer to the mains supply. Reload the freezer with the frozen food.

MAINTENANCE AND CLEANING

A periodic and proper maintenance will ensure a longer life to your appliance. Disconnect the appliance from the mains supply before any intervention. Clean periodically the appliance with a solution of water and vinegar. Rinse and dry thoroughly. Never use abrasive or detergents. Clean periodically the door gasket with water and dry carefully. Avoid soiling the door gasket with oil or other grease which could damage it. After cleaning, reconnect the appliance to the mains supply.

HINTS FOR HOLIDAYS

If you plan to be away for a long time, disconnect the appliance from the mains, empty and clean the inside. Leave the door open to prevent the appliance from smelling musty. If you plan to be away for a short time, let the appliance operate normally.

SERVICE

The incorrect operation of the appliance is not always due to a fault but it may also result from poor installation or usage. To prevent unnecessary service calls for which you will be charged, we suggest you consult this trouble-shooting guide.

If the red light is on continuously or flashing, the internal temperature is too high.

Check that:

• the door is not properly shut;
• the thermostat control knob is correctly set (see chapter "Adjustment of the temperature");
• the freezer is not near a source of heat;
• there is a large build up of frost on the inner walls; the air flow is not restricted.

If the compressor functions continuously. Check that:

the ambient temperature is too warm; - the door is not being opened too frequently. The appliance is excessively noisy. Check that: the appliance is level.

The appliance does not operate. Check that:

• the thermostat control knob is not set to position ;
• there is not a power failure;
• the plug is making good contact with the supply socket;
• any automatic circuit breakers have tripped or any fuses blown;
• the supply cable is intact (see also Note).

Note: When replacing a damaged supply cord, be sure the new cord is correctly clamped. If you have followed this trouble shooting guide and your freezer still does not work properly, get in touch with your Retailer or Service Agent. State clearly what is wrong and the type and serial number of your freezer.

PRESENTATION OF THE APPLIANCE

Cleaning (household appliance): Clean the appliance without using abrasive materials. For the appliance, follow the instructions for use.

TIPS BEFORE THE HOLIDAYS

PROBLEMS WITH THE FREEZER

CLEANING AND MAINTENANCE
