Product Type	Snow Thrower
Brand	Güde
Model	GSF 300-4 9 PS
Engine	Petrol, 4-stroke
Power	9 HP (6.6 kW)
Clearing Width	76 cm (30 inches)
Clearing Height	51 cm (20 inches)
Impeller Diameter	30 cm
Travel Speed	5 km/h (self-propelled)
Number of Forward Speeds	4
Number of Reverse Speeds	1
Fuel Tank Capacity	3.6 L
Wheel Type	Pneumatic
Weight	82 kg
Dimensions (L x W x H)	105 x 60 x 90 cm
Sound Level	94 dB(A)
Starting System	Recoil Starter
Adjustable Discharge	Yes, 180°
Lighting	Not included
Warranty	2 years

Frequently Asked Questions - GSF 300- 4 9 PS GUDE

How to start the Güde GSF 300-4 9 PS snow thrower?

Make sure the tank contains unleaded petrol and the engine oil is at the proper level. Open the fuel valve, set the choke to 'Closed', pull the recoil starter handle until the engine starts, then gradually open the choke.

What type of engine oil to use?

Use a 4-stroke oil SAE 30 or 10W30, depending on temperature. Check the level with the dipstick before each use.

How to adjust the clearing height?

The height is adjusted via the skid shoes located under the impeller. Turn the knobs to adjust the ground clearance between 1 and 5 cm depending on the surface.

Why won't the engine start?

Check the petrol, oil, spark plug, and that the choke is in the correct position. Make sure the fuel valve is open and the safety handle is pressed.

How to store the machine at the end of the season?

Drain the fuel tank and run the engine until it stops. Change the oil, clean the impeller, and store it in a dry, frost-free place.

Where to find spare parts?

Spare parts are available from authorized Güde dealers or online. You can also contact after-sales service with the model number GSF 300-4.

How to clean the snow thrower after use?

Use a low-pressure water jet to remove snow and dirt. Avoid directing water towards the engine and air filter. Dry the machine before storing.

What is the sound level of this machine?

The sound level is approximately 94 dB(A). Always wear hearing protection during use.

Does the warranty cover wear parts?

The legal 2-year warranty covers manufacturing defects, but not wear parts such as skid shoes, belts, or spark plugs. Consult the manual for more details.

How to adjust the discharge direction?

The discharge chute can be manually oriented 180° via the handle located near the dashboard. Turn it to direct snow left or right.

USER MANUAL GSF 300- 4 9 PS GUDE

Black and white photo of a snowman lawn mower with visible blades and wheels (no text or symbols)

GSF 300 - 4 PS

94572

ENGLISH Please read the instructions carefully before starting the machine.

English TECHNICAL DATA | SPECIFIED CONDITIONS OF USE | SAFETY INSTRUCTIONS | MAINTENANCE | GUARANTEE | EC-DECLARATION OF CONFORMITY \_\_\_\_ 11

Français CARACTÉRISTIqUES TECHNIqUES | UTILISATION CONFORME à LA DESTINATION | CONSIGNES DE SÉCURITÉ | ENTRETIEN | GARANTIE | DÉCLARATION DE CONFORMITÉ CE \_\_\_\_ 15

Black-and-white photo of industrial tools including a snowman, saw, and pump (no text or symbols visible)

DE	Montage	SI	Montaža
GB	Assembly	HR	Montaža
FR	Montage	BG	Монтаж
IT	Montaggio	RO	Montaj
NL	Montage	BA	Montaža
CZ	Montáž
SK	Montáž
HU	Szerelés

DE	Inbetriebnahme	SI	Uvedba v pogon
GB	Starting-up the machine	HR	Puštanje u rad
FR	mise en service	BG	Пускане в действие
IT	Messa in funzione	RO	Punerea în funcțiune
NL	Inbedrijfstelling	BA	Puštanje u rad
CZ	Uvedení do provozu
SK	Uvedenie do prevádzky
HU	Üzembe helyezés

DE	Betrieb	SI	Delovanje
GB	Operation	HR	Rad
FR	Fonctionnement	BG	Păbota
IT	Esercizio	RO	Funcționare
NL	Gebruik	BA	Rad
CZ	Provoz
SK	Prevádzka
HU	Üzemeltetés

DE	Reinigung / Wartung	SI	Čiščenje / Vzdrževanje
GB	Cleaning / Maintenance	HR	Čiščenje / Održavanje
FR	Nettoyage / Entretien	BG	Чистене / Поддръжка
IT	Pulizia / Manutenzione	RO	Curățare / Întreținere
NL	Schoonmaken / Onderhoud	BA	Čiščenje / Održavanje
CZ	Čištění / Údržba
SK	Čistenie / Údrzba
HU	Tisztítás / Karbantartás

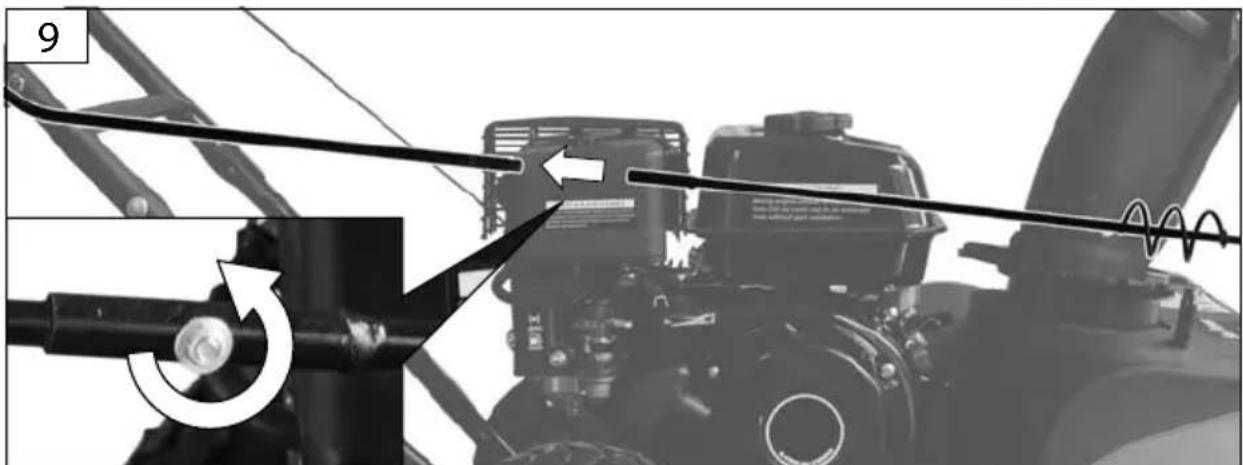

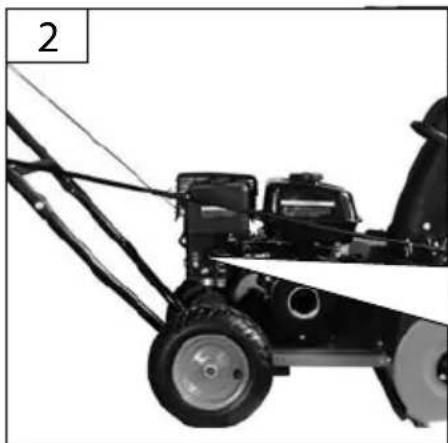

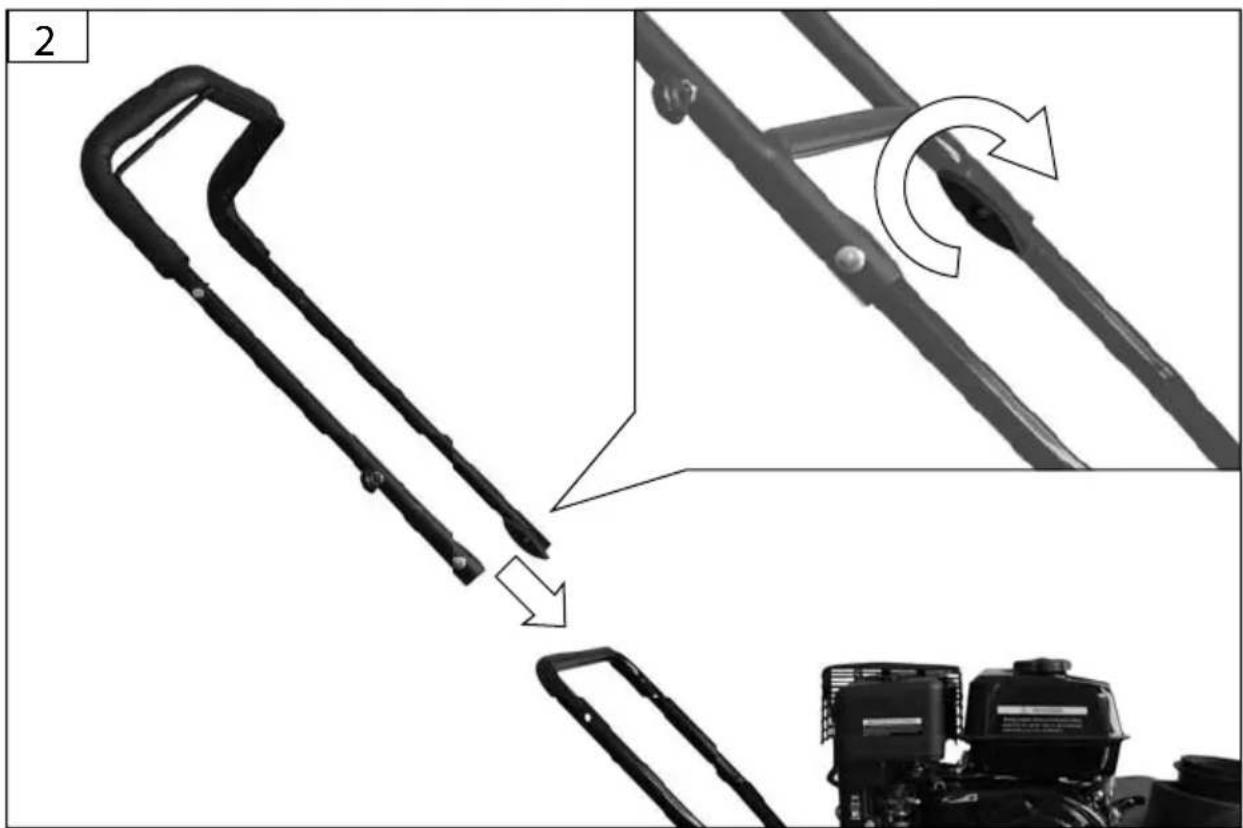

1	DE Montage	SI Montaža
	GB Assembly	HR Montaža
	FR Montage	BG Монтаж
	IT Montaggio	RO Montaj
	NL Montage	BA Montaža
	CZ Montáž
	SK Montáž
	HU Szerelés

Warning symbol with exclamation mark, circuit diagram with plug, and open book (no text or labels)

Diagram of a grass pump with blade and side-mounted motor, showing mechanical components and tool path (no text or symbols)

Mechanical assembly diagram showing a chain clamp and motor components with motion arrows (no text or symbols)

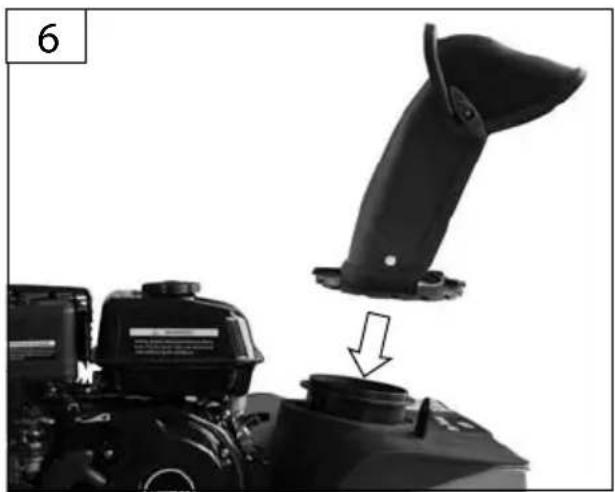

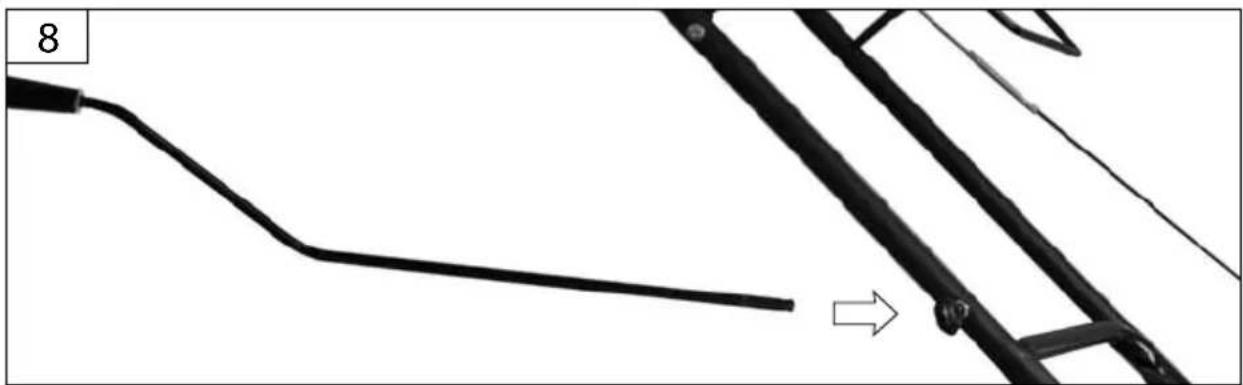

DE Montage
SI Montaža
GB Assembly
HR Montaža
FR Montage
BG Монтаж
IT Montaggio
RO Montaj
NL Montage
BA Montaža
CZ Montáž
SK Montáž
HU Szerelés

Close-up of a black cable with a metallic connector and directional arrows indicating motion (no text or symbols)

Close-up of a black industrial machine component with a downward arrow indicating a drop or compression action (no visible text or symbols)

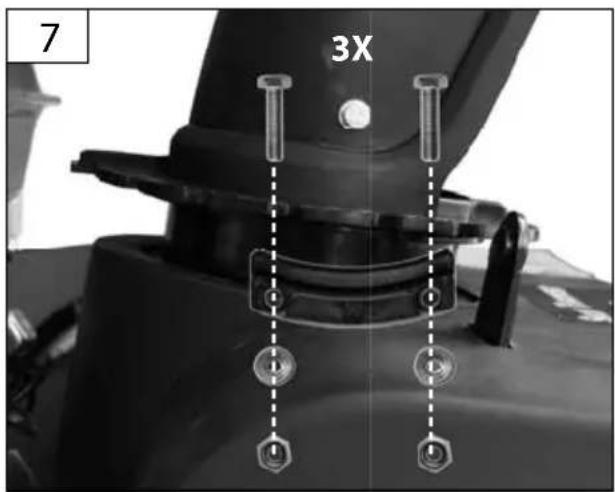

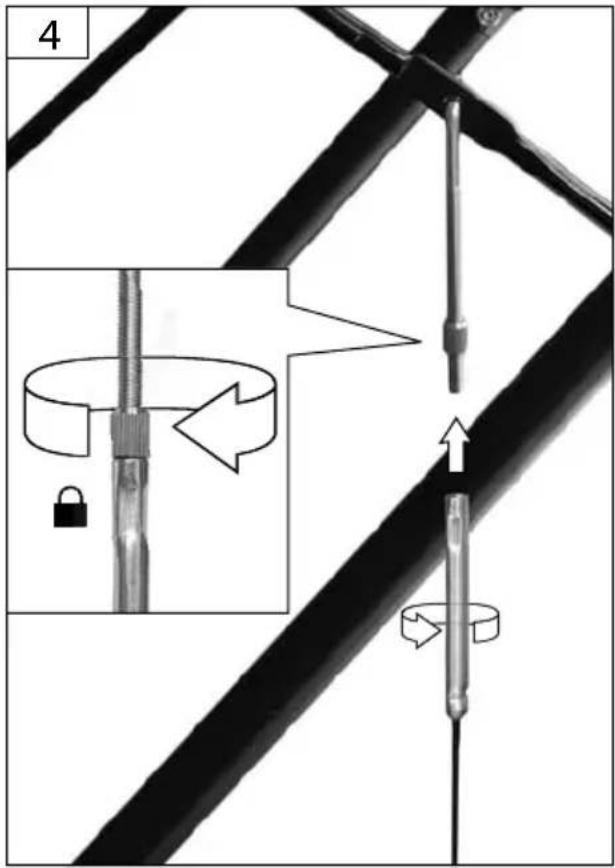

1	DE Montage	SI Montaža
	GB Assembly	HR Montaža
	FR Montage	BG Монтаж
	IT Montaggio	RO Montaj
	NL Montage	BA Montaža
	CZ Montáž
	SK Montáž
	HU Szerelés

Three black-and-white icons: a warning triangle with an exclamation mark, a circuit diagram with arrows and a book with an open cross (no text or symbols)

Close-up of a black metal rod with a curved tip and an arrow pointing to a small hole, no text or symbols present.

Mechanical assembly diagram showing pipe connection and motion capture (no text or symbols)

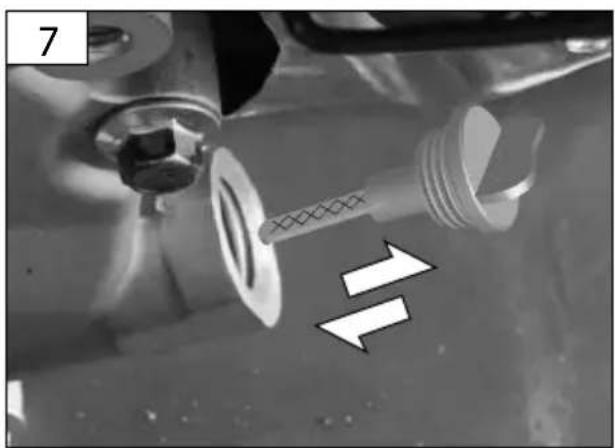

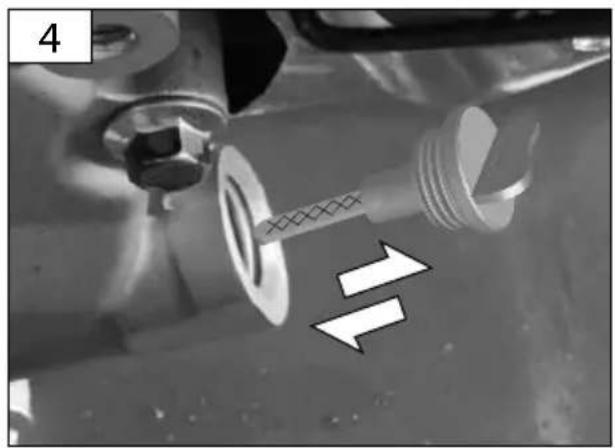

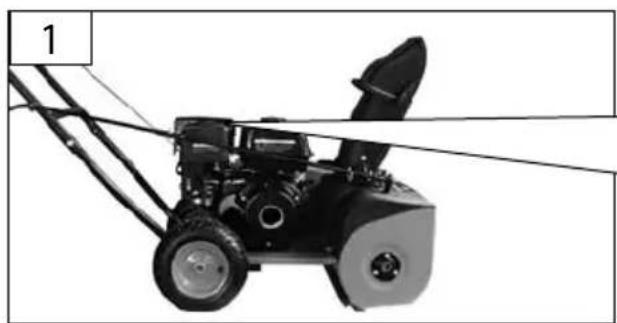

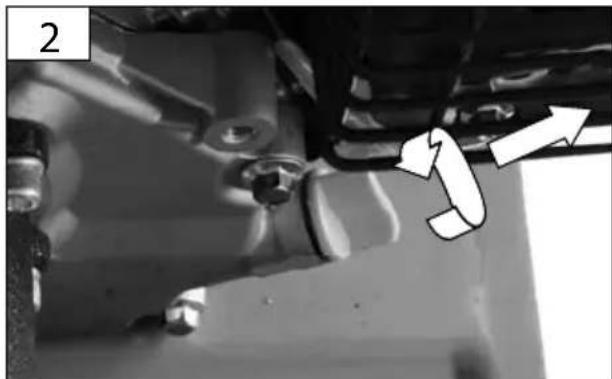

DE Ölstand kontrollieren

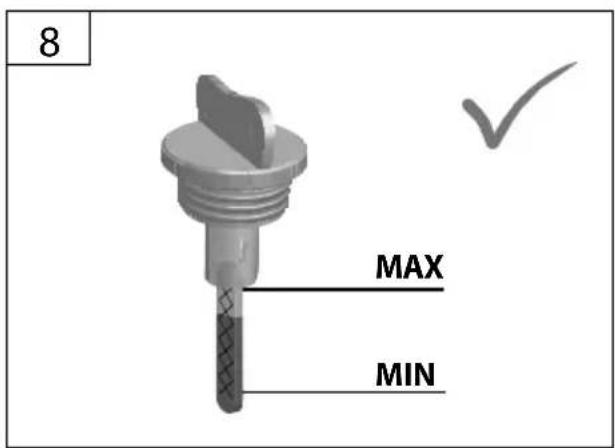

GB Oil level inspection

GB Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary. Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary.

Black-and-white photo of a snowman lawn mower with visible blades and wheels (no text or symbols)

Close-up of mechanical components with arrows indicating direction (no text or symbols)

2

DE Ölstand kontrollierenGB Oil level inspectionFR Contrôle du niveau d'huileIT Controllo livello d'olioNL Oliepeil controlerenCZ Kontrola stavu olejeSK Kontrola stavu olejaHU Olajszint ellenőrzése

SI Kontrola stanja oljaHR Kontrola razine uljaBG Контрол на състоянието на маслотоRO Verifi carea stării uleiuluiBA Kontrola nivoa ulja

Illustration of a hand holding a small object with a pipette inserted, no text or symbols present

Close-up of a mechanical component with a threaded fitting and two arrows pointing to it, no visible text or symbols.

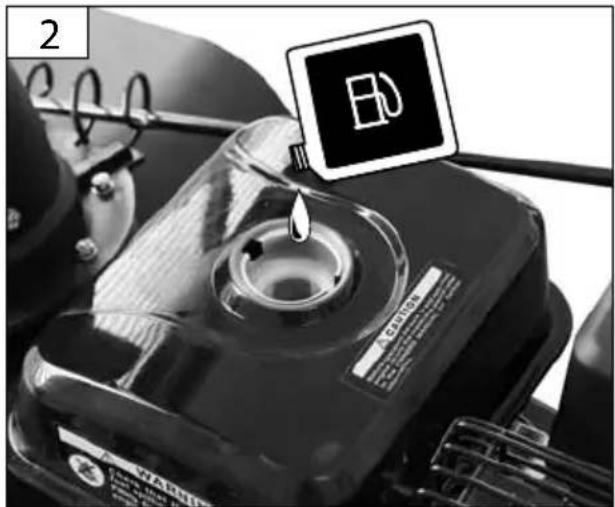

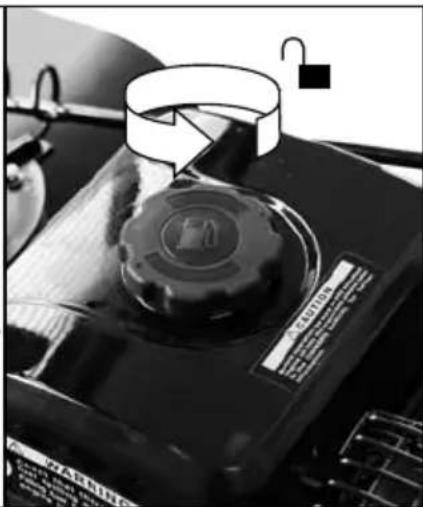

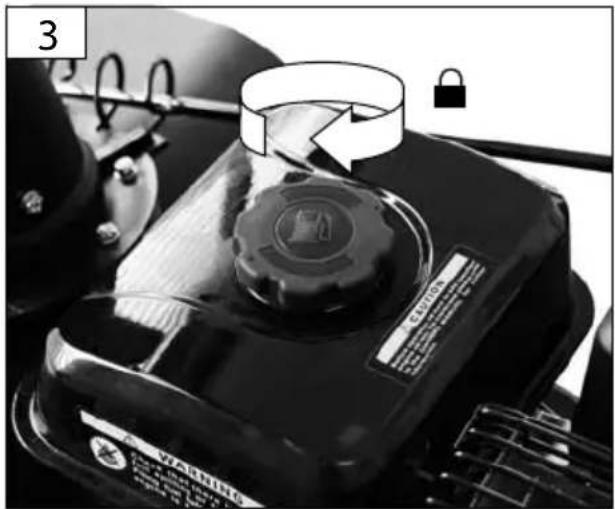

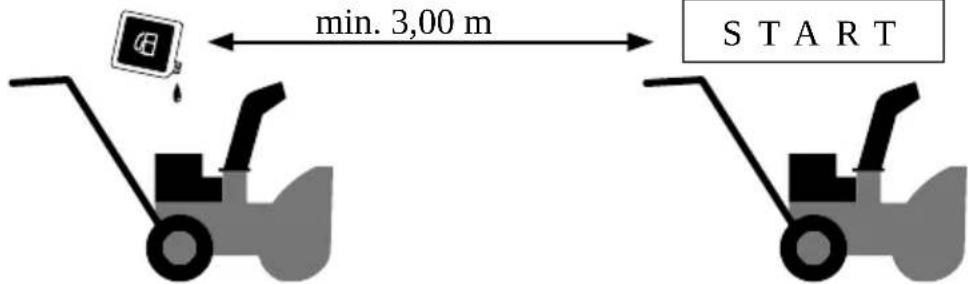

DE Tanken

SI Dolivanje goriva

GB Fuel tank filling

HR Dopunjavanje goriva

FR Ravitaillement

BG Зареждане

IT Rabbocco

RO Alimentarea cu combustibil

NL Tanken

BA Dopunjavanje goriva

CZ Tankování

SK Tankovanie

HU Tankolás

2

1

Close-up of a black industrial battery with a circular top and warning label (no readable text or symbols)

Close-up of a black industrial fuel injector with a lit flame, no visible text or symbols

Close-up of a black industrial battery with a circular top and side panel, showing a lock mechanism (no text or symbols visible)

Hand pressing down on a car hood with a circular emblem (no visible text or symbols)

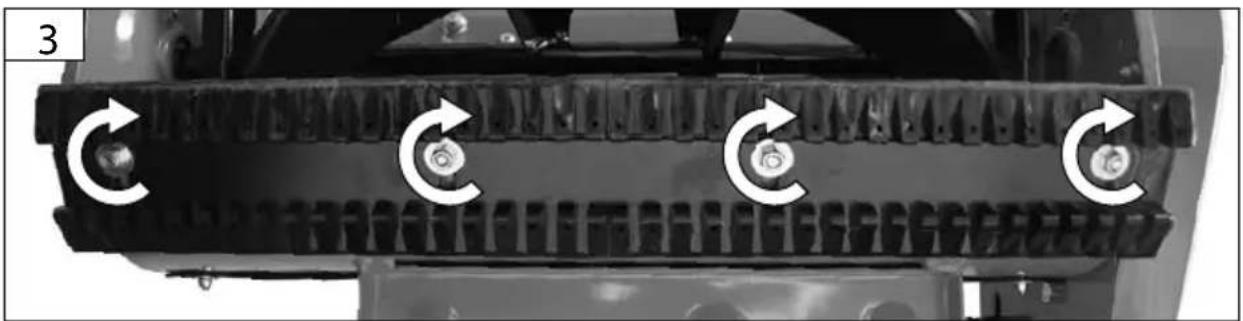

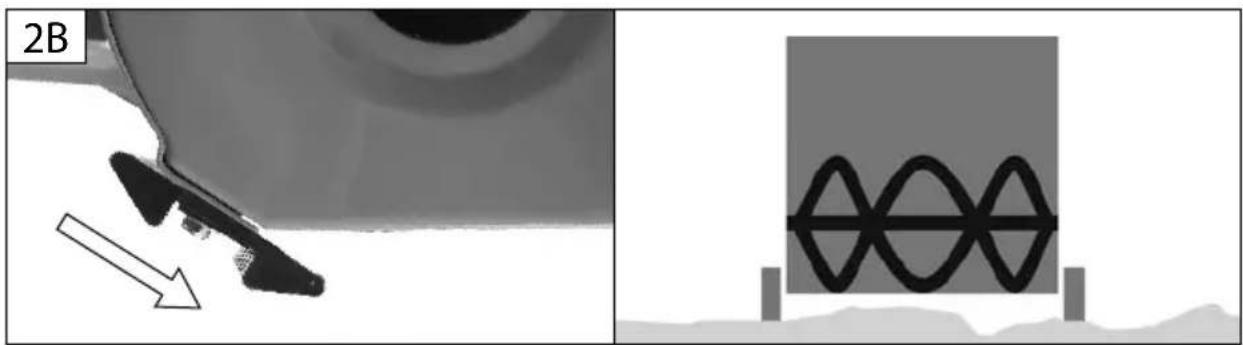

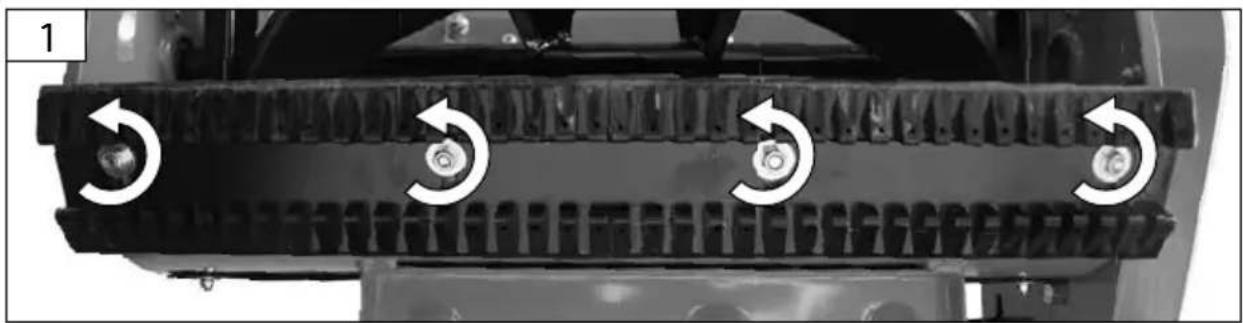

	DE	Räumerplatte und Gleitkufe	SI	Lemež in drsna površina
	GB	Plough and skid	HR	Ralica i klizna površina
	FR	Soc et patin	BG	Octriie u pełci
	IT	La lama regolabile e slittino	RO	Brăzdar și șină
	NL	Ruimerplaat en glij-ijzer	BA	Ralica i klizna površina.
	CZ	Radlice a lyžina
	SK	Radlica a lyžina
	HU	Eke és vezetősín

Close-up of a mechanical component with four circular arrows indicating rotational motion (no text or symbols)

Two-panel image showing a mechanical component and a waveform-like pattern, both without any readable text or symbols.

Two-panel diagram showing a mechanical component with an arrow pointing to it and a waveform-like symbol on a platform (no text or labels)

Close-up of a mechanical component with four circular arrows indicating rotational motion (no text or symbols)

DE Inbetriebnahme

GB Starting-up the machine

FR mise en service

Abstract black-and-white graphic of a curved arrow with motion arrows, no text or symbols present.

3

A

Silhouette of a manual lawn mower with water spraying through it (no text or symbols)

B

Silhouette of a manual tiller spraying water with a curved pipe (no text or symbols)

Diagram of a snowman with 180° angle annotation and mechanical components (no text or symbols on the diagram itself)

3

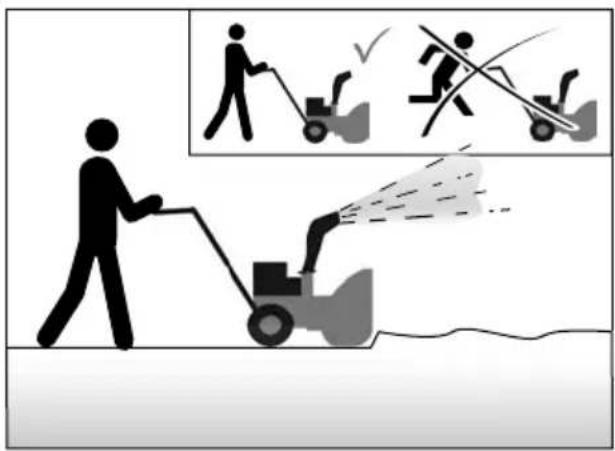

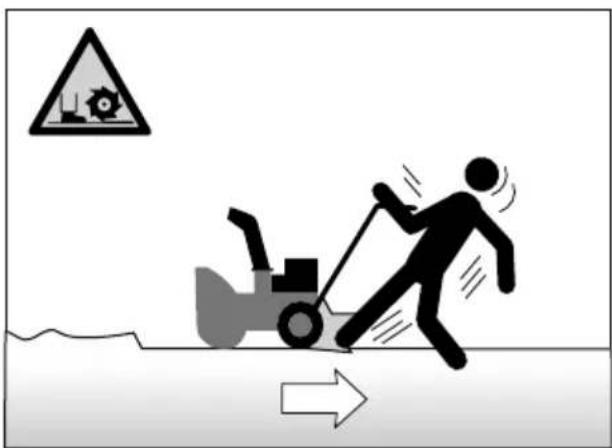

DE Betrieb

GB Operation

FR Fonctionnement

IT Esercizio

NL Gebruik

CZ Provoz

SK Prevádzka

HU Üzemeltetés

SI Delovanje

HR Rad

BG Работа

RO Functionare

BA Rad

Illustration of a person pushing a snowman with a tool, accompanied by two inset photos showing workers in the background (no text or symbols)

Silhouette of a person plowing a pile with tools, producing large particles (no text or symbols)

Illustration of a person pushing a bulldozer on water with a warning sign above (no text or symbols)

Illustration of a person using a tool to clean or escape a vehicle, with no visible text or symbols.

DE Betrieb - START

GB Operation - START

△

START

Black-and-white photo of a snowman with visible blade and wheel (no text or symbols)

Two types of electrical connectors shown in line, one with a metallic connector and arrow indicating direction (no text or symbols)

Close-up of a small manual lawn mower with visible wheels and motors (no text or symbols)

a

b

Choke

C

ON

Black-and-white photo of a snowman with blade and pump, labeled '3' (no text or symbols on the device itself)

3

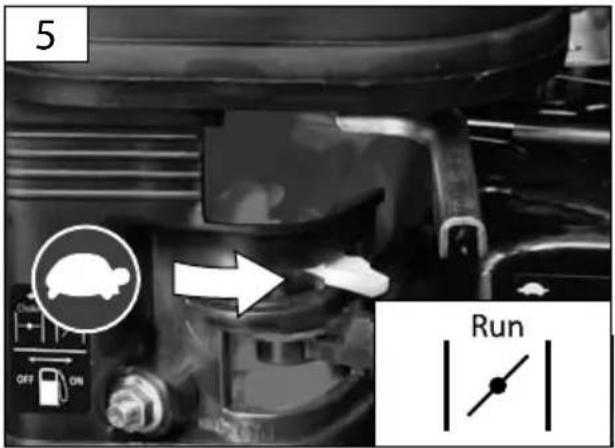

DE Betrieb - START

GB Operation - START

Illustration of a handheld device with directional arrows indicating movement or force (no text or symbols)

5

6

Diagram showing a manual tool interacting with a small plow and a moving cart, both with directional arrows indicating motion (no text or symbols)

7

Black-and-white photo showing a vehicle interior with arrows indicating movement, and two silhouettes of a turtle and a dog (no text or symbols)

8

Silhouette of a person pushing a plow with a hose, spraying water (no text or symbols)

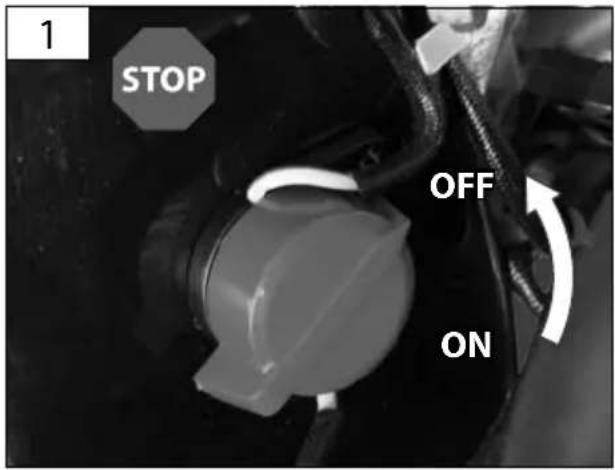

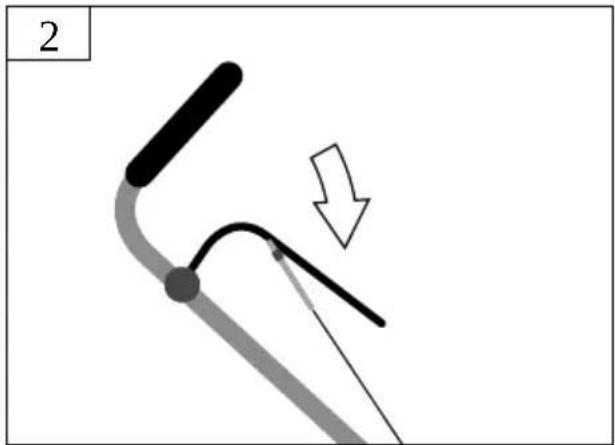

DE Betrieb - STOP

GB Operation - STOP

Close-up of a mechanical component with a white arrow pointing to a small white object, alongside an inset showing a turtle silhouette (no text or symbols)

Diagram of a curved mechanical or electrical component with a downward arrow indicating motion (no text or symbols)

Close-up of a spark plug being welded into a terminal connector (no text or symbols visible)

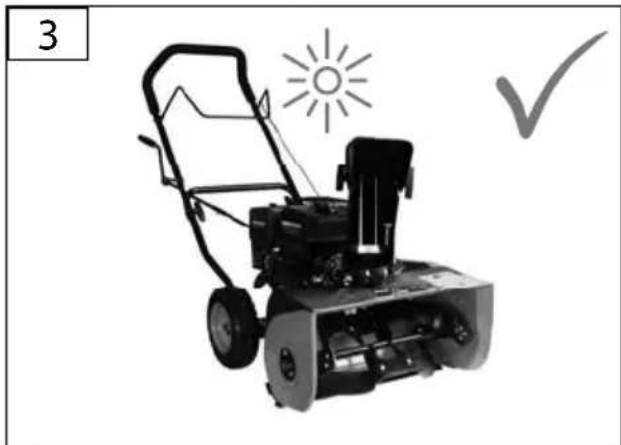

	DE Reinigung / Wartung	SI Čiščenje / Vzdrževanje
	GB Cleaning / Maintenance	HR Čiščenje / Održavanje
	FR Nettoyage / Entretien	BG Чистене / Поддръжка
	IT Pulizia / Manutenzione	RO Curățare / Întreținere
	NL Schoonmaken / Onderhoud	BA Čiščenje / Održavanje
	CZ Čištění / Údržba
	SK Čistenie / Údrzba
	HU Tisztítás / Karbantartás

Mechanical device with attached rod and mechanical components, no visible text or symbols

Diagram of a robotic device with two curved tool tips extending outward, showing mechanical components and hand gesture (no text or symbols)

Close-up of a mechanical device with a tool and a checkmark symbol (no readable text or symbols)

Illustration of a robotic arm operating a machine with a hand holding a curved blade (no text or symbols visible)

Illustration of a snowman with a sun symbol above it, no text or symbols present

Illustration of a snowman with water droplets spraying downward (no text or symbols)

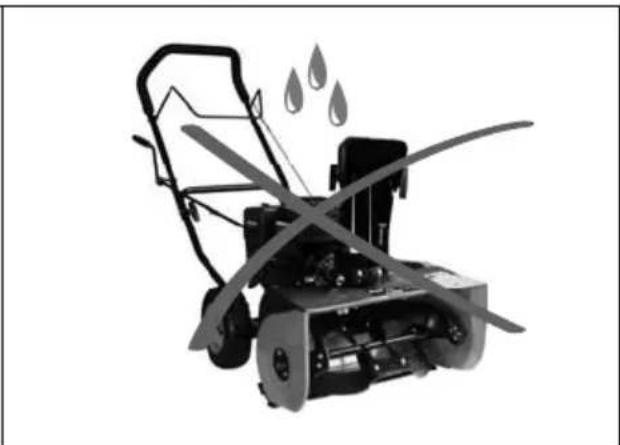

GB Cleaning / Maintenance

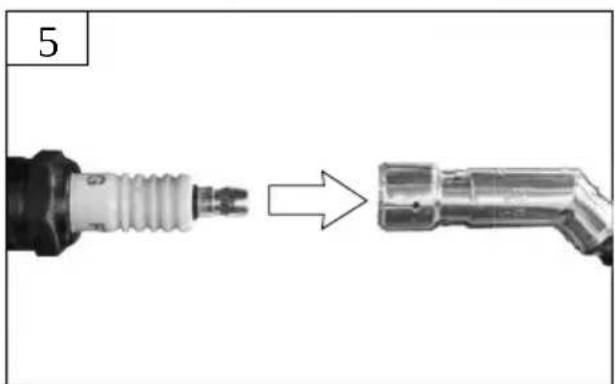

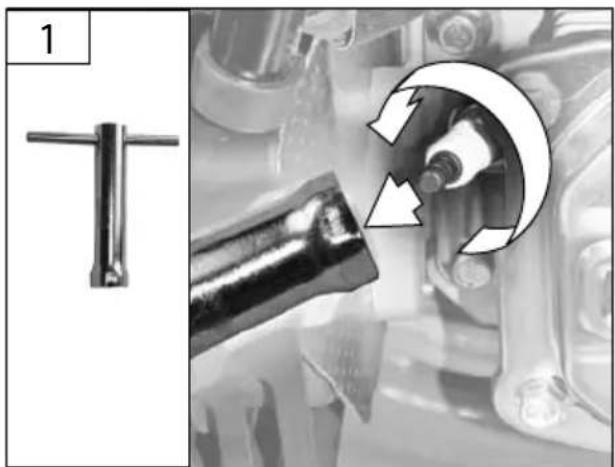

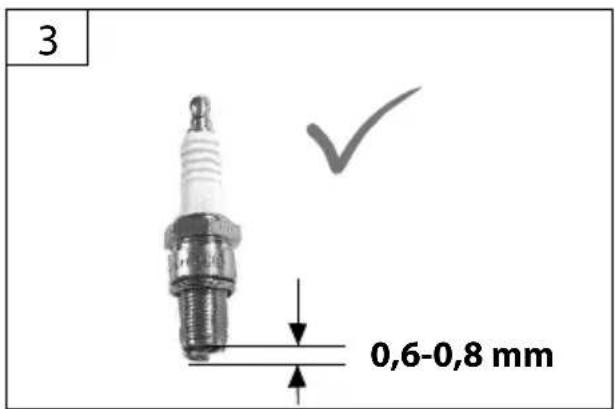

4	DE Zündkerze	SI Vžigalna svečka
	GB Spark plug	HR Svijeća za paljenje
	FR Bougie d'allumage	BG Запалваща свещ
	IT Candela d'accensione	RO Bujie
	NL Bougie	BA Svijeća za paljenje
	CZ Zapalovací svíčka
	SK Zapalovacia sviečka
	HU Gyújtógyertya

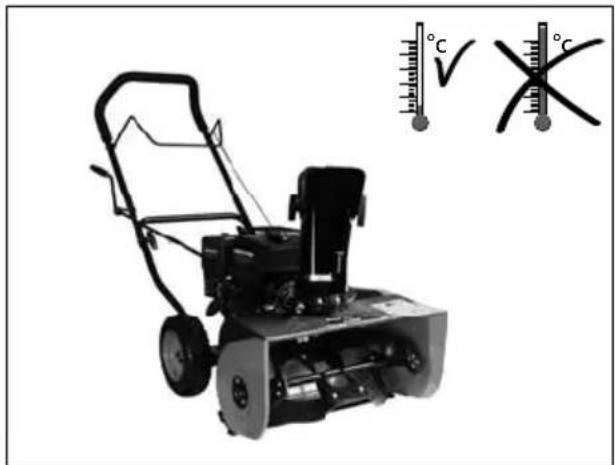

Exterior view of a snowman with cooling unit and thermometer indicators (no text or symbols on the device itself)

Mechanical assembly diagram showing a tool and component with directional arrows indicating motion (no text or symbols)

Close-up of a spark plug and its side profile, showing detailed texture and mounting detail (no text or symbols)

Mechanical assembly diagram showing a tool and a mechanical component with directional arrows (no text or symbols)

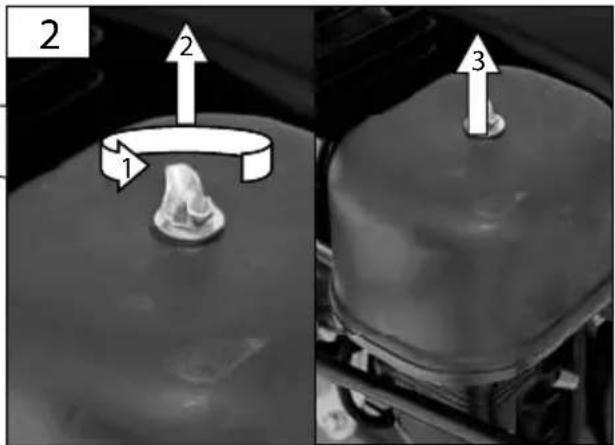

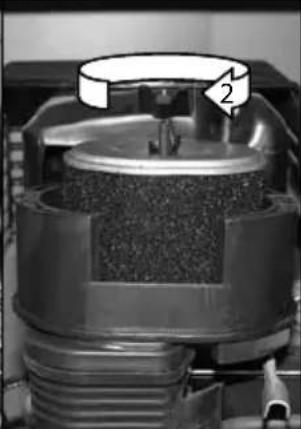

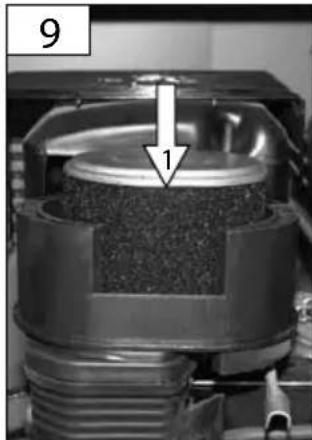

DE Luftfilter

GB Air filter

FR Filtre à air

IT Filtro d'aria

NL Luchtfiter

CZ Vzduchový fi ltr

Close-up of a mechanical component with a central cylindrical housing and a small protrusion, no visible text or symbols.

Close-up of a mechanical component showing internal structure and assembly (no visible text or symbols)

Top-down view of a black cap with a white arrow pointing upward, showing internal pattern (no text or symbols)

DE Luftfilter

GB Air filter

FR Filtre à air

IT Filtro d'aria

NL Luchtfi Iter

CZ Vzduchový fi ltr

Illustration of a pipe emitting smoke from a filter (no text or symbols)

GB Paper filter to be cleaned with compressed air only! Never use water!

Close-up of a perforated metal component with a black top and white arrow pointing to a hole (no text or symbols visible)

Close-up of a mechanical component with a labeled arrow pointing to a textured area (no text or symbols visible)

Close-up of a mechanical component with a circular top and textured base, no visible text or symbols

Technische Daten

2006/42/EG, 2004/108/EG,

2000/14/EG&2005/88/EG, 97/68/EG&2010/26/EG

Fuel Unleaded petrol

tank capacity 2,5 l

Max. snow height 258 mm

Max. snow removal width....520 mm

Max. throw-away distance 2 - 8 m

Cylinder ∅....200 mm

Weight....42 kg

Air pressure in tyres....1 bar

Noise and Vibration Information

Sound power level L_WA¹⁾ 100 dB (A)

Wear ear protectors!

¹⁾ Uncertainty K=3 dB (A)

Read and understand the operating instructions before using the appliance. Familiarise

with the control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

In case of any doubts about connection and operation refer please to our customer center

Specifi ed Conditions Of Use

The snow blower has exclusively been designed to remove snow on paved roads and surfaces; Respecting technical data and safety precautions.

Use the appliance only outside, never use it onfi ned and bad ventilated areas.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Safety Instructions

Danger of injury!

Never put your hands and feet near the rotating parts. Keep a distance from the ejection opening at all times.

Danger of burns!

Some parts of the appliance get too hot when the appliance is operated. Do not touch any hot parts, e.g. engine and muffler.

Read carefully the operating and maintenance instructions. Familiarise thoroughly with the controls and proper use of the appliance. You need to know how the appliance works and how controls can immediately be switched off.

Never let children work with the appliance. Never let adults work with the appliance unless they have been properly trained.

Keep all persons, especially small children, and pets out of reach of the place of your work.

Being careful prevents slipping or falling, especially when reversing.

Check the ground on which the appliance is going to be used and remove any items that might be caught or thrown off by the appliance.

Wear gloves, protective glasses, closef tting winter clothes and solid shoes with a rough sole when working and providing maintenance.

⚠️ Fuel is highly flammable.

Keep the fuel in suitable containers only.

The appliance may only be refuelled outdoors and not near open fire or burning cigarettes.

Refuel before starting the appliance. If the engine is running or still hot, it must not be refuelled or the tank cover opened.

Make sure the fuel does not overflow. If the fuel overflows, the engine must not be started. Remove any dirt from the appliance and prevent any attempt at ignition until fuel fumes have evaporated.

Use a grounded socket with three wires for all units with electric driving engines or electric starters.

Set the working screw height so that it does not touch the surface with rubble or road metal.

Do not adjust the appliance when the engine is running (except for settings directly recommended by the manufacturer).

Snow should be removed only after adjusting the snow blower to the outdoor temperature when there are extreme temperature differences. Immediate snow removing could lead to premature wear of the drive shaft and other extensions such as the rubber flap.

There is a risk of items being thrown off at eyes when working with power appliances.

Protective glasses or a shield should always be used when operating, adjusting or repairing the appliance.

Do not put your hands and legs near the rotating parts. Keep a safe distance from the eject hole.

Be extremely careful when running over or removing snow off brash entrances, footpaths and paths. Be prepared for unexpected risks or moving vehicles.

When you hit a foreign item, switch the engine off, disconnect the cable from the spark plug and check thoroughly the snow blower for any damage and remove it if necessary – the snow blower can be put into operation again and worked with now.

If the appliance starts abnormally vibrating, switch the engine off and search for the cause immediately. Generally, vibrations are a warning against operating failure.

Switch the engine off every time you stop operating the appliance, clean the working screw/rotor can/eject tube and when executing repairs, adjusting and inspecting the appliance..

When cleaning, repairing and checking the appliance,

make sure that the working screw/rotor and all moving parts are stopped.

Pull the cable out of electric motors.

Never use the appliance inside rooms; to be used outdoors only.

Do not remove snow across slopes. Be extremely careful when changing movement direction on slopes.

Never try to remove snow on steep slopes.

Never use the snow blower when guards, sheets and other protection components are not installed properly.

Never use the snow blower near glass surfaces, cars, windows, pits, etc.; set the eject tube angle properly. Children and pets must be in a sufficient distance from the appliance.

Do not overload the appliance; do not try to remove snow too quickly.

Never use the appliance at a high travelling speed on a slippery surface. Be careful when reversing.

Never aim the eject tube at bystanders. Do not allow anyone to stand before the appliance.

Disconnect the working screw/rotor drive when the snow blower is to be transported or when not being used.

Use only extensions and accessories approved by the snow blower manufacturer (e.g. wheel weights, counterweight, cabins, etc.).

The snow blower must only be used when appropriate visibility or good lighting is provided. Stand fast on the ground and hold the handle tight by hands at all times. Walk, never run.

Do not allow anybody to stand on the appliance.

Switch the engine off and unplug it if you are not working with the appliance or when leaving the appliance or adjusting, maintaining or repairing it.

The appliance should only be used when in a perfect state. Carry out a visual inspection before switching the appliance on. Check especially the safety equipment, electrical control elements, power lines and screw couplings for any damage and if they are tightened appropriately. Replace any damaged parts before the appliance is put into operation if necessary.

Put the appliance out of operation and store it in a closed room only after the engine has cooled down.

The engine must necessarily be filled with engine oil before being put into operation for the first time.

Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary.

Never store the appliance with petrol in the tank inside a building where petrol fumes may potentially

get in touch with open fire or sparks.

When the appliance is not going to be used for a long time, store it with an empty tank.

Do not change the controlled engine setting and do not rev the engine up.

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age: Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Local regulations may stipulate the minimum age of the user.

Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Emergency procedure

Danger of injury!

Never put your hands and feet near the rotating parts. Keep a distance from the ejection opening at all times.

Danger of burns!

Some parts of the appliance get too hot when the appliance is operated. Do not touch any hot parts, e.g. engine and muffler.

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used. If you seek help, state the following pieces of information:

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Maintenance

Switch the engine off and remove the socket plug before any work on the engine. Wait until all rotating parts have stopped the appliance has cooled down.

Keep the appliance, especially the tank and engine, clean at all times. Clean the ejection opening and cover at regular intervals.

Apply environment-friendly oil to all moving parts.

Refer all servicing to qualified service personnel.

Use only original accessories and original spare parts.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If necessary, a list of spare parts can be found at www.guede.com.

Guarantee

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:

Serial No.:

Art. No:

Year of production:

Symbole

Read the Operating Instructions!

Wear eye protective goggles! Wear ear protectors!

Solid shoes to be worn!

Warning/caution!

Caution - hot surface! Danger of burns!

Warning against dangerous voltage

Keep distance of persons! Observe to keep out of dangerous zone

Risk from the rotating tool Never put parts of your body and clothes near rotating parts.

Warning against thrown-off items

Beware of flying items (persons, animals, houses, cars)

Do not touch the rotating tool.

Use the appliance only outside, never use it in confined and bad ventilated areas.

Prohibited smoking and open fire using.

Switch the engine off and remove the socket plug before any work on the engine.

Any damaged or disposed devices must be delivered to appropriate collection centres.

Batteries, oil, and similar substances must not enter the environment.

Protect against humidity

This side up

EC-Declaration of Conformity

GÜDE GmbH & Co. KG

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives. In case of any change to the appliance not discussed with us the Declaration expires.

Snow blower

GSF 300 - 4 PS #94572

Appropriate EU Directives

2006/42/EG, 2004/108/EG, 2000/14/EG&2005/88/EG, 97/68/EG&2010/26/EG

Harmonised standards used

ISO 8437:1989+A1, 2006/42/EG-Annex I/05.06, EN 55012:2007+A1, EN 61000-6-1:2007

e11*97/68SA*2010/26*1285*01

Method of compliance assessment.:

2000/14/EG - Annex V

Guaranteed sound power level L_WA 100 dB (A)

Wolpertshausen, 2012-07-06 Helmut Arnold Managing Director

Technical documentation J oachim Bürkle

Inspection and maintenance plan

Regular servicing period Before		any start-up	After 1 month	After 3 months	After 6 months	After 12 months	At the end of the season
			20 Hours of operation	50 Hours of operation	100 Hours of operation	300 Hours of operation
Engine oil (10W-40) max. 0,6 l	Inspection	√
	Change		√	√	√
Spark plug Inspection Clean			√		√
Air filter Inspection		√
Check the petrol level		√
Drain the petrol tank							√
Check the screwed connec-tion		√
Check the cables		√
Lubricate the pivot points			√				√
Check the cooling				√
Clean the machine tho-roughly. Spray the skids and plough with oil							√

Provide appropriate servicing upon the earlier of the following: in the given month or after the specified hours of operation have expired.
* Only the paper filter element

Failure removal

Defect	Causes	Measure
Engine not starting or stopping after a short while	Too low level of the engine oil Lack of oil protection has been activated	Check the oil level Add engine oil→5
	Fuel tap closed Open the fuel tap
	Petrol tank empty Add petrol
	Spark plug dirty from oil or defective	Clean or replace the spark plug
	Wrong gas lever position Correct the settings
Engine not running smoothly	Spark plug dirty Clean the spark plug
	Air filter dirty Clean or replace the air filter	→17
No drive or drive slipping	Clutch slipping Adjust the cable	Consult with the customer service centre
No or only minimum snow ejection	Ejection chimney blocked Switch the engine off and clean the ejection chimney
	Milling worm not rotating as the clutch is slipping	Adjust the cable
Machine getting stuck on small unevenness.	Skid set too low Correct the settings	→8
Some snow remaining untreated on the ground	Skid set too high Correct the settings	→8
Snow being thrown backwards behind the machine	Skid set too high Correct the settings	→8
	Plough worn out Replace the plough
Unsteady running, strong vibrations	Components and screwed connection loosened	Switch the engine off and check / tighten the screwed connection Replace any damaged parts Consult with the customer service centre

2006/42/EG, 2004/108/EG,

2000/14/EG&2005/88/EG, 97/68/EG&2010/26/EG

Documents techniques J

oachim Bürkle

Brandstof ....Loodvrije benzine

Tankinhoud....2,51

2006/42/EG, 2004/108/EG,

2000/14/EG&2005/88/EG, 97/68/EG&2010/26/EG

2006/42/EG, 2004/108/EG,

2000/14/EG&2005/88/EG, 97/68/EG&2010/26/EG

2006/42/EG, 2004/108/EG,

2000/14/EG&2005/88/EG, 97/68/EG&2010/26/EG

2006/42/EG, 2004/108/EG,

2000/14/EG&2005/88/EG, 97/68/EG&2010/26/EG

2006/42/EG, 2004/108/EG,

2000/14/EG&2005/88/EG, 97/68/EG&2010/26/EG

2006/42/EG, 2004/108/EG,

2000/14/EG&2005/88/EG, 97/68/EG&2010/26/EG

Norme armonizate aplicate.

ISO 8437:1989+A1, 2006/42/EG-Annex I/05.06, EN

55012:2007+A1, EN 61000-6-1:2007

e11*97/68SA*2010/26*1285*01

2006/42/EG, 2004/108/EG,

2000/14/EG&2005/88/EG, 97/68/EG&2010/26/EG

Primenjeni harmonizovani standardi

ISO 8437:1989+A1, 2006/42/EG-Annex I/05.06, EN 55012:2007+A1, EN 61000-6-1:2007

e11*97/68SA*2010/26*1285*01
