Product Type	IP Network Surveillance Camera
Brand	Abus
Model	TVAC14000A
Resolution	2 Megapixels (1920 x 1080 pixels)
Night Vision	Infrared LED, range up to 30 meters
Viewing Angle	80° (horizontal)
Power Supply	PoE (Power over Ethernet) or 12 V DC adapter
Power Consumption	Max. 8 W
Dimensions (W x H x D)	70 x 180 x 70 mm
Weight	500 g
Protection Rating	IP66 (weather-resistant)
Operating Temperature	-30°C to +60°C
Storage	microSD card up to 128 GB or NVR recording
Connectivity	Ethernet 10/100 Mbps, Wi-Fi not integrated
Supported Protocols	TCP/IP, HTTP, RTSP, ONVIF
Main Functions	Motion detection, email alert, night vision
Maintenance and Cleaning	Clean with a soft, dry cloth; avoid solvents
Security	SSL/TLS encryption, password authentication
Spare Parts and Repairability	Not user-serviceable; contact ABUS customer service
General Information	2-year warranty, compatibility with surveillance systems

Frequently Asked Questions - TVAC14000A ABUS

How to install the ABUS TVAC14000A camera?

Attach the camera to the wall using the supplied bracket, connect the Ethernet cable, and power it via PoE or 12V adapter. Follow the quick start guide to configure the IP address and remote access.

Which app to use to view the images?

Use the ABUS IP Camera Viewer app or any ONVIF-compatible software. You can also access via a web browser using the camera's IP address.

How to reset the camera to factory settings?

Press and hold the reset button (located under the cover) for about 10 seconds until the LEDs flash. The device will restart with default settings.

Can the camera work without an internet connection?

Yes, on a local network. You can view images on an NVR or PC connected to the same network. Remote features require an internet connection.

What is the range of night vision?

Infrared night vision has a maximum range of 30 meters in total darkness. Range may vary depending on environmental conditions.

How to record videos?

Insert a microSD card (up to 128 GB) into the designated slot, or connect the camera to a compatible NVR via the network.

Is the camera weather-resistant?

Yes, it has an IP66 rating, protecting against water jets and dust. It can be installed outdoors.

Can I use a power adapter instead of PoE?

Yes, the camera accepts 12V DC power via an adapter (not supplied). Plug it into the barrel connector and ensure correct polarity.

How to configure motion detection?

Access the camera's web interface, go to 'Events' > 'Motion Detection'. Set sensitive zones and actions (email alert, recording).

What to do if the image is blurry?

Check the focus by turning the lens ring. Clean the dome with a soft cloth. Ensure the resolution is set to maximum in the settings.

USER MANUAL TVAC14000A ABUS

Black ARIS security camera with antenna and monitor, no visible text or symbols on device body

D Bedienungsanleitung
UK User guide
© Notice d'utilisation
NL Gebruikershandleiding
① Istruzioni per l'uso

This user guide contains important information on starting operation and using the device.

Make sure that this user guide is handed over when the product is given to other persons.

Keep this user guide to consult later.

A list of contents with the corresponding page number can be found in the index on page 35.

Français

Black ARUN surveillance camera with antenna and monitor, no visible text or symbols on device body

Bedienungsanleitung

1. TVAC14000 Media Player 26

7.1. Installation....26
7.2. Beschreibung 27
7.3. Wiedergabe 28

Front view of a blank electronic device with control buttons and indicator lights (no text or symbols)

7" LCD Monitor

Antenne

Technical line drawing of a mechanical component with three views (top, front, side), no text or symbols present.

⑨

1	Antenne
2	IR-LEDs
3	Power LED
4	Kamerahalterung
5	Fix-Objektiv
6	Link LED

Diagram showing a connected electrical outlet with a cable and a separate view of a cabinet (no text or symbols present)

Line drawing of a hand holding a hanging cable labeled 'Faring' connected to a circular device (no text or symbols on the device itself)

Technical line drawing of a mechanical assembly with screwdriver and tool, no text or symbols present

Technical line drawing of a mechanical device mounted on a wall, showing no text or symbols

6. Bedienung

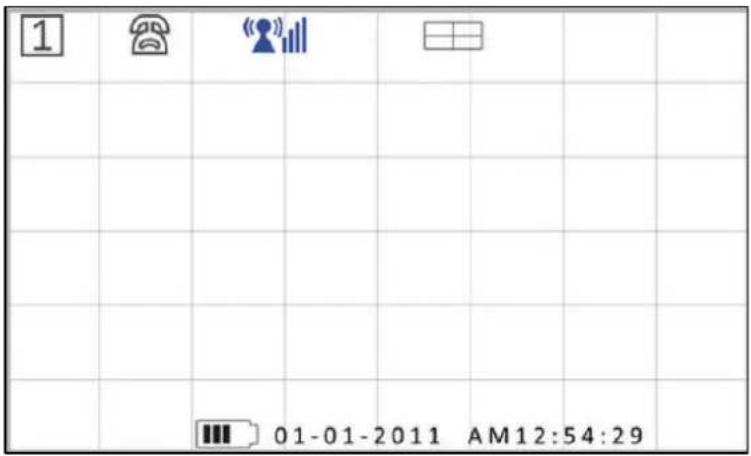

6.1. Liveansicht

Grid of gray rectangular shapes arranged in rows and columns, no text or symbols present

7. TVAC14000 Media Player

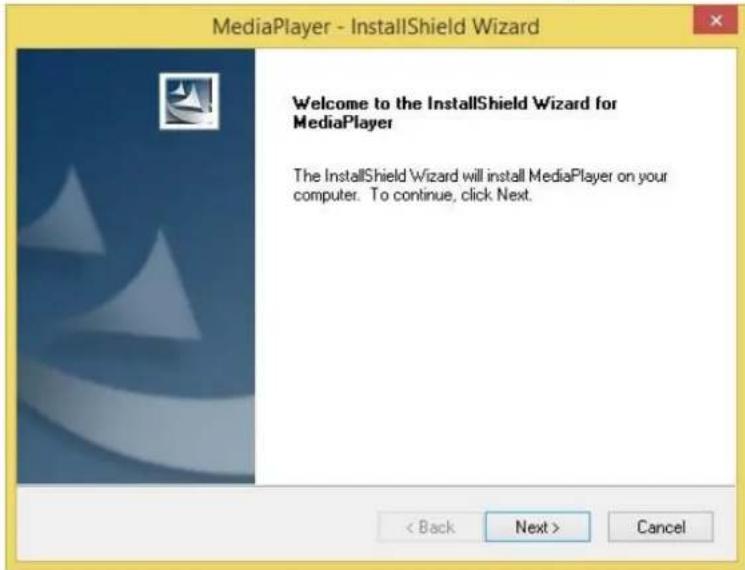

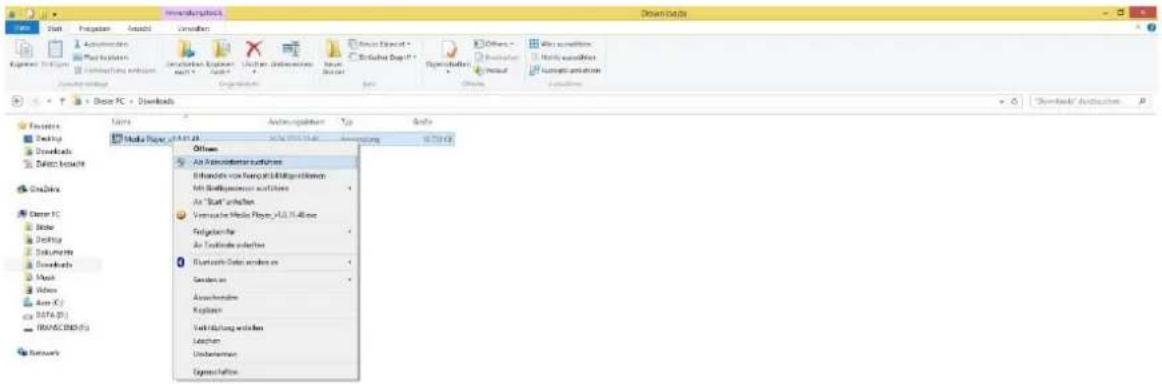

7.1. Installation

7.2. Beschreibung

Black surveillance camera with antenna and monitor, no visible text or symbols on device body

User manual

You can find important information and FAQs about this and other products online at:

Thank you for purchasing this product.

This device complies with the requirements of the applicable EU directives. The declaration of conformity can be obtained from:

To ensure this condition is maintained and that safe operation is guaranteed, it is your obligation to observe this user manual.

Read the entire user manual carefully before putting the product into operation, and pay attention to all operating instructions and safety information.

All company names and product descriptions are trademarks of the corresponding owner. All rights reserved.

If you have any questions, please contact your specialist installation contractor or specialist dealer.

Data storage is subject to national data privacy guidelines.

Warning as required by §201 StGB (German Criminal Code):

Whosoever unlawfully makes an audio recording of the privately spoken words of another, and uses or makes a recording thus produced accessible to a third party, shall be liable to imprisonment or a fine. Whosoever unlawfully overhears with an eavesdropping device the privately spoken words of another not intended for his attention, or publicly communicates, verbatim or the essential content of, the privately spoken words of another, recorded or overheard, shall incur the same penalty.

Disclaimer

This user manual has been produced with the greatest of care. Should you discover any omissions or inaccuracies, please contact us in writing under the address provided above.

ABUS Security-Center GmbH does not accept any liability for technical and typographical errors, and reserves the right to make changes to the product and user manuals at any time and without prior warning.

ABUS Security-Center GmbH is not liable or responsible for direct or indirect damage resulting from the equipment, performance and use of this product. No forms of guarantee are assumed for the contents of this document.

Explanation of symbols

	The triangular high voltage symbol is used to warn of the risk of injury or health hazards (e.g. caused by electric shock).
	The triangular warning symbol indicates important notes in this user manual which must be observed.
	This symbol indicates special tips and notes on the operation of the unit.

Important safety information

	All guarantee claims are invalid in the event of damage caused by non-compliance with this user manual. We cannot be held liable for resulting damage.
	In the event of material or personal damage caused by improper operation or non-compliance with the safety information, we cannot be held liable. All guarantee claims are void in such cases.

This device has been manufactured in accordance with international safety standards.

Please read the following safety instructions carefully.

Safety information

1. Power supply

Only operate the monitor and camera through a power source which supplies the mains power specified on the type plate. If you are unsure of the installation location's power supply, contact your power supply company. Disconnect the device from the power supply before carrying out maintenance or installation work.

2. Overloading

Avoid overloading electrical sockets, extension cables, and adapters, as this can result in fires or electric shocks.

3. Liquids

Only install the monitor in dry rooms which are protected from dust. Protect the device from the ingress of liquid of any kind.

4. Cleaning

Only use a damp cloth to clean the monitor and camera. Do not use corrosive cleaning materials. Disconnect the monitor and camera from the power supply before cleaning.

5. Ventilation

The ventilation openings on the monitor must not be covered up or obstructed.

Prevent objects and liquids from penetrating into the monitor, e.g. via ventilation openings.

6. Accessories

Only connect accessories that are expressly suitable for their intended purpose. Otherwise, hazardous situations or damage to the monitor or camera may occur.

7. Installation location

The camera is suitable both for operation in protected outdoor areas as well as indoors. The product may be damaged if it is dropped, even from a low height. Install the camera so that the image sensor is not exposed to direct sunlight. Pay attention to the installation instructions in the corresponding section of this user manual.

The monitor should not be placed in the direct proximity of heaters, stoves other sources of heat or in direct sunlight and is only suitable for use indoors.

Only operate the monitor and camera at locations where temperatures remain within the permitted ambient temperature range.

Camera -10°\~ +50°C, monitor 0°\~40°C.

8. Wireless transmission

The wireless transmission range depends on a variety of environmental factors. The local conditions at the installation location may have a negative impact on the range. When there are no obstructions between the receiver and transmitter, a range of up to 150 m is possible, but this range will be considerably smaller within buildings.

The following environmental conditions compromise both the range and frame rate:

mobile communication masts, high-tension pylons, electrical wires, ceilings and walls, devices with an identical or adjacent wireless frequency.

Warnings

Observe all safety and operating instructions before putting the device into operation for the first time.

1. Observe the following information to avoid damage to the power cable and plug:

2. Do not modify or manipulate the power cable or plug.

3. Do not pull the cable when disconnecting the device from the power – always take hold of the plug.

4. Ensure that the power cable is positioned as far away as possible from any heating equipment, as this could otherwise melt the plastic coating.

5. Follow these instructions. Non-compliance with these instructions could lead to an electric shock:

6. Never open the housing or power supply unit.

7. Do not insert any metallic or flammable objects into the device interior.

8. Use surge protection to prevent damage caused by overvoltages (e.g. in electrical storms).

9. Disconnect defective devices from the power immediately and contact your specialist dealer.

If in doubt, have a specialist technician carry out assembly, installation and connection of the device. Improper or unprofessional work on the power supply system or domestic installation puts both you and other persons at risk.

Connect the installations so that the mains power circuit and low-voltage circuit always run separately from each other. They should not be connected at any point or become connected as a result of a malfunction.

Avoid the following adverse conditions during operation:

• Moisture or excess humidity
  • Temperatures outside the permitted range
• Direct sunlight
• Dust or flammable gases, vapours or solvents
  • Strong vibrations
  • Strong magnetic fields (e.g. next to machines or loudspeakers)

Unpacking the device

Handle the device with extreme care when unpacking it.

If the original packaging has been damaged, you must start by inspecting the device. If the device shows signs of damage, return it in the original packaging and inform the delivery service.

Contents

1. Intended use....36
2. Scope of delivery....36
3. Features and functions.... 36
4. Device description 37

4.1. Monitor description 37
4.2. Camera description 39

1. Installation 41

5.1. Monitor installation and mounting....41
5.2. Pairing the camera and the monitor 42

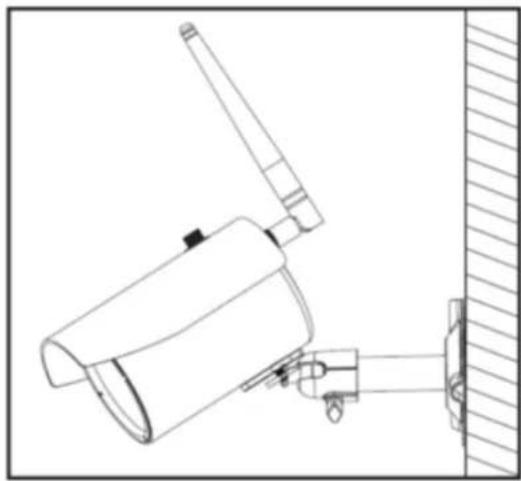

5.3. Mounting the camera....42

1. Operation....44

6.1. Live cast.... 44

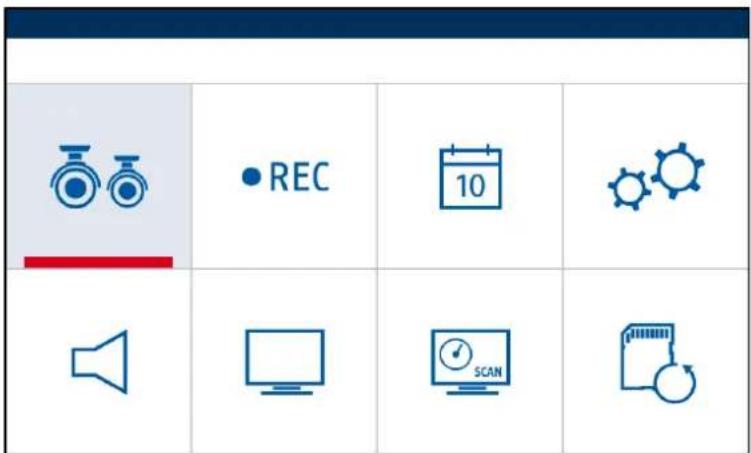

6.2. Main menu 45
6.3. Camera settings....46
6.4. Recorder settings.... 47
6.5. Event list/playback 49
6.6. System settings 50
6.7. Audio alarm....52
6.8. Pan/tilt/zoom 52
6.9. Sequence....53
6.10. Circular buffer 53

1. TVAC14000 Media Player....54

7.1. Installation....54
7.2. Description....55
7.3. playback....56

1. Maintenance and cleaning 57

8.1. Maintenance 57
8.2. Cleaning....57

1. Disposal....57

2. Technical data 58

1. Intended use

This 7" wireless monitor and the IR wireless outdoor camera enable you to easily transmit and display video signals wirelessly across moderate and large distances.

Wireless signal transmission is an advantage anywhere that cables cannot be laid. The camera transmits the video to the wireless monitor via the wireless connection. The conversion to digital signalling allows malfunctions and interference to be reduced.

Settings on the time schedule can be used to set the camera to motion detection or to continuous recording.

It is possible to connect up to four cameras (TVAC14010A) to the monitor, and to display them in the 4x camera view, as well as simultaneously recording with QVGA resolution. Recording with audio is restricted to one camera. Audio is provided on channel 1 by default and switches to the camera that has detected motion in the event of motion detection.

2. Scope of delivery

Front view of a blank electronic device with control buttons and a logo (no text or symbols on the screen)

7" LCD monitor

IR wireless outdoor camera 2.4 GHz

Camera mount including mounting material

Antenna

Technical line drawing of a mechanical component with three views (top, front, side), no text or symbols present.

Power supply unit incl. EU, AU and UK 5 V DC/1 A adapter

Mounting material for the monitor

3. Features and functions

• Complete set consisting of a monitor, an IR wireless outdoor camera, power supply units and accessories
  • Video and audio data transmitted using encrypted digital radio
• 7" colour monitor with integrated loudspeakers, which sound a loud alarm in the event of an incident
• Robust, weather-proof wireless outdoor cameras (IP66) with infrared night vision function and 640 x 480 pixel resolution
• Recording via motion detection, following a time schedule or continuously
• Recording on max. 32 GB microSD card (accessory)
• Can be extended to include up to four wireless cameras

4. Device description

4.1. Monitor description

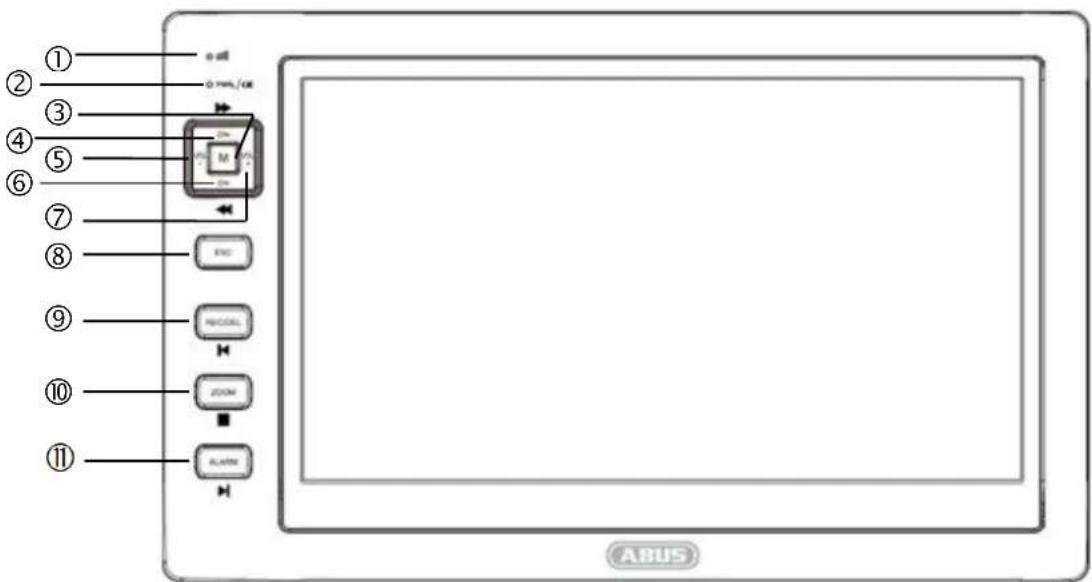

Front view

The monitor works in three different modes: menu mode, playback mode and recording mode. The keys have different functions depending on the operating mode, and these functions are explained in the following matrix.

No	Description	Menu	Live cast	playback
1	Link LED
2	Power LED
3	Menu (M)	Select	Open menu	Pause/play
4	Channel + (CH+)	Cursor down	Camera change (+)	Camera change (+)
5	Volume – (VOL-)	Cursor right	Change volume (-)	Go back
6	Channel – (CH-)	Cursor left	Camera change (-)	Camera change (-)
7	Volume + (VOL+)	Cursor up	Change volume (+)	Go forward
8	Exit (ESC)	Exit		Exit
9	Record/delete (REC/DEL)	Delete	Start and stop recording	Previous recording
10	Zoom		Zoom mode	End playback
11	Alarm		Audio alarm ON/OFF	Next recording

LED	Status	Meaning
Link LED 1	Flashing	Monitor is in the "pairing mode"
	On (green)	Monitor has connection to a camera
	Off	Monitor has no connection to a camera or is in the menu.
Power LED 2	On (red)	Monitor on
	Off	Monitor off

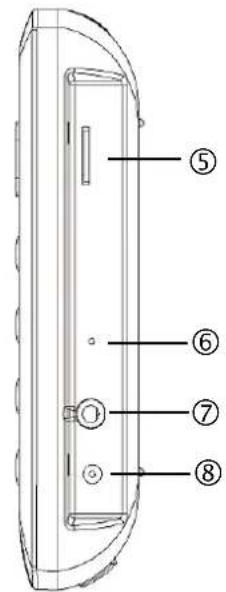

Back view

⑨

No	Description
1	On/Off switch
2	Holes for flush mount
3	Antenna
4	Loudspeakers
5	SD card slot
6	Reset button
7	AV output
8	Power supply
9	Stand

To switch the device on/off, hold the on/off switch down for approx. 3 seconds.

4.2. Camera description

Front view:

1	Antenna
2	IR LEDs
3	Power LED
4	Camera mount
5	Fixed lens
6	Link LED

LED	Status	Meaning
Power LED 3	On (red)	Camera on
	Off	Camera off
Link LED 6	Flashing	Camera is in the "pairing mode"
	On (green)	Camera is connected to the monitor
	Off	Camera is in standby

Back view:

1	SMA connection
2	Microphone
3	Pairing button
4	Power supply connection

5. Installation

5.1. Monitor installation and mounting

Diagram showing a power adapter connected to a cable and a separate view of a device with ventilation slots (no text or symbols)

1. Connect the power supply unit to the monitor.
2. Switch the device on. In order to do this, press the power button for about 3 seconds.

	Important:Please note that if the monitor does NOT have an external power supply, it must be charged for at least 8 hours prior to being used for the first time.The batteries will provide power for approx. 1.5 hours.
	Important:The integrated battery allows you to use the monitor flexibly.If the battery symbol lights up red, then the batteries require charging. Please note that the battery must always be charged sufficiently in order to ensure loss-free recording.

You can set up the monitor on an even surface using the stand.

For a flush mount, mark two drill holes 10 cm apart at the desired height on your wall. Now drill the two holes and insert the supplied screw anchor.

Screw the screws into the screw anchors, leaving the screws protruding slightly. You can now hang the monitor on the screws. Gently pull the monitor downwards in order to lock it in place.

5.2. Pairing the camera and the monitor

Line drawing of a hand holding a hanging device connected to a circular component (no text or symbols)

To connect a camera with the monitor, proceed as follows:

1. Connect the camera and the monitor to the power supply units.
2. In the monitor menu, select "Camera settings", then the required camera. Now select the "Pair camera" option and press the menu button.
3. Then press the PAIRING button on the camera cable. The green link LED starts to flash.
4. Once the connection is established, the link LED on the camera illuminates for 2 seconds and then goes out. The message "Pairing successful" appears on the monitor.

Important:

Please note that the connection can take up to 60 seconds.

5.3. Mounting the camera

Use the camera mount to help you find a suitable installation location. Now mark the drill holes on the surface, and drill the holes. Insert the screw anchors supplied before you attach the mount with the screws.

Important:

Before you begin installing, make sure that the wireless transmission range is adequate at the site of the required installation.

To do this, first screw in the antenna supplied.

Technical line drawing of a mechanical assembly with screwdriver and tool (no text or symbols)

You can also swivel the mount by 90^ into a particular position. First loosen the screw on the side and set the required angle. Then tighten the screw to secure the required position.

Then screw the camera onto the mount and connect the power supply unit with the camera.

Technical line drawing of a mechanical device with a vertical rod and attached bracket (no text or symbols)

Mounting options:

6. Operation

6.1. Live cast

For general control of the live cast, refer to menu item 4.1.

Icon		Description
	Channel number display	Shows the channel number of the relevant camera.
[8XDK]	Audio display	Shows the camera for which there is an audio connection.
	Signal display	Shows the signal strength for the connection of the relevant camera.
	Display mode	Quad display, display of all cameras in the 4x camera viewSequence mode, switch between the individual cameras with a dwell time of 5-15 secondsIndividual view, full screen view of one camera
	Audio volume	The volume can be set at 7 different levels using the VOL+/- keys.= Full volume= Half volume= No sound
	Battery display	Displays the remaining battery capacity
	Recording display	The recording symbol will be displayed during recording.

6.2. Main menu

In the main menu, select the required menu item using the arrow keys CH+/- and VOL +/- and confirm your selection with the menu button.

You can leave the main menu or the relevant menu items using the ESC key.

Icon	Description	Sub-menu items
	Camera settings	Pair cameraImage brightnessActivate or deactivate the camera
	Recorder settings	ScheduleMotion sensitivityFormatting the memoryMotion screenRecording time
	Event list
	System settings	Date and timeTV outputEnergy saving modeView when idleDefault
	Audio alarm
	Pan/tilt/zoom
	Sequence
	Circular buffer

6.3. Camera settings

In the camera settings, select the required camera using the arrow keys VOL +/- and confirm your selection with the menu button. Then select the various menu items with the arrow keys CH+/-.

You can leave the relevant menu items using the ESC key.

Icon	Menu item	Description
	Pair camera	Press the menu button in order to start the pairing process on the monitor, and then press the pairing button in order to pair the camera with the system.
	Image brightness	Press the arrow keys CH+/- in order to adjust the brightness of the camera image.
	Activate or deactivate the camera	Press the arrow keys CH+/- in order to either activate or deactivate the camera.

6.4. Recorder settings

	AM 12:00	AM 01:00	AM 02:00	AM 03:00
	AM 04:00	AM 05:00	AM 06:00	AM 07:00
	AM 08:00	AM 09:00	AM 10:00	AM 11:00
	PM 12:00	PM 01:00	PM 02:00	PM 03:00
	PM 04:00	PM 05:00	PM 06:00	PM 07:00
	PM 08:00	PM 09:00	PM 10:00	PM 11:00

In the recorder settings, select the menu items using the arrow keys CH+/- and confirm your selection with the menu button.

You can leave the relevant menu items using the ESC key.

Icon	Menu item	Description
	ScheduleMotion sensitivity	Use the arrow keys VOL+/- to select the various recording modes and press the menu button to confirm. The time schedule always relates to all cameras.M=motionAll cameras record as soon as a camera detects motion. The length of the recording is based on the value set in the recording time menu item.S=scheduleAll cameras record continuously.X=manualHere you can define a recording plan individually for the relevant hours. Select the required hours using the arrow keys CH+/- and VOL +/- and define the various recording options with the menu button.With a manual time schedule, all cameras record as soon as recording is started in the live cast using the REC/DEL key. The recording can be ended after 30 seconds by pressing the menu button or REC/DEL key The length of the recording is based on the value set in the recording time menu item.Audio recordings are only possible foronecamera. In the case of the 4x view, channel 1 is recorded with audio by default. In the case of motion detection, the audio recording switches to the camera that has detected motion.Use the arrow keys VOL+/- to select the required camera and change the motion sensitivity of the camera using the arrow keys CH+/-.OFF: Motion detection is switched off.LVL1: Low sensitivityLVL2: Medium sensitivityLVL3: High sensitivity
	Formatting the memory	Press the menu button to format the inserted SD card.
	Motion screen	Use the arrow keys VOL+/- to select the required camera and press the menu button to access the settings in the motion screen.Use the arrow keys CH+/- and VOL+/- to select the required tiling. The menu button can be used to activate (transparent) or deactivate (marked in blue) the motion detection tiling.
	Recording time	Select the required recording time using the arrow keys VOL +/- and confirm your selection with the menu button.

6.5. Event list/playback

Grid of gray rectangular shapes arranged in rows and columns, no text or symbols present

Icon	Menu item	Description
	Date	Use the arrow keys VOL+/- to select the required date in the first level and press the menu button to confirm.
	Time	Use the arrow keys VOL+/- to select the required time in the second level and press the menu button to confirm.
	Recording files	Use the arrow keys VOL+/- to select the required recording in the third level and press the menu button to confirm.In each case the file shows the recorded periodC = manual recordingM = motion detection recordingS = continuous recording
	Playback	For general control in the playback, refer to menu item 4.1.By default, a 4x view is always used for the playback of a file.Press the menu BUTTON in order to pause the playback, and press the arrow keys CH+/- in order to select the various cameras.For playback via the system software, refer to menu item 7.

6.6. System settings

Deutsch	English	Français

In the recorder settings, select the menu items using the arrow keys VOL+/- and confirm your selection with the menu button.

You can leave the relevant menu items using the ESC key.

Icon	Menu item	Description
	Date and time	Use the arrow keys VOL+/- to select the required date and time settings and change them using the arrow keys CH+/-.
	TV output	Select the required TV output NTSC or PAL (standard in EU: PAL) using the arrow keys VOL +/- and confirm your selection with the menu button.
	Energy saving modeView when idle	Select the required setting for the energy saving mode using the arrow keys VOL+/- and confirm your selection with the menu button.Energy saving mode after 5 minutesThe monitor switches off if there are no entries for 5 minutes. This does not affect the system's recording settings.Energy saving mode after 10 minutesThe monitor goes off after 10 minutes with no entries. This does not affect the system's recording settings.Screen permanently onThe monitor remains on permanently.View when idleSelect the required setting for the view when idle using the arrow keys VOL+/- and confirm your selection with the menu button.If the monitor is in the live cast, it goes into idle after 2 minutes with no further entries.Motion detection or an entry will end the idle state.The following 4 setting options are possible when idle:Four-fold view when idleThe four-fold view is displayed.5 second dwell timeSequence mode with 5 second dwell time.10 second dwell timeSequence mode with 10 second dwell time.15 second dwell timeSequence mode with 15 second dwell time.
	Default settings/selection of languages	Select the required setting for the factory settings/language selection using the arrow keys VOL+/- and confirm your selection with the menu button.GermanSet the system to default settings, with the language set to German.EnglishSet the system to default settings, with the language set to English.FrenchSet the system to default settings, with the language set to French.

6.7. Audio alarm

Press the menu button to activate or deactivate the audio alarm.

The audio alarm is played as a warning by the monitor in the event that a camera detects motion, if the schedule is set to motion.

6.8. Pan/tilt/zoom

Press the menu button to enter zoom mode.

You can then control the image using the arrow keys CH+/- and VOL+/-.

You can leave the zoom mode using the ESC key.

6.9. Sequence

Press the menu button to start the sequence mode.

All active cameras will be interchanged at 5 second intervals until you end the mode with the menu button or until a motion has been detected.

6.10. Circular buffer

Press the menu button to activate or deactivate the circular buffer.

In the case of an active circular buffer, older recordings are overwritten as soon as the SD card is full.

7. TVAC14000 Media Player

7.1. Installation

Insert the supplied CD into your PC. Click on COMPUTER and click on the CD. The installation file for the TVAC14000 Media Player is located here.

Right-click on the file and click "Run as administrator" in order to start the installation.

Click on "Next" once and then on "Finish" to complete the installation.

7.2. Description

No	Description
1	Channel 1 playback window
2	Channel 2 playback window
3	Channel 3 playback window
4	Channel 4 playback window
5	Playback time bar
6	Play
7	Pause
8	Stop
9	Previous recording
10	Next recording
11	Load recording
12	Activate/deactivate channel.

7.3. playback

Click on "Load" to import and playback recordings. In order to do this, the recordings (SNX files) must have been saved from the Micro SD card onto your PC.

Activate/deactivate channel.

During the playback, all 4 cameras are played back in the four-fold view with audio. During the playback, you can select individual channels or switch the audio on/off.

Select 1 to play back channel 1.

Select 2 to play back channel 2.

Select 3 to play back channel 3.

Select 4 to play back channel 4.

As soon as more than one channel has been selected, the playback will switch back to the four-fold view.

8. Maintenance and cleaning

8.1. Maintenance

Regularly check the technical safety of the product, e.g. check the housing for damage.

If it seems that it may no longer be possible to operate the device safely, stop using the product and secure it to prevent unintentional use.

It is likely that safe operation is no longer possible in the event that:

• the device shows signs of visible damage
• the device no longer works correctly.

Please note:

You do not need to perform any maintenance on the product. There are no components to service and nothing inside the product which requires verification. Never open it.

8.2. Cleaning

Clean the product with a clean, dry cloth. The cloth can be dampened with lukewarm water if there is dirt that is hard to remove.

Do not allow any liquids to enter the device.

Do not use any chemical cleaning products as they could damage the surface of the housing and screen (discolouration).

9. Disposal

Important: EU Directive 2002/96/EC regulates the proper return, treatment and recycling of used electronic devices. This symbol means that in the interest of environmental protection, the device must be disposed of separately from household or industrial waste at the end of its service life in accordance with applicable local legal guidelines. Used devices can be disposed of at official recycling centres in your country. Obey local regulations when disposing of material. Further details on returns (also for non-EU countries) can be obtained from your local authority. Separate collection and recycling conserves natural resources and ensures that all the provisions for protecting health and the environment are observed when recycling the product.

10. Technical data

Model number	TVAC14000A – Camera	TVAC14000A – Monitor
Resolution	640 x 480 pixels	800 x 480 pixels
Camera channels	-	4
Image sensor	1/4" CMOS	-
Lens	3.6 mm (fixed lens)	-
Angle of view	60° (horizontal)/43° (vertical)	-
Rechargeable battery running time	-	1.5 hours
Battery type	-	Li-Ion polymer battery3.7 V/2000 mA
Number of high-power IR LEDs	6	-
IR swivel filter	Yes	-
Range of night vision function	Max. 5 metres	-
Frequency	2.4 GHz
Wireless range	150 m*
Transmission power	15 +/-2 dBm
Sensitivity	-80 dBm
Modulation	FHSS
Monitor	-	7" LCD
IP protection class	66	-
Max. operating temperature	-10°C to +50°C	0°C to 40°C
Storage medium	-	SD card, max. 32 GB
OSD language	-	German, English, French
DC voltage supply	5 V DC
Power consumption	550 mA (max.)	860 mA (max.)
Dimensions	150 x 74 x 68	200 x 122 x 25 mm
Weight	390 g	395 g
Certifications	CE

* The range is dependent on environmental factors (e.g. mobile communication masts, high-tension pylons, electrical wires, ceilings and walls, etc.).

If conditions are not favourable, the range will be limited.

Storage capacity

Storage capacity	One camera(640 x 480 VGA)	Four cameras(320 x 240 QVGA)
1 GB	60 minutes	120 minutes
2 GB	110 minutes	220 minutes
8 GB	400 minutes	800 minutes
16 GB	950 minutes	1900 minutes
32 GB	1880 minutes	3760 minutes

TVAC14000A

Black surveillance camera with antenna and monitor, no visible text or symbols on device body

www.abus.com/fr/Securite-a-installer-soi-meme

Introduction

Chère Cliente, cher Client,

8. Transmission radio

1. TVAC14000 Media Player 82

7.1. Installation....82
7.2. Description....83
7.3. Lecture....84

Front view of a blank electronic device with control buttons and indicator lights (no text or symbols)

Technical line drawings of mechanical components including a cylindrical device and three separate views (no text or symbols)

⑨

Diagram showing a power adapter connected to a cable and a device casing with ventilation slots (no text or symbols)

Line drawing of a hand holding a hanging cable labeled 'Faring' connected to a circular device (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with screwdriver and tool, no text or symbols present

Technical line drawing of a security camera mounted on a wall-mounted bracket (no text or symbols)

Grid of gray rectangular shapes arranged in rows and columns, no text or symbols present

7. TVAC14000 Media Player

7.1. Installation

7.2. Description

Black surveillance camera with antenna and monitor, no visible text or symbols

Camera -10°\~ +50°C, monitor 0°\~40°C.

8. Draadloze transmissie

Front view of a blank electronic device with control buttons and display screen (no text or symbols)

7" LCD-monitor

Technical line drawing of a mechanical device with three separate views (top, front, side), no text or symbols present.

Voeding incl. EU-, AU- en UK- adapter 5 VDC/ 1A

1	Antenne
2	IR-LED's
3	Power-LED
4	Camerasteun
5	Vast objectief
6	Link-LED

Diagram showing a connected electrical outlet with a cable and indicator lights, alongside an open labeled enclosure (no text or symbols present)

Line drawing of a hand holding a hanging device connected to a circular component (no text or symbols)

Technical line drawing of a mechanical assembly with screwdriver and tool, no text or symbols present

Technical line drawing of a security camera mounted on a wall-mounted bracket (no text or symbols)

6. Bediening

6.1. Live-weergave

Grid of gray rectangular shapes arranged in rows and columns, no text or symbols present

7. TVAC14000 Media Player

7.1. Installatie

7.2. Beschrijving

Black ARBIS security camera with mounted display and antenna (no visible text or symbols)

1. TVAC14000 Media Player 138

Front view of a blank electronic device with control buttons and display screen (no text or symbols)

Monitor LCD da 7"

Telecamera wireless per esterni IR 2,4 GHz

Technical line drawing of a mechanical device with three separate views (top, front, side), no text or symbols present.

⑨

Diagram showing a connected electrical outlet with a cable and connector, alongside an open labeled enclosure (no text or symbols present)

Line drawing of a hand holding a cable labeled 'Faring' connected to a circular device (no text or symbols on the device itself)

Technical line drawing of a mechanical assembly with screwdriver and tool, no text or symbols present

Technical line drawing of a security camera mounted on a wall-mounted bracket (no text or symbols)

Grid of gray rectangular shapes arranged in rows and columns, no text or symbols present

7. TVAC14000 Media Player

7.1. Installazione

7.2. Descrizione

These operating instructions are published by ABUS Security-Center GmbH & Co.KG, Linker Kreuthweg 5, 86444 Affing, Germany. No reproduction (including translation) is permitted in whole or part e.g. photocopy, microfilming or storage in electronic data processing equipment, without the express written consent of the publisher.

The operating instructions reflect the current technical specifications at the time of print.

We reserve the right to change the technical or physical specifications.
