USER MANUAL K 2800 ECO KARCHER

Line drawing of a compact water heater with mounting bracket and wheels (no text or symbols)

Deutsch 4

English 11

Français 18

Italiano 25

Nederlands 32

Español 39

Português 46

Dansk 53

Norsk 60

Svenska 67

Suomi 74

Ελληνικά 81

Türkçe 88

Русский 95

Magyar 103

Čeština 110

Slovenščina 117

Polski 124

Românește 131

Slovenčina 138

Hrvatski 145

Srpski 152

Български 159

Eesti 167

Latviešu 174

Lietuviškai 181

Українська 188

Register and win! www.kaercher.com

Technical diagram of a cleaning or cleaning device with numbered components and labeled parts

A "CLICK"

B "CLICK"

C

"CLICK" 1. 2.

E

Mechanical assembly diagram showing a motor with rotating components and a directional arrow indicating motion (no text or symbols)

G

H

Diagram illustrating a hand holding a padlock with an open padlock icon, likely indicating a lock or locking mechanism.

J Max J KARCHER Vario Power Min/Mix

Technical line drawing of a mechanical device with gears and a central cylinder (no text or symbols)

L

Inhaltsverzeichnis

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2011/10/01

Contents

General information ..... EN 4

Safety instructions ..... EN 5

Operation...... EN 6

Transport...... EN 8

Storage..... EN 8

Maintenance and care ..... EN 8

Troubleshooting ..... EN 9

Technical specifications ..... EN 10

EC Declaration of Conformity ..... EN 10

General information

Dear Customer,

Please read and comply with these original instructions prior to the initial

operation of your appliance and store them for later use or subsequent owners.

Proper Use

This high-pressure cleaner is designed for domestic use only:

– to clean machines, vehicles, buildings, tools, facades, terraces, garden equipment etc. using a high-pressure water jet (and detergents if required).
– with accessories, replacement parts and detergents approved by KÄRCHER. Observe the instructions provided with these detergents.

Symbols in the operating instructions

Danger

Immediate danger that can cause severe injury or even death.

⚠ Warning

Possible hazardous situation that could lead to severe injury or even death.

Caution

Possible hazardous situation that could lead to mild injury to persons or damage to property.

Symbols on the machine

The high pressure jet may not be directed at persons, animals, live electrical equipment or at the appliance itself. Protect the appli-

ance against frost.

Environmental protection

The packaging material can be recycled. Please do not place the packaging into the ordinary refuse for disposal, but arrange for the proper recycling.

Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances.

Please dispose your old appliances using appropriate collection systems.

The extraction of water from public waters is prohibited in some countries.

Work with detergents must only be performed on liquid-tight work surfaces with connections to the wastewater runoff. Do not let release detergent into waters or earth.

Cleaning operations which produce oily waste water, e.g. engine washes, under-body washes, may only be carried out using washing stations equipped with an oil separator.

Notes about the ingredients (REACH)

You will find current information about the ingredients at:

www.kaercher.com/REACH

Warranty

The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase. (See address on the reverse)

Safety instructions

Danger

■ Never touch the mains plug and the socket with wet hands.
The appliance must not be used if the power cord or important parts of the appliance, e.g. high-pressure hoses, trigger gun or safety devices are damaged.
Check the power cord and mains plug for damage before every use. If the power cord is damaged, please arrange for it to be replaced immediately by an authorised repair agent or a skilled electrician
■ Check the high-pressure hose for damage before every use. Please arrange for the immediate replacement of a damaged high-pressure hose.
■ The appliance may not be used in areas where a risk of explosion is present.
If the appliance is used in hazardous areas (e.g. filling stations) the corresponding safety provisions must be observed.
■ High-pressure jets can be dangerous if improperly used. The jet must not be directed at persons, animals, live electrical equipment or at the appliance itself.
■ The high-pressure jet must not be directed at other persons or directed by the user at him/herself to clean clothing or footwear.
■ Never use the appliance to clean objects containing hazardous substances (e.g. asbestos).
■ Vehicle tyres or tyre valves are susceptible to damage from the high-pressure jet and may burst. The first indication of this is a discolouration of the tyre. Damaged vehicle tyres/tyre valves are highly dangerous. Ensure that a distance of at least 30 cm is observed when cleaning with the jet!
■ Risk of explosion! Do not spray flammable liquids.

Never draw in fluids containing solvents or undiluted acids and solvents! This includes petrol, paint thinner and heating oil. The spray mist thus generated is highly inflammable, explosive and poisonous. Do not use acetone, undiluted acids and solvents as they are damaging to the materials from which the appliance is made.

Warning

The mains plug and the coupling of an extension cable must be watertight and must never lay in the water.

■ Unsuitable extension cables can be hazardous. Only use extension cables outdoors which have been approved for this purpose and labelled with a sufficient cable cross-section: 1 - 10 m: 1.5 mm²; 10 - 30 m: 2.5 mm²
■ Always fully unroll electrical cables from the cable drum.
■ High-pressure hoses, fixtures and couplings are important for the safety of the appliance. Only use high-pressure hoses, fixtures and couplings recommended by the manufacturer.
This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities.

The appliance must not be operated by children or persons who have not been instructed accordingly.

Children should be supervised to prevent them from playing with the appliance.

• Keep packaging film away from children - risk of suffocation!
  This appliance was designed to be used with detergents which are supplied or recommended by the manufacturer. The use of other detergents or chemicals may compromise the safety of the appliance.
  The operator must use the appliance correctly. When working with the appliance, he must consider the local conditions and pay due care and attention to other persons, in particular children, who are nearby.
  Do not use the appliance when there are other persons around unless they are also wearing safety equipment.
  ■ Wear protective clothing and safety goggles to protect against splash back containing water or dirt.

Caution

In case of extended downtimes, switch the appliance off at the main switch / appliance switch or remove the mains plug.
■ Do not operate the appliance at temperatures below 0 °C.
- Observe a distance of at least 30 cm when using the jet to clean painted surfaces to avoid damaging paintwork.
■ Never leave the appliance unattended when it is in operation.
■ Make sure that the power cable or extension cables are not damaged by running over, pinching, dragging or similar. Protect the power cable from heat, oil, and sharp edges.

■ All current-conducting parts in the working area must be protected against jet water.
■ The appliance may only be connected to an electrical supply which has been installed in accordance with IEC 60364.
The appliance may only be connected to alternating current. The voltage must correspond with the type plate on the appliance.
For safety reasons, we recommend that you operate the appliance only via a earth-leak-age circuit breaker (max. 30 mA).

Safety Devices

Caution

Safety devices protect the user and must not be modified or bypassed.

Power switch

The appliance switch prevents unintentional operation of the appliance.

Lock trigger gun

This lock locks the lever of the trigger gun and prevents the inadvertent start of the appliance.

Overflow valve with pressure switch

The overflow valve prevents the permissible working pressure from being exceeded. If the lever on the trigger gun is released the pressure switch turns off the pump, the high-pressure jet is stopped. If the lever is pulled the pump is turned on again.

Prerequisites for the appliance's stability

Caution

Create stability for the appliance prior to all work on or with the appliance to prevent accidents or damage.

- The stability of the appliance is warranted when it is placed onto an even surface.

Operation

Scope of delivery

The scope of delivery of your appliance is illustrated on the packaging. Check the contents of the appliance for completeness when unpacking. In the event of missing accessories or any transport damage, please contact your dealer.

Description of the Appliance

These operating instructions describe the maximum equipment. Depending on the model, there are differences in the scopes of delivery (see packaging).

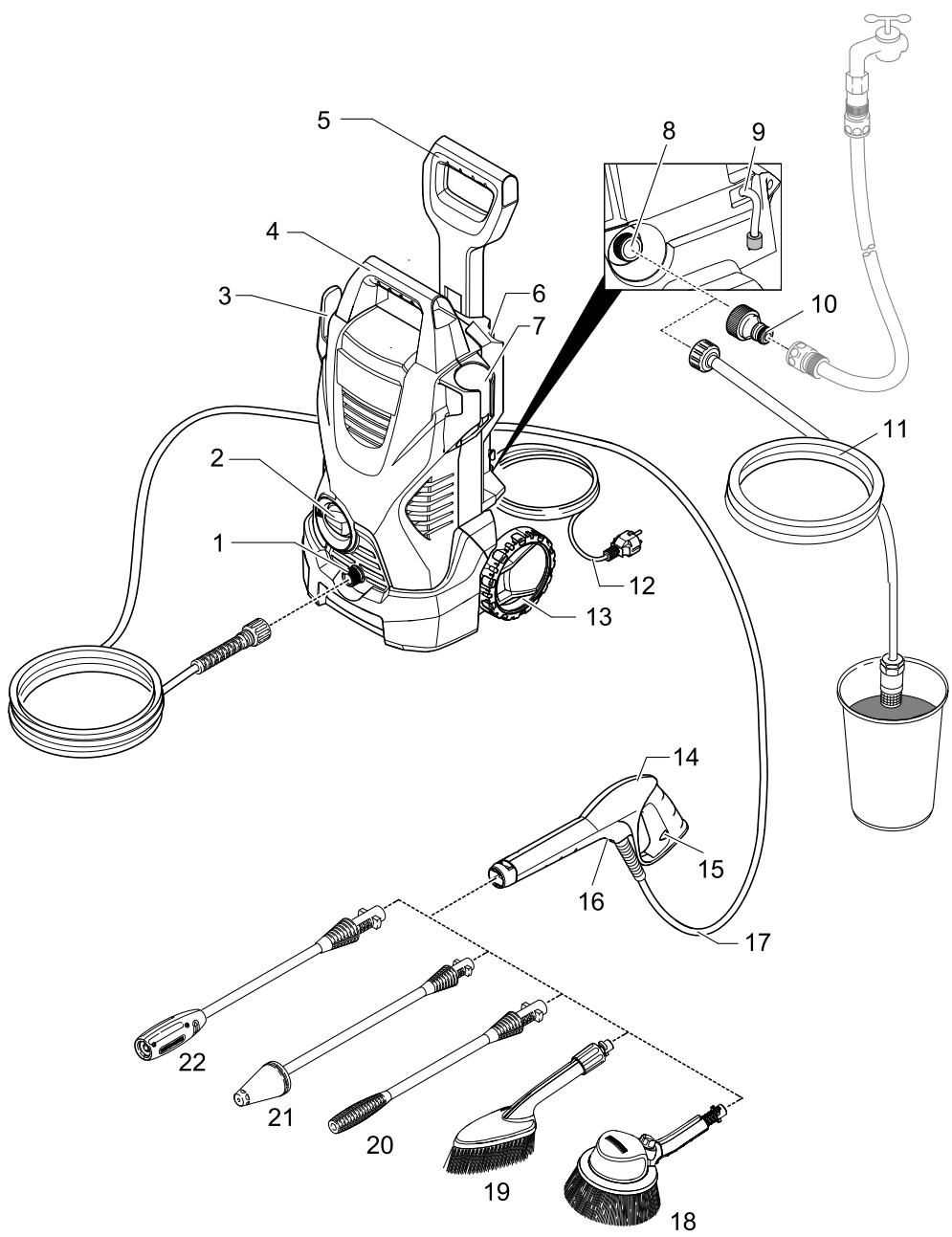

Illustrations on Page 2

1 High pressure connection
2 Appliance switch "0/OFF"/ „I/ON“
3 Storage hook for high pressure hose and mains connection cable
4 Carrying handle
5 Transport handle, detachable
6 Storage for spray lance
7 Storage for trigger gun
8 Water connection with integrated sieve
9 Detergent suction hose (with sieve)
10 Coupling element for water connection
11 Suction hose
12 Mains cable with mains plug
13 Bearing wheel
14 Trigger gun
15 Lock trigger gun
16 Clamp for high pressure hose
17 High pressure hose

Optional accessories

18 Rotary washing brush
19 Washing brush
20 Spray lance with high pressure nozzle
21 Spray lance with Dirtblaster
22 Spray lance with pressure regulation (Vario Power)

Before Startup

Mount loose parts delivered with appliance prior to start-up.

Illustrations on Page 3

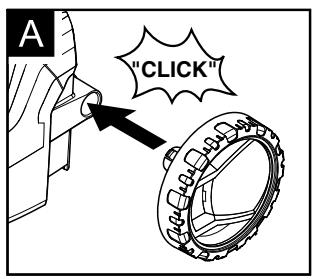

→ Illustration A
Insert the transport wheels and lock them.

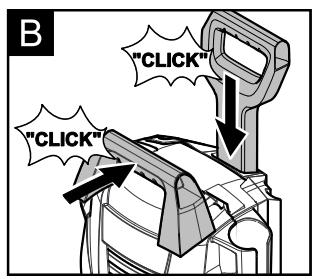

→ Illustration B
Attach the transport handle /carrying handle.

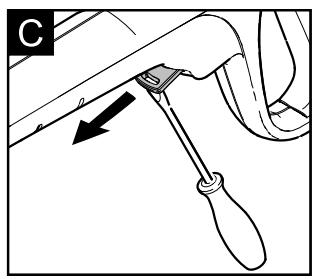

→ Illustration C

Pull out the clamp for the high-pressure hose from the hand spray gun (e.g. a Philips screwdriver).

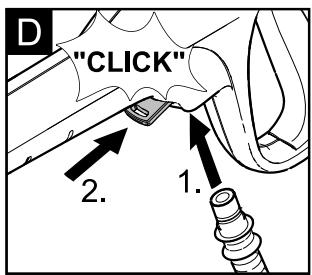

→ Illustration D

1 Connect high pressure hose to trigger gun.

2 Push the clamp in until it locks. Check the secure connection by pulling on the high-pressure hose.

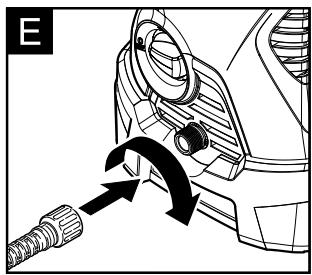

→ Illustration E

Connect the high pressure hose to the high pressure connection of the appliance.

Water supply

⚠ Warning

According to the applicable regulations, the appliance must never be used on the drinking water supply without a system separator. Use a suitable system separator manufactured by KÄ or, as an alternative, a system separate EN 12729 Type BA. Water flowing through term separator is considered non-drink

Caution

Always connect the system separator to the water supply, never directly to the appliance!

Water supply from mains

Observe regulations of water supplier. For connection values, see type plate/technical data.

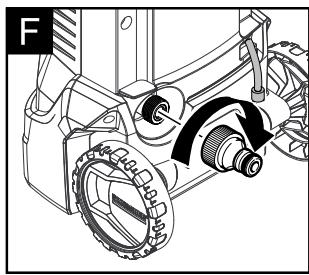

→ Illustration F

→ Use a fibre-reinforced water hose (not included) with a standard coupling. (Minimum diameter 1/2 inch (13 mm), minimum length 7.5 m).
Screw the coupling element to the water connection on the appliance.
→ Push the water supply hose onto the coupling unit.
→ Connect the water supply hose to the water supply.
→ Completely open the water tap.

Drawing in water from open reservoirs

Note: The max. suction height is 0.5 m.

Note: Impurities in the water can damage the high-pressure pump and accessories. For protection, the use of the KÄRCHER water filter (optional accessory, order no. 4.730-059) is recommended.

→ Fill the suction hose with water.

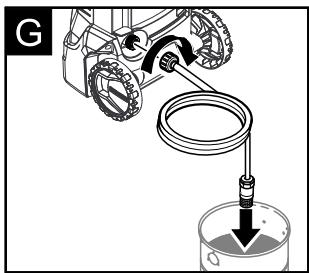

→ Illustration G

Screw the suction hose into the water connection of the appliance and insert it into the water source (e.g. rainwater drum).

Start up

Caution

Dry runs lasting longer than two minutes lead to damages to the high pressure pump. If the appliance does not build up pressure within two minutes, switch it off and proceed as instructed in the Chapter "Troubleshooting".

→ Insert the mains plug into the socket.
→ Set the appliance switch to "1/ON".
→ Use the hand spray gun without spray lance.
→ Unlock the lever on the trigger gun.
→ Pull on the lever of the trigger gun; the device will switch on.
Switch the appliance on for a (max. of 2 minutes) and wait until the water exits at the hand spray gun without bubbles.

→ Release the lever on the trigger gun.

→ Set the appliance switch to "0/OFF".

Operation

Caution

Prior to cleaning, make sure that the high pressure is placed safely on level ground. Wear protective goggles and protective clothing during the cleaning process.

→ Illustration H

Push the spray lance into the trigger gun and fasten it by turning it through 90°.

→ Turn on the appliance "I/ON".

Danger

The trigger gun is subjected to a recoil force when the water jet is discharged. Make sure that you have a firm footing and are also holding the trigger gun and spray lance firmly.

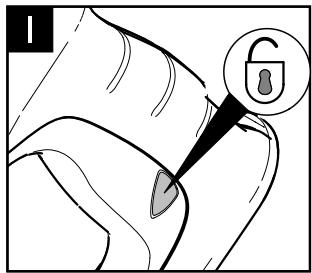

→ Illustration

Unlock the lever on the trigger gun.

→ Release the lever of the hand spray gun; the appliance will switch on.

Note: Release the lever of the trigger gun; the device will switch off again. High pressure remains in the system.

Spray lance with high pressure nozzle

For normal cleaning tasks.

Not suitable for use with detergents.

Spray lance with Dirtblaster

For particularly dirty items or areas.

Not suitable for use with detergents.

Spray lance with pressure regulation (Vario Power)

Carrying out the most common cleaning tasks. The work pressure can be stagelessly regulated between "Min" and "Max". You can add detergent when "Mix" is selected.

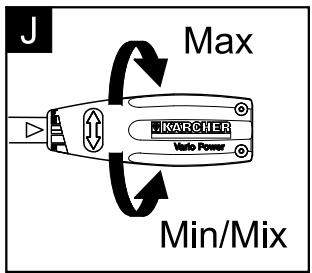

→ Illustration J

Release the lever on the trigger gun.

Turn the spray pipe to the desired position.

Washing brush

Suitable for use with detergents.

Rotary washing brush

Suitable for use with detergents.

The rotating washing brush is ideally suited for the cleaning of vehicles.

Caution

Please make sure that the washing brush is free from dirt or other particles. Otherwise, it may damage the paint work.

Working with detergent

Please use exclusively KÄRCHER detergents and care products to carry out the respective cleaning task, as these were specifically developed for your appliance. The use of other detergents and care products may lead to premature wear and can invalidate your warranty claims. Please obtain information at your local dealer or request information directly from KÄRCHER.

→ Detach spray lance from the trigger gun. Work only with the trigger gun.

Note: This will mix the detergent with the water stream.

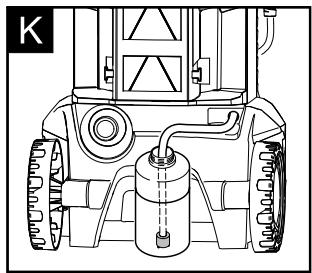

→ Illustration K

Pull detergent suction hose as far as is required out of the housing.

→ Suspend end of detergent suction hose in a container filled with detergent.

Recommended cleaning method

→ Spray the detergent sparingly on the dry surface and allow it to react, but not to dry.

→ Spray off loosened dirt with the high-pressure jet.

Interrupting operation

→ Release the lever on the trigger gun.

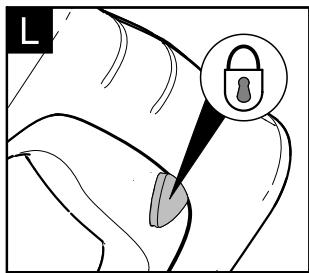

→ Illustration L

Lock the lever on the trigger gun.

→ During longer breaks (more than 5 minutes), also turn the appliance off using the "0/OFF" switch.

→ Insert the trigger gun in its holder.

Finish operation

Caution

Only separate the high-pressure hose from the trigger gun or the appliance while there is no pressure in the system.

→ After operation with detergent: Run the machine for approximately 1 minute for a clear rinse.

→ Release the lever on the trigger gun.

→ Turn off the appliance "0/OFF".

→ Turn off tap.

→ Detach the appliance from the water supply.

→ Press the lever on the trigger gun to release any remaining pressure in the system.

→ Illustration L

Lock the lever on the trigger gun.

→ Pull out the mains plug.

Transport

Caution

In order to prevent accidents or injuries, keep in mind the weight of the appliance during transport (see Specifications).

When transporting by hand

→ Pull the appliance by its transport handle.

When transporting in vehicles

→ Secure the appliance against shifting and tipping over.

Storage

Caution

In order to prevent accidents or injuries, keep in mind the weight of the appliance when selecting a storage location for it (see Specifications).

Storing the Appliance

Prior to extended storage periods, as during the winter, also observe the instructions in the Care section.

→ Park the machine on an even surface.
→ Engage the spray lance in its compartment.
→ Insert the trigger gun in its holder.
→ Stow away the mains cable, the high-pressure hose and accessory at the appliance.

Frost protection

Caution

Protect the appliance and its accessories against frost.

The appliance and its accessories can get destroyed through frost if there are any water residues in them. To avoid damage to them:

→ Completely drain all water from the appliance: Switch the appliance on with detached high-pressure hose and detached water supply (max. 1 minute) and wait, until no more water exits at the high-pressure connection. Turn off the appliance.
→ Store the appliance and the entire accessories in a frost-safe room.

Maintenance and care

Danger

Turn off the appliance and remove the mains plug prior to any care and maintenance work.

Care

Prior to longer periods of storage, e.g. in the winter:

→ Remove filter from suction hose for detergent and clean under running water.
→ Pull out the sieve in the water connection using flat-nose pliers and clean under running water.

Maintenance

The appliance is maintenance-free.

Spare parts

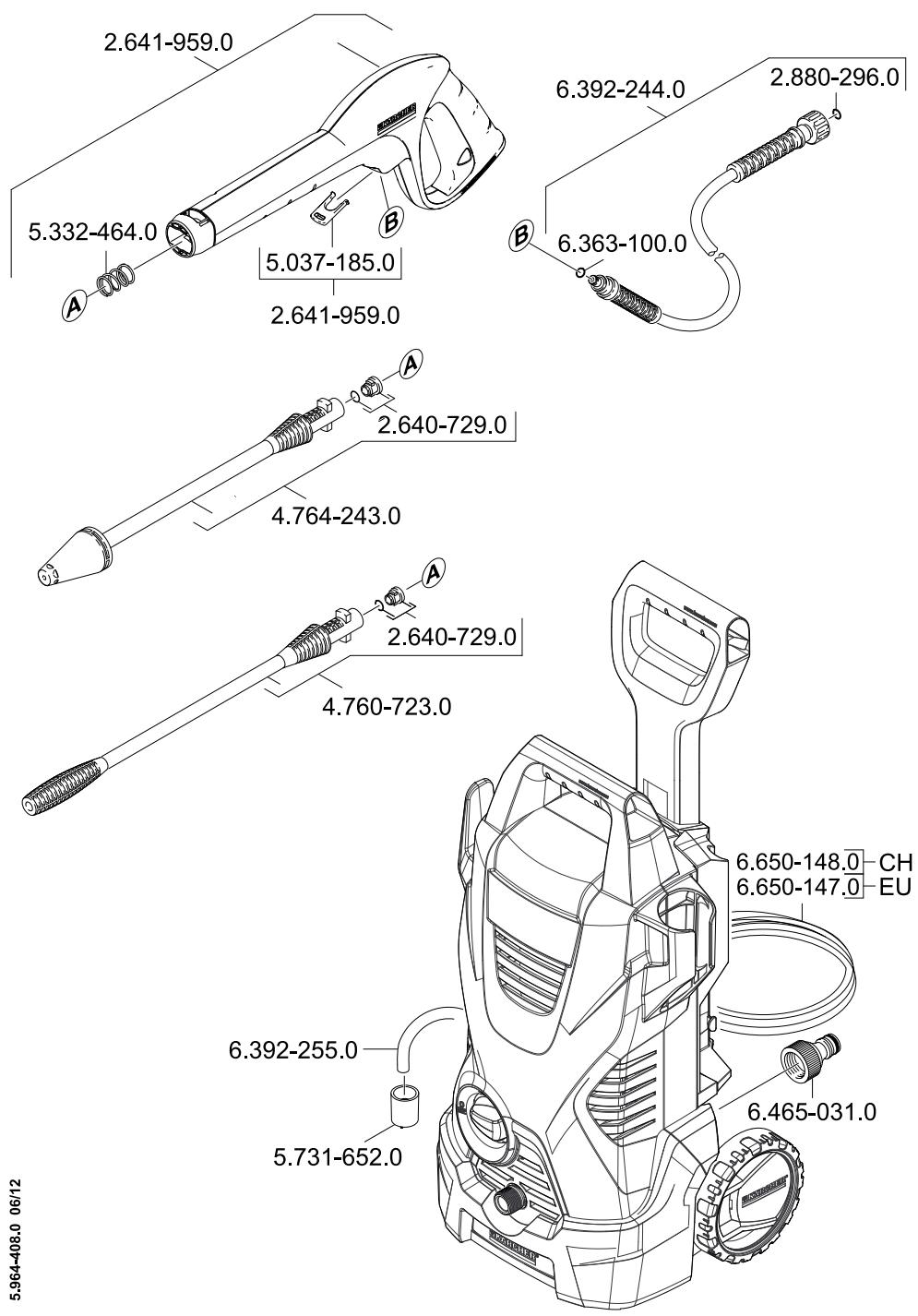

Use only original KÄRCHER spare parts. You will find a list of spare parts at the end of these operating instructions.

Troubleshooting

You can rectify minor faults yourself with the help of the following overview.

If in doubt, please consult the authorized customer service.

⚠️ Danger

Turn off the appliance and remove the mains plug prior to any care and maintenance work. Repair works may only be performed by the authorized customer service.

Appliance is not running

→ Release the lever of the hand spray gun; the appliance will switch on.
→ Check whether the voltage indicated on the type plate corresponds to the voltage of the mains supply.
→ Check the mains connection cable for damages.

Pressure does not build up in the appliance

→ Appliance ventilation: Switch the appliance on with the high-pressure hose detached and operate (max. 2 minutes) until the water exits the high-pressure connection without bubbles. Switch off appliance and reconnect high-pressure hose.
→ Check the water supply.
→ Check the water connections for leaks.
→ Pull out the sieve in the water connection using flat-nose pliers and clean under running water.
→ Reduce suction height. Suction height of 0.5 m when vacuuming from open container has been exceeded.

Strong pressure fluctuations

→ Clean high-pressure nozzle: Remove dirt and debris from the nozzle bore, using a needle and rinse through with water from the front.
→ Check water flow quantity.

Appliance is leaking

→ Slight leakage from the appliance pump is normal. If the leakage increases contact the authorized customer service.

No detergent infeed

→ Remove the spray lance from the hand spray gun and work with the hand spray gun only or use the spray lance with pressure regulation and turn to "Mix".
→ Clean the detergent suction hose filter.
→ Check the detergent suction hose for kinks.

Technical specifications

Electrical connection

Voltage	220-240 V1~50/60 Hz
Power consumption	6 A
Connected load	1,4 kW
Protection class	IP X5
Protective class	II
Mains fuse (slow-blow)	10 A

Water connection

Max. feed pressure	1,2 MPa
Max. feed temperature	40 °C
Min. feed volume	7 l/min
Max. Suction height	0,5 m

Performance data

Working pressure	8 MPa
Max. permissible pressure	11 MPa
Water flow rate	5,5 l/min
Detergent flow rate	0,3 l/min
Recoil force of trigger gun	10 N

Dimensions and weights

Length	280 mm
Width	242 mm
Height	623 mm
Weight, ready to operate with accessories	5,6 kg

Values determined as per EN 60335-2-79

Hand-arm vibration value	<2,5 m/s2
Uncertainty K	0,3 m/s2
Sound pressure level LpA	75 dB(A)
Uncertainty KpA	3 dB(A)
Sound power level LWA + Uncertainty KWA	91 dB(A)

Subject to technical modifications!

EC Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.

Product: High-pressure cleaner

Type: 1.673-xxx

Relevant EU Directives

2006/42/EC (+2009/127/EC)

2004/108/EC

2000/14/EC

Applied harmonized standards

EN 55014-1: 2006 + A1: 2009

EN 55014-2: 1997 + A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006 + A2: 2009

EN 61000-3-3: 2008

EN 62233: 2008

Applied conformity evaluation method

2000/14/EC: Appendix V

Sound power level dB(A)

Measured: 89

Guaranteed: 91

The undersigned act on behalf and under the power of attorney of the company management.

Authorised Documentation Representative S. Reiser

71364 Winnenden (Germany)

Phone: [phone]

Fax: [phone]

Winnenden, 2011/10/01

Table des matières

Table des matières .... FR 4

www.kaercher.com/REACH

Garantie

2006/42/CE (+2009/127/CE)

2004/108/CE

2000/14/CE

71364 Winnenden (Germany)

Winnenden, 2011/10/01

Indice

www.kaercher.com/REACH

Garanzia

2006/42/CE (+2009/127/CE)

2004/108/CE

2000/14/CE

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2011/10/01

Inhoud

www.kaercher.com/REACH

Garantie

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2011/10/01

www.kaercher.com/REACH

Garantía

2006/42/CE (+2009/127/CE)

2004/108/CE

2000/14/CE

71364 Winnenden (Germany)

Tfno.: [phone]

Fax: [phone]

Winnenden, 2011/10/01

Índice

www.kaercher.com/REACH

Garantia

2006/42/CE (+2009/127/CE)

2004/108/CE

2000/14/CE

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2011/10/01

Indholdsfortegnelse

www.kaercher.com/REACH

Garanti

2006/42/EF (+2009/127/EF)

2004/108/EF

2000/14/EF

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tlf.: [phone]

Fax: [phone]

Winnenden, 2011/10/01

Innholdsfortegnelse

Generelle merknader ..... NO 4

www.kaercher.com/REACH

Garanti

2006/42/EF (+2009/127/EF)

2004/108/EF

2000/14/EF

2000/14/EF: Vedlegg V

Lydeffektnivå dB(A)

Målt: 89

Garanteret: 91

71364 Winnenden (Germany)

Tlf: [phone]

Winnenden, 2011/10/01

www.kaercher.com/REACH

Garanti

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2011/10/01

Sisällysluettelo

www.kaercher.com/REACH

Takuu

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Puh.: [phone]

Winnenden, 2011/10/01

www.kaercher.com/REACH

Εγγύηση

71364 Winnenden (Germany)

Tηλ.: [phone]

Φαξ: [phone]

Winnenden, 2011/10/01

İçindekiler

www.kaercher.com/REACH

Garanti

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2011/10/01

Оглавление

www.kaercher.com/REACH

Гарантия

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2011/10/01

Tartalomjegyzék

www.kaercher.com/REACH

Garancia

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2011/10/01

Obsah

www.kaercher.com/REACH

Záruka

2006/42/ES (+2009/127/ES)

2004/108/ES

2000/14/ES

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2011/10/01

Vsebinsko kazalo

Splošna navodila .... SL 4

Varnostna navodila.... SL 5

Uporaba SL 6

Transport.... SL 8

Skladiščenje SL 8

www.kaercher.com/REACH

Garancija

2006/42/ES (+2009/127/ES)

2004/108/ES

2000/14/ES

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2011/10/01

Spis treści

www.kaercher.com/REACH

Gwarancja

2006/42/WE (+2009/127/WE)

2004/108/WE

2000/14/WE

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

tel.: [phone]

faks: [phone]

Winnenden, 2011/10/01

Cuprins

Mult stimate client,

www.kaercher.com/REACH

Garantie

Directive EG respectate:

2006/42/CE (+2009/127/CE)

2004/108/CE

2000/14/CE

Norme armonizate utilize:

EN 55014-1: 2006 + A1: 2009

EN 55014-2: 1997 + A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006 + A2: 2009

EN 61000-3-3: 2008

EN 62233: 2008

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2011/10/01

Obsah

Všeobecné pokyny	SK	4
Bezpečnostné pokyny	SK	5
Obsluha	SK	6
Transport	SK	8
Uskladnenie	SK	8
Starostlivost' a údržba	SK	9
Pomoc pri poruchách	SK	9
Technické údaje	SK	10
Vyhlásenie o zhode s normami EÚ	SK	10

Všeobecné pokyny

Vážený zákazník,

www.kaercher.com/REACH

Záruka

2006/42/ES (+2009/127/ES)

2004/108/ES

2000/14/ES

Uplatňované harmonizované normy:

EN 55014-1: 2006 + A1: 2009

EN 55014-2: 1997 + A2: 2008

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2006 + A2: 2009

EN 61000-3-3: 2008

EN 62233: 2008

71364 Winnenden (Germany)

Tel: [phone]

Fax: [phone]

Winnenden, 2011/10/01

Pregled sadržaja

www.kaercher.com/REACH

Jamstvo

2006/42/EZ (+2009/127/EZ)

2004/108/EZ

2000/14/EZ

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2011/10/01

Pregled sadržaja

Opšte napomene.... SR 4

Sigurnosne napomene.... SR 5

Rukovanje SR 6

Transport.... SR 8

www.kaercher.com/REACH

Garancija

U svakoj zemlji važe garantni uslovi koje je izdala naša nadležna distributivna organizacija. Eventualne smetnje na uređaju za vreme trajanja garancije uklanjamo besplatno, ukoliko je uzrok greška u materijalu ili proizvodnji. U slučaju koji podleže garanciji obratite se sa potvrdom o kupovini Vašem prodavcu ili najbližoj ovlašćenoj servisnoj službi.

2006/42/EZ (+2009/127/EZ)

2004/108/EZ

2000/14/EZ

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2011/10/01

Съдържание

Общи указания...... BG 4

www.kaercher.com/REACH

Гаранция

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Winnenden, 2011/10/01

Sisukord

Üldmärkusi ET 4

www.kaercher.com/REACH

Garantii

Toode: Körgsurvepesur

Tüüp: 1.673-xxx

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2011/10/01

Satura rādītājs

www.kaercher.com/REACH

Garantija

S. Reiser
Head of Approbation

71364 Winnenden (Germany)

Tālr.: [phone]

Fakss: [phone]

Winnenden, 2011/10/01

Turinys

Bendrieji nurodymai.... LT 4

Saugos reikalavimai .... LT 5

Valdymas.... LT 6

Transportavimas.... LT 8

Laikymas .... LT 8

www.kaercher.com/REACH

Garantija

71364 Winnenden (Germany)

Tel.: [phone]

Faksas: [phone]

Winnenden, 2011/10/01

Зміст

www.kaercher.com/REACH

Гарантія

H. Jenner CEO i.V. Reiser S. Reiser Head of Approbation

Winnenden, 2011/10/01

Icon of a gear and wrench inside a square frame (no text or symbols)
