USER MANUAL LDU508CS4 LD Systems
Thank you for choosing LD-Systems!
We have designed this product to give you reliable operation over many years. Therefore LD-Systems underwrites high quality products with its name and many years of experience as a producer.
Please, take a few moments to read these instructions carefully, as we want you to enjoy your new LD-Systems products quickly and to the fullest.
Further information about LD-Systems check our website WWW.LD-SYSTEMS.COM
LD X223
SIGNAL PROCESSOR
PREVENTIVE MEASURES:
- Please read the attached safety instructions as well as the following instructions carefully.
- Please keep all the instructions.
- Please use the device only as intended.
- Please respect the valid waste management rules. Please deliver the packaging divided into plastic and paper/ cardboard to the recycling management.
- Please refer all servicing to qualified personnel only if the device is damaged, exposed to liquid/rain or if it does not operate normally.
- Please, do not expose to any kind of heat such as ovens, radiators, or any other devices (incl. amplifiers). Please check for enough distance between amplifiers and walls, racks, etc. to prevent overheating.
- After connection please check the wiring to prevent any kind of accident or damage.
Please never use any kind of damaged cable and wiring. - Only use authorized and stable stands, brackets, shelves, tables etc.. for installations. Please check for adequate stability against collapse.
- Appearance of interferences when using wireless systems.
The simultaneous use of wireless microphones and of mobile phones (if both devices are not very distant from each other) can lead to the appearance of interferences in the microphone signal which can be heard in the PA system.
CAUTION:
To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified personnel.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk to persons.
The exclamation mark within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
CAUTION! HIGH VOLUME!
You will operate this transmission system for professional use. Therefore the commercial use of this equipment is liable to the rules and regulations of the Accident Prevention & Insurance Association of your industry sector. Adam Hall as a manufacturer is bound to inform you formally about the existence of eventual sanitary risks.
This system is able to induce an acoustic pressure of 80 db. 85 db is by law the maximum audio pressure level which your ear can be exposed to during a work day. It was set according to the technical expertise of the occupational medicine as a basis for the noise rating level. Higher sound levels or longer exposition times could damage your ear. The time of exposition by higher sound pressure levels should be shortened in order to prevent from ear damages. Here are a few reliable warning signals which show that you have exposed yourself for a too long period to excessive sound pressure levels:
- You hear bell- or whistling sounds!
- You have the impression that you can't hear high tones anymore!
FEATURES & QUICK GUIDE:
The LD X223 is a stereo 2 way / mono 3 way crossover in standard 19"/1U rack format. Its rugged construction, high quality and robust knobs as well as the integrated power unit are rarities in this price range. Additional features are a mono subwoofer output, separately adjustable crossover frequencies for the individual channels, adjustable LF/HF and input gain, phase reverse controls, switchable 40 Hz high-pass filters and symmetrical XLR in- and outputs. The LD X223 gives you a crossover that meets all professional requirements and stands out because of its high quality and excellent sound.
CONTROL ELEMENTS:
STEREO - 2 WAY MODE
MODE BUTTON STEREO
1 GAIN INPUT
Controls the volume of the input signal.
2 LOW CUT SWITCH / LOW CUT LED
High pass filter (40 Hz, 18 dB/octave); LED indicator when filter is activated.
③ XOVER FREQUENCY
Sets the crossover frequency between bass and mid / high signal.
4 LED x10 (switch on the back panel 4)
LED off, crossover frequency between 45 and 960 Hz.
LED on, crossover frequency between 450 and 9600 Hz.
5 LOW OUTPUT
Volume control for bass signal. (dependent on the frequency set one the crossover frequency control)
6 INVERSE SWITCH / INVERSE LED
Inverts the polarity of the bass signal by 180°.
7 HIGH OUTPUT
Volume control for mid / high signal.
8 INVERSE SWITCH / INVERSE LED
Inverts the polarity of the mid / high signal by 180°.
9 STEREO MODE LED
Lights up when the crossover is in stereo mode.

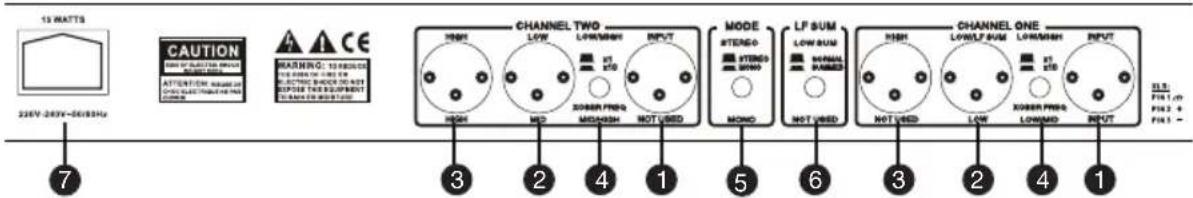

BACK PANEL:
STEREO - 2 WAY MODE
MODE BUTTON STEREO
① XLR INPUT, BALANCED (Channel 1+2)
② XLR OUTPUT BASS SIGNAL, BALANCED (Channel 1+2)
③ XLR OUTPUT MID / HIGH SIGNAL, BALANCED (Channel 1+2)
4 x10 SWITCH
Crossover frequency between 45 and 960 Hz.
Crossover frequency between 450 and 9600 Hz.
5 MODE SWITCH
Switches the crossover from stereo 2-way to mono 3-way mode.
6 BASS SUM
Sends a mono bass signal to the XLR output channel 1.
7 POWER SOCKET
220-240 V \~ 50/60 Hz

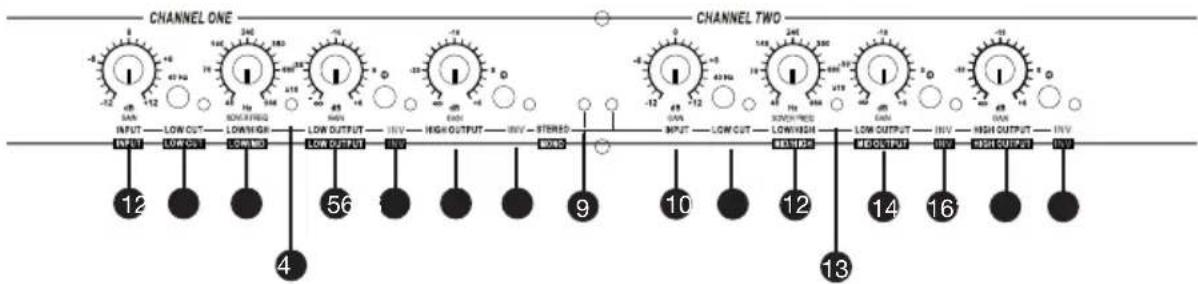

FRONT PANEL:
MONO - 3 WAY MODE
MODE BUTTON MONO
1 GAIN INPUT KANAL 1 (CHANNEL 2 NO FUNCTION)
Controls the volume of the input signal.
② LOW CUT SWITCH / LOW CUT LED CHANNEL 1 (CHANNEL 2 NO FUNCTION)
High pass filter (40 Hz, 18 dB/octave); LED indicator when filter is activated.
③ XOVER FREQUENCY
Crossover frequency between bass and mid signal.
4 LED x10 (switch on the back panel 4 ■1)
LED off, crossover frequency between 45 and 960 Hz.
5 LOW OUTPUT
Volume control for bass signal.
6 INVERSE SWITCH / INVERSE LED
Inverts the polarity of the bass signal by 180^ .
7 NO FUNCTION IN 3 WAY MODE
8 NO FUNCTION IN 3 WAY MODE
9 MONO MODE LED
Lights up when the crossover is in mono mode.
10 NO FUNCTION IN 3 WAY MODE
⑪ NO FUNCTION IN 3 WAY MODE
12 XOVER FREQUENCY
Crossover frequency between mid and high signal.
13 LED x10 (switch on the back panel 4) 10)
LED on, crossover frequency between 450 and 9600 Hz.
14 MID OUTPUT
Volume control for mid signal.
15 INVERSE SWITCH / INVERSE LED
Inverts the polarity of the mid signal by 180°.
16 HIGH OUTPUT
Volume control for high signal.
17 INVERSE SWITCH / INVERSE LED
Inverts the polarity of the high signal by 180°.
BACK PANEL:
MONO - 3 WAY MODE
MODE BUTTON MONO
① XLR INPUT, BALANCED
② XLR OUTPUT BASS SIGNAL, BALANCED
③ NO FUNCTION
4 x10 SWITCH (position □ x 1)
5 MODE SWITCH (position)
Switches the crossover from stereo 2-way to mono 3-way mode.
6 NO FUNCTION
7 POWER SOCKET
220-240 V \~ 50/60 Hz
8 NO FUNCTION
9 x10 SWITCH (position — x 10)
10 XLR OUTPUT MID SIGNAL, BALANCED
11 XLR OUTPUT HIGH SIGNAL, BALANCED
SPECIFICATIONS:
| Bandwidth 20 Hz to 20 kHz, +0.5 dB | |
| Frequency response <3 Hz to >90 kHz, +0/-3 dB | |
| Filtertype Linkwitz-Riley, 24 dB/octave | |
| Dynamic Range 106 dB | |
| Signal-to-Noise Ratio >93 dB | |
| THD+Noise <0.004% at 4 dBu, 1 kHz | |
| Interchannel crosstalk <-80 dB, 20 Hz to 20 kHz | |
| Inputs Female XLR symmetric | |
| Max. Input Level +21 dBu typical, balanced or unbalanced | |
| Outputs Male XLR symmetric | |
| Max. Output Level | >+21 dBu balanced or unbalanced |
| Power Supply | 220 - 240 V AC |
| Dimensions (W x H x D) | 482 x 44.5 x 153 mm |
| Weight | 2,6 kg |
MANUFACTURER'S DECLARATIONS:
LIMITED WARRANTY
This Limited Warranty applies to the Adam Hall, LD Systems, Defender, Palmer and Eminence branded products.
The statutory warranty rights towards the seller are not affected by this guarantee. In fact, it justifies, additional independent warranty claims towards Adam Hall.
Adam Hall warrants that the Adam Hall product you have purchased from Adam Hall or from an Adam Hall authorized reseller is free from defects in materials or workmanship under normal use for a period of 2 or 5 years from the date of purchase.
The Limited Warranty Period starts on the date of purchase. In order to receive warranty services you are required to provide proof of the purchase date. Your dated sales or delivery receipt, showing the date of purchase, is your proof of the purchase date. Should products of the brands named above be in need of repair within the limited warranty period, you are entitled to warranty services according to the terms and conditions stated in this document.
This Limited Warranty extends only to the original purchaser of this Adam Hall branded product and is not transferable to anyone who obtains ownership of the Adam Hall branded product from the original purchaser. During the Limited Warranty Period, Adam Hall will repair or replace the defective component parts or the product. All component parts or hardware products removed under this Limited Warranty become the property of Adam Hall.
In the unlikely event that your Adam Hall product has a recurring failure, Adam Hall, at its discretion, may elect to provide you with a replacement unit of Adam Hall's choice that is at least equivalent to your Adam Hall branded product in hardware performance.
Adam Hall does not warrant that the operation of this product will be uninterrupted or error-free. Adam Hall is not responsible for damage that occurs as a result of your failure to follow the instructions included with the Adam Hall branded product.
This Limited Warranty does not apply,
- to wear parts (e.g. accumulator)
- to any product from which the serial number has been removed or that has been damaged or rendered defective as the result of an accident
- in case of, misuse, abuse, or other external causes
- by operation outside the usage parameters stated in the user's documentation shipped with the product
- by use of spare parts not manufactured or sold by Adam Hall
- by modification or service by anyone other than Adam Hall
These terms and conditions constitute the complete and exclusive warranty agreement between you and Adam Hall regarding the Adam Hall branded product you have purchased.
MANUFACTURER'S DECLARATIONS:
LIMITATION OF LIABILITY
If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy shall be repair or replacement. Adam Halls' maximum liability under this limited warranty is expressly limited to the lesser of the price you have paid for the product or the cost of repair or replacement of any hardware components that malfunction in conditions of normal use.
Adam Hall is not liable for any damages caused by the product or the failure of the product, including any lost profits or savings or special, incidental, or consequential damages. Adam Hall is not liable for any claim made by a third party or made by you for a third party.
This limitation of liability applies whether damages are sought, or claims are made, under this Limited Warranty or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim. This limitation of liability cannot be waived or amended by any person. This limitation of liability will be effective even if you have advised Adam Hall of an authorized representative of Adam Hall of the possibility of any such damages. This limitation of liability however, will not apply to claims for personal injury.
This Limited Warranty gives you specific legal rights. You may also have other rights that may vary from state to state or from country to country. You are advised to consult applicable state or country laws for a full determination of your rights.
REQUESTING WARRANTY-SERVICE
To request warranty service for the product, contact Adam Hall or the Adam Hall authorized reseller from which you purchased the product.
EC DECLARATION OF CONFORMITY
These devices meet the essential requirements and further relevant specifications of Directives 2004/108/EC (EMC) and 2006/95/EC (LVD). For more information, see www.adamhall.com.
CORRECT DISPOSAL OF THIS PRODUCT (ELECTRICAL WASTE)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government office, for details on where and how they can recycle this item in an environmentally friendly manner.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.
WEEE-DECLARATION
Your LD-Systems product was developed and manufactured with high quality materials and components which can be recycled and/or reused. This symbol indicates that electrical and electronic equipment must be disposed of separately from normal waste at the end of its operational lifetime.
Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment. This will help to protect the environment in which we all live.
BATTERIES AND ACCUMULATORS
The supplied batteries or rechargeable batteries can be recycled. Please dispose of them as special waste or return them to your specialist dealer. In order to protect the environment, only dispose exhausted batteries.
Adam Hall GmbH, all rights reserved. The technical data and the functional product characteristics can be subject to modifications. The photocopying, the translation, and all other forms of copying of fragments or of the integrality of this user's manual is prohibited.
2 LOW CUT SCHALTER / LOW CUT LED
| Bandwidth 20 Hz to 20 kHz, +0.5 dB | |
| Frequency response <3 Hz to >90 kHz, +0/-3 dB | |
| Filtertype Linkwitz-Riley, 24 dB/octave | |
| Dynamic Range 106 dB | |
| Signal-to-Noise Ratio >93 dB | |
| THD+Noise <0.004% at 4 dBu, 1 kHz | |
| Interchannel crosstalk <- 80 dB, 20 Hz to 20 kHz | |
| Inputs Female XLR symmetric | |
| Max. Input Level +21 dBu typical, balanced or unbalanced | |
| Outputs Male XLR symmetric | |
| Max. Output Level | >+21 dBu balanced or unbalanced |
| Power Supply | 220 - 240 V AC |
| Dimensions (W x H x D) | 482 x 44.5 x 153 mm |
| Weight | 2,6 kg |
| Bandwidth 20 Hz to 20 kHz, +0.5 dB | |
| Frequency response <3 Hz to >90 kHz, +0/-3 dB | |
| Filtertype Linkwitz-Riley, 24 dB/octave | |
| Dynamic Range 106 dB | |
| Signal-to-Noise Ratio >93 dB | |
| THD+Noise <0.004% at 4 dBu, 1 kHz | |
| Interchannel crosstalk <- 80 dB, 20 Hz to 20 kHz | |
| Inputs Female XLR symmetric | |
| Max. Input Level +21 dBu typical, balanced or unbalanced | |
| Outputs Male XLR symmetric | |
| Max. Output Level | >+21 dBu balanced or unbalanced |
| Power Supply | 220 - 240 V AC |
| Dimensions (W x H x D) | 482 x 44.5 x 153 mm |
| Weight | 2,6 kg |
DÉCLARATIONS DU FABRICANT :
GARANTIE LIMITÉE:
② CONMUTADOR Y LED LOW CUT
| Bandwidth 20 Hz to 20 kHz, +0.5 dB | |
| Frequency response <3 Hz to >90 kHz, +0/-3 dB | |
| Filtertype Linkwitz-Riley, 24 dB/octave | |
| Dynamic Range 106 dB | |
| Signal-to-Noise Ratio >93 dB | |
| THD+Noise <0.004% at 4 dBu, 1 kHz | |
| Interchannel crosstalk <- 80 dB, 20 Hz to 20 kHz | |
| Inputs Female XLR symmetric | |
| Max. Input Level +21 dBu typical, balanced or unbalanced | |
| Outputs Male XLR symmetric | |
| Max. Output Level | >+21 dBu balanced or unbalanced |
| Power Supply | 220 - 240 V AC |
| Dimensions (W x H x D) | 482 x 44.5 x 153 mm |
| Weight | 2,6 kg |
ŚRODKI BEZPIECZEŃSTWA:
2 PRZEŁACZNIK LOW CUT/DIODA LED LOW CUT
| Bandwidth 20 Hz to 20 kHz, +0.5 dB | |
| Frequency response <3 Hz to >90 kHz, +0/-3 dB | |
| Filtertype Linkwitz-Riley, 24 dB/octave | |
| Dynamic Range 106 dB | |
| Signal-to-Noise Ratio >93 dB | |
| THD+Noise <0.004% at 4 dBu, 1 kHz | |
| Interchannel crosstalk <- 80 dB, 20 Hz to 20 kHz | |
| Inputs Female XLR symmetric | |
| Max. Input Level +21 dBu typical, balanced or unbalanced | |
| Outputs Male XLR symmetric | |
| Max. Output Level | >+21 dBu balanced or unbalanced |
| Power Supply | 220 - 240 V AC |
| Dimensions (W x H x D) | 482 x 44.5 x 153 mm |
| Weight | 2,6 kg |
DEKLARACJA ZGODNOŚCI WE:
OGRANICZONA GWARANCJA
DEKLARACJA ZGODNOŚCI WE
9 LED MODALITÀ STEREO
① INGRESSO XLR BILANCIATO (canale 1+2)
2 USCITA XLR BILANCIATA DI SEGNALE DEI TONI BASSI (canale 1+2)
③ USCITA XLR BILANCIATA DI SEGNALE DEI TONI MEDI E DEI TONI ALTI (canale 1+2)
4 INTERRUTTORE x10
| Bandwidth 20 Hz to 20 kHz, +0.5 dB | |
| Frequency response <3 Hz to >90 kHz, +0/-3 dB | |
| Filtertype Linkwitz-Riley, 24 dB/octave | |
| Dynamic Range 106 dB | |
| Signal-to-Noise >93 dB | |
| THD+Noise <0.004% at 4 dBu, 1 kHz | |
| Interchannel crosstalk <- 80 dB, 20 Hz to 20 kHz | |
| Inputs Female XLR symmetric | |
| Max. Input Level +21 dBu typical, balanced or unbalanced | |
| Outputs Male XLR symmetric | |
| Max. Output Level >+21 dBu balanced or unbalanced | |
| Power Supply | 220 - 240 V AC |
| Dimensions (W x H x D) | 482 x 44.5 x 153 mm |
| Weight | 2,6 kg |
DICHIARAZIONI DEL PRODUTTORE:
GARANZIA DEL PRODUTTORE
- Thank you for choosing LD-Systems!
- LD X223
- SIGNAL PROCESSOR
- PREVENTIVE MEASURES:
- CAUTION:
- CAUTION! HIGH VOLUME!
- FEATURES & QUICK GUIDE:
- CONTROL ELEMENTS:
- STEREO - 2 WAY MODE
- BACK PANEL:
- MODE BUTTON STEREO
- FRONT PANEL:
- MONO - 3 WAY MODE
- MODE BUTTON MONO
- SPECIFICATIONS:
- MANUFACTURER'S DECLARATIONS:
- LIMITED WARRANTY
- LIMITATION OF LIABILITY
- REQUESTING WARRANTY-SERVICE
- EC DECLARATION OF CONFORMITY
- CORRECT DISPOSAL OF THIS PRODUCT (ELECTRICAL WASTE)
- WEEE-DECLARATION
- BATTERIES AND ACCUMULATORS
- DÉCLARATIONS DU FABRICANT :
- GARANTIE LIMITÉE:
- ② CONMUTADOR Y LED LOW CUT
- ŚRODKI BEZPIECZEŃSTWA:
- DEKLARACJA ZGODNOŚCI WE:
- OGRANICZONA GWARANCJA
- DEKLARACJA ZGODNOŚCI WE
- DICHIARAZIONI DEL PRODUTTORE:
- GARANZIA DEL PRODUTTORE
Brand : LD Systems
Model : LDU508CS4
Category : Mixer
