Product type	Pot (2-piece set: 8L and 4L)
Brand	Fagor
Model	Combi Chef 8+4
Main material	18/10 stainless steel
Capacity	8 liters and 4 liters
Diameter (8L)	26 cm
Height (8L)	22 cm
Diameter (4L)	20 cm
Height (4L)	16 cm
Total weight	2.8 kg
Induction compatibility	Yes, magnetic base
Oven compatibility	Yes, up to 200°C without lid
Non-stick coating	No (stainless steel)
Lid type	Tempered glass with steam vent
Handles	Stainless steel rivets, thermally insulated
Cleaning	Dishwasher recommended
Warranty	2 years
Country of manufacture	Spain
Main functions	Steaming, simmering, broth, sauces
Care	Use wooden or silicone utensils to preserve the interior

Frequently Asked Questions - Combi Chef 8+4 FAGOR

Are these pots compatible with induction?

Yes, the stainless steel bottom is magnetic and suitable for all induction cooktops. Make sure the bottom fully covers the cooking zone.

Can I use them in the oven?

Yes, without the lid, the pots can withstand a maximum temperature of 200°C. The glass lid is not oven-safe.

What are the exact dimensions of the 8-liter pot?

The diameter is 26 cm and the height is 22 cm. Perfect for large preparations like soups or pasta.

Are the pots dishwasher safe?

Yes, they can be washed in the dishwasher. However, to preserve the shine of the stainless steel, hand washing with a mild detergent is recommended.

Is there a non-stick coating?

No, these pots are made of 18/10 stainless steel without coating. They provide healthy cooking and are scratch-resistant.

Can I buy replacement lids?

Yes, lids are available as spare parts. Contact Fagor customer service or check the official website to order the appropriate references.

What is the weight of the set?

The complete set weighs approximately 2.8 kg, making it easy to handle while being robust.

Are these pots suitable for steaming?

Yes, you can use a suitable steamer basket. The glass lid with vent allows you to control the steam.

How to clean stubborn stains on stainless steel?

Use a special stainless steel cleaner or boil water with white vinegar. Gently scrub with a non-abrasive sponge.

Is the warranty international?

Fagor offers a 2-year warranty on this product. Conditions may vary by country of purchase. Keep your receipt.

USER MANUAL Combi Chef 8+4 FAGOR

Black-and-white collage of black-and-white photos showing a child smiling, eating with a fork and spoon, alongside a close-up of an eye and textured skin (no text or symbols)

MANUAL DE INSTRUÇÕES

MANUEL D'INSTRUCTIONS

USER'S MANUAL

GEBRAUCHSANWEISUNG

ENTYΠΟ ΟΔΗΓΙΩΝ

HASZNÁLATI ÚTMUTATÓ

NÁVOD K POUŽITÍ

NÁVOD NA POUŽITIE

INSTRUKCJA OBSŁUGI

دليل الإستعمال

Technical line drawing of a mechanical component with no visible text or symbols

Gas

Electric

Vitro

Induction

Halogen

FAGOR

OLLA A PRESIÓN CHEF

Two identical cooking pots with different fill patterns, one marked with a checkmark and the other with an 'X' symbol (no text or labels)

Diagram of a mechanical component with a circular dial and concentric rings, showing rotational motion (no text or symbols)

Diagram of a mechanical device with a circular component and rotational arrow, no text or symbols present

Diagram of a mechanical device with a circular component and concentric rings, showing rotational motion (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Simple 3D diagram of a circular object with a dot on top, placed on a curved surface within a rounded square frame (no text or symbols)

Close-up of a finger pressing a button with a small icon on the screen (no text or symbols visible)

Simple 3D illustration of a cylindrical object with a central dot, placed on a curved surface (no text or symbols)

Close-up of a finger pressing a button on a dark surface, with no visible text or symbols

Compota 2 taza 7-8 1

Flan 1/2 l. leche 4-5 1

Diagram of a fan with sound waves and a circular component, enclosed in a rounded square frame (no text or symbols)

Illustration of a kitchen setup with three stages: induction oven, potted plant, and close-up of a kitchen appliance (no text or symbols)

Diagram of a car drain with water spray and a 'i' mark, no text or symbols present

Simple line drawing of a mechanical device with a lever and handle, no text or symbols present

Simple line drawing of a bowl inside a container with a cross mark at the bottom (no text or symbols)

III MANTENIMIENTO

Illustration of two cooking steps: dropping a bowl with food and adding a spoon (no text or symbols)

Diagram showing a washing machine with a lid and a grid, marked with an 'X' symbol (no text or labels present)

Illustration of a hand washing a basin with a faucet (no text or symbols)

Illustration of a hand using a pen to adjust a component, with an inset showing a close-up of a mechanical component (no text or symbols present)

Technical diagram of a mechanical component with two circular parts and directional arrows indicating assembly or movement (no text or symbols present)

Technical line drawing of a mechanical component with a magnified inset showing a circular component (no text or symbols)

Illustration of a device with a flame inside, showing a close-up of its internal components (no text or symbols present)

V MEDIO-AMBIENTE

Two identical cooking pots with different fill patterns, one marked with a checkmark and the other with an 'X' symbol (no text or labels)

Diagram of a mechanical component with a circular dial and concentric rings, showing rotational motion (no text or symbols)

Diagram of a light bulb with internal components and a rotating arrow, no text or symbols present

Mechanical diagram showing a rotating component with a circular head and concentric rings, no text or symbols present.

Simple line drawing of a mechanical component with a circular feature and a small dot (no text or symbols)

Simple 3D diagram of a cylindrical object with a central dot, placed on a curved surface within a rounded square frame (no text or symbols)

Close-up of a finger pressing a button with a small icon on the screen (no text or symbols visible)

Simple 3D diagram of a cylindrical object with concentric rings, no text or symbols present

Close-up of a finger pressing a button with a small icon on the screen (no text or symbols visible)

Illustration of a cooking process showing induction, heating, and cooling steps with no visible text or symbols

MANUTENÇÃO

Illustration of a hand holding a circular object with a tube, no text or symbols present

Illustration of a hand using a pen to adjust a component, with an inset showing a mechanical component (no text or symbols present)

Technical diagram of a mechanical component with two circular parts and directional arrows indicating assembly or movement (no text or symbols present)

Illustration of a device emitting vapor with a magnified inset showing the process (no text or symbols)

V MEIO-AMBIENTE

INFORMAÇÃO PARA A GESTÃO CORRECTA DOS RESÍDUOS DE APARELHOS ELÉCTRICOS E ELECTRÓNICOS

Two identical cooking pots with different fill patterns, one showing a checkmark and the other with an 'X' symbol (no text or labels)

Diagram showing a circular component with internal structure and rotation arrow (no text or symbols)

Diagram of a mechanical device with a circular component and rotational arrow, no text or symbols present

Mechanical diagram showing a rotating component with a circular head and shaft, no text or symbols present

Simple line drawing of a mechanical component with a circular hole and curved base (no text or symbols)

Simple 3D diagram of a circular component with a central dot, placed on a curved surface (no text or symbols)

Close-up of a finger pointing at a black surface with a small icon, no visible text or symbols

Simple 3D illustration of a cylindrical object with concentric rings, no text or symbols present

Close-up of a finger pressing a button on a dark surface, with no visible text or symbols

Illustration of a cooking process with three steps: heating a pot, emitting steam, and a close-up of the lid (no text or symbols)

MAINTENANCE

Illustration of a hand washing a basin with a faucet above (no text or symbols)

Illustration of a hand using a pen to adjust a component, with an inset showing a close-up of a mechanical component (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a device emitting vapor or steam from a circular component, with an inset showing a magnified view of the component (no text or symbols)

Illustration of a hand using a tool to adjust or install a circular component (no text or symbols visible)

V

ENVIRONNEMENT

INFORMATION POUR LA CORRECTE GESTION DES RÉSIDUS D'APPAREILS ÉLECTRIQUES ET ÉLECTRONIQUES

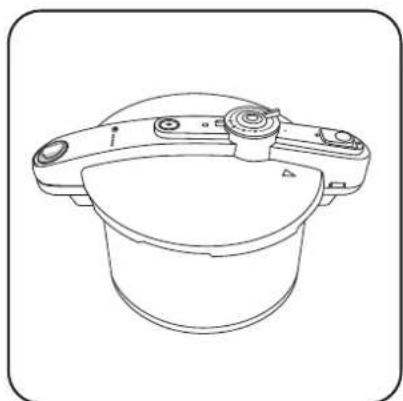

1 Pressure cooker pan
2 Lid
3 Lower or pan handle
4 Upper or lid handle
5 Rear pan handle
6 Working valve (Pressure selector)
7 Button
8 Gasket

9 Safety valve 1

10 Safety valve 2

11 Pressure gauge

13 Timer (for model with timer)

14 Max fill level

15 Lid close position mark

16 Reset hole

Capacity ∅ Diffuser

4-6 Lts	20,5 cm
8 Lts	23 cm

BASIC SAFETY PRECAUTIONS

» Read all the instructions.
» Keep a strict watch if the pressure cooker is used near children.
» Do not place the pressure cooker in a hot oven.
» Be extremely careful when moving your pressure cooker. Do not touch hot surfaces. Use handles and lid pommel. If necessary use gloves.
» Do not use the pressure cooker for anything other than its intended purpose. Never force the pressure cooker open. Ensure that the inside pressure has dropped completely.
» After cooking meat whose skin may swell under pressure (e.G. Ox tongue), do not prick the meat while the skin remains swollen as it may scald.
» Always shake the pan gently before opening when cooking doughy substances to avoid spattering.
» Never use the pressure cooker to fry with oil under pressure.
» Do not interfere with the safety systems except as described in the maintenance instructions in this users' manual.
» Use only original spare parts for the corresponding model.
» Never use abrasive detergents.
» Use a suitable size hotplate or gas burner equal to, or smaller than, the pan base. Overheating may blacken the stainless steel or result in brown or blue stains. These stains will disappear with normal cleaning.
» Keep these instructions for future reference.

II HOW TO USE THE PRESSURE COOKER

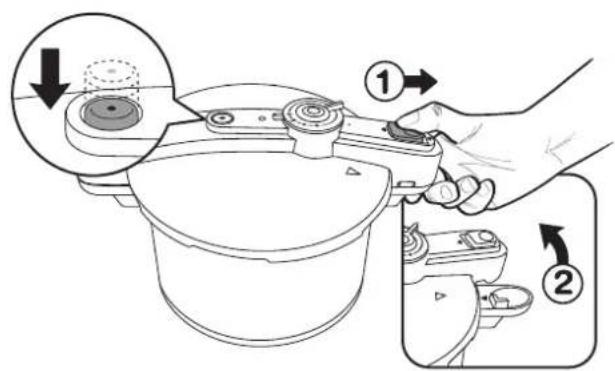

1. OPENING THE PRESSURE COOKER:

Move the button back and turn the lid to the right.

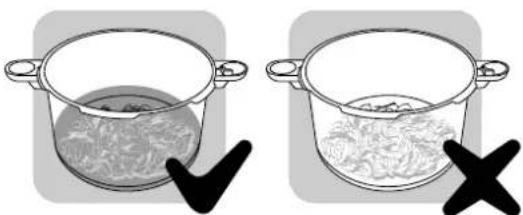

2. FILLING the pressure cooker:

» Do not exceed the MAX level.

» Always fi ll with a minimum amount of liquid, 200 ml.

Two identical cooking pots with different fill patterns, one marked with a checkmark and the other with an 'X' symbol (no text or labels)

When cooking elements that expand, such as rice and pulses, never fill the pan to more than halfway.

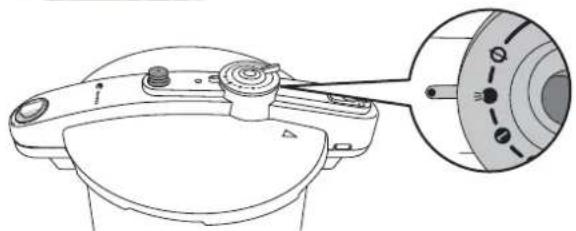

4. SELECTING THE PRESSURE LEVEL.

4.1 Position for removing and placing the valve for cleaning.

Diagram showing a circular object with an arrow indicating rotation or movement, surrounded by concentric circles and horizontal lines (no text or symbols)

Before turning the lid to this position make sure no pressure has built up inside the pressure cooker. You can do this by holding the valve cap in decompression position, for example. See section II.4.2.

4.2 Position for removing all the pressure from inside the pressure cooker, after cooking.

Diagram of a light bulb inside a magnetic field with rotating coil (no text or symbols)

4.3 Average pressure level. The cooking times are slightly longer than in position 2. Use for soups, fi sh, puddings, etc.

Diagram of a mechanical device with a circular component and concentric rings, showing rotational motion (no text or symbols)

4.4 High pressure level. The cooking times are slightly shorter. Use for cooking meat, vegetables, pasta, etc.

For further information, see the enclosed table in II.6.4.

4.5 Select the cooking pressure:

POSITION OF SELECTOR PRESSURE / bar

	0
1	0'55
2	1'05

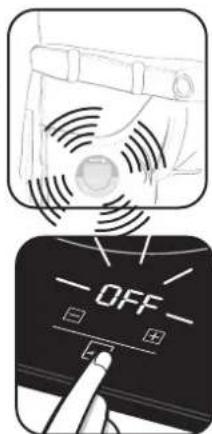

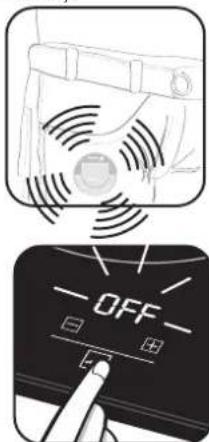

5. TIMER FUNCTIONING (for model with timer).

5.1 ON/OFF

5.2 Setting the time. Start / Pause.

5.3 Set to zero.

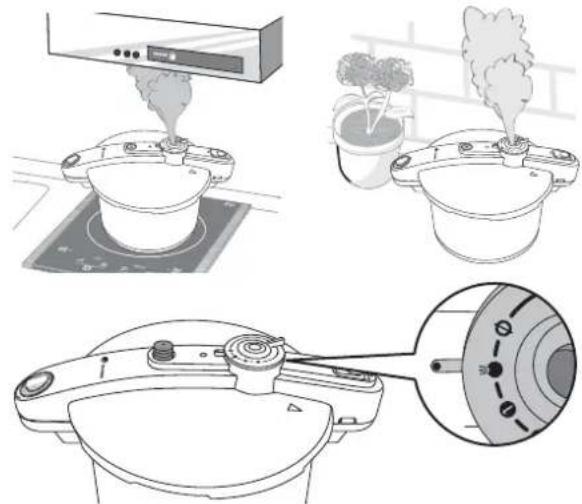

6. FUNCTIONING UNDER PRESSURE.

6.1 When the orange

indicator rises in the reset hole, this means there is pressure inside the cooker and it must not be opened

Simple line drawing of a mechanical component with a circular feature and a small dot (no text or symbols)

6.2 If you select pressure level ①, the pressure level indicator will rise to the first mark. When the mark is visible, turn the heat

down so that it remains at this level and no steam comes out.

Simple 3D diagram of a mechanical component with a central circular feature and curved base (no text or symbols)

Close-up of a finger pointing at a small electronic device with a screen and indicator lights (no visible text or symbols)

6.3 If you select pressure level ②, the pressure level indicator will rise to the second mark. When the mark is visible, turn the heat down so that it remains at this level and no steam comes out.

Simple 3D illustration of a cylindrical object with a central dot, placed on a curved surface (no text or symbols)

Close-up of a finger pressing a button on a dark surface, with no visible text or symbols

6.4 Adjusting the cooking time. Select the cooking time according to the recipe, and press START (for model with timer).

The times indicated are meant only as a guideline. You should adjust them to suit your personal tastes, cooking style and ingredients, etc.

It is best to soak lentils, chickpeas and haricot beans etc. before cooking.
» You do not need to defrost frozen pulses or small fi sh. Increase cooking time by a few minutes when cooking large fi sh and frozen meat.
» Frothy soups (e.g. pea soup, etc.) should be fi rst cooked with the lid off. Before closing the lid remove the froth with a skimmer.
» You do not need to worry about water evaporation as only a very small amount of vapour actually escapes.
» Brown meat a little more than normal as the vapour tends to lighten the colour. Cooking times will depend on its thickness and quality.
» Clean fi sh well, squeeze a little lemon juice over the top and season immediately before cooking.

FOOD	Water quantity	Cooking time in minutes	Selector setting
SOUPS:
Rice soup To taste 4-6 2
Garlic soup To taste 1-2 1
Soup Juliana-style To taste 3-5 2
Vegetable soup To taste 4-5 2
Fish soup To taste 3-4 2
Noodle soup To taste 3-5 1
PASTA:
Chicken and rice 2 cups for 1 cup rice6-7 2
Paella valencia-style	2 cups for 1 cup rice6-8 2
Spaghetti	Cover	4-5	2
Macaroni cheese	Cover	5-6 2
VEGETABLES:
Chard	Cover	6-7	2
Sautéed artichokes	Couvrir	5-6 2
Leeks	Cover	3-5	2
Carrots	Cover	5-6	2
Cabbage	2 cups	4-5	2
Cauliflower	2 cups	4-6	2
Espinach	Cover	4	2
Broad Beans	Cover	3-4 2
PULSES:
Chickpeas	Cover	20	2
Lentils	Cover	15	2
POTATOES:
Potatoes with garlic and parsley 1 l. per 1 kg.		5-7 2
Potatoes with chorizo	3/4 l. per 1 kg.	5-7 2
FISH:
Tuna with potatoes	To taste 10	2
Squid	2 cups	10	2
Octopus	Cover	30	2
Trout	1 cup	30	1
Steamed mussels	1/2 litre 20	1

MEAT:

Meatballs	2	cups	10-12
Round of beef Cover 20-22 2
Kidneys cooked in sherry 2 cups of sherry 5-6 2
Ox sirloin steak 1 cup per 1.5 kg. 15-17 2
Tripe	Cover	25-35	2
Lamb	1/2 l. per 1 kg.	10-12 2
Rabbit	1/2 l.	10-12	2
Quail in sauce	1 cup 5-10	2
Chicken with sherry	1 cup 8-9 2
Chicken	Cover	15-20	2
DESERTS:
Rice pudding	2 cups milk
	1 cup rice	6	1
Compote	2 cups	7-8	1
Creme caramel	1/2 l. milk	4-5 1

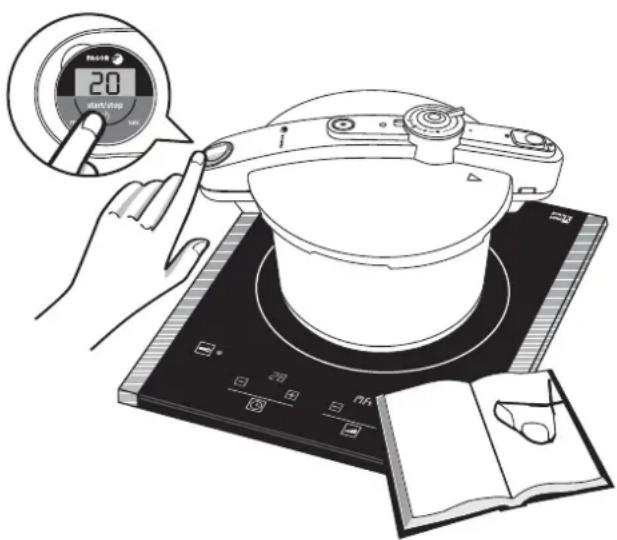

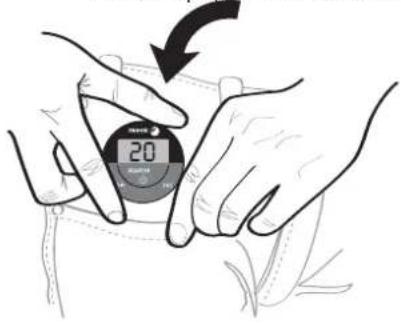

6.5 You can keep the timer with you while the pressure cooker is cooking the food. When the set time has elapsed, the timer will beep (for model with timer).

6.6 Turn off the heat.

1. DECOMPRESSION. There are several ways of reducing the pressure:

7.1 Quick decompression. Place the pressure cooker under the extractor hood or take it outside. Then turn the valve to ≧. See point II.4.2.

Illustration of a cooking process showing a kitchen appliance being heated by steam, with a close-up of the interiormost pot (no text or symbols present)

7.2 Quick decompression by cooling.

2 (for model with timer)

Diagram showing a hand cleaning a car with a water droplet and a 'X' symbol (no text or labels)

Simple line drawing of a kitchen sink with a faucet and a bowl, no text or symbols present

Diagram of a device with a cross mark and warning symbol, no readable text or labels present

Pour a little cold water over a corner of the lid until the orange indicator drops. Never submerge the pressure cooker in water, as this is very dangerous.

7.3 Natural decompression.

If you let the pressure cooker cool down in the position you have cooked the food in, take this extra time into account when calculating the cooking times.

1. OPENING THE PRESSURE COOKER.

MAINTENANCE

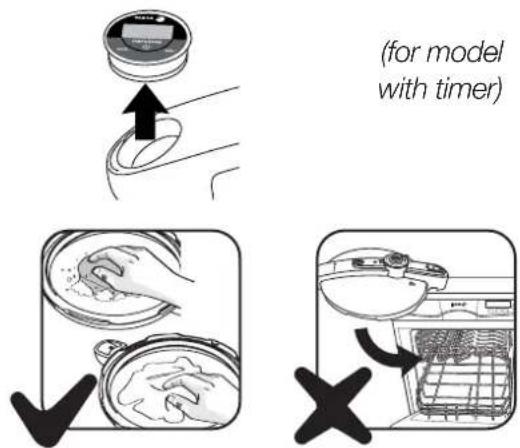

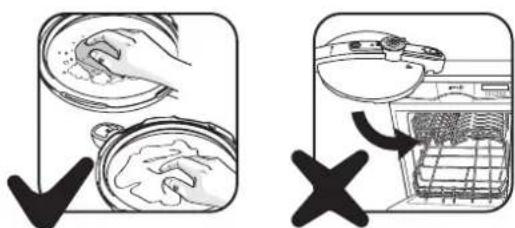

1. After each use, wash the pan with hot soapy water and a soft cloth, rinse and dry. Take special care with the inside of the lid.

Do not use wire sponges or abrasive products as these could scratch the stainless steel coating.

1. Clean the sealing gasket manually after each use.

Illustration of a hand washing a basin with a faucet (no text or symbols)

1. Check that the vapour outlets are clean and free from obstructions.

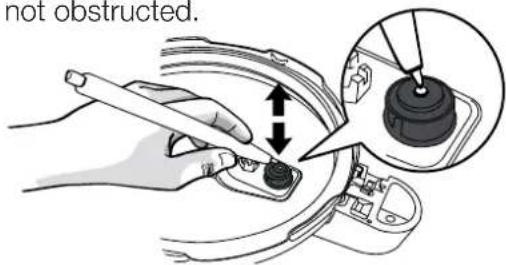

1. Safety valve. Before each use, press the sphere with a ballpoint pen to make sure it is not obstructed.

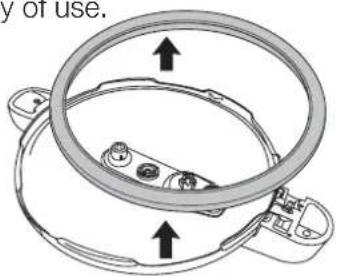

1. Gasket. We recommend that you replace the gasket every 1 or 2 years, depending on the frequency of use.

IMPORTANT: Do not adjust parts or attempt to assemble them in any way other than that indicated. ALWAYS USE ORIGINAL SPARE PARTS.

1. Timer. The approximate lifetime of the timer battery is 2 years. You can replace the battery yourself when it has run down.

Do not submerge the timer in water.

IV TROUBLESHOOTING

1. If the operating valve is blocked, turn off the heat, open the pressure cooker and clean the operating valve as described in point III.3.

Technical line drawing of a mechanical component with a magnified inset showing a circular component (no text or symbols)

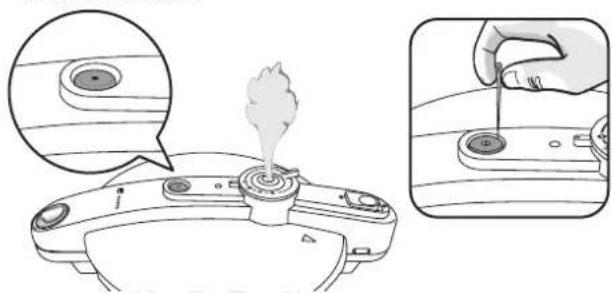

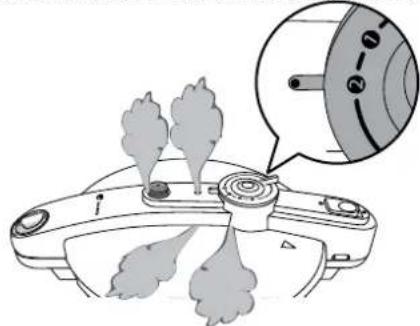

1. If the first safety valve is blocked, the second safety valve will be triggered. If this happens, the pressure cooker can no longer be used and you will need to take it to a technical assistance centre for repair.

Diagram of a vacuum cleaner with smoke emitting vapor, showing internal components and a magnified view (no text or symbols)

1. No pressure is building up inside the pressure cooker:

3.1 The pressure cooker is not properly closed. Close it again and make sure you hear a click. See point II.3.
3.2 No pressure has been selected. Select position ① or ② See points II.4.3 and II.4.4.
3.3 The second safety valve has been triggered. Take the pressure cooker to a technical assistance centre for repair. See point IV.2.

Technical line drawing of a mechanical component with a magnified inset showing a circular component (no text or symbols)

3.4 The sealing gaskets inside the lid are damaged. Take the pressure cooker to a technical assistance centre for repair.

Technical line drawing of a mechanical component with three views (top, front, side), no text or symbols present.

1. The pressure gauge is not rising correctly (if this happens, pressure will still be building up inside the pressure cooker). Clean the area carefully with a needle.

Illustration of a device emitting vapor with a magnified inset showing the tip and handle (no text or symbols)

V ENVIRONMENT

INFORMATION FOR THE CORRECT DISPOSAL OF ELECTRICAL AND ELECTRONIC APPLIANCES

At the end of its working life, the product must not be disposed of as urban waste.

It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources.

To remind you that you must collaborate with a selective collection scheme, the symbol shown appears on the product warning you not to dispose of it in traditional refuse containers. For further information, contact your local authority or the shop where you bought the product.

Remember that batteries are not household waste. Spent batteries must be disposed of in the special containers provided.

Two identical cooking pots with different fill patterns, one marked with a checkmark and the other with an 'X' symbol (no text or labels)

Diagram showing a circular object with an arrow pointing to a concentric circular target, enclosed in a rounded rectangle (no text or symbols)

Diagram of a mechanical device with a light bulb and rotating shaft (no text or symbols)

Mechanical component diagram showing a knob and rotating shaft with rotation arrow (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Simple 3D diagram of a cylindrical object with a dot on its surface, placed on a curved surface (no text or symbols)

Close-up of a finger pressing a button with a small icon (no text or symbols visible)

Simple 3D illustration of a cylindrical object on a curved surface, no text or symbols present

Close-up of a finger pointing at a small icon with a grid and arrow, no visible text or symbols

Illustration of a cooking process showing a kitchen setup, a pot with steam rising, and a close-up of the kitchen interior (no text or symbols)

WARTUNG

Illustration of a hand holding a circular object with a handle, pouring liquid from a pipe (no text or symbols)

Technical diagram of a steering wheel assembly with directional arrows indicating components (no text or labels)

Technical line drawing of a mechanical component with a circular dial and mounting features (no text or symbols)

Illustration of a robotic vacuum cleaner with smokestacks and a close-up inset showing the blade (no text or symbols)

Technical line drawing of a mechanical device with a close-up inset showing a dial and adjustment knob (no text or symbols)

Two identical cooking pots with different fill patterns, one marked with a checkmark and the other with an 'X' symbol (no text or labels)

Diagram of a mechanical component with a circular dial and concentric rings, showing rotational motion (no text or symbols)

Diagram of a mechanical device with a circular component and rotating shaft (no text or symbols)

5.3 Μηδενισμός.

Simple line drawing of a mechanical component with a circular hole (no text or symbols)

Simple 3D diagram of a mechanical component with a central circular feature and curved base (no text or symbols)

Close-up of a finger pointing at a small electronic device with a screen icon (no text or symbols visible)

Simple 3D illustration of a cylindrical object with a central dot, placed on a curved surface (no text or symbols)

Close-up of a finger pressing a button on a dark surface, with no visible text or symbols

Diagram of a device with circular components and signal waves, no text or symbols present

Two-step cooking process showing a kitchen appliance emitting steam from a pot on an induction cooktop, and a potted plant being heated by a pan (no text or symbols)

Technical line drawing of a mechanical component with a magnified inset showing internal components (no text or symbols)

ΣΥΝΤΗΡΗΣΗ

Illustration of a hand holding a circular object with a drain, no text or symbols present

Illustration of a hand using a pen to adjust a component, with an inset showing a mechanical component (no text or symbols present)

Technical diagram of a mechanical component with arrows indicating assembly or movement (no text or symbols present)

Diagram of a device with smokestacks and a dial indicator (no text or symbols)

Illustration of a device with a flame inside, showing a close-up and hand inserting a plug into a base (no text or symbols)

V ПЕРІВАЛЛОН

Two identical cooking pots with different fill patterns, one showing a checkmark and the other showing a cross (no text or symbols)

Diagram showing a circular component with an arrow indicating rotation, no text or symbols present

Diagram of a mechanical device with a circular component and rotating shaft, showing rotational motion (no text or symbols)

Diagram of a mechanical device with a circular component and rotating shaft (no text or symbols)

Simple line drawing of a mechanical component with a circular hole (no text or symbols)

Simple 3D diagram of a cylindrical object with a dot on its surface, placed on a curved base (no text or symbols)

Close-up of a finger pressing a button with a small icon on the screen (no text or symbols visible)

Simple 3D diagram of a cylindrical object with a central dot, placed on a curved surface (no text or symbols)

Illustration of a finger pressing a button on a device (no text or symbols visible)

Illustration of hands adjusting a digital glucose meter on a patient's abdomen (no text or symbols present)

Diagram of a car with sound waves and sensor array (no text or symbols)

Illustration of a kitchen appliance with steam rising from a pot, showing top-down view and close-up of the lid (no text or symbols)

KARBANTARTÁS

Illustration of a hand washing a sink with a faucet above (no text or symbols)

Illustration of a hand using a tool to adjust a mechanical component, with an inset showing a close-up of the component (no text or symbols present)

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical component with a magnified inset showing a circular component (no text or symbols)

Illustration of a device emitting vapor with a magnified inset showing the tip and base (no text or symbols)

V

KÖRNYEZETVÉDELEM

ELEKTROMOS ÉS ELEKTRONIKUS KÉSZÜLÉKEK MARADVÁNYAINAK MEGFELELŐ KEZELÉSÉRE VONATKOZÓ INFORMÁCIÓ

1. NAPLNĚNÍ potravin do hrnce:

Two identical cooking pots with different fill patterns, one marked with a downward arrow and the other with an 'X' symbol (no text or labels)

Diagram showing a circular component with internal structure and rotation arrow, no text or symbols present

Diagram of a light bulb emitting a circular object with a rotating arrow, no text or symbols present

Diagram of a mechanical device with a circular dial and rotating shaft (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

Simple 3D diagram of a mechanical component with a central circular feature and curved base (no text or symbols)

Close-up of a finger pressing a button on a smartphone screen (no visible text or symbols)

Simple 3D illustration of a cylindrical object with a central dot, placed on a curved surface (no text or symbols)

Close-up of a finger pressing a button on a dark surface, with no visible text or symbols

Illustration of a kitchen appliance with steam rising from a mounted dish, emitting smoke, and a close-up view of the lid (no text or symbols)

(pro model s 2 chronome?em)

ÚDRŽBA

(pro model s chronometrem)

Illustration of a hand washing a basin with a faucet (no text or symbols)

Technical diagram of a mechanical component with two circular parts and directional arrows indicating assembly or movement (no text or symbols present)

Technical line drawing of a mechanical component with a magnified inset showing a circular component (no text or symbols)

Diagram of a mechanical component with a highlighted circular feature and a magnified inset showing internal components (no text or symbols)

Technical line drawing of a mechanical component with three views (top, front, side), no text or symbols present.

Illustration of a device with a flame inside, showing a close-up and a hand holding a screwdriver (no text or symbols present)

V OCHRANA ŽIVOTNÍHO PROSTŘEDÍ

INFORMACE, TÝKAJÍCÍ SE SPRÁVNÉHO NAKLÁDÁNÍ S ODPADEM

1. NAPLNENIE potravín do hrnca:

Two identical cooking pots with different fill patterns, one marked with a checkmark and the other with an 'X' symbol (no text or labels)

Diagram showing a circular object with an arrow pointing to a concentric circular target, enclosed in a rectangular frame (no text or symbols)

Diagram of a cat silhouette inside a mouse and a circular device with internal components, no text or symbols present.

Diagram of a mechanical device with a circular component and concentric rings, showing rotational motion (no text or symbols)

Simple line drawing of a mechanical component with a circular feature and a small dot on a base (no text or symbols)

Two technical diagrams showing a circular component and a finger pointing to a device with control buttons (no text or symbols)

Two technical illustrations: one showing a circular component on a curved surface, the other showing a finger pressing a button (no text or symbols)

6.4 Nastavte dobu varenia. V závislosti od typu receptu zvolte dobu varenia a stisnite ŠTART (pre model s chronometrom).

Illustration of a kitchen induction setup with a steaming pot, a pot with steam rising, and a close-up of the lid (no text or symbols)

ÚDRŽBA A SKLADOVANIE

1. Hrniec umyte po každom použití v horúcej vode so saponátom, opláchnite a dobre osušte. Dávajte špeciálne pozor na oblast'vo strede prikrývky.

Illustration of a hand washing a basin with a faucet (no text or symbols)

Illustration of a hand using a pen to adjust a small component, with an inset showing a close-up of the device (no text or symbols present)

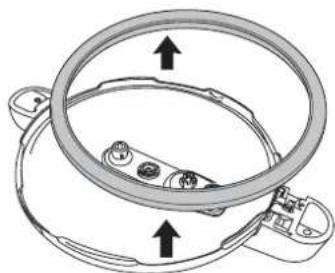

1. Tesnenie. Doporučujeme tesnenie vymieňat' pravidelne každé 1 až 2 roky v závislosti na početnosti používania hrnca.

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

Dôležité: Neupravujte časti spotrebiča, ani s nimi nemanipulujte iným spôsobom, než bolo uvedené. POUŽÍVAJTE IBA ORIGINÁLNE NÁHRADNÉ DIELY.

Neponárajte chronometer do vody.

IV RIEŠENIE PROBLÉMOV

Technical line drawing of a mechanical component with a magnified inset showing a circular component (no text or symbols)

Technical line drawing of a mechanical component with a highlighted circular dial (no text or symbols)

Illustration of a device with a flame inside, showing a close-up and hand inserting a screw into a socket (no text or symbols)

V OCHRANA ŽIVOTNÉHO PROSTREDIAÍ

INFORMÁCIA, TÝKAJÚCA SA SPRÁVNEHO NAKLADANIA S ODPADOM Z ELEKTRIC- KÝCH A ELEKTRONICKÝCH SPOTREBIČOV

Two identical cooking pots with different fill patterns, one marked with a checkmark and the other with an 'X' symbol (no text or labels)

Mechanical diagram showing a rotating component with a circular head and shaft, no text or symbols present

Simple line drawing of a mechanical component with a circular feature and a dot on a base (no text or symbols)

Simple 3D diagram of a circular component with a dot on top, enclosed in a rounded square frame (no text or symbols)

Close-up of a finger pressing a button on a dark surface, with no visible text or symbols

Simple 3D illustration of a cylindrical object with a central dot, placed on a curved surface (no text or symbols)

Close-up of a finger pointing at a device with a small icon on the screen (no text or symbols visible)

Diagram of a washing machine fan with sound waves indicating sound or vibration (no text or symbols)

Illustration of a kitchen appliance with steam rising from a stove, showing its interior and exterior views (no text or symbols)

Diagram of a faucet with water spray and a black X mark indicating no text or symbols

Illustration of a kitchen sink with a downward arrow indicating a drop, no text or symbols present

Simple line drawing of a device with a cross mark and no text or symbols

KONSERWACJA

Illustration of a hand washing a basin with a pipe outlet (no text or symbols)

Technical diagram of a mechanical component with two circular parts and directional arrows indicating assembly or movement (no text or symbols present)

Technical line drawing of a mechanical component with a magnified inset showing a circular feature (no text or symbols)

Diagram of a device emitting smoke or vapor, with an inset showing a dial (no text or symbols present)

Technical line drawing of a mechanical component with three views (no text or symbols)

Illustration of a device emitting vapor with a magnified inset showing the process (no text or symbols)

V OCHRONA ŚRODOWISKA NATURALNEGO

INFORMACJA DOTYCZĄCA PRAWIDŁOWEGO ZARZĄDZANIA ODPADAMI URZĄDZEŃ ELEKTRYCZNYCH I ELEKTRONICZNYCH

ء في ال笹ر التعبئة

Two identical cooking pots with different fill patterns, one marked with a checkmark and the other with an 'X' symbol (no text or labels)

Diagram of a mechanical component with a circular head and concentric rings, showing rotational motion (no text or symbols)

عملية التنظيف

Diagram of a mechanical device with a circular component and rotational arrow, no text or symbols present

Diagram of a mechanical device with a circular component and rotating shaft (no text or symbols)

Simple line drawing of a mechanical component with a circular hole (no text or symbols)

Simple 3D diagram of a circular object with a central dot, placed on a curved surface (no text or symbols)

Close-up of a finger pressing a button on a device (no visible text or symbols)

Simple 3D illustration of a cylindrical object with a central dot, placed on a curved surface (no text or symbols)

Close-up of a finger pressing a button with a small icon on the screen (no text or symbols visible)

Diagram of a device with circular components and signal waves, no text or symbols present

Illustration of two cooking methods: a microwave oven and a pot with steam rising from a pot (no text or symbols)

Technical line drawing of a mechanical component with a magnified inset showing internal components (no text or symbols)

عملية الصينة

Illustration of a hand washing a circular object with a faucet above (no text or symbols)

Diagram of a mechanical component with two circular parts and directional arrows indicating movement (no text or symbols)

Technical line drawing of a mechanical component with a magnified inset showing a circular component (no text or symbols)

Diagram of a device emitting smoke or vapor, with an inset showing a circular component (no text or symbols)

1. القدر لا يأخذ ضغط:

Technical line drawing of a mechanical component with a magnified inset showing a circular dial (no text or symbols)

Technical line drawing of a mechanical component with three views (top, front, side) showing internal parts and mounting features (no text or symbols)

Diagram of a device emitting smoke or vapor, with a magnified inset showing a circular component (no text or symbols)

الHMAYAة المحيطية

The manufacturer reserves the right to modify the models described in this User's Manual.
