USER MANUAL GADH 254/230V GUDE

Blue GADH 254 machine with white hose and handle, no visible text or symbols on the machine itself

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland

ENGLISH Please read the instructions carefully before starting the machine.

D	Montage	SLO	Montaža
GB	Assembly	HR	Montaža
F	Assemblage	BG	Монтаж
I	Montaggio	RO	Montaj
NL	Montage	BIH	Montaža
CZ	Montáž
SK	Montáž
H	Szerelés

1

3-6

D	Betrieb	SLO	Delovanje
GB	Operation	HR	Rad
F	Fonctionnement	BG	Pábota
I	Esercizio	RO	Functionare
NL	Gebruik	BIH	Rad
CZ	Provoz
SK	Prevádzka
H	Üzemeltetés

2

7-17

D	Reinigung / Wartung	SLO	Čiščenje / Vzdrževanje
GB	Cleaning / Maintenance	HR	Čiščenje / Održavanje
F	Nettoyage / Entretien	BG	Чистене / Поддръжка
I	Pulizia / Manutenzione	RO	Curățare / Întreținere
NL	Schoonmaken / Onderhoud	BIH	Čiščenje / Održavanje
CZ	Čištění / Údržba
SK	Čistenie / Údrzba
H	Tisztítás / Karbantartás

3

18-22

D	Transport / Lagerung	SLO	Transport / Shranjevanje
GB	transport / storage	HR	Prijevoz / Uskladištenje
F	Transport / Stockage	BG	Транспортиране / Съхранение
I	Trasporto / Stoccaggio	RO	Transport / Depozitare
NL	Transport / Bewaring	BIH	Prevoz / Uskladištenje
CZ	Přeprava / Uložení
SK	Transport / Uloženie
H	Szállítás / Tárolás

4

23

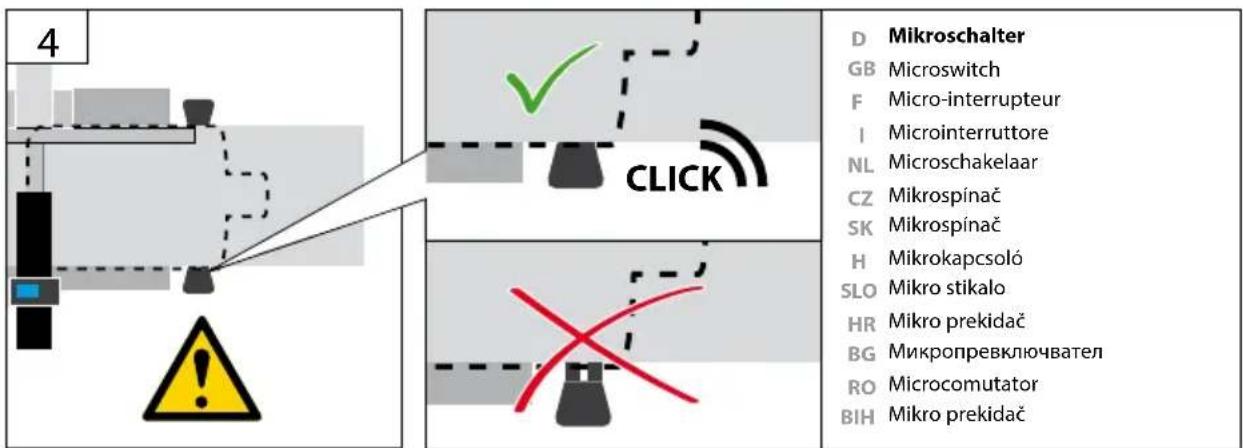

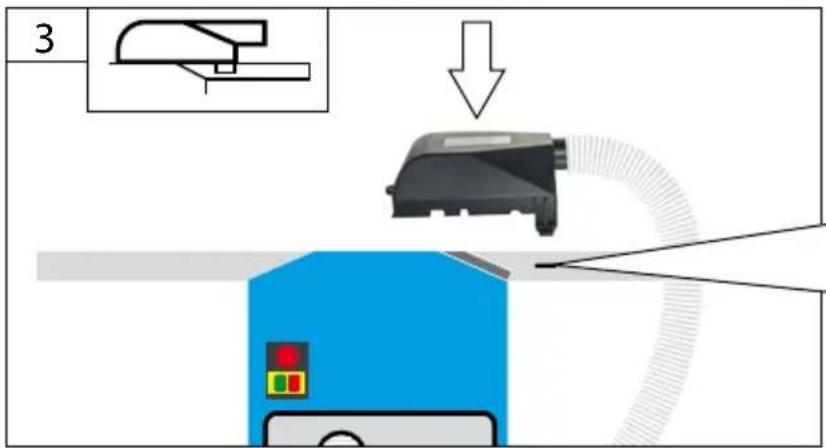

D Mikroschalter

GB Microswitch

GB The microswitch must be activated in order to start the machine.

Pure mechanical assembly diagram without any text, numbers, or symbols

D Dickenhobeln

GB Thicknessing

F Raboter

Illustration of a blue industrial machine with attached components and wiring (no text or symbols)

Computer monitor with a red X mark symbol, no visible text or symbols on the screen or background

15

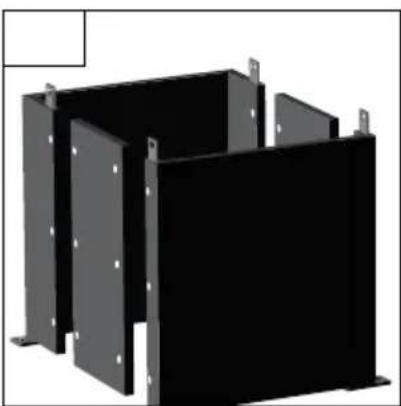

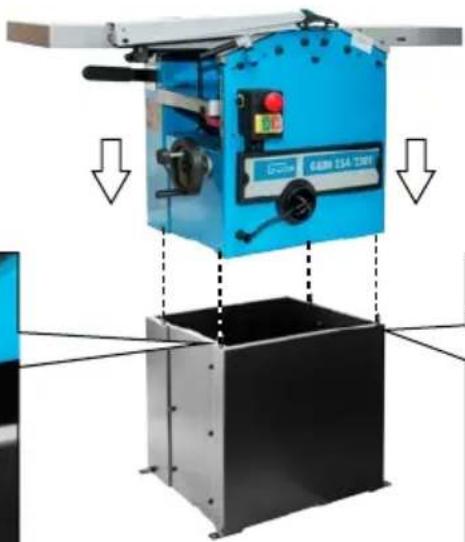

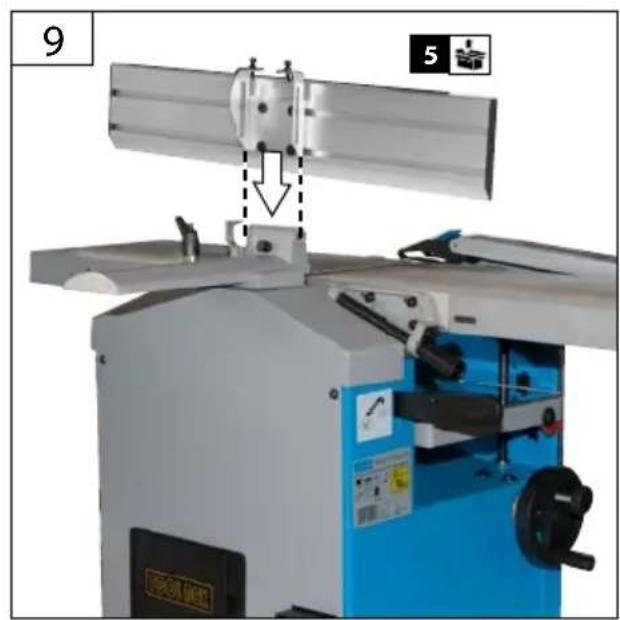

D Montage

GB Assembly

F Assemblage

Montaggio

NL Montage

CZ Montáž

SK Montáž

H Szerelés

SLO Montaža

HR Montaža

BG Монтаж

RO Montaj

BIH Montaža

1

Illustration of a cardboard box with an upward arrow, alongside four black rectangular panels (no text or symbols)

3D rendering of a black metal enclosure or frame structure with mounting holes (no text or symbols visible)

4

81 kg

Close-up of a mechanical component with blue and black surfaces, no visible text or symbols

Industrial machine with blue control panel and black base, no visible text or symbols

4x

1	D	Montage	SLO	Montaža
	GB	Assembly	HR	Montaža
	F	Assemblage	BG	Монтаж
	I	Montaggio	RO	Montaj
	NL	Montage	BIH	Montaža
	CZ	Montáž
	SK	Montáž
	H	Szerelés

D Montage

GB Assembly

F Assemblage

Montaggio

NL Montage

CZ Montáž

SK Montáž

H Szerelés

SLO Montaža

HR Montaža

BG Монтаж

RO Montaj

BIH Montaža

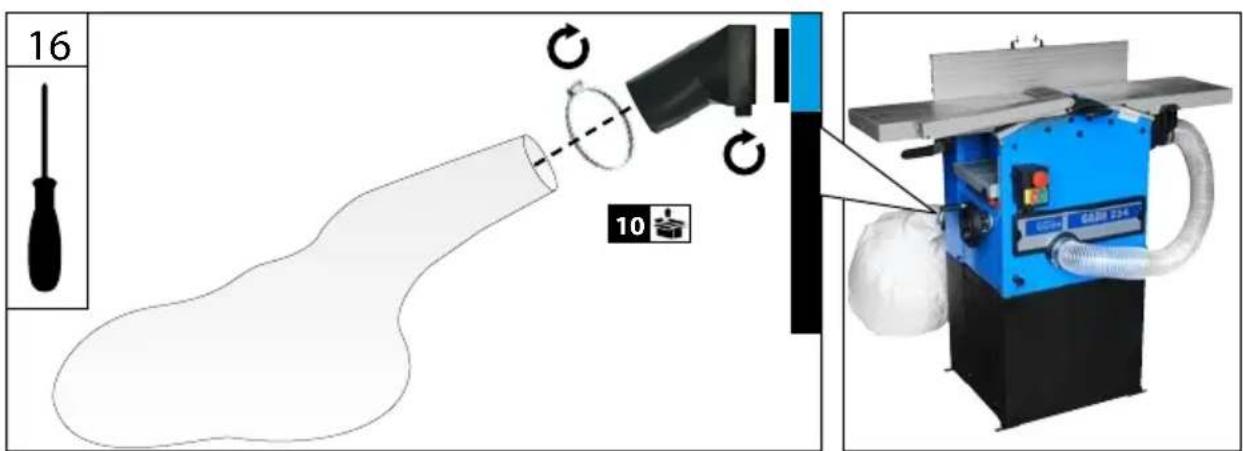

Industrial machine with blue and white components, no visible text or symbols

Technical illustration of a machine tool and its assembly with a mechanical component (no text or symbols visible)

Industrial machine with blue tool and lock mechanism, no visible text or symbols

Industrial machine with a lock and arrow symbol, no readable text or labels present

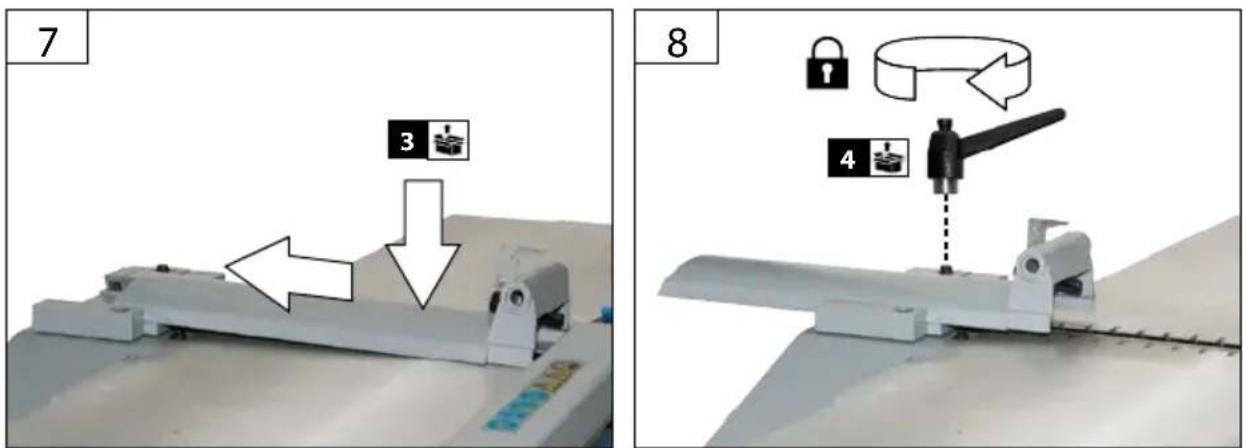

1	D	Montage	SLO	Montaža
	GB	Assembly	HR	Montaža
	F	Assemblage	BG	Монтаж
	I	Montaggio	RO	Montaj
	NL	Montage	BIH	Montaža
	CZ	Montáž
	SK	Montáž
	H	Szerelés

D Betrieb

GB Operation

F Fonctionnement

Esercizio

NL Gebruik

CZ Provoz

SK Prevádzka

H Üzemeltetés

SLO Delovanje

HR Rad

BG Работа

RO Functionare

BIH Rad

D Mikroschalter

GB Microswitch

Close-up of a black industrial control switch with red and yellow buttons, featuring a white arrow pointing to the right button (no text or symbols visible)

Industrial machine with blue base and mechanical components (no visible text or symbols)

Diagram showing a rotating cylindrical object with a checkmark indicating motion, and a blue arrow below (no text or symbols)

Diagram showing a pipe with red X marks and black arrows indicating flow direction, no text or symbols present.

400 V - 55059

180^irc

	D	Betrieb	SLO	Delovanje
	GB	Operation	HR	Rad
	F	Fonctionnement	BG	Pábota
	I	Esercizio	RO	Functionare
	NL	Gebruik	BIH	Rad
	CZ	Provoz
	SK	Prevádzka
	H	Üzemeltetés

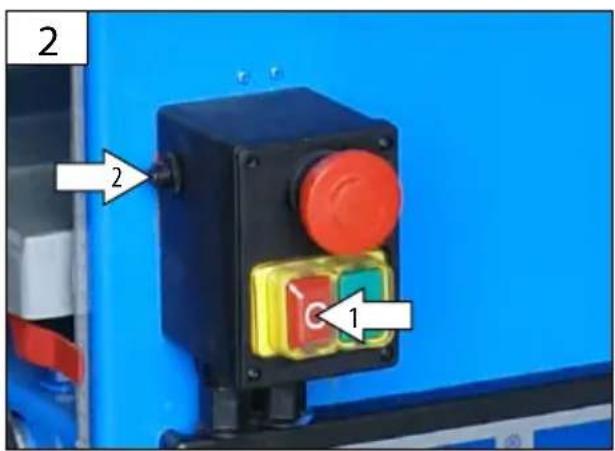

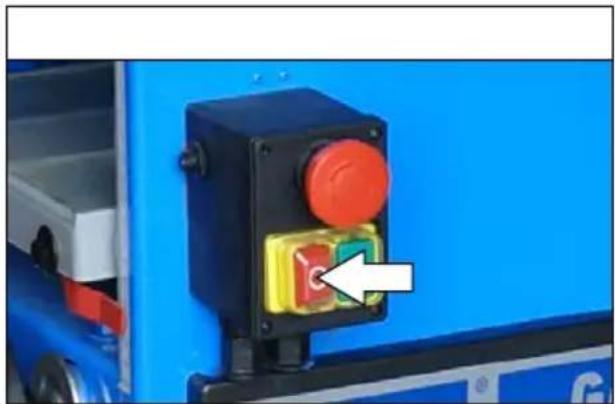

START STOP 1

Close-up of a blue truck's control panel with a red and yellow indicator lights, featuring a green button labeled '1' and an arrow pointing to it (no readable text or symbols beyond the indicator)

Close-up of a blue truck's control panel with red and yellow buttons, featuring a white arrow pointing to the button (no text or symbols visible)

STOP 2

Close-up of a blue industrial control panel with red and green buttons, featuring an open lock icon (no text or symbols visible)

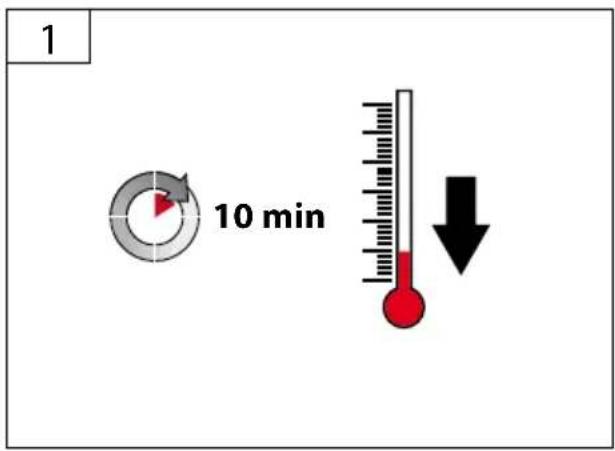

D	Überlastungsschutz	SLO	Zaščita proti preobremenitvi
GB	Engine protection	HR	Zaštita od preopterećenja
F	Protection contre la surcharge	BG	Защита против претоварване
I	Protezione contro i sovraccarichi	RO	Protectie impotriva suprasolicitării
NL	Overbelastingsbeveiliging	BIH	Zaštita od preopterećenja
CZ	Ochrana proti přetížení
SK	Ochrana proti preťaženiu
H	Túlterhelés elleni védelem

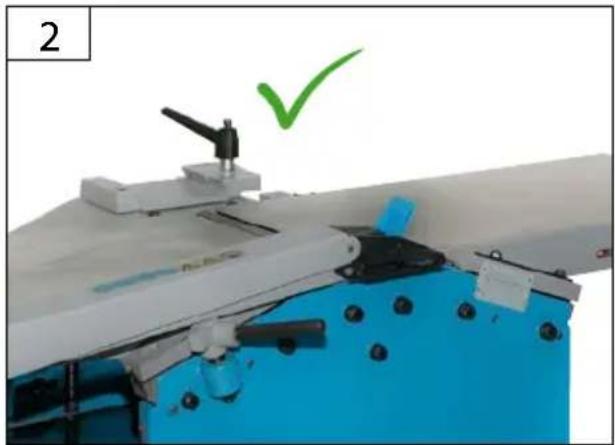

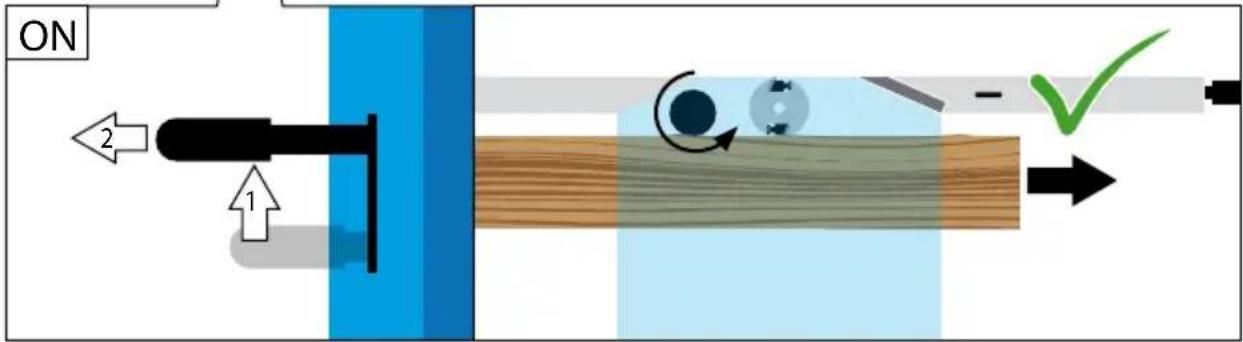

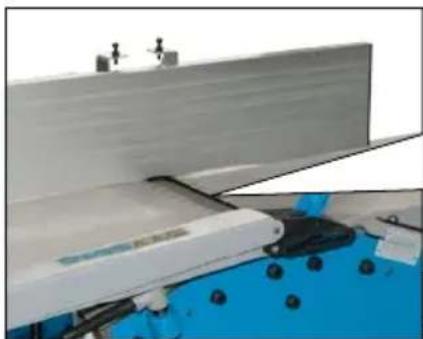

	D	Abrichthobeln	SLO	Izravnalno skobljanje
	GB	Surfacing	HR	Ravnačko blanjanje
	F	Dégauchir	BG	Рендосване с абрихт
	I	Piallare a filo	RO	Rindeluire de îndreptare
	NL	Vlakschaven	BIH	Ravnačko blanjanje
	CZ	Srovnávání
	SK	Zrovnávanie
	H	Egyengető gyalulás

Industrial machine with blue workpiece and control panel, showing mechanical assembly and measurement scale (no text or symbols)

D Abrichthobeln

GB Surfacing

F Dégauchir

Piallare a filo

NL Vlakschaven

CZ Srovnávání

SK Zrovnávanie

GB Adjusting the plane thickness

Diagram of a mechanical or electrical device with a blue base, lever arm, and control panel (no text or symbols)

D Abrichthobeln

GB Surfacing

F Dégauchir

Piallare a filo

NL Vlakschaven

CZ Srovnávání

SK Zrovnávanie

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

	D	Abrichthobeln	SLO	Izravnalno skobljanje
	GB	Surfacing	HR	Ravnačko blanjanje
	F	Dégauchir	BG	Рендосване с абрихт
	I	Piallare a filo	RO	Rindeluire de îndreptare
	NL	Vlakschaven	BIH	Ravnačko blanjanje
	CZ	Srovnávání
	SK	Zrovnávanie
	H	Egyengető gyalulás

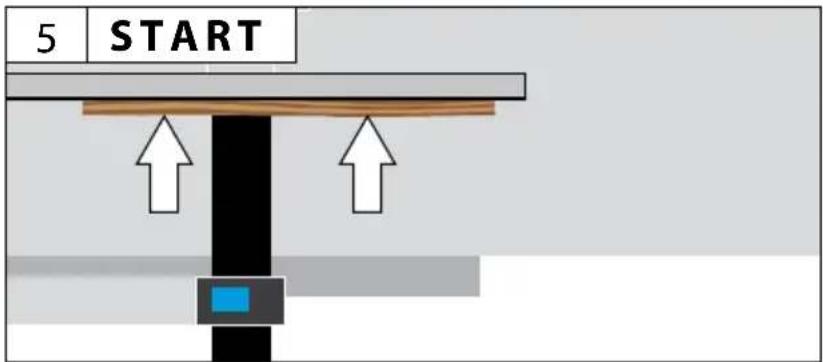

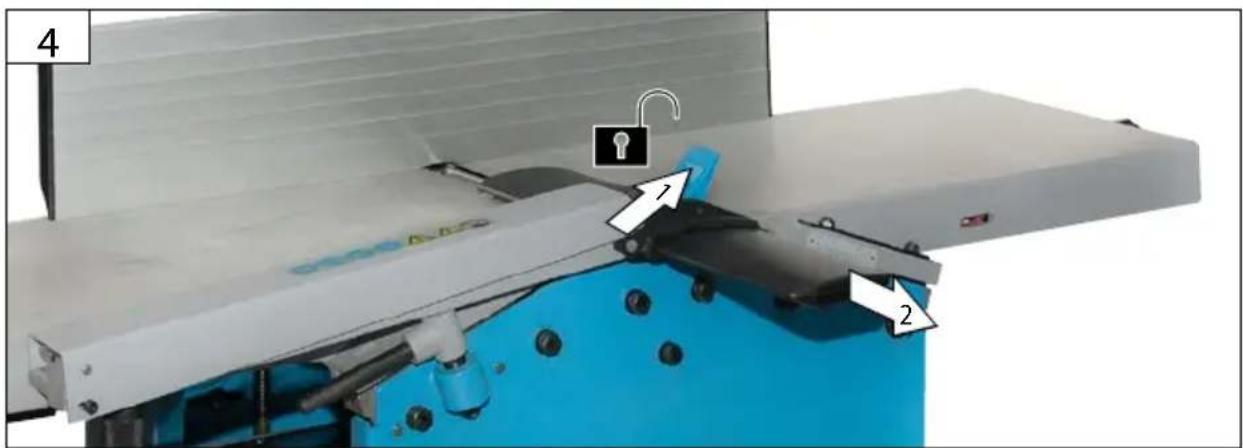

D Dickenhobeln

GB Thicknessing

F Raboter

Piallare a spessore

NL Vandikteschaven

CZ Tloušťkování

SK Hrúbkovanie

Industrial machine with blue and white components, marked with red X symbols (no readable text or labels)

Industrial machine with blue components and a green checkmark indicating a measurement or inspection (no readable text or symbols)

D Mikroschalter

GB Microswitch

Close-up of a blue industrial machine with attached tubing and control buttons (no visible text or symbols)

D Dickenhobeln

GB Thicknessing

F Raboter

Piallare a spessore

NL Vandikteschaven

CZ Tloušťkování

SK Hrúbkovanie

GB Adjusting the plane thickness

Diagram of a blue industrial machine with attached pump and pipe, showing directional flow (no text or symbols)

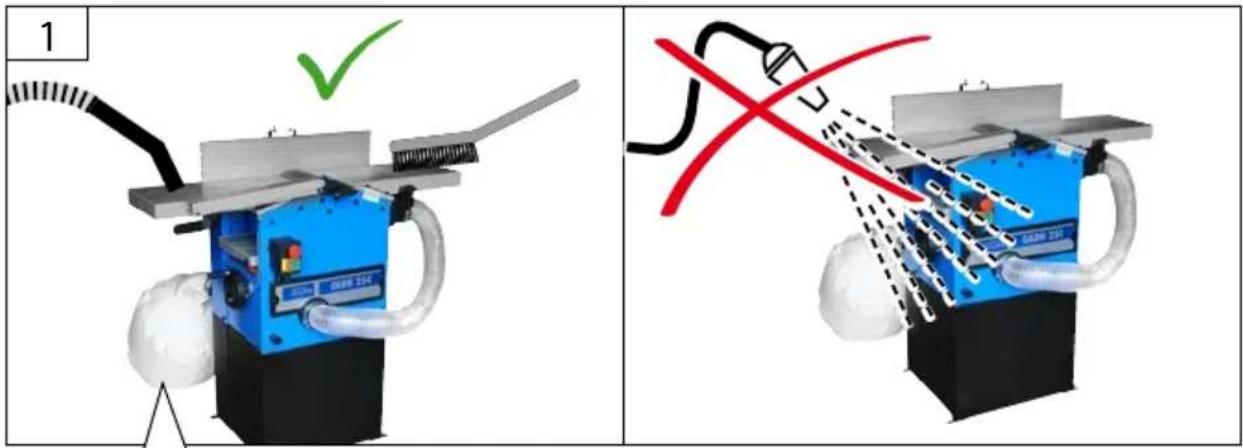

3	D	Reinigung / Wartung	SLO	Čiščenje / Vzdrževanje
	GB	Cleaning / Maintenance	HR	Čiščenje / Održavanje
	F	Nettoyage / Entretien	BG	Чистене / Поддръжка
	I	Pulizia / Manutenzione	RO	Curățare / Întreținere
	NL	Schoonmaken / Onderhoud	BIH	Čiščenje / Održavanje
	CZ	Čištění / Údržba
	SK	Čistenie / Údrzba
	H	Tisztítás / Karbantartás

GB Cleaning / Maintenance

F Nettoyage / Entretien

Close-up of a blue industrial machine with a metallic panel mounted on top, no visible text or symbols on the device itself.

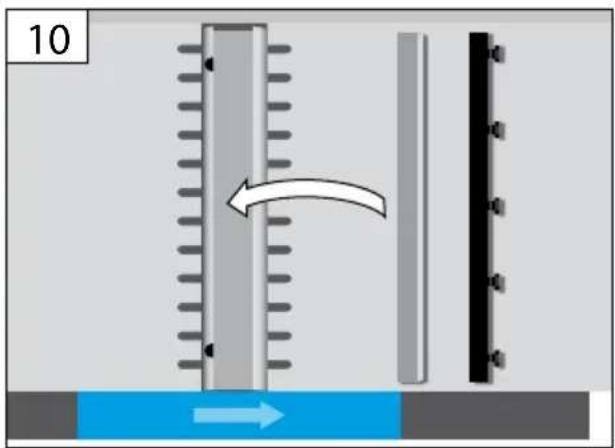

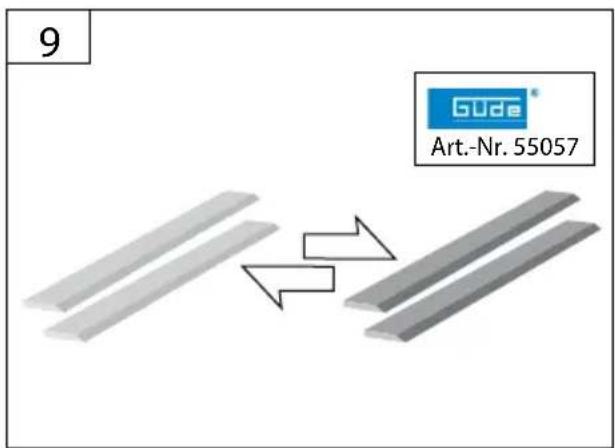

3	D	Messer wechseln und einstellen	SLO	Zamenjava rezila in nastavitev
	GB	Replacing and adjusting the blades	HR	Zamjena i namještanje noževa
	F	Remplacer et régler les couteaux	BG	Смяна и настройка на ножовете
	I	Sostituire e regolare i coltelli	RO	Schimbarea și reglarea cuțitelor
	NL	Messen vervangen en instellen	BIH	Zamjena i podešavanje noževa
	CZ	Výměna a nastavení nože
	SK	Výmena a nastavenie noža
	H	A kések cseréje és beállítása

D	Messer wechseln und einstellen	SLO	Zamenjava rezila in nastavitev
GB	Replacing and adjusting the blades	HR	Zamjena i namještanje noževa
F	Remplacer et régler les couteaux	BG	Смяна и настройка на ножовете
I	Sostituire e regolare i coltelli	RO	Schimbarea și reglarea cuțitelor
NL	Messen vervangen en instellen	BIH	Zamjena i podešavanje noževa
CZ	Výměna a nastavení nože
SK	Výmena a nastavenie noža
H	A kések cseréje és beállítása

D Transport

GB transport

F Transport

Trasporto

NL Transport

cz Přeprava

SK Transport

H Szállítás

SLO Transport

HR Prijevoz

BG Транспортиране

RO Transport

BIH Prevoz

4

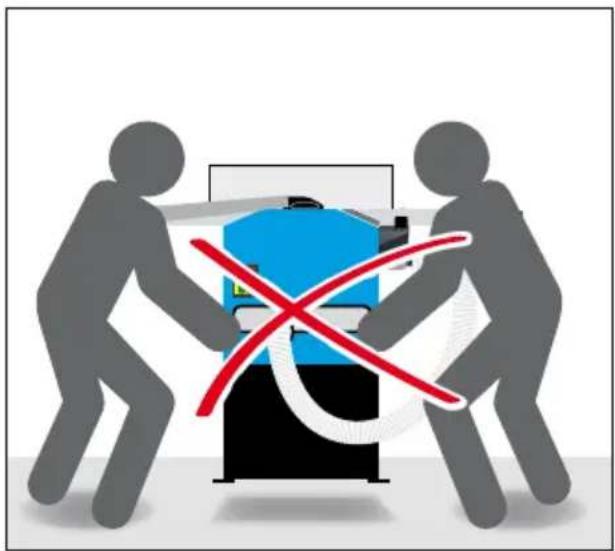

Two silhouetted figures pushing a machine with a red X mark, no text or symbols present

Two figures pulling a blue industrial machine with a green checkmark above, symbolizing inspection or approval (no text present)

Blue mechanical bracket component with mounting holes and a central hole (no text or symbols visible)

Illustration of a blue and black industrial machine with hoses and a directional arrow (no text or symbols)

Technische Daten

Abricht-und Dickenhobel GADH 254/230 V GADH 254/400 V

Messer Typ....HSS....HSS

Messer Abmessung 260 x 20 x 2 mm 260 x 20 x 2 mm

Surfacer and thicknesser GADH 254/230 V GADH 254/400 V

Art. No 55058 55059

Service connection....230 V \~ 50 Hz....400 V \~ 50 Hz

Max. Power 1600 W 1600 W

Max., feed speed....8 m/min....8 m/min

Idle speed....6700 min ^-1 ....6700 min ^-1

Max. plane thickness....254 mm....254 mm

Plane thickness....6-160 mm....6-160 mm

Chip removal Thicknessing....0-2 mm....0-2 mm

Chip removal Surfacing 0-3 mm 0-3 mm

Blade Number....2....2

Blade Type....HSS....HSS

Blade Dimensions 260 x 20 x 2 mm 260 x 20 x 2 mm

Size Surfacing bench....1050 x 260 mm....1050 x 260 mm

Size Surfacer bench 480 x 254 mm 480 x 254 mm

Stop suitability 0°-45° 0°-45°

Weight....83,2 kg....83,2 kg

Degree of protection IP 20 IP 20

e details

(Uncertainty K = 4 dB)

Idling:

Sound pressure level L * 93,9 dB (A) 93,9 dB (A)

Sound power level L_rms^* 109,45 dB (A) 109,45 dB (A)

Surfacing:

Sound pressure level L * 99,3 dB (A) 99,3 dB (A)

Sound power level L_WA^* 112,27 dB (A) 112,27 dB (A)

Thicknessing:

Sound pressure level L ^* 97,9 dB (A) 97,9 dB (A)

Sound power level L_WA^* 111,29 dB (A) 111,29 dB (A)

Wear ear protectors!

* Measured according to EN ISO 3746 + 11202

The values stated are emission values and as such do not necessarily constitute values which are safe for the workplace. AI- though there is a correlation between emission levels and environmental impact levels, whether further precautions are necessary cannot be derived from this. Factors influencing the actually present environmental impact level in the workplace include the characteristics of the work area and other noise sources, i.e. the number of machines and other neighbouring work processes. The permitted workplace values can likewise vary from country to country. This information is intended to assist the user in estimating hazards and risks.

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

In case of any doubts about connection and operation refer please to our customer center

Specified Conditions Of Use

The surfacer and thicknesser is only designed for DIY and hobby use.

The wooden materials must be free of foreign substances (nails, other metal parts, cables, ropes, cords and the like).

The protective equipment on the appliance is strictly prohibited to be disassembled, changed, used in conflict with the designation and it is prohibited to attach any protective equipment of other manufacturers.

The bridge guard must not be removed during machining. The unused part of the blade shaft must be covered.

Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

The current accident prevention rules and regulations must be obeyed.

Requirements for operating staff

The appliance may only be operated and maintained by persons familiarised with it and informed about possible risks.

Never let children work with the appliance. Never let adults work with the appliance unless they have been properly trained.

The operating staff must carefully read the Operating Instructions before using the appliance.

Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age: Persons over 18 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Local regulations may stipulate the minimum age of the user.

Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Residual risks

Even when the device is used properly and all safety regulations are complied with, there still may be some residual risks.

⚠️ Danger of injury!

• of fingers and hands by contact with the blade shaft at uncovered areas when changing tools. These can also be crushed by opening the guard.
  • on the infeed and discharge opening
  • by dangerous recoil
• Danger from current if the electric cables have not been connected correctly.
• harmful wood duct may be generated if operated without an extractor or chip bag.
• by catapulted parts
• Metal parts in the workpiece can blunt or destroy the blades.

⚠ Hearing damage

A longer stay in the immediate vicinity of the running unit may cause hearing damage. Wear ear protectors!

Despite the observance of the operating instructions there still may be some hidden residual risks.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used. If you seek help, state the following pieces of information:

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Symbols

Read the Operating Instructions

Unplug the machine before any work on it.

Safety gloves to be used!

Wear a respirator!

Wear eye protective goggles! Wear ear protectors!

Safety shoes to be used

Warning/caution!

Warning against dangerous electric voltage

Caution! Danger of injury from planing blades.

Warning against thrown-off items

Remove all undesirable items, e.g. nails and wire, before working

Do not reach into the danger area of the moving blades.

Always keep children and unauthorised persons out of reach of the appliance.

Do not expose the appliance to rain and do not use it in wet or moisture conditions.

CE marking

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres. Batteries, oil, and similar substances must not enter the environment.

Protect against humidity

This side up

Safety Instructions

WARNING

Read all safety warnings and all instructions, including those given in the accompanying brochure.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

Caution! The machine must be secured to the floor using suitable screws since otherwise there is a risk that it will tip over.

Switch the engine off and unplug it if you are not working with the appliance or when leaving the appliance or adjusting, maintaining or repairing it.

When being operated, the machine must stand on a horizontal and flat surface and the floor around the machine must be flat, well-maintained and with no waste, such as sawdust and cuttings.

Errors in the machine, including the guard or the blade shafts, must be reported to the person responsible for safety as soon as they are discovered.

Familiarise yourself with the safe procedures for cleaning, maintaining and regularly removing chips and dust to reduce the fire risk.

Electrical connection / Electrical safety

WARNING! Electric shock! There is a risk of an injury caused by electric shock!

Defective cable or plug may cause electric shock.

Avoid body contact with earth parts to protect yourself from electric shocks.

Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA).

Insert the plug of the electrical cable in a socket of suitable shape, voltage and frequency complying with current regulations.

Do not pull the service cable to pull the plug out of socket.

When routing the connecting cable ensure that it cannot cause interference and cannot be crushed, kinked or wet.

The machine meets the EN 61000-3-11 requirements and is subject to special connection conditions. That means that a use on optional points of connection is not allowed.

• The machine may cause temporary voltage fluctuation in adverse conditions.
• The machine has only been designed to be used on points of connection not exceeding the maximum allowable network impedance Z = 0.233 Ω .
• As a user, you must make sure, after consultation with your energy provider, if necessary, that your point of connection on which the machine is to be operated meets the requirements above.

Work preparation / operation

Provide adequate lighting or good lighting conditions when working with the machine.

Before each use, check the following:

• Proper function of the on and off button, incl. the emergency switch.
• Locked disconnected protective equipment by gradual opening of every separating protective equipment to be able to turn the machine off and checking that the machine cannot be turned on whenever the protective equipment is open.

- Brake

by means of a function test to establish whether the braking process takes place within the specified braking time and, if the machine is fitted with a mechanical brake, that the brake must be tested each time the overload guard is tripped.

- Recoil risk

at least once per shift by a visual inspection to establish that they are in good working order, for example, that the contact surface has not been damaged by impacts and that the grabs fall back without hindrance due to their own weight.

- Planing blades

for signs of damage and to ensure they are positioned correctly.

The machine may only be used if all these conditions are satisfied.

Use pusher wood or sticks which are in perfect condition for machining short workpieces.

Connect the machine to a dust and chip extractor.

• required air volume approx. 700 - 1000 m³ / h
  • Vacuum at every extractor connection port: 840 PA
  • Cross-section of the connection port: 100mm

Check that the stop is secure before starting the machining work.

Ensure that you can maintain your balance at all times. Stand to the side of the machine. Whilst the machine is running keep your hands at a safe distance from the cutting roller and from the point at which the chips are discharged.

Do not start the planing work until the cutting roller has reached the required speed.

Only plane with sharp blades and never plane over metal (nails and screws).

Also ensure that the workpiece does not contain any cables, wires, cords or the like. Do not machine any wood which has lots of knots or knot holes.

Secure long workpieces to prevent them tipping over at the end of the planing process. Use roller stands, for example, or similar devices for this purpose.

Removing sawdust and chippings from the machine when running is strictly prohibited.

Switch off the machine immediately it is jams. Pull out the mains plug and remove the jammed workpiece.

Set the smallest cutting size after use to prevent the risk of injury.

Machine to be stored in locked spaces, out of reach of children.

Maintenance

⚠️ Unplug the machine before any work on it.

Prior to every use, visually check the machine to rule out any defects, in particular on the power cable and the plug.

The machine must not be used under any circumstances if the machine or the safety devices are damaged.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff.

Use only original accessories and original spare parts.

At all times, keep the machine, ventilation slots, in particular, clean. The sawdust ejection and/or dust exhauster should be cleaned at regular intervals. Never spray water on the machine!

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Never clean the machine and its components with solvents, flammable or toxic liquids. Us only a damp cloth making.

Apply environment-friendly oil to all moving parts.

If necessary, a list of spare parts can be found at www.guede.com.

Disposal

Any damaged or disposed devices must be delivered to appropriate collection centres.

Transport packaging disposal

The packaging protects the machine against damage during transport. Packaging materials are usually chosen based on environment aspects and waste treatment principles and are therefore recyclable. Returning the packaging into material circulation saves raw materials and reduces waste production. Parts of packagings (e.g. foils, styropor®) can be dangerous for children.

Risk of suffocation!

Keep parts of the packagings out of reach of children and dispose them as soon as possible.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Important information for the customer

Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:

Serial No.:

Art. No:

Year of production:

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

Inspection and maintenance plan

Regular servicing period Before any		start-up	If necessary	Once a week	After 6 months
Check that the planing blade is in perfect condition	Inspection	√
	Change		√		√
Check the function of the safety equipment	Inspection	√
	Change		√
Clean dust and chips off the machine	Clean	√
Check the drive belt to ensure it has the correct tension and is in good condition or not worn	Inspection		√
	Change
Oil or grease all moving connecting parts				√	√

Failure removal

Before rectifying a fault on the machine, switch off the machine and pull out the mains plug.

Failures	Causes	Removal
Machine does not work or stops suddenly	Power cutMotor or switch defectiveCheck microswitch	Check fuse, check overload switch on machine.Have the motor or switch checked by an electrician.Fit the chip extractor hood so that the microswitch is pressed.→2
Machine stops during planing	Planing blade blunt/wornOverload switch has trippedCheck microswitch	Replace or sharpen bladeSwitch on the motor again once it has cooledFit the chip extractor hood or bench lock so that the microswitch is pressed.→2
Workpiece jams during thicknessing	Cutting depth too greatReduce cutting depth and machine the workpiece in several passes
Unsatisfactory surface finish	Planing blade blunt/wornPlaning blade filled with chipsUneven feed	Replace or sharpen bladeRemove chipsFeed the workpiece with constant pressure and at reduced speed
Machined surface too rough	Workpiece contains too much moisture	Dry workpiece
Machined surface cracked	Workpiece was machined against the grainToo much material planed at one pass	Machine the workpiece from the opposite directionMachine the workpiece in several passes
Workpiece speed too low during thicknessing	Workpiece was machined against the grainToo much material planed at one pass	Clean bench top and apply a thin coating of lubricant waxRepair transport rollersSet the lever for the thicknessing setting to the top position

Enable and check all safety equipment after all troubleshooting work.

Couteaux Type....HSS....HSS

Couteaux Dimensions 260 x 20 x 2 mm 260 x 20 x 2 mm

Nǚž Typ....HSS....HSS

Rezilo Tip ......HSS ......HSS

Rezilo Dimenzije 260 x 20 x 2 mm 260 x 20 x 2 mm

Velikost Izravnalna miza....1050 x 260 mm....1050 x 260 mm

Velikost Miza za debelinsko skobljanje ....480 x 254 mm....480 x 254 mm

Naqib prislona 0°-45° 0°-45°

Teža....83,2 kg....83,2 kg

Stupeň ochrany....IP 20....IP 20

atki o hrupnosti (Nihanje K = 4 dB)

Prosti tek:

Akustični tlak L * 93,9 dB (A) 93,9 dB (A)

Akustična zmogljivost L_WA^* 109,45 dB (A) 109,45 dB (A)

Nož Tip....HSS....HSS

Nož Dimenzije 260 x 20 x 2 mm 260 x 20 x 2 mm

Veličina Stol za ravnanje 1050 x 260 mm 1050 x 260 mm

Veličina Stol za debljinsko blanjanje ....480 x 254 mm....480 x 254 mm

Naqib graničnika 0°-45° 0°-45°

Masa....83,2 kg....83,2 kg

Stupanj zaštite....IP 20....IP 20

aci o razini buke

(Nesigurnost K = 4 dB)

Prazan hod:

Razina akustičkog tlaka L * 93,9 dB (A) 93,9 dB (A)

Razina akustičke snage L_WA^* 109,45 dB (A) 109,45 dB (A)

Ravnačko blanjanje:

Razina akustičkog tlaka L * 99,3 dB (A) 99,3 dB (A)

Razina akustičke snage L_WA^* 112,27 dB (A) 112,27 dB (A)

Cutite Tip....HSS....HSS

Cutite Dimensiune....260 x 20 x 2 mm....260 x 20 x 2 mm

Nož Tip....HSS....HSS

Nož Dimenzije 260 x 20 x 2 mm 260 x 20 x 2 mm

Veličina Stol za ravnanje 1050 x 260 mm 1050 x 260 mm

Veličina Stol za debljinsko blanjanje ....480 x 254 mm....480 x 254 mm

Naqib graničnika 0°-45° 0°-45°

Masa....83,2 kg....83,2 kg

Stupanj zaštite....IP 20....IP 20

aci o razini buke

(Nesigurnost K = 4 dB)

Prazan hod:

Nivo akustičnog pritiska L ^* 93,9 dB (A) 93,9 dB (A)

Nivo akustične snage L_WA^* 109,45 dB (A) 109,45 dB (A)

Ravnačko blanjanje:

Nivo akustičnog pritiska L ^* 99,3 dB (A) 99,3 dB (A)

Nivo akustične snage L_WA^* 112,27 dB (A) 112,27 dB (A)

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.

2006/95/EC 2004/108/

2009/105/EC 1907/2006/EC

2011/65/EC ROHS 2009/142/EC

□ 89/686/EEC (PPE) 1935/2004/EC

2006/42/EC

Annex IV

Notified Body: No:0197 Name:TÜV Rheinland Products GmbH
