Product Type Powerline Adapter
Brand Konig
Model CS500PLCPT100
Standard HomePlug AV
Maximum theoretical data rate 500 Mbps
Network ports 1 Ethernet RJ10/100 port
Integrated socket Yes, with noise filter
Power supply Via mains socket (100-240 V AC, 50/60 Hz)
Power consumption Less than 5 W in standby
Dimensions (W x D x H) 80 x 50 x 30 mm
Weight 90 g
Operating temperature 0 °C to 40 °C
Operating humidity 20% to 80% RH
Security AES 128-bit encryption
Plug and Play Yes, no configuration required
Maintenance and cleaning Unplug and wipe with a soft, dry cloth
Spare parts and repairability Not user-serviceable, contact customer service

Frequently Asked Questions - CS500PLCPT100 KONIG

How to install the Konig CS500PLCPT100 powerline adapter?
Plug the adapter directly into a wall socket (avoid power strips). Connect it to your router via an Ethernet cable. In another room, plug a second adapter and connect your device. The connection establishes automatically.
What actual speed can be expected from the CS500PLCPT100?
The theoretical speed is 500 Mbps, but in practice it depends on the quality of the electrical wiring and distance. Generally, expect 100-200 Mbps for normal use (streaming, gaming).
Does this adapter work with any internet provider?
Yes, the powerline adapter is operator-independent. It works with any internet box with an Ethernet port.
Can I connect multiple Konig powerline adapters?
Yes, you can add up to 16 adapters on the same electrical network. They will automatically connect to each other.
How to secure my powerline network?
By default, AES 128-bit encryption is active. For more security, you can press the Pair button on each adapter to create a private network.
Does the powerline adapter consume a lot of electricity?
No, it consumes less than 5 W in standby and about 3 W in operation. It can remain plugged in permanently without noticeable impact on the bill.
What to do if the powerline connection is slow or unstable?
Check that the adapters are plugged directly into wall sockets, avoid power strips and high-startup electrical appliances (vacuum cleaner, microwave). Unplug/replug the adapters.
Can I use the powerline adapter with a surge-protected outlet?
It is preferable to plug the adapter directly into a wall socket. Surge-protected power strips can filter the powerline signal and reduce performance.
How to clean the powerline adapter?
Unplug it before cleaning. Use a soft, dry cloth. Never use liquid or abrasive products.
Where to find the complete manual for the CS500PLCPT100?
The manual is available for free download on sites like notice-facile.com. Search for 'Konig CS500PLCPT100 manual'.

User questions about CS500PLCPT100 KONIG

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

Your email remains private: it is only used to notify you if someone answers your question.

No questions yet. Be the first to ask one.

Download the instructions for your Powerline Adapter in PDF format for free! Find your manual CS500PLCPT100 - KONIG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CS500PLCPT100 by KONIG.

USER MANUAL CS500PLCPT100 KONIG

CS500PLCPT100
White KONIG electrical plug with a central socket and terminal connector (no visible text or symbols beyond branding)

MANUAL (p. 2)

Nano HomePlug 500Mbps

MODE D'EMPLOI (p. 13)

Nano HomePlug 500 Mbps

MANUALE (p. 23)

Nano HomePlug 500 Mbps

HASZNÁLATI ÚTMUTATÓ (o. 34.)

Nano HomePlug 500 Mbit/s

Nano HomePlug 500 Mbit/s

MANUAL DE USO (p. 29)

Nano HomePlug 500 Mbps

KÄYTTÖOHJE (s. 40)

Nano HomePlug 500 Mbps

Chapter 1: HomePlug Power Line Installation

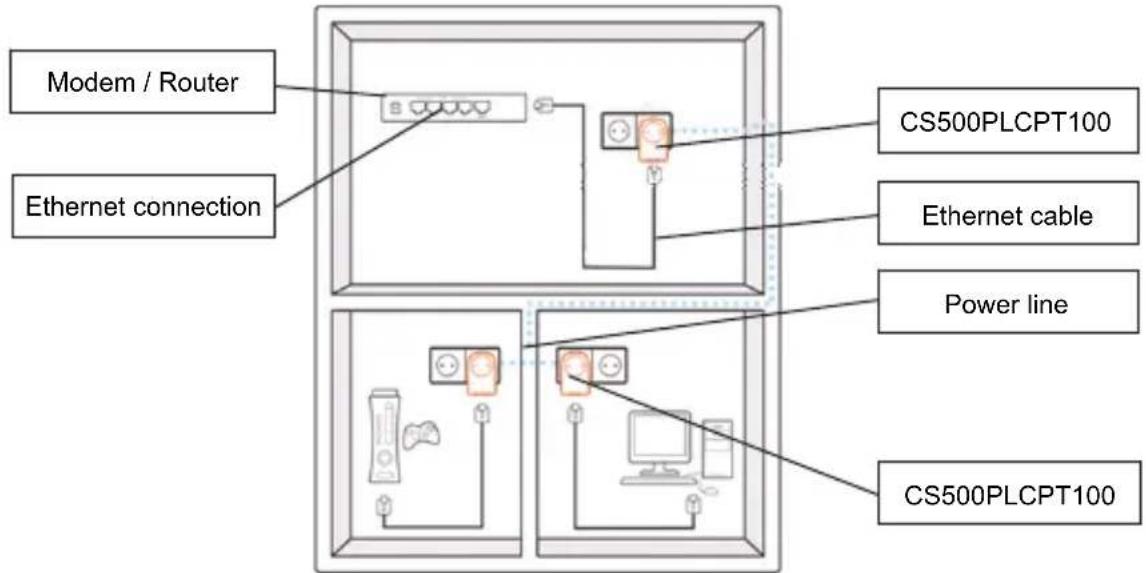

1.1 System Diagram

Add high-speed Internet access to any room in your home with this Nano Pass Thru HomePlug AV Ethernet Bridge. You can stream HD movies and music, play online multi-player games and much more.

Note: This Nano Pass Thru HomePlug AV Ethernet Bridge needs to pair with at least one other HomePlug AV compatible device in order to create a working system.

Modem / Router Ethernet connection CS500PLCPT100 Ethernet cable Power line CS500PLCPT100

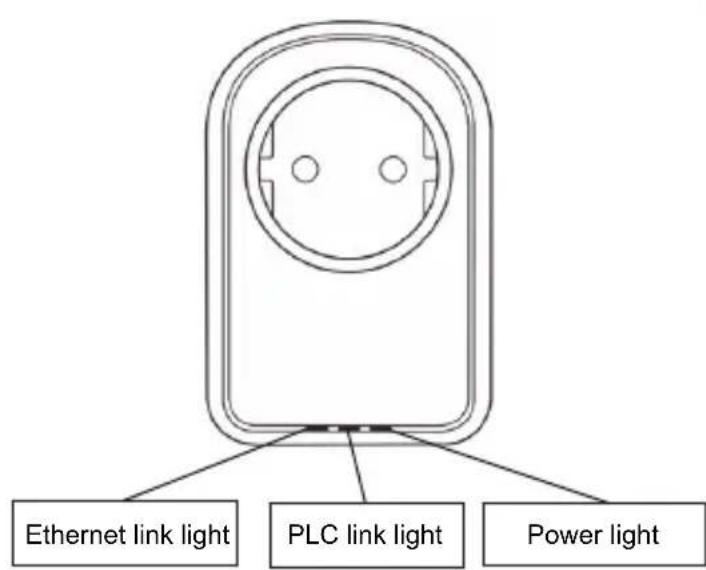

1.2 Front Casing details

Casing details / Status lights

The front of the device contains 3 types of status lights (see below)

Ethernet link light PLC link light Power light

Power

Light on: Power is on

Light off: Power is off

Green light flashing (1 second on,

14 seconds off): Device is in stand-by mode

The PLC (Power Line) link light will indicate the overall speed of your network with 3 colors.

Red: Minimum connection speed / weak signal With speed less than 50 Mbps

Orange: Normal signal with standard network speed between 50 – 100 Mbps

Green: Excellent signal strength with optimal network speed of 100 Mbps+

Off: No connection / No activity

Solid green: 10/100 port linked

Green flashing: Data sending

Off: Ethernet link not active

Bottom details Right details
Ethernet port Security / Reset button

Security button

This function is designed to generate an individual HomePlug network group in a multi-node environment. Please refer to the "Individual HomePlug Network Setup" section for more details.

Reset button

This function is used to clear all data and restore all settings to the factory default values.

Note: The HomePlug must be plugged in to restore all factory settings. Hold the Reset button (for about 12 seconds) until the status light begins to flash.

1.3 Initial setup

The CS500PLCPT100 is a Plug-and-Play device. You can easily use the device without any complicated configurations and settings. You can also use the HomePlug to connect network devices like computers and game consoles directly. You can also connect devices like Blu-Ray Disc™ player to a router or modem for internet access.

Connect the HomePlug AV Ethernet Bridge to a computer or modem / router:

  1. Plug one end of the Ethernet cable into an Ethernet port on the bottom of the HomePlug.
  2. Plug the HomePlug into an AC wall power outlet near the device you want to connect to. (Note: Do not plug this HomePlug into a power strip that has surge protection. Doing so will degrade the power line performance. For best performance, plug the HomePlug directly into a wall outlet.)

  3. To connect to a computer, plug the other end of the Ethernet cable into an available Ethernet port of your computer.

  4. To connect to a modem / router, plug the other end of the Ethernet cable into an available Ethernet port of your modem / router.

  5. Make sure that the PLC link light is solid green.

  6. Your HomePlug is now connected in the network.

Chapter 2: Individual HomePlug AV Network Setup (optional)

Since all HomePlug units do have a default security key, they will automatically be linked to all other HomePlug units sharing the same electrical lines. If there are other HomePlug units in the building (such as in an office or apartment building), you may want to create your own individual HomePlug network group so that other HomePlug units cannot connect to your network. The section below describes how to use the security button for reconfiguration in some situations.

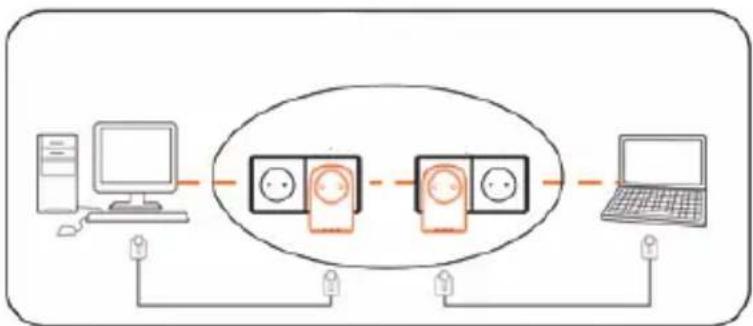

2.1 Creating a new individual HomePlug AV Network (Network AB)

Two unassociated HomePlug units (A and B) are forming a network.

The procedure is as follows:

  1. Press and hold the security button on HomePlug A for about 10 seconds. Release when the power light flashes. The password to HomePlug A has just been erased. It must be linked to your network to adopt the new network security key.
  2. Do the same for HomePlug B.
  3. Now, HomePlug A and B are now networked separately.
  4. Press and hold the security button on HomePlug A for 2 seconds and then release.
  5. The power light of bridge A starts to flash.
  6. Within 120 seconds press and hold the security button on HomePlug B for 2 seconds and then release.
  7. Both HomePlug A and B are now networked together.

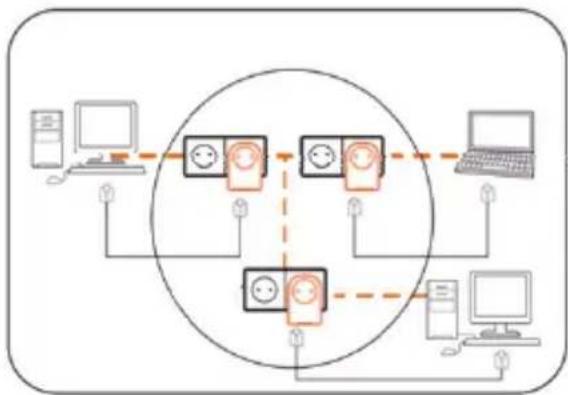

2.2 Adding HomePlug C to an existing Network AB (Network ABC)

The procedure is as follows:

  1. Press and hold the security button on HomePlug C for about 10 seconds. Release when the power light flashes. The password to HomePlug C has just been erased. It must be linked to your network to adopt the new network security key.
  2. Press and hold the security button on HomePlug C for 2 seconds. The power light starts to flash.

  3. Within 120 seconds press and hold the security button on HomePlug C for 2 seconds and then release.

  4. HomePlug A, HomePlug B and HomePlug C are now networked.

2.3 Removing HomePlug B from HomePlug A and C network and join HomePlug D and E (Network BDE)

The procedure is as follows:

  1. Press and hold the security button on HomePlug B for about 10 seconds. Release when the power light flashes. The password to HomePlug B has just been erased and HomePlug B removes itself from HomePlug A and C.
  2. Press and hold the security button on HomePlug D for 2 seconds. The power light starts to flash.
  3. Within 120 seconds after the power light on HomePlug D starts to flash, press and hold the security button on HomePlug B for 2 seconds and then release.
  4. HomePlug B and HomePlug D are now connected to each other. Therefore, together with HomePlug E, they will form the network BDE.

Chapter 3: Troubleshooting & disclaimer

If your HomePlug AV Ethernet Bridge has difficulty communicating with each other, check the following:

  • Try power cycling the unit by unplugging it from the wall socket for 10 seconds and plug it in again.
  • Hold the Reset button on each HomePlug for 15 seconds and try to re-connect. The HomePlug's light will flash, and the HomePlug will be reset and attempt to link using the default factory settings.

- Try plugging the HomePlug into an adjacent power outlet.

- The HomePlug works better when plugged directly into the wall power outlet. Connecting the HomePlug to a power strip or surge protector may degrade the network performance or completely stop network signals.

- This HomePlug should not be used in areas with excessive heat.

- Certain florescent or incandescent lights are noise sources for the electrical wiring and can degrade the performance.

- If your building has more than one circuit breaker box, your HomePlug may not be able to connect between the different circuit breaker boxes. In this case, connect one HomePlug to a power outlet located on each of the circuit boxes. Connect an Ethernet cable between each of the HomePlug units to link the different HomePlug together. This will allow the HomePlug units from different circuit breaker boxes to be connected.

- To enter standby mode, simply remove the Ethernet cable from the HomePlug and wait about 3 minutes.

Disclaimer: This product was designed to be plugged directly into a wall socket as shown in the diagram below. Any other use may hamper the function of the product.

KONIG CS500PLCPT100 - Chapter 3: Troubleshooting & disclaimer - 1

Safety precautions:

KONIG CS500PLCPT100 - Safety precautions: - 1

KONIG CS500PLCPT100 - Safety precautions: - 2

KONIG CS500PLCPT100 - Safety precautions: - 3

To reduce risk of electric shock, this product should ONLY be opened by an authorised technician when service is required. Disconnect the product from mains and other equipment if a problem should occur. Do not expose the product to water or moisture.

Maintenance:

Clean the product only with a dry cloth.

Do not use cleaning solvents or abrasives.

Warranty:

Any changes and/or modifications to the product will void the warranty. We cannot accept any liability for damage caused by incorrect use of this product.

Disclaimer:

Designs and specifications are subject to change without notice. All logos, brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognized as such.

Disposal:

KONIG CS500PLCPT100 - Disposal: - 1

- This product is designated for separate collection at an appropriate collection point. Do not dispose of this product with household waste.

- For more information, contact the retailer or the local authority responsible for waste management.

This product has been manufactured and supplied in compliance with all relevant regulations and directives, valid for all member states of the European Union. It also complies with all applicable specifications and regulations in the country of sales.

Formal documentation is available upon request. This includes, but is not limited to: Declaration of Conformity (and product identity), Material Safety Data Sheet and product test report.

Please contact our customer service desk for support:

via website: http://www.nedis.com/en-us/contact/contact-form.htm

via e-mail: service@nedis.com

via telephone: +31 (0)73-5993965 (during office hours)

NEDIS B.V., De Tweeling 28, 5215 MC 's-Hertogenbosch, THE NETHERLANDS
