Product type	Center speaker
Brand	KENWOOD
Model	CS7070-ES
Speaker system	3 speakers, 2-way
Woofer	2 x 80 mm cone type
Tweeter	1 x 19 mm dome type
Nominal impedance	8 Ω
Peak input power	130 W
Sensitivity	79 dB / W at 1 m
Frequency response	60 Hz ~ 100 kHz
Dimensions (W x H x D)	400 x 102 x 136 mm
Net weight	3.0 kg (per unit)
Enclosure type	Acoustic air suspension
Magnetic shielding	Yes
Recommended use	Center speaker in a home theater system
Wall mounting	Possible (holes at the rear, distance between screws 300 mm)
Included accessories	Speaker cable (4 m), 4 non-slip pads
Cleaning	Clean, dry cloth (do not use solvents)
Safety precautions	Do not expose to water, heat, do not modify

Frequently Asked Questions - CS7070-ES KENWOOD

What is the maximum power supported by the CS7070-ES speaker?

The peak input power is 130 W. Never exceed this limit to avoid damaging the speaker.

Can I use this speaker with a 4 ohm amplifier?

No, the nominal impedance is 8 Ω. Only use an amplifier compatible with 8 ohm speakers for safe operation.

How to install the speaker on the wall?

Attach two screws to the wall at 300 mm apart, leaving 9 to 11 mm protruding. Hang the speaker via its rear mounting holes. Use the provided pads to protect the enclosure.

Can the speaker be placed near a TV?

Yes, it has magnetic shielding. However, if color disturbances appear, move the speaker away or turn off the TV for 15 to 30 minutes.

What to do in case of abnormal smell or smoke?

Immediately turn off the power and disconnect the cord. Contact your dealer or an authorized service center.

How to clean the speaker properly?

Use a clean, dry cloth. Never use volatile solvents such as alcohol, thinner, or gasoline.

What accessories are supplied with the speaker?

Supplied: a 4 m speaker cable and 4 non-slip pads (on a sheet) for wall mounting or floor placement.

How to connect the speaker cables?

Loosen the terminal, insert the stripped wire, then tighten. Be sure to observe polarities (+ and -) and avoid short-circuiting the wires. You can also use banana plugs.

What is the frequency response of this speaker?

The frequency response is 60 Hz to 100 kHz, allowing it to reproduce both deep bass and extended highs.

Can I use this speaker as a surround speaker?

It is designed as a center speaker. For a surround system, use it at the center and purchase separate surround speakers for left/right and rear channels.

USER MANUAL CS7070-ES KENWOOD

Thank you for selecting our speakers as part of your high-fidelity system. We at KENWOOD are confident that your choice will bring you years of rich listening pleasure. Please take the time to read through this booklet carefully. It will help you to obtain the peak performance for which the speakers were designed.

For your records

Record the serial number, found on the back of the unit, in the spaces designated on the warranty card, and in the space provided below.

Refer to these model and serial numbers whenever you call upon your KENWOOD dealer for information or service on this product.

CS-7070ES Serial number

Information on Disposal of Old Electrical and Electronic Equipment (applicable for EU countries that have adopted separate waste collection systems)

Products with the symbol (crossed-out wheeled bin) cannot be disposed as household waste. Old electrical and electronic equipment should be recycled at a facility capable of handling these items and their waste byproducts. Contact your local authority for details in locating a recycle facility nearest to you. Proper recycling and waste disposal will help conserve resources whilst preventing detrimental effects on our health and the environment.

Important Safeguards

Caution: Read this item carefully to keep your safety.

1. Suffocation – After taking the unit out of the polyethylene bag, be sure to dispose of the polyethylene bag out of the reach of children. Otherwise, they may play with the bag, which could cause hazard of suffocation.
2. Water and moisture – The appliance should not be used near water - for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc.
3. Heat – Do not install the unit near a source of heat, such as radiators, or under direct sunlight.
4. Modification – Do not attempt to open or modify the unit, for this could cause fire hazard or malfunction.
5. Cleaning – Do not use volatile solvents such as alcohol, paint thinner, gasoline, or benzine, etc. to clean the cabinet. Use a clean dry cloth.
6. Abnormal smell – If an abnormal smell or smoke is detected, immediately turn the power OFF and unplug the appliance from the wall outlet. Contact your dealer or nearest service center.

Installation Locations

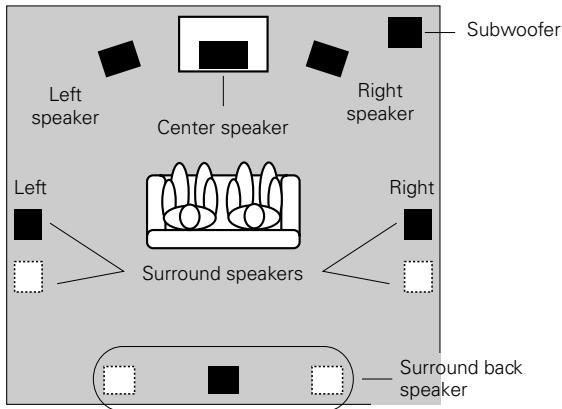

Positioning For Optimal Surround Sound

Use this speaker system as the center speaker. Other speakers are to be purchased separately.

• Place the left and right speakers at each side of your TV. Angle the speakers towards the listening area to enhance the stereo effect.
• Place the center speaker on the center between the front left and right speakers. Tilt the speaker upward or downward so that it is directly facing the listening area.
• The subwoofer's deep-bass reproduction characteristics are richest when the subwoofer is installed in a corner or near a wall.
• Place the surround speakers straight to or diagonally behind the left and right of the listening position.
• Place the surround back speaker behind the listening position, at the same height as the left and right surround speakers.

About Using Speaker Near a TV

This center speaker include magnetic shielding and can therefore be installed close to a TV set. Note, however, that placing the speaker too close to a CRT type TV may in some cases produce distortion in the color reception. In such case, turn on the TV and check that color reproduction is normal. If color is distorted, turn the TV off for 15 to 30 minutes, then turn it back on and check again. (This allows the TV's degaussing circuitry to correct for the magnetic field from the speaker.) If distortion is still present, move the speaker further from the TV.

On Floor or Shelf

Place the speaker on the floor or on a shelf or other horizontal stable surface. Keep in mind that speaker is not fixed into place, so be careful to avoid knocking it over.

Technical line drawing of a 3D rectangular frame with mounting holes and a labeled cushion (no text or symbols beyond label)

- Attach four cushions to the base of the speaker, one at each corner. The cushions prevent the speaker from sliding, and dampen its vibrations.

On the Wall

This speaker include mount hole for wall mounting. You need to set two screws into the wall at the appropriate distance so that you can hang the speaker from both mount holes. Proceed as follows.

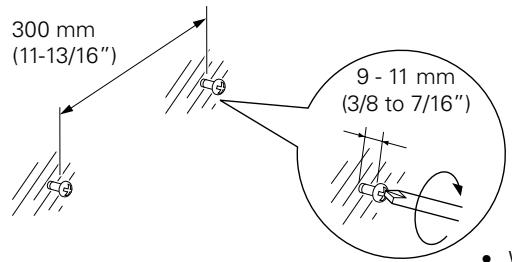

7 Screw two screws into the walls 300 mm (11-13/16 inches) apart, making sure that screws are horizontally level. Screw each screw only part way in, so that the screw projects 9 to 11 mm (3/8 to 7/16 inches) outward from the wall surface.

• Wall screws must be purchased separately.

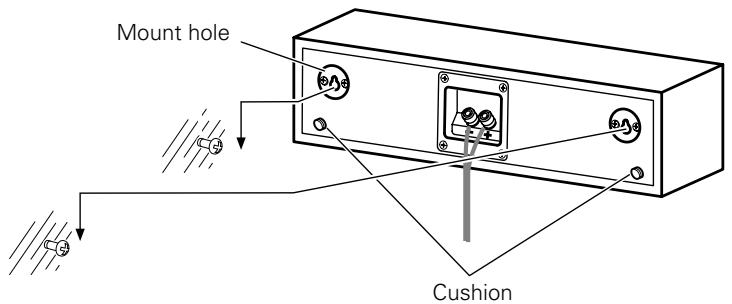

2 Hang the speaker by fitting the two mount holes (at the rear of the speaker) over the extending part of the screw. Confirm that the speaker is held firmly and securely in place.

- Attach each couple of provided cushions to make two sets of two-cushion piles, and attach them to the two positions shown on the rear of the speaker. These piles will protect the speaker body from damage and prevent the vibrations of the speaker body from being transmitted to the wall.

Precautions

Please observe the following precautions when mounting speaker onto the wall.

• Be sure that the wall you are using is strong enough to support the full weight of the speaker (approx. 3.0 kg [6.6 lb]).
  • Wall screws must be purchased separately.
• Be sure to use screws that are appropriate for the wall you are using, and that are long enough to provide sufficient strength.
• If you are uncertain about the wall's support strength, the type of screw to use, or any other points regarding this type of installation, please consult a contractor or other qualified person before proceeding.

Be sure to follow the procedure given here when carrying out installation. Kenwood can assume no liability for injury or damage that may occur if a speaker setup falls from the wall as a result of incorrect installation or insufficient support strength.

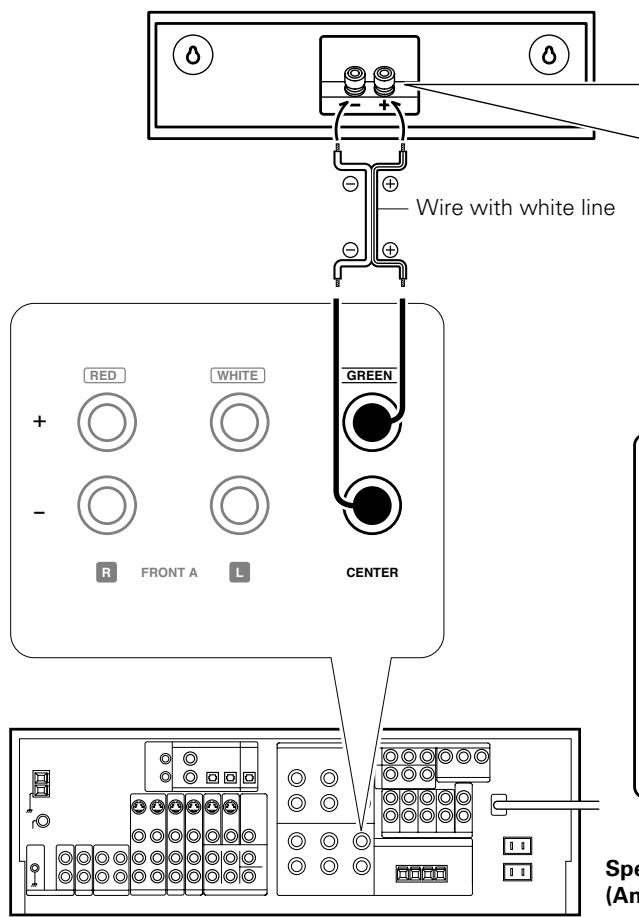

Note on connection

1. Be sure to turn off your amplifier before connecting or disconnecting speaker.
2. This speaker system has a nominal impedance of 8 ohms. To ensure safe and reliable operation, be sure that your amplifier or receiver (audio video control center) is able to work with 8-ohm speaker.
3. Never short the (+) and (−) speaker wire's conductors together.
4. Do not reverse (+) and (−) connections. Reversal of polarities may result in unnatural sound.

① Loosen

② Insert the conductor

③ Secure

①

Illustration of a pipette dispensing liquid into a cylindrical container (no text or symbols)

The speaker wire can also be connected to the speaker by using banana plugs which are commercially available in audio stores.

To use the banana plug connection, tighten the screws on the speaker terminals before inserting the banana plug.

Speaker terminals

(Amplifier or Audio Video control center)

Note on operation

The speaker system's peak input power is indicated in the specifications. To avoid speaker damage, never run the speaker at power levels exceeding this limit.

Specifications

System ...... 2 way 3 speakers (Magnetically shielded)

Enclosure ...... Acoustic Air Suspension

Woofer 80 mm (3") Cone type × 2

Tweeter 19 mm (3/4") Dome type

Nominal Impedance 8 Ω

Peak Input Power 130 W

Sensitivity 79 dB /W at 1 m

Frequency Response 60 Hz\~100 kHz

Dimensions

Width 400 mm (15-3/4")

Height 102 mm (4")

Depth 136 mm (5-3/8")

Net Weight 3.0 kg (6.6 lb) /piece

Accessories

Speaker wire (4 m(13 ft)).... 1

Cushion 4 (1 sheet)

Note:

KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.
