Product type	High-pressure cleaner
Brand	Bosch
Model	AQT 37-13+
Rated power input	1.7 kW
Maximum feed water temperature	40 °C
Permissible pressure	13 MPa
Rated pressure	9 MPa
Rated flow rate	5.5 l/min
Minimum feed water flow rate	6.2 l/min
Maximum inlet pressure	1 MPa
Autostop function	Yes
Weight (according to EPTA 01:2014)	7.83–8.82 kg
Protection class	II
Sound pressure level	78 dB(A)
Guaranteed sound power level	91 dB(A)
Vibration emission value	2 m/s²
Self-priming	Yes (with appropriate kit)
Protection by residual current device	Recommended (30 mA)
Maximum water hose length	7 m
Recommended water hose diameter	12.7 mm (1/2")
Minimum extension cable cross-section	1.5 mm² up to 20 m, 2.5 mm² up to 50 m
Included accessories	Spray lance, nozzle, gun, high-pressure hose, water filter, non-return valve
Recommended storage	Frost-free, purge pump before prolonged storage

Frequently Asked Questions - AQT 37-13+ BOSCH

How to start the high-pressure cleaner?

Ensure the switch is on O, plug in the appliance, open the water tap, then operate the start-up lock on the lance handle to unlock the trigger. Press the trigger until water flows steadily, release, lock again, then turn the main switch to I. Point the lance downwards and press the trigger.

Why does the motor not start?

Check that the plug is properly inserted, that the socket works and that the fuse has not blown. Try without an extension cord. If the overload protection device has tripped, let the motor cool for 15 minutes. In winter, the pump or hose may be frozen; thaw them.

How to clean the nozzle?

Disconnect the appliance and remove the nozzle. Use the supplied cleaning tool or a fine needle to unclog the opening. Rinse with clean water before reassembling. If the nozzle is worn, replace it.

What to do in case of pressure drop?

Check that the nozzle is not blocked (clean it) and that the water filter is clean. Make sure the water hose is not kinked or too long (max 7 m). If the pressure remains low, the start/stop valve may be worn; press the trigger quickly five times.

Can I use detergents?

Yes, only detergents recommended by Bosch. Use the high-pressure foam nozzle or the foam position of the 3-in-1 nozzle. Follow the indicated doses to protect the environment.

How to draw water from a tank?

Use the self-priming kit (suction filter with non-return valve, 3 m hose, adapter). Immerse the hose in water, connect it to the appliance, then run the cleaner without a lance until a steady flow is achieved (about 15 seconds).

What type of extension cord to use?

Use an extension cord approved for outdoor use, with a conductor cross-section of at least 1.5 mm² for 20 m or 2.5 mm² for 50 m. The plug and coupling must be waterproof. A 30 mA residual current device is recommended.

How to maintain the appliance after use?

Stop the appliance, operate the trigger to release the pressure, disconnect the water hose. Clean the exterior with a soft brush (no water or solvents). Drain the pump by running it for a few seconds without water. Store in a frost-free place.

Is it possible to clean tires?

Yes, but maintain a minimum distance of 30 cm between the nozzle and the tire. Do not direct the jet at the valves. A change in color may indicate damage – replace the tire if necessary.

What to do in case of water leak?

Small leaks at the pump are normal. If the leak is significant, contact an authorized Bosch after-sales service. Also check that all connections are tight and the seals are in good condition.

USER MANUAL AQT 37-13+ BOSCH

OBJ_BUCH-1953-009.book Page 1 Thursday, September 22, 2016 12:11 PM

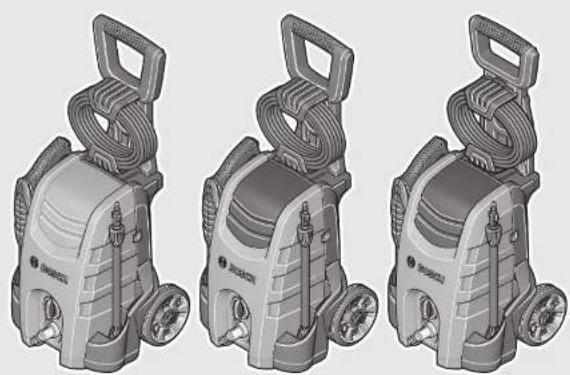

Three identical industrial pressure water spray machines shown in 3D renderings, no text or symbols visible.

Robert Bosch Power Tools GmbH

70538 Stuttgart

GERMANY

www.bosch-do-it.com

F016 L81 441 (2016.05) AS / 279 EURO

AQT

35-12 | 35-12+ | 37-13 | 37-13+ | 40-13

BOSCH

OBJ_BUCH-1953-009.book Page 2 Thursday, September 22, 2016 12:11 PM

2|

Explanation of symbols

General hazard safety alert.

Never direct the water jet at people, animals, the unit or electric components.

Warning: High pressure jets can be dangerous if subject to misuse.

According to the applicable regulations, the appliance must never be used on the

drinking water network without a system separator. Use a separator as per IEC 61770 Type BA.

Water flowing though a system separator is considered not drinkable.

Safety Notes for pressure washer

Read all safety warnings and all instructions. Failure to follow the warnings and instruc-

tions may result in electric shock, fire and/or serious injury.

The warning and information signs attached to the unit provide important information for safe operation.

Apart from the information in the operating instructions comply with the general safety regulations and regulations for the prevention of accidents.

Connecting to the mains

▶The voltage indicated on the rating plate must correspond to the voltage of the power source.
▶ We recommend that this equipment is only connected into a socket which is protected by a circuit-breaker that would be actuated by a 30 mA residual current.
▶ Remove the plug from socket whenever the machine is left unattended for any period.
▶The electric supply installation should comply with IEC 60364-1.
▶ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
▶ If the plug is damaged, pay attention to the following:
▶ Plugs and sockets situated near the work site or outdoors should be to class IP 55 of BS 5490 to provide adequate protection against ingress of

12 | English

water, etc. and cable entries require effective sealing. Rubber shrouds should be provided over cable glands. Drip-proof (class IP X2 of BS 5490) plugs and sockets to BS 4343 are suitable for use indoors where the plug is away from the water spray area where the appliance is in use.

▶ Never touch the mains plug with wet hands.
▶ Do not pull plug while operating the device.
▶ Do not run over, crush or pull the power supply cord or extension cord, otherwise it may be damaged. Protect the cable from heat, oil and sharp edges.
▶ Do not use the unit, if the power supply cord or important parts, e. g. high-pressure hose, power gun or safety devices are damaged.
▶ Warning: Inadequate extension cords can be dangerous.
▶ If an extension cord is used, the plug and socket must be of watertight construction. The extension cord must have a cross section in accordance with the operating instructions and be protected against splashed water. The connection must not be in water.
▶When replacing plugs on the power supply cable or extension lead the spray water guard and mechanical stability must remain intact.

Water connection

▶ Comply with the regulations of your water supply company.

▶ All connecting hoses must have properly sealed joints.
▶ Make sure that the supply hose is at least 12.7 mm (1/2") in diameter and is reinforced.
The appliance should never be used on the drinking water supply without a back flow valve. Water which has passed the back flow valve is regarded as undrinkable.
The high-pressure hose must not be damaged (danger of bursting). A damaged high-pressure hose must be replaced immediately. Only use hoses and connections recommended by the manufacturer.
▶ High-pressure hoses, fittings and couplings are important for the safety of the appliance. Use only hoses, fittings and couplings recommended by the manufacturer.
▶ Only clean or filtered water should be used for intake.

Application

▶ Before use, check that the unit and operating equipment are in perfect condition and are safe to operate. Do not use the unit if it is not in perfect condition.
▶ Do not direct the jet against yourself or others in order to clean clothes or footwear.
▶ Do not use solvent-containing liquids, undiluted acids, acetone or solvents! This includes petrol, paint thinners, heating oil. The sprayed vapour is highly flammable, explosive and toxic.

English | 13

The appropriate safety regulations must be observed when using the unit in dangerous areas (e. g. petrol stations). It is forbidden to operate the unit in potentially explosive locations.
▶The unit must be placed on a solid base.
▶ Only use detergents recommended by the manufacturer. Comply with the application, disposal and warning instructions of the detergent manufacturers.
▶ All current-conducting components in the working area must be protected against splashed water.
▶The gun trigger must not be jammed in position "ON" during operation.
▶ Wear suitable protective clothing to protect against splashing from some parts. Do not use the appliance within the range of persons unless they also wear protective clothing.
▶ If necessary wear personal protective equipment (PPE) e. g. safety goggles, breathing protection etc to protect against water, particles and/or aerosols sprayed back from parts.
▶ High pressure may cause objects to rebound. If necessary wear suitable personnel protective equipment such as safety goggles.
▶ Vehicle tyres/tyre valves may only be cleaned from a minimum distance of 30 cm, otherwise the vehicle tyre/tyre valve could be damaged by the high-pressure jet. The first indication of this is a discoloration of the tyre. Damaged vehicle tyres/tyre valves can be extremely dangerous.

▶ Materials containing asbestos and other materials which contain substances which are hazardous to your health must not be sprayed.
▶ Detergents must not be used undiluted. The products are safe to use as they contain no acids, alkalis or substances which are detrimental to the environment. We recommend that the detergents are kept out of the reach of children. If detergent comes into contact with the eyes, wash immediately with plenty of water and if swallowed contact a doctor immediately.
▶ Never use the pressure washer without the filter or with a dirty or damaged filter. Using the pressure washer without a filter or with a dirty or damaged filter may invalidate the warranty.
▶ Metal parts may become hot after prolonged usage, if necessary wear protective gloves.
- Avoid high pressure washing in bad weather conditions especially when there is a risk of lightning.

Operation

The operator must use the unit in accordance with the regulations. He/she must take local conditions into account and be aware of other people, especially children, when operating the unit.
The unit may only be used by authorised persons who have received training or have demonstrated their ability to operate the unit. The unit must not be operated by children or

14| English

juveniles (danger of accidents due to incorrect use of the unit). Children should be supervised to ensure that they do not play with the appliance.

This machine can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the machine in a safe way and understand the hazards involved.
▶The unit must never be left unsupervised while the unit is switched on.
The water jet from the high-pressure nozzle produces a recoil on the gun. You should therefore hold the gun and spray lance firmly with both hands.

Transport

▶ Switch off the motor and secure the unit before transporting.

Maintenance

▶ Switch off the unit prior to all cleaning and maintenance work and before replacing components. Pull out the mains plug if the unit is mains-operated.
▶ Repairs may only be carried out by authorised Bosch Service Centres.

Accessories and spare parts

▶ Accessories and spare parts which have been approved by Bosch must be used. Original accessories and spare parts guarantee that the unit can be operated safety and without any breakdowns.

Symbols

The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the machine in a better and safer manner.

Symbol Meaning

	Movement direction
	Weight
	On
	Off
Lo Low pressure
Hi High pressure
	Accessories

Intended Use

The product is intended for cleaning areas and objects outside the house, tools, vehicles and boats, if the appropriate accessories such as cleaning agents approved by Bosch are used.

Intended use is related to operation within 0°C and 40°C ambient temperature.

This product should not be used for professional use.

English | 15
Technical Data

Pressure washer AQT 35-12/		AQT 35-12+	AQT 37-13/AQT 37-13+	AQT 40-13
Article number	3 600 HA7 1.. 3 600 HA7 2.. 3 600 HA7 5..
Rated power	kW 1.5 1.7 1.9
Supply temperature max.	°C 40 40 40
Supply rate min.	l/min 5.8 6.2 6.6
Allowable pressure	MPa 12 13 13
Rated pressure	MPa 8 9	9
Rated Flow	l/min 5 5.5 6
Maximum inlet pressure	MPa 1 1	1
Autostop function		● ●		●
Weight according to EPTA-Procedure 01:2014	kg 6.65/8.12 7.83/8.82 8.9
Protection class		☐ /II /II /II	☐	☐

See serial number (rating plate) on pressure washer.
The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary.
Starting cycles generate brief voltage drops. Interference with other equipment/machines may occur in case of unfavourable mains system conditions.
Malfunctions are not to be expected for system impedances below 0.153 ohm.

Noise/Vibration Information

Sound emission values determined according to EN 60335-2-79.	3 600 ...	HA7 1..	HA7 2..	HA7 5..
Typically the A-weighted noise levels of the product are:
Sound pressure level	dB(A)	83	78	83
Sound power level	dB(A)	93	90	94
Uncertainty K	dB	2	1	2
Wear hearing protection!
Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 60335-2-79:
Vibration emission value a_h	m/s^2	=7	=2	=4,7
Uncertainty K	m/s^2	=2	=2	=1.5

Mounting and Operation

Action	Figure	Page

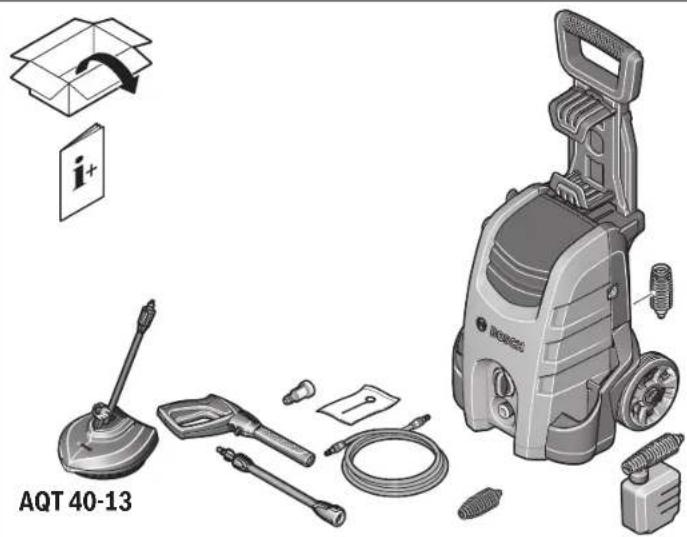

Delivery Scope	1	259-260

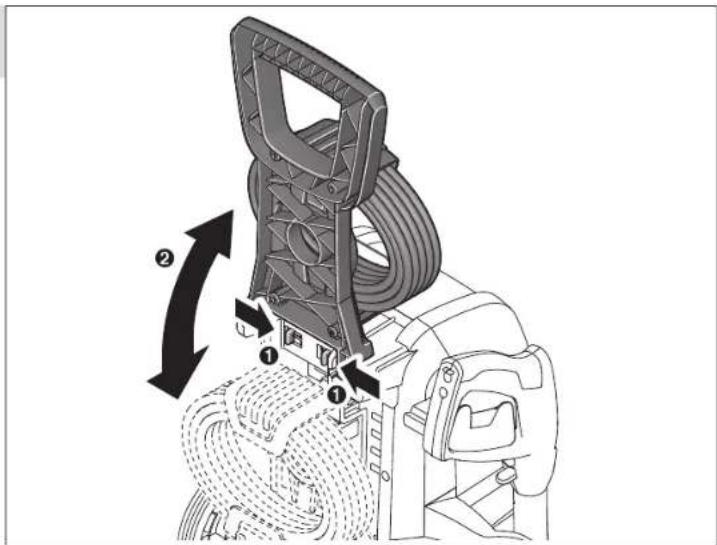

Fold down handle operation	2	261

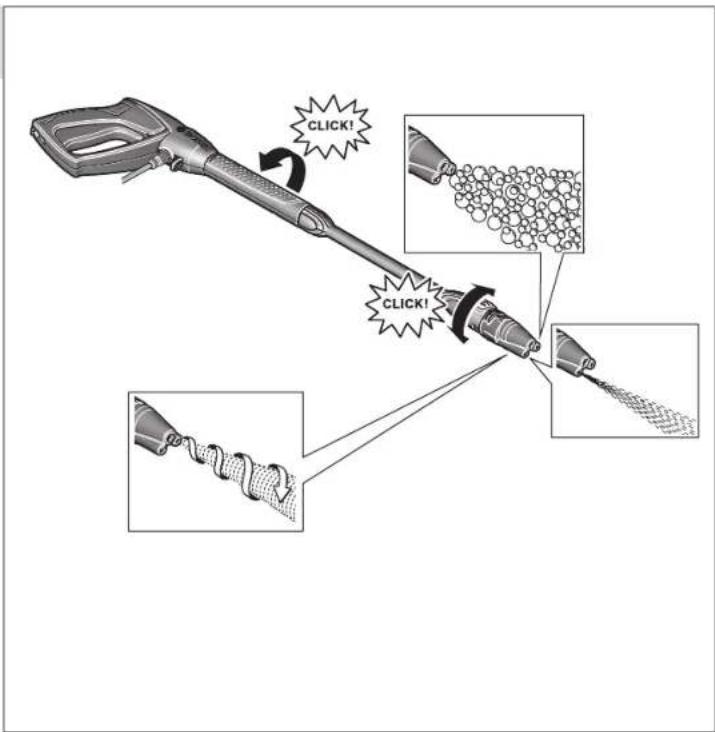

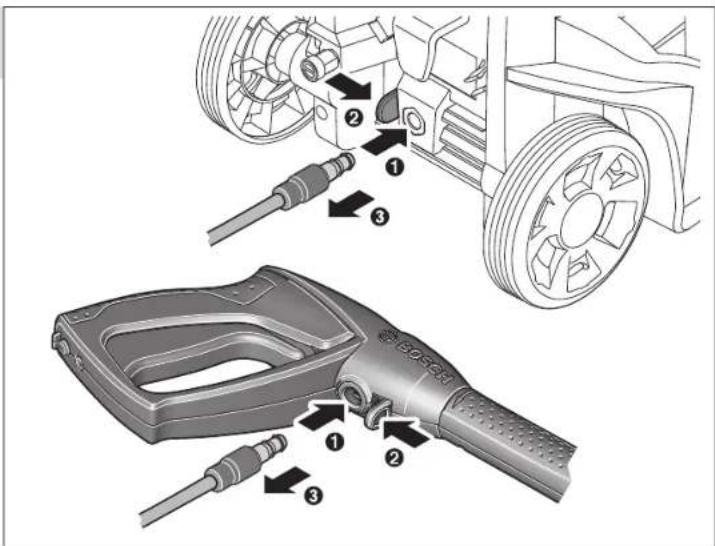

Connecting high pressure gun to lance	3	262
Connecting high pressure water supply hose/nozzle	4	262

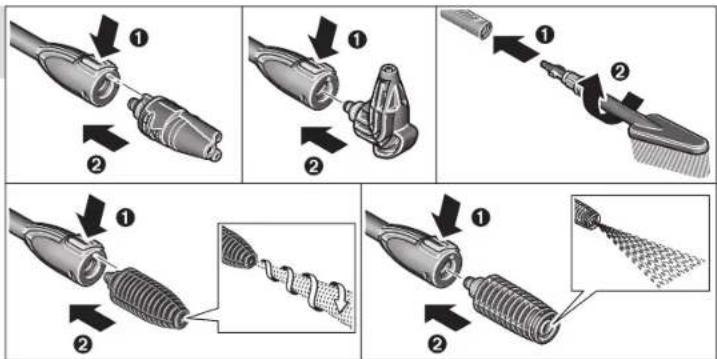

Attaching Nozzles	5	263-265

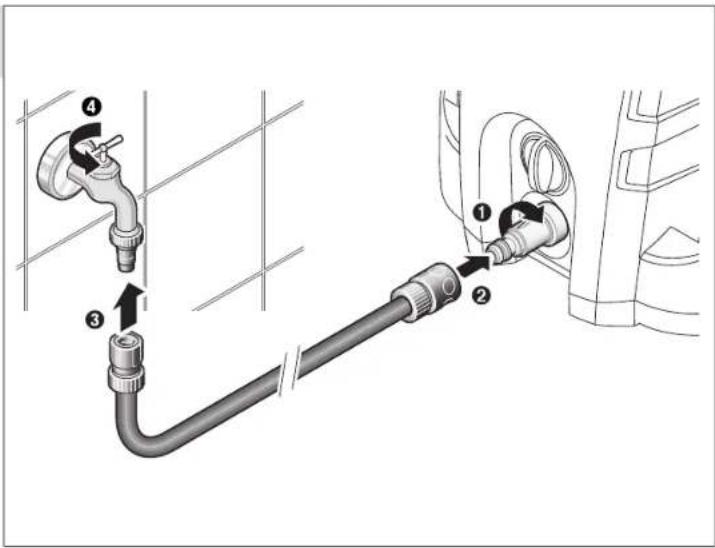

Connecting to the water supply	6	265

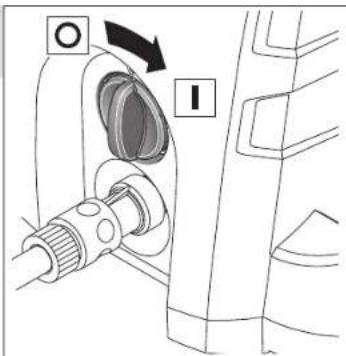

Switching On and Off	7	266
Adjust water jet	8	266
Connect detergent bottle	9	267
Clean the water filter	10	267
Clean nozzle	11	268
Gun storage	12	268

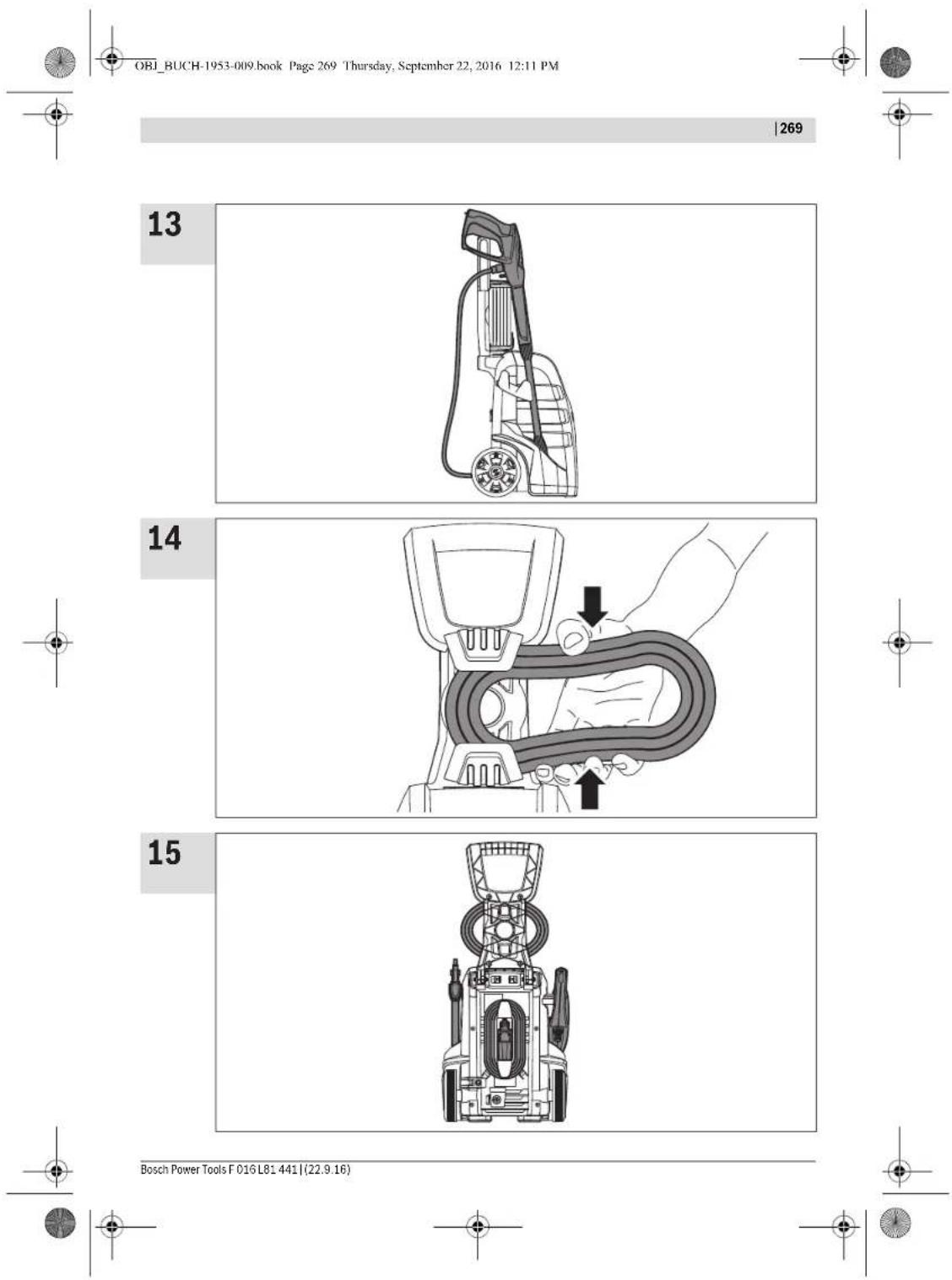

Gun/lance/nozzle is stored in action	13	269

Action	Figure	Page
Hose into the hose holder	14	269
Storage	15	269
Selecting Accessories	16	270

Starting

For Your Safety

Warning! Switch off, remove plug from mains before adjusting, cleaning or if cable is cut, damaged or entangled.

The operating voltage is 230 V AC, 50 Hz (for non-EU countries 220 V, 240 V as applicable). Only use approved extension cables. Contact your Bosch Service Centre for details.

If you want to use an extension cable when operating your high pressure washer, only the following cable dimensions should be used:

-1.5 mm ^2 - max length 20 m

-2.5 mm ^2 - max length 50 m

16| English

Note: If an extension cable is used it must be earthed and connected through the plug to the earth cable of your supply network in accordance with prescribed safety regulations. If in doubt contact a qualified electrician or the nearest Bosch Service Centre.

WARNING! Inadequate extension cables can be dangerous. Extension cable, plug and socket must be of watertight construction and intended for outdoor use.

Cable connections should be kept dry and off the ground. For increased electrical safety to use a Residual Current Device (RCD) with a tripping current of not more than 30 mA. All ways check your RCD every time you use it. If the supply cord is damaged, it must be replaced by a Bosch Service Centre.

For products not sold in GB:

WARNING: For your safety, it is required that the plug attached to the machine is connected with the extension cord. The coupling of the extension cord must be protected against splash water, be made of rubber or coated with rubber. The extension cord must be used with a cable strain relief.

Products sold in GB only: Your product is fitted with an BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362).

If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug.

The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

To prevent damage to the appliance, do not allow it to operate dry.

Operation

Starting

Attach water supply hose (not supplied) to the mains water supply and machine.

Connect the product to the mains supply ensuring that the mains switch is in the off position.

Open water tap.

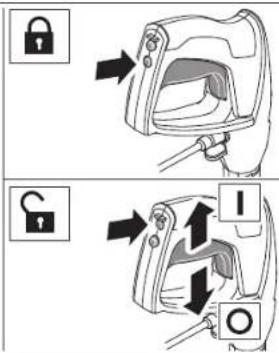

Press the safety lock (back button on the gun handle) to release the trigger. Fully press the trigger until there is a constant flow of water to clear the air from the machine and water supply hose. Release trigger. Press the safety lock (front button on the gun handle).

Turn button on main switch. Point the power gun downwards. Press the trigger safety lock to release the trigger. Fully press the trigger.

Autostop function

The machine is designed to switch off the motor when the trigger is released on the gun.

Working Advice

General

Ensure that the pressure washer is on level ground.

Do not overreach with the high pressure hose or move the pressure washer by pulling the hose, this could cause the machine to become unstable and fall over.

Do not kink or drive a motor vehicle over the high pressure hose. Do not expose the high pressure hose to sharp edges or corners.

Never use a roto nozzle to clean motor vehicles.

WARNING! The Patio Cleaners supplied are only intended to be used on flat surfaces! Do not attempt to use them on steps or vertical surfaces. Never attempt to touch the rotating nozzle while operating the machine!

Working advice for cleaning with detergents

▶ Only use cleaning agents suitable specifically for high pressure washers.

We recommend that you use detergent sparingly for the sake of the environment. Observe the recommended dilution on the detergent label.

Recommended cleaning method

Step 1: Loosening dirt

Attach the High Pressure Foam nozzle or select the foam setting on the 3 in 1 nozzle and spray on the detergent sparingly. Step 2: Removing dirt

Spray off the loosened dirt with the high-pressure spray.

Note: When cleaning a vertical surface spray off dirt/detergent from the bottom and work in an upwards direction. Rinse from the top and work downwards.

Use with alternative water sources

This high-pressure washer will self prime and can draw water from water tanks and natural water sources. It's IMPORTANT that the water is clean and the BOSCH inlet filter is clear and fitted to the machine.

Open tanks/containers and natural water sources

Use the Self Priming accessory kit comprising:

- Inlet strainer with non return valve

- 3 m reinforced supply hose

– Universal coupling to the pressure washer

This enables the pressure washer to draw water up to 0.5 m above the water level in the source in approximately 15 seconds.

Submerge the 3 m hose in water to displace the air. Connect the 3 m supply hose to the pressure washer ensuring that the inlet strainer remains submerged in the water source.

Run the pressure washer with the gun disconnected until a steady flow of water appears from the high pressure hose. Stop if this has this has not been achieved within 25 seconds and check all the connections. Switch off and connect the gun, lance and nozzle to operate.

English | 17

It is important to ensure that all hose and coupling connections are of good quality, air tight and that all washers are in good condition and correctly seated in place. Failure to do so may affect the self priming performance.

Water Tanks with outlet connections

When connecting the pressure washer to a water tank with a suitable tap outlet, first connect the supply hose (not provided) to the tank outlet, open the tap to allow the water to displace all the air in the hose and then connect to the pressure washer.

Troubleshooting

Problem Possible Cause Corrective Action
Motor refuses to start Plug not connected Connect plug
	Mains socket faulty Use another socket
	Fuse faulty/blown Replace fuse
	Extension cable damaged Try without extension cable
	Motor protector has activated Allow to cool for 15 minutes
	Frozen Wait for pump/water supply hose/accessory to thaw
Motor stops Fuse faulty/blown Replace fuse
	Wrong mains voltage Check that mains voltage corresponds to specifications on the model tag
	Motor protector has activated Allow to cool for 15 minutes
Fuses blow	Fuses incorrectly rated	Change to a mains supply higher than the pressure washer amp consumption
Motor starts but no pressure	Nozzle partly blocked	Clean nozzle
Motor “sounds” but fails to start	Insufficient power supply	Check that the voltage of the mains power supply line is the same as that on the plate
	Voltage loss due to use of extension cable	Check characteristics of extension cable
	Appliance not used for a long period of time	Contact your Bosch Service Centre
	Problems with TSS (Total Stop System) device	Contact your Bosch Service Centre
Pressure pulsating	Air in the inlet water supply hose/pump	Allow pressure washer to run with open spray handle and nozzle at low pressure until regular working pressure is obtained
	Inadequate water supply	Check that the water supply corresponds to specifications. The minimum specification for the water supply hose is 1/2" or 13 mm diameter
	Water filter blocked	Clean water filter
	Water supply hoses squeezed Straighten out kinked water supply hoses
	High pressure hose too long	Remove high pressure extension hose. Retry (extension hose max. 7 m)
Pressure too low, but steadyNote: Several types of accessory will normally deliver a lower pressure	Nozzle worn	Change the nozzle
	Start/stop valve worn	Activate trigger five times in quick succession
Motor starts up but with restricted or no working pressure	No water supply	Connect water supply
	Water filter clogged up	Clean the water filter
	Nozzle clogged up	Clean nozzle
The pressure washer starts irregularly by itself	Pump/power gun leaky Contact your Bosch Service Centre

Bosch Power Tools F 016 L81 441 | (22.9.16)

18| English

Problem Possible Cause Corrective Action

Water leaks from machine Leaking pump A slight water leak is permissible; in case of excessive leak, contact Bosch Service Centre
No detergent taken in Adjustable nozzle on high pressure setting	Attach the High Pressure Foam nozzle or select the foam setting on the 3 in1 nozzle
Detergent too dense Dilute with water
High pressure hose extension being used	Fit original hose
Deposits or restriction in detergent circuit	Flush with clean water and eliminate any restrictions. If the problem persists, contact your Bosch Service Centre.

Maintenance and Service

Maintenance

- Stop, remove plug from the power supply and disconnect from water supply.

Note: To ensure long and reliable service, carry out the following maintenance regularly.

Regularly check for obvious defects such as loose fixings, and worn or damaged components.

Check that covers and guards are undamaged and correctly fitted. Carry out necessary maintenance or repairs before using.

After use/Storage

Turn the main switch off and operate the trigger to drain the water from the high pressure hose.

Clean the exterior of the machine thoroughly using a soft brush or cloth. Do not use water, solvents or polishes. Remove all debris, especially from the ventilation slots.

End of season storage: Drain water out of pump running motor for a few seconds. Pull trigger to release all water.

Do not place other objects on top of the machine. Store in a frost-free area.

Ensure cables are not trapped when storing. Do not kink high pressure hose.

After-sales Service and Application Service

www.bosch-do-it.com

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the machine.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange

the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Republic of South Africa

Customer service

Hotline: [phone]

E-Mail: [e-mail]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

F 016 L81 441 (22.9.16) Bosch Power Tools

Français | 19

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Environmental Protection

Chemicals dangerous to the environment must not be allowed to enter the ground, ground water or ponds, streams, etc. For the use of cleaning agents, observe the instructions on the package and the prescribed concentration exactly.

For the cleaning of motor vehicles the local regulations should be observed: Do not allow oil sprayed off to enter into the ground water. Recycle raw materials instead of waste disposal.

Disposal

The pressure washer, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of pressure washers into household waste!

Only for EC countries:

According to the European directive 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national law, electrical and electronic equipment that are no longer usable must be collected separately and disposed of in an environmentally correct manner.

Subject to change without notice.

Français

Robert Bosch (France) S.A.S.

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Pä www.bosch-pt.dk kan der online bestilles reservedele eller

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

Miljøbeskyttelse

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

Miljöskydd

Robert Bosch Sp. z o.o.

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

Tel. service scule electrice: [phone]

Fax: [phone]

E-Mail: [e-mail]

OBJ_BUCH-1953-009.book Page 208 Thursday, September 22, 2016 12:11 PM

208 | Slovensko

Product photo of a cleaning or gas washing machine tool with hoses and fittings (no visible text or symbols)

AQT 35-12 / 37-13

8,12 kg

Product photo of AQT 35-12+ water spray equipment including tool, hose, and cap (no text or symbols on main components)

Illustration of a square water heater with attached control panel and fan (no text or symbols visible)

Bosch Power Tools F 016 L81 441 | (22.9.16)

OBJ_BUCH-1953-009.book Page 260 Thursday, September 22, 2016 12:11 PM

260

1

8,82 kg

Product diagram of a AQT 37-13+ water heater with labeled components and a box icon (no text or symbols on main image)

8,9 kg

Product diagram of a AQT 40-13 water heater with labeled components and assembly instructions (no text beyond label)

F 016 L81 441 | (22.9.16) Bosch Power Tools

OBJ_BUCH-1953-009.book Page 261 Thursday, September 22, 2016 12:11 PM

|261

2

Bosch Power Tools F 016 L81 441 | (22.9.16)

OBJ_BUCH-1953-009.book Page 262 Thursday, September 22, 2016 12:11 PM

262

3

4

F 016 L81 441 | (22.9.16) Bosch Power Tools

5

Illustration of a cable connector with two inserted pins (no text or symbols)

Line drawing of a person using a power washer to clean or wash a car (no text or symbols)

OBJ_BUCH-1953-009.book Page 264 Thursday, September 22, 2016 12:11 PM

264

F 016 L81 441 (22.9.16) Bosch Power Tools

OBJ_BUCH-1953-009.book Page 265 Thursday, September 22, 2016 12:11 PM

|265

6

Bosch Power Tools F 016 L81 441 | (22.9.16)

OBJ_BUCH-1953-009.book Page 266 Thursday, September 22, 2016 12:11 PM

266

7

8

F 016 L81 441 (22.9.16) Bosch Power Tools

OBJ_BUCH-1953-009.book Page 267 Thursday, September 22, 2016 12:11 PM

|267

9

10

Bosch Power Tools F 016 L81 441 | (22.9.16)

OBJ_BUCH-1953-009.book Page 270 Thursday, September 22, 2016 12:11 PM

270

16

Illustration of a desktop microphone with a stand and base (no text or symbols)

F016800416

3D rendering of a handheld hose with coiled tubing (no text or symbols visible)

F016800356

F016800354

Illustration of a coiled cable with two connectors (no text or symbols)

F016800421

F016800363

F016800419

F 016 L81 441 | (22.9.16) Bosch Power Tools

CE
1

de	EU-KonformitätserklärungHochdruckreiniger Sachnummer		Wir erklären in alleiniger Verantwortung, dass die genannten Produkte allen einschlägigen Bestimmungen der nachfolgend aufgeführten Richtlinien und Verordnungen entsprechen und mit folgenden Normen übereinstimmen.
en	EU Declaration of ConformityPressure washer Article number		We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards.
fr	Déclaration de conformité UENettoyeur haute pression N° d'article		Nous déclarons sous notre propre responsabilité que les produits décrits sont en conformité avec les directives, règlements normatifs et normes énumérés ci-dessous.
es	Declaración de conformidad UELimpiadora de alta presión	N° de artículo	Declaramos bajo nuestra exclusiva responsabilidad, que los productos nombrados cumplen con todas las disposiciones correspondientes de las Directivas y los Reglamentos mencionados a continuación y están en conformidad con las siguientes normas.
pt	Declaração de Conformidade UELimpador de alta pressão N.° do produto		Declaramos sob nossa exclusiva responsabilidade que os produtos mencionados cumprem todas as disposições e os regulamentos indicados e estão em conformidade com as seguintes normas.
it	Dichiarazione di conformità UEIdropulitrice	Codice prodotto	Dichiariamo sotto la nostra piena responsabilità che i prodotti indicati sono conformi a tutte le disposizioni pertinenti delle Direttive e dei Regolamenti elencati di seguito, nonché alle seguenti Normative.
nl	EU-conformiteitsverklaringHogedrukreiniger	Productnummer	Wij verklaren op eigen verantwoordelijkheid dat de genoemde producten voldoen aan alle desbetreffende bepalingen van de hierna genoemde richtlijnen en verordeningen en overeenstemmen met de volgende normen.
da	EU-overensstemmelseserklæringHøjtryksrenser	Typenummer	Vi erklærer som eneansvarlige, at det beskrevne produkt er i overensstemmelse med alle gældende bestemmelser i følgende direktiver og forordninger og opfylder følgende standarder.
sv	EU-konformitetsförklaringHögtryckstvätt	Produktnummer	Vi förklarar under eget ansvar att de nämnda produkterna uppfyller kraven i alla gällande bestämmelser i de nedan angivna direktiven och förordningarnas och att de stämmer överens med följande normer.
no	EU-samsvarserklæringHøytrykkspyler	Produktnummer	Vi erklærer under eneansvar at de nevnte produktene er i overensstemmelse med alle relevante bestemmelser i direktivene og forordningene nedenfor og med følgende standarder.
fi	EU-vaatimustenmukaisuusvakuutusPainepesuri	Tuotenumero	Vakuutamme täten, että mainitut tuotteet vastaavat kaikkia seuraavien direktiivien ja asetusten asiaankuuluvia vaatimuksia ja ovat seuraavien standardien vaatimusten mukaisia.
el	Δήλωση πιστότητας EETπλυντικό υψηλής πίεσης Αριθμός ευρετηρίου		Δηλώνουμε με αποκλειστική μας ευθύνη, ότι τα αναφερόμενα προϊόντα αντιστοιχούν σε όλες τις σχετικές διατάξεις των πιο κάτω αναφερόμενων οδηγιών και κανονισμών και ταυτίζονται με τα ακόλουθα πρότυπα.
tr	AB Uygunluk beyaniYüksek basıncılıtemizleyici	Ürün kodu	Tek sorumlu olarak, tanımlanan ürünün aşağıdaki yönetmelik ve direktiflerin geçerli bütün hükümlerine ve aşağıdaki standartlara uygun olduğunu beyan ederiz.
pl	Deklaracja zgodności UEMyjka wysokociśnieniowa	Numer katalogowy	Oświadczamy z pełną odpowiedzialnością, że niniejsze produkty odpowiadają wszystkim wymaganiom poniżej wyszczególnionych dyrektyw i rozporządzeń, oraz że są zgodne z następującymi normami.
cs	EU prohlásení o shoděVysokotlaký čistič	Objednaci číslo	Prohlašujeme na výhradni zodpovednost, že uvedený výrobek splňuje všechna příslušná ustanovení niže uvedených směrnic a nařízení a je v souladu s následujícími normami:
sk	EÚ vyhlásenie o zhodeVysokotlakový čistič	Vecné číslo	Vyhlasujeme na výhradnu zodpovednosť, že uvedený výrobok splňa všetky príslušné ustanovenia nižšie uvedených smerníc a nariadení a je v súlade s nasledujúcími normami:
hu	EU konformitási nyllatkozatNagynyomású tisztító	Cikkszám	Egyedüli felelőséggel kijelentjük, hogy a megnevezett termékek megfelelnek az alábbiakban felsorolásra kerülő irányelvek és rendeletek valamen-nyi idevágó előírásainak és megfelelnek a következő szabványoknak.

Bosch Power Tools F 016 L81 441 | (16.11.16)

II			CE
ru	Заявление о соответствии ECОчиститель высокогодавления	Товарный No	Мы заявляем под нашу единоличную ответственность, что названныепродукты соответствуют всем действующим предписаниямнижеуказанных директив и распоряжений, а также нижеуказанныхнорм.
uk	Заява про відповідність ЄСОчищувач високоготиску	Товарний номер	Мизаявляємо під нашу одноособову відповідальність, що названівироби відповідають усім чинним положеням нищеозначенихдиректив і розпоряджень, а також нижчеозначеним нормам.
kk	EO сәйкестік маглумдамасыЖоғары крысымтазалағыш	Өнім нөмірі	Өз жауапкершілікпен біз аталған өнімдер төменде жзылғандиректикалар мен жарлықтардың тиісті қағидаларына сәйкестігінжәне төмендегі нормаларға сай екенін білдіреміз.
ro	Declarație de conformitate UEMaşină de curățat cuînaltă presiune	Număr deidentificare	Declarăm pe proprie răspundere că produsele menționate corespund tu-turor dispozițiilor relevante ale directivevor și reglementărilor enumerateîn cele ce urmează și sunt în conformitate cu următoarele standarde.
bg	EC декларация за съответствиеВодоструйна машина Каталожен номер		С пълна отговорност ние декларираме, че посочените продуктиотговарят на всички валидни изисквания на директивите иразпоредбите по-долу и съответства на следните стандарти.
mk	EU-Изјава за сообразностВисокопритиснапералка	Број на дел/артикл	Со целосна одговорност изјавуваме, дека опишаните производи сево согласност со сите релевантни одредби на следните регулативи ипрописи и се во согласност со следните норми.
sr	EU-izjava o usaglašenostiUredjaj za čišćenjevisokim pritiskom	Broj predmeta	Na sopstvenu odgovornost izjavljujemo, da navedeni proizvodi odgovaraju svim dotičnim odredbama naknadno navedenih smernica u uredaba ida su u skladu sa sledećim standardima.
sl	Izjava o skladnosti EUVisokotlačni čistilec	Številka artikla	Izjavljamo pod izključno odgovornostjo, da je omenjen izdelek v skladu zvsemi relevantnimi določili direktiv in uredb ter ustreza naslednjim standardom.
hr	EU izjava o sukladnostiVisokotlačni uredaj začišćenje	Kataloški br.	Pod punom odgovornošću izjavljujemo da navedeni proizvodi odgovarajusvim relevantnim odredbama direktiva i propisima navedenima u nastavku i da su sukladni sa sljedećim normama.
et	EL-vastavusdeklaratsioonKõrgsurvepesur	Tootenumber	Kinnitame ainuvastutajatena, et nimetatud tooted vastavad järgnevalt lo-etletud direktiivide ja määruste kõikidele asjaomastele nõuetele ja onkooskõlas järgmiste normidega.
lv	Deklarăcija par atbildību ES standartiemAugstspiediena tīrītājs Izstrādājumanumurs		Mês ar pilnu atbildību paziņojam, ka šeit aplūkotie izstrādājumi atbilst vi-siem tālāk minētajās direktivās un rikojumos ietvertajām saistošajāmnostādnēm, kā arī sekojošiem standartiem.
lt	ES atitikties deklaracijaAukšto slėgio plovimojrenginys	Gaminio numeris	Atsakingai pareiškiame, kad išvardyti gaminiai atitinka visus privalomusžemiau nurodytų direktyvų ir reglamentų reikalavimus ir šiuos standartus.
	AQT 35-12/AQT 35-12+AQT 37-13/AQT 37-13+AQT 40-13	3 600 HA7 1..	2011/65/EU2014/30/EU2006/42/EC2000/14/ECEN 60335-1:2012+A11:2014EN 60335-2-79:2012EN 55014-1:2006 + A2:2009 + A2:2011EN55014-2:1997 + A1:2001 +A2:2008EN61000-3-2:2006 +A1:2009 +A2:2009EN61000-3-3:2008EN 50581:2012

CE

III

de AQT 35-12/AQT 35-12+

2000/14/EC: Measured sound power level 93 dB(A), uncertainty K = 2 dB, guaranteed sound power level 95 dB(A); Conformity assessment procedure in accordance with annex V. Product category: 27

AQT 37-13/AQT 37-13+

2000/14/EC: Measured sound power level 90 dB(A), uncertainty K = 1 dB, guaranteed sound power level 91 dB(A); Conformity assessment procedure in accordance with annex V. Product category: 27

AQT 40-13

2000/14/EC: Measured sound power level 94 dB(A), uncertainty K = 2 dB, guaranteed sound power level 96 dB(A); Conformity assessment procedure in accordance with annex V. Product category: 27 Technical file at: *

fr AQT 35-12/AQT 35-12+

* Bosch Lawn and Garden Ltd., PT-HG/ENS-PA2, Stowmarket, Suffolk IP14 1EY, England

Henk Becker

Executive Vice President

Engineering and Manufacturing

Helmut Heinzelmann

Head of Product Certification

i.v. h=m

Robert Bosch Power Tools GmbH, 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017
