USER MANUAL Brahma 2.0 BARBECOOK

Line drawing of a Barbecook grill with open lid and side grilles (no text or symbols)

Brahma 2.0 / Brahma 4.0

# 223.9920.000 / # 223.9940.000

# 223.9920.200 / # 223.9940.200

NL MONTAGE-INSTRUCTIES

Carefully read the instructions before installing the barbecue. Install the barbecue on a flat and clean base.

Note: Be careful when installing the barbecue. Tools may damage the enamelled surface. Some screws may be left over after installation.

SK POKYNY PRE MONTÁŽ

Exploded view diagram of a refrigerator with numbered parts for identification

	BRAHMA 2.0#223.9920.000 / #223.9920.200	BRAHMA 4.0#223.9940.000 / #223.9940.200
1 227.9900.012 227.9900.022
2 227.9900.030 227.9900.030
3 227.9900.040 227.9900.040
4 227.9900.051 227.9900.052
5 227.9900.072 227.9900.082
6 227.9900.090 227.9900.090
7 - 227.9900.100
8 227.9900.110 227.9900.110
9 227.9900.120 227.9900.120
10 227.9900.125 227.9900.125
11 227.9900.130 227.9900.140
12 227.9900.152 227.9900.152
13 227.9900.160 227.9900.160
14 227.9900.170 227.9900.180
15 227.9900.190 227.9900.195
16 227.9900.210 227.9900.210
17 227.9900.220 (DE) 227.9900.220 (DE)
18 227.9900.232 227.9900.232
19 227.9900.240 227.9900.250
20 227.9900.270 227.9900.270
21 227.9900.280 227.9900.282
22 227.9900.290 227.9900.300
23 227.9900.310 227.9900.310
24 227.9900.320 227.9900.320
25 227.9900.330 227.9900.330
26 227.9900.360 227.9900.360
27 227.9900.380 227.9900.390
28 227.9900.422 227.9900.432
29 227.9900.462 227.9900.464
30 227.9900.472 227.9900.474
31 227.9900.510 227.9900.510
32 227.9900.520 227.9900.532
33 227.9900.560 227.9900.560
34 227.9900.580 227.9900.570
35 227.9900.590 227.9900.590
36 227.9900.600 227.9900.600
37 227.9900.652 227.9900.662
38 - 227.9900.620
39 227.9900.710 227.9900.710
40 227.9900.720 227.9900.735
41 - 227.9900.755
42 - 227.9900.760
43 - 227.9900.770
44 - 227.9900.785
45 - 227.9900.790
46 - -
47 - 227.9900.805

Brahma 4.0

# 223.9940.000 / # 223.9940.200

223.9940.000 / # 223.9940.200

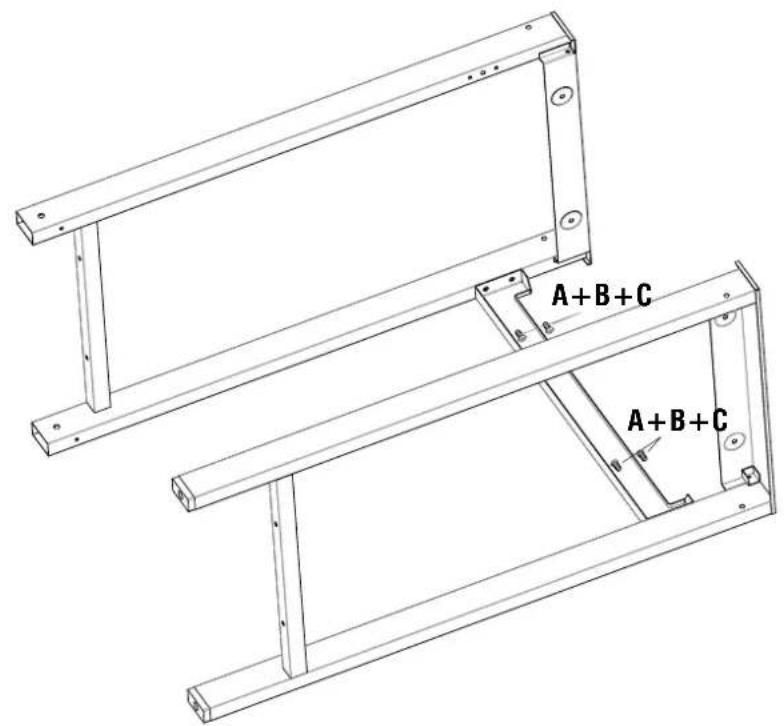

①

A+B+C A+B+C

A X4 B X4 C X4

②

D D E E

D X4 E X4

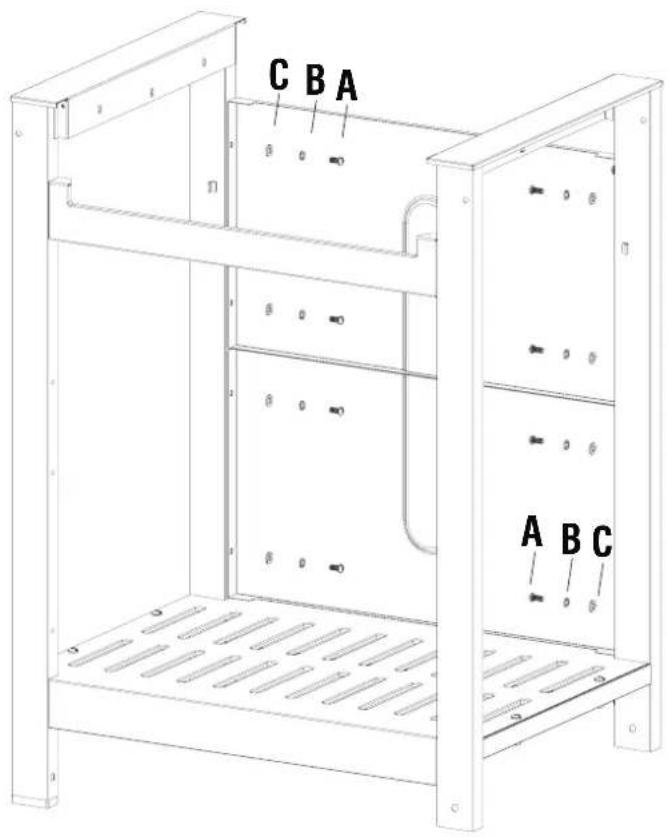

3

C B A A B C

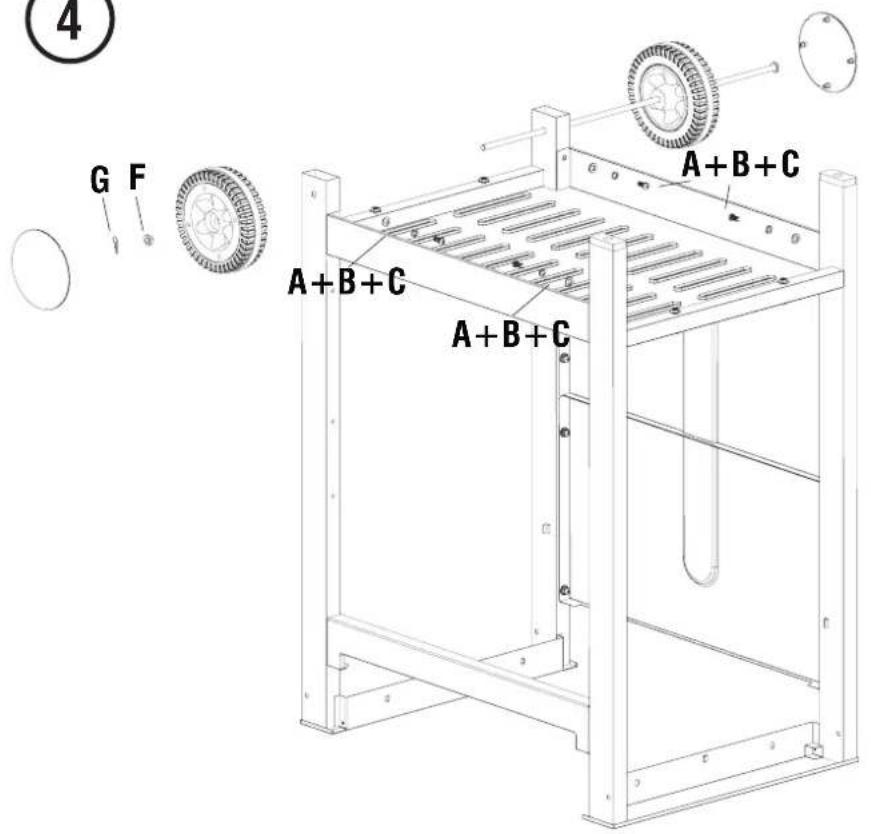

4

G F A+B+C A+B+C A+B+C ④

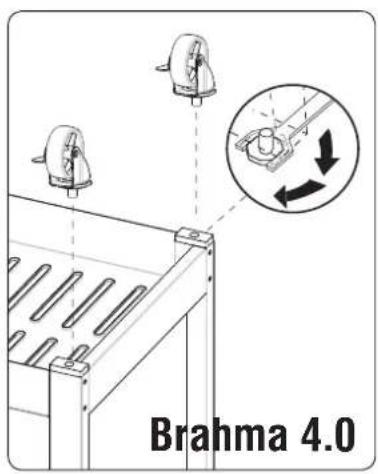

Brahma 4.0

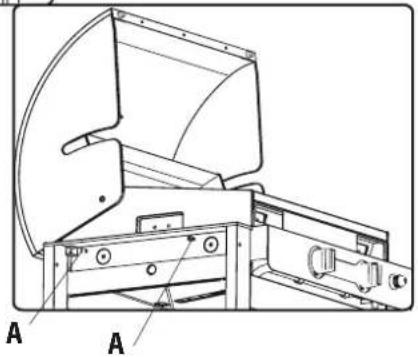

5

Technical line drawing of a portable stove with a door panel and wheels, showing internal components (no text or symbols)

A E H H E L

A X4 E X4 H X4

Technical line drawing of a mechanical assembly with labeled components A (no text or symbols beyond labels)

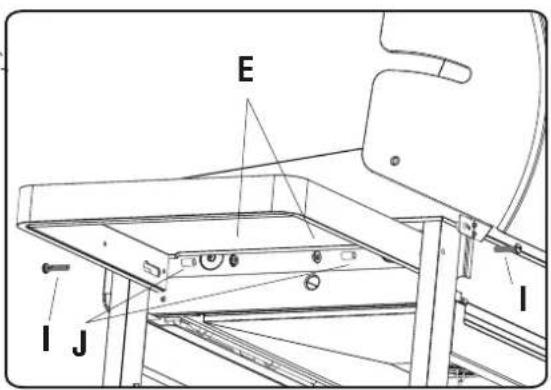

6

Line drawing of a portable electric grill with open door, wheels, and side panel (no text or labels)

E X4 I X4 J X4

E I J I

7

C A B + 1 x - + + Not included AA battery LR 6, AM 3 1,5 V

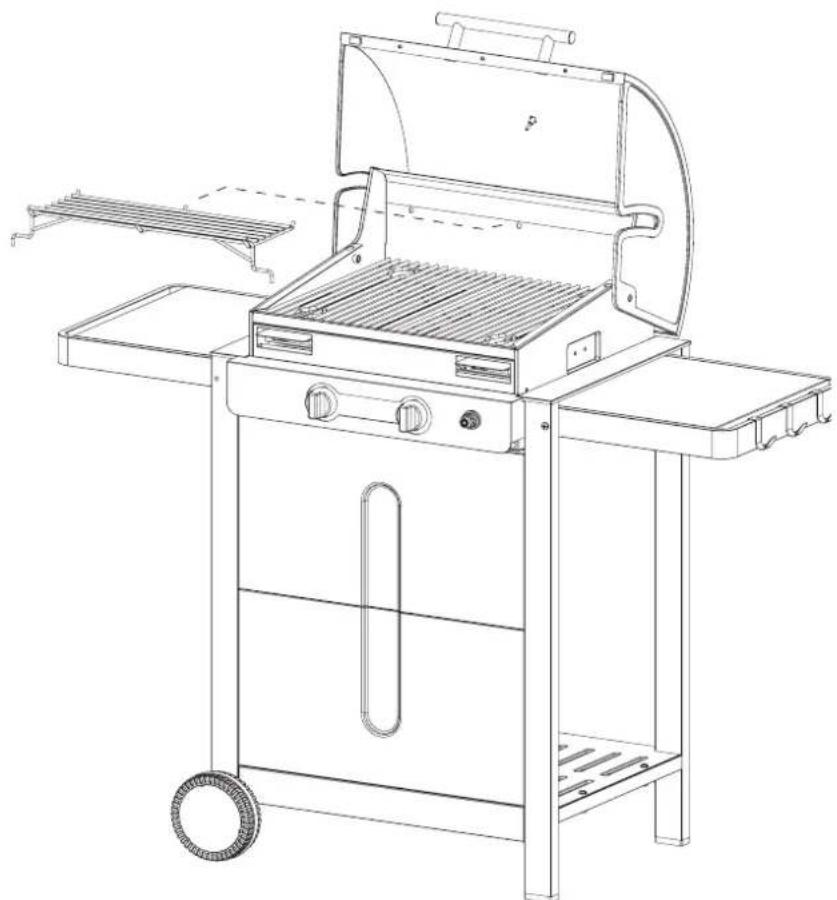

8

Line drawing of a standard electric grill with open lid, grilles, and side table (no text or symbols)

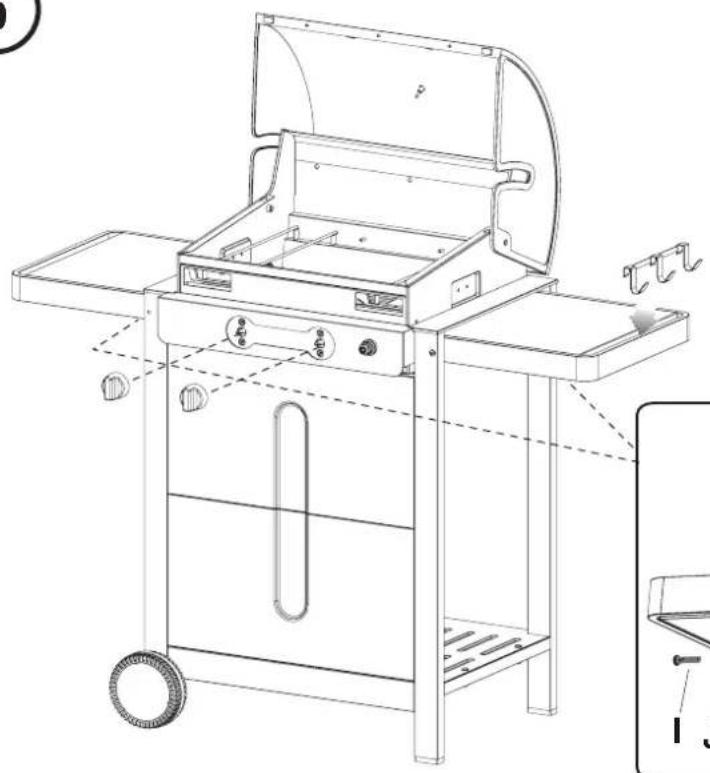

⑨
Brahma 4.0

I E D

Diagram of a device with labeled parts Q and P, showing a mechanical or electrical component with directional arrows indicating motion.

Technical line drawing of a mechanical device with labeled components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

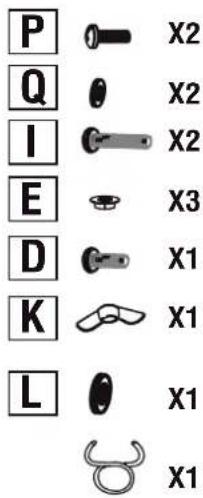

P Q I E D K L X2 X2 X2 X3 X1 X1 X1 X1

10

Line drawing of a portable kitchen machine with wheels and a side panel, no text or symbols present

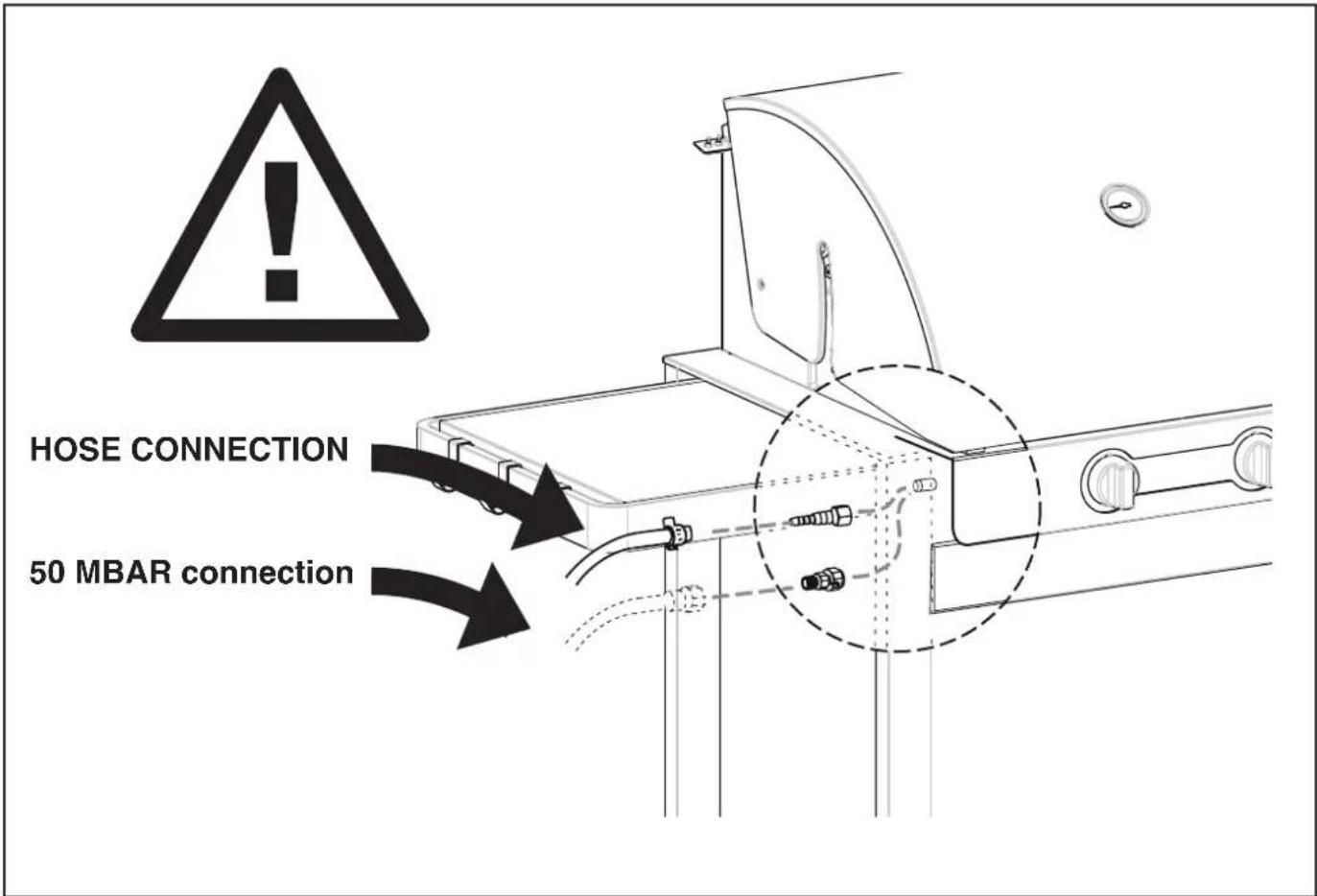

HOSE CONNECTION 50 MBAR connection

NL BELANGRIJK!

VOOR LANDEN MET 50 MBAR MET SLANG EN SCHROEFSYSTEEM

FOR COUNTRIES WITH 50 MBAR WITH HOSE AND SCREW SYSTEM

• Remove the hose coupling
• Connect the threaded nut provided to the appliance
• Screw the hose adjusting nut onto the transition

DE WICHTIG!

FÜR LÄNDER MIT 50 MBAR MIT SCHLAUCH UND SCHRAUBSYSTEM

Marking of the injectors

• Injector main burners: 105
• Injector side burner: 65
• Injector spit burner: 82

DE

Technical line drawing of a mechanical component with a dashed arrow indicating direction (no text or symbols)

VEILIGHEIDSINFORMATIE

Illustration of a mosquito inside a circle connected to a bottle (no text or symbols)

Technical line drawing of a vehicle door frame with internal components and a highlighted circular detail (no text or symbols)

ONTSTEKING VAN DE BRANDERS

Technical line drawing of a mechanical assembly with no visible text or symbols

ONTSTEKING VAN BRANDERS MET EEN LUCIFER

Technical line drawing of a mechanical device with an open lid and internal grid structure (no text or symbols)

ONTSTEKING VAN DE ZIJBRANDER MET LUCIFER

Line drawing of a gas cylinder with labeled point A (no text or symbols on the object itself)

Line drawing of a mechanical device with a central component and attached tubing (no text or symbols)

Technical line drawing of a mechanical or electrical device with no visible text, numbers, or symbols.

Technical line drawing of a mechanical component with a dashed arrow indicating direction (no text or symbols)

INFORMATIONS RELATIVES A LA SECURITE

Illustration of a bug and spider inside a circle, connected to a bottle (no text or symbols)

Technical line drawing of a car interior showing structural components and airflow direction (no text or symbols)

ALLUMAGE DES BRULEURS

Technical line drawing of a mechanical device with no visible text or symbols

ALLUMAGE DES BRULEURS AVEC UNE ALLUMETTE

Technical line drawing of a mechanical device with an open lid and internal grid structure (no text or symbols)

ALLUMAGE DU BRULEUR LATERAL AVEC UNE ALLUMETTE

INSTALLATION, USE AND MAINTENANCE INSTRUCTIONS

SAFETY INFORMATION

THIS APPLIANCE IS DESIGNED FOR OUTDOOR USE ONLY IF YOU SMELL GAS:

1. TURN OFF THE GAS SUPPLY
2. EXTINGUISH ANY OPEN FLAME

3. OPEN THE LID

1. IF ODOUR CONTINUES, IMMEDIATELY CALL YOUR GAS SUPPLIER OR THE FIRE DEPARTMENT

- THE USER IS RESPONSIBLE FOR PROPER INSTALLATION AND APPROPRIATE USE OF THE BARBECUE.

- FAILURE TO COMPLY WITH THE INSTRUCTIONS IN THIS MANUAL MAY RESULT IN A DANGEROUS FIRE OR EXPLOSION.

- FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS MANUAL MAY RESULT IN SERIOUS INJURIES AND MATERIAL DAMAGE.

- USE PROTECTIVE GLOVES WHEN HANDLING PARTICULARLY HOT PARTS - MODIFICATIONS TO THE BARBECUE ARE DANGEROUS AND NOT PERMITTED. THIS APPLIANCE MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE PROVISIONS.

- STORE THE CYLINDER OUTDOORS IN A WELL-VENTILATED AREA

- NEVER PLACE THE SPARE CYLINDER (FULL OR EMPTY) UNDER OR NEXT TO A BARBECUE IN USE.

• NEVER STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPOURS

AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER BARBECUE.

• KEEP COMBUSTIBLE MATERIAL AT LEAST 76 CM AWAY FROM THE BARBECUE
• KEEP THE AREA AROUND YOUR BARBECUE AT ALL TIMES FREE FROM ANY COMBUSTIBLE MATERIALS, GASOLINE OR OTHER FLAMMABLE LIQUIDS
• USE THE BARBECUE ONLY OUTDOORS IN A WELL-VENTILATED AREA AND AT LEAST 3 M FROM ANY DWELLING OR BUILDING.
  • DO NOT USE THIS APPLIANCE UNDER AN OVERHANGING STRUCTURE OR FOLIAGE
• DO NOT USE THE BARBECUE ON A BOAT OR OTHER RECREATIONAL VEHICLE
  • DO NOT USE THE BARBECUE IN A GARAGE, SHED, CORRIDORS OR OTHER ENCLOSED AREAS
  • NEVER LEAVE THE BARBECUE UNATTENDED WHEN IN USE
  • DO NOT OBSTRUCT THE FLOW OF COMBUSTION AND VENTILATION AIR TO THE BARBECUE
  • DO NOT USE THE BARBECUE WHEN YOU HAVE CONSUMED ALCOHOL OR TAKEN DRUGS
• ACCESSIBLE PARTS MAY BECOME VERY HOT. KEEP (YOUNG) CHILDREN AND ANIMALS AWAY FROM THE BARBECUE.
• DO NOT MOVE THE BARBECUE WHEN IN USE
• NEVER USE CHARCOAL, WOOD OR BRIQUETTES
• NEVER USE LAVA ROCKS OR CERA-MIC BRIQUETTES
• KEEP THE VENT HOLES IN THE TROLLEY CLEAR AT ALL TIMES.
• PARTS SEALED BY THE MANUFACTURER OR HIS REPRESENTATIVE MAY NOT BE ALTERED BY THE USER.
• NEVER LIGHT THE SIDE BURNER WITHOUT OPENING THE LID.
• ALWAYS PLACE THE TWO ROUND OPENINGS IN THE GRID ABOVE THE AROMAZ® TRAYS.

GAS CONNECTION

GAS CYLINDER

Always use an approved cylinder that complies with all national provisions and standards. Check whether the cylinder can vaporize sufficient gas as specified for your barbecue model.

• Always keep the cylinder in a stable and upright position.
- Be careful when handling the cylinder valves
- Never connect a cylinder without regulator to the barbecue.
- Never connect a non-regulated cylinder to the barbecue.

• Always close the cylinder valves when the barbecue is not in use
- If the barbecue is not equipped with a cylinder holder, place the cylinder on the ground, next to the barbecue
- Never place the spare cylinder under or next to a barbecue in use
- Never expose the cylinder to excessive heat or direct sunlight
- Change the flexible tube if required by national regulations

REPLACING THE CYLINDER

When replacing the cylinder, ensure that the control knob on the barbecue is in the OFF position and the cylinder is closed. Never replace a cylinder in the vicinity of potential ignition sources.

TRANSPORT AND STORAGE OF THE GAS CYLINDER

Although perfectly safe when handled correctly, lack of caution may result in fire and/or explosion.

To minimise the risks:

• Never store the cylinder in a building, garage or other enclosed area, but always in a well-ventilated area
• Never store the cylinder in the vicinity of another gas operated appliance, or in a very warm area, such as a car or boat
  • Always keep the cylinder out of reach for children
  • Always transport and store the cylinder in an upright position
• Do not smoke in the vicinity of the cylinder, especially during transport with a vehicle

HOSE AND REGULATOR

The hose and regulator are not supplied by the manufacturer. Only use a hose / regulator combination that complies with all local and national provisions and standards, and that is compatible with the couplings of the gas cylinder used and the gas type/nominal pressure stated on the barbecue. Keep the hose as short as possible.

• Never connect the barbecue to a non-regulated gas supply. Never try to alter the hose or regulator in any way whatsoever.
• Prior to each use of the barbecue, check the hose over its full length for any damage (cracks, tears, burnt sections) or excessive wear. When you notice any damage or wear, replace the hose before using the barbecue, in accordance with the national standards

• Fat (or any other hot substance) must never fall onto the hose, and the hose must never come into contact with any hot points on the barbecue

• The connector of the regulator must be protected when it is not connected to the cylinder

• Make sure it is not dragged along the ground as this could compromise the tightness of the connector
• Do not distort the hose when connecting or disconnecting the cylinder
• The maximum permissible length of the hose is 1.5m

LEAKAGE TEST

Line drawing of a gas cylinder with labeled point A (no text or symbols on the object itself)

Technical line drawing of a mechanical device with no visible text or symbols

Technical diagram of a mechanical or electrical device with no visible text, numbers, or symbols

A leakage test must be performed:

• Before the barbecue is lighted for the first time
  • Each time the cylinder is replaced or a gas part is changed
• At least once a year, preferably at the start of the season

The leakage test must be performed outdoors, in a well-ventilated area and not in the vicinity of an open flame, heat or ignition sources. No smoking! Use only a 50/50 mixture of liquid soap and water for the leakage test. Do not use a match or an open flame.

1. Once you have connected the cylinder to the barbecue and all control knobs are 'OFF', slowly open the cylinder 1 turn.

2. Rub the soap solution over all connections and components listed below.

Check the following areas for leaks:

• The welded joints of the cylinder (Fig. A)
• All valve connections (Fig. B)
• Regulator coupling and connection of the cylinder (Fig. B)
• All hose connections (Fig. C)

3. Soap bubbles indicate a leak.

1. Firmly tighten any leaky connection and repeat the test as long as a leak is indicated (close the cylinder valve when you are checking the leak).
2. Disconnect the cylinder/control valve and check that all control knobs are OFF.
3. Do not use the barbecue if you cannot repair the leak. Close the cylinder valve, remove the cylinder and contact a qualified maintenance person for gas appliances or the gas supplier to carry out the appropriate repairs.

Note: the regulator may differ from the version shown here.

PRIOR TO FIRST USE / AFTER PROLONGED PERIOD OF NON-USE

Do not use the barbecue before you have read, understood and checked all information in this manual.

Ensure that:

• The barbecue is correctly installed
- There is no leak in the gas supply (see 'Leakage test')
- The burners are correctly installed, the venturi tubes are properly placed over the openings of the gas valves (Fig. D), and there are no obstructions (see safety information and cleaning of the burners)
• None of the gas supply hoses can come into contact with a hot surface
- Your barbecue is installed in a safe place

D

Technical line drawing of a mechanical component with a dashed arrow indicating direction (no text or symbols)

SAFETY INFORMATION

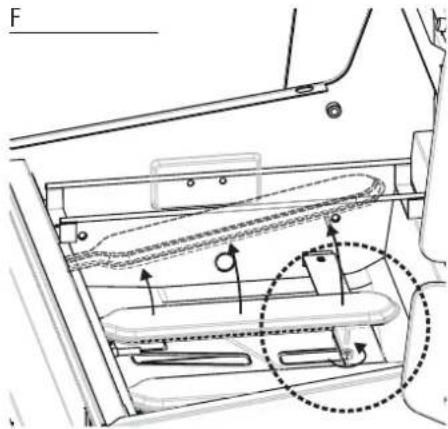

Natural hazards - spiders and insects: very tiny insects may crawl into the venturi tubes of the gas burners and build a web or nest (Fig. E)

E

Illustration of a mosquito inside a circle connected to a medical device (no text or symbols present)

that could block gas flow in whole or in part. Such a situation is indicated by a smoky, yellow flame and/or burner that can only be lighted with difficulty or not at all. The gas may eventually burn outside the venturi tube and thus cause serious damage to your barbecue. Should this happen, immediately close the cylinder. Clean the burners as soon as the barbecue has cooled down. Remove the burner(s) as shown in Fig. F. Clean with a pipe cleaner or brush

both venturi tubes. Put the burner back into place in accordance with the instructions. (Fig. F) After cleaning, the venturi tubes must be correctly placed back over the openings of the gas valves.

Note: damage arising from a fully or partly blocked venturi tube in a burner is not covered by the guarantee and is considered lack of proper maintenance

Technical line drawing of a vehicle door frame with internal compartments and directional arrows (no text or symbols)

Prior to lighting the burners, all checks and procedures detailed in the chapter 'Before the first use' must have been carried out.

• The lid of the barbecue must always be open when you light the burner(s)
• Do not bend directly over the barbecue when lighting the burner(s)
• The control knobs of the barbecue must be 'OFF'. Slowly open the gas cylinder valve. Before opening the control knob of one burner, wait approx. 10 seconds to allow to gas to stabilize
• Important: first light the middle burner
• As soon as one burner has been lighted, you only need to put the control knob of the other burner(s) in the position 'HIGH' to light them.
  • Never try to light all burners at once

HIGH LOW

LIGHTING THE BURNERS WITH THE IGNITER

• Open the lid of the barbecue
• Open the gas cylinder valve.
• Press the igniter until you hear sparks

• Holding down the igniter, press the control knob of the middle burner and turn to 'HIGH'

• If the burner does not light after 3 attempts, disconnect the gas and wait 5 minutes before trying again. This will allow the accumulated gas to escape. Try again, repeating the above steps.

• If the burner still does not light, read the chapter 'Troubleshooting Guide' to determine the cause and the remedy, or use a match as described below.

G

Technical line drawing of a mechanical device with no visible text or symbols

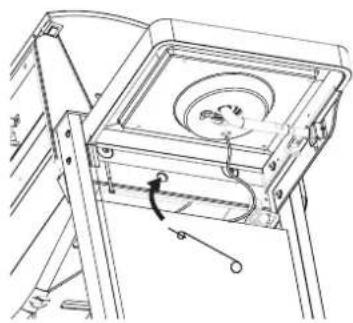

LIGHTING THE BURNERS WITH A MATCH

Left and right at the bottom of the burner box is a small opening that can be used to light the burners with a match, if the electronic igniter does not work. (Fig. G)

• Open the lid of the barbecue
• Place a match in the match holder provided (Fig. G)
• Hold a burning match through the hole, approx. 13 mm from the burner
• Open the gas cylinder valve.
• Push the required control knob and turn to 'HIGH'. The burner should light within 5 seconds. If not, turn the control knob off and wait 5 minutes to allow the gas to escape.
• Repeat steps 1 through 5. If the burner still does not light after 3 attempts, read the chapter 'Troubleshooting Guide'

- As soon as the middle burner has been lighted, you only need to put the control knob of the other burner(s) in the position 'HIGH' to light them.

First open the lid of the side burner.

To light the side burner, use the igniter on the control panel and the control knob on the side table.

• Press the igniter until you hear sparks.
• Holding down the igniter, press the control knob of the side burner and turn to 'HIGH'
• Repeat a number of times if the burner does not light immediately.
• If the burner does not light after 5 seconds, turn the control knob to 'OFF' and wait 5 minutes to allow the gas to escape.
• Repeat steps 1 through 3. If the burner still does not light, read the chapter ‘Troubleshooting Guide’ or use a match as described below.

Note:

• the maximum load of the side burner is 9 kg!
• the maximum diameter of the cooking vessel is 220 mm

H

Technical line drawing of a mechanical device with an open lid and internal grid structure (no text or symbols)

LIGHTING THE SIDE BURNER WITH A MATCH

Only for Brahma 5.2 - 4.0

223.9952.000 - 223.9952.200 -

223.9940.000 - 223.9940.200

• Place a match in the match holder provided
• Hold a burning match approx. 13 mm from the burner (Fig. H)
• Push the control knob of the side burner and turn to 'HIGH'. The burner should light within 5 seconds. If not, turn the control knob 'OFF' and wait 5 minutes to allow the gas to escape.
• Repeat steps 1 through 3. If the burner still does not light, read the chapter ‘Troubleshooting Guide’ to determine the cause and the remedy.

LIGHTING THE SPIT BURNER USING THE IGNITER

Only for Brahma 5.2 - 223.9952.000

• Open the lid of the barbecue
  • Take the warming grid out of the barbecue

• Open the gas cylinder valve.

• Press the igniter until you hear sparks

• Holding down the igniter, press the control knob of the spit burner and turn to 'HIGH'
• If the burner does not light after 3 attempts, disconnect the gas and wait 5 minutes before trying again. This will allow the accumulated gas to escape. Try again, repeating the above steps.
• If the burner still does not light, read the chapter ‘Troubleshooting Guide’ to determine the cause and the remedy, or use a match as described below.

LIGHTING THE SPIT BURNER WITH A MATCH

Only for Brahma 5.2 - 223.9952.000

• Open the lid of the barbecue
  • Take the warming grid out of the barbecue
• Place a match in the match holder provided
• Hold a burning match to the left side of the spit burner.
• Push the control knob of the spit burner and turn to 'HIGH'. The burner should light within 5 seconds. If not, turn the control knob off and wait 5 minutes to allow the gas to escape.
• Repeat steps 1 through 5. If the burner still does not light after 3 attempts, read the chapter ‘Troubleshooting Guide’

VISUAL CHECK OF THE FLAMES

HIGH LOW

If the flames of the burners jump out of the burner box when the barbecue is in use, immediately turn off the control knobs. Wait 5 minutes to allow the gas to escape before relighting the barbecue. Read the chapter 'Troubleshooting Guide' if the problem persists.

Each time you light the barbecue you should check the flames. (Fig. I) A proper flame is almost completely blue, with some yellow at the top. If the flame is abnormally small and for the most part yellow, switch off the barbecue and check the venturi tubes for obstructions, or read the chapter 'Troubleshooting Guide'.

SWITCHING OFF THE BARBECUE

- Close the gas cylinder valve

- Turn all control knobs of the burners to 'OFF'. If you follow the above order, there will be no more pressurized gas in the system.

USE OF THE SPIT

Only for Brahma 5.2 - 223.9952.000

• This spit works on batteries (batteries are not supplied)
• Store the motor in a dry place when it is not in use
• The spit should only be used outdoors and for its intended purpose
• Do not allow children to use the spit

USEFUL TIPS FOR USE OF THE BARBECUE

USING YOUR BRAHMA FOR THE FIRST TIME

When using your gas barbecue for the first time, you must first allow the unit to run in by operating it for a short period of time without any food. To run in the barbecue, light the barbecue. Close the lid and maintain the temperature at 'HIGH' for 15 minutes. Do not open the lid during this procedure. You then open the lid and allow the barbecue to operate for another 5 minutes at 'HIGH'. The barbecue is now ready for use.

WARMING UP THE BARBECUE

Allow the barbecue to warm up before placing any food on it. Close the lid and heat the cooking surface for at least 10 minutes in the setting 'HIGH'. To bake at a lower temperature than the setting 'HIGH', turn the control knobs to the required position before placing any food on the barbecue.

COOKING TIME

The actual cooking time depends on various factors such as taste, outside temperature and wind. Experience will teach you how to estimate this time.

KEEPING FLARE-UPS UNDER CONTROL

During barbecuing, some flare-ups are natural. Too many flare-ups, however, will increase the temperature in the barbecue, thereby causing accumulated fat to ignite and cause fire.

To reduce flare-ups:

• Remove excess fat from the meat before baking
• Bake fat meat (chicken and pork) at a low setting
• Check that the hole in front of the fat drain is not blocked and the fat drip cup is not full
• Bake with closed lid to cut off the air supply and lower the heat settings

NOTE: If the lid is closed, your barbecue will retain a more constant temperature and food can be baked faster and with less energy.

Should the burner(s) go out during baking, open the lid, turn off the burner(s) and wait 5 minutes to allow the gas to escape before relighting the burner.

HOW TO PREVENT FOOD FROM STICKING TO THE GRID

• Rub food lightly with oil before you place it on the grid
• Or brush the grid with some cooking oil to prevent food from sticking
• Do not turn food too quickly after placing it on the grid

WARNING:

• Never leave your barbecue unattended when in use, especially in the presence of children or domestic animals. Regularly check the barbecue for proper functioning of all its components
• Accessible parts (lid, fat drip tray, Aromaz® trays, etc.) can become very hot. Use appropriate protection when touching these parts. Keep young children away from the barbecue.
• Never move the barbecue when in use
• Never use charcoal, wood or briquettes
• Never use lava rocks or ceramic briquettes

CLEANING AND MAINTENANCE

To prolong the lifetime of your barbecue, you should at least annually perform all of the following operations, preferably at the start of the barbecue season. Buy a barbecook ^® cover to protect your barbecue.

COOKING GRIDS AND GRIDDLES

After each use, allow the barbecue to cool down and clean the grids using a non-abrasive brush.

You can also wash grids using the special barbecook® enamel cleaner, a soft detergent or sodium bicarbonate. Never use oven cleaners.

BURNERS AND VENTURI TUBES

Burners and venturi tubes should be removed and cleaned at least twice a year. Thoroughly clean the venturi tubes. Open any blocked holes using a thin wire (e.g. opened paper clip). Check that the bottom of the burner box is clean and no hole is blocked. Place the burner back in accordance with the instructions and check that the venturi tubes are positioned over the exhaust valves. If the burner exhibits cracks, unusual holes or other damage, it should be replaced.

BURNING OFF

After use, you can continue to burn the appliance for 10 or so minutes without food and with the lid closed, with all burners in the position 'HIGH'. In this way, most of the dirt will be burned off, which facilitates subsequent cleaning. Allow the appliance to cool down. You can then wipe off the burnt dust with a non-abrasive brush and clean the barbecue with soapy water.

STORAGE

Disconnect the gas from the cylinder when not in use. Store the barbecue and the gas cylinder outdoors in a well-ventilated area. Never store them in a garage, a shed or any other enclosed area, or in the vicinity of an open flame or heat source. You can store the barbecue indoors, provided the gas cylinder is disconnected from the appliance and stored outdoors in a well-ventilated area.

The barbecue must be stored indoors during the winter season. Some tips:

• Clean the burners and rub them in with cooking oil. Wrap them in paper.
• Clean the cooking grids and rub them in with cooking oil. Wrap them in paper and store them indoors.
• Protect the barbecue with a barbecook® cover if it is stored outdoors.
• Do not store gas cylinders indoors

GUARANTEE

Your barbecook® appliance comes with a two year guarantee against all manufacturing defects. This guarantee applies from the date of purchase, provided it is used in accordance with these instructions. Your till receipt specifying the date of purchase is your certificate of guarantee.

This barbecook ^® is not suitable for commercial use.

This guarantee is limited to the repair or replacement of parts which prove defective under normal use and service.

This guarantee shall not apply to defects due to improper installation, incorrect use, alterations to the appliance, disassembly of the appliance, wear and tear, or lack of maintenance.

SOLVING PROBLEMS
Problem Probable cause Solution
Impossible to light burner (with igniter or match)	• Blocked venturi tubes • Clean venturi tubes
Not enough heat • Gas cylinder valve is not open• Venturi tubes not positioned over exhaust valves• Blocked burner openings• Cylinder is empty or almost empty• Regulator not fitted correctly on cylinder	• Open gas cylinder valve• Reinstall venturi tubes• Clean openings or fit new burner• New cylinder• Tighten up connector of regulator• Disconnect hose
Yellow flames • Venturi tubes are partly blocked• Salt on burner	• Clean venturi tubes• Clean burner
Impossible to light burner with igniter • Ignition wire not fitted properly• Defective ignition electrode• Faulty ground• Defective igniter	• Check all connections• Check installation of electrodes, burner and igniter• Replace igniter
Flames jumping out of the burner box • Windy weather• Cylinder almost empty	• Move barbecue with rear side pointing towards the wind• New cylinder or fill up
Excessive heat and flare-ups • Too fatty food• Blocked fat drain hole• Cooking system not positioned correctly	• Trim excess fat or reduce heat• Clean bottom of burner box and burner• Position cooking system correctly
Flames behind control panel • Blocked venturi tubes • Shut off gas immediately, allow barbecue to cool down and clean venturi tubes
Regulator humming	• Temporary situation caused by high outside temperature or full cylinder	• This is not a defect or a hazard

Incomplete flame • Plugged, leaky or rusted burner • Clean / replace burner
Warming rack does not fit • Legs are angled too narrowly, or too widely	• The warming rack feet are adjustable. Bend them to fit into the warming rack holes.

TROUBLESHOOTING GUIDE FOR ELECTRIC IGNITION

Problem Probable cause Solution
No sparks when pressing the ignition; no sound	Battery not installed correctlyEmpty batteryIgnition button not installed correctlyDefective spark generator	Install battery (ensure that + and - are oriented correctly, with + at the top and - at the bottom)Replace with new AA batteryScrew off button and reinstallReplace spark generator
No sparks when pressing the ignition; sound is present	Faulty groundRemove and reconnect all connections with spark generator and electrodes
Sparks are present but not with all electrodes and/or not powerful enough	Faulty groundSpark flashover away from burner(s)Low batteryElectrodes are wetElectrodes cracked or brokenn “sparks are present”	Remove and reconnect all connections to the spark generator and the electrodesIf sparks are present that do not originate from the burner(s), the wiring may be damaged. Replace the wiring.Replace with new AA batteryUse paper tissues to remove the dirtReplace cracked or defective electrodes

AROMAZ® SYSTEM

GRIMBERGEN CHICKEN

Preparation time: approx. 15 minutes

Ingredients: chicken filet, barbecue herbs, Grimbergen beer, fresh thyme

Preparation: season chicken filet with barbecue herbs. Fill the Aromaz trays with Grimbergen beer, adding the fresh thyme. Place chicken on the grid with open lid and cook on medium heat with closed lid.

THAI CHICKEN

Preparation time: approx. 15 minutes

Ingredients: chicken filet, salt, curry powder, coconut milk, fresh basil

Preparation: Season chicken with salt and curry powder. Fill the Aromaz trays with coconut milk, adding the fresh basil.

PORK TENDERLOIN WITH PORT

Preparation time: approx. 15 minutes

Ingredients: pork tenderloin, salt & pepper, clove, jam, red port

Preparation: Season meat with salt & pepper, insert clove, and rub in with jam. Fill the Aromaz trays with red port, adding clove.

PORK TENDERLOIN DIJON

Preparation time: approx. 15 minutes

Ingredients: pork tenderloin, salt, black pepper, Dijon mustard, brown ale, chives

Preparation: Rub the meat with mustard and season with black pepper and chives. Fill the Aromaz trays with brown ale, adding chives.

DE

Line drawing of a gas cylinder with labeled point A (no text or symbols on the object itself)

Simple line drawing of a mechanical device with no text or symbols

Pure mechanical diagram showing a valve assembly with no text, numbers, or symbols

Technical line drawing of a mechanical component with a dashed arrow indicating assembly or alignment (no text or symbols)

Illustration of a mosquito inside a circle connected to a bottle, showing internal infection (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with an open lid and internal grid structure (no text or symbols)

Line drawing of a gas cylinder with labeled point A (no text or symbols on the object itself)

Simple line drawing of a mechanical device with no text or symbols

C

Technical line drawing of a mechanical component with a dashed arrow indicating assembly or alignment (no text or symbols)

Illustration of a mosquito inside a circle and a bottle with a tail, showing no text or symbols.

Technical line drawing of a vehicle door frame with internal compartments and directional arrows (no text or symbols)

ANAMMA TΩN KAYΣTHPΩN

Technical line drawing of a mechanical device with no visible text or symbols

ANAMMA KAYΣTHPΩN ME ΣΠΙΡΤΑ

Technical line drawing of a mechanical device with an open lid and internal grid structure (no text or symbols)

Line drawing of a gas cylinder with labeled point A (no text or symbols on the object itself)

Technical line drawing of a mechanical device with a spring and connecting rod (no text or symbols)

C

Technical line drawing of a mechanical component with a dashed circular arrow indicating direction (no text or symbols)

Illustration of a mosquito inside a circle and a bottle with a string, no text or symbols present.

Technical line drawing of a vehicle door frame with internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with an open lid and internal grid structure (no text or symbols)

ENCENDIDO DEL QUEMADOR LATERAL CON UNA CERILLA

Sólo para Brahma 5.2 - 4.0 223.9952.000 - 223.9952.200 - 223.9940.000 - 223.9940.200

Line drawing of a gas cylinder with labeled point A (no text or symbols on the object itself)

Simple line drawing of a mechanical device with no text or symbols

Technical line drawing of a mechanical or electrical device with no visible text, numbers, or symbols.

Technical line drawing of a mechanical component with a dashed circular arrow indicating direction (no text or symbols)

Illustration of a mosquito infecting a bottle, showing magnified view of the insect and bulb (no text or symbols)

Technical line drawing of a vehicle door panel with arrows indicating movement or force (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a portable stove or oven with a handle and internal grating (no text or symbols)

GAASIBALLOONI TRANSPORT JA HOIUSTAMINE

VOOLIK JA REGULAATOR

Line drawing of a gas cylinder with a labeled inlet (A), no text or symbols present

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with tubing and components (no text or symbols)

Technical line drawing of a mechanical component with a dashed arrow indicating assembly or alignment (no text or symbols)

OHUTUSALANE INFORMATSIOON

Illustration of a mosquito inside a circle and a medical device with tubing (no text or symbols)

Technical line drawing of a vehicle door frame with internal compartments and a highlighted section (no text or symbols)

PÖLETITE SÜÜTAMINE

Technical line drawing of a mechanical assembly with no visible text or symbols

PÖLETITE SÜÜTAMINE TIKKUDEGA

Line drawing of an open industrial machine with a handle and internal grid structure (no text or symbols)

KÜLGPÖLETI SÜÜTAMINE TIKKUDEGA

Ainult mudel Brahma 5.2 - 4.0 223.9952.000 - 223.9952.200 - 223.9940.000 - 223.9940.200

Line drawing of a cylindrical gas cylinder with a labeled section A (no text or symbols on the object itself)

Simple line drawing of a mechanical device with no text or symbols

Technical line drawing of a mechanical device with hoses and components (no text or symbols)

Technical line drawing of a mechanical component with a dashed circular arrow indicating direction (no text or symbols)

TURVAOHJEET

Illustration of a mosquito inside a circle and a medical device connected to it (no text or symbols)

Technical line drawing of a vehicle door frame with internal compartments and directional arrows (no text or symbols)

POLTINTEN SYTYTTÄMINEN

Technical line drawing of a mechanical assembly with no visible text or symbols

POLTINTEN SYTYTTÄMINEN TULITIKUILLA

Technical line drawing of a mechanical device with an open lid and internal grid structure (no text or symbols)

SIVUPOLTTIMEN SYTYTTÄMINEN TULITIKUILLA

Vain mallille Brahma 5.2 - 4.0 223.9952.000 - 223.9952.200 - 223.9940.000 - 223.9940.200

SKIFTE AV GASSBEHOLDER

Line drawing of a gas cylinder with labeled point A (no text or symbols on the object itself)

Simple line drawing of a mechanical device with no text or symbols

C

Technical line drawing of a mechanical component with a dashed circular arrow indicating direction (no text or symbols)

SIKKERHETSINFORMASJON

Illustration of a mosquito inside a circle and a bottle with a string attached (no text or symbols)

Technical line drawing of a car door frame with internal compartments and directional arrows (no text or symbols)

TENNE BRENNERNE

TENNE BRENNERNE MED TENNEREN

Technical line drawing of a mechanical assembly with no visible text or symbols

TENNE BRENNERNE MED EN FYRSTIKK

Technical line drawing of an open industrial machine with a handle and internal grid structure (no text or symbols)

TENNE SIDEBRENNEREN MED EN FYRSTIKK

Kun for Brahma 5.2 - 4.0 223.9952.000 - 223.9952.200 - 223.9940.000 - 223.9940.200

HOLDE OPPFLAMMING UNDER KONTROLL

Line drawing of a cylindrical gas cylinder with a labeled inlet point A (no text or symbols on the object itself)

Line drawing of a mechanical device with a central component and attached tubing (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical component with a dashed arrow indicating assembly or alignment (no text or symbols)

SÄKERHETSINFORMATION

Illustration of a mosquito inside a circle and a medical device connected to a bottle (no text or symbols)

Technical line drawing of a car interior showing door, handlebars, and directional arrows (no text or symbols)

TÄNDA BRÄNNARNA

Technical line drawing of a mechanical assembly with no visible text or symbols

TÄNDA BRÄNNARNA MED TÄNDSTICKA

Line drawing of an open electrical enclosure with a handle and internal grid structure (no text or symbols)

TÄNDA SIDOBRÄNNAREN MED TÄNDSTICKA

Endast för Brahma 5.2 – 4.0 223.9952.000 – 223.9952.200 - 223.9940.000 - 223.9940.200

Line drawing of a cylindrical gas cylinder with a labeled section A (no text or symbols on the object itself)

Technical line drawing of a mechanical device with no visible text or symbols

C

Technical line drawing of a mechanical component with a dashed arrow indicating direction (no text or symbols)

INFORMAZIONI PER LA SICUREZZA

Illustration of a mosquito infecting a bottle, showing a magnified view of the infection (no text or symbols present)

Technical line drawing of a car interior showing door, vent, and drawer with arrows indicating movement (no text or symbols)

ACCENSIONE DEI BRUCIATORI

Technical line drawing of a mechanical device with internal components and directional arrows (no text or symbols)

ACCENDERE I BRUCIATORI CON UN FIAMMIFERO

Technical line drawing of a mechanical device with an open lid and internal grid structure (no text or symbols)

ACCENDERE IL BRUCIATORE LATERALE CON UN FIAMMIFERO

Soltanto per Brahma 5.2 - 4.0 223.9952.000 - 223.9952.200 - 223.9940.000 - 223.9940.200

Line drawing of a cylindrical gas cylinder with a labeled component (A), no text or symbols present.

Simple line drawing of a mechanical device with a handle and internal components (no text or symbols)

Pure mechanical diagram showing a vertical pipe connected to a spring and two connected pipes (no text or symbols)

Technical line drawing of a mechanical component with a dashed circular arrow indicating direction (no text or symbols)

INFORMAÇÕES DE SEGURANÇA

Illustration of a mosquito inside a circle connected to a bottle (no text or symbols)

Technical line drawing of a vehicle door frame with internal compartments and directional arrows (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

ACENDER OS BICOS DE GÁS COM UM FÓSFORO

Technical line drawing of a mechanical device with an open lid and internal grid structure (no text or symbols)

ACENDER O BICO DE GÁS LATERAL COM UM FÓSFORO

Apenas para o modelo Brahma 5.2 - 4.0 223.9952.000 - 223.9952.200 - 223.9940.000 - 223.9940.200

Line drawing of a gas cylinder with a labeled inlet (A), no text or symbols present

Technical line drawing of a mechanical device with no visible text or symbols

C

Technical line drawing of a mechanical component with a dashed circular arrow indicating direction (no text or symbols)

SIKKERHEDSINFORMATION

Illustration of a bug and spider inside a circle, with a magnified view of the same species (no text or symbols)

Technical line drawing of a vehicle door frame with internal compartments and directional arrows (no text or symbols)

TÆNDING AF BRÆNDERE

Technical line drawing of a mechanical device with no visible text or symbols

TÆNDING AF BRÆNDER MED TÆNDSTIK

Line drawing of a grating machine with an open lid and internal grid structure (no text or symbols)

TÆNDING AF BRÆNDER MED TÆNDSTIK

Kun for Brahma 5.2 - 4.0 223.9952.000 - 223.9952.200 - 223.9940.000 - 223.9940.200

For at reducere stikflammer:

Line drawing of a mechanical device with a central component and attached tubing (no text or symbols)

Technical line drawing of a mechanical device with hoses and components (no text or symbols)

Technical line drawing of a mechanical component with a dashed circular arrow indicating assembly or alignment (no text or symbols)

BIZTONSÁGI INFORMÁCIÓK

Illustration of a mosquito infecting a bottle, showing magnified view of the infection (no text or symbols)

Technical line drawing of a vehicle door frame with internal compartments and directional arrows (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

AZ ÉGŐFEJEK BEGYÚJTÁSA GYUFÁVAL

Technical line drawing of a mechanical device with an open lid and internal grid structure (no text or symbols)

AZ OLDALSÓ ÉGŐFEJ BEGYÚJTÁSA GYUFÁVAL

Csak a Brahma 5.2 - 4.0

223.9952.000 - 223.9952.200 -

I HIGH LOW

Line drawing of a cylindrical gas cylinder with a labeled end point A (no text or symbols on the object itself)

Simple line drawing of a mechanical device with a central component and piping (no text or symbols)

C

Technical line drawing of a mechanical component with a dashed circular arrow indicating assembly or alignment (no text or symbols)

INFORMATII PRIVIND SIGURANTA

Illustration of a mosquito infecting a bottle, showing a magnified view of the infection (no text or symbols present)

Technical line drawing of a car interior showing door, seat, and dashboard components with no visible text or symbols

APRINDEREA ARZĂTOARELOR

Technical line drawing of a mechanical assembly with no visible text or symbols

APRINDEREA ARZĂTOARELOR CU UN CHIBRIT

Technical line drawing of a mechanical device with an open lid and internal grid structure (no text or symbols)

APRINDEREA ARZĂTORULUI LATERAL

Numai pentru tipul Brahma 5.2 – 4.0 223.9952.000 – 223.9952.200 - 223.9940.000 - 223.9940.200

Line drawing of a gas cylinder with a labeled section A (no text or symbols on the object itself)

Line drawing of a mechanical device with a central hub and attached tubing (no text or symbols)

Technical line drawing of a mechanical device with tubing and spring components (no text or symbols)

Technical line drawing of a mechanical component with a dashed circular arrow indicating direction (no text or symbols)

BEZPEČNOSTNÍ INFORMACE

Illustration of a mosquito inside a circle connected to a bottle (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

ZAPALOVÁNÍ HOŘÁKŮ POMOCÍ SIREK

Line drawing of an open electrical stove with a handle and internal grid (no text or symbols)

ZAPALOVÁNÍ BOČNÍHO HOŘÁKU POMOCÍ SIREK

Pouze model Brahma 5.2 - 4.0

223.9952.000 - 223.9952.200 -

223.9940.000 - 223.9940.200

Line drawing of a gas cylinder with a labeled inlet (A), no text or symbols present

Technical line drawing of a mechanical device with labeled section B (no text or symbols on the diagram itself)

C

Provjera propuštanja mora se provesti:

• prije prvog paljenja roštilja
• pri svakoj izmjeni boce s plinom ili plinskog dijela
• najmanje jedanput godišnje, po mogućnosti na početku sezone.

Technical line drawing of a mechanical component with a dashed circular arrow indicating a detail (no text or symbols)

NAPUCI ZA SIGURNOST

Illustration of a mosquito inside a circle connected to a bottle, with no visible text or symbols.

Technical line drawing of a vehicle door panel with directional arrows and a highlighted section (no text or symbols)

PALJENJE PLAMENIKA

Technical line drawing of a mechanical device with no visible text or symbols

PALJENJE PLAMENIKA ŠIBICOM

Technical line drawing of a mechanical device with an open lid and internal grid structure (no text or symbols)

PALJENJE BOČNOG PLAMENIKA ŠIBICOM

Samo za model Brahma 5.2 - 4.0 223.9952.000 - 223.9952.200 - 223.9940.000 - 223.9940.200

• Stavite šibicu u držač šibice.
- Držite šibicu na udaljenosti od oko 13 mm od plamenika (sl. H).
- Pritisnite regulacijski prekidač bočnog plamenika i okrenite ga u položaj "HIGH". Plamenik bi se trebao upaliti unutar 5 sekundi. Ako se ne upali, isključite regulacijski prekidač i pričekajte 5 minuta kako bi plin izašao.
- Ponovite postupak od koraka 1 do 3. Ako se plamenik svejedno ne upali, pročitajte poglavlje "Problemi u radu" i pokušajte ustanoviti uzrok i rješenje.

PALJENJE MLAZNOG PLAMENIKA UPALJAČEM

Samo za model Brahma 5.2 – 223.9952.000

Line drawing of a gas cylinder with labeled point A (no text or symbols on the object itself)

Line drawing of a mechanical device with a central component and piping (no text or symbols)

C

Technical line drawing of a mechanical component with a dashed circular arrow indicating direction (no text or symbols)

INFOMACIJA DÉL SAUGUMO

Illustration of a mosquito inside a circle connected to a bottle (no text or symbols)

Technical line drawing of a vehicle door frame with internal compartments and directional arrows (no text or symbols)

DEGIKLIŲ UŽDEGIMAS

Technical line drawing of a mechanical device with no visible text or symbols

DEGIKLIŲ UŽDEGIMAS NAUDOJANT DEGTUKUS

Technical line drawing of a mechanical device with an open lid and internal grid structure (no text or symbols)

ŠONINIŲ DEGIKLIŲ UŽDEGIMAS NAUDOJANT DEGTUKUS

Tik su „Brahma“ 5.2 modeliu - 4.0 223.9952.000 - 223.9952.200 - 223.9940.000 - 223.9940.200

Line drawing of a cylindrical gas cylinder with a labeled section A (no text or symbols on the object itself)

Simple line drawing of a mechanical device with no text or symbols

C

Technical line drawing of a mechanical component with a dashed circular arrow indicating motion (no text or symbols)

DROŠĪBAS INFORMĀCIJA

Illustration of a mosquito infecting a bottle, showing the magnified view of the infection (no text or symbols present)

Technical line drawing of a vehicle door frame with internal compartments and a highlighted section (no text or symbols)

DEGLU IEDEGŠANA

Technical line drawing of a mechanical assembly with no visible text or symbols

DEGLU IEDEGŠANA AR SĚRKOCINUU

Technical line drawing of a mechanical device with an open lid and internal grid structure (no text or symbols)

SĀNU DEGLA IEDEGSANA AR SĒRKOCINU

Tikai "Brahma 5.2 - 4.0

223.9952.000 - 223.9952.200 -

223.9940.000 - 223.9940.200

Line drawing of a gas cylinder with a labeled section line (A), no text or symbols present.

Simple line drawing of a mechanical device with no text or symbols

Technical line drawing of a mechanical or electrical device with no visible text, numbers, or symbols

Technical line drawing of a mechanical component with a dashed circular detail and a separate view of a bolted joint (no text or symbols)

WSKAZÓWKI DOTYCZĄCE BEZPIECZEŃSTWA

Illustration of a mosquito inside a circle connected to a bottle, with no visible text or symbols.

Technical line drawing of a vehicle door frame with internal compartments and directional arrows (no text or symbols)

ROZPALANIE PALNIKÓW

Technical line drawing of a mechanical assembly with no visible text or symbols

ROZPALANIE PALNIKÓW ZA POMOCĄ ZAPAŁEK

Technical line drawing of an open industrial machine with a handle and internal grid structure (no text or symbols)

ROZPALANIE PALNIKA BOCZNEGO ZA POMOCA ZAPAŁEK

Tylko Brahma 5.2 – 4.0

223.9952.000 - 223.9952.200

- 223.9940.000 - 223.9940.200

223.9952.000

Pure mechanical diagram showing a lever and connecting rod assembly without any text or symbols

Technical line drawing of a mechanical component with a dashed circular arrow indicating assembly or alignment (no text or symbols)

BEZPEČNOSTNÉ INFORMÁCIE

Illustration of a mosquito inside a magnified view of its eye and tail, alongside a bottle (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

ZAPAL'OVANIE HORÁKOV POMOCOU ZÁPALIEK

Line drawing of a portable stove or grill with a handle and internal grating (no text or symbols)

ZAPAL'OVANIE BOČNÉHO HORÁKU POMOCOU ZÁPALIEK

Iba model Brahma 5.2 - 4.0 223.9952.000 - 223.9952.200 - 223.9940.000 - 223.9940.200

TA NAPRAVA JE NAREJENA SAMO ZA UPORABO NA PROSTEM

ČE VOHATE PLIN:

1. ZAPRITE DOVOD PLINA
2. POGASITE KAKRŠENKOLI ODPRT OGENJ
3. ODPRITE POKROV

4. ČE VONJ ŠE OSTAJA, NEMUDO-MA POKLIČITE SVOJEGA DOBAVI-TELJA PLINA ALI GASILCE

5. UPORABNIK JE ODGOVOREN ZA PRAVILNO NAMESTITEV IN UPORABO ŽARA.

6. NEUPOŠTEVANJE NAVODIL V TEM PRIROČNIKU LAHKO POVZROČI NE-VARNOST POŽARA ALI EKSPLOZIJE.
7. NEUPOŠTEVANJE NAVÓDIL V TEM PRIROČNIKU LAHKO POVZROČI HUDE TELESNE POŠKODBE IN MATERIALNO ŠKODO.
8. KO DELATE S POSEBNO VROČIMI DELI, UPORABLJAJTE ZAŠČITNE ROKAVICE
9. PREDELAVA ŽARA JE NEVARNA IN PREPOVEDANA. NAPRAVO JE POTREBNO NAMESTITI V SKLADU Z VELJAVNIMI PREDPISI.

- JEKLENKO SHRANJUJTE NA PROSTEM V DOBRO PREZRAČENEM OBMOČJU

- NIKOLI NE POSTAVITE NADOMESTNE JEKLENKE (POLNE ALI PRAZNE) POD ALI ZRAVEN ŽARA, KI JE V UPORABI.

- NIKOLI NE SHRANJUJTE ALI UPORABLJAJTE BENCINA ALI DRUGIH VNETLJIVIH HLAPOV IN TEKOČIN V BLIŽINO TEGA ALI KATEREGAKOLI DRUGEGA ŽARA.

• GORLJIVI MATERIALI NE SMEJO BITI BLIŽJE KOT 76 CM OD ŽARA

- V OBMOČJU OKROG ŽARA NAJ NIKOLI NE BO GORLJIVIH MATERIALOV, BENCINA ALI DRUGIH VNETLJIVIH TEKOČIN

- ŽAR UPORABLJAJTE SAMO NA PROSTEM V DOBRO PREZRAČENEM OBMOČJU IN NAJMANJ 3 M ODDALJENEGA OD BIVALIŠČA ALI ZGRADBE.

• NAPRAVE NE UPORABLJAJTE POD BALKONOM ALI POD LISTI

- ŽARA NE UPORABLJAJTE NA LADJI ALI DRUGIH REKREATIVNIH VOZILIH

- ŽARA NE UPORABLJAJTE V GARAZI, LOPI, NA HODNIKIH ALI DRUGIH OGRAJENIH OBMOČJIH

- KO ŽAR UPORABLJATE, GA NE PUŠČAJTE BREZ NADZORA

• NE OVIRAJTE TOKA IZGOREVAJOČEGA IN VENTILACIJSKEGA ZRAKA DO ŽARA
• ŽARA NE UPORABLJAJTE, ČE STE PILI ALI ALKOHOL ALI JEMALI DROGO
• DOSTOPNI DELI LAHKO POSTANEJO ZELO VROČI. (MAJHNI) OTROCI IN ŽI-VALI SE NE SMEJO PRIBLIŽATI ŽARU.
  • MED UPORABO ŽARA NE PREMIKAJ-TE
  • NIKOLI NE UPORABLJAJTE OGLJA, LESA ALI BRIKETOV
• NIKOLI NE UPORABLJAJTE LAVA KA-MNOV ALI KERAMIČNIH BRIKETOV
• PREZRAČEVALNE ODPRTINE NA VOZIČKU MORAJO BITI VEDNO PROŠTE.
• UPORABNIK NE SME SPREMINJATI DELOV, KI JIH JE ZATESNIL PROIZVA-JALEC ALI NJEGOV PREDSTAVNIK.
• NIKOLI NE PRIŽIGAJTE STRANSKEGA GORILNIKA, ČE POKROV NI ODPRT.
• VEDNO POSTAVITE DVE OKROGLE ODPRTINE V REŠETO NAD PLADNJE AROMAZ®.

PRIKLJUČEK PLINA

PLINSKA JEKLENKA

Line drawing of a gas cylinder with a labeled section line (A), no text or symbols present.

B C

Technical line drawing of a mechanical component with a dashed circular arrow indicating assembly or alignment (no text or symbols)

INFORMACIJE O VARNOSTI

Illustration of a mosquito inside a circle connected to a bottle, with no visible text or symbols.

Technical line drawing of a vehicle door handle with internal compartments and a highlighted section (no text or symbols)

VŽIG GORILNIKOV

Technical line drawing of a mechanical device with no visible text or symbols

PRIŽIGANJE GORILNIKOV Z VŽIGALICO

Line drawing of an open industrial stove or oven with a handle and internal grating (no text or symbols)

PRIŽIGANJE STRANSKEGA GORILNIKA Z VŽIGALICO

Samo za Brahma 5.2 – 4.0 223.9952.000 – 223.9952.200 - 223.9940.000 - 223.9940.200

barbecook ^® and Aromaz ^® are registered trade marks of

SAEY Home & Garden N.V. Industrielaan 4 / B-8501 Heule (Kortrijk) Belgium

www.barbecook.com
