Instruction manual for

KLIPPO LAWNMOWERS

Models: Triumph, Champion, Excellent, Excellent GCV, Pro 17 GCV and Pro 19 GCV.

Engines: Briggs & Stratton; 550 Series, 625 Series, 675 Series. Honda; GCV 135.

Congratulations on purchasing a Klippo Lawnmower!

Before starting, we recommend that you carefully read instruction manual in order to obtain the best from your mower.

Safety instructions for power lawnmower with horizontally rotating blades

These instructions are to be carfully studied before the lawnmower is used.

1. Keep hand and feet clear of the rotating blades and never put your hand or foot into any ejector opening without first making sure that the blade is not moving and the ignition cable is disconnected from the spark plug.
2. Do not touch the blade until the ignition cable has been disconnected from the spark plug. Rotating the blades may cause the engine to start.
3. Do not leave the machine unattended without stopping the engine.
4. The engine speed regulator must not be disabled. The pre-adjusted number of revolutions may not be changed. Protections and safety devices may not be taken away or be set out of function.
5. Do not top up with fuel when the engine is warm. Don't smoke while fi lling up with fuel or in the near of the tank. WARNING! Petrol is very fl ammable! Store the fuel in containers intended for petrol. Don't remove the fuel fi ller or fi ll up with fuel while the engine is running.
6. Never allow children or other persons whom are not

familiar with the machine to operate the lawnmower. Even if the machine has very effective protections it could throw out solid objects that can cause injuries.

1. Keep the lawn as clear as possible of stones or other objects that the lawnmower can strike. Avoid driving over gravel paths etc.
2. Familiarize lawnmower operators with the risks and explain how accident are to be avoided.
3. The machine may not be used for any other purpose than cutting grass.
4. Wear pants and suitable shoes while cutting grass. Be aware that a lawn could be slippery!
5. Never touch anything under the cutting deck, as for instance dismount or mount the mulching insert, without disconnecting the spark plug cable first.
6. Do not use the lawnmower if any protection or safety device is damaged. Inspect the machine before every use. Control regularly that all screws and nuts are fastened, especially blade and engine.

Fitting and adjustment

UPPER HANDLE

Fitted without tools, with a strong nut on the articulated plate.

HANDLE POSITION

When required, the handle can be rotated laterally to some extent by means of the handle joint, e.g., when mowing close to hedges or house walls. The handle can be set to different positions for the best operating position. The handle can be altered (not Triumph and Pro 17 GCV) in height at the chassis mount by turning the nylon knobs (fi g. 1). On Triumph and Pro 17 GCV the height of the handle is changed by moving the fastening screws of the under part of the handle to the other hole nearby.

SETTING THE CUTTING HEIGHT (fi g. 2)

Move the lever forwards for taller grass. The lever positions

correspond to 3-6 mm grass height. (2,5 - 5,5 cm on the Triumph and 3,0-5,0 on the Pro 17 GCV).

All the weels are set simultaneously in one operation. Make use of the efficient height setting of the KLIPPO lawn-mowers when mowing edges or trimming.

Never cut grass unnecessarily short. This makes spreading more difficult and increases the risk of “scalping”.

Discharge protection for Klippo Pro 4 SD, please look at the enclosed assembly instruction.

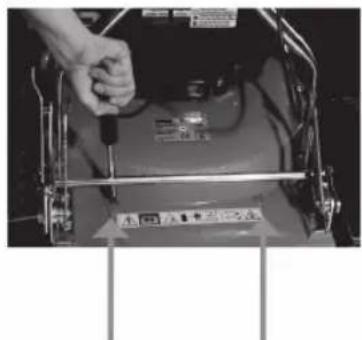

Mulching insert Excellent-, Champion and Pro 19-models

This insert is mounted on the Excellent-models and is dismounted on the Pro 19-models by delivery. This is mounted/dismounted by the two screws on the rear/upper part of the cutting deck (fig. 11). Beware that the spark plug cable is disconnected before dismounting/mounting!

Before starting the engine

Before starting engines for the first time: fill with oil (fig 3.) and READ THE ENCLOSED INSTRUCTION MANUAL FOR THE ENGINE!

Unscrew the dipstick and fi ll up with approx. 0,55 lit. of engine oil, viscosity SAE 30, Klippo oil no. 502873501 or accor-ding to the engine manual. Fill up to the full graduation mark on the dipstick (do not fi ll above it).

NB. THE OIL IS DRAINED PRIOR TO DELIVERY!

When operated for the first time, the silencer will change colour and may smoke briefly.

OILCHECK

Check the oil level before starting and every five hours. Take off the dipstick and dry it up. Screw the dipstick into the tube completely and make sure that the oil reaches the FULL mark (fig. 3).

RUNNING-IN and FIRST OIL CHANGE

The engine has already been adjusted and require no running-in as such, although you should run it at no more than moderate load for the first few hours. Remember to change the oil the first time after five hours of operation (fig. 9), and then every twenty-fi ve hours.

PETROL

Use leadfree 95 octane petrol. Stop the engine before fllling. Do not overfill the tank so much that it overflows. Leave around 6 mm for the fuel to expand.

Don't let the machine stay over the winter with petrol in the tank. This could cause starting problems in spring.

Starting the engine

ENGINES: 625 Series, 550 Series

1. Push the Prime-starter (fi g. 4) throughly three times. It is placed in the front of the engine and on the right side. When starting a warm engine, normally pushing the prime-starter is unnecessary.
2. The security bail (fi g. 5b) must be in operating position, by starting and operating.
3. Give the starting string a powerful lug.

By cold weather it could be necessary to repeat the procedure. If the engine still doesn't start, try to start with the throttle control in idle position (turtle). If the engine still doesn't start, take off the spark plug and clean it and try again.

675 Series-engine

1. The security bail (fi g. 5b) must be in operating position, by starting and operating.
2. Just pull the starting string.

MODELS WITH HONDA ENGINE:

1. Starting a cold engine: Set the throttle control to choke position (hare), pulshed forward as far as possible. And open the petrol valve (behind the air filter on the left side of the engine). If the engine has got too much petrol, try to start with the throttle control in idle position. If it doesn't start, take off the spark plug and clean it from petrol and dirt. When starting a warm engine, normally the choke is unnecessary.
2. The security bail (fi g. 5b) must be in operating position, by starting and operating.
3. Give the staring string a powerful lug.

STOP

The machine will be stopped either through dropping the security bail (fi g. 5b).

General remarks

Tidy up the lawn before mowing. Solid objects laying in the grass are dangerous to hit with blade and are worning out the blades unnecessarily.

A lawnmower must not be driven into solid objects, check the lawn for any concealed pipes and mark their position. Drive the lawnmower calmly and methodically, e.g., in continuous circles and always in such a way that you even out any stripes. Mow in different directions every time.

TIPS ON MOWING

Experts agree that it is the best to trim only one third of the length of the grass at one time, as this stimulates its growth and gives a tougher and greener lawn.

Maintenance

Maintenance

NB. To prevent accidental engine starting, always dis-connect the ignition cable when the engine or lawnmower is being serviced!

The machine should be left to an authorized KLIPPO-workshop after every season. Machines with catalytic converter should be left to an authorized KLIPPO-workshop at least ever third year or every 100 operating hours, whichever occurs first.

MAINTENANCE INSTRUCTIONS

Keep the top underneath of the lawnmower clean and wipe off any grass before it dries. When working underneath the machine place the machine with the spark plug upwards and disconnect the ignition cable. Tighten all mounting bolts from time to time and lubricate catches and axles after every season. Bare-metal parts should be rubbed down with a rag dipped in anti-corrosion oil. Routine servicing every fifty hours is recommended in cases of professional use. Use only KLIPPO original spare parts and accessoires. (It's a condition for the CE-marking).

Cutter blade system

Mulcherblade standard for Triumph, Champion, Pro 17 GCV and Pro 19. For the Excellent models we use a Cross-cut mulcher blade (fi g. 6).

Blade replacement

A robust cup spring presses the blade plate/blade against a friction washer. A 14 mm ring spanner or sockel is recommended for removal of the blade bolt, which has a conventional right-hand thread. To assemble, tighten the bolt firmly and carefully knock the sockel onto it with a hammer. The blade also functions as a flywheel. If it slips the engine may run unevenly or be difficult to start, e.g., may backfire. N.B. To avoid vibration, fit the blade with the markings on the blade mount facing the side of the blade. See fig. 7.

VIBRATIONS

Never run a lawnmower if it vibrates abnormally. If a blade is damaged, replace it.

AIR CLEANER SERVICE

Briggs & Stratton 625 Series & 675 Series-engines (fi g. 8)

Clean the element every three months or every twenty-five hours, whichever comes first. NB. Clean the element more frequently when operating under dusty conditions.

1. Loosen the screw and lower the cover as shown in the figure.
2. Carefully remove the element.
3. Clean the element by carefully knocking it against a flat surface. If it is heavily soiled, it must be replaced.
4. Replace the element, close the cover and tighten firmly.

Briggs & Stratton 550 Series engines (fi g. 9)

Clean and lubricate the foam element every third month or every 25th working hour, which occurs first. NB. Clean the element more frequently if the working conditions for the engine are dusty.

1. Screw off the screw and demount the air cleaner carefully so that dust don't fall down into the carburator.
2. Take the air cleaner apart and clean all parts. Clean the foam in liquid cleaning and water. Press it dry in a clean shread. Appease with engine oil. Press with a clean shread to take away all unnecessary oil.
3. Assemble all the parts again and mount the air cleaner properly on the carburator with the screw.

Honda GCV 135-engines (fi g. 10)

Clean the element every three months or every twenty-five hours, whichever comes first. NB. Clean the element more frequently when operating under dusty conditions.

1. Loosen the snap-on fastenings and lower the cover as shown in the figure.
2. Carefully remove the element.
3. Clean the element by carefully knocking it against a flat surface. If it is heavily soiled, it must be replaced.
4. Replace the element, close the cover and push the snap-on fastenings properly.

NORMAL OIL CHANGE

Unscrew the dipstick and place the lawn-mower in such a position as to allow the oil to run out. This can be done most easily when the engine is warm and the fuel tank is empty. Then fi ll with fresh oil (0,6 l SAE 30) up to the FULL-mark on the dipstick (fi g. 8).

TROUBLESHOOTING

If the engine does not start, check the following:

1. That there is fresh and new petrol in the tank and the petrol valve is open (Honda engines).
2. Check that the choke is correctly adjusted (Honda engines).
3. Control that the brake cable is correctly adjusted.
4. That the spark plug is not fouled with soot and the gap is correct (it should be 0,7-0,8 mm).
5. Is the blade properly fastened?
6. Is the air filter blocked with dirt? Clean or change it! If the engine fails to start after these measures, contact your nearest service workshop.
7. Does the cutting result being bad and the blades of the grass being uneven in cut area? Change the blade of the lawnmower!

CLEANING

Place the lawnmower with the spark plug upwards. First run until the tank is empty, otherwise petrol will leak out through the venting hole in the tank cap. Beware of the environment and the fire danger! NB. Never flush the lawnmower with a high-pressure cleaner.

WINTER STORAGE

Run until no more petrol is left and change the oil. Then pour one spoonful of oil into the spark-plug hole and turn over the engine so that the oil is distributed. Clean the air filter and gear housing. Store the lawnmower indoors in a dry spot. Charge the battery with the charger.

EC-declaration of conformity

(Applies to Europe only)

Husqvarna AB, SE-561 82 Huskvarna, Sverige, tel: [phone], declares under sole responsibility that the lawn mowers Klippo Triumph, Champion, Pro 17 GCV, Pro 19 GCV, Excellent, Excellent GCV from the serial numbers 08XXXXXXX and onwards comply with the requirements of the

• of June 22, 1998 "relating to machinery" 98/37/EC.
• of December 15, 2004 "relating to electromagnetic compatibility" 2004/108/EC.
• of May 8, 2000 "relating to the noise emissions in the environment" 2000/14/EC.

Registered body 0404, SMP Svensk Maskinprovning AB, Fyrisborgsgatan 3, SE-754 50 Uppsala, Sweden, has issued reports regarding the assessment of conformity according to annex VI of the COUNCIL'S DIRECTIVE of May 8, 2000 "relating to the noise emissions in the environment" 2000/14/EC.

The certifi cates have the numbers:

Triumph 17/901/005

Champion 17/901/001

Pro 17 GCV 17/901/010

Pro 19 GCV 17/901/012

Excellent 17/901/017

Excellent GCV 17/901/015

Huskvarna 3 October 2008

Bengt Ahlund, Development manager

Modell	Art.no. Engine		Engine volume/cc	Measured noise level, dB(A)	Guaranteed noise level, dB(A)	Operators noise level type, dB(A)	Blade type	Cutting width, cm
Triumph 965229601 B&S 550 Series 158 92 96			78 Mulcher	42
Champion	965223901	B&S 625 Series	190	92	96	79	Mulcher	48
Excellent	965227601	B&S 675 Series	190	92	96	82	Mulcher	48
Excellent GCV	965227701	Honda GCV 135	135	89	96	77	Mulcher	48
Pro 17 GCV	965230101	Honda GCV 135	135	89	96	79	Mulcher	42
Pro 19 GCV	965229001	Honda GCV 135	135	89	96	78	Mulcher	48

Vibration level: See Technical specifications, page 43!

Pro 17 GCV 17/901/010

Pro 19 GCV 17/901/012

Excellent 17/901/017

Excellent GCV 17/901/015

Huskvarna, den 3. Oktober 2008

Moteurs: Briggs & Stratton; 550 Series, 625 Series, 675 Series. Honda; GCV 135.

Pro 17 GCV 17/901/010 Pro 19 GCV 17/901/012

Excellent 17/901/017 Excellent GCV 17/901/015

Pro 17 GCV 17/901/010

Pro 19 GCV 17/901/012

Excellent 17/901/017

Excellent GCV 17/901/015

Pro 17 GCV 17/901/010

Pro 19 GCV 17/901/012

Excellent 17/901/017

Excellent GCV 17/901/015

Bard A. H. L. Dere notable and useful rights publication

Pro 17 GCV 17/901/010

Pro 19 GCV 17/901/012

Excellent 17/901/017

Excellent GCV 17/901/015

Triumph	17/901/005	Champion	17/901/001
Pro 17 GCV	17/901/010 Pro	19 GCV 17/901/012
Excellent	17/901/017	Excellent GCV	17/901/015

English - SAFETY INSTRUCTIONS - WARNING!

• Please read the operator's manual carefully and make sure you understand the instructions before using the machine.
• Under no circumstances should you modify the original design of the machine without approval from the manufacturer. Always use original spare parts. Unauthorised modifications and/or accessories may lead to serious injury or death to the user or others.
• A lawn mower is a dangerous tool if used carelessly or incorrectly and can cause serious, even fatal injuries. It is extremely important that you read and understand the contents of this operator's manual.
• Avoid all usage which you consider to be beyond your capability.
• You must use personal protection whenever you use the machine.
  • Never use a machine that has faulty safety equipment!
• The muffler gets very hot in use and remains so for a short time afterwards. Do not touch the muffler if it is hot!
  • Always shut off the engine before refuelling.

• The exhaust fumes from the engine are hot and may contain sparks which can start a fire. Never start the machine indoors or near combustible material! Do not smoke or place hot objects near fuel.

• Never run the engine indoors, in enclosed or poorly ventilated areas. The exhaust fumes contain toxic carbon monoxide. Always ensure there is adequate ventilation when handling fuel.

• Always move the machine about 3 metres from the refuelling position before starting.
• A faulty cutting attachment may increase the risk of accidents.
• Make sure that your hands and feet do not come near the cutting attachment when the engine is running.
• Keep people and animals well away from the working area.
• Do not start a lawn mower unless the cutter and all covers are fitted correctly. Otherwise the cutter could come loose and cause personal injuries.
• Make sure the cutting attachment has stopped before cleaning, carrying out repairs or an inspection. Disconnect the HT lead from the spark plug.
• Always wear heavy-duty gloves when repairing the cutting attachment. The blades are very sharp and can easily cause cuts.
• The ignition system of this machine produces an electromagnetic field during operation. This fi eld may under some circumstances interfere with pacemakers. To reduce the risk of serious or fatal injury, we recommend persons with pacemakers to consult their physician and the pacemaker manufacturer before operating this machine.
• Overexposure to vibration can lead to circulatory damage or nerve damage in people who have impaired circulation. Contact your doctor if you experience symptoms of overexposure to vibration. Such symptoms include numbness, loss of feeling, tingling, pricking, pain, loss of strength, changes in skin colour or condition. These symptoms normally appear in the fingers, hands or wrists. The risk increases at low temperatures.

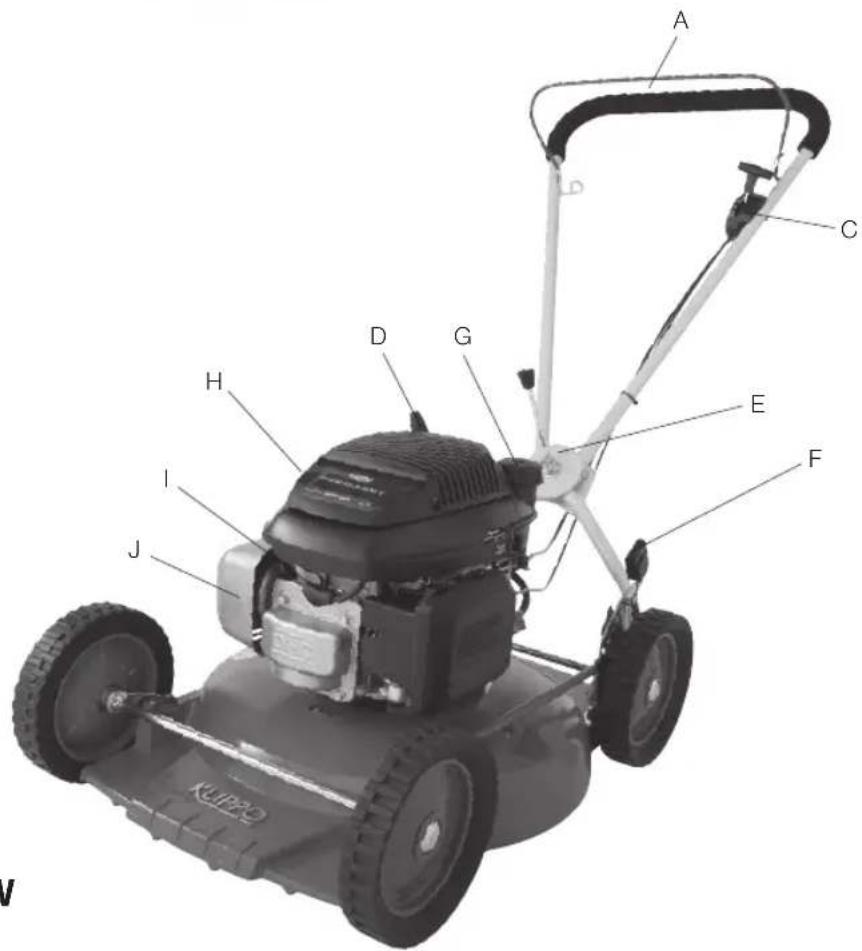

Labeled diagram of a mechanical device showing numbered components for assembly or maintenance reference.

1 8 12 2 6 WARNING 15 11

Briggs & Stratton 625 Series (Champion)

Honda GCV 135
(Excellent GCV, Pro 19 GCV, Pro 17 GCV)

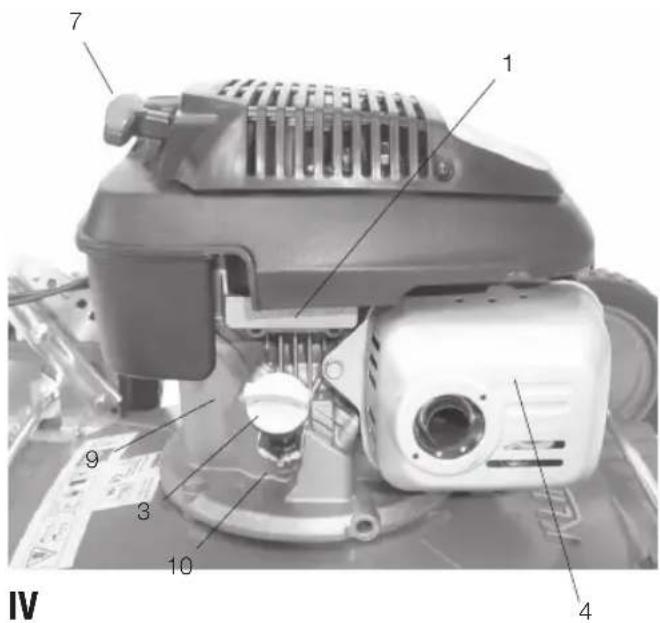

1 2 3 4 5 6 7 8 9 10 IV

Labeled diagram of a lawn mower showing numbered parts for technical reference.

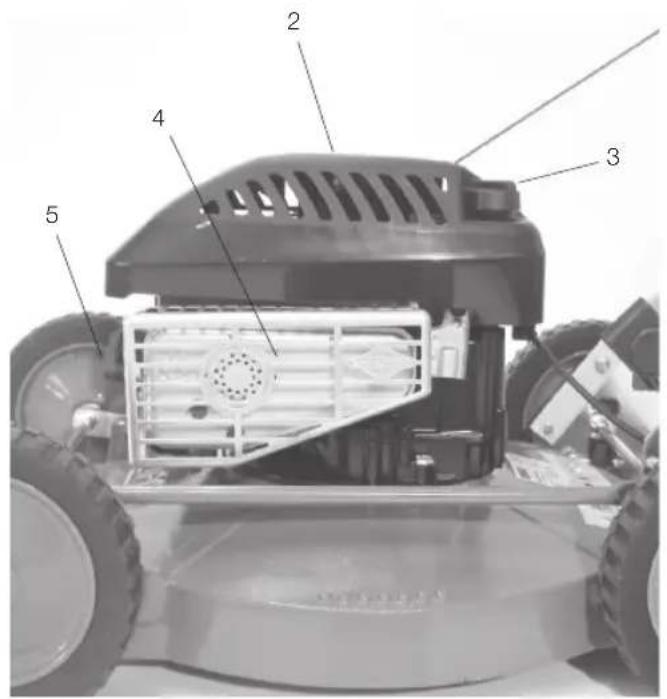

Labeled diagram of a robotic vehicle showing numbered components for assembly or maintenance reference.

V
Briggs & Stratton 550 Series (Triumph)

S 1. Modell, typnummer 5. Tändstift 9. Vevhus 2. Skyddsgaller 6. Förgasare 10. Oljesump 3. Oljesticka 7. Starthandtag 11. Luftfliter 4. Ljuddämpare 8. Bensintank 12. Bensinpäfyllning

DK 1. Model, typenummer 5. Tændror 9. Krumtaphus 2. Beskyttelsegitter 6. Karburator 10. Oliesump 3. Oliepind 7. Starthåndtag 11. Luftfilter 4. Lyddæmper 8. Benzintank 12. Benzinpäfyldning

N 1. Modell, typenummer 5. Tennplugg 9. Vevhus 2. Beskyttelse gitter 6. Forgasser 10. Oljesump 3. Oljepinne 7. Starthåndtag 11. Luftfilter 4. Lyddemper 8. Benzintank 12. Bensinpäfyllning

SF 1. Mallin tyyppinumero 5. Sytytystulippa 9. Vaihteisto 2. Turvallisuusohjet 6. Kaasutin 10. Oljykammio 3. Öljytikko 7. Käynnistyskahva 11. Ilmansuodatin 4. Äänenvaimennin 8. Poittoainetankki 12. Polttoaineen lisäys

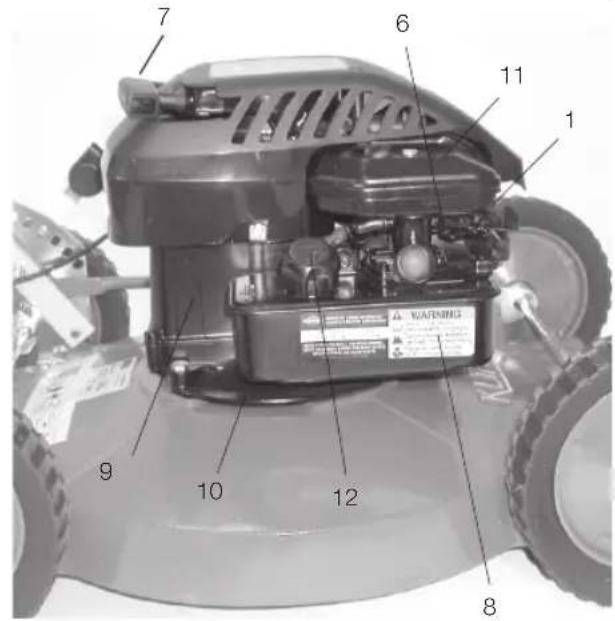

1 2 3 4 5 6 7 8 9 10 11 12 WARNING

VI

Briggs & Stratton 675 Series (Excellent)

5 3 4 9 10 VII

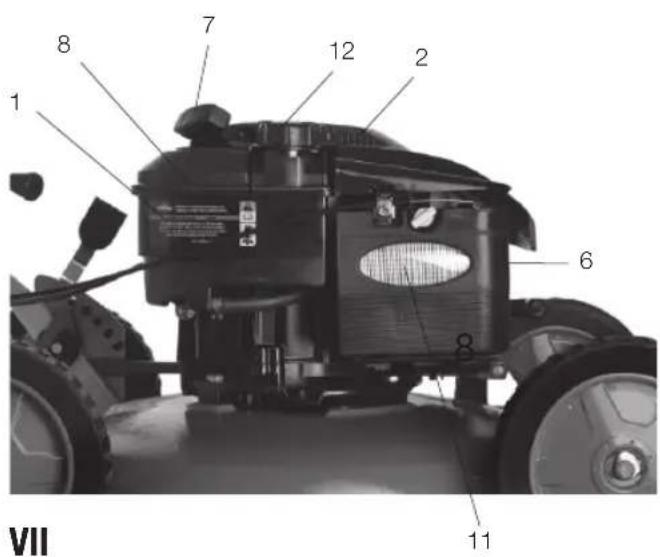

1 8 7 12 2 6 8 11 VII

Fig. 11

MULCHERINSATS MULCHING INSERT

Abstract pattern of vertical gray bars with no text or symbols

Normal gräsmatta Normal lawn

Close-up of a circular mechanical component with a central blade and central hub, mounted on a metal frame (no visible text or symbols)

• Mulcherinsats
• Mulching insert

Abstract grayscale pattern with vertical streaks and gradient shading (no text or symbols)

Close-up of a hand pressing down on a black surface with 'NEXT' and 'KU-PRO' labels, no readable text or symbols beyond labels

1.

Close-up of a hand using a tool to test a drum, no visible text or symbols on the device itself

1.

Close-up of a mechanical component with a central circular feature and a curved blade, showing no visible text or symbols.

1.

Close-up of a mechanical component with a central circular feature and a tool inserted (no visible text or symbols)
