Product type	Cordless impact wrench
Brand	RYOBI
Model	BID-1801M
Rated voltage	18 V
No-load speed	0 - 2400 rpm
Impact frequency	3000 impacts/min
Maximum torque	135 Nm
Drive size	6.35 mm (1/4")
Compatible battery type	BPP-1817M / BPP-1815M
Compatible charger	BC-1800 / BC-1815S
Trigger	Electronic variable speed
Rotation direction	Forward / Reverse / Center lock
Applications	Tightening and loosening screws and bolts
Warranty	24 months
Maintenance	Regular cleaning, annual inspection by an approved service center

Frequently Asked Questions - BID-1801M RYOBI

What types of bits can I use with the BID-1801M impact wrench?

Use 6.35 mm (1/4") bits suitable for screws or bolts. Never use a damaged bit.

How to install or remove a bit?

Push the collet forward, insert or remove the bit, then release the collet to secure it.

How to adjust speed and tightening torque?

Speed varies from 0 to 2400 rpm depending on trigger pressure. The lighter the pressure, the lower the torque.

How to reverse rotation direction?

Stop the tool, then slide the rotation direction selector to the right (clockwise) or left (counterclockwise). The center position locks the trigger.

Which battery to use with the BID-1801M?

Use Ryobi 18 V batteries from models BPP-1817M or BPP-1815M. Battery is not included with the tool.

Which charger to use for charging the battery?

Use Ryobi chargers BC-1800 or BC-1815S. Only charge the battery with a charger approved by the manufacturer.

What are the important safety precautions?

Wear eye protection, hold the tool firmly, do not use in rain, and lock the trigger when not in use. Avoid contact with battery fluid.

How to maintain the impact wrench?

After use, check the general condition. Take the tool to a Ryobi approved service center at least once a year for complete lubrication and cleaning.

What to do if the tool does not start?

Check that the battery is charged and correctly inserted. Make sure the direction selector is not in the center (lock) position. If the problem persists, contact an authorized service center.

What is the warranty of the BID-1801M?

This Ryobi product is warranted for 24 months against manufacturing defects from the date on the original invoice. Damage due to normal, abnormal use or overload is excluded, as well as accessories such as batteries.

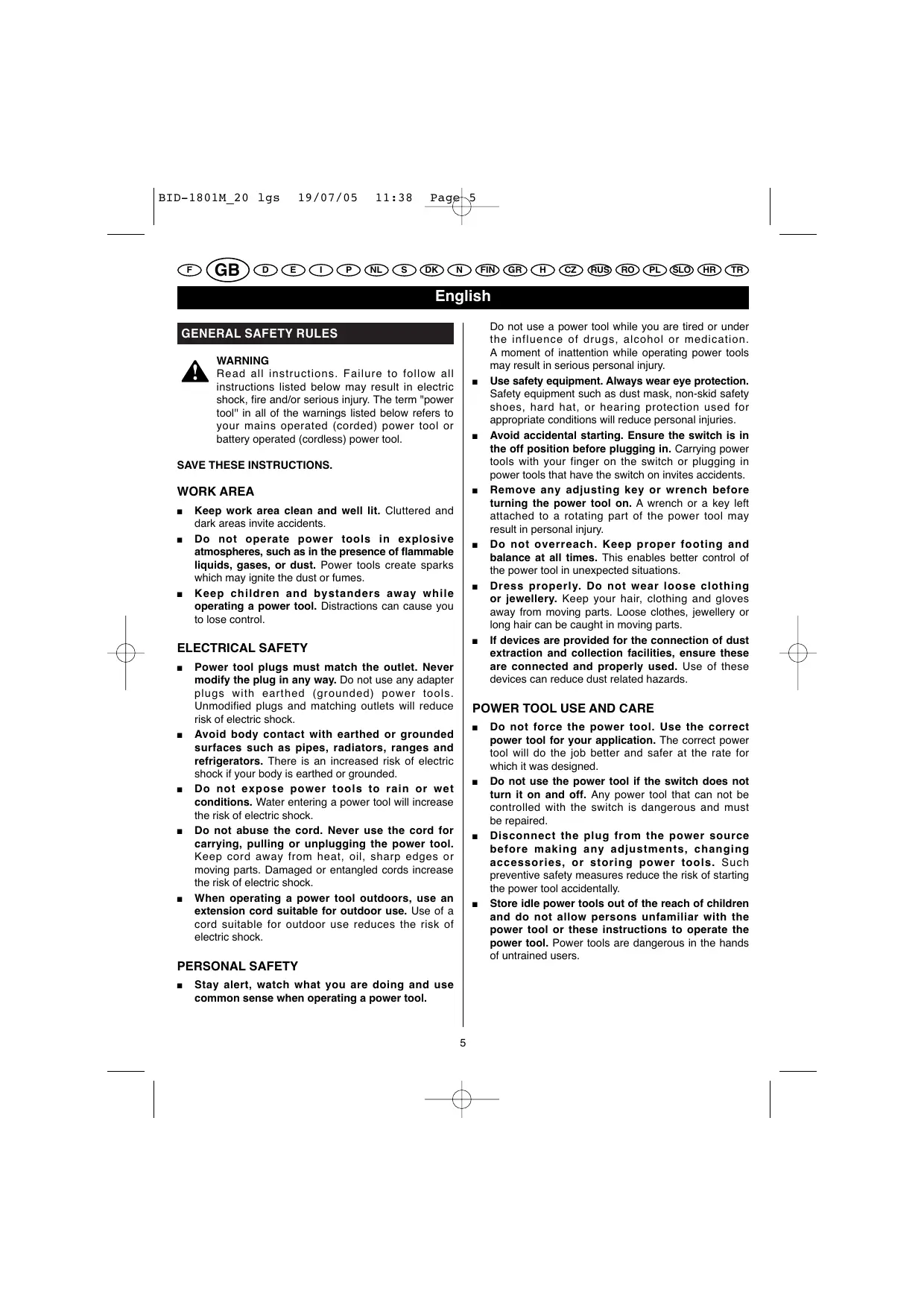

USER MANUAL BID-1801M RYOBI

Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term "power tool" in all of the warnings listed below refers to your mains operated (corded) power tool or battery operated (cordless) power tool.

SAVE THESE INSTRUCTIONS.

WORK AREA

• Keep work area clean and well lit. Cluttered and dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

ELECTRICAL SAFETY

Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
- Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
- When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

PERSONAL SAFETY

• Stay alert, watch what you are doing and use common sense when operating a power tool.

Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
- Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.
- Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
- Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of these devices can reduce dust related hazards.

POWER TOOL USE AND CARE

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that can not be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
  Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

English

GENERAL SAFETY RULES

• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
  Use the power tool, accessories and tool bits etc., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from intended could result in a hazardous situation.

BATTERY TOOL USE AND CARE

• Ensure the switch is in the off position before inserting battery pack. Inserting the battery pack into power tools that have the switch on invites accidents.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
  Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
  Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

SERVICE

• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

INSTRUCTIONS FOR SAFE HANDLING

Make sure that the tool is only connected to the voltage marked on the name plate.
- Never use the tool if its cover or any bolts are missing. If the cover or bolts have been removed, replace them prior to use. Maintain all parts in good working order.
Always secure tools when working in elevated positions.
- Never touch the blade, drill bit, grinding wheel or other moving parts during use.
- Never start a tool when its rotating component is in contact with the work piece.
- Never lay a tool down before its moving parts have come to a complete stop.
- ACCESSORIES: The use of accessories or attachments other than those recommended in this manual might present a hazard.
- REPLACEMENT PARTS: When servicing use only identical replacement parts.

SPECIFICATIONS

Bit shank size	1/4 in. (6.35 mm)
Switch	Variable speed
Max. torque	135 Nm
Voltage	18 V
Battery (Not included)	BPP-1817M/BPP-1815M
No load speed	0-2400 min-1
Blows per minute	3000/bpm
Charger type (Not included)	BC-1800/BC-1815S

DESCRIPTION

1. Bit holder
2. Bit storage
3. Switch
4. Forward/Reverse Selector w/ centre lock
5. Reverse
6. Forward

OPERATION

APPLICATIONS

Use only for the purposes listed below.

Fastening / removing screws and bolts

English

OPERATION

NOISE BUILD-UP

Noise (sound pressure level) in the workplace can exceed 85 dB (A). In this case, sound insulation and hearing protection measures must be taken by the operator.

MOUNTING AND REMOVING THE BIT (Fig. 1)

MOUNTING

• Slide the sleeve of the bit holder forward.
  Insert the bit into the bit holder as far as it will go.
  Release the sleeve.
• Confirm that the bit is secured by pulling it forward.

REMOVING

Slide the sleeve forward.
Pull the bit out.
Release the sleeve.

CAUTION

Use a bit that matches the screw or bolt to bedriven.

CAUTION

Do not use a damaged bit.

SWITCH

This tool is started and stopped by squeezing and releasing the trigger.

The rotation speed is variable from 0 through 2400min^-1 by controlling the trigger-squeezing force.

CHANGING THE ROTATION DIRECTION (Fig. 2)

To change the rotation direction, stop the tool and push the reversing switch to the opposite side.
- When the reversing switch is pushed in from the right side, the bit rotates clockwise when viewed from the handle end of the tool.
- When the reversing switch is pushed in from the left side, the bit rotates counterclockwise.
The trigger can be locked by positioning the reversing switch in the middle.
Lock the trigger whenever the tool is not in use.

FASTENING TORQUE

The proper fastening torque differs depending on the kind and size of the screw and the type of the material to be fastened.

Note: To avoid the reduction of the fastening torque, keep the battery properly charged.

The fastening torque is affected by the following factors:

VOLTAGE

When the battery is almost discharged, the voltage will drop and the fastening torque will be reduced.

FASTENING TIME

If the fastening time is prolonged, the fastening torque will be increased.

However, if the fastening torque reaches the maximum, it will not increase any more.

SCREW AND BOLT

Even though the torque coefficient and class of the screws or bolts are the same, the fastening torque will differ according to their diameters. Generally, the larger the diameter, the higher the fastening torque.

On the other hand, even though the diameter of the bolts or screws are the same, the fastening torque will differ according to the torque coefficient, their class and their length.

BIT

Failure to use the correct size bit causes a reduction in the fastening torque.

SWITCH

The rotation speed and the fastening torque can be adjusted by controlling the trigger-squeezing force. The lower the rotation speed, the lower the fastening torque.

WARNING

A battery short-circuit can cause a large current flow, overheating, burns and even a breakdown.

• Do not touch the terminals with any conductive materials.
• Avoid storing the battery in a container with other metal objects such as nails, coins, etc.
• Do not expose the battery to water or rain.

English

OPERATION

WARNING

Do not store the tool and battery in locations where the temperature may reach or exceed 50^

WARNING

Do not incinerate the battery even if it is severely damaged or is completely worn out. The battery can explode in a fire.

NEVER COVER THE AIR VENTS SINCE THEY MUST ALWAYS BE OPEN FOR PROPER MOTOR COOLING.

Hold the tool firmly and place the tip of the bit in the screw head so that it is perpendicular to the screw head.
Apply forward pressure to the tool to the extent that the bit will not slip off the screw.
Squeeze the trigger to start the tool.

MAINTENANCE

After use, check the tool to make sure that it is in top condition.

It is recommended that you take this tool to a Authorized Service Center for a thorough cleaning and lubrication at least once a year.

DO NOT MAKE ANY ADJUSTMENTS WHILE THE MOTOR IS IN MOTION.

WARNING

To ensure safety and reliability, all repairs should be performed by an AUTHORIZED SERVICE CENTER or other QUALIFIED SERVICE ORGANIZATION.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

Deutsch

SROBYA SROBY SMATICI

I kdyz je koeficient utahovaciho momentu stejn y sroubu u i sroub u matici, utahovaci momen se li si podle prumru. Obecn plati, ze cim je vetsi prumr sroubu, tim je vyssi utahovaci moment.

TEXHINUECKHE XAPAKTEPNUCTIKN

TEXHINUECKHE XAPAKTEPHCTHKH

Ckopooctb Ha xoIOCTOM XOJy

0-2400o6/MHH

Uactota ynapOB

3000 yIapOB/MHH.

3apnHoe ycTpoNCTBO

(BHe KOMIIJEKTA)

BC-1800/BC-1815S

OIIHCAHHE

1. IaTPOHJIAHacaIOK
2. OTdJIeHHeIgXpaHEnHaCaIOK
3. Kypok
4. IpeKJIIOUaTeJIb HnIpaBJIeHnB BpaIeHnB (BIIpeJI/ HA3aJI /IeHTpaJIbHOe 6IoKHPoBOuHoe IOIoJKeHne)
5. Ha3aI (BJIeBO - OTBHHBaHHe)
6. BInpeEi (BnpaBO - 3aBHHuBaHHe)

PABOTA

IIPIMEHEHNE

IIPEKJIIOUATEJIb HAIPIPABJEHNA BPAIIEHHN (Pnc.2)

TTO6bI H3MeHnTHb HAnpaBJIeHne BpaIeHnHa cAaKn, OCTaHOBHte HnCTpyMeHT N IpeEJBNHbTe IpeKeJIIOuAteJIb HApBaJIeHnBpaIeHHN BpIaBO HIN BJIeBO.
KordaIpekeKIOHouaTeIb HnpaBJIeHnBpaIIeHnIpeJIbHHyTJIbeO (npabaaCTOpOHa yTOIIHeA),HacaIkaBpIaIIaETcIIO Yacoboi CTpeJIke (ecIN cMOtpeTb coCTOPHOb KOIIa pyKOHTK).
EcnI nepeKIOUoTIEL HnnpAbleHnBpaIeHHN IpeEbnHHT BpABO（JIeBAa CTOPOa yTOIIHe），HacaJaB bpaIaETyIPOTNbACOB0CTpeJKN.
Kypok 3a6JIOKNPOBAH, KOJIa IepeKJIIOUaTeJIb HApIpaBJIeHHB BpaIIeHHA CTOHT B IeHTpaJIbHOM IOJOKeHHN.
B Hepa6ooye BpeMa BceIgda 6JIOknyTe Kypok.

CNJIA 3ATXKKN

CJIa 3aTgKKn 3aBHCNT OT TIIa H pa3Mepa BHNta, a TaKKe OT MaTePHaJa, B KOTOpbI eTo HAO 3aBHHTNb.

IpHmueHHe: YTo6bI cHJa 3aTJxKKn He MeHnlaCb CaMa BO BvEmr paObI, IepKHTe aKKyMylTOp BCEIa 3apJKeHHbIM.

CHa3aTajKKH 3aBHCNT OT CJIeJyUoiHx fakTopoB:

HANPRAXEHN

KordaakkymyIaTOP noHT np3pJxH, HnPjaKeHHe n cJIa 3aTjXKN IaIaOT.

IIPOJOJIXHTEJIbHOCTb 3ATJXKN

Pn npOIOJIKHTeJIbHOM HcIOJIb3OBaHHN yApHOro ⅢpyuNoBepTa CIIa 3aTgKKyBELHbBaETc.

IocTHrHyB MaKCHMyma, cHJa 3aTJxKn 6OJIbIe He yBeJIuHBAeTc.

BNUHTbI N BOJtBi

JaXe ecHn Ko3oΦHnHEHT Chbl 3aT8KKn COOTBeCTByET KJIACCy BHNTHA HNI 60JIa, CJIa 3aT8KKBc PabHIO MEHHeTcB 3aBHNOHMocTH OT HN dAMetp. PO 6bIeMy npABHy, Yem 60JIbIIe IIAMetp, Tm 60JIbIIe cJIa 3aT8KK.

H haooBOP, IIIN OINHAKOBOM IINAMETpE 6OJIta HIIH BnHTA CJIJIa 3aTbKKH MEHNCTC B 3aBHCHMOCTHN IH XO KΦΦHHeHTA CJIJIb 3aTbKKH, INX KJIACCA N JIINHHJI.

Pycckn

PABOTA

HACAJKA

Пин ИСПОЛБЗOBAHИН HeNIOxOДЯШЕВ BHTy HacaIGN ChJIa 3aTЯЖКИ Падаet.

KYPOK

CkoPocBb PbaIeHHN H cnHla 3aTJkKn MeHIOCTCB 3aBnHmOcTH OHJIbI HaKATHa H KypK. Eem MehIbIe CkoPocBb BpaIIeHHN, TeM MehIbIe ChHa 3aTJkKn.

IPIEduIPEKDEHNE

KopotKoe 3amblKaHne AkkymJIArTopa MoXeT bBbATbI IpePiA II hAnpIkeHH, IpeIpeB, OOKH IN IIOJMOKY HNCTPymeHTA.

HnKoIgHa He IOTpaIaHbaiTeCb IIO KJIeMM aKKyMnyToppa IIPOBOJAAIMN IIpeIMeTAMH.
He IepKHe aKKyMlyTOp B MeCtax C MeTaJIJIHueCKHMn IIpeJMeTaMH, HAnIhMEp rBO3dHM, MOHeTaMH H Ip.
He ocTabJIaTe aKKMyJITop IOI IOXJDEM HJIH CbIpocTH.

IPIEduIPEKDEHNE

HeJePKeHrte HnCTpyMeHT H erO aKKyMylTOpB MecTaX, rTe TmIIepaTya Bo3Iyxa MoKet JocTHuB 50^ n HbIIue.

IPIEduIPEKDEHNE

HnKoFJIa He cKJrHaiTe aKKyMJIaTOpbI, daJe eCIn OHn IIOBpeJKeHbI HIN OIOHocTbI O H3HOHeHbI. AKKyMJIaTOp MoKet B3OpBATbcB Or hne.

HE 3AKPbBAIeBEHTHJIINHOHHbIE JAAJIO3H, YTO6bI OBCIEYHTB HOPMAJIbHOE OXIAJKJEHNE MOTOPA.

KpeIko IepJHte HnCTpyMeHT n cTaBbTe HacaIky IepIeHnKyIaRHO roIIOBKe BnHTa.
HaxHMaIte Ha HnCtpyMeHT, YTo6bHa HacaJa He COCKOJIb3HyJla C rIoBKN BnHTa IIpH BKIOUeHHN.
HaKMMHe Ha Kypok, YTo6bI 3aIyCtHTb yIapHbI IUPyIIOBepr.

O6CJYXHBAHHE

По okончанн pa6otb y6eHTecb B xopoшem pa6ochem coctoHHH HnCTpymEnTa.

PekomeHnyetcCnabatb HNCTpymeHT p3B rOi B IeHTp texHHueckoro o6clyJxHBaHnryoBi nIJI IOIHOH NCTKn Cm3AKn.

HE IPOH3BOJNTE HNKAKHX PEYJIHPOBOK IPH PABOTAOIIEM MOTOPE.

IPEyIPEXJEHNE

NAVODILA ZA VARNO UPORABO

GARANTIE - CONDITIONS

All Ryobi products are guaranteed against manufacturing defects and defective parts for a period of twenty four (24) months from the date stated on the original invoice drawn up by the retailer and given to the end user. Deterioration caused by normal wear and tear, unauthorised or improper use or maintenance, or overload are excluded from this guarantee as are accessories such as battery packs, light bulbs, blades, fittings, bags, etc. In the event of malfunction during the warranty period, please take the NON-DISMANTLED product, along with the proof of purchase, to your retailer or nearest Authorised Ryobi Service Centre.

This warranty in no way affects your legal rights concerning defective products.
