USER MANUAL PDK-TS15 PIONEER

Thank you for buying Pioneer’s product. Please read through the Operating Instructions to learn how to operate your model safely and properly. Please be advised to keep the Operating Instructions in your place for future reference. Installation ¶ Consult your dealer if you encounter any difficulties with this installation. ¶ Pioneer is not liable for any damage resulting from improper installation, improper use, modification, or natural disasters. IMPORTANT NOTICE Record the model number and serial number of this equipment below. Model No. PDK-TS15 Serial No. Keep these numbers for future use. Contents Cautions This product is a table top stand exclusively designed for Plasma Displays (PDP- 6070PU / PDP- 607XD) from Pioneer. Use with other model is capable of resulting in instability causing possible injury. For further information, please contact the store where you purchased your display. Do not install or modify the product other than specified. Do not use this stand for a Plasma Display other than those designated and do not modify it or use it for other purposes. Improper installation is extremely dangerous because it may result in it falling over or other accident. Installation Location

• Select a location that is strong enough to support the weight of the stand and the displays.
• Make sure to place it in a level and stable location.
• Do not install it outdoors, at a hot spring, or near a beach.
• Do not install the stand where it may be subjected to vibration or shock. Cautions ................................................................... 8 Checking the Standard Accessories ...................... 9 Assembling the Stand ............................................ 9 Attaching the Plasma Display .............................. 10 Installing the Product on a TV table etc. ............ 10 Preparing the cables ............................................. 11 Preventing Equipment from Falling Over ........... 12 Detaching the Plasma Display from the Stand .. 13 Specifications ........................................................ 13 Dimensions Diagram ............................................ 13 CAUTION This symbol refers to a hazard or unsafe practice which can result in personal injury or property damage.

Assembling and Installation

• Assemble the stand in accordance with the assembly instructions and securely attach all screws at the designated locations. There have been cases where unforeseen accidents such as the equipment breaking or falling over occurred after the installation of the display because the stand was not installed as instructed.
• The display must always be installed by two or more people to assure it is installed safely.
• Before installation, turn off the power for the display and peripheral devices then remove the power cord plug from the power outlet. Prevent accidents caused by the product falling over by taking reliable measures to prevent it from falling over (see Page 12). Checking the Standard Accessories Check to make sure that you have all the standard accessories before assembly and installation.

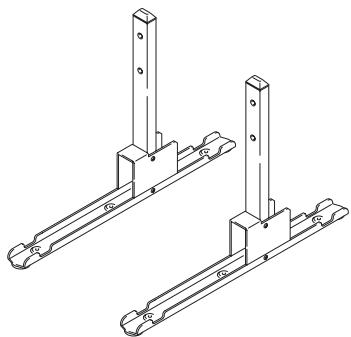

• Note that a Phillips screwdriver (not included) is required for assembly. Base cover x 1 Stand pipes Cable clamps x 2 English (left and right, interchangeable) x 2 Operating instructions (this document) x 1 Screws Table top stand Support de couverture de table Tischständer Supporto di tavolo Tafelbladstaander Soporte de mesa Installation bolts (M5 x 10 mm: silver) x 6 PDK-TS15 (M6 x 20 mm: black) x 4 Operating instructions Mode d’emploi Bedienungsanleitung Istruzioni per l’uso Gebruiksaanwijzing Manual de instrucciones Assembling the Stand Assembly Procedure Screws (M5 x 10 mm: silver)

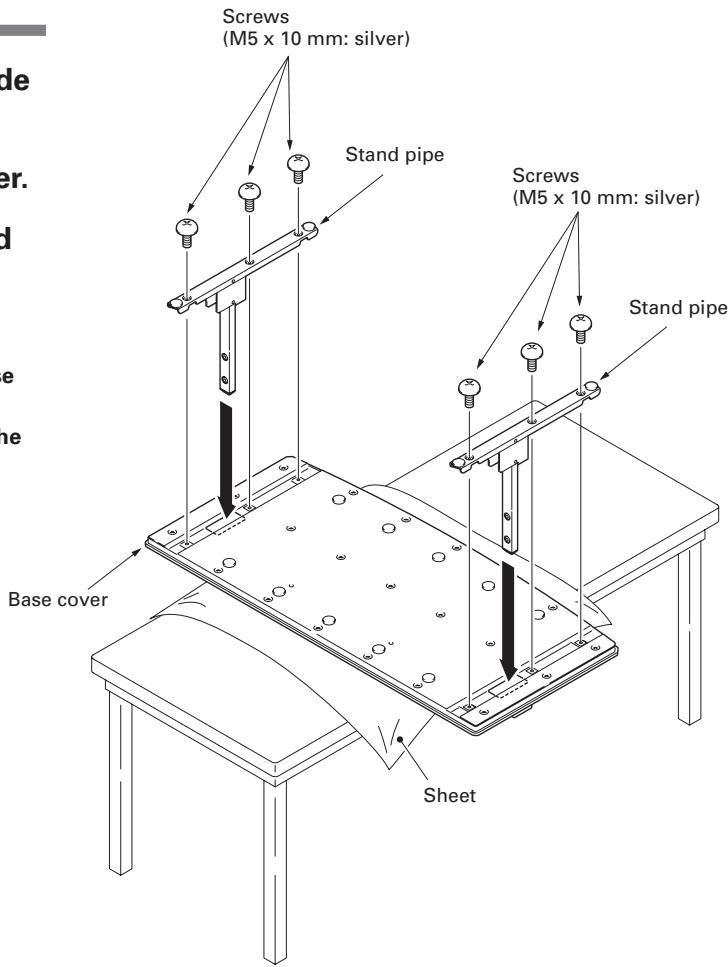

Turn the base cover over so the underside is facing up.

Insert the stand pipes into the base cover. Stand pipe Screws (M5 x 10 mm: silver) Tighten the screws to stabilize the stand pipes. Stand pipe Note Assemble the stand with a soft sheet placed under the base cover. If a sheet is not laid before assembly, the front surface of the base cover may be scratched. Base cover Sheet

Attaching the Plasma Display Caution The weight of a Plasma Display is about 50 kg (110 lbs), they have no depth, and are unstable. Therefore, at least two people must assemble and install them.

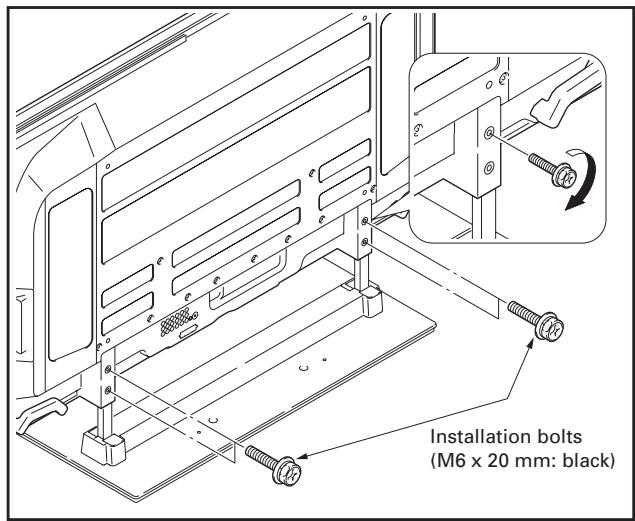

Securing the Plasma Display with Installation bolts. Attach the Plasma Display at the points indicated below using the phillips screwdriver. Note Be sure to install it on a flat stable location. Insert the screws in the holes vertically and tighten them firmly. Attachment Method

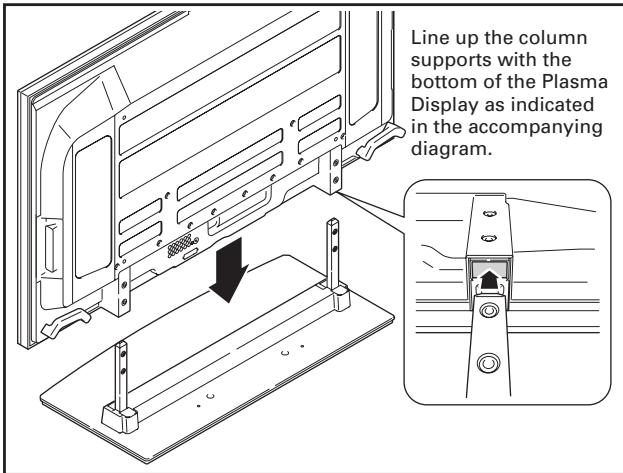

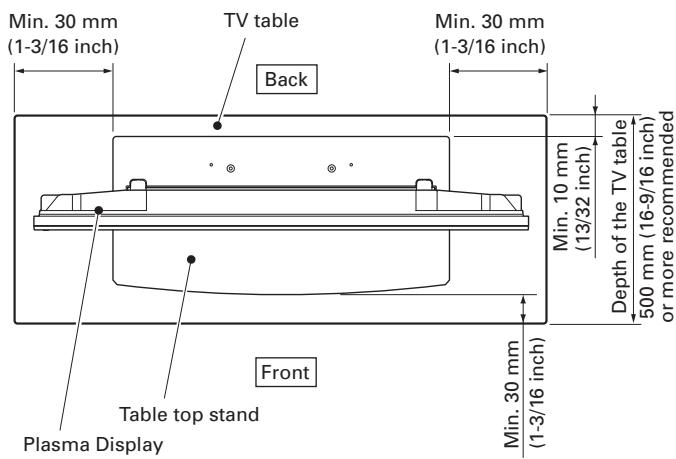

Attaching the Plasma Display to the stand. Fit the stand’s support columns to the bottom of the Plasma Display as indicated by below, then slowly insert them vertically. Be extremely careful not to insert the support columns of the stand into any part of the Plasma Display other than the stand insertion slots. Note that doing so might damage the Plasma Display panel or its ports or result in the warping of the stand. Installation bolts (M6 x 20 mm: black) Line up the column supports with the bottom of the Plasma Display as indicated in the accompanying diagram. Installing the Product on a TV table etc. Be sure to observe the following precautions when moving or installing this product with a Plasma Display into a TV table or other enclosure. When installing on a TV table, etc., please be sure that the Plasma Display is held by two people. Caution Installation precautions Make sure that you always secure a space at least as large as that shown in the following diagram in front of and behind the table top stand. Min. 30 mm (1-3/16 inch) TV table Min. 30 mm (1-3/16 inch) When moving the product more than a few meters, first remove the speaker, then remove the Plasma Display from the stand and move the Caution speaker, Plasma Display, and stand separately. When detaching the Plasma Display from the stand, be sure to follow the procedure described in “Detaching the Plasma Display from the Stand” on page 13. Front Table top stand Plasma Display

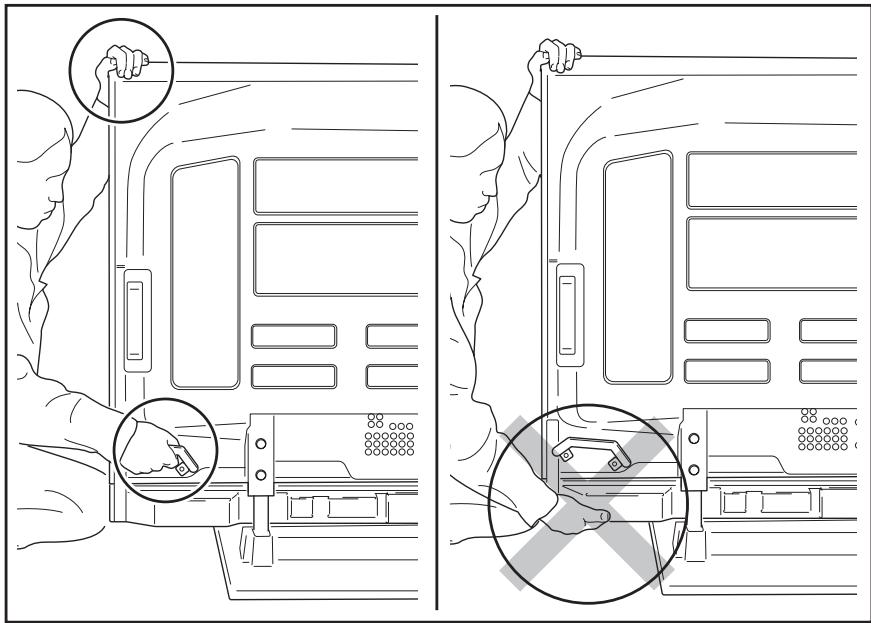

Min. 30 mm (1-3/16 inch) Min. 10 mm (13/32 inch) Precautions when moving Depth of the TV table 500 mm (16-9/16 inch) or more recommended Back Installing the Product on a TV table etc. Precautions when installing in a TV table or other enclosure Do not hold the speaker English Hold the Plasma Display by the handle at the bottom, with your other hand hold the top. When installing in a TV table or other enclosure, hold the Plasma Display by the handle at the Caution bottom, with your other hand hold the top. If you hold the speakers, they may be damaged or twisted. Preparing the cables Use the enclosed cable clamps to bind the cables. Note

Close each cable clamp, and then pull its extremity to make the cables immobile. Be very careful not to apply force to the bases of the cables.

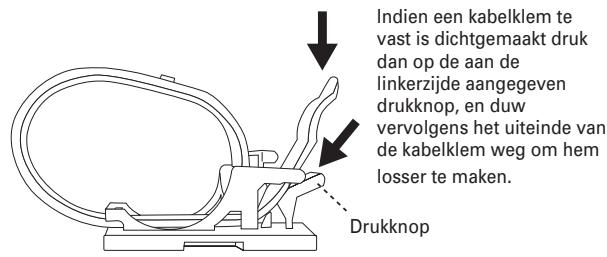

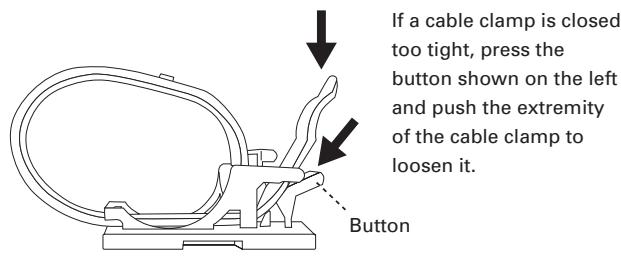

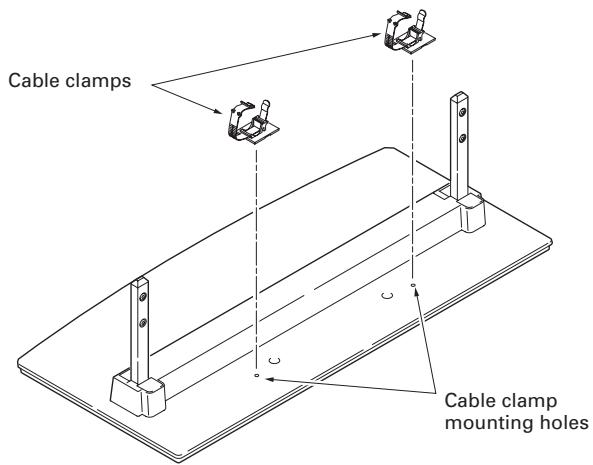

Insert the cable clamps into the cable clamp mounting holes. Cable clamps Loosening a cable clamp If a cable clamp is closed too tight, press the button shown on the left and push the extremity of the cable clamp to loosen it. Cable clamp mounting holes

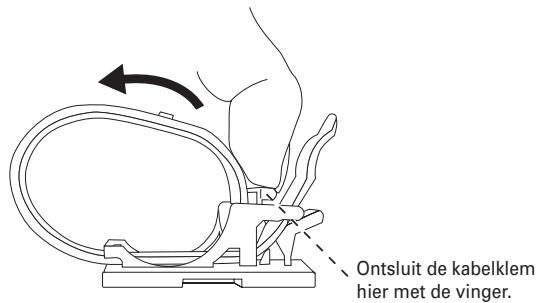

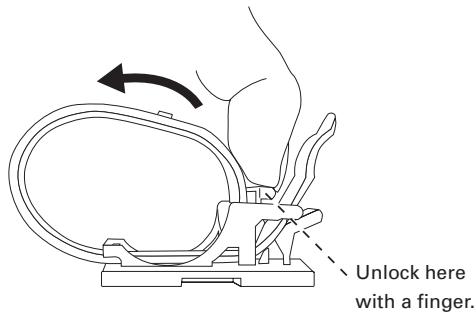

Button Opening a cable clamp Bundle the cables and place them on each cable clamp. Unlock here with a finger.

Preventing Equipment from Falling Over After installing the stand, be sure to take special care to ensure that the equipment will not fall over. Because of the Plasma Display’s weight, if it could fall down, this can result in injury. For safety, be sure to take special care to ensure that the Plasma Display will not fall over. Using a wall for stabilization

Stabilize the equipment as shown in the diagram using screws that are available on the market.

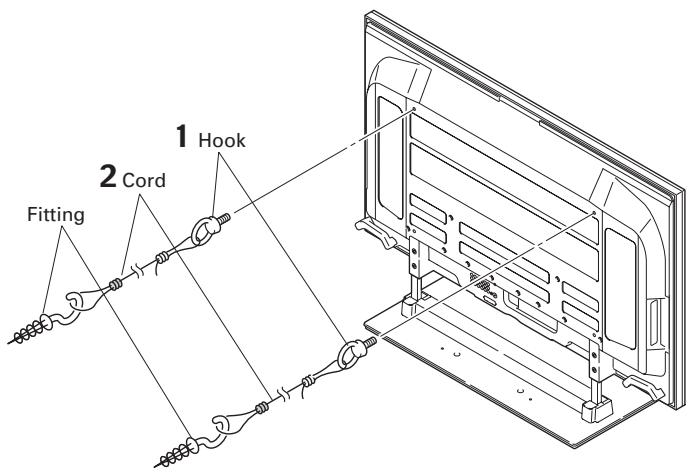

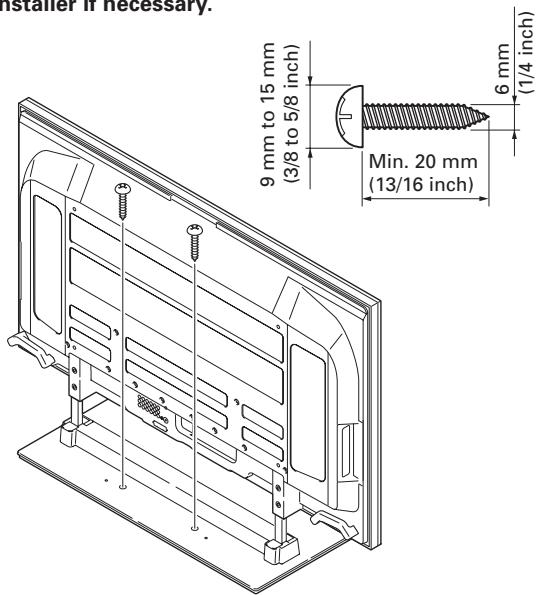

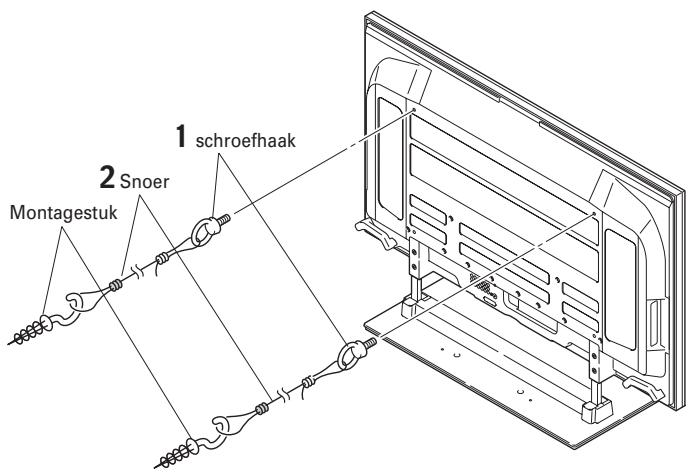

Note A TV table with adequate strength, width and depth should always be used to support the Plasma Display. 6 mm (1/4 inch) 9 mm to 15 mm (3/8 to 5/8 inch) Failure to do so could result in falling over. To stabilize the Plasma Display on a TV table, use screws that have a nominal diameter of 6 mm (1/4 inch). Select the appropriate screws after consulting a professional installer if necessary. Min. 20 mm (13/16 inch) Attaching falling prevention bolts (hooks) to the Plasma Display. Using strong cords to stabilize it appropriately and firmly to a wall, pillar, or other sturdy element. Perform this work in the same way on the left and right sides. Note Use hooks, cords, and fittings that are available on the market. Recommended hook: Nominal diameter M8 Length 12 mm to 15 mm (1/2 inch to 5/8 inch)

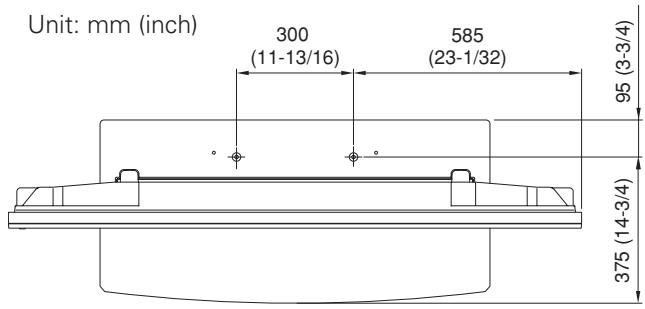

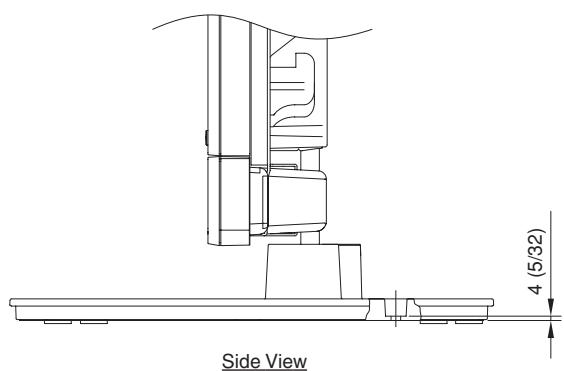

Stabilizing on TV table or other location 12 mm to 15 mm (1/2 inch to 5/8 inch) 1 Hook 2 Cord Fitting Position of table screws

• A table or an area of the floor with adequate strength should always be used to support the Plasma Display. Failure to do so could result in personal injury and physical damage.
• When installing the Plasma Display, please take the necessary safety measures to prevent it from falling or overturning in case of emergencies, such as earthquakes, or of accidents.
• If you do not take these precautions, the Plasma Display could fall down and cause injury.
• The screws, hooks, chains and other fittings that you use to secure the Plasma Display to prevent it from overturning will vary according to the composition and thickness of the surface to which it will be attached.
• Select the appropriate screws, hooks, chains and other fittings after first inspecting the surface carefully to determine its thickness and composition and after consulting a professional installer if necessary. Caution

To remove the Plasma Display from the stand, be sure to always follow the procedure described below to prevent accidents. First clear a space on a flat floor etc. where you can lay the Plasma Display flat, then lay a sheet to protect it from scratches or other damage. Remove the speakers.

Holding the Plasma Display by its handles at the bottom, with your other hand hold the top, lift the display vertically.

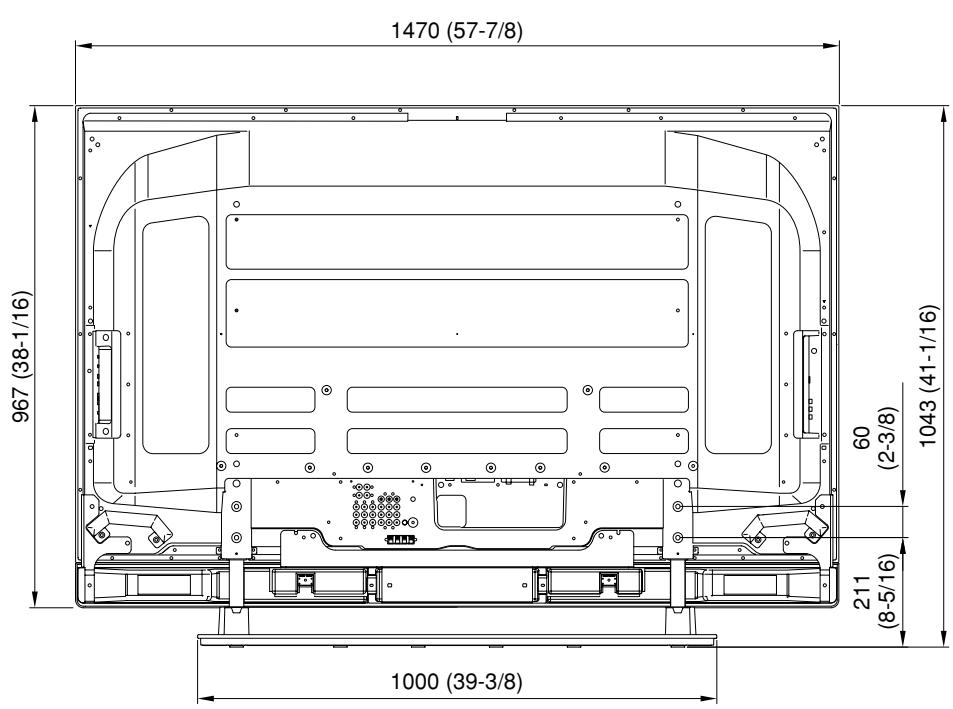

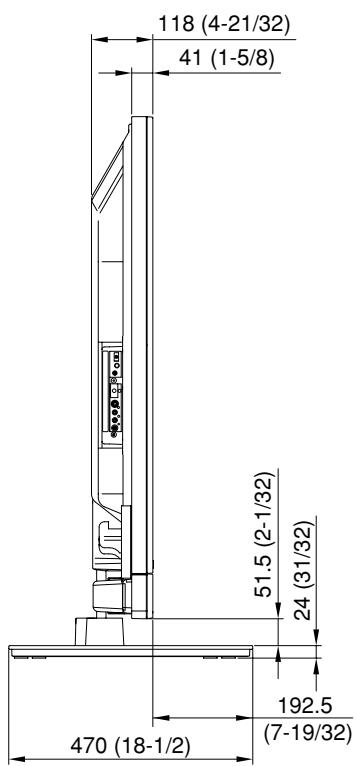

Place the Plasma Display slowly onto the sheet laid out in step 1 with its screen facing downwards. English Detaching the Plasma Display from the Stand Specifications External dimensions Weight 1000 mm (W) x 309 mm (H) x 470 mm (D) (39-3/8 in. (W) x 12-5/32 in. (H) x 18-1/2 (D) in.)

(7-19/32) Published by Pioneer Corporation. Copyright © 2006 Pioneer Corporation. All rights reserved.
