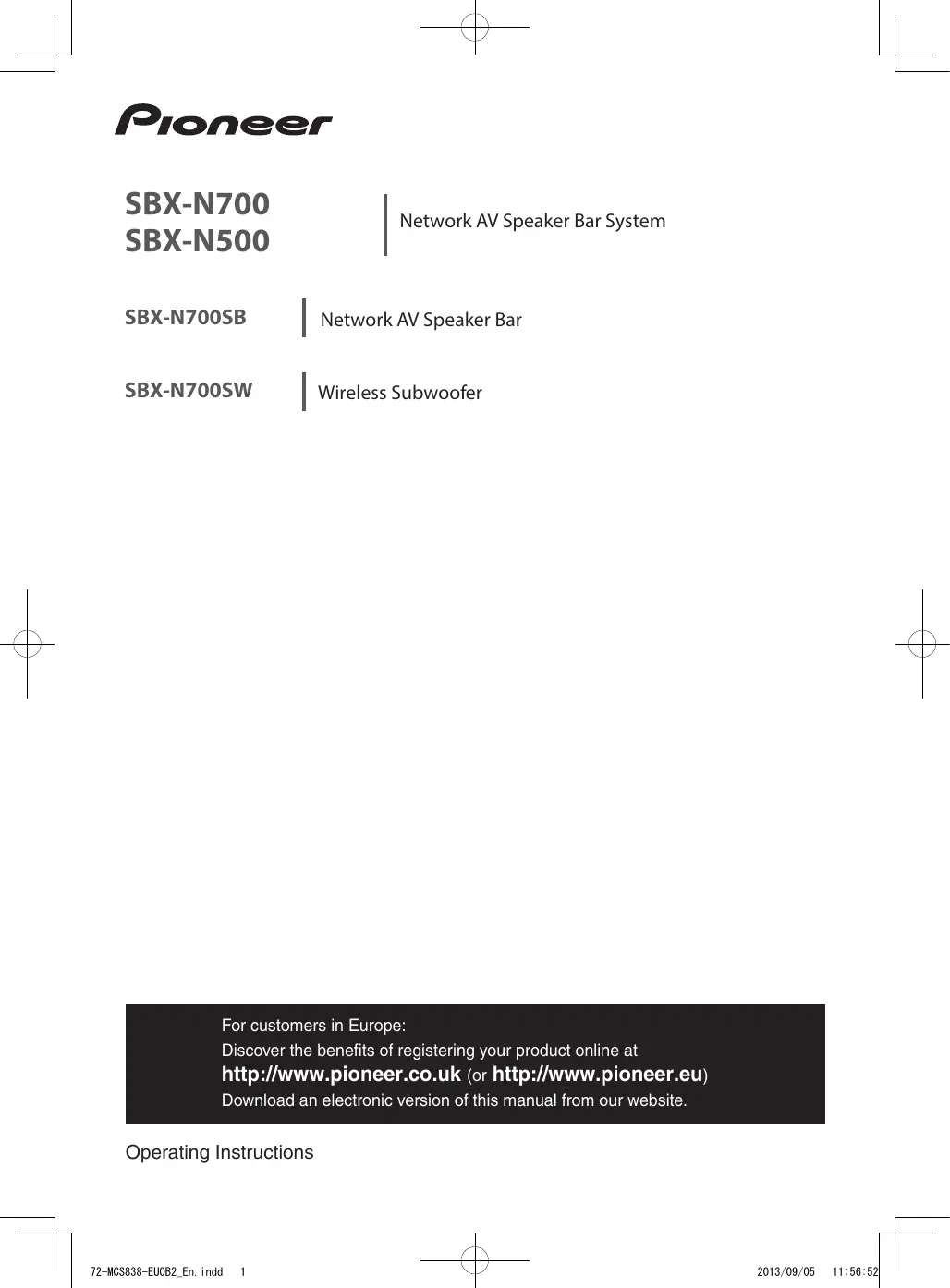

USER MANUAL SBX-N700 PIONEER

SBX-N700SW | Wireless Subwoofer

For customers in Europe: Discover the benefits of registering your product online at

http:/www.pioneer.co.uk (or http:/www.pioneer.eu) Download an electronic version of this manual from our website.

Operating Instructions

1] 72-M0S838-EU0B2 En. indd 1 S 2013/09/05 11:56 J Ne

Thank you for buying this Pioneer product.

Please read through these operating instructions so you will know how to operate your model proper. After you have finished reading the instructions, put them away in a safe place for future reference.

CAUTION TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as à vase or flower pot) or expose it to dripping, splashing, rain or moisture.

WARNING To prevent a fire hazard, do not place any naked flame

sources (such as a lighted candle) on the equipment: D342-17a A1 En

VENTILATION CAUTION When installing this unit, leave space of at least 10 cm atthe sides (including when mounting to a wall) and at the top of the AV Speaker Bar. For the wireless subwoofer (SBX-N700 only), leave à space of at least 10 cm from the wall,

Furthermore, ta facilitate good heat dissipation, make sure there is a little distance between the other devices. When installing the unit in a rack or the like, leave space of at least 10 cm at the top, rear, and sides. Internal heat buildup may cause a fire:

WARNING Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed

72-ACS838-EU0B2 En. indd 2 S Operating Environment Operating environment temperature and humidity:

+5 °C to +35 °C (+41 °F to +96 °F); less than 85 %RH cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or

strong artificial light) D342ares A En

CAUTION The © STANDBY/ON switch on this unit will not completely shut off all power from the AC outlet Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for à long period of time (for

example, when on vacation) D342228

This product is for general household purposes. Any failure due to use for other than hausehold purposes (such as long-term use for business purposes in à restaurant or use in à car or ship) and which requires repair will be charged for even during the warranty period

POWER-CORD CAUTION Handle the power cord bythe plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furiture, ete, on the power cord, or pinch the cord. Never make a knot in the cord or ti it with other cords. The power cords should be routed such that they are not likely to be stepped on. À damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement. So02 at En

Notice to users in Singapore

This product complies with IDA standards.

Complies with IDA Standards DB03074

[European model only]

Simboiter) equipment

(Erboi sxampies) for batteries

Information for users on collection and disposal of old equipment and used batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of these products and batteries correct, you wi help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

These symbols are only valid in the European Union.

For countries outside the European Union: If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

For Wireless product European Union Notice

PIONEER hereby declares that this/ C € these product(s) ï with the essential requirements and

other relevant provisions of Directive 1999/5/ EC, 2004/108/EC, 2006/95/EC and 2009/125/EC.

RF Radiation Exposure Statement

This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body.

WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

1] 12-0S838-EU0B2 En. indd 4

Important Notice for TV colour system

The colour system of this AV Speaker Bar differs according to currently playing video contents.

For example, when the AV Speaker Bar plays the video contents recorded in the NTSC colour system, the image is output as an NTSC signal

Oniy the multi system colour TV can receive all signals output from the AV Speaker Bar.

If you have a PAL colour system TV, you will see just distorted images when using video contents or video contents recorded in NTSC.

The multi system colour TV changes the colour system automatically according to input signals. In case that the colour system is not changed automatically, turn it off and then on to see normal images on screen.

2013/09/05 11:56 J Table of Contents

6 - Supplied accessories

7 Puttingthe batteries inthe remote control

7 — About operation ofthis unit from a mobile device

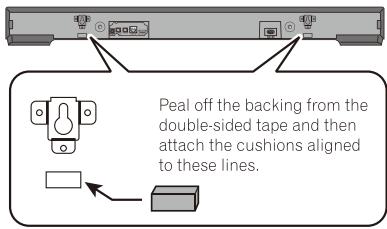

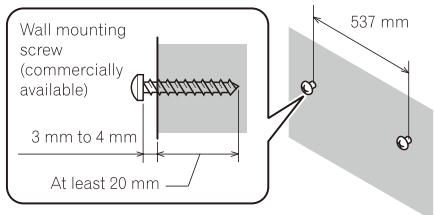

16 — Mounting the AV Speaker Bar to a Wall

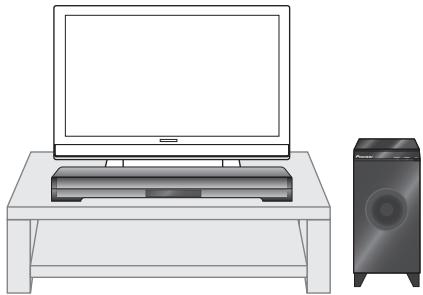

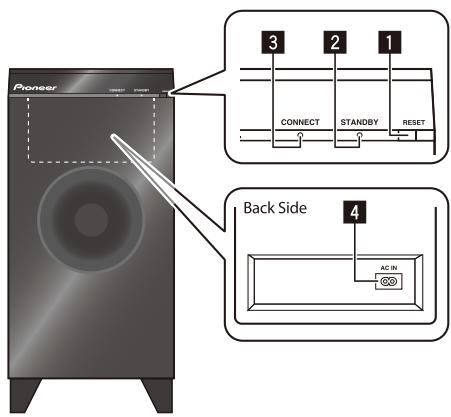

18 — Installing the Wireless Subwoofer (SBX-N700 Ont)

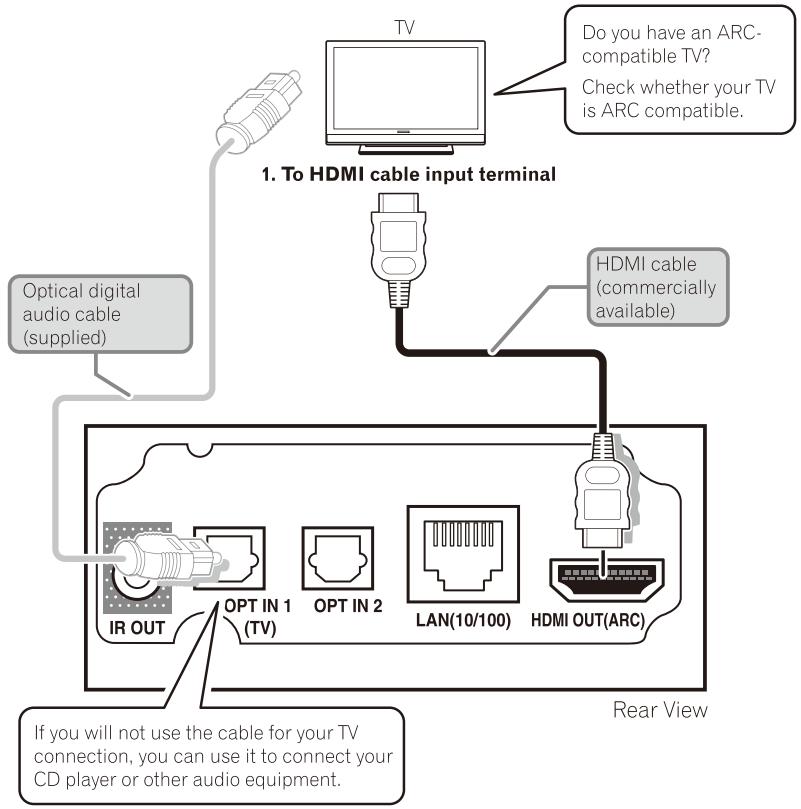

19 Connectingto YourTV

20 Connections with external device

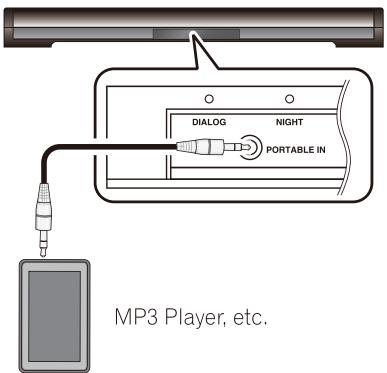

20 - PORTABLEIN connection

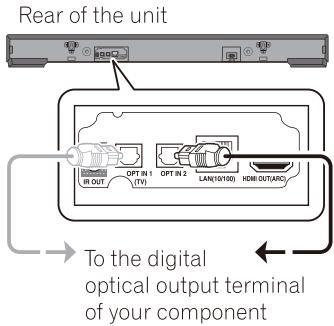

20 — OPTICALIN connection

21. Connecting to your Home Network

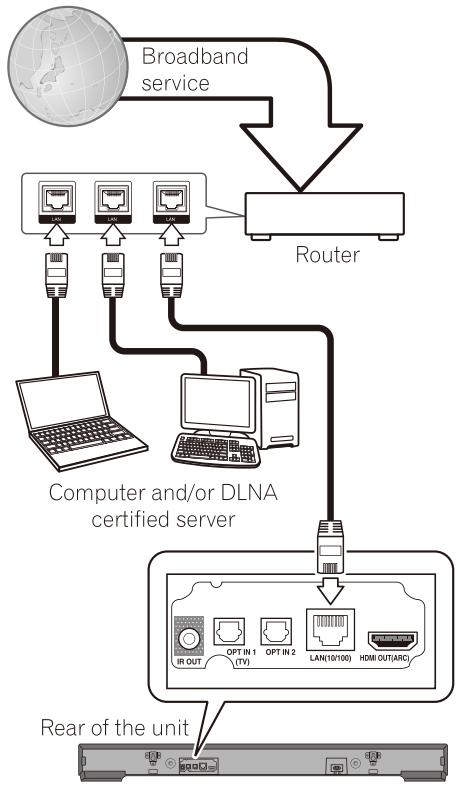

21 Wired network connection

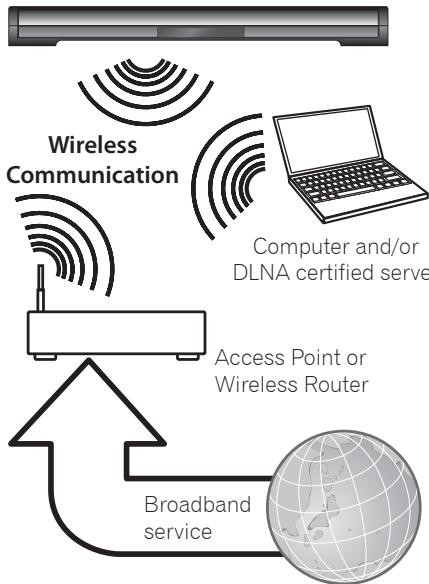

22 — Wireless network connection

22 — Wireless network setup

24 — WPS setup (Wi-Fi Protected Setup}

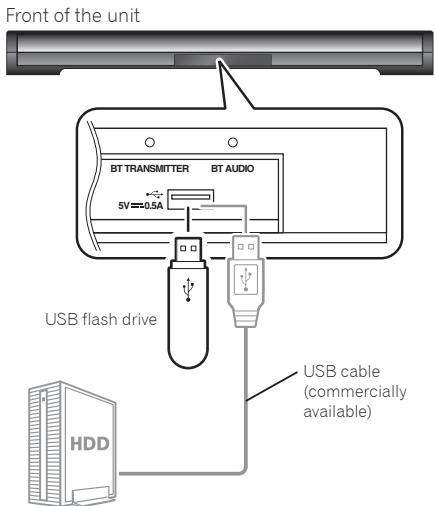

26 USB device connection

26 — About USB devices

26 - Connectingthe USB device

27 Outputtingthe TV Sound from the Unit

30 — Fonwardand reverse scanning

31. Usingthe TOOLS menu

31 — Playing repeatedly (Repeat Play)

31 — Playing a selected section repeatedly (A-B Repeat)

32 — Playing specified range of chapter (file) in random order

32 - Switching the subtitles

32 — Playing photos as slideshows

33 Use the units Wi-Fi Direct"/Miracast” functions

34. — Connect using mobile device's Wi-Fi Direct

72-N0S838-EU0B2 En. indd 5

34. — Playback photos, music and video files from a mobile device

34 — Connecting by Miracast

35 — Connect to device not compatible with Wi-Fi Direct/Miracast

35 — Connect using WPS (Wi-Fi Protected Setup)

36 — Change SSID and password

37 Enjoying music on Bluetooth® devices

37. — Enjoylistening to music wirelessly from a Bluetooth device

38 Powering on the unit with the Bluetooth device

38 — Howtoturn on Bluetooth Standby Mode

38 Listening to Sound Played by the Unit with a Bluetooth Receiver (BT Transmitter)

38 — Pairing the unit and the Bluetooth device (initial registration)

39 — Listeningto the audio ofthe unit witha Bluetooth receiver

42 IR Repeater Function

42. — Whenthe TV remote control does not work {when the AV Speaker Baris installed in front ofthe TM

42. — Relaying TV remote control signals (Using the IR repeater function)

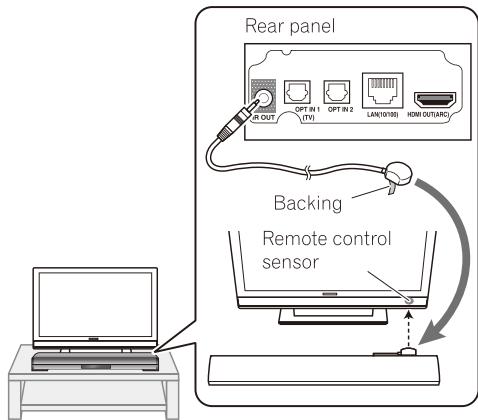

42 — Connectingthe supplied IR cable

4 Control with HDMI function

44 Connecting to a TV that supports the Control with HDMI function

44 Settingthe Control with HDMI function

45 — Operation during linkage

45 Notes on Control with HDMI function

46 Changingthe settings

46. — Operating the initial setup screen

52 — Pairing a wireless subwoofer with the unit {SBX-N700 only)

52 - Software updating

Chapter 1 Before you start

Supplied accessories

Power cord for wireless subwoofer {SBX-N700 only)

+ Warranty + Easy Setup Guide + Software License Notice

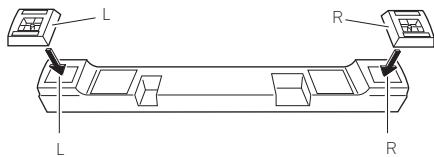

Height adjustment foot x? (L, R)

+ Operating Instructions (this manual)

WARNING Store small parts out of the reach of children and infants. lf accidentally

Wall mounting template x1

swallowed, contact a doctor immediately

Foot attachment screws for AV Speaker IR cable xt Bar x?

Wall mounting cushion x2

Power cord for AV Speaker Bar

S 2013/09/05 11:56 J

72-N0S838-EU0B2 En. indd 7

Putting the batte remote control

1. Open the rear cover.

Place à finger on the tab and then pull up in the direction of the arrow.

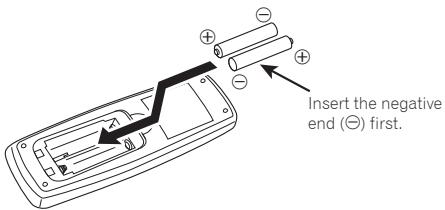

2. Insert the supplied dry batteries (AAA x 2). Insert the batteries as indicated by the PO marks in the battery compartment.

3. Close the rear cover. Close securely (a click should be heard).

Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car

or near à heater. This can cause batteries to leak, overheat, explode or catch fire. lt can also reduce the life or performance of batteries.

+ Do not use any batteries other than the ones specified. Also, do not use a new battery together with an old one:

When loading the batteries into the remote control, set them in the proper direction, as indicated by the polarity marks (® and ©).

Do not heat batteries, disassemble them, or throw them into flames or water.

Batteries may have different voltages, even if they look similar. Do not use different kinds of batteries together.

To prevent leakage of battery fluid, remove the

Before you start 7 En

batteries if you do not plan to use the remote control for a long period of time (1 month or more). Ifthe fluid should leak, wipe it carefully off the inside of the case, then insert new batteries. If a battery should leak and the fluid should get on your Skin, flush it off with large quantities of water. When disposing of used batteries, please comply with governmental regulations or environmental public institution's rules that apply in your country/ area.

When inserting the batteries, make sure not to damage the springs on the battery's (-) terminals. This can cause batteries to leak or overheat

Product information on this unit is provided on the Pioneer website. Check this website for update and service information on your unit. IN Europe:

http://www.pioneer.eu/

http://www.pioneer.eu/ http://www.pioneer.co.uk/

http://www.pioneer.com.au/

About operation of this unit from a mobile device

The unit can be controlled from a mobile device by installing the ControlApp onto the mobile device.

For details, see the product information on the Pioneer website.

This special application may be changed or discontinued without notice.

You can play video, image, and audio files on USB devices or the devices on the network to which the unit is connected via LAN.

+ Supported video file formats + Real RMVB (Only for ASEAN model)

Real RMVB logo is à trademark or a registered trademark of ReallNetworks, Inc.

+ DivX Plus HD DivX Certified” to play DivX® and DivX Plus" HD (H.264/MKV) video up to 1080p HD including premium content.

ABOUT DIVX VIDEO: DivX° is à digital video format created by DivX, LLC, a subsidiary

of Rovi Corporation. This is an official DivX Certified” device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND: This Divx Certified” device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

HD DivX, DivX Certified”, DivX Plus" HD and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.

+ This DivX” Certified device must be registered in order to play DivX Video-on-Demand (VOD) content, First generate the DivX VOD registration code for your device and submit it during the registration process. Important: DivX VOD content is protected by a DivX DRM (Digital Rights Management) system that restricts playback to registered DivX Certified devices. If you try to play DivX VOD content not authorized for your device. the message Authorization Error will be displayed and your content will not be played. Learn more at www divx. com/vod.

— This unit's DivX VOD registration code can be checked at [Initial Setup] — [Playback] — [DivX® VOD DRM] —+ Registration Code (page 48)

—_ The number of views is restricted for some DivX VOD files. When such files are played on this unit, the remaining number of views is displayed. Files for which the remaining number of views has reached D cannot be played (This DivX® rental has expired is displayed) Files for which the number of views is not restricted can be played as many times as you like (the remaining number of views is not displayed).

+ About video, audio, and image files

Audio and image files can be played on this unit when the folders on the USB device are created as described below.

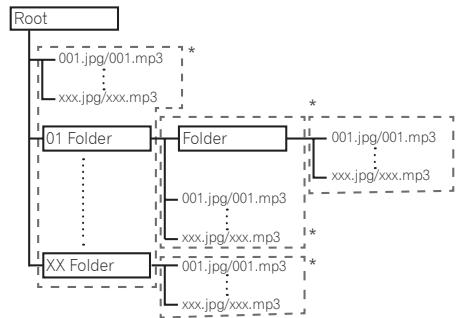

Example of folder structure:

* The number of folders and files within a single folder (including the root directory) is limited to à maximum of 256. Also, keep the number of folder layers to à maximum of 5

+_ The file and folder names displayed on this player may differ from those displayed on a computer

+ Table of Playable Files

pling frequencies: Up to 48 kHz

Audio: RealAudio®, AAC RMVB* Crm.rmvb)

1. This unit supports FAT16, FAT32 and NTFS file systems.

2. WMA Pro, WMA Losless and WMA Voice are not supported 3. Apple lossless encoding is not supported:

4. Only for ASEAN model

Depending on the file structure, server capacity and network environment, it may not be possible to play certain files, even for files indicated on the table of playable files above

When using wireless LAN, depending on the environment (radiowave interference) during sending/receiving of à large volume of data such as HD quality image files and WAV 192 kHz/24 bit high quality audio files, images and sound may be interrupted during playback

Files protected by DRM (Digital Rights Management) cannot be played (not including DivX VOD files).

AVCHD contents cannot be played via LAN

Before you start 11 En

Trademarks and licenses

HOmI The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries

CERTIFIED The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance.

Wi-Fi, Wi-Fi Protected Setup, Wi-Fi Direct, Miracast, WPA, WPA2 are marks of the Wi-Fi

DOLBY DIGITAL Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories,

Alliance. wsmorcre À

(à SETUP The Wi-Fi Protected Setup Identifier Mark is a mark of the Wi-Fi Alliance.

Maänufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other US. and worldwide patents issued

& pending. DTS, the Symbol, & DTS and the Symbol together are registered trademarks & DTS Digital Surround and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. AIl Rights Reserved

“xvColour”, xv.Colour and xvColor are trademarks of Sony Corporation

YouTube" is a trademark of Google Inc.

DLNAŸ, the DLNA Logo and DLNA CERTIFIED®

are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc

This item incorporates copyright protection technology that is protected by US. patents and other intellectual property rights of Rovi Corporation:

Reverse engineering and disassembly are prohibited

Do not connect the unit through à VCR. Video signals fed through VCRS may be affected by copyright protection systems and the picture will be distorted on the television

The Bluetooth” word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by PIONEER CORPORATION is under license. Other trademarks and trade names are those of their respective owners.

HD DivX®, DivX Certified”, DivX Plus" HD and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used

under license. real rmvb

Real RMVB logo is a trademark or a registered trademark of RealNetworks, Inc.

(Only for ASEAN model)

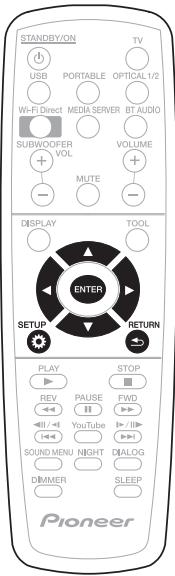

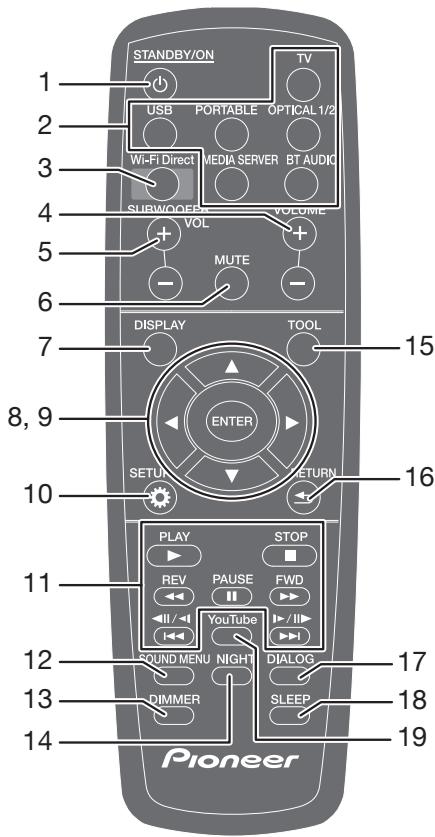

© STANDBY/ON Turns the power of the unit on/off

Input Selection Buttons (page 27) Switches the input of the unit.

Wi-Fi Direct (page 33) Displays the Wi-Fi Direct/Miracast mode screen.

VOLUME Adjusts the volume of the speakers.

SUBWOOFER VOL Adjusts the volume of the subwoofer speaker.

MUTE Temporarily mutes the sound.

DISPLAY Switches the screen display.

EVA ILES Used to select items and change settings. Also moves the cursor.

ENTER Used to execute the selected item, confirm à changed setting, etc

SETUP Displays/closes the settings screen

Operation Buttons (page 27) > PLAY

DIMMER Each press changes the brightness of the unit's display window and each indicator.

NIGHT (page 40) Turns on/off the night function.

TOOL (page 31) Switches the TOOLS menu

RETURN Returns to the previous screen.

DIALOG (page 40) Turns the dialog function on/off.

SLEEP Sets a period of time after which the unit switches off.

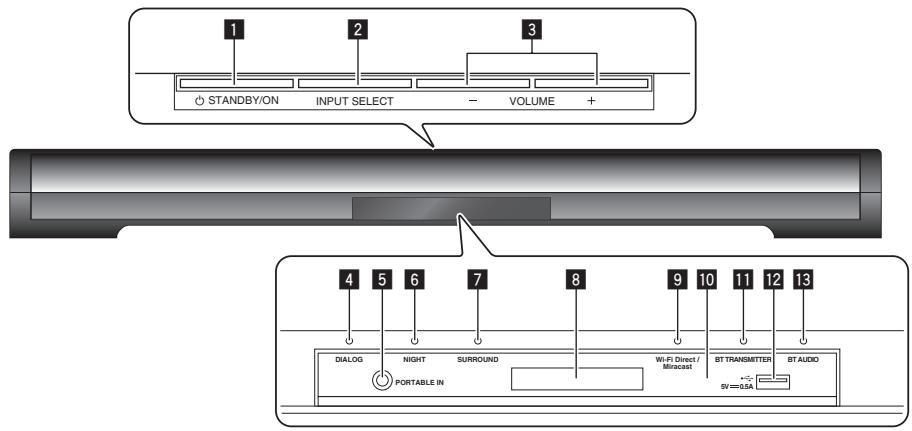

© STANDBY/ON I Remote control sensor Turns the power of the unit orvoff (standby Point the remote control to this, then mode) operate it within approximately 7 m. The If the power does not turn off, operation unit may have trouble capturing remote will become possible if you press the © control signals if there is a fluorescent STANDBY/ON button for more than 5 light nearby. If this happens, move the unit seconds to reboot the unit. away from the fluorescent light.

INPUT SELECT BTTRANSMITTER indicator (page 38) Switches the input Lit when connected with a Bluetooth

Æ VOLUME +/- receiver. Adjusts the volume. Flashes when waiting to connect

EH DIALOGindicator USB port terminal (page 26) Lit when the dialog function is on E sr AUDIO indicator à Bluetooth

PORTABLE IN terminal (page 20) (3.5-mm it wnen connected with a Bluetoo

Lit when the surround is on.

Display window Displays the input mode, unit function status, etc

Wi-Fi Direct/Miracast indicator

Lit when connected by Wi-Fi Direct or Miracast.

Flashes when waiting to connect.

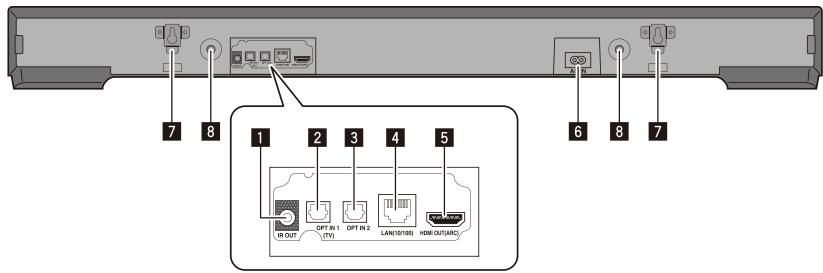

IR OUT terminal H ACIN terminal Be sure to connect this last.

Wireless Subwoofer (SBX-N700 only)

I RESET button Starts pairing of the AV Speaker Bar and wireless subwoofer. Use this button when no sound is output from the wireless subwoofer. (page 52) BH STANDBY indicator Flashes red during pairing of the AV Speaker Bar and wireless subwoofer. It turns off when pairing is complete When the power of the AV Speaker Bar is turned off, this indicator lights red and the AV Speaker Bar switches to standby mode Æ CONNECT indicator Lights blue when pairing of the AV Speaker Bar and wireless subwoofer is complete.

ACIN terminal Connect this first.

Chapter 2 Connecting

Before connecting the unit or changing the connections, be sure to turn off the power and disconnect the power cord from the outlet. Also, make sure you have finished connecting all of the power cords before connecting to the wall outlet.

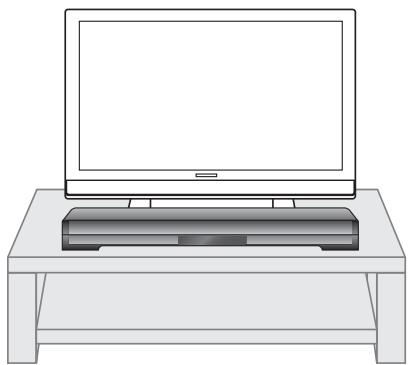

Installing the AV Speaker Bar

fCautions on installing the AV Speaker Bar in front of] aTv

the AV Speaker Bar is connected in front of à [TV the TV may not be able to be operated with the remote control of the TV! In that case, move the AV ISpeaker Bar away from the TV if possible.

If operation is not possible with the remote control

of the TV, set [Initial Setup] —+ [Option] — [IR Out] to

+_ Check that the TV cannot be operated with he remote control of the TV before setting [IR Out] to LOni. I it is set to [On] when operation is possible, the signal output directly from the remote control ofthe TV and the signal output via the unit will

interfere with each other.

+ Do not install the AV Speaker Bar in an unstable place such as on an unsteady stand or tilted surface. It may fall off or tip over, resulting in injury.

The AV Speaker Bar is not magnetically shielded and so should be used away from a cathode

ray tube (CRT) TV or monitor. Also, do not place devices that are easily influenced by magnetism {magnetic cards, watches, video tapes, etc.) near the AV Speaker Bar.

+ Attaching the Height Adjustment Feet If you wish to adjust the height of the AV Speaker Bar attach the supplied height adjustment feet.

+ When performing the height adjustment feet attachment work, be sufficientiy careful when handling the parts because there is à risk of accidental swallowing, suffocation, and injury.

Choose a level place that is out of the reach of small children and carry out the work on a soft surface such as a carpet.

Take care not to over tighten the mounting screws.

Match each of the left sides and right sides of the AV Speaker Bar and feet

1. Secure the feet to the AV Speaker Bar with the supplied screws.

Mounting the AV Speaker Bar to a Wall

The AV Speaker Bar has mounting holes for attaching it to a wall

+ Cautions on mounting The AV Speaker Bar is heavy so there is à risk that its weight could cause the screws to work loose or the wall material to fail to support it, resulting in the AV Speaker Bar falling. Make sure that the wall you intend to mount the AV Speaker Bar to is strong enough to support

it. Do not mount the unit to à plywood or soft surface wall

Mounting screws are not supplied. Use screws suitable for the wall material and capable of supporting the weight of the AV Speaker Bar.

72-NCS838-EU0B2_En. indd

un Ne Connecting 17 En 1. Peel off the backing of the double-sided 5. Place the wall mounting template on tape on the supplied cushions and the top of the AV Speaker Bar. attach the cushions aligned to the lines + The marks (left and ri printed on the template on the rear of the AV Speaker Bar. serve as a rough guide for the screw pos:tions Rear of ur +_ The AV Speaker Bar will be easy to mount if you use the marks as à rough guide when hanging it on the screws Peal of the backing from the double-sidea tape and then aitach the cushions aligned 2. Attach the supplied wall mounting 6. Hang the AV Speaker Bar on the screws template to the wall and then mark the pa 1e hotes at me ar. a o. + Align the AV Speaker Bar rear holes and the screw positions, screws and then hang tne AV Speaker Bar on b screws at the same time. Tape or drasing pins 8 ui] À caution When using a template, make sure there is no slack a Caution I there is any slack wnen the hole positions are Make sure the unit is firmiy secured before letling determined, the unit may not be able to be mounted go of t 3. Obtain commercially available screws + When the AV Speaker Bar is mounted to a wall that fit the holes on the rear of the AV there is a risk of it dropping, falling, etc. due to the Speaker Bar. weight or mounting method. Take sufficient care AV Speaker Bar rear holes not to cause an ident. . on for installation/mounting with 5 me ci rength to withstand the weight. If you a are unsure of the strength or anyéhing else, consult 5 mm) with a professional 10 mm + Pioneer is not responsible for any accidents or demage that result from improper installation! a mm mounting, incorrect use, modification, disaster etc. . + Do not hang from the unit. Pay special attention to 4. Screw the screws into the wall. children. The unit may fall and break, resulting in + Screwrin the screws until they are sticking out of injury. the lby3 to4 1.

ÊHADIEMM OEM + Do not connect or disconnect the cables while the an 537 mm unit is mounted to a wall. Install the cables in such sem 9 a way that a foot or other object cannot get caught (commercially in them. avaiable) (KR +_ The screws for mounting to a wall are not suppl

Use screws suitable for the strength and material 3 mm to 4 mm of the posts or wall + Run the cables down the wall in such a way that a foot cannot be caught on them lan 17 Sr 2013/09/05

+_lfsound is not output from the wireless subwoofer. pair the unit with the wireless subwoofer. (page 52)

Do not mount the subwoofer to a wall or ceiling. It may fall, resulting in injury or the subwoofer being damaged.

The subwoofer is not magnetically shielded and so should be used away from a cathode ray tube (CRT) TV or monitor Also, do not place devices that are easily influenced by magnetism (magnetic cards, watches, video tapes, etc.) near the subwoofer.

Be careful to make sure children do not put their hands or any objects into the subwoofer duct*

* Subwoofer duct: A hole in the subwoofer

cabinet (enclosure) to increase the amount of bass sound.

Do not stand or sit on the subwoofer. Pay special attention to children. The subwoofer may tip over and break, resulting in injury,

Do not place an object on the subwoofer. The subwoofer may become imbalanced and fall over or the object may fall resulting in injury.

+ Sound may become intermittent or stop being output due to the signal state during use but this is not an indication of a malfunction. Try changing the position or orientation of the AV Speaker Bar or wireless subwoofer.

The AV Speaker Bar and wireless subwoofer can be used at a distance of up to approximately 10 m from each other. This distance difiers depending on the operating environment and operation at the distance of 10 m is not guaranteed

The reception state may become unstable if the AV Speaker Bar and wireless subwoofer are too close to each other. In such a case, use the AV Speaker Bar and wireless subwoofer at least 1 m apart from each other.

Ifthere is an obstruction (metal door, concrete wall, insulation with aluminum foil, etc.) between the AV Speaker Bar and wireless subwoofer, the signal may be blocked and sound may not be output. In this case, install the AV Speaker Bar and wireless subwoofer where there is a clear line of sight between them

The audio from the wireless subwoofer may

sound out of sync depending on the positional relationship between the listening point, AV Speaker Bar, and wireless subwoofer. In that case, adjust the settings to match your environment from Speaker Setup] in the unit settings. (page 50)

Connecting to Your TV Connect the unit to your TV using an HDMI cable (commercially available).

ARC (Audio Return Channel): This is a function that enables autput of the TV audio from the speakers of the unit by connecting only the HDMI cable.

When connecting to a TV that is not ARC compatible, you will be unable to hear the TV audio from the unit if the HDMI cable only is connected ta the TV. To enable hearing ofthe TV audio with the unit, connect the supplied optical digital audio cable

+ Connecting the unit with an HDMI cable to Pioneer TVs that support the Control with HDMI!

function or enables linked operation with these devices. For details, see “Control with HDMI function” (page 44)

1. Connect the HDMI output terminal on the unit to the HDMI input terminal.

The connection method differs depending on whether your TV is ARC compatible

+_Ifyour TVis ARC compatible, you can connect using the HDMI cable only. Connect the cable to the ARC compatible HDMI input terminal on your TV (the HDMI terminal indicated by "ARC")

+ lfyour TVis not ARC compatible, an optical digital cable must also be connected in addition to the HDMI cable

The settings of the unit need to be changed depending on the connection between your TV and

the unit. For details, see "Setting the Control with HDMI function" on page 44.

+ Setthe input mode of the TV to the HDMI with the unit con! instructions for your TV)

for the setting procedure, see the operating

Check whether your TV is ARC compatible

HDMI cable (commercially available)

NN D Q TI La OPTINT OPTIN2 fe 1 Nam LAN(10/100) _ HDMIOUT(ARC), Rear View H you will not use the cable for your TV connection, you can use it to connect your CD player or other audio equipment

+ Some Ts have settings for ARC and digital audio output. For details, see the operating instructions for your TV.

Protection caps are atlached to the ends of the supplied optical digital cable. Remove the caps

before connecting the cable.

Do not bend the optical digital cable at an acute angle. When storing the cable, make sure there is à diameter of 15 cm:

When connecting the optical digital cable, check that the orientation of the terminal

is correct and firmiy insert

it all the way in. Forcing the insertion of the termina when itis incorrectiy oriented may cause the terminal to become deformed or the shutter to not be able to be closed when the cable is disconnected

Connections with external device

PORTABLE IN connection

You can enjoy the sound from your portable audio player through the speakers of this system

Connect the headphones (or line out } terminal ofthe portable audio player into the PORTABLE IN socket of this unit, To listen to the sound of a device connected to [PORTABLE IN], press PORTABLE on the remote control

+ When inserting the PORTABLE IN terminal, support the top ofthe unit with your hand to prevent it rom moving

OPTICAL IN connection

You can enjoy the sound from your component with a digital optical connection through the speakers of this system

To listen to the sound of a device connected to an optical digital audio input terminal, press OPTICAL 1/2 and select [Optical IN-1] or [Optical IN-2]

optical output terminal of your component

+ An optical digital audio cable with a square plug can be connected to this unit

+ Some connected devices have settings for digital audio output. For details, see the operating instructions for he specific playback device

+ When an MPEG2-AAC (digital broadcast) signal is input to an optical digital audio input terminal, sound may not be output If sound is not output, switch the audio output of the device connected to the optical digital audio input terminal to PCM For the switching procedure, refer to the operating instructions for the connected device.

Connecting to your Home Network

This unit can be connected to a local area network (LAN) via the LAN port on the rear panel or the internal wireless module.

Wired network connection

Using a wired network provides the best performance, because the attached devices connect directly to the network and are not subject to radio frequency interference

Please refer to the documentation for your network device for further instructions.

Connect the unit's LAN port to the corresponding port on your Modem or Router using à commercially available LAN or Ethernet cable

5 connect to the Internet, a separate subscription with an Internet service provider is required

Computer and/or DLNA certified server

© When plugging or unplugging the LAN cable, hold Cat the plug portion of the cable. When unplugging,

do not pull on the LAN cable but unplug while pressing down on the lock. Rear of the unit

Do not connect a modular phone cable to the LAN

. are various connection configurations, S of your elecommunication carrier or internet service provider. +_Ifyou want to access content from computers or

DLNA servers, {his unit must be connected lo lhe same local area network with them via a router

Wireless network connection

Another connection option is to use an

Access Point or a wireless router. The network configuration and connection method may vary depending on the equipment in use and the network environment.

This unit is equipped with an IEEE 802.11n (Dual band, 2.4 GHz/5 GHz band) wireless module, which also supports the 802.11a/b/g standards. For the best wireless performance, we recommend using à IEEE 802.11n certified Wi-Fi network (access point or wireless router)

Communication C Computer and/or | DLNA certified server Access Point or

Refer to the setup instructions supplied with your access point or wireless router for detailed connection steps and network settings.

For best performance, a direct wired connection from this unit to your home networks router or cable/DSL modem is always the best option.

If you do chose to use the wireless option, note that performance can sometimes be affected by other electronic devices in the home.

Wireless network setup

For the wireless network connection, the unit needs to be set up for network communication This adjustment can be done from the [Initial Setup] menu. Adjust the [NETWORK] setting as follow. Setting up the access point or the wireless router is required before connecting the unit to the network.

Before setting the wireless network, you need to:

-_ connect the broadband internet to the

wireless home network.

-_setthe access point or wireless router.

-_ note the SSID and security code of the network.

The Initial Setup screen is displayed.

Select [Network] — [Interface] — [Wireless]

Select [Network] — [Wireless Setting] —

INext Screen] and press ENTER.

Select [Yes] and press ENTER to continue

The new connection settings reset the

current network settings.

[Wireless Setting] menu is displayed

Use A/v to select [Scan].

.… Then select [Next] using the 4/> and press ENTER.

The unit scans the all available access points or wireless routers within range and display them as a list. Use A/Y to select an access point or wireless router on the list, and then press ENTER.

If you have security on your access point or wireless router, verify that the WEP or WPA key that was entered into the unit matches the router's information exactly, You need to input the security code as necessary.

2013/09/05 11:56 J Connecting 23 En

How to enter the security code

@ Select the security code section using A/v/4/» and press ENTER to start the software keyboard.

@ Use a/w/4» to select characters and items, and then press ENTER to input.

3) Select [abc], [ABC], or [l@#$] using A/V/ 4» to switch to lower case characters, upper case characters, or symbols.

Finish entering the security code by selecting [Enter] using A/V/4/» and pressing ENTER.

7. Select [Next] using A/V/4/» and press ENTER. lf it connects success, it will display connection success and IP is obtained

8. Pressing ENTER ends [Wireless Setting]

+ WEP security mode generally have 4 keys available on an access point or wireless router's setting. If your access point or wireless router use WEP security, enter the security code of the key “No.1” to connect on your home network

An Access Point is a device that allows you to connect to your home network wirelessiy. [Scan] - The unit scans the all available access points or wireless routers within range and display them as a list

[Manual] - Your access point may not

be broadcasting its access point name (SSID). Check your router settings through your computer and either set your router to broadcast SSID, or manually enter the access point name (SSID) in [Manual].

Auto] - If your access point or wireless router that supports the Push Button Configuration method, select this option and press Push Button on your access point or wireless router within 120 counts. You do not need to know the access point name (SSID) and security code of your access point or wireless router.

+_Ifthere is no DHCP server on the network and you want to set the IP address manually, Please refer to ‘Setting the IP address”. (page 50)

WPS setup (Wi-Fi Protected Setup)

WPS connection setting

WPS is abbreviation of Wi-Fi Protected Setup A standard established by the Wi-Fi Alliance industry group for a function allowing settings related to interconnection of WPS compatible wireless LAN devices and encryption to be made with simple operations

This unit supports push-button configuration and PIN code configuration.

PBC (Push Button Configuration)

Connection settings are made automatically simply by pressing the WPS buttons on the WPS compatible wireless LAN device, This is the simplest way of making the settings, and is possible when the WPS compatible wireless LAN device is equipped with WPS button

PIN Input Connection settings are made by inputting the 8-digit PIN code shown on the main display to the access point to which you selected. Follow the instructions shown in Connecting using PIN code configuration on the right

u 1] 12-N0S838-EU0B2 En. indd 24

When performing wireless settings set [Initial Setup] —+ [Network] —+ [interface] io [Wireless]

1. Press SETUP. The Initial Setup screen is displayed

2. Select [Network] — [Wireless Setting] — [Next Screen] and press ENTER. A confirmation screen is displayed.

8. Use 4/> to select [Yes], then press ENTER. The Wireless Setting screen is displayed!

4. Use A/Y to select [Auto], then press ENTER. The WPS (Wi-Fi Protected Setup) screen is displayed

5. Use 4/Y to switch between ["PBC] or [= PIN] screens. When connecting using PBC go to step 6. When connecting using PIN go to step 7

6. When connecting using PBC (Push Button), on the [*PBC] screen use 4/> to select NEXT, then press ENTER.

Then press the WPS button on the access point within 120 seconds. If it connects success, it will display connection success and IP is obtained. Go to step 9.

7. When connecting using PIN confirm the PIN Code on the [= PIN] screen. Use cursor 4» to select [NEXT], then press ENTER.

8. Enter into the access point the PIN Code that you confirmed in step 7 above.

The PIN Code input method differs depending on the LAN device used. For details, consult the operating instructions accompanying your LAN device, If it connects success, it will display connection success and IP is obtained. Go to step 9

9. Pressing ENTER ends [Wireless Setting].

Notes on Network Connection:

Many network connection problems during set up can often be fixed by re-setting the router or modem. After connecting the unit to the home network, quickly power off and/or disconnect the power cord of the home network router or cable modem. Then power on and/or connect the power cord again.

Depending on the internet service provider (SP), the number of devices that can receive internet service may be limited by the applicable terms of service. For details, contact your ISP.

Our company is not responsible for any mälfunction of the unit and/or the internet connection feature due to communication errors/malfunctions associated with your broadband internet connection, or other connected equipment.

Some internet contents may require à higher bandwidth connection

Even if the unit is properly connected and configured, some internet contents may

not operate properly because of internet congestion, the quality or bandwidth of your internet service, or problems at the provider ofthe content.

Some internet connection operations may not be possible due to certain restrictions set by the Internet service provider (SP) supphying your broadband Internet connection.

Any fees charged by an ISP including, without limitation, connection charges are your responsibility.

A 10 Base or 100 Base-TX LAN port is required for wired connection to this unit. If your internet service does not allow for such à connection, you will not be able to connect the unit.

You must use a Router to use xDSL service.

xDSL modem is required to use xDSL service and a cable modem is required to use cable modem service. Depending on the access method of and subscriber agreement with your ISP you may not be able to use the internet connection feature contained in this unit or you may be limited to the number of devices you can connect at the same time. {your ISP limits subscription to one device, this unit may not be allowed to connect when à computer is already connected.)

The use of a “Router” may not be allowed or its usage may be limited depending on the policies and restrictions of your ISP For details, contact your ISP directly.

The wireless network operate at 2.4 GHz radio frequencies that are also used by other household devices such as cordless telephone, microwave oven, and can be affected by interference from them

Turn off all unused network equipment in your local home network, Some devices may generate network traffic.

For the purpose of the better transmission, placing the unit from the access point as close as possible.

In some instances, placing the access point or wireless router at least 0.45 m above the floor may improve the reception.

Move closer to the access point if possible or re-orient the unit so there is nothing between it and the access point.

The reception quality over wireless depends on many factors such as type of the access point, distance between the unit and access point, and the location of the unit

Set your access point or wireless router to Infrastructure mode. Ad-hoc mode is not supported.

& 1] 72-A0S838-EU0B2 En. indd 25 2013/09/05

USB device connection

You can play movies, music, and photos stored on a USB device connected to this unit.

The USB devices that can be connected to the unit are as shown below.

USB 2.0-compatible USB flash drive

(capacity of 1 GB or greater, 2 GB or greater recommended) or HDD (capacity 2 TB or less)

File system: FAT16, FAT32 or NTFS Ont

+ Devices formatted with a file system other than the above cannot be used.

USB devices may not be recognized if they contain multiple partitions.

Some USB devices may not operate with this unit, Operation of USB devices is not guaranteed

12-0S838-EU0B2 En. indd 26

Connecting the USB device

+_Be sure to turn the unit's power off before connecting or disconnecting USB devices,

When using an external hard disk as the external storage device, be sure to turn on the hard disk's power before turning on the unit's power.

Ifthe USB device is write-protected, be sure to disable the write-protection.

When connecting the USB cable, hold onto the plug, set the plug in the proper direction for the port and insert it horizontally,

Placing excessive loads on the plug may result in poor contact, making it impossible Lo write data on the USB device.

When a USB device is connected and the unit's power is turned on, do not unplug the power cord

This unit can play movie, music and photo files contained in the USB device.

1. Insert a USB device to the USB port terminal until it fits into place. Front of the unit

+ When inserting the USB terminal, support the top of the unit with your hand to prevent it from moving.

+_This unit does not support a USB hub. + Use a USB cable with a length of 2 meters or less.

D Basic operations 27 Chapter 3 + To adjust just the volume of the bass Basic operations sound, use SUBWOOFER VOL. Playback Files on a USB Outputting the TV Device Sound from the Unit 1. Turn on the power of the TV.

2. Press © STANDBY/ON to turn on the

The following describes the procedure up until ) power of the unit.

listening to the sound of a TV connected to the

unit 3. Press USB. | 4. Select [Photo], [Music], [Video], or À caution [AVCHD].

When the unit is connected to an ARC compatible

Use 4/v to select an item and then press TU press SETUP Lo display [Initial Setup] and then ENTER set [HDMI] — [Control] to [On] and [HDMI] —+ [TV g Input] to [TV(ARC)]. 5. Select a file and then play it. £ + When a TV that is not compatible with ARC is Use A/Y to select a file and then press 2 connected to the optical digital audio input 1 ENTER 2 terminal of the unit with an optical digital audio + To pause playback, press I PAUSE during É cable (supplied), press SETUP to display [Initial playback a Setupl and then set HDMI] — [TV Input to [Optical IN] + To stop playback, press If STOP during +_The video signal output of the unit is set to 50 fps playback (PAL) in the factory default state. +_Ifthe file you want to play is in a folder, You can change the video signal output to 60 fps select that folder and then press ENTER NTSC") to match your TV. to display the files in the folder.

Ithe video of the unit is not displayed because the

video signal system differs, perform the following Playback from Media

operation to change the setting

> Hold down SLEEP on the remote control until Server “PAL (or NTSC") appears in the display window of the AV Speaker Bar.

@ When “PAL! (or “NTSC") appears, press 4 or About Media Server

» on the remote control to change the setting. A media server allows you to view a list of @ Check that the video ofthe unit is displayed on folders and files stored on devices on the the TV network that are connected to the unit via the —_ Ifthe settings of the unit are initialized tothe LAN (Media Server). The following shows the factory default state, this setting returns to devices for which playback is possible from 50 fps (“PAL”), Media Server. Also refer to page 9

—_ This function is for ASEAN model onty. Devices for which playback is possible

1. Turn on the power of the TV. + Devices on the network that are connected 2. Press © STANDBY/ON to turn on the to the unit via the LAN (devices with à media

power of the unit. server function compliant with DLNA 1.0 or 3. Press TV on the remote control to DENA 1.5)

switch the input of the unit to the TV.

4. Select the channel you want to watch

on the TV. sck may not be possible in some cases even

J for files in formats supported by the unit.

5. Press VOLUME and SUBWOOFER VOL

to adjust the volume.

+ To temporarily mute the sound, press MUTE. Press the button again or adjust the volume to cancel mute

28 Basic operations ën

About Files on the Network

The input sources that can be played from Media Server are as shown below.

+ Files on the network servers (on the computers or components connected to the unit via LAN interface.)

+_ The Media Server allows you to play files on media servers connected to the same Local Area Network {LAN) as the unit

The following files are allowed to be played from Media Server:

— Computers running Microsoft Windows Vista or XP with Windows Media Player 11 installed

— Computers running Microsoft Windows 7 with Windows Media Player 12 installed

— DLNA-compatible digital media servers (on computers or other components)

Files stored in a computer or DMS (Digital Media

Server) as described above can be played by Digital

Media Player (DMP). The unit supports the use of

such DMP Files stored in a computer or DMS (Digital Media Server) as described above can be played via command from an external Digital Media Controller {DMO). Devices controlled by this DMC to play files are called DMRs (Digital Media Renderers). This unit supports this DMR function. The user- friendly name of the unit is SBX:N500/N700. When in the DMR mode, such operations as playing and stopping files can be performed from the external controller.

To play back audio files stored on components on the network, you must turn on the DHCP server function of your router. In case your router does not have the built-in DHCP server function, itis necessary to set up the network manual Otherwise, you cannot play back files stored on components on the network, See page 50.

About network playback The network playback function of this unit uses the following technologies:

+ Windows Media Player

See Windows Media Player 11/Windows Media Player 12 above for more on this.

The Digital Living Network Alliance (DLNA)

is a cross-industry organization of consumer electronics, computing industry and mobile device companies. Digital Living provides consumers with easy sharing of digital media through a wired or wireless network in the home. The DLNA certification logo makes it easy

to find products that comply with the DLNA Interoperability Guidelines. This unit complies with DLNA Interoperability Guidelines v1.5. When à computer running DLNA server software or a DLNA compatible device is connected to this unit, some setting changes of software or other devices may be required. Please refer to the operating instructions for the software or device for more information DLNA®, the DLNA Logo and DLNA CERTIFIED® are trademarks, service marks, or certification marks of the Digital Living Network Alliance.

Basic operations 29 En

# Content playable over a network

+ Even when encoded in a compatible format, some files may not play correctiy,

Some functions may not be supported

depending on the server type or version used,

Supported file formats vary by server As such, files not supported by your server

are not displayed on this unit. For more information check with the manufacturer of your server.

+ Disclaimer for Third Party Content Access to content provided by third parties requires à high speed Internet connection and may also require account registration and à paid subscription:

Third party content services may be changed, suspended, interrupted, or discontinued at any time without notice, and Pioneer disclaims any liability in connection with such occurrences.

Pioneer does not represent or warrant that content services will continue to be provided or available for à particular period of time, and any such warranty, express or implied, is disclaimed.

+ About playback behavior over a network

Playback may stall when the computer is switched off or any media files stored on it are deleted while playing content.

Ifthere are problems within the network environment (heavy network traffic, etc.) content may not be displayed or played properly (playback may be interrupted or stallecb. For best performance, à 10BASE-T/ 100BASE-TX connection between the unit and the computer is recommended

If several clients are playing simultaneously, as the case may be, playback is interrupted or stallec

Depending on the security software installed on à connected computer and the setting of such software, network connection may be blocked.

Pioneer is not responsible for any malfunction ofthe unit and/or the Media Server features due to communication errors/malfunctions associated with your network connection

and/or your computer, or other connected equipment. Please contact your computer manufacturer or Internet service provider. Windows Media is either à registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.

Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/ or other countries.

Playback files on the network

1. Turn on the power of the TV.

2. Press © STANDBY/ON to turn on the power of the unit.

3. Press MEDIA SERVER to display the Media Server.

4. Select the server which contains the file you want to play.

5. Select from [Photo]/[Music]/[Video]. Use A/Y to select, then press ENTER.

6. Select the file you want to play. Use A/Y to select, then press ENTER.

+ lfyou are unable to display the servers on the Media Server screen, select [DLNA Search] and press ENTER

Playing Files on a USB Device or Media Server

Forward and reverse scanning

> During playback, press 44REV or >> FWD.

+ The scanning speed switches each time the button is pressed, The speed steps depend on the file (the speed is displayed on the TV screen)

To resume normal playback > Press > PLAY.

> During playback, press Ht« or »»1.

+ When mi is pressed, the playback skips ahead to the beginning of the next chapter/file.

When Hd is pressed while a video or audio file is playing, the playback skips back to the beginning of the currently playing chapter/file. Press twice to skip back to the beginning of the previous chapter/file.

When Hd is pressed while an image flle is playing, playback returns to the previous file

Playing in slow motion

> While playback is paused, press and hold <Il/<l or 1/11. +_ The speed switches each time the button is pressed (the speed is displayed on the TV screen)

To resume normal playback > Press > PLAY.

Step forward and step reverse

> While playback is paused, press <ll/4 or læ/1lD>. +_The picture moves a step forward or reverse each time the button is pressed

4 To resume normal playback > Press > PLAY.

The functions that can be used differ according to the type of file. In some cases, some of the functions cannot be used. Check the usable functions on the table below.

Funcl le Image file Audio file

Skipping content 7 7

1. Some functions may not work for some files, even if indicated [1 on the table.

2. For some files, normal playback resumes automatically when the chapter switches.

8. No sound is produced during forward and reverse scanning.

4. Sound is produced during forward and reverse

No sound is output during slow motion playback

Reverse slow motion playback is not possible.

Reverse step playback is not possible.

Using the TOOLS menu

Various functions can be called out according to the unit's operating status.

1. Display the TOOLS menu. Press TOOL during playback

2. Select and set the item. Use A/Y lo select, then press ENTER.

+_ Items that cannot be changed are displayed in gray. The items that can be selected depend on the units status.

+ To change the setting of the selected item Use A/Y to change.

+ To close the TOOLS menu Press TOOL.

AB Repeat Play a selected section repeatediy,

ins Search Skip forward 30 seconds.

Ins Replay Skip backward 10 seconds.

Slide Show Switch the playback speed while playing the picture slide show

Transition Change the style ofthe slide show

while playing the picture slide show

Playing repeatedly (Repeat Play)

Use this procedure to play the currently playing chapter or file repeatediy.

To switch to this mode, select [Repeat] from the TOOLS menu during playback. Select either [Repeat One] or [Repeat AI]

4 To cancel Repeat Play

Select [Repeat] from the TOOLS menu, and set to [Repeat Off]

Playing a selected sec

+ Repeat Play is canceled in the following cases: — When you search outside the repeat range. — When you start other Repeat Play or

repeatedly (A-B Repeat)

A selected section within a file is played back repeatediy.

Press TOOL during playback. The TOOLS menu screen appears

. Select [A-B Repeat] in the TOOLS

menu at the point where A-B repeat playback will start, and press ENTER. [A] is displayed on the TV screen:

. Select [A-B Repeat] in the TOOLS

menu at the point where A-B repeat playback will end, and press ENTER. [AB] is displayed on the TV screen, and AB repeat playback is started

4 To cancel A-B Repeat play

Select [A-B Repeat] in the TOOLS menu during AB repeat playback, and press ENTER

AB repeat playback is canceled during the following operations.

— When you search outside the repeat range

— When you start another repeat or random playback

You can select from 2 types of random playback.

1. Select [Mode]. Use 4/Y to select, then press ENTER.

2. Select the playing mode. Use 4/Y to select, then press ENTER.

The specified range of chapter (file) is played

in random order. The same item may be played consecutively.

+ Shuffle play The specified range of chapter (file) is played in random order. Each item is played once.

Switching the subtitles

For files on which multiple subtitles are

recorded, the subtiles can be switched during

1. The subtitles can be switched by selecting [Subtitle] from the TOOLS menu.

# Tuning the subtitles off

Select [Subtitle] from the TOOLS menu to switch the setting to Off.

For files on which multiple audio streams/ channels are recorded, audio streams/ channels can be switched during playback

1. The audio can be switched by selecting [Audio] from the TOOLS menu. Playing photos as slideshows

This function plays the photos, switching them automatically

+ Rotating/inverting photos When a slideshow is playing or paused, the display switches as shown below when the A/ Y/4» are pressed

+ Depending on the connected device and its status, it may take some time for playback to start, switching between screens, or for other operations.

Some files cannot be played back using this function.

Some files have limitations on their playback count

Playback range can be selected from within à folder, or within the selected USB device

1. Press SETUP while stopped. The Initial Setup screen is displayed

2. Select and confirm [Playback] — [Play Mode] — [AII Play] or [Folder Play]. Use A/v to select, then press ENTER.

+ Folder Play: Playback files from the selected folder.

+ All Play: Playback all files on the selected USB device.

+ When using [AÏI Play], a new file list will be displayed on the unit, regardless of original folder composition, and then played back in the order that they are displayed

The order the files are displayed in on the units file list may be different from the original order on your computer.

+ Playback will stop once the final file on the file list is played.

f you want to playback again from the top of the

file list use the repeat function (‘Playing repeatediy

{Repeat Play)" on page 31)

2013/09/05 11:57 J T7 Basic operations 33 En +_ The maximum number of files that can be 1 displayed is 1000 files. Use the unit's Wi-Fi +_ The file list may take some time to be displayed Direct""/Miracast" when it includes a large number of files. . functions

Wi-Fi Direct and Miracast are functions for connecting your mobile devices to the unit without using a wireless LAN router.

Miracast is a function that allows you to display the videos on a mobile device as is on à large

screen TV Wi-Fi Direct is a function that allows you to play back photo, music, and video files stored on à mobile device with the unit by installing à DLNA compliant application on your mobile device.

You can only connect one mobile device to the unit at a time with this function. If you want to connect à different mobile device, you will first need to disconnect the one that is currently connected.

While connected via Wi-Fi Direct or Miracast, you will be unable to use the unit's internet connection:

While connected via Wi-Fi Direct, you will be unable to change sound settings.

I the power to the unit is turned OFF (Standby) then this function will be terminated, and network settings will be returned to what they were before using this function

In order to use this function your mobile device must meet Wi-Fi specifications.

The unit does not support mobile device control using a specialist application.

Display the Wi-Fi Direct/ Miracast mode screen

1. Turn on the power of the TV. 2. Press © STANDBY/ON to turn on the power of the uni

Direct to display the Wi-Fi

Direct/Miracast mode screen.

+ Settings to connect the unit and mobile devices will be started from this screen.

+ Closing this screen will terminate the Wi-Fi Direct/Miracast connection.

12-N0S838-EU0B2 En. indd 33

You can connect using à Wi-Fi Direct function, if your mobile device has one.

Press Wi-Fi Direct lo display the Wi-Fi Direct/ Miracast mode screen

1. Turn on the Wi-Fi Direct setting on your mobile device.

2. Select the device name “DIRECT-xxSB” for the unit appearing on the TV screen from the list displayed on your mobile device.

The “xx” indicates the identification character for the device

Ifthe units device name “DIRECTxxSB" is not displayed on the mobile device or a connection is not possible, resolve the problem by doing one of the following,

— Press an input selection button, and then press irect, and perform the procedure again from the Wi-Fi Direct/Miracast mode screen.

— Use 4% to select [Refresh], then press ENTER

Please see the manual for your mobile device for details on how to operate it

When connected using the Wi-Fi Direct function of a mobile device, the DLNA application to be used must also be compatible with a Wi-Fi Direct connection:

Playback photos, music and video files from a mobile device

Send photos, music and video files from a mobile device to the unit.

Please see the manual for your mobile device for details on how to operate it

Depending on the mobile device you are using, you may need lo first install software before you can send photos, music and video files.

12-N0S838-EU0B2 En. indd 34

Connecting by Miracast You can connect to your mobile device if it has the Miracast function.

Press Wi- irect to display the Wi-Fi Direct/ Miracast mode screen

1. Turn on the Miracast setting on your mobile device.

A list of the devices that can be connected to the mobile device is displayed on the mobile device screen.

2. Select the device name “DIRECT-xxSB” for the unit appearing on the TV screen from the list displayed on your mobile device.

The xx" indicates the identification character for the device

Ifthe units device name “DIRECTxxSB" is not displayed on the mobile device or a connection is not possible, resolve the problern by doing one of the following,

— Press an input selection button, and then press irect, and perform the procedure again from the Wi-Fi Direct/Miracast mode screen.

— Use 4% to select [Refresh], then press ENTER Onote

+ Please see the manual for your mobile device for details on how to operate it

Connect to device not compatible with Wi-Fi Direct/ Miracast

Press Wi-Fi Direct Lo display the Wi-Fi Direct/ Miracast mode screen, and select [Next]

1. Under the “Wi-Fi Network Settings” on your mobile device, select the device name “DIRECT-xxSB” for this unit as displayed on the TV screen.

The “xx shown here stands for the unit's identification code

+ Ifthe name of the unit "DIRECT:0SB" does not appear on your mobile device, press an input selection button on the remote control and then Wi-Fi Direct and perform the controls again from the Wi-Fi Direct/Miracast Mode Screen:

2. Enter the password for the unit as shown on the TV screen into your mobile device.

The connection is then complete

+_ Please see the manual for your mobile device for details on how to operate it

Connect using WPS (Wi Protected Setup)

You can connect using WPS if your mobile device supports it.

Press Wi-Fi Direct Lo display the Wi-Fi Direct/ Miracast mode screen, and select [Next]

1. Use 4» to select [WPS], then press ENTER. The WPS (Push Button Configuration) screen will be displayed

3. Turn on the WPS setting on your mobile device within 2 minutes. Ithe connection is successful then [Connection Success] will be displayed on the TV screen.

+_ Please see the manual for your mobile device for details on how to operate it

36 Basic operations En

Change SSID and password

Change the SSID and password used to connect the unit and à mobile device.

1. Press 0 STANDBY/ON and the power to the unit will come on.

2. Press Wi-Fi Direct to display the Wi Direct/Miracast mode screen.

3. Use 4/> to select [Refresh], then press ENTER. SSID and password will be changed. The connection between the unit and mobile device will be terminated. After the connection is terminated, when using the unit's Wi-Fi Direct/Miracast function again you will also need to set up the connection again

+ All connection settings that have been setup for mobile devices will be removed.

+_ The SSID and password will not change until an update (Refresh) is performed. You should periodically perform an update (Refresh) for security reasons.

+ This unit supports the YouTube Leanback service. The Youlube Leanback service is only available in English for now.

+_ YouTube videos for mobile phones cannot be played

+ Some YouTube videos cannot be played

You must connect the unit to the Internet beforehandi See Connecting to your Home Network on page 21 for the details.

1. Display YouTube screen. Press YouTube

2. Select video and playback. Use A/w/4» to select, then press ENTER. Press m STOP to stop playback. Playback of image will stop.

+ Depending on the Internet connection environment it may not be possible to play web contents properiy, To access lo web contents, this unit requires a broadband Internet connection. À contract with an Internet provider is required for a broadband Internet connection:

Access to content provided by third parties requires & high speed Internet connection and may also require account registration and a paid subscription Third party content services may be changed. suspended, interrupted, or discontinued at any time without notice, and Pioneer disclaims any liability in connection with such occurrences.

Pioneer does not represent or warrant that content services will continue to be provided or available for à particular period of time, and any such warranty: express or implied, is disclaimed!

Enjoy listening to music wirelessly from a Bluetooth

Bluetooth devices: Mobile phone

music player + Bluetooth audio transmitter n

(commercially available). The Bluetooth '\ Pauses playback

wireless technology enabled device must ŒE IStops playback =

support A2DP profiles. ea PREV Moves to the start of the file. £ Pairing the unit and the Bluetooth device Pressing twice moves to the start 8 nes n L of the previous file. œ initial registration) - 5 Before starting the pairing operation, check pi NEXT [Moves to the start of the next file. El that the Bluetooth function on the Bluetooth = Te fie rewinds wi is button à device is turned on. For details, see the is pressed operating instructions for your Bluetooth re re tie Ronan

device. Once the pairing operation is performed, it does not need to be performed

again. 1. Press BT AUDIO.

First, “BT AUDIO” appears in the display window of the unit and then “READY” is

2. Perform the pairing operation on the

When searching for the unit from the

Bluetooth devices: Digital music player

iring method may vary depending on the type of Bluetooth device.

4. Play music using your Bluetooth device For details on the playback procedure, see the operating instructions for your Bluetooth device.

The following operations can be performed using the remote control of the unit

To perform operation using the remote control of the unit, the Bluetooth device must support the Profile: AVRCP.

Operations performed by Bluetooth devices may vary for different devices.

Remote control operation cannot be guaranteed for all Bluetooth devices.

Bluetooth device, some types of Bluetooth Ont

devices may show a list of compatible devices on the display of the Bluetooth

+ When a Bluetooth connection is not established, the display window of the unit shows “READY

device. The unit name displayed for pairing

is SBX-N500/N700. 3. Enter the PIN code.

The PIN code that can be set for the unit is 0000, 1234, or 8888 (the default setting is

Ifthe pairing between the unit and the Bluetooth device is successful, “SINK"

appears in the display window of the unit

1] 12-0S838-EU0B2 En. indd 37

38 Basic operations En

Powering on the unit with the Bluetooth device

If you set Bluetooth Standby Mode to On, you can connect from a paired Bluetooth device when the unit is in standby mode

When the connection is complete, the unit will power on automatically and enter the state for listening to the music on the Bluetooth device.

How to turn on Bluetooth Standby Mode

1. Press SETUP. The SETUP screen is displayed

2. Set [Bluetooth] — [Bluetooth Standby Mode] to [On].

Listening to Sound Played by the Unit with a Bluetooth Receiver (BT Transmitter)

You can listen to the sound played by the unit with a Bluetooth receiver (speakers or headphones)

Bluetooth devices: Bluetooth speaker Bluetooth devices: Bluetooth headphone Devices without Bluetooth function: Speaker + Bluetooth audio receiver (commercially available)

The Bluetooth wireless technology enabled device must support A2DP profiles

Pairing the unit and the Bluetooth device (initial registration)

When connecting with a Bluetooth receiver. register the device by pairing. The pairing information of only one device can be registered. If you want to connect with another device, register by pairing again:

1. Press SETUP. The Initial Setup screen is displayed

. Set [Bluetooth] — [BT Transmitter] to

. Select [Bluetooth] — [Bluetooth Device

Search] — [Next Screen].

. Set the Bluetooth device to pairing

mode. For how to set pairing mode, see the operating instructions for your Bluetooth device.

. Select [Search] and press ENTER.

A list of the found devices is displayed Ifthe search operation does not complete after at least 1 minute, press [Cancel] and check whether the Bluetooth device is in pairing mode. Then perform the operation again

. Select the B/uetooth device to pair and

. When the connection is completed, the

BT TRANSMITTER Indicator lights. This completes the pairing procedure.

up Basic operations 39 En Listening to the audio of the the unit will result in poorer sound quality, and the . connection will be cut off if the distance between unit with a Bluetooth receiver the Bluetooth device and the unit exceeds the operating range.

1. Switch a paired Bluetooth receiver to +_ The connection with the Bluetooth device will be the connection standby state. cut off when the power for the unit is turned off For how to switch to the connection standby or when the distance from the Bluetooth device state, see the operating instructions for exceeds 10 meters

your Bluetooth device 2. Tum the power of the unit on. The unit connects to the Bluetooth receiver automatically and the audio of the unit is played from the Bluetooth receiver. However. if BT Audio is selected, you will not be able to listen to sound with the Bluetooth receiver.

Control the volume and sound quality of the unit and the Bluetooth receiver from each of the devices.

The audio played from the Bluetooth receiver will

have a delay when compared to the audio from the unit

Disabling the BT Transmitter function

1. Press SETUP. The Initial Setup screen is displayed.

2. Set [Bluetooth] — [BT Transmitter] to [off].

The unit does not support the Mono Headset Profile (Hands Free Profile)

Only one Bluetooth device can be connected to the unit at one time. Connection with multiple devices is not possible

The Bluetooth function maÿ not be available for certain Bluetooth device types.

The audio may sound choppy if signals from other devices interfere with the connection.

The Bluetooth connection will be lost if a malfunction occurs due to the effect of a device that operates in the same frequency, such as à medical device, microwave, or wireless LAN device.

Even if the unit is within 10 meters of the Bluetooth device, a connection may not be established if objects are in between

If communication is cut off because of objects between the Bluetooth device and the unit, the Bluetooth connection will be lost

Large distances between the Bluetooth device and

12-N0S838-EU0B2 En. indd 39

+_ When YouTube is selected, the Sound menu cannot be displayed. Switch to other input source and then switch

topped, the Sound menu cannot be displayed. Switch SOUND when file is being played.

In Options, the factory default settings are indicated in bold.

Setting Explanation Surround Has the effect of creating a sound space. & Sound Retriever Off A WMA, MP3 or AAC file is played with high sound quality. This is ñ Town 0niyvalid for files with the extension “wma”, “mp3” or ".m4a 8 re The effect depends on the file. Try different settings, and choose the £ High one providing the best effect. $ Equalizer Add a variety of s Lo the output sound. Select a mode that suits your personal tastes. . off Gaming This mode is suited to video games. Movie This mode is suited to movies. Music This mode is suited to music. rh Night off This mode is suited to enjoying movies and other content with a low DA Gn volume level at nighttime. On ® Dialog of This enhances the clarity of dialog in movies and vocals in music. On ‘Audio Sync: Adjust the delay between image and sound. Use 4/æ to adjust. {Lip Sync)

12-A0S838-EU0B2 En. indd 40 2013/09/05 11:57:00

The unit uses PHASE CONTROL technology.

During multi-channel playback in à typical

I the speaker distance is not set correct, the proper effect of the PHASE CONTROL technology will not be obtained

The PHASE CONTROL technology is always

activated. home theater, the LFE (Low Frequency Effects) signals and low-pitched components contained in various channels are routed to the subwoofer or other optimum speaker. However, in principle, this routing process results in à PHASE CONTROL technology is a trademark frequency where the phase is shifted (group assigned to products that provide matching delay), leading to problems where the low ofthe phase characteristics from recording frequency sounds only arrive delayed or low to playback based on the PHASE CONTROL pitched sounds cancel each other out due to technology concept developed by Ploneer

interference with other channels. The PHASE CONTROL technology in the unit is used to recreate powerful low-pitched sounds that are faithful to the original sounds.

The phase indicates the time relationship between two sound waves. Two sounds waves are said to be “in phase” if their peaks match up with each other, and the phases are said to be “out of phase” if their peaks do not match up.

When the PHASE CONTROL technology is used, it can provide the following effects when the sound source is played back

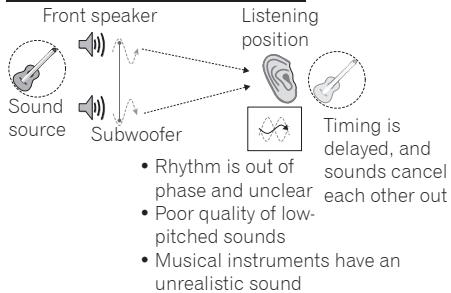

HASE T ir 1e Front speaker Listening <) 4. position Soünd ei) |, ï # source CA | Timingis Suwogier delayed, and

* Rhythm is out of sounds cancel phase and unclear each other out

+ Poor quality of low pitched sounds

+ Musical instruments have an unrealistic sound

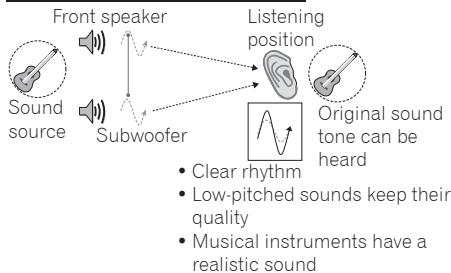

Front speaker Listening d) 1: position #2 AVE 4 Soûñd a)‘: A | Ofiginal sound source Subwoofer 1 7 | tone can be

+ Lowr-pitched sounds keep their quality

+ Musical instruments have a realistic sound

u 1] 12-N0S838-EU0B2 En. indd 41

IR Repeater Function

When the TV remote control does not work (when the AV Speaker Bar is installed in front of the TV)

When the AV Speaker Bar is installed in front of the TV, the AV Speaker Bar may block the remote control sensor on the TV so that operation by the TV remote control no longer works. When this happens, try testing if the TV remote control works using the three methods below.

Method 1: Move the position of the AV Speaker Bar forward or backward or to the right or left, or adjust its height

Method 2: Use the IR Repeater function Method 3: Connect the supplied IR cable

Relaying TV remote control signals (Using the IR repeater function)

Diagram of IR repeater o

If you cannot control your TV using the TV remote control, the remote control signals can be relayed by the AV Speaker Bar lo enable remote control operation, The remote control signals are relayed even when the AV Speaker Bar is turned off

+ Check that the TV cannot be operated with he remote control of the TV before setting [IR Out] to On]. it is set to [On] when operation is possible, the signal output directly from the remote control of the TV and the signal output via the AV Speaker Bar will interfere with each otner.

Ifthe AV Speaker Bar is installed in a location where the TV remote control sensor is not blocked be sure to always set lo [Off1.

This may not work for certain types of TVs. In this case, try changing the installation location of the AV Speaker Bar.

Connecting the supplied IR cable

The IR repeater function may not work depending on how the AV Speaker Bar is installed and the position of the TV remote control sensor In this case, use the supplied IR cable.

1. Connect the supplied IR cable. 2. Affixthe IR cable to the rear panel of the unit.

+ Position the transmitter so that it is aligned with the TV remote control sensor.

Use the TV remote control correctiy within the reception range of the remote control sensor of the unit

Peel off he backing, and affix it to the unit

+ For details about the location of the TV remote control sensor, see the operating instructions for your T4

Select an installation location that best matches your usage environment.

Carefully wipe off any dust or objects at the affixing location.

This may not work for certain types of TVS. In this

case, try changing the installation position of the unit

Control with HDMI function

Linked operation is possible by connecting the unit to a TV that supports the Control with HDMI function.

The following linked operations are possible by connecting the unit using an HDMI cable to a TV that supports the Control with HDMI function

Volume adjustment and muting of the unit

from the TV Linking power wi

TV Automatic input switching

Automatic input switching of the unit based on switching of the TV input

Auto select function

TV automatic input switching based on input switching of the unit

+_ On certain Pioneer TVs, the Control with HDMI

function appears as “KURO LINK Linked operation cannot be guaranteed for TVs other than Pioneer Ts that support the Control with HDMI function

To use the Control with HDMI function, connect à High Speed HDMI®/" cable. The Control with HDMI function may not work properly with other types of HDMI cables.

For the specific operation and setup procedures, see also the operating instructions for your TV.

Connecting to a TV that supports the Control with HDMI function

ATV that supports the Control with HDMI function can be connected to the unit for enabling linked operation. Connect using

a High Speed HDMI®/" cable. For the connection procedure, see “Connecting to Your TV” (page 19). When the connection is completed, perform the procedure in “Setting the Control with HDMI function” (page 44)

If your TV supports ARC (Audio Return Channel), audio from the TV can be input to the unit over the HDMI cable. If your TV is not compatible with ARC, set [TV Input] to [Optical IN-1] and connect a separate optical digital audio cable (page 44).

+ To ensure maximum performance of the Control with HDMI function of the unit, connect the TV that supports the Control with HDMI function directly to the unit

The audio of the unit may be interrupted by operation of the TV or another connected device.

Setting the Control with HDMI function

This shows how to set the Control with HDMI function of the unit. If connecting to à TV that supports the Control with HDMI function and ARC, the settings of the unit do not need to be changed.

+ Besides the settings for the unit, settings are also required for the TV supporting the Control with HDMI function that is connected to the unit. For details, see the operating instructions for your TV.

. Press SETUP while stopped. The Initial Setup screen is displayed.

Use 4/7 to select [HDMI], and press ENTER.

Control with HDMI function 45 En

8. Use 4/v to select [Control], and press ENTER. + On This enables the Control with HDMI function. (Default setting) + off This disables the Control with HDMI function and disables linked operation: 4. Use À/v to select [HDMI Standby Mode], and press ENTER. + On The Control with HDMI function can be used even when the unit is in standby mode. + off The Control with HDMI function cannot be used when the unit is in standby mode. (Default setting) 5. Use 4/Y to select [TV Input], and press ENTER. * TV(ARC) Audio from the TV is input via HDMI. (Default setting) + Optical IN-1 To input audio from the TV, select the input connected to the TV by the optical digital audio cable. 6. Press RETURN to exit.

Operation during linkage

Linked operation is performed as shown below for TVs supporting the Control with HDMI function that are connected to the unit + Theater mode

+_ If you use the menu screen of your TV with Control with HDMI function to set so that audio is output from the unit, you can set to Theater mode. When Theater mode is set, it is canceled by turning off the unit. Then, when the TV menu screen is used to set so that the audio is output from the unit, the power or the unit is turned on, and Theater mode is activated again. (However, this happens only when HDMI Standby mode is tumed on.) When Theater mode is set, if the menu screen of your TV is used to set so that audio is output from the TV, Theater mode will be canceled

u 1] 12-N0S838-EU0B2 En. indd 45

+ Linking power with TV

+ When the TV power is set to standby mode, the power for the unit is also set to standby mode.

+ Automatic input switching

+ When the input source for the TV is switched, the input source for the unit is also switched at the same time.

+ Linked operation continues even if the input source for the unit is set to a source other than TU.

+ Auto select function

+ If USB, Media Server, Wi-Fi Direct, or YouTube of the unit is pressed, the TV input switches automatically, and video from the unit is displayed on the TV.

Notes on Control with HDMI function

+ When a TV supporting the Control with HDMI

function is connected to the unit and Theater

mode is set using the TV remote control, the input source of the unit is switched automatically whenever the TV input source is switched, and audio is output from the unit, During this usage, the audio from the TVis muted. If the TV does not support ARC (Audio Return Channel), connect using an optical digital audio cable (page 19) Connect the TV directly to the unit. Mälfunctions can occur ifthe TV is connected to a device other than the unit, such as an amplifier or AV converter (HDMI switch), before connecting to the unit

UOHDUN} IWQH YUM JORUOD

46 Advanced settings En

Chapter 5 Operating the initial setup Advanced settings screen

1. When playback is stopped, display the Changing the settings Initial Setup screen.

2. Select the item and change the setting. Use 4/w/4/» to select, then press ENTER.

# Closing the Initial Setup screen

Press SETUP or # RETURN Ont

+_The items that can be selected depend on the unit's status:

+_In Options, the factory default settings are indicated in bold.

s EM Full < connecting

169 Normal ct cal black bars along the

A TV and playing a 16:9 video. The

will be played with black bands at the top and bottom. Video Adjust Standard Choose the video output mode: ä Custom The quality of the playback picture can be adjusted according to the TV you are using (pat

Noise Reduction o Choose Ie level of noise reduction.

Net Contents Mode of on

1] 12-A0S838-EU0B2 En. indd 46 S 2013/09/05 11:57 J

comp video files on the nebwork or ha more natural picture quality

T7 Advanced settings 47 En Setting Options Explanation E DRC Oynam of elect this Lo output audio signals without using the DRC function. El on Select this to adjust the range between the loudest and sotest sounds 2 {dynamic range) for playback at average volume. Use this when its hard lo È hear dialog or when walching movies at midnight. uch audio signals as Dolby Digital «+ Depending on the il, the effect may be weak. Dual Mono 1cH When multiple audio signals are input lo TV (ARC) or an oplical input, {he main audio is selected 2CH Wen multiple audio signals are input to TV (ARC) or an optical input, the sub audio is selected 1CH+2CH When multiple audio signals are input lo TV (ARC) or an oplical input, the main audio and sub audio are selected peaker Setup ace Irom viewers) of Îne speakers. EX:N700 on) aker seltings” for more delai (page 50). Subwoofer Setup Wireless Select ini Lo use Ihe wireless subwoofer. BX-N700 ont Built in Select this to use the built-in subwoofer. ë GB Select ini Lo output he video signals as RGE signals. Choose this ifihe É colars seem Loo faint and the black seems too bright

L Sec 10 outute vies signale as COCA Sn cp 422 Sac 10 oututthe vies signale as YCHCr 42 ins FIRE Saut 10 outputhe ide signa 25 RGB gras. Choose Une Ealors sem lo dense and al te dark lors are displayed in 8 uiform bei Router Fe Select 10 choose soon Ge Vi SERA OO OUT tira automatraly Output te idee Sara rome RDOUT Ernie SEE = r festin Es £ L ê Ê ToRDe 8 É HONTE Où Sister Sa oct eud Es pres dc É PCM Select this to output HDMI audio signals converted to PCM audio signals. . OF Ssectiis ven you do ot ant ouput he audio gra rome HDMI Guoutterminal DETTE Sec ven out Ie eo I ADD oe ET Saectiis when outputing Ie ae signal win 26 Di oi of Sac when Outputing Ie eo ipnals vi nomal 2 BI cos

When [B0bis] or [B6bis] is selected, set the color space 10 a setting other than YCbCr 422.

HDMI 1080P 24H2 On Select Inis when Resolution is set to Auto or 1080P and outputting 1080p/24 video signals to a TV compatible with 1080p/24.

of Select this when Resolution is set to 1080P and outputting 1080p/60 video signals to a TV compatible with 1080p/80.

ntroi On Select this to control the unit with the remote control of a TV connected with an HDMI cable or the HDMI audio return channel (ARC). Also refer to “Control with HDMI function” (page 44).

of Select this to not control the unit with the remote control of a TV connected with an HDMI cable. HDMI Standby Mode On The Control with HDMI function can be used even when he unit is in standby mode. of The Control with HDMI function cannot be used when the unit is in standby mode.

72-A0S838-EU0B2 En. indd 47 2013/09/05 11:57:02

TU 48 Advanced settings En Setting Options Explanation S Dinput TVARC) this to input the audio of à TV compatible with HDMI audio returr 2 channel (ARC) via HDMI Also set [Control to [On] This also enables the input to be switched to TV(ARC)] sen TV on the remote contrl is pressed Optical IN Anis Lo input the audio of a TV to the OPT IN 1 terminal with an optica digital audio cable. This also enables the Input to be switched to [Optical IN-1] when TV on the remote control s pr ZIP Address Setting Selectinis to set the IP address of he unit and DNS server (page 50) É Proxy Server Oniy set the proxy server if sa instructed by your Internet service provider. (page 51) 7 information Displays the values of the MAC address, IP address, subnet mask, default gateway, DNS server

(primary) and DNS server (secondary). (page 51)

Connection Test ect is Lo test the network connection. (page BD Internet Connection Enable His en connecling te Internet Disable His en not connecting to te Internet DINA Enable this when connecting to DLNA server Disable ctthis when not connecting to DLNA server. Application Standby Mode On The functions of a dedicated application (ControlApp) installed on a mobile device can be used even when the uni is in standby mo of The functions of a dedicated application (ContralApp) installed on a mobile device cannot be used when the uni is in standby mode interface Ethernet Select when using a LAN cable to connect to the nelmork Wire when connecling wireless Lo {he nel Wirei Parform salings for a wireless nehwork connection (page 22 > osD vale languages Chonse a language lo ne on-sereen display om te ISIEG langue È ei ë 5 à $ à Die VOD DRM Registralion Code Displas he unis registration code required lo pla DIX VOD fes & Internet Setting Permitted YouTube can be walched without entering the password. a Para Permiteg The passiorg must be entered to waten YouTube Pronibites YouTube can not be watched Play Mode Folder Play es from ne selected folder

ayback all files on the s

s the PIN code to 0000. Sets the PIN code to 1234. S the PIN code to 8888.

his Lo use the unit as a Bluetooth transmitter. (page 38)

his Lo use the unit as a Bluelooïh receiver.

Bluetooth Device Search Search for devices Ihat can be connected, Select a device and connect ta I. (page 38)

Bluetooth Standby Mode On E

the connection standby state even when the

ctihis to switch Bluetooth

unit is in standby mode. (page of The Bluetooth device function cannot be used when the unit is in standby mode. Change Password Register the password for canceling the lock for viewing YouTube. (page 51). The default

The screen saver is not activated.

The screen saver will be activated if no operation has been performed for more than one minute/lwe minutes/three minutes, Operating the remo control can deactivate the screen sa

Select this if you do not want the power to turn off automatically. This is the default setting for ASEAN model only.

The power will be automat been perlormed

for more than 10 minutes

lly turned off if no operation has minutes/30 minutes.

IR Out Select is to use the IR repeater function. Select is to not use the IR repeater function IR Out Setting Intermal Select is to use he internal IR repeater External Select is to use an IR repeater connected with the supplied IR cable. Update Select ne method of software updating. (pag

Restore the settings to the factory default

neck the system version number.

50 Advanced settings En

+ Adjusting the video

1. Select and set [Display Setting] —+ [Video Adjust] — [Custom].

Use A/v to select, then press ENTER.

2. Select the item and change the setting. Use A/ to select the item, then use 47» to change the setting. Once the setting is completed, press # RETURN Lo close the settings screen:

Brighiness Select this to adjust the TV screens brightness.

Saturation Select this to adjust the TV screen's saturation.

Hue Select this to adjust the color (green and red) balance of the TV screen

Contrast Select this to adjust the TV screens contrast

Sharpness Choose the level of sharpness.

CTI (Color Provides images with clearer color

+ Adjust speaker settings Set the distances from the listening position to the speakers

1. Select and set [Audio Output] — [Speaker Setup] — [Next Screen].

2. Use 4/v to select the speaker you want to set and press ENTER.

3. Use cursor 4» to adjust the setting, then press ENTER.

Setting the IP address

Select and set [Network] — [IP Address Setting] — [Next Screen]. Use A/ to select, then press ENTER.

Use 4/w/4/» to set the IP address of the unit or DNS server, then press ENTER. + Auto Set IP Address

On The unit's IP address is obtained automatically. Select this when using

à broadband router or broadband modem that has a DHCP (Dynamic Host Configuration Protocol) server function. This units IP address will automatically be allocated from the DHCP server.

Off The unit's IP address must be set manually. When configuring the

{IP Address], [Subnet Mask], [Default Gateway], and [DNS] settings, press ENTER Lo launch the software keyboard, use the A/V/4 to select a character or item, and press ENTER {o input the selection. Select [OK] and press ENTER to apply all of the settings.

+_ For information on the DHCP server function: refer to the operating instructions for the network device.

You may need to contact your Internet service provider or network administrator when inputting the IP address manual.

Setting the proxy server

Oniy set the proxy server if so instructed by your Internet service provider.

1. Select and set [Network] — [Proxy Server] — [Next Screen]. Use A/v to select, then press ENTER.

2. Select and set [Use] or [Not use] at [Proxy Server]. Use 4% to change, then press w + Use - Select this when using à proxy server. + Notuse - Select this when not using à proxy server. If you have selected [Use], proceed to step 3 8. Select and set Server Select Method. Use 4» to change, then press w + IP Address — Input the IP address + Server Name — Input the server name

6. Select [OK] and press ENTER to apply all of the settings.

Displaying the network settings

Select and set [Network] — [information] — [Next Screen].

Use A/Y to select, then press ENTER.

The MAC address, IP address, subnet mask default gateway and DNS server (primary and secondary) settings are displayed When [Auto Set IP Adress] is set to [On], the values obtained automatically are displayed

0.0.0.0" is displayed when each IP address has not been set.

Testing the network connection

Select and set [Network] — [Connection Test] — [Start].

Use 4/Y to select, then press ENTER. [Network is OK] is displayed once the test is completed. If any other message is displayed, check the connections and/or settings (pages 21 and 48)

Changing to other language at language setting

Select and set Language. Use A/Y to select, then press ENTER.

. Select and set [OSD].

Use A/v to select, then press ENTER.

Select and set the desired language. Use A/Y to select, then press ENTER.

Registering or Changing the password

Use this procedure to register or change the code number required for the [Internet Setting] settings:

. Select and set [Security] — [Change

Password] — [Next Screen]. Use A/v to select, then press ENTER.

. Input the password.

Press ENTER to launch the software keyboard, use the A/w/4» to select a four digit number, and press ENTER to input the selection. Select [OK] and press ENTER to confirm the password

+_ The default password is “0.0.0.0"

52 Advanced settings En

3. Re-input the password. Press ENTER {0 launch the software keyboard, use A/W/4/» to select à four digit number, and press ENTER to input the selection. Select [OK] and press ENTER to confirm the password + To change the password, input the

previously registered password, then input the new password!

+_We recommend making a note of the password I you have forgotten the password, reset the unit to the factory default setting, then register the password again (page 53).

This unit might ask you to enter a password when you change the password

If you reset this unit, your password is Simultaneously changed to the default setting.

+ Returning the resolution setting to the default setting

If you select a resolution that is not supported

by your TV videos may become unable to be

displayed on the TV.

Return the resolution setting to the default

1. Press © STANDBY/ON on the unit to turn off the power of the unit. Press © STANDBY/ON on the unit again to turn the power on

2. Press PORTABLE on the remote control to switch the input of the unit to portable.

3. Press and hold DISPLAY on the remote control for at least 5 seconds. The display window shows [RESOLUTI]

4. Press ENTER while [RESOLUTI] is displayed. When initialization is completed, [OK] is displayed

5. Press © STANDBY/ON on the unit to turn off the power of the unit.

Pairing a wireless subwoofer with the unit (SBX-N700 only) When sound is not output from the wireless

subwoofer, pair the wireless subwoofer with the unit.

Furthermore, sound may no longer be output after you update the software of the unit or

u 1] 12-N0S838-EU0B2 En. indd 52

restore the settings of the unit to the default settings. In that case as well, perform pairing)

1. Press à STANDBY/ON on the unit to turn off the power of the unit. Press © STANDBY/ON on the unit again to turn the power on

2. Press PORTABLE on the remote control to switch the input of the unit to portable.

3. Press and hold RESET on the subwoofer for at least 3 seconds. The STANDBY indicator on the wireless subwoofer flashes red

4. Press and hold > PLAY on the remote control for at least 3 seconds. [SW PAIR] is displayed on the unit's display window and pairing starts: Once pairing is completed, [PASSED) is displayed on the unit's display window and the CONNECT indicator on the wireless subwoofer lights blue If pairing failed, [FAILED] is displayed on the unit's display window. Repeat steps 1-4.

The unit's software can be updated using one ofthe methods shown below.

+ Connecting to the Internet:

+ Using a USB flash drive.

Product information on this unit is provided on the Pioneer website. Check the website shown on page 7 for update and service information on your unit

+_ Do not unplug the power cord or remove the USB flash drive during software updating. Also, do not reboot by pressing © STANDBY/ON for 5 seconds or longer. Otherwise, the updating will be aborted and malfunction may oceur with the unit

+_ There are two processes for software updating downloading and updating. Both processes may take a certain period of time:

+ Other operations are defeated during software updating. Furthermore, updating process cannot be canceled.

4 Updating connecting to the Internet

1. Connect to the Internet.

2. When playback is stopped, display the Initial Setup screen.

2013/09/05 11:57 J Advanced settings 53 En

1] 12-N0S838-EU0B2 En. indd 53

. Select and set [Options] — [Update] —

+ Software updating may take a certain period of time.

Updating using a USB flash drive

+_ When an update file is provided on the Pioneer website, use your computer to download it onto a USB flash drive. Carefully read the instructions on downloading update files provided on the Pioneer website.

Store the update file in the root directory of the USB flash drive. Do not store it within a folder. Do not put any files other than the update file on the USB flash drive.

The unit supports USB flash drive formatted in FAT32/FAT6/NTFS. When formatting a USB flash drive on your computer, do so with the settings below.

— Allocation unit size: Default allocation size Only store the most recent update file on the USB flash drive

Do not use a USB extension cable to connect a USB flash drive to the unit. Using a USB extension cable may prevent the unit from performing correctly

. Plug in the USB flash drive on which

the update file is stored.

. When playback is stopped, display the

Initial Setup screen. Press SETUP.

. Select and set [Options] — [Update] —

[USB Storage] — Start. Use A/v/4/» to select, then press ENTER.

+ Software updating may take a certain period of time.

+ When updating is completed, the unit restarts automatically

Restoring all the settings to the factory default settings

1. Check that the units power is turned on.

2. When playback is stopped, display the Initial Setup screen. Press SETUP.

3. Select and set [Options] — [Load Default] — [Next Screen]. Use A/Y to select, then press ENTER.

4. Select and set [OK]. Use 4% to select, then press ENTER

5. Press © STANDBY/ON to turn off the power.

6. Press © STANDBY/ON to turn on the power.

Incorrect operation is often mistaken for trouble or malfunction. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Inspect the other components and electrical appliances being used. If the trouble cannot be rectified even after checking the points below ask your nearest Pioneer authorized service center or your dealer to carry out repair work

Problem Check Remedy

No picture is displayed Is he HDMI cable properly + Connect the cable properly according to the connected devices (page

orthe picture is not connected? )

displayed property. - Disconnect the HDMI cable, then reinsert it firmiy and all ne way in. 15e HD cable damaged®__Ifthe cables damaged, replace I WIN a new one isihe pui selling onthe —— Readthe operaling instructions orlhe connected TV and switch to the connected TV right? proper input 15e output video resolution» Switch [Resoluon] of he uni lo a resolution at wneh video can be. property set? output (page 47)

+ Retuming the resolution to the default setting may resolve the problem. Try restoring the default setting. (page 53)

9 HDMI Ts ne unit connected wi an Connect tone TV using à High HDMI cable other than a High

Speed HDMI®/” Cable (with a

Standard HDMI"/" cable)?

1s a DVI device connected? ___The picture may not be displayed property ia DVI device is connected Is IColor Space] properiy set? Change 1he [Color Space] setting (page 47)

-Picureis strelched.… Is the IV aspect raûo proper Read the operating instructions for lhe TV and set the VS aspect ratio

- Picture is cropped. ü properiy

+ Aspect ratio cannot be een] properiy set? Set IV Screen] proper (page 45)

Switched. When video signals with a resolution of 1080/501, 1080/50p, 720/50p, 1080/24p, 1080/60i, 1080/60p or 20/60p are being output from the HDMI OUT terminal, they may be output with an aspect ratio of 16.9 even if TV Screen] is sel to [4:3 Pan à Scan] (page 46)

Picture 15 interrupred. The picture may be imterrupted when Îhe resolution ofthe recorded video signal switches. Change the [Resolution] settings to select other than [Auto] (page 47)

Problem Check Remedy

No sound is output. I the file played back in slow No sound is output during slow motion pla}

+ Saund is not output motion?

proper he file played back in fast forward or ?

and forward and reverse

+ Connect ne cable prop connected? (page 19) + Insert the cable firmiy and all the v

according lo the connected devices

+ Wipe off any dir from the connection plugs and terminals.

+ When connecting to a TV that is not ARC compatible, you will not be able t listen ta the TV audio with the unit if the TV is connected

with only an HDMI cable. Also perform the optical digital audio cable connection described in *Connecting to Your TV” on page 19.

Ts Ine audio cable damage? _Ifthe cable is damaged, replace IL with a new one.

15 TAudio Outpuï] properiy sel? Set [Audio Output] proper, according to the connected device (page 47)

Are Ihe connecied componen propery set?

Read the operating instructions for he connected components and X the volume, input, etc.

12-N0S838-EU0B2 En. indd 55

Troubleshooting 55 En Problem Check No sound is output from she CON d has no bass component, no the wireless subooler. the wireless subwoofer li ue? _ sound wil come from the subwoofer. SEX.N700 on) + Adjust he settings to match your emdronment from [Speaker Setup of [Audio Output]. (page 47) + Check whether the subwoofer setting of [Initial Setup] on the unit is set to wireless. (page 47) + Check mhether the unit and wireless subwoofer are paired. (page 52 * Sound may become intermittent or stop being output due to the ae during use but this is not an indication of à malunction y changing the position or orientation of the AV Speaker wireless Subwoofer The AV Speaker Bar and wireless subwoafer can be used at a ance of up to approximalely 10 m from each other. This distance difers depending on the operating emironment and operation at he distance of 10 m is not guaranteed + The reception state may become unstablei the AV Speaker Bar and ubioofer are Loo close to each other. In such a case, use eaker ar and virless subwoofer a least 1 m apart from h fer < Hthere is an obstruction (metal door concrete wall, Insulation with aluminum fl, etc.) between the AV Speaker Bar and wireless subwoofer the signal may be blocked and sound maÿ not be output. n this case, install {he AV Speaker Bar and vireless subwoofer were there s a clear line of sight betsigen tem: IS ina wireless subwogler Check helherthere is a problem wilh he Installaon posIUOn, (Page installed in the correct 18 position? The audio fomine AV Didyouaguetinespeaier Seine distances rome ares: (age 50) Speaker Bar and the settings to appropriate audio rom the wireless Subwoofer sound out of sn SEX:NTOO on) Playback Problem Check Remedy * Press M STOP lo stop playback, then restart playback

control buttons stop working.

+ Hthe playback cannot be stopped, pré front panel to turn of the power, then + Press 6 STANDBY/ON on the uni

or more than 5 < joots, and the operation becomes pos

s © STANDBV/ON on the uni um the power back on. sconds, The unit

1m) is displayed in file names, et

at cannot be displayed on {his uni are displayed In (M).

Control with HDMI function

Problem Check Contral with HDMI Is the HDMI cable properly function does not work. connected?

To use the Control function, connect the TV to the HDMI OUT terminal

1s 1e HDMI cable you are 9 à High Speed HDMI®*

a High Speed HDMI Cable, The not work properly if an HDMI Cable is used

ble other than a High

ntrol with HDMI function may peed HDMI®/"

+ The Control with HDMI function wi not work wilh devices of other

+ The Control with HDMI function wi not work if devic: upport th Control-compatible devi

at do not support the Control with HDMI function, even nnected using an HDMI cable. s that do not ntrol with HDMI function are connected between the and the unit

ted to a Pioneer product compat

Control with HDMI function, some of the functions may not work.

to the operating instructions for the connected device.

Is [Control set te [On] on the connected device?

Set [Control] to [On] on the connected device. The Control with HDMI function operates when [Control is set to [On] for all devices connected Lo {he HDMI OUT terminal.

Once connections and settings of all the devices are finished, be sure to check that the unit's picture is output to the TV. (Also, check after hanging the connected devices and c ing and/or disconnecting HDMI cables } If the unis picture is not being output to the TV the Control with HDMI function may not work properly

For details, refer to the operating instructions of the connected device.

connected via HDMI When Me TV is compatible win audio return channel (ARC): On the unit, set [Control] to [On] and then set [TV input] to MV(ARC)] to

cannot be heard with the suitch the TV input (page 48).Check that the ARC setting on the TV unit ison + Wihen he Vs not compatible th audio return channel (ARC): The sound of the TV cannot be istened to via HDMI. Set [TV Input] to [Optical IN-1] and connect a separate optical digital auio cable (page 20) Network Problem Check Remedy

Software updating Is slow

Depending on the Internet connection and other conditions, some time may be required to update the software.

sInsertihe LAN cable firmiy all the way in. (page 21) + Do not connect with a modular cable. Use a LAN cable with the LAN (10/100) terminal + Check whether the power of the Ethernet hub (router with hub function) or modem is on.

+ Check whether the Ethernet hub (router with hub function) or modem is connected proper. + Check the network settings.

A message other than Networks is OK.

is displayed when {Connection Test is performed

TS "NERO 15 FILED. displayed?

+ Check Hat UNIS unit and the Ethernet hub (or rouler wi à hub functionaliÿ) are properiy connected.

+ Ifthe IP address is obtained using the DHCP server function, check the setting is correct at the [Information] (page 48). For details on the DHCP server function, see the operating instructions for the Ethernet hub (or router with a hub functionaltÿ)

+ Setthe IP address manually

+ Check the operation and settings of the DHCP server function of the Ethernet hub (or router with hub functional}. For details on the DHCP server function, see the operating instructions for the Ethernet hub (or router with a hub functionality)

+ Ifthis unit has been set manuall, reset the IP address of this unit or other components.

Ts the Ethernet Rub (or router with a hub functional) operating proper?

r Checktne setlings and operation the Ethernet hub (or router win à Hub functionaliÿ. For details, see the aperating instructions for the Ethernet hub

+ Reboot the Ethernet hub (or router with a hub functional}

Cannot access to ne component or computer connected via network.

Ts Internet security sofiware currently installed in the connected component?

There are cases where a component min Internet secury software installed cannot be accessed.

Did you turn on the power of

Swich on Îhe audio component on {he nelmork before swiching on

the device on the network while this unit

the unit (network AV Speaker Bar) was in a powered on state?

Ts the component connected to [The cl

the network property set?

rentis automatically authorzed, you need to orresponding information again. Check whether the is set to “De not authorize”

Pléyback does not start.

Is the power of the connected component off or the: jonnection disconnecteg?

Check whether the component is properly connected to this uni or the power supply.

The computer 1s not properly operated.

Is the corresponding IP address Swilch on 1he builtin DHCP server function of your rouler or setup {ne

ding to your network environment.

T7 Troubleshooting 57 En Problem Check Romedy Îs the IP address being The automatic configuration process takes time, Please wat automatically configure?

The audiomideo f Store on components on the network, such as a computer, cannot be played back.

Is Windows Media Player 11 Windows Media Player 12, or DLNA-compatible digital media servers currently installed on your computer?

Tnstall Windows Media Player T1, Windows Media Player 12, or DLNA compatible digital media servers on your computer.

Are the audio fes recorded in MP3, WAV (LPCM onb), MPEG AAAC, or WMA format?

Pley back audio les recorded in MP, WAV (LPC on, MPEG-A AAC, or WMA. Note that some audio files recorded in these formats may not be played back on this unit

Are you atlempting Lo play back an MPEG-4 AAC file on Windows Media Player 117

Audio fes recorded in MPEG 4 AAC cannot be played back on Windows Media Player 11. Try using another server. Refer to the operation manual supplied with your server.

The component Ts The device connected to the connected ta the nelwerk network in the standby state or s not properly aperated. sleep mode?

Ty restarting he devic

nected to the network f necessary

15 Île shañing permitteg on the component connected to the nehwork?

Try changing ne settings for the component connected 1 Ine nelWwork,

Has the folder stored on the component connected ta the network been deleted or damaged?

Check ie foider stored on Ine component connected 1o the network.

Are network connections restricted on the component jonnected ta the network?

Check he computer s network settings, securily settings,

Cannot access Windows In case of Windows Media Player Media Player 11 or 11: You are currently logged Windows Media Player 12. onto the domain through your mputer with Windows XP or Windows Vista installe.

In case of Windows Media Player 12: You are currently logged onto the domain through your computer with Windows ? installe.

Tnstead of logging onto {he domain, log onto {he local machine.

Audio/Video playback Is undesirably stopped or disturbed

Was the audio or video fe hat is currently playing recorded in a format that can be played with the unit?

+ Check wnelher Ine audio fe was recorded in a forma supported Dy this unit + Check whether the folder has been damaged or corrupted.

Even audio files listed as playable on this unit may sometimes not be played back or displayed

Is there heavy traffic on the network with the Internet being accessed on the same network?

Use 100BAS TK to access {he components on 1e nelWork

Is Inere a connection routed through a wireless LAN on the same network?

= There may be a shortage of bandwidin on he 2.4 GHZ band used Dy the wireless LAN. Make wired LAN connections not routed through a wireless LAN

+ Install away from any devices emitting electromagnetic waves on the 2.4 GHz band (microwave ovens, game consoles, etc.) If this does not sohe the problem, stop using other devices that emit electromagnetic waves.

Wireless LAN Problem Check

unit and wireless LAN router etc, too far apart, or is there an obstacle bete: them?

Improve the wireless LAN environment by taking steps such as moving the unit and wireless LAN router et x together

1s a microwave oven or

other device generating romagnetic waves near

the wireless LAN environment?

Use Îhe unit in a place away from microwave ovens or oÛners deVICE generating electromagnetic waves.

Avoïd using devices generaing electromagnetic wa possible when using the unit with a wireless LAN.

58 Troubleshooting ën

Problem Check Remedy Are multiple wireless devices When connecting multiple wireless devices, their IP addresses must be connected to the wireless LAN changed.

router? Are the connection settings [the connection settings belween Îhe unit and {he wireless LAN router between the unit and the etc. are not set up correct}, connection settings much be performed in wireless LAN router ele. set up order ta connect the unit and the wireless LAN router etc.

Do ne IP address setings for Check ne IP address settings of ne unit and Ine wireless LAN router the unit and the wireless LAN etc. (including the DHCP setting) router etc. (including DHCP Ifthe unit's DHCP setting is on, turn the units power off, then turn settings) match? the power back on. Check that the IP address of the unit matches the settings of the wireless LAN router etc. Ithe units DHCP setting is off, set an IP adress me of the wireless LAN router etc For example, if the wireless LAN router IP address is "192,168.1.1 set the units IP address to "192.168.1.XXX" (*1), the subnet mask to 255.255,265.0", and the gateway and DNS to *192.168.1.1 C1) Setthe "900 in *192.168.1.00 to a number between 2 and 248 that is not assigned to other devices. point setto In {his case, he SSID may not be displayed on 1he access point ist SID? ‘een. lfnot, set ne SSID etc. by setting the wireless LAN settings on the receiver manual. Do the access points security The unit does not support WEP. settings use WEP 152-bit authentication. length code key or shared key authentication?

Ts In access conceal the

Bit Iengih code Key or shared Key

Cannot connect with the Is the Wi-Fi DirecUMiracast ct on 1he remote control to swifeh to WIFI DIrecW WiFi Direc/Miracast | Mode screen displayed on the function. TV or is READY displayed on

the uni's display window?

Check he SSID and password Ian update was performed in 1e WI-FI Direct Mode screen or [ne unit EN

in the Wi-Fi DirecMiracast was restored to the default settings, the SSID and password will have

Mode screen. changed

Enterthe newiy set SSID and password on the mobile device. Is the mobile device compliant Only mobile devices that are compliant with Wi-Fi Direct or Miracast are

with Wi-Fi Direct or Mira

? supported. Ask the manufacturer of the corresponding device whether the mobile device is compliant with Wi-Fi Direct or Miracast * Press an input selection button Lo close the Wi-Fi DirecuMiracast

Mode screen. Press Wi-Fi Direct again to display the Wi-Fi Direct” Miracast Mode screen and then perform the operation.

+ Select [Refresh] on the Wi-Fi Direct/Miracast Mode screen and then ty connecting again.

There 1s a connection on IS he mobile device complant Only mobile devices That are complant with Miracast are supported.

the mobile device but the with Miracast? Ask the manufacturer of the corresponding device whether {he mobile

mobile device video is device is compliant with Miracast

not displayed on the TV

The audio or video is ISthere a microwawe oven or Improvethe wireless LAN environment by taking steps suc

interrupted (distorted)_ ather device that generates the unit and mobile devices etc. closer together.

when using DRM, WWF electromagnetic waves near

Direct, or Mira the unit?

Are the moblle device and unit Use he unitin à place away from microwave ovens or ofners device

far away from each other or is _ generating electromagnetic waves.

there an object between them? Avoid using devices generating electromagnetic wav possible when using the unit with a wireless LAN,

Wen using wireless LAN, WF Direct or Miracast, depending on

the environment (radiowave interference) during sending/receiving

of a large volume of data such as HD quality image files and WAV

192 kH2/24 bit high quality audio files, images and sound may be

interrupted during playback.

12-A0S838-EU0B2 En. indd 58 2013/09/05 11:57:04

T7 Troubleshooting 59 En Bluetooth oblem Check Remedy The Bluetooth wireless Are objects that emit I such as an object is near he unit, set the unit far from it. Or stop technology device electromagnelic waves in using the object emiting the électromagnetic waves, cannnot be connected. the 2.4 GHz band (micromave

oven, wireless LAN device or Bluetooth wireless technology

apparatus) near the unit?

1s the Bluetooth wireless Settne Bluetooïn wireless technology technology device too far from _the distance between them is within the unit or are cbetructions set between them.

between Ihe Bluetooth wireless. * The line-of-sight transmk technology dei

ion distance is an estimate. Actual and the unit? transmission distances supported maÿ differ depending on surrounding

condition. 1s the Bluelooh wireless heck The selling of the Bluetlolh wireless technology device. technology device set to

the communication mode

supporting the Bluetooth

wireless technology?

Is pairing correct Wasthe — Resetine pairing

paring setting deleted from this unit or Bluetooth wire] technology device? Does à Bluetoo!h wireles technology device support ADP profile?

heck That he prof 1s correct

The Bluelooïh wireles

* To perform operation using he remote control of the unit, the

nology device Bluetooth device must support the Profile: AVRCP. cannnot be operated + Operations performed by Bluetooth devices may vary for different using the remote control devices. of the unit. + Remote control operation cannot be guaranteed for all Bluetooth “Ti devices. N For details, see page 37. | Cannot operate The unit Operation from a receiver ts not possible because the ET Transmitier

from a Bluetooth receiver function of the unit is not compatible with AVRCP. connected from the unit when there is BT

ransmitier connection. 3 3 2 Es Others Ë É 2 oblem Check Remedy 8 Power does not Is the power cord proper * Plug Îhe power cord securely into lhe poner outk 5 tumed on. connected? + Unplug the power cord, wait several seconds, then plug the power s cord back in The unit's power turns off 1s [Auto Power Off] set to If [Auto Power Off] is set to [10 min/20 min/30 min], the units power automatically. [10 min/20 min/30 min]? automatically turns off if no operation is performed for the set amount of time (page 49 1s [Control] set to [On]? The unit's power may turn off together with the power of the TV connected to {he HDMIOUT ferminal. I you do not want he units power ta turn off when the TV's power is turned off, set [Control] to [Of] t to [Off]. sound will not be output from TV{AI The unit's power turns ons [Control] set to [On]? The unit's power may turn on together with the power of the TV automaticalh. connected to {he HDMIQUT terminal. you do not want he units

power to turn on when the TV's power is turned on, set [Control] to [Of]

to [Off], sound will not be output from TY{AS Cannot be operaled with Are you operating the remote Operale from within 7 m of he remote control sensor. the remote control control from a point to far

Settings | have made have + Have yoi

connected the power cord while the units power was on?

+ Has there been a power failure?

Always press © STANDBY/ON on the unit front panel or © STANDBY/ ON on the remote control, check that POWER OFF has turned off from the units front panel display and wait for more than 10 seconds before disconnecting the power cord, Be particular} careful when the power cord is connected to 1he AC outlet on another device because the unit turns off in conjunction with the device.

15 Ne USE device properiy ‘onnected?

Turn 1h units power off, then turn Îne power back on. + Tum the unit's power off, then reconnect the external storage deu (page 26)

15 1e USE device connected via an extension cable?

Do not use an extension cable. The unit may not work properiy with it

1s Ihe external storage device connected to the USB port terminal via à memory card reader or USB hub?

External storage device may not work f connected to 1e USE port terminal via a memory card reader or USB hub.

Doss {he external storage device contain multiple paritions?

External storage devices may not be recognized they contain multi

I ne extemal storage device write-protected?

Sie system can be used

Some external storage devices may not operate:

Display window is dark

Press DIMMER on {ne remote and select the desired display brignines

Unplug the unit and contact Ine Pioneer Customer Support Center.

of the wireless subwoofer

is flashing {SBX-N7OD on)

Unlug te unit and contact Ine Pioneer Customer Support Center.

Wireless subwoofer (SBX-N700 only) 32 W

{In Standby mode: Less than 0.5 W)

Dimensions (W x H x D)

Without the height-adjustment feet attached: 900 mm x 86 mm (front) x 121 mm

* Height at rear: 70 mm

With the height-adjustment feet attached: 900 mm x 106 mm (front) x 121 mm

* Height at rear: 90 mm

Operating temperature

5 °C to 35 °C Operating humidity

HDMI/OUT (video/audio)

19 pin (HDMI*/"* Connector)

DIGITAL IN (OPTICAL)

Optical jack x 2 (44.1 kHz, 48 kHz, 96 kHz sampling)

xpueddy RM PORTABLE IN 3.5 mm stereo jack BT AUDIO Complies with the A2DP standard (Class 2) USB 4 pin A Type x 1

Rated power output (RMS) 10%

+_Front (left/right)

Impedance Tpe Closed box type un 40 Speakers 6.6 cm (conetypex 1 | Playback 100 Hz to 20 kHz

+ Built-in subwoofer (left/right)

+ Wireless subwoofer (SBX-N700SW only)

Playback Type Bass retlexfloortpe | Keno bang | 0H2t0 1.5 kHz : 16.5 cm(conetype)x | Net Dimensions | 200 mmx415 mm (including Speakers ï WxHXxD) | febx271mm Impedance Rated | 4Q Net Weight 6.7 kg

+ Design and specifications are subject to change without notice.

+ Allother product names, technology names, and company names contained in this document are trademarks or registered trademarks of PIONEER or their respective companies

u 1] 72-A0S838-EU0B2 En. indd 62 2013/09/05 11:57 J

When shipping the unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Keeping the exterior surfaces clean

Do not use volatile liquids such as insecticide spray near the unit

Wiping with strong pressure may damage the surface.

Do not leave rubber or plastic products in contact with the unit for a long period of time.

To clean the unit, use a soft, dry cloth. If the surfaces are extremely dirty, use à soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

When submitting the unit for repairs, please submit both the unit and subwoofer because operation of the entire system will need to be checked even in the case of a partial failure.

Important Information Relating to Network Services

All information, data, documents, communications, downloads, files, text, images, photographs, graphics, videos, webcasts, publications, tools, resources, software, code, programs, applets, widgets, applications, products and other content “Content”) and all services and offerings CServices") provided or made available by or through any third party (each a “Service Provider") is the sole responsibility of the Service Provider from whom it originated.

The availability of and access to Content and Services furnished by the Service Provicer through the PIONEER Device are subject

to change at any time, without prior notice, including, but not limited to the suspension, removal or cessation of all or any part of the Content or Services.

Should you have any inquiry or problem related to the Content or Services, you may refer to the Service Provider's website for the most up-to-date information, PIONEER is neither responsible nor liable for customer service related to the Content and Services. Any question or request for service relating to the Content or Services should be made directly to the respective Content and Service Providers.

Please note that PIONEER is not responsible for any Content or Services provided by the Service Provider or any changes to, removal of, or cessation of such Content or Services and does not warrant or guaranty the availability of or access to such Content or Services.

Declaration of Conformity with regard to the R&TTE Directive 1999/5/EC Manufacturer PIONEER CORPORATION 1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan

English: Hereby, Pioneer, declares that this [*] is in compliance with the essential requirements and other relevant

Please refer to our website for information regarding software updates and service to this product

Contact information:

UK. http:l{www.pioneer.co.ukuk/content/support/supportupgrade.htmi http:/{www:.pioneer.eu/support

Australia, New Zealand and other Oceania area http:/www.pioneer.com.au

Hong Kong Pioneer (HK) Limited - Customer Service Center

Unit 2, 17/F, Vanta Industrial Centre, 21-33 Tai Lin Pai Road, Kwai Chung, Hong Kong (852) 3583 3288

https:/{www.pioneerhongkong.com.hk

Pioneer Electronics AsiaCentre Pte Ltd

258 Alexandra Road (Komoco Building)#04-01, Lobby 2 Singapore 159936 (65) 6472-7555

http:/{www.pioneer.com.sg/irmwaredownload

Malaysia Pioneer Technology (Malaysia) Sdn Bhd

Pioneer High Fidelity Taiwan Co. Ltd

13th Floor, No.44, Chung Shan North Road, Sec.2 Taipei, Taiwan (886 2) 2521-3166

htip:/www.pioneer-twn.com.tw

© 2013 PIONEER CORPORATION All rights reserved ÉË 72Pss700-eNc8:

1-1, Shin-ogura, Saiwal-ku, Kawasaki-shi, Kanagawa 212-0031, Japan

PIONEER ELECTRONICS (USA) INC.

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Printed in China <72-PSB700-ENGB1>
