Dear Customer

Please read these instructions carefully before starting to use your wine cooler. They contain important information about the safe operation, installation and maintenance of your appliance.

Please keep them for reference and pass them on to any subsequent user.

This unit is intended solely for storing wine.

Safety Instructions

This refrigerator conforms to recognised technical regulations and to the EC guideline /EEC (low voltage guideline). It has been checked for compliance with electrical safety regulations in accordance with EMC guideline 89/336/EEC and EN 55014.1993.

. Electrical safety (shock-hazard protection) must be effected as part of the installation procedure.
. Mains voltage 230V/50Hz.
This device is not intended for use by persons who have a physical, sensory or mental impairment or lack of experience and knowledge except when they are monitored or instructed in how to use the device by a person responsible for their safety. Children should be supervised to ensure that they do not play with the device.
. This appliance should be used for domestic purposes only in accordance with the user instructions.
. If you have received a faulty appliance, contact your supplier immediately.
. Repairs and modifications must only be carried out by a qualified service engineer.
. Disconnect from the mains when cleaning; pull out the plug or deactivate the fuse. Never pull the plug out of the socket by the cable or with wet hands. Always take hold of the plug itself and pull it straight out of the socket.
This appliance is CFC- and HFC-free and contains small quantities of Isobutane (R600a), an environmentally friendly coolant.
. You must ensure that the cooling circuit is undamaged when handling this appliance. However, if it becomes damaged, avoid proximity to open fires and heat sources of all kinds. The room in which the appliance is located should be ventilated for a few minutes.
. Never use an appliance with a damaged circuit.
. Ensure that the ventilation openings to and from a built-in appliance are never blocked or covered. No liability will be accepted for any damage incurred owing to misuse of the appliance or as a result of repairs carried out by unqualified personnel. In this case neither the guarantee nor any other liability claims will apply.

. In the interests of safety, faulty connection cables for this appliance must be replaced by your local Service Force Centre or similarly qualified personnel.
. Warning: Do not operate any electrical appliances inside the cooler.

Disposal

Information about the appliance packaging

Dispose of your appliance packaging properly. None of the packaging materials used are harmful to the environment and they may be re-used.

About the materials: the plastics may also be recycled and are identified as follows:

PE< for polyethylene e.g. in the outer casing and internal pockets.

PS< for polystyrene foam, e.g. in padding. Essentially CFC-free.

The cardboard used is made from recycled paper and should also be put out for old paper collection.

Disposal of old appliances

Refrigeration equipment must be properly disposed of in a way which protects the environment. This applies to your old appliance and to your new unit once it has reached the end of its service life.

Warning: Please ensure that old, worn appliances are rendered unusable before disposal by removing the plug, cutting the network cable, and removing or destroying any snap fastenings or bolts. You will thus prevent children from locking themselves in the appliance during play (risk of suffocation) or endangering their lives in any other way.

Disposal instructions:

. The appliance must not be disposed of in the dustbin or with normal household rubbish.
. The coolant circuit, particularly the heat exchanger at the back of the appliance, must not be damaged.
. The X symbol on the product or its packaging indicates that this product is not to be handled as normal household waste but is to be taken to a recycling collection point for electrical and electronic goods. By correctly disposing of this product you are contributing to the protection of the environment and to the health of your fellow human beings. Improper disposal endangers health and the environment. Further information about the recycling of this product may be obtained from your town hall, refuse collection department or the store where you purchased the product.

Installation

Installation site

The appliance should be positioned in a well-ventilated, dry room. The ambient temperature will influence energy consumption and the proper functioning of the unit. For this reason, the appliance

. Should not stand in direct sunlight;
. Should not stand near a radiator, a stove or any other heat source;
. Should be located only where the ambient temperature is compatible with the climatic classification of the appliance.

You will find the climatic classification on the nameplate inside the appliance on the top right-hand side.

The following table specifies the ambient temperature range for each climatic classification:

Climatic classification	for an ambient temperature of
SN	+10 to +32°C
N	+16 to +32°C
ST	+18 to +38°C
T	+18 to +43°C

To prevent the appliance from heating up, ensure that an adequate ventilation gap is retained and install a suitable thermal insulation panel. An adequate flow of air to and from the cooling system must be ensured.

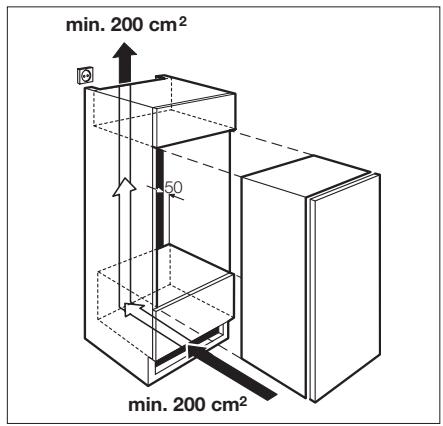

The cooler needs air

The cooler door seals the installed unit almost completely, so an air vent must be provided in the base of the housing. Warmed air must be conducted via the ventilation shaft to the rear wall of the housing and then expelled upwards. The ventilation channels should measure at least 200~cm^2 in cross-section.

Warning! To ensure the proper functioning of the appliance, air vents should never be blocked or covered.

Installation

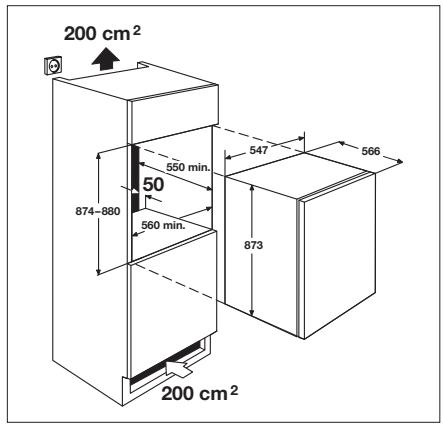

Scale drawing

After installing the unit, and particularly if the door hinge is reversed, please ensure that the door seal is tight all round. An imperfect door seal can lead to increased condensation and thus to higher energy consumption (see the section headed "Troubleshooting").

Electrical connection

A properly installed socket outlet with earthing contact is required for electrical connection, positioned so that it is possible to pull out the mains plug.

The socket outlet with earthing contact used to connect the appliance should be positioned on the left or right-hand side adjacent to the housing.

Electrical fuse protection of at least 10/16 amperes must be provided. If the socket is no longer accessible once the appliance has been built-in, suitable measures must be taken during electrical installation to ensure that the appliance can be disconnected from the mains (fuse, LP [line protection] contact opening width of at least 3mm ).

Before operating the appliance, check the data plate to ensure compliance of the connection voltage and type of frequency with the mains network values at the installation site.

e.g. AC 220 ... 240 V 50 Hz or

220…240V~ 50 Hz

(i.e. 220 to 240 volt alternating current, 50 Hertz)

The dataplate is located inside the appliance on the top right-hand side.

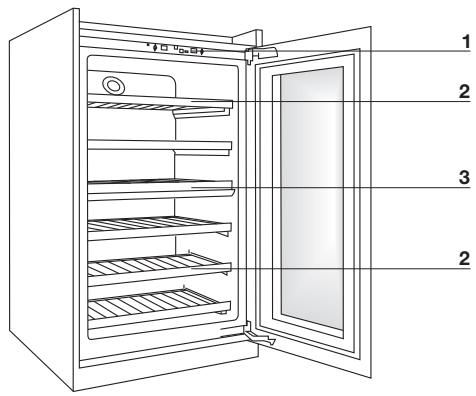

Product description

1 Control panel
2 Storage racks (adjustable)
3 Temperature zone divider (adjustable)

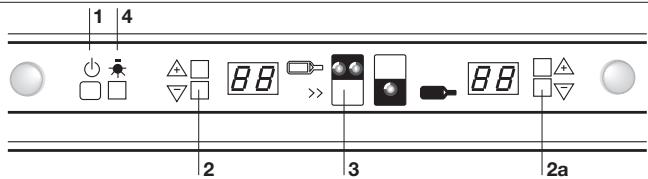

Control panel

1 Appliance on/off

Press for at least 3 seconds.

2 Select upper zone temperature (5 to 18^ , adjustable)

Recommendation: 5 - 12^ C (ideal for white wine, see page 11)

Press for at least 3 seconds indicator flashes

The temperature can be adjusted in steps.

2a Select lower zone temperature (5 to 18^ , adjustable)

Recommendation: 12 - 18^ C (ideal for red wine, see page 11)

The temperature set for the lower zone must always be the same as or higher than that in the upper zone.

3 Supercool

Press for 3 seconds the yellow pilot light illuminates.

The appliance cools the upper zone for 24 hours at +5^ C

and then automatically at the set temperature.

4 Interior light switched on permanently:

Press for 3 seconds ON

Interior light on only while the door is open:

Press for 3 seconds OFF

If the door is kept open for longer than 5 minutes, an acoustic door alarm will sound. This can be switched off by briefly pressing any button.

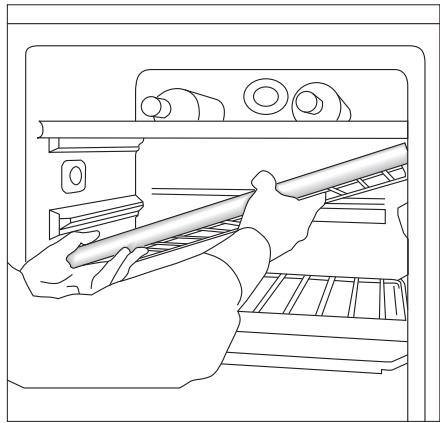

To adjust storage racks

The height of the storage racks is adjustable.

Pull the shelf forwards, lift on the door side and remove.

Reverse this procedure to replace the shelf at a different level.

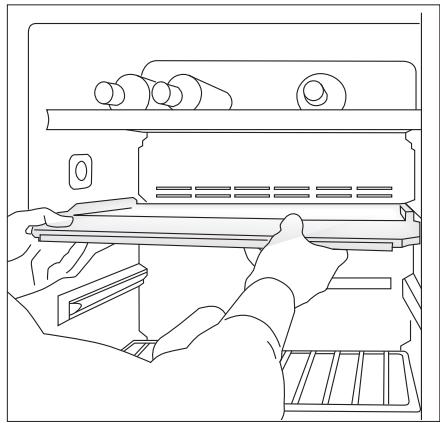

To adjust the temperature zone divider

The temperature zone divider can be raised or lowered by 1 position.

Pull forwards away from the rear wall, and lift on door side.

Reverse this procedure to replace at a different level.

Please ensure that the rear section of the temperature zone divider slots into the groove provided in the rear wall.

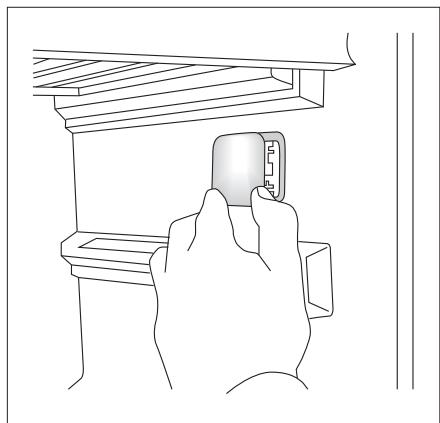

To change LED lighting

Click off the LED light cover. Loosen the plug of the LED light fitting. Reverse this procedure to insert a new LED light fitting.

Note: Please use only original LED light fittings provided by the manufacturer.

Proper loading

The appliance is separated into 2 adjustable temperature zones (both adjustable from 5 to 18^ C):

Top compartment white wine, champagne, sparkling wine, rosé wine.

Bottom compartment red wine

Please ensure that the temperature set for the bottom compartment is always at least the same as or higher than that in the top compartment.

Ideal drinking temperatures*

6-8° Champagne, sparkling wines, Chasselas, Riesling, Sauvignon Blanc, young Chardonnays and sweet wines, all rosé wines
8-10° Mature Chardonnays and Sauternes
13-15° Gamay, young Merlots, young Pinot Noir wines
15-17° Young Bordeaux, light Cabernet, Barbera, Merlot
16-18° Big Burgundies, Bordeaux, Italian, Spanish and Californians, etc.
17-18° Barolo, Reciotto Amarone

(The lower temperature is suitable for more simple wines, and the higher for the more complex, better quality wines of each category).

• Source: Mövenpick

Defrosting

The cooler defrosts automatically.

The evaporator behind the rear wall of the cooler defrosts automatically. The condensate collects in the drainage channel behind the rear wall of the cooler, and flows through the drainage hole into the drip tray by the compressor where it evaporates.

Cleaning and maintenance

For reasons of hygiene, the interior of the appliance, including all internal fitments, should be cleaned regularly.

Warning! Because of the risk of electric shock, the appliance should not be connected to the mains during cleaning. Before cleaning, switch off the appliance, pull out the mains plug or deactivate and/or remove the fuse.

Never steam-clean the appliance. Dampness may penetrate the electrical components, creating the risk of an electric shock. Hot steam may damage the plastic components. The appliance must be dry before it is used again.

Caution! Plastic components may be attacked by essential oils and organic solvents such as fruit juices and the acids in butter, as well as by detergents containing vinegar. Such substances should not come into contact with appliance components. Do not use abrasive cleaning agents.

Energy-saving tips

. Ensure that the appliance is adequately ventilated. Never cover air vents.
. Do not install the unit near radiators, radiator pipes or smoke extractors and protect it as far as possible from direct sunlight
. Make sure the unit doors are kept open for as short a time as possible. The quik- ker the doors are closed again, the less cold is lost.
. Make sure that the doors are closed fully and correctly. The door seal must be flush against the frame of the fridge.

What to do if...

Troubleshooting

Any malfunction will probably be due to a minor fault which you will be able to rectify yourself with the aid of the following instructions. Do not attempt any more extensive repairs yourself, should the following information prove unhelpful in solving a particular problem.

Warning! Repairs to the wine cooler should only be carried out by qualified personnel. Repairs undertaken incorrectly may cause considerable risk to the user. Contact your local Service Force Centre.

Service and spare parts

In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Service Force Centre by telephoning:

08705 929929

Your telephone call will be automatically routed to the Service Force Centre covering your post code area.

For the address of your local Service Force Centre and further information about Service Force, please visit the website at www.serviceforce.co.uk

Before calling out an engineer, please ensure you have read the details under the heading "Something Not Working."

When you contact the Service Force Centre you will need to give the following details:

1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number of the appliance (found on the rating plate)
5. The purchase date

Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service calls.

Customer care department

For general enquiries concerning your AEG appliance or for further information on AEG products, please contact our Customer Care Department by letter or telephone at the address below or visit our website at www.aeg.co.uk

Major Appliances

Addington Way

Luton

Bedfordshire

LU4 9QQ

08705 950 950(*)

• calls to this number may be recorded for training purposes.

Fault	Possible cause	Solution
Appliance doesn’t work.	Appliance is not switched on.	Switch on.
	Mains plug is loose or not plugged in.	Insert the mains plug.
	Fuse has triggered or is defective.	Check fuse and replace if necessary.
	Socket is defective.	Faults with the mains supply must be repaired by a qualified electrician.
Inadequate cooling chamber temperature.	Temperature has not been properly set.	Please see under “Commissioning”.
	Door was open for a long period.	Only open door for as long as necessary.
	The appliance is positioned next to a heat source.	Please see under “Installation site”.
Interior light doesn’t work.	LED is defective.	Please see under “LED lighting”.
The compressor doesn’t cut in immediately after changing the temperature setting.	This is normal and not due to a fault.	The compressor cuts in automatically after a short time.
Error message F1 on control panel.	Upper sensor defective.	Contact customer service.
Error message F2 on control panel.	Lower sensor defective.	Contact customer service.
Error message F3 on control panel.	Fan defective.	Contact customer service.

Guarantee conditions

Standard Guarantee Conditions

AEG offer the following guarantee to the first purchaser of this appliance:

1. The guarantee is valid for 12 months commencing when the appliance is handed over to the first retail purchaser, which must be verified by purchase invoice or similar documentation.
2. The guarantee does not cover commercial use.
3. The guarantee covers all parts or components which fail due to faulty workmanship or faulty material. The guarantee does not cover appliances where defects or poor performance are due to misuse, accidental damage, neglect, faulty installation, unauthorised modification or attempted repair, commercial use or failure to observe requirements and recommendations set out in the instruction book.
4. This guarantee does not cover such parts as light bulbs, removable glassware, or plastic.
5. Should guarantee repairs be necessary the purchaser must inform the nearest customer service office (AEG's service or authorised agent). AEG reserves the right to stipulate the place of repair (i.e. the customer's home, place of installation or AEG workshop).
6. The guarantee or free replacement includes both labour and materials.
7. Repairs carried out under guarantee do not extend the guarantee period for the appliance. Parts removed during guarantee repairs become the property of AEG.
8. The Purchaser's statutory rights are not affected by this guarantee.

European Guarantee

. If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:
. The guarantee starts from the date you first purchased your product
. The guarantee is for the same period and to the same extent for labour and partsas exists in the new country of use for this brand or range of products
. This guarantee relates to you and cannot be transferred to another user
. Your new home is within the European Community (EC) or European Free Trade Area
. The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household
. The product is installed taking into account regulations in your new country

Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.

France	Senlis	[phone]
Germany	Nürnberg	[phone]
Italy	Pordenone	[phone]
Sweden	Stockholm	[phone]
UK	Luton	[phone]

Operating Noises

Noises which are entirely normal

The chill cabinet is cooled by a compressor (refrigeration aggregate). The compressor pumps coolant through the cooling system, producing operating noises. Even when the compressor cuts out, noises caused by changes in temperature and pressure are unavoidable.

This cooler is fitted with a quiet compressor and a low-noise cooling circuit designed in line with the latest technical developments. However, a certain level of noise, dependent on the size of the cooler, is inevitable. Operating noise will be most audible immediately after the compressor cuts in. It becomes quieter as the operating period continues.

Noises which are not normal

Unusual noise is normally the result of improper installation. The cooler must be installed or built-in so that it is level and stable. Under no circumstances must tubing come into contact with a wall, other furniture or with another tubing.

Where coolers are installed in open-plan kitchens or in partition walls, the level of operating noise will be heard more acutely. However, this is due to the surrounding architecture and not to a fault with the cooler.

Description	Cause	Comment
Droning	Cooling system	Normal operating noise of the cooling system. The level is dependent on the size of cooler.
Humming	Fan	Normal operating noise of the fan.
Gurgling	Cooling circuit	Normal operating noise as coolant flows through the circuit.
Babbling
Murmuring
Hissing	Cooling circuit	Normal operating noise as coolant is injected into the condenser.
Cracking	Cooler housing	Normal as materials expand and contract due to temperature variations (e.g. plastics, insulation).

Índice

Ajustar as prateleiras 82

Ajustar a prateleira intermedia 83

Trocar as lampadas 83

Armazenar correctamente 84

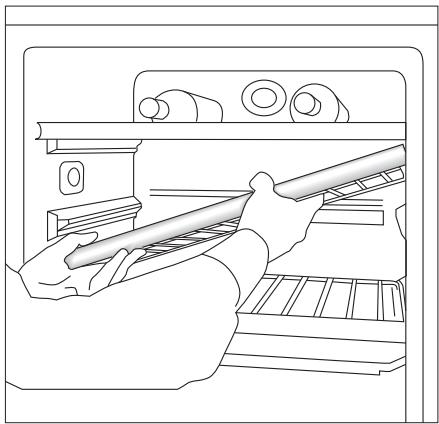

Ajustar as prateleiras
