Product Type	Refrigerator with freezer compartment
Brand	AEG-Electrolux
Model	Santo C 81640 I
Height	1780 mm
Width	560 mm
Depth	550 mm
Weight (estimated)	Approx. 65 kg
Power Supply	220-240 V ~ 50 Hz, 10 A fuse
Refrigerant	Isobutane (R600a), flammable
Climate Class	See rating plate (typically SN-ST or similar)
Temperature Control	Rotary knob settings 0 (off) to 6 (coldest)
Freezer Temperature	Below -18°C when set appropriately
Freezing Capacity	See rating plate (typically up to 4 kg/24h)
Storage Shelves	Adjustable glass shelves, including vario shelf
Door Reversibility	Yes, user-reversible (right to left)
Defrosting	Automatic for refrigerator; manual for freezer
Interior Light	Yes, replaceable (max 15 W, 220-240 V)
Safety Features	Flammable refrigerant warning; child lock via door seal
Cleaning	Wipe with lukewarm water; avoid abrasives
Energy Saving Tips	Avoid heat sources; keep condenser clean; minimize door opening
Drain Hole	Yes, with green peg for cleaning

Frequently Asked Questions - Santo C 81640 I AEG-ELECTROLUX

How do I adjust the temperature on my AEG-Electrolux Santo C 81640 I?

Use the temperature selector knob inside the refrigerator compartment. Settings range from 0 (off) to 6 (coldest). Start at setting 3 or 4 and adjust as needed. Note that the refrigerator and freezer temperatures are controlled together.

How do I defrost the freezer compartment?

When frost exceeds 4 mm, remove frozen food and wrap in newspaper. Turn the thermostat to 0 and unplug the appliance. Leave the door open. Use the plastic scraper provided to remove ice. Do not use metal tools or speed up defrosting artificially.

Can I reverse the door opening direction?

Yes, the door is reversible. Disconnect the appliance from power. Follow the steps in the manual: unscrew hinges, remove doors, and refit hinges on the opposite side. Ensure proper alignment after reassembly.

What should I do if the interior light doesn't work?

Switch off the appliance and unplug it. Remove the light bulb cover by unscrewing and sliding it backward. Replace the bulb with a 220-240 V, max 15 W bulb. Reassemble and restore power.

How do I clean the refrigerator?

Unplug the appliance. Remove all food. Clean interior and accessories with lukewarm water and mild detergent. Avoid abrasive cleaners. Wipe dry and clean the condenser at the back annually with a soft brush or vacuum.

Why is there water on the floor inside the fridge?

The water drain hole on the rear wall may be blocked. Use the green peg from the accessory pack to clear it. Ensure the hole is unobstructed for proper defrost water drainage.

What is the maximum freezing capacity?

The maximum amount of fresh food that can be frozen in 24 hours is indicated on the rating plate inside the appliance. Typical values are around 4 kg. Do not exceed this limit for best performance.

Can I store flammable items in the freezer?

No. Do not store containers with flammable gases or liquids (e.g., spray cans) in the refrigerator or freezer. They can leak and cause an explosion hazard.

How can I save energy with this refrigerator?

Install the appliance away from heat sources. Ensure adequate ventilation around the appliance. Keep the condenser clean. Allow hot food to cool before placing inside. Minimize door openings and do not set temperature colder than necessary.

What should I do if the appliance is not cooling properly?

Check that the appliance is switched on and plugged in. Verify the fuse. Ensure the thermostat is set correctly. Avoid overloading or frequent door openings. If the problem persists, contact a qualified service technician.

USER MANUAL Santo C 81640 I AEG-ELECTROLUX

Diagram showing a hand inserting a screw into a component, with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical diagram showing mechanical assembly with two views of a bolted component (no text or symbols)

Technical diagram showing a mechanical assembly with a rotating component and a separate view of a bracket (no text or symbols)

3D diagram of a rectangular block with a dashed top section and a black arrow pointing downward (no text or symbols)

Line drawing of a hand holding a metal rod above a shelf, no text or symbols present

Technical line drawing of a mechanical component with a black arrow indicating direction, no text or symbols present

Diagram showing a hand holding a tool inside a circular component, with arrows indicating rotation or movement (no text or symbols)

Technical line drawing of a mechanical component with directional arrows indicating movement (no text or symbols)

Kundendienst

Diagram showing a tool interacting with a component, with an arrow indicating direction of movement (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Technical diagram showing a mechanical assembly with a rotating component and a close-up view of a bracket (no text or symbols)

3D diagram of a rectangular block with a dashed line and a black arrow pointing downward (no text or symbols)

Line drawing of a hand holding a shelf with a ruler, no text or symbols present

Technical line drawing of a mechanical component with a black arrow indicating direction, no text or symbols present

Illustration of a hand holding scissors inside a circular component, with arrows indicating rotation (no text or symbols)

Tips om energie te besparen

Technical line drawing of a mechanical component with labeled parts (no readable text or symbols)

Before placing your new refrigerator/freezer into operation please read these operating instructions carefully. They contain important information for safe use, for installation and for care of the appliance.

Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

These operating instructions are for use with several technically comparable models with varying accessories. Please observe the notes which apply to your model.

Notes which are important for your safety or for the proper functioning of the appliance are stressed with a warning triangle and/or with signal words (Warning!, Caution!, Attention!). Please observe the following carefully.

Supplementary information regarding operation and practical applications of the appliance appear after this symbol.

Tips and notes concerning economical and environmentally sound use of the appliance are marked with the flower.

The operating instructions contain instructions for the correction of possible malfunctions by the user in the section "What to do if ...". If these instructions should not be sufficient, our customer service department is always available to you.

Contents

Safety 53

Disposal ....55

Appliance Packaging Information 55

Disposal of old Appliances 55

Remove transport safeguard ....55

Installation....56

Installation Location ....56

Your appliance needs air 57

Rehingeing the door 47

Housing dimension 58

Instructions for total built-in ....58

Electrical Connection ....63

Prior to Initial Start-Up ....63

Starting up and temperature regulation .....63

Interior Accessories ....64

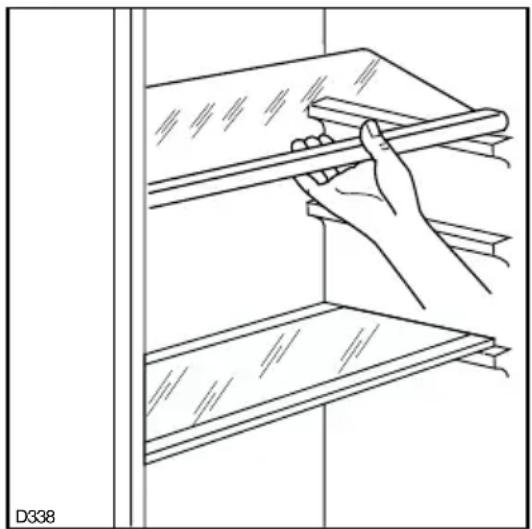

Storage shelves 64

Variable Inner Door....64

Fresh food refrigeration 65

Freezing and storing frozen food 66

Preparation of Ice Cubes 67

Freezing Calendar 67

Defrosting 67

Switching off the appliance 68

Cleaning and Care ....68

Energy Saving Tips ....70

What to do if ....70

Correcting Malfunctions 70

Changing the light bulb 72

Regulations, Standards, Guidelines .....72

⚠ Safety

The safety aspects of our refrigerators/freezers comply with accepted technical standards and the German Appliance Safety Law. Nevertheless, we consider it our obligation to make you aware of the following safety information:

Intended use

• The refrigerator is intended for use in the home. It is suitable for the cooling, freezing and storing of frozen food, as well as for making ice. If the appliance is used for purposes other than those intended or used incorrectly, no liability can be accepted by the manufacturer for any damage that may be caused.
  • Alterations or changes to the freezer are not permitted for reasons of safety.
• If you use the refrigerator in a commercial application or for purposes other than the cooling, freezing or frozen storage of foods, please observe all valid legal regulations for your application.

Prior to initial start-up

- Check the refrigerator for transport damage. Under no circumstance should a damaged appliance be plugged in! In the event of damage, please contact the vendor.

Refrigerant

The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.
• If the refrigerant circuit should become damaged:

- avoid open flames and sources of ignition;

- thoroughly ventilate the room in which the appliance is situated.

Safety of children

• Packaging (e.g. wraps, polystyrene) can be dangerous for children. There is a risk of suffocation! Keep packaging material away from children!
• Please make old appliances unusable prior to disposal. Pull out the mains plug, cut off the mains cable, break or remove spring or boltcatches, if fitted. By doing this you ensure that children cannot lock themselves in the

fridge when playing (there is risk of suffocation!) or get themselves into other dangerous situations.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.!

Daily Operation

• Containers with flammable gases or liquids can leak at low temperatures. There is a risk of an explosion! Do not store any containers with flammable materials such as, for example, spray cans, fire extinguisher refill cartridges etc in the refrigerator/freezer.
• Bottles and cans must not be placed in the freezer compartment. They can burst when the contents freeze, high carbonate content drinks can even explode! Never store lemonade, juices, beer, wine, sparkling wine etc. in the freezer compartment. Exception: high alcohol content spirits can be stored in the freezer compartment.
• Do not put ice creams or ice cubes in the mouth immediately after removal from the freezer compartment. Very cold ice can freeze to the lips or tongue and cause injury.
• Do not touch frozen food with wet hands. Your hands could freeze to the food.
• Do not operate any electrical appliances in the refrigerator/freezer (e.g. electric ice cream makers, mixers etc.).
• Before cleaning the appliance, always switch off the appliance and unplug it, or pull the house fuse or switch off the circuit breaker.
• When unplugging always pull the plug from the mains socket, do not pull on the cable.

In case of malfunction

- If the a malfunction occurs on the appliance, please look first in the "What to do if ..." section of these instructions. If the information given there does not help, please do not perform any further repairs yourself.

- Refrigerators/freezers may only be repaired by qualified service engineers. Improper repairs can give rise to significant hazards. If your appliance needs repairing, please contact your specialist dealer or our Customer Service.

Disposal

Appliance Packaging Information

All materials are environmentally sound! They can be dumped or burned at an incinerating plant without danger!

About the materials: The plastics can be recycled and are identified as follows:

PE< for polyethylene, e.g. the outer covering and the bags in the interior.

PS< for polystyrene foam, e.g. the pads, which are all free of chlorofluorocarbon.

The carton parts are made from recycled paper and should be disposed of at a waste-paper recycling collection location.

Disposal of old Appliances

For environmental reasons, refrigeration appliances must be disposed of properly. This applies to your old appliance, and - at the end of its service life - for your new appliance as well.

Warning! Before disposing of old appliances make them inoperable. Remove plug from mains, sever the power cable, remove or destroy any snap or latch closures. This eliminates the danger that playing children lock themselves into the appliance (danger of suffocation!) or place themselves into other life-endangering situations.

Disposal:

- The appliance may not be disposed of with domestic waste or bulky refuse.

- The refrigerant circuit, especially the heat exchanger at the back of the appliance, may not be damaged.

- The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Remove transport safeguard

The appliance and the interior fittings are protected for transport.

• Pull off the adhesive tape on the left and right side of the door.
• Remove all adhesive tape and packing pieces from the interior of the appliance.

Installation

Installation Location

The appliance should be set up in a well ventilated, dry room.

Energy use is affected by the ambient temperature. The appliance should therefore

• not be exposed to direct sunlight;
• not be installed next to radiators, cookers or other sources of heat;
• only be installed at a location whose ambient temperature corresponds to the climate classification, for which the appliance is designed.

The climate classification can be found on the serial plate, which is located at the left on the inside of the appliance.

The following table shows which ambient temperature is correct for each climate classification: each climate classification:

If installation next to a source of heat is unavoidable, the following minimum clearances must be maintained at the sides of the appliance:

• for electric cookers 3 cm;
• for oil and coal fired ranges 30 cm.

If these clearances cannot be maintained a heat insulating pad is required between the cooker and the refrigeration appliance.

If the refrigeration appliance is installed next to another refrigerator or freezer a clearance of 5 cm at the sides is required, in order to prevent the formation of condensation on the outside of the appliance.

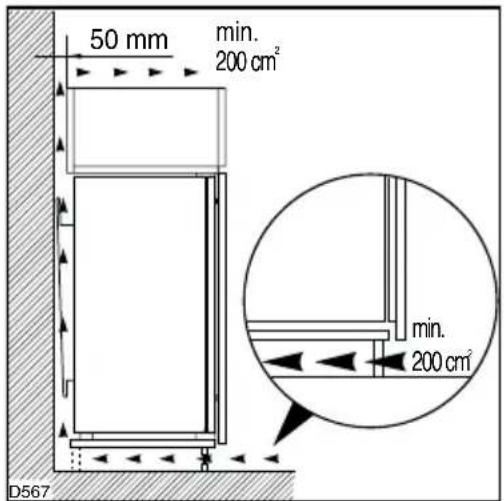

Your appliance needs air

For safety reasons, minimum ventilation must be as shown Fig. Attention: keep ventilation openings clear of obstruction;

Rehingeing the door

The side at which the door opens can be changed from the right side (factory adjustment) to the left side, if the installation site requires.

Warning! When changing the side at which the door opens, the appliance may not be connected to the mains. Remove plug from the mains beforehand.

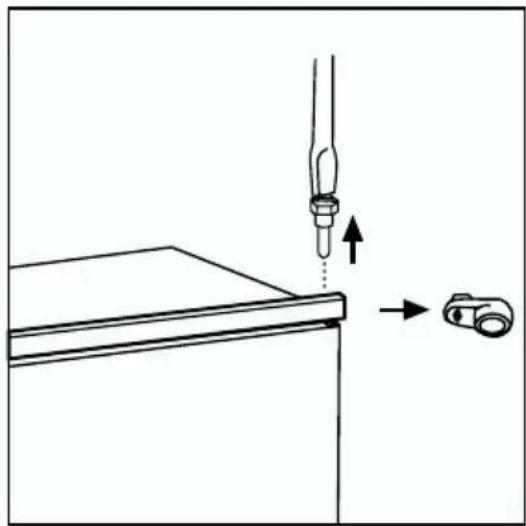

1. Unscrew the upper pin and remove the spacer.
2. Remove the upper pin and the upper door.
3. Unscrew the middle hinge und the covers on the opposite side.
4. Remove the lower door.

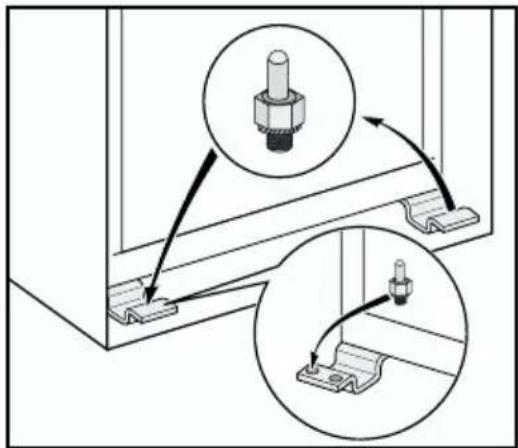

5. Unscrew the lower pin and refit it on the opposite side
6. Refit the lower door.
7. Rescrew the middle hinge und the covers on the opposite side.

Diagram showing a hand holding a screwdriver above a panel, with an arrow indicating direction of movement (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

1. Refit the upper door and rescrew the hinge pin and the spacer on the opposite side

Housing dimensions

Height 1780 mm

Depth 550 mm

Width 560 mm

Instructions for total built-in

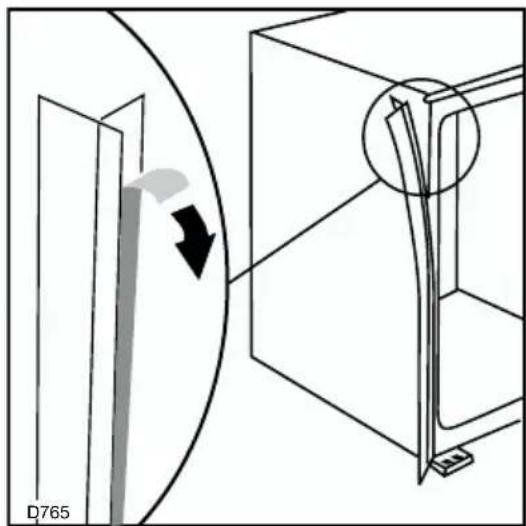

Apply joint the sealing strip as shown in figure.

Diagram showing a mechanical component with an arrow indicating rotation, alongside a 3D view of a vertical panel (no text or symbols)

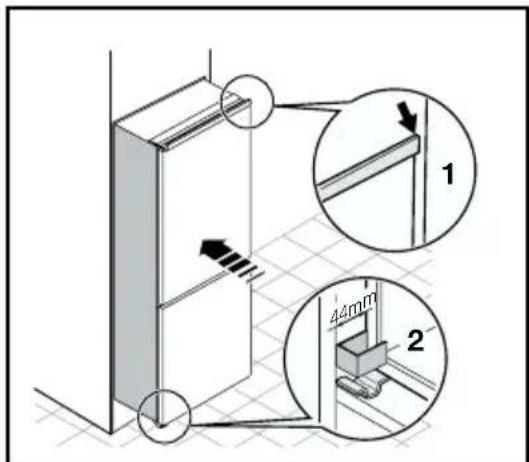

Make sure that a distance of 44 mm is maintained in the lower part between the kitchen furniture and the border of the appliance.

The lower hinge cover inserted in the accessories bag, is useful to guarantee the exact position of the kitchen furniture and the appliance.

Also make sure that the appliance does not clamp the mains cable.

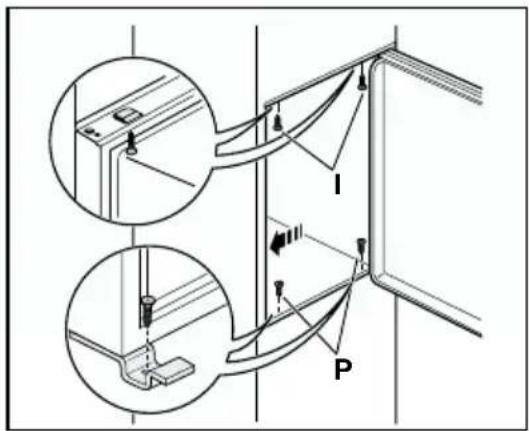

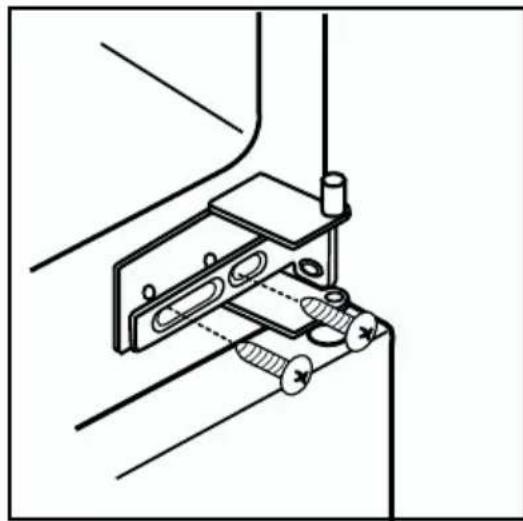

Fasten the appliance with 4 screws provided in the kit included with the appliance.

$$ (I = \text { short }) (P = \text { long }) $$

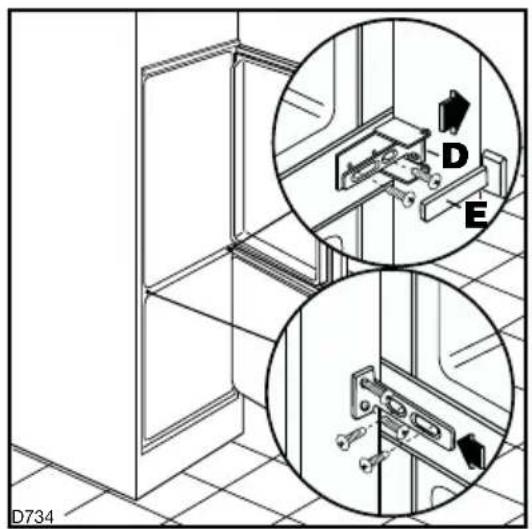

From the plastic cover (E), which is used to cover the hinge with the pivot pin, you must take away the part as indicated in the drawing.

This operation is made easier since there is, in the internal part of the cover hinge lid a groove that facilitates the removal of this cocomponent.

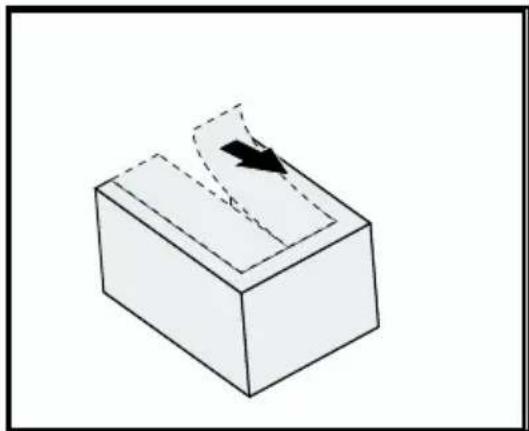

"Remove the part marked with DX, if the pivot pin is inserted in the right hinge, SX in opposite case."

Simple 3D diagram of a rectangular block with a curved arrow pointing downward on top, no text or symbols present.

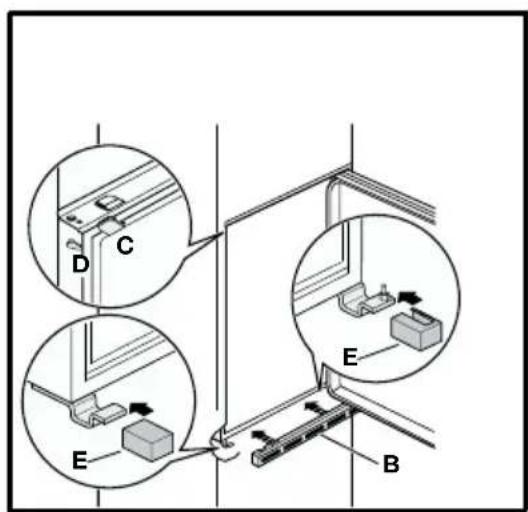

Apply covers (C-D) on joint cover lugs and into hinge holes.

Snap vent grille (B) and hinge covers (E) into position.

Separate parts Ha Hb, Hc, Hd as shown in the figure.

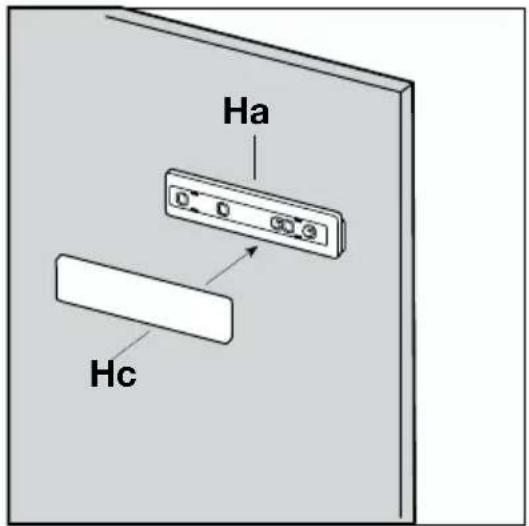

Place guide (Ha) on the inside part of the furniture door, up and down as shown in the figure and mark the position of external holes. After having drilled holes, fix the guide with the screws supplied.

Fix cover (Hc) on guide (Ha) until it clips into place.

Open the appliance door and the furniture door at 90°. Insert the small square (Hb) into guide (Ha). Put together the appliance door and the furniture door and mark the holes as indicated in the figure.

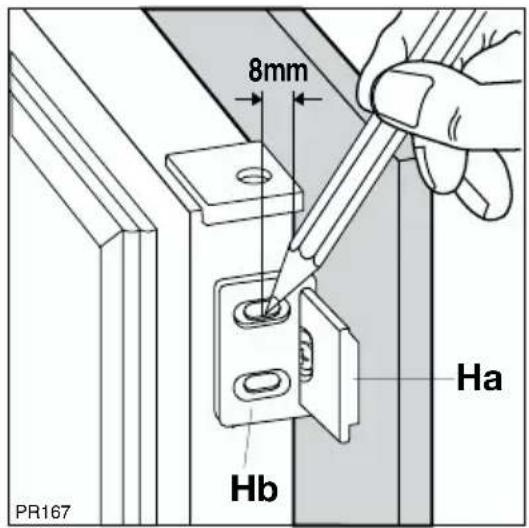

Remove the brackets and mark a distance of 8 mm from the outer edge of the door where the nail must be fitted (K).

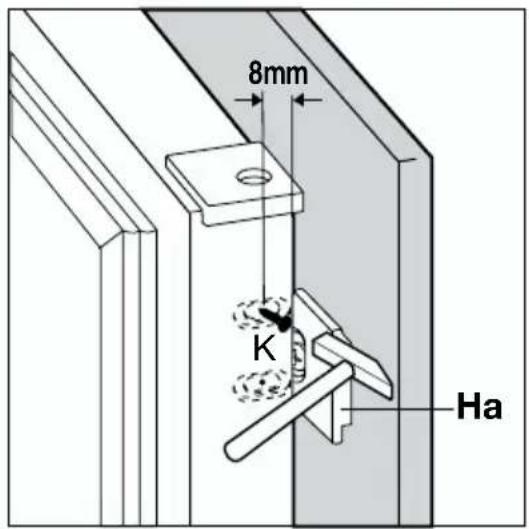

Place the small square on the guide again and fix it with the screws supplied.

Should the lining up of the furniture door be necessary, use the clearance of slots.

At the end of operations, it is necessary to check if the door of the furniture closes properly.

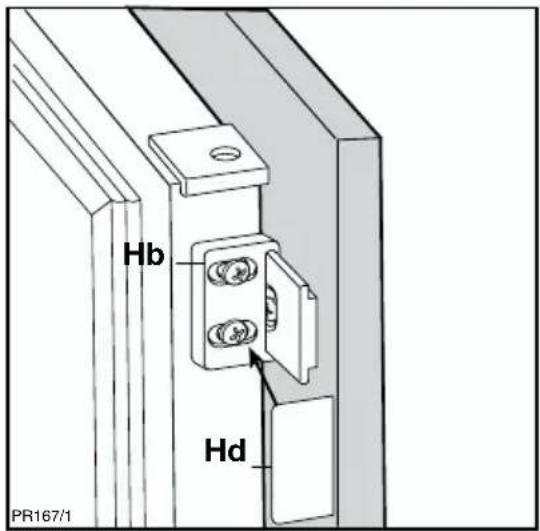

Fix cover (Hd) on guide (Hb) until it clips into place.

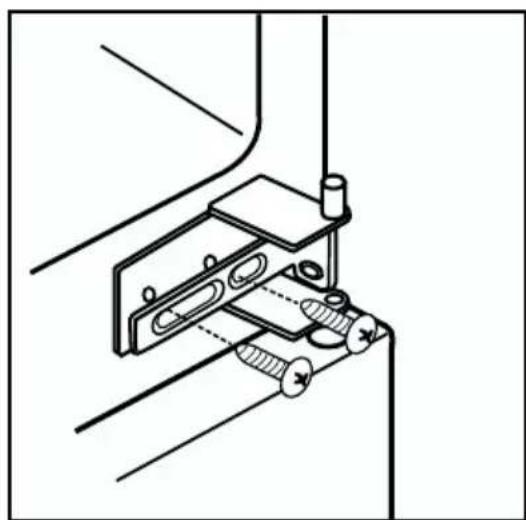

If the appliance is fixed to the side of the kitchen unit, simply slacken the screws in the fixing brackets (D), move the brackets as shown in figure and re-tighten the screws. Fit cover (E).

Electrical connection

Before initial start-up, refer to the appliance rating plate to ascertain if supply voltage and current values correspond with those of the mains at the installation location.

e.g.: AC 220 ... 240 V 50 Hz or

220 ... 240 V\~ 50 Hz

(i.e. 220 to 240 volts alternating current, 50 Hertz)

The rating plate is inside the appliance on the left.

A correctly installed, earthed socket is required for the electrical supply. The supply must have a fuse rating of at least 10 Amps.

If the socket is not accessible once the appliance is built in, the electrical installation must include suitable means of isolating the appliance from the mains (e.g. fuse, cut-out, current trip or similar with a minimum contact separation of 3 mm).

Attention: The mains connection cable may only be replaced by a skilled electrician. Please contact your dealer or our customer service department for repairs.

Prior to Initial Start-Up

- Please clean the appliance interior and all accessories prior to initial start-up (see section: "Cleaning and Care").

Starting up and temperature regulation

- Insert the plug into the plug socket. With the refrigerator compartment door open, the internal lighting is switched on. The temperature selector knob is located on the RH side of the refrigerator compartment.

Setting „0“ means: Off.

Setting „1“ means: Hightest temperature, (warmest setting).

Setting „6“ (end-stop) means: Lowest temperature, (coldest setting).

However, the exact setting should be chosen keeping in the mind that the temperature inside the refrigerator depends on:

-the quantity of food stored

-how often the door is opened

The temperatures in the refrigerator compartment and freezer co partment cannot be independently regulated.

If you want the freeze fresh food rapidly, select setting „6“, ensuring that the temperature in the refrigerator compartment does not drop blow 0°C. You should also promptly reset the temperature regulator to setting „3“ or „4“.

Important!

High ambient temperatures (e.g. on hot summer days) and a cold setting on the temperature regulator (position"5" to "6") can cause the compressor to run continuously.

If this happens, turn the temperature regulator back to a warmer setting (position "3" to "4"). At this setting the compressor will be switched on and off as usual and automatic defrosting recommenced.

Interior Accessories

Storage Shelves

The glass shelf above the fruit and vegetable compartment should always remain in position, to ensure fruit and vegetables stay fresh longer.

The remaining storage shelves can be adjusted to various heights:

Pull the storage shelf forward until it can be tipped up or down and removed.

Line drawing of a hand holding a metal rod above a shelf, no text or symbols present

To insert at a different height use the same procedure in reverse.

Adjustment for tall goods:

Remove the front half of the two-part vario glass storage shelf and insert it at a different level. Space is thus gained for storage of tall goods on the underlying storage shelf.

Variable Inner Door

The door compartments can be pulled up and removed, and inserted at other positions as needed.

Fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liquide in the refrigerator
• do cover or wrap the food, particularly if it has a strong flavour.
• Position food so that air can circulate freely round it.

Useful hints:

Meat (all types): wrap in polythene bags and place on the glass shelf above the vegetable drawer(s)For safety, store in this way only one or two days at the most.

Cooked foods, cold dishes, etc: these should be covered and may be placed on any shelf.

Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.

Butter and cheese: these should be placed in special airtight containers or wapped in aluminium foil or polythene bags to exclude as much air as possible.

Milk bootles: these should have a cap and should be stored in the bottle rack on the door.

Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

Freezing and storing frozen food

You can use your freezer for freezing fresh food yourself.

Important!

• The temperature in the freezer compartment must be -18^ or colder before freezing food.
• Please observe the freezing capacity given on the rating plate. The freezing capacity is the maximum quantity of fresh food that can be frozen within a period of 24 hours. If you wish to freeze food several days in a row, please observe a maximum capacity of only 2/3 to 3/4 of that on the rating plate. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.
• Allow warm food to cool down before freezing. The warmth will cause increased ice formation and increase the power consumption.
• Please note the maximum storage times specified by the manufacturer.
• Thawed foods which have not been processed further (cooked into meals) may not under any circumstances be frozen a second time.
• Containers with flammable gases or liquids can leak at low temperatures. There is a risk of an explosion! Do not store any containers with flammable materials such as, for example, spray cans, fire extinguisher refill cartridges etc in the refrigerator/freezer.
• Bottles and cans must not be placed in the freezer. They can burst when the contents freeze, high carbonate content drinks can even explode! Never store lemonade, juices, beer, wine, sparkling wine etc. in the freezer. Exception: high alcohol content spirits can be stored in the freezer.
• All foods must be packed air tight prior to freezing, so that they do not dry out or lose their flavour, and so that no flavour contamination of other frozen goods occurs.

Caution! Do not touch frozen food with wet hands. Your hands could freeze to the food.

1. Unfrozen food must not touch items already frozen, otherwise the frozen food could begin to defrost.
2. To achieve faster freezing of food or to freeze the maximum allowed quantity, turn the thermostat setting to the highest position.

Preparation of Ice Cubes

1. Fill the ice cube tray 3/4 full with cold water, place it in the freezer compartment and leave to freeze.
2. To loosen the frozen cubes, either bend the ice cube tray or hold it under running water for a few seconds.

Important! Never try to free an ice tray that is frozen to the freezer compartment using pointed or sharp edged objects.

Freezing Calendar

• The symbols show different types of frozen goods.
• The numbers indicate storage times in months for the appropriate types of frozen goods. Whether the upper or lower value of the indicated storage time is valid depends on the quality of the foods and pre-treating before freezing. The lower value applies to foods with high fat content.

Defrosting

Refrigerator

Frost is automatically removed from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, located over the motor compressor, where it evaporates.

Freezer

The freezer compartment, however, will become progressively covered with frost. This should be removed with the special plastic scraper provided, whenever the thickness of the frost exceeds 4 mm. During this operation it is not necessary to switch off the power supply or to remove the foodstuffs.

However when the ice becomes very thick on the inner liner, complete defrosting should be carried out as follows:

1. Remove the frozen food from the freezer, wrap it in several layers of newspaper and put it in a very cool place.

2. Switch off the appliance and pull out the plug, or turn the temperature control knob to "0".

3. Leave the freezer compartment door open.

4. Insert the plastic scraper into the recess provided under the defrost water channel and place a collecting basin under it.
5. Once defrosting is completed keep the scraper handy for future use;
6. Turn the thermostat knob to the required setting or replace the plug in the power socket.

Warning!

Never use metal tools to scrape off the frost

Technical line drawing of a mechanical component with a black arrow indicating direction, no text or symbols present

Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer.

A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.

Switching off the appliance

To switch off the appliance, turn the temperature regulator to position "0". If the appliance is not going to be used for an extended period:

1. Remove all refrigerated and deep-frozen packages as well as ice trays.
2. Switch off the appliance by turning the temperature regulator to position "0".
3. Remove the mains plug or switch off or turn out the circuit breaker or fuse.
4. Defrost freezer compartment and clean thoroughly (see section: "Cleaning and Care").
5. Leave the door open to avoid the build up of odours.

Cleaning and Care

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Warning!

- The appliance may not be connected to the mains during cleaning. Dan-

ger of electrical shock! Before cleaning switch the appliance off and rem ve the plug from the mains, or switch off or turn out the circuit breaker or fuse.

• Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapours can lead to the damage of plastic parts.
• The appliance must be dry before it is placed back into service.

Attention!

- Ethereal oils and organic solvents can attack plastic parts, e.g.

– lemon juice or the juice from orange peals;
- butyric acid;
- cleansers which contain acetic acid.

Do not allow such substances to come into contact with appliance parts.

- Do not use any abrasive cleansers.

1. Remove frozen food and the food from the refrigerator. Wrap frozen food in several layers of newspaper. Store it in a cool place, well covered.
2. Defrost the freezer compartment prior to cleaning (see "Defrosting" section).
3. Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse.
4. Clean the appliance and the interior accessories with a cloth and lukewarm water. Commercially available dish washing detergents may also be used.
5. After cleaning wipe with fresh water and rub dry.

Accumulation of dust at the condenser increases energy consumption. For this reason carefully clean the condenser at the back of the appliance once a year with a soft brush or a vacuum cleaner.

1. Check the water drain hole on the rear wall of the fridge. Clear a blocked drain hole with the aid of the green peg in the pack of accessories included with the appliance.
2. After everything is dry place appliance back into service.

Diagram showing a hand holding scissors inside a circular component, with arrows indicating rotation direction (no text or symbols)

Energy Saving Tips

• Do not install the appliance near cookers, radiators or other sources of warmth. High ambient temperatures cause longer, more frequent operation of the compressor.
• Ensure sufficient air circulation and exhaust at the appliance base and at the back wall of the appliance. Never cover air vent openings.
• Do not place warm foods into the appliance. Allow warm foods to cool first.
• Only leave door open as long as necessary.
• Do not set temperature any colder than necessary.
• Keep the heat emitting condenser, the metall grille on the rear wall of your appliance, always clean.

What to do if ...

Correcting Malfunctions

A malfunction may be caused by only a minor fault that you can rectify yourself using the following instructions. Do not perform any other work on the appliance if the following information does not provide assistance in your specific case.

Warning! Repairs to refrigerators/freezers may only be performed by qualified service engineers. Improper repairs can give rise to significant hazards for the user. If your appliance needs repairing, please contact your specialist dealer or our Customer Service.

Malfunction Possible	Cause Remedy
	Appliance is not switched on	Switch on the appliance.
	Mains plug is not plugged in or is loose.	Insert mains plug.
Appliance does not work.	Fuse has blown or is defective.	Check fuse, replace if necessary.
	Socket is defective.	Mains malfunctions are to be corrected by an electrician.
Appliance cools too much. Temperature is set too cold.		Turn the temperature regulator to a warmer setting temporarily..
	Temperature is not properly adjusted.	Please look in the "Initial Start Up" section.
	Door was open for an extended period.	Open the door only as long as necessary.
The food is too warm.	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulator to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the "Installation location" section.
Interior lighting does not work.	Light bulb is defective.	Please look in the "Changing the Light Bulb" section.
Heavy build up of frost, possibly also on the door seal.	Door seal is not air tight (possibly after changing over the hinges).	Carefully warm the leaking sections of the door seal with a hair dryer (not hotter than approx. 50 °C). At the same time shape the warmed door seal by hand such that it sits correctly.
Unusual noises.	Appliance is not level.	Readjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
The compressor does not start immediately after changing the temperature setting.	This is normal, no error has occurred.	The compressor starts after a period of time.
Water on the floor or on storage shelves.	Water drain hole is blocked.	See the "Cleaning and Care" section.

Changing the light bulb

Warning! There is a risk of electric shocks! Before changing the light bulb, switch off the appliance and unplug it, or pull the fuse or the circuit breaker. Light bulb data: 220-240 V, max. 15 W

1. To switch off the appliance, turn the temperature regulator to position "0".
2. Unplug the mains plug.
3. To change the light bulb, undo the screw.
4. Press the light bulb cover as shown and slide it backwards.
5. Change the defective light bulb.
6. Refit the light bulb cover and the screw.
7. Put the refrigerator back into operation.

Technical line drawing of a mechanical component with directional arrows indicating movement (no text or symbols)

Regulations, Standards, Guidelines

This appliance was designed for household use and was manufactured in accordance with the appropriate standards. The necessary measures in accordance with appliance safety legislation regulations (GSG), accident prevention regulations for refrigeration appliances (VBG 20) and the regulations of the German Society of Electrical Engineers (VDE) were observed in the manufacture of this appliance.

The refrigerant circuit has been checked for leaks.

This appliance is in accordance with the following EU guidelines:

- 73/23/EWG dated 19 February 1973 - low voltage guidelines.

- 89/336/EWG dated 3 May 1989

(including guideline change notice 92/31/EWG) - EMV guideline

AEG Hausgeräte GmbH

Postfach 1036

D-90327 Nürnberg

Subject to change without notice
