USER MANUAL UWF-1 ONKYO
Tuesday, February 22, 2011 10:39 AM English
Wireless USB adapter

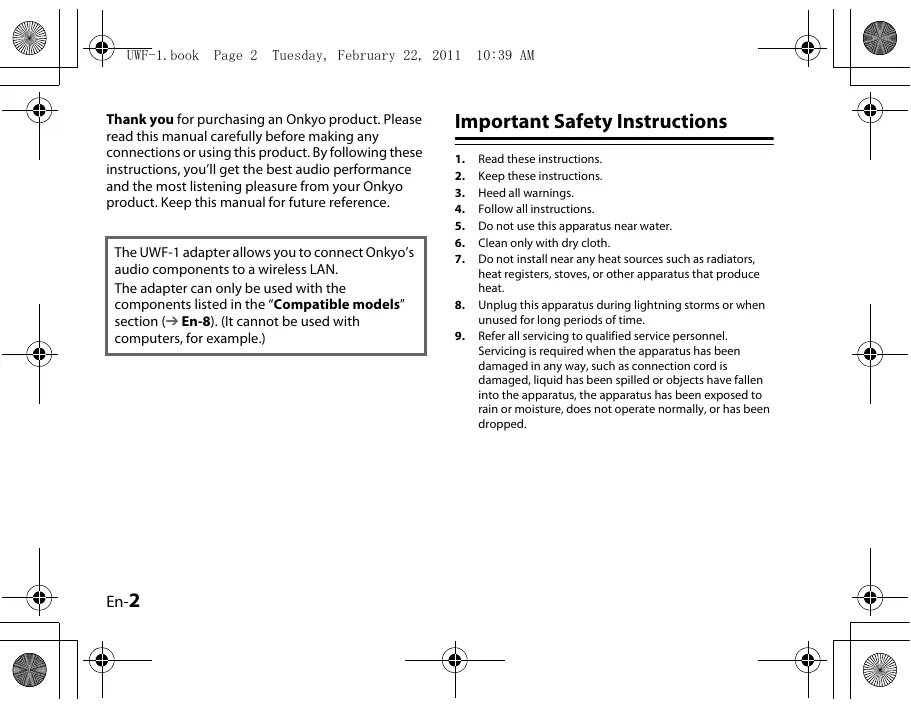

Tuesday, February 22, 2011 10:39 AM Thank you for purchasing an Onkyo product. Please read this manual carefully before making any connections or using this product. By following these instructions, you’ll get the best audio performance and the most listening pleasure from your Onkyo product. Keep this manual for future reference.
The UWF-1 adapter allows you to connect Onkyo’s audio components to a wireless LAN.
The adapter can only be used with the components listed in the “Compatible models” section (➔ En-8). (It cannot be used with computers, for example.)
Read these instructions.
Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat. Unplug this apparatus during lightning storms or when unused for long periods of time. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as connection cord is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Tuesday, February 22, 2011 10:39 AM
10. Damage Requiring Service
Unplug the apparatus from the AV receiver/amplifier and refer servicing to qualified service personnel under the following conditions: A. If liquid has been spilled, or objects have fallen into the apparatus, B. If the apparatus has been exposed to rain or water, C. If the apparatus does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation, D. If the apparatus has been dropped or damaged in any way, and E. When the apparatus exhibits a distinct change in performance this indicates a need for service.
Care—Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don’t use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering.
Never Touch this Unit with Wet Hands—Never handle this unit while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer.
Tuesday, February 22, 2011 10:39 AM For U.S. models
FCC Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible.This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
Tuesday, February 22, 2011 10:39 AM IC Statement
This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada. Le present appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisee aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter.
IC Radiation Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
Tuesday, February 22, 2011 10:39 AM Hereby, ONKYO SOUND & VISION CORPORATION, declares that this UWF-1 is in compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Using the UWF-1
About UWF-1 A wireless LAN (WLAN) is a local area network that relies on wireless communication. To achieve a wireless network connection, you will need the following components: ❑ Access point Also known as the base station, it links your networkcapable AV receiver (wireless client) with a PC or network. Access points fall into two categories: the bridge type that only performs data relay in a local area network, or the router type that has a built-in router functionality. ❑ Wireless adapters Sometimes known as dongles, wireless adapters are extension devices that provide wireless network functionality when connected to a PC. There are several types of adapters, including PC cards and USB adapters. Connecting the UWF-1 wireless adapter to the USB port of a network-capable AV receiver lets you use your AV receiver as a wireless client (wireless terminal) and connect it to a PC or to the Internet.
Compatible with new-series (TX-NRxx9 and higher) Onkyo AV receivers. For further details, visit the Onkyo web site. You can find the home page address on the back of this manual.
Performing wireless LAN setup on the AV receiver
To achieve a wireless network connection, it is necessary to perform the wireless LAN setup. The setup can be done either automatically or manually. Note • Do not connect any other wireless adapter than the UWF1 to the USB port of your network-capable AV receiver, as other wireless USB adapters are not supported. • Depending on your connection and the AV receiver’s functionality, menus won’t be displayed on screen. In this case, use the AV receiver’s display to make the settings. • The wording of displayed items varies according to the AV receiver’s functionality. Tip • Press RETURN to go back one screen.
Tuesday, February 22, 2011 10:39 AM Automatic wireless LAN setup
Connect the UWF-1 to the USB port on your network-capable AV receiver.
Press USB to select the USB input. The “Wireless Setup” menu is displayed on screen. Use q/w to select “Auto Setup” and then press ENTER. The WPS selection screen is displayed, providing the following two options: ■ Push Button method 3.1 Use q/w to select “Push Button” and then press ENTER. 3.2 Press the WPS button on your Access Point device.
3.1 Use q/w to select “PIN Code” and then press ENTER. An 8-digit PIN code is displayed. The PIN code is displayed scrolling on the AV receiver’s display. 3.2 Input the provided code in your Access Point. For information on the registration process, please refer to the instruction manual provided with your Access Point device. Press ENTER to confirm. After the connection to your Access Point is completed, the connection status is displayed on screen. This completes the wireless LAN setup. You can review your setup with the “Status” option on the “Wireless Setup” menu.
Tuesday, February 22, 2011
4.1 Use q/w to select “Key” and then press ENTER. 4.2 Use the keyboard on screen to enter the secret key and confirm with “OK”.
Manual wireless LAN setup
Connect the UWF-1 to the USB port on your network-capable AV receiver.
Press USB to select the USB input. The “Wireless Setup” menu is displayed on screen. Use q/w to select “Manual Setup” and then press ENTER. A list of available Access Points is displayed. Use q/w to select the Access Point you wish to connect to, and then press ENTER. Depending on your encryption settings, the security of your Access Point will provide one of the following patterns: ■ WEP method 4.1 Use q/w to select “Default KeyID” and then press ENTER. 4.2 Use q/w to choose an ID between 1 and 4, and then press ENTER. 4.3 Use q/w to select “Key” and then press ENTER. 4.4 Use the keyboard on screen to enter the secret key and confirm with “OK”.
If your Access Point device is not secured by encryption, there is no need to input any secret key. Select “OK” and press ENTER. After the connection to your Access Point is completed, the connection status is displayed on screen. This completes the wireless LAN setup. You can review your setup with the “Status” option on the “Wireless Setup” menu.
Tuesday, February 22, 2011
10:39 AM Specifications
Connection format: Universal Serial Bus 2.0 Transmission frequency: (United States) 2.4 GHz band (2400 MHz - 2473 MHz, 1 - 11 ch) (Europe, except for France) 2.4 GHz band (2400 MHz - 2483 MHz, 1 - 13 ch) (France) 2.4 GHz band (2446 MHz 2483 MHz, 10 - 13 ch) (Japan) 2.4 GHz band (2400 MHz 2497 MHz, 1 - 13 or 14 ch) (China) 2.4 GHz band (2400 MHz 2483 MHz, 1 - 13 ch) Power supply: USB supply Current consumption: 310 mA Dimensions: (W × H × D) 1.1″ × 0.3″ × 0.7″ (29.8 mm × 8.4 mm × 17.0 mm) Weight: 0.1 oz. (3.4 g) Specifications and features are subject to change without notice.
Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM IC Statement
This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada. Le present appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisee aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d’en compromettre le fonctionnement. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
Tuesday, February 22, 2011 10:39 AM Hereby, ONKYO SOUND & VISION CORPORATION, declares that this UWF-1 is in compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.
Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011
Tuesday, February 22, 2011
Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM
Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM
Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM
Tuesday, February 22, 2011 11:05 AM Tuesday, February 22, 2011 11:05 AM
Tuesday, February 22, 2011 11:05 AM Tuesday, February 22, 2011 11:05 AM Tuesday, February 22, 2011 11:05 AM
Tuesday, February 22, 2011 11:05 AM Tuesday, February 22, 2011 11:05 AM
Tuesday, February 22, 2011 11:05 AM Cs-9
Tuesday, February 22, 2011 11:05 AM
Tuesday, February 22, 2011 11:05 AM
Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM
※安全にお使いいただくため、ご使用の前に必ずお読みください。
Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011 10:39 AM
Tuesday, February 22, 2011 10:39 AM
Tuesday, February 22, 2011 10:39 AM Tuesday, February 22, 2011
10:39 AM Tuesday, February 22, 2011
10:39 AM Tuesday, February 22, 2011
10:39 AM Tuesday, February 22, 2011
Tuesday, February 22, 2011
1 取扱説明書、本体貼付ラベル等の注意にしたがった使用状態で故
7 故障・その他による営業上の機会損失は当社では保証いたしませ
障した場合には、お買い上げの販売店またはオンキヨーコールセ
※ 裏面の保証書は、本書に明示した期間、条件のもとにおいて
2 保証期間内に故障して無料修理をお受けになる場合には、商品と
無料修理をお約束するものです。したがってこの保証書に
本書をご持参ご提示のうえ、お買い上げの販売店またはオンキ
よってお客様の法律上の権利を制限するものではありません
ヨーコールセンターにご依頼ください。ご返送は弊社負担です
ので、保証期間経過後の修理等についてご不明の場合は、お
が、送られるときは送料をご負担ください。
買い上げの販売店またはオンキヨーコールセンターへお問い
3 ご転居、ご贈答品等で保証書に記入してあるお買い上げの販売店
Tuesday, February 22, 2011
Tuesday, February 22, 2011 10:39 AM
2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN Tel: 072-831-8023 Fax: 072-831-8163 http://www.onkyo.com/
18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 800-229-1687, 201-785-2600 Fax: 201-785-2650 http://www.us.onkyo.com/ Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 http://www.eu.onkyo.com/ The Coach House 81A High Street, Marlow, Buckinghamshire, SL7 1AB, UK Tel: +44-(0)1628-473-350 Fax: +44-(0)1628-401-700 Unit 1 & 12, 9/F, Ever Gain Plaza Tower 1, 88, Container Port Road, Kwai Chung, N.T., Hong Kong. Tel: 852-2429-3118 Fax: 852-2428-9039 http://www.ch.onkyo.com/ 1301, 555 Tower, No.555 West NanJin Road, Jin an, Shanghai, China 200041, Tel: 86-21-52131366 Fax: 86-21-52130396
(C) Copyright 2011 ONKYO SOUND & VISION CORPORATION Japan. All rights reserved.
