USER MANUAL 422-209 Anslut

Installation Instructions for Lamps

422-205 - 422-210

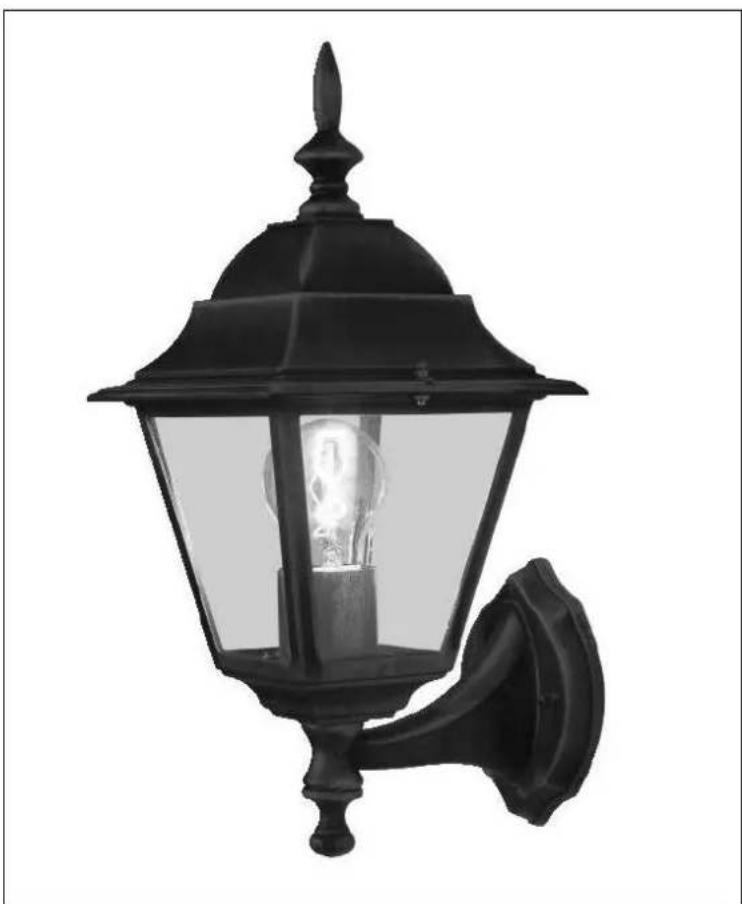

Black decorative street lamp with a lit incandescent light bulb mounted on a wall (no text or symbols visible)

SV Bruksanvisning i original

NO Bruksanvisning i original

EN Installation instructions in original

SÄKERHETSANVISNINGAR

Technical line drawing of a mechanical component with no visible text or symbols

Figur 5

Technical line drawing of a lantern with a dome-shaped top and side frame (no text or symbols)

Figur 6

MONTERING

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Rysunek 5

Technical line drawing of a lantern with a dome-shaped top and flared base (no text or symbols)

Rysunek 6

Read these instructions carefully before use!

• Disconnect from the mains power supply before starting installation.
  • The bulb gets very hot when it is switched on. Do not touch the bulb until it has cooled sufficiently.
• The bulb must not exceed the stated maximum output.
• Any lamp glass which breaks must be replaced immediately. Do not use the lamp when the lamp glass is broken.
• Do not look directly into the bulb when it is switched on.
• Note that the fitting must be connected to an earthed power outlet.
• Do not use the lamp if the power cord and/or plug are damaged in any way. For safety reasons, the power cord must only be replaced or repaired by an authorised service centre. Consult your dealer.

DESCRIPTION

Figure 1	Figure 2
Figure 3	Figure 4

Technical line drawing of a mechanical component with no visible text or symbols

Figure 5

Technical line drawing of a lantern with a dome-shaped top and flared base (no text or symbols)

Figure 6

INSTALLATION

Installation of wall lamp (figure 1)

1. First, mount the plastic expander on the wall where the lamp is to be.
2. Insert two screws in the plastic panel.
3. Fit the plastic panel in the expander using self-tapping screws.
4. Connect the power cord to the terminal block: a brown wire (L = live) to a brown wire, a blue wire (N = neutral) to a blue wire and a green/yellow wire (earth) to a green/yellow wire (see earth symbol).
5. Insert the terminal block in the plastic panel.
6. Mount the lamp on the fixed screws and tighten using domed screws.
7. Screw a new bulb into the bulb holder. Do not exceed the maximum output (see type plate on fitting).

Installation of lamp post (figure 2)

1. Mount the post in the ground.
2. Connect the power cord to the terminal block: a brown wire (L = live) to a brown wire, a blue wire (N = neutral) to a blue wire and a green/yellow wire (earth) to a green/yellow wire (see earth symbol).
3. Insert the terminal block in the post.
4. Mount the lamp on the post using crosshead screws.
5. Screw a new bulb into the bulb holder. Do not exceed the maximum output (see type plate on fitting).

Installation of standing lamp (figure 3)

1. First, mount the plastic expander on the surface where the lamp is to be.
2. Connect the power cord to the terminal block: a brown wire (L = live) to a brown wire, a blue wire (N = neutral) to a blue wire and a green/yellow wire (earth) to a green/yellow wire (see earth symbol).
3. Fit the lamp on the expander using self-tapping screws.
4. Screw a new bulb into the bulb holder. Do not exceed the maximum output (see type plate on fitting).

Installation of suspended lamp (figure 4)

1. Pull the power cord through the chain loop.
2. Secure both ends of the chain loop to the lamp and the fixed panel.
3. Fit the plastic expander on the ceiling-mounted lamp.
4. Insert two screws in the plastic panel.
5. Attach the plastic panel to the ceiling using self-tapping screws.
6. Connect the power cord to the terminal block: a brown wire (L = live) to a brown wire, a blue wire (N = neutral) to a blue wire and a green/yellow wire (earth) to a green/yellow wire (see earth symbol).
7. Insert the terminal block in the plastic panel.
8. Mount the lamp on the fixed screws and tighten using domed screws.
9. Screw a new bulb into the bulb holder. Do not exceed the maximum output (see type plate on fitting).

MAINTENANCE

Replacing the bulb

1. Disconnect from the mains power supply.
2. Open the lamp cover.
3. Unscrew the bulb when it has cooled.
4. Do not touch the bulb with your bare hands.
5. Carefully screw a new bulb into the bulb holder.
6. Put the lamp cover back before switching on the lamp.

Subject to printing errors and design changes over which we have no control. In the event of problems, please contact our service department. www.jula.com

Care for the environment!

Must not be discarded with household waste!

This product contains electrical or electronic components that should be recycled.

Leave the product for recycling at the designated station e.g. the local authority's recycling station.
