Product Type	Ceiling Light Fixture
Brand	Anslut
Model	422-210
Power Source	Mains (230V AC)
Wattage	18W (LED equivalent)
Luminous Flux	1800 lumens
Color Temperature	3000K (Warm White)
Lifespan	25,000 hours
Material	Metal and Plastic
Mounting Type	Ceiling Mount
Protection Rating	IP20 (Indoor Only)
Dimensions	Diameter 300 mm, Height 100 mm
Weight	0.5 kg
Dimmable	No
Energy Class	A+
Included Components	Mounting bracket, screws, connectors

Frequently Asked Questions - 422-210 Anslut

How do I install the Anslut 422-210 ceiling light?

Turn off power at the circuit breaker. Connect the live (brown) and neutral (blue) wires to the corresponding wires in your ceiling using wire connectors. Secure the bracket to the ceiling, then attach the fixture. Finally, insert the bulb and switch power back on.

Is the Anslut 422-210 dimmable?

No, this model is not dimmable. Using a dimmer can cause flickering or damage to the LED driver.

What type of bulb does the 422-210 use?

It uses an E27 base bulb. The fixture is compatible with LED, CFL, or incandescent bulbs up to 40W (or 10W LED).

Can I use the Anslut 422-210 outdoors?

No, this fixture is rated IP20 for indoor use only. Exposure to moisture can cause electrical hazards or corrosion.

How do I clean the light fixture?

Disconnect power and wait for the bulb to cool. Wipe with a dry or slightly damp cloth. Do not use abrasive cleaners or immerse in water.

Is the Anslut 422-210 energy efficient?

Yes, it is rated energy class A+ when used with an LED bulb. It consumes significantly less power than traditional fixtures.

What is the warranty period for this product?

Anslut typically offers a 2-year warranty against manufacturing defects. Keep your receipt as proof of purchase.

Can I use a dimmer switch with this light?

No, the fixture is not designed for dimmer switches. Using a dimmer may cause malfunction or reduce bulb lifespan.

Does the package include mounting hardware?

Yes, it includes a mounting bracket, screws, and wire connectors. You may need additional anchors for certain ceiling types.

How do I replace the bulb?

Turn off the light and let the bulb cool. Gently unscrew the old bulb from the E27 socket and screw in a new one. Do not overtighten.

USER MANUAL 422-210 Anslut

Installation Instructions for Lamps

422-205 - 422-210

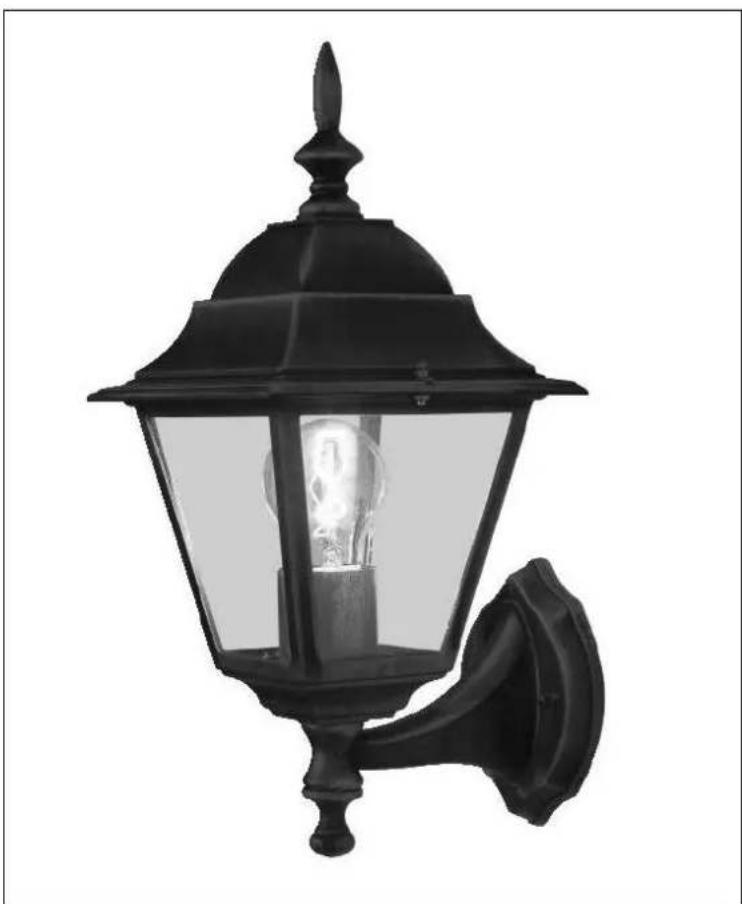

Black decorative street lamp with a lit incandescent light bulb mounted on a wall (no text or symbols visible)

SV Bruksanvisning i original

NO Bruksanvisning i original

EN Installation instructions in original

SÄKERHETSANVISNINGAR

Technical line drawing of a mechanical component with no visible text or symbols

Figur 5

Technical line drawing of a lantern with a dome-shaped top and side frame (no text or symbols)

Figur 6

MONTERING

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Rysunek 5

Technical line drawing of a lantern with a dome-shaped top and flared base (no text or symbols)

Rysunek 6

Read these instructions carefully before use!

• Disconnect from the mains power supply before starting installation.
  • The bulb gets very hot when it is switched on. Do not touch the bulb until it has cooled sufficiently.
• The bulb must not exceed the stated maximum output.
• Any lamp glass which breaks must be replaced immediately. Do not use the lamp when the lamp glass is broken.
• Do not look directly into the bulb when it is switched on.
• Note that the fitting must be connected to an earthed power outlet.
• Do not use the lamp if the power cord and/or plug are damaged in any way. For safety reasons, the power cord must only be replaced or repaired by an authorised service centre. Consult your dealer.

DESCRIPTION

Figure 1	Figure 2
Figure 3	Figure 4

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

Figure 5

Technical line drawing of a lantern with a dome-shaped top and flared base (no text or symbols)

Figure 6

INSTALLATION

Installation of wall lamp (figure 1)

1. First, mount the plastic expander on the wall where the lamp is to be.
2. Insert two screws in the plastic panel.
3. Fit the plastic panel in the expander using self-tapping screws.
4. Connect the power cord to the terminal block: a brown wire (L = live) to a brown wire, a blue wire (N = neutral) to a blue wire and a green/yellow wire (earth) to a green/yellow wire (see earth symbol).
5. Insert the terminal block in the plastic panel.
6. Mount the lamp on the fixed screws and tighten using domed screws.
7. Screw a new bulb into the bulb holder. Do not exceed the maximum output (see type plate on fitting).

Installation of lamp post (figure 2)

1. Mount the post in the ground.
2. Connect the power cord to the terminal block: a brown wire (L = live) to a brown wire, a blue wire (N = neutral) to a blue wire and a green/yellow wire (earth) to a green/yellow wire (see earth symbol).
3. Insert the terminal block in the post.
4. Mount the lamp on the post using crosshead screws.
5. Screw a new bulb into the bulb holder. Do not exceed the maximum output (see type plate on fitting).

Installation of standing lamp (figure 3)

1. First, mount the plastic expander on the surface where the lamp is to be.
2. Connect the power cord to the terminal block: a brown wire (L = live) to a brown wire, a blue wire (N = neutral) to a blue wire and a green/yellow wire (earth) to a green/yellow wire (see earth symbol).
3. Fit the lamp on the expander using self-tapping screws.
4. Screw a new bulb into the bulb holder. Do not exceed the maximum output (see type plate on fitting).

Installation of suspended lamp (figure 4)

1. Pull the power cord through the chain loop.
2. Secure both ends of the chain loop to the lamp and the fixed panel.
3. Fit the plastic expander on the ceiling-mounted lamp.
4. Insert two screws in the plastic panel.
5. Attach the plastic panel to the ceiling using self-tapping screws.
6. Connect the power cord to the terminal block: a brown wire (L = live) to a brown wire, a blue wire (N = neutral) to a blue wire and a green/yellow wire (earth) to a green/yellow wire (see earth symbol).
7. Insert the terminal block in the plastic panel.
8. Mount the lamp on the fixed screws and tighten using domed screws.
9. Screw a new bulb into the bulb holder. Do not exceed the maximum output (see type plate on fitting).

MAINTENANCE

Replacing the bulb

1. Disconnect from the mains power supply.
2. Open the lamp cover.
3. Unscrew the bulb when it has cooled.
4. Do not touch the bulb with your bare hands.
5. Carefully screw a new bulb into the bulb holder.
6. Put the lamp cover back before switching on the lamp.

Subject to printing errors and design changes over which we have no control. In the event of problems, please contact our service department. www.jula.com

Care for the environment!

Must not be discarded with household waste!

This product contains electrical or electronic components that should be recycled.

Leave the product for recycling at the designated station e.g. the local authority's recycling station.
