ZTS1510W - Toaster Zelmer - Free user manual and instructions

Product Type	Toaster
Brand	Zelmer
Model	ZTS1510W
Power Supply	220-240 V, 50-60 Hz
Power Rating	Approx. 900 W
Number of Slots	2
Slot Width	Adjustable
Browning Levels	5 levels (1=light, 5=dark)
Functions	Defrost, Reheat, Cancel
Control Type	Mechanical lever, slide button
Crumb Tray	Removable, bottom
Cord Storage	Yes, compartment under toaster
Dimensions (approx.)	25 x 15 x 20 cm
Weight (approx.)	1.0 kg
Safety Class	Class I (grounded plug)
Material	Plastic housing, metal heating elements
Cleaning	Empty crumb tray; wipe exterior with damp cloth
Repairability	Service center only; no user-serviceable parts
Intended Use	Household indoor use only

Frequently Asked Questions - ZTS1510W Zelmer

How do I use the toaster for the first time?

Before first use, remove any stickers and run the toaster empty on the maximum browning setting (position 5) once or twice to eliminate the 'new' smell. Then let it cool and clean the crumb tray.

Can I toast frozen bread?

Yes. Place the frozen bread in the slots, select the desired browning level, push the lever down, and press the DEFROST button. The toasting time will be longer than for thawed bread.

How do I reheat already toasted bread?

Place the toast in the slots, push the lever down, and press the REHEAT button. This warms the bread without additional browning.

What should I do if bread gets stuck in the toaster?

Press the CANCEL button, unplug the toaster, and wait for it to cool completely. Then gently remove the bread with your fingers or a wooden utensil. Never use metal objects.

Why does my toaster produce smoke or a burning smell?

A slight smell is normal during first uses. If persistent, crumbs may be burning. Unplug, let cool, and clean the crumb tray thoroughly. Ensure no bread pieces are stuck.

How do I clean the crumb tray?

Always unplug the toaster and let it cool. Slide out the crumb tray from the bottom, empty it, and wash with mild soap or wipe. Dry completely before reinserting. Do not use the toaster without the tray.

What is the best browning setting for different breads?

For fresh or wheat bread, use a higher setting (4-5). For dry bread, use a lower setting (1-2). For standard white bread, setting 3 is recommended. Thicker slices may require two cycles.

Can I toast bread with butter or spreads?

No. Never add butter, jam, or other substances to bread before toasting. This can cause fire or electric shock. Toast the bread plain first, then add toppings.

How do I stop the toaster mid-cycle?

Press the CANCEL button at any time. The lever will pop up and the toaster will stop heating.

What should I do if the power cord is damaged?

If the cord is damaged, do not use the toaster. It must be replaced by the manufacturer, an authorized service agent, or a similarly qualified person to avoid hazard.

USER MANUAL ZTS1510W Zelmer

White toaster with two shades and a handle, no visible text or symbols on the device itself.

PL INSTRUKCIA UŻYTKOWANIA TOSTER
C2 NÁVOD KPOUZÍM TOUSTOVAČ
NAVOD NA OBSLIHU HRIANKOVAČ
HU HASZNÁLATIUTASÍTÁS KENYÉRPIRÍTÓ
R0 INSTRUCTIONI DC UTILIZARE APARAT PENTRU PRÀUIT 25-27 PÂINE

White toaster with two golden-brown food items on top, no visible text or symbols

zelmer

www.zaimer.p www.zaimer.com

Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.

Please read these instructions carefully. Pay your special attention to important safety instructions. Keep this User's Guide for future reference.

Safety operation instructions

Before using the device, read the whole content of the manual.

DANGER! / WARNING!

Health hazard

- Before touching the plug or turning on the toaster, make sure that your hands are dry.

- Use the toaster on a stable and dry surface.

● Always pull the plug from the power socket when the device is not in use and before cleaning.

- Allow the toaster to cool before cleaning and storing.

- Perform regular check of the power cord to make sure that there are no signs of any damage on it.

- In the event of the slightest trace of damage, the entire device should be returned to repair facility.

- After a malfunction of device or if it has been otherwise damaged, always bring the device to repair facility in order to check, repair or make adjustments as for this purpose special tools are required.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- The appliance can only be repaired by qualified service personnel. Improper servicing may cause a serious hazard to the user. In case

of defects please contact a qualified service center.

- The temperature of accessible surfaces may be high when the appliance is operating.

• Do not touch hot surfaces.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or 9 instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Keep the appliance and its cord out of reach of children less than 8 years.

- Never immerse any part of the toaster or the power cord and plug in water or other liquid.

- Never use the appliance with a damaged cord or plug after a malfunction or if it has been damaged in any way.

- The appliance generates heat during operation. They must be kept reasonable precautions to prevent the risk of burns, fire or other body or objects injury caused by contact with external surfaces during use or cooling.

- Never use a toaster located on the side. Never add any food substances to bread or lubricate bread before roasting, as it could lead to electric shock or fire.

- Never attempt to remove jammed toast, bread rolls, croissant or other baked goods with a knife or other tool, because the contact with live parts

could cause an electric shock. Allow the appliance to cool, remove the plug and gently remove the bread.

CAUTION!

Not observance can result in damage to possessions

Remove all promotional stickers or packaging material prior to use the toaster for the first time.
Provide adequate space above and on the sides of the toaster in order to allow the free circulation of air. Avoid the device's contact with curtains, wallpaper, clothing, towels or other flammable materials during use. Do not use under cabinets or curtains. Caution is required in the case of surface where heat can be a problem - it is recommended to use a thermal insulation pad.
Bread can catch fire, so do not use bread toasters near flammable materials or under combustible materials such as curtains.
Use a toaster with crumb tray placed on the device.
Do not allow to collect the crumbs. Do not allow to collect the crumbs. Regularly clean the crumb tray in order to prevent the risk of fire.
Always connect the appliance to the power socket (alternating current only) equipped with a grounding prong, with a voltage indicated on the name plate.
The equipment is not designed to work with external time switches or a separate remote control system.
When using do not leave the device unattended, because the bread can be ignited.
Never allow wire hanging over the edge of the table or countertop, or touch hot surfaces or was curled.
Never place the device on or near gas or electric burner, or where it might come into contact with a hot oven or microwave.
Never cover the device when connected to a current or is hot.
Do not load the device with bread that contains sugar, jam or other additives.
Bread to be baked should be sized for your toaster, it should not protrude above the opening for bread loading and should not be too thick or too long in order not to block nor to jam the toast lift.
Do not use harsh, abrasive or caustic cleaning agents to clean the device.

SUGGESTION

Information on the product and suggestions for its use

The appliance is intended for household use only, indoors.

Before making the first piece of toast, run the toaster once or twice without any food item at the maximum degree of heat. This will significantly eliminate the "new" smell of the device.

When you turn on and use the toaster for the first time, as far as heating up the heating elements may have a slight smell of 'burnt'. This is not a threat nor any evidence of malfunction of the product. The smell should disappear after repeated use.

Technical parameters

The toaster technical parameters are included at the name plate. The toaster is I class appliance, equipped with supplying cord and plug with grounding.

ZELMER toaster meets the requirements of effective standards.

This device complies with Commission Regulation (EC) no. 1275/2008 on eco-design requirements.

The appliance meets the requirements of the following directives:

–Electrical equipment designed for use within specific voltage limits (LVD) – 2006/95/EC.

–Electromagnetic compatibility (EMC) – 2004/108/EC.

The appliance was marked by the C sign on the rating label.

For marking declaration of conformity please visit the manufacturer's website at www.zelmer.com.

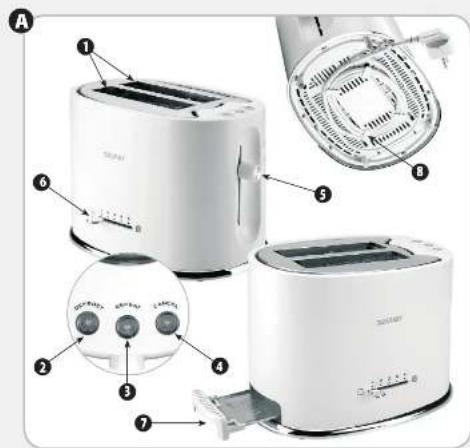

Composition of the toaster

1 Bread slots with adjustable width
2 Button DEFROST – frozen bread toasting
3 Button REHEAT – reheating of bread
4 Button CANCEL – cancel/stop the toasting
5 lever
6 Browning adjustment slide
7 Crumb tray
8 Power cord storage compartment

Maintenance and operation of the toaster

Place the toaster on a dry, flat surface away from potential heat sources (heating plates/panels, cookers, ovens, etc.).

Insert the plug into an AC wall outlet.

① Place the bread into the bread slots.

Make sure that the bread crumb tray is in the appliance.

② Select the desired browning with the adjustment slide. 5 browning degrees are available (position 1 - light brown; position 5 - dark brown).

In the toaster is switched on and used for the first time, select position 3 (standard setting). Different bread types and individual preferences may require different settings.

the same browning degree, one slice of bread will be toasted better than two slices of bread toasted simultaneously.

ng continuous toasting, subsequently pre- pared toasts will be more browned than those prepared in the first cycle.

③ To insert bread into the toaster, slide the lever down until it locks into position. Toasting cycle will start.

The lever will only lock when the appliance is connected to the power supply.

The browning degree may be observed during toasting. When the bread is sufficiently browned, the toasting cycle may be stopped at any time by pressing the CANCEL button.

④ After the toasting cycle has ended, the lever will automatically slide up to the initial position.

To facilitate smaller bread slices removal, lift the lever up – above the initial position.

I bread is not sufficiently toasted, another toasting cycle may be run. Select light browning (adjustment slide in a 1 or 2 position) and then push the toasting lever down until it locks into position. Control the browning degree to ensure the toasts would not burn.

Remove the toasts, be careful not to touch any hot surface.

read slices are stuck in the toaster, press the CANCEL button and pull out the plug from the socket. Wait until the toaster cools down completely and carefully move the bread so that no heating elements are damaged.

Additional features

FROZEN BREAD TOASTING

Place the frozen bread slices in the bread slots, select the desired degree of browning. Slide the bread slices down into the toaster by pushing the lever down until it locks into position and press the DEFROST button. The button will light up.

Frozen bread toasting takes more time than thawed bread.

BREAD REHEATING

This toaster enables bread reheating, irrespectively of the selected browning degree. Place the toasts in the bread slots. Slide the bread slices down into the toaster by pushing the lever down until it locks into position and press the REHEAT button. The button will light up.

Notes on toasting

Toasting is a combination of bread roasting and drying. Humidity levels vary for different types of bread, which may cause differences in the time of toasting.

For slightly dry bread, use a setting lower than the standard.
For fresh or wheat bread, use a higher setting than the standard.
Bread with a very uneven surface will require a higher setting.
Toasting thicker pieces of bread will last longer, because before toasting the bread needs to remove more moisture. Very thick pieces may require two toasting cycles.

Cleaning and maintenance of the toaster

① Before cleaning, always switch off the toaster, pull out the plug from the socket and wait until it cools down completely.
② To remove the bread crumbs from the toaster, remove the bread crumb tray located at the bottom of the toaster. Empty it and place it in the same position as previously.

Do not use the toaster with no bread crumb tray in place.

③ To remove the bread crumbs from inside of the toaster, turn the toaster upside down and gently shake the bread crumbs out.
④ The external surfaces clean with a soft, slightly damp cloth and wipe dry.

not allow excessive accumulation of bread crumbs in the tray. Bread crumb tray should be cleaned regularly.

Ecology – Environment protection

Each user can protect the natural environment. It is neither difficult nor expensive.

In order to do it: put the cardboard packing into recycling paper container; put the polyethylene (PE) bags into container for plastic.

When worn out, dispose the appliance to particular disposal centre, because of the dangerous elements of this appliance, which can be hazardous for natural environment.

Do not dispose the appliance with the municipal waste!

The manufacturer does not accept any liability for any damages resulting from unintended use or improper handling.

The manufacturer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.
