Product type	Front-loading washing machine
Brand	HAIER
Model	INTELIUS 500 / HW80BD
Dimensions (H x W x D)	845 x 595 x 650 mm
Net weight	71 kg
Power supply	220-240 V~ / 50 Hz
Maximum current	10 A
Maximum power	2000 W
Nominal capacity	8 kg
Maximum spin speed	1600 rpm
Number of programs	16
Energy class	A+++
Weighted annual energy consumption	118 kWh/year
Weighted annual water consumption	9856 L/year
Water pressure	0,03 - 1 MPa
Standby/off consumption	0.2 W / 0.2 W
Main functions	Smart dosing, Delayed end, Memory (3 programs), Child lock, Anti-crease, Drum cleaning
Safety system	Aqua Stop, Anti-overflow, Door lock, Child safety
Maintenance and cleaning	Accessible pump filter, Drum cleaning, Detergent drawer cleaning, Water inlet filter cleaning
Included accessories	Aqua Stop supply hose, Drain elbow, 4 sealing caps, User manual

Frequently Asked Questions - INTELIUS 500 / HW80BD HAIER

What does error code E1 mean on my HAIER washing machine?

The E1 code indicates a drainage error. Check that the pump filter is not clogged and that the drain hose is not kinked or blocked. Clean the filter as indicated in the manual.

What to do if code E2 appears?

The E2 code corresponds to a door lock error. Make sure the door is properly closed. If the problem persists, contact after-sales service.

Why does code E4 appear?

The E4 code means that the water level was not reached within 8 minutes. Check that the water tap is open, the water pressure is sufficient (0.03-1 MPa), and that the water inlet filter is not clogged.

What does the code Unb mean?

The Unb code indicates an unbalanced load during spin. Distribute the laundry evenly in the drum and reduce the quantity if necessary, then restart a spin program.

How to use the smart dosing function?

The smart dosing is activated by default. Fill the liquid detergent reservoir (compartment I, max 1.3 L) and softener (compartment 3, max 0.5 L) up to the MAX line. The machine doses automatically according to the program and load.

How to clean the pump filter?

Unplug the appliance and open the maintenance flap. Place a container under the drain hose, remove the cap and let the water drain. Then unscrew the filter, clean it under running water, and reassemble everything.

How to cancel a running program?

First press the Start/Pause button to interrupt the cycle, then hold the On/Off button for about 3 seconds to completely cancel the program.

What to do in case of a power cut during a wash?

In case of a power cut, the door remains locked. If the water level is not visible through the porthole, you can manually drain via the pump filter. Then pull the lever behind the maintenance flap to unlock the door.

How to remove the transit bolts?

Remove the rear panel, then unscrew the transport bolts located at the back. Also remove the plastic parts inside. Plug the holes with the provided sealing caps and put the panel back in place.

How to adjust the feet to stabilize the machine?

Use a spirit level to check the horizontality. Turn the adjustable feet in the necessary direction to level the appliance. A good adjustment reduces vibrations and noise.

USER MANUAL INTELIUS 500 / HW80BD HAIER

Thank you for purchasing a Haier product

Please read these instructions carefully before using this appliance. It contains important information which will help you get the best out of your appliance and ensure safe and proper installation, use, care and cleaning.

Keep this manual in a convenient place so you can always refer to it for safe and proper use.

If you sell the appliance, give it away, or leave it behind when you move, make sure you also pass on this manual so that the new owner can become familiar with all features and safety warnings.

Legend

Yes

No

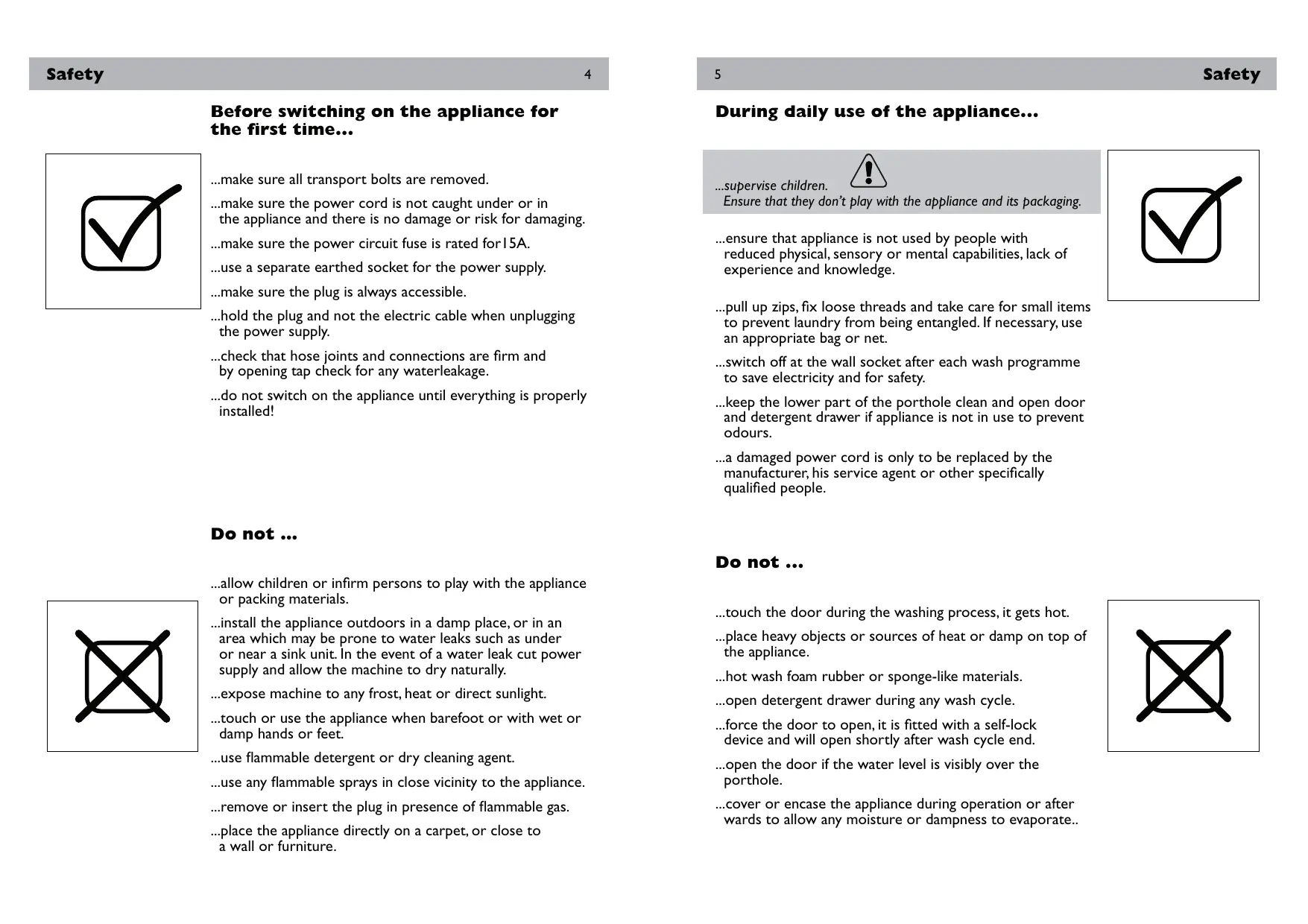

General information and tips

Warning! Important safety information!

Environmental information

Disposal

The presence of this symbol on the product, accessories or materials that goes with this information indicates that at the end of its useful life the product or its electronic accessories (e.g. cable, Aqua Stop hose) should not be disposed with other household waste. To prevent possible damage to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them. This will promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased the product or relevant local authorities to find out how they can take this item for environmentally safe recycling and safety. Business users should contact their supplier and check the conditions of the purchase. This product and its electronic accessories should not be mixed with other commercial waste.

Index

Safety 4-5

Product description 6

Control panel. 7-10

Programmes. 11

Consumption 12

Daily use 13-16

Care and cleaning. 17-19

Troubleshooting 20-22

Installation 23-25

Technical data 26

After sales service 27

Before switching on the appliance for the first time...

...make sure all transport bolts are removed. ...make sure the power cord is not caught under or in the appliance and there is no damage or risk for damaging. ...make sure the power circuit fuse is rated for I5A. ...use a separate earthed socket for the power supply. ...make sure the plug is always accessible. ...hold the plug and not the electric cable when unplugging the power supply. ...check that hose joints and connections are firm and by opening tap check for any waterleakage. ...do not switch on the appliance until everything is properly installed!

Do not ...

...allow children or infirm persons to play with the appliance or packing materials. ...install the appliance outdoors in a damp place, or in an area which may be prone to water leaks such as under or near a sink unit. In the event of a water leak cut power supply and allow the machine to dry naturally. ...expose machine to any frost, heat or direct sunlight. ...touch or use the appliance when barefoot or with wet or damp hands or feet. ...use flammable detergent or dry cleaning agent. ...use any flammable sprays in close vicinity to the appliance. ...remove or insert the plug in presence of flammable gas. ...place the appliance directly on a carpet, or close to a wall or furniture.

During daily use of the appliance...

...supervise children.

Ensure that they don't play with the appliance and its packaging.

...ensure that appliance is not used by people with reduced physical, sensory or mental capabilities, lack of experience and knowledge.

...pull up zips, fix loose threads and take care for small items to prevent laundry from being entangled. If necessary, use an appropriate bag or net. ...switch off at the wall socket after each wash programme to save electricity and for safety. ...keep the lower part of the porthole clean and open door and detergent drawer if appliance is not in use to prevent odours. ...a damaged power cord is only to be replaced by the manufacturer, his service agent or other specifically qualified people.

Do not ...

...touch the door during the washing process, it gets hot. ...place heavy objects or sources of heat or damp on top of the appliance. ...hot wash foam rubber or sponge-like materials. ...open detergent drawer during any wash cycle. ...force the door to open, it is fitted with a self-lock device and will open shortly after wash cycle end. ...open the door if the water level is visibly over the porthole. ...cover or encase the appliance during operation or after wards to allow any moisture or dampness to evaporate..

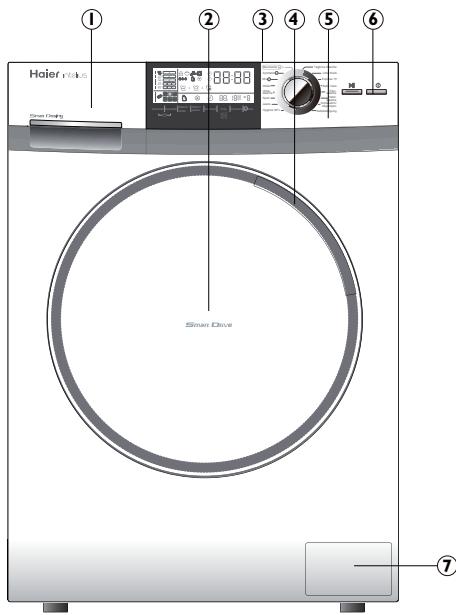

This drawing may be slightly different from the layout of the washing machine you have just purchased.

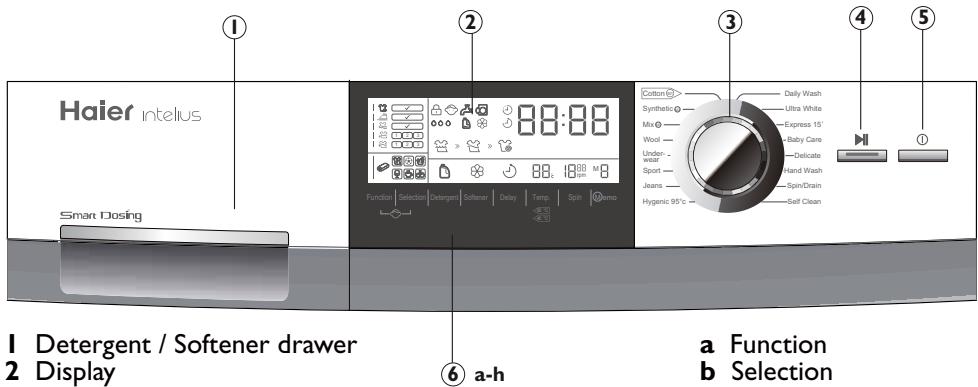

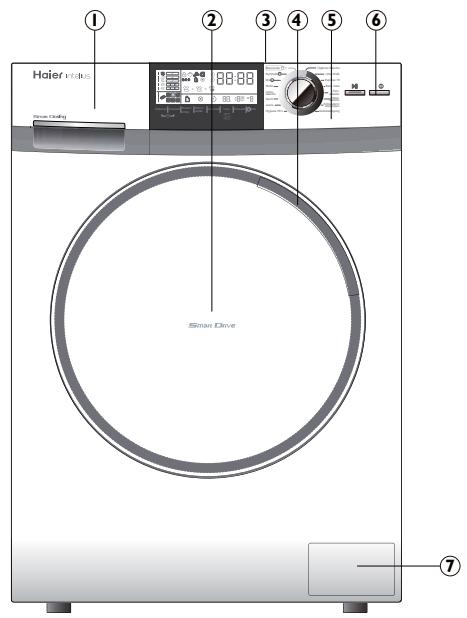

I Detergent / Softener drawer 2 Door 3 Worktop 4 Door handle 5 Control panel 6 On/Off 7 Service flap

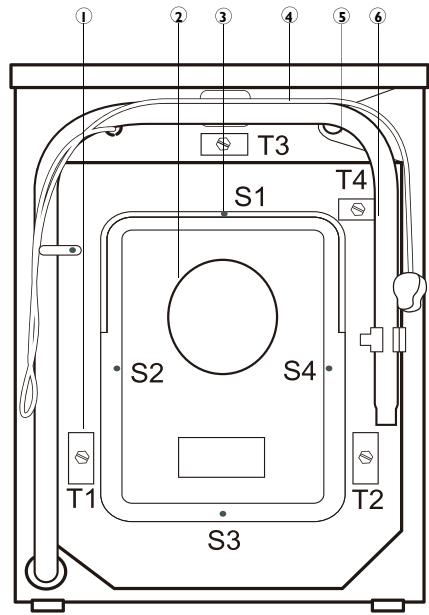

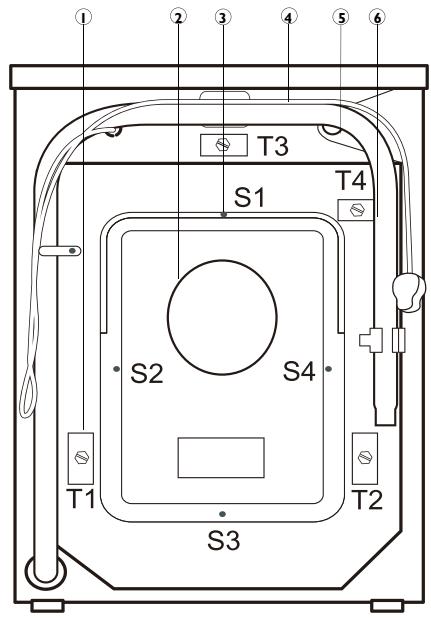

I Transportation bolts (TI-T4) 2 Back cover 3 Back cover screws (SI-S4) 4 Power cord 5 Water inlet valve 6 Drain hose

Accessories

Check the accessories and literature in accordance with this list.

Ix Inlet hose assembly

4x Blanking plugs

Ix Drain hose bracket

Ix User manual

3 Programme selector 4 "Start/Pause" button 5 "On/Off" button 6 Function buttons (a-h)

a Function, b Selection, c Detergent, d Softener, e Delay (End Time delay), f Temp., g Spin (rpm), h Memo

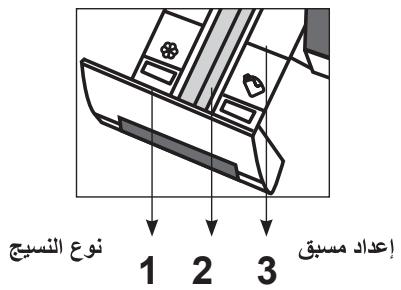

Detergent drawer

Compartment 3: Softener reservoir (Smart Dosing).

Compartment 2: Washing agent compartment.

For all washing agents if "Smart Dosing" function is deactivated.

Compartment I: Liquid detergent reservoir ("Smart Dosing") - no gel, no concentrate.

The recommendation on the type of detergents is suitable for the various washing temperatures; please refer to the detergent manual.

Display

If the appliance is on, the display will light up to show the actual status in six different sections (see next pages). During operation, the display will be deactivated after a while (Energy saving mode) until the programme selector is turned.

Programme selector

By turning the knob, one of 16 programmes can be selected; the related LED will light up and its default settings will be displayed.

"Start/Pause" button

Press this button gently to start or interrupt the currently displayed programme. During operation, its symbol is shining, or if interrupted, blinking.

"On/Off" button

Press this button gently to switch on; the display is shining. Press again for about 2 seconds to switch off. If no panel element or programme is activated after a while, the machine will shut down automatically.

To get the best results in each programme, Haier has well-defined specific default settings. If there is no special requirement, the default settings are recommended. According to these factory settings, many programme parameters and additional functions can be individually changed (see "programmes" and "function" buttons).

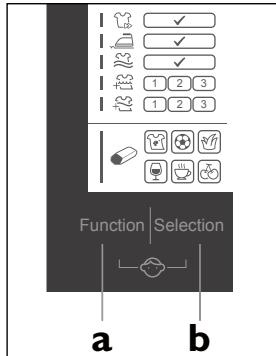

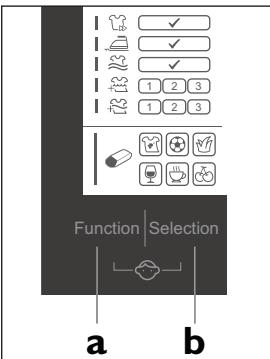

"Function" (button a)

Touch it to select sequentially the required functions and settings. The related symbol will shine.

"Selection" (button b)

Touch it to confirm the current chosen "Function", its symbol is blinking. Additionally, a "checkmark", a "1"/"2"/"3" symbol, or one of the stain symbols will light up. The function will be activated after 3 seconds or if button a ("Function") is touched.

"Child lock" - control panel lock function (button a + b)

This option blocks all panel elements against activation. After starting, press simultaneously "Function" + "Selection" for about 3 seconds. The panel lock symbol is now displayed. Next repetition deblocks any function.

"Detergent" (button c)

Touch it to deactivate or activate "Smart Dosing" for liquid detergent. If the default setting liquid detergent (see "Smart Dosing") is deactivated, detergent drawer compartment 2 is to be used for all kinds of washing agent.

"Softener" (button d)

Touch it to deactivate or activate an additional dosage of softener (see "Smart Dosing").

"Smart Dosing" (button c or button d)

"Smart Dosing" is the default setting. This means that, depending on the programme, laundry load, and water hardness, there will be an optimal automatic dosage of liquid detergent and softener using related compartments 1 (1.3 l) and 3 (0.5 l) of the detergent drawer. If activated, the corresponding symbols will light up. This function achieves optimal results, saves washing agent, and protects our environment. A charge lasts for up to 20 programme cycles. If a reservoir is empty, the related symbol will blink.

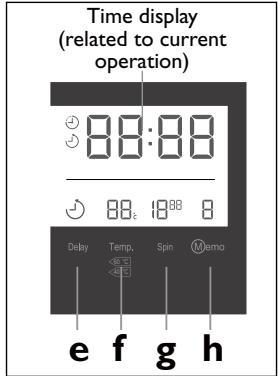

"Delay" - End time delay (button e)

Touch it to light up the related symbol and display the present programme end time. According to all programme settings, the start of the wash cycle will be delayed.

End time delay could be increased by turning the programme selector in steps of 30 minutes from 0.5 to 24 hours. For example, a display of "6:30" means the end of the programme cycle will be in 6 hours and 30 minutes.

This is not applicable to the "Spin/Drain" programme.

Note: The end time must always be longer than the programme cycle time. Otherwise, the operation will start immediately, even though the chosen end time could not be reached.

"Temp." (button f)

Touch it to adjust the maximum water temperature.

Note: A display of "--" means "no operational heating".

"Spin" (button g)

Touch it to adjust the spin speed.

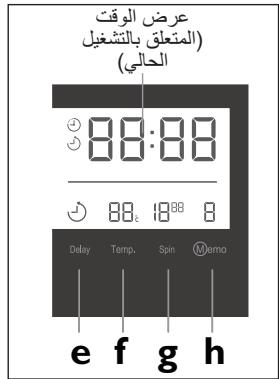

"Memo" (button h)

The memory function is available in the "Cotton" (M1), "Synthetic" (M2), and "Mix" (M3) programmes. After selecting individual options and related values, touch the "Memo" button until the display shows the corresponding "M1"/"M2"/"M3". Start the programme; the memory is now activated for the chosen programme. When that programme is selected next time, press the "Memo" button to activate the memorized settings and be ready to start immediately.

General information and tips:

To cancel any current setting, change the programme or press "On/Off" for about 3 seconds. To cancel a running programme, touch "Start/Pause" and then "On/Off" for about 3 seconds.

Control panel - display symbols

10

Function

Reduced programme cycle time

Anti wrinkling (after cycle end)

Anti wrinkling (rinse cycle stop)

Intensified main wash cycle (1 to 3)

Additional rinse cycle (1 to 3)

Function (Stains remover)

Default setting, no option

Sport

Grass

Wine

Coffee

Fruit

Basic status indication

Programme cycle indication

Door is locked (in operation)

Running wash cycle

Liquid detergent Smart Dosing activated

Control panel locked

Running rinse cycle

Softener Smart Dosing activated

No water supply

Running spin/ drainage cycle

Endtime delay activated

Door is open

Maximum wash-temperatur setting

Water hardness (automatic detection)

Maximum speed of rotation setting

Liquid detergent - empty Reservoir

Memo setting

Softener - empty Reservoir

11

Programs

Program table

Liquid detergent reservoir 2 Washing agent compartment 3 Softener reservoir

3 2 1

Fibre type

Preset Spin speed

Program

Temp. max.

Preset

2

Fibre type

Preset Spin speed

Hygienic 95°C	---	95°C	√	□	√	Cotton /Synth.	1000 rpm
Jeans	0-60°C	40°C	√	□	√	Jeans	1000 rpm
Sport	0-40°C	30°C	√	□	√	Sports Wear	1000 rpm
Underwear	0-60°C	40°C	√	□	√	Underwear	1000 rpm
Wool	0-40°C	----	×	□	√	Woolen fabrics	600 rpm
Mix	0-60°C	40°C	√	□	√	Cotton /Synth.	1000 rpm
Synthetic	0-60°C	30°C	√	□	√	Chemical fibre fabrics	1200 rpm
Cotton	0-90°C	40°C	√	□	√	Cotton /Synth	1600 rpm
Daily Wash	0-40°C	40°C	√	□	√	Cotton fabrics	1400 rpm
Ultra White	0-60°C	40°C	√	□	√	Cotton /Synth	1000 rpm
Express 15'	0-30°C	20°C	√	□	√	Cotton /Synth	1000 rpm
Baby Care	0-90°C	90°C	×	□	√	Cotton /Synth	1000 rpm
Delicate	0-40°C	30°C	√	□	√	Silk or wool	600 rpm
Hand Wash	0-40°C	30°C	√	□	√	Cotton fabrics	800 rpm
Spin/Drain	---	---	×	×	×	---	1400 rpm
Self Clean	---	90°C	×	□	√	---	1000 rpm

Yes

Optional

No

Consumption

The indicated consumption values may differ depending on local conditions.

Programme	Max. load kg	Energy kWh	Water L	Temp. °C	Washing time h:min	Spin drying performance %
Hygienic 95°C	2	2,00	36,0	95	Auto	---
Jeans	4	0,56	40,0	40	Auto	---
Sport	2	0,26	35,0	30	0:25	---
Underwear	4	0,50	40,0	40	1:09	---
Wool	1	0,10	50,0	---	0:42	---
Mix	4	0,56	34,0	40	Auto	---
Synthetic	4	0,25	46,0	30	Auto	---
Cotton 40*	4	0,40	35,0	40	Auto	<45
Cotton 60*	4	0,55	36,0	60	Auto	<45
Cotton 60*	8	0,55	45,0	60	Auto	<45
Daily Wash	4	0,58	46,0	40	1:20	---
Ultra White	2	0,60	45,0	40	0:59	---
Express 15'	1	0,20	20,0	20	0:15	---
Baby Care	4	2,00	67,5	90	2:05	---
Delicate	1	0,25	50,0	30	0:56	---
Hand Wash	2	0,25	36,0	30	0:57	---
Spin/Drain	8	0,10	---	---	0:06	---
Self Clean	---	1,80	15,0	90	1:05	---

General information and tips:

Standard programme for the Energy Labelling according to 2010/30EU:

Cotton 60°C / 40°C with max. spin speed setting and activated intensive function (level 3) without "smart dosing".

The standard 60°C and 40°C cotton programmes are suitable to clean normally soiled cotton laundry. They are the most efficient programmes in terms of combined energy and water consumption for cotton laundry. Used water temperature may differ from declared cycle temperature.

Daily use

This appliance is only for domestic use inside the house. If it is used for commercial, industrial or not intended purposes any Haier guarantee will not be valid anymore.

Consider anytime instructions of each garment label and wash only machine-washable laundry.

Power supply

Connect the washing machine to the power supply (220V to 240V~/50Hz).

Water connection

Turn on the tap. The water must be clean and clear.

Warning!

Before use, turn tap on and check for any leakage.

Preparing laundry

Sort out clothes according to fabric (cotton, synthetics, wool or silk) and to how dirty they are.

Separate white clothes from coloured ones. Wash coloured textiles first by hand to check if they fade or run.

Garments without hems, delicates and finely woven textile such as fine curtains are to be put into a wash bag to care for this delicate laundry (hand or dry cleaning would be better). Close zippers and hooks, make sure the buttons are sewn on tightly and place small items such as socks, belts, bras, etc. in a wash bag.

Unfold large pieces of fabric such as bed sheets, bedspreads etc. Turn clothes inside out. Empty pockets (keys, coins, etc.) and remove harder decorative objects (e.g. brooches).

Warning!

Non-textile, as well as small, loose or sharp-edged items may cause malfunctions and damage of clothes and appliance.

Loading the appliance

Open the door and put in the laundry piece by piece. Don't overload. Check if you can put a hand upright on top of load. Close the door carefully.

General information and tips:

After each installation or longer down time run at first programme "Self Clean" with no load and added detergent in washing agent compartment (2) to remove possibly corruptive residues.

Selecting detergent

Washing efficiency and performance are determined by the quality of the detergent used. Use only machine-wash-approved detergent and, if needed, specific detergents, e.g., for synthetic and woolen fabrics. Always follow the detergent manufacturer's recommendations.

General information and tips:

Remove detergent residues before the next wash cycle. Follow the detergent dosage recommendation given on the detergent package.

Adding detergent - "Smart Dosing"

Slide out the detergent drawer and put the required washing agents into the corresponding compartments.

Important information: "Smart Dosing" is the default setting. According to the programme, load, and water hardness, an optimal dosage of washing agent will be automatically applied using reservoirs for liquid detergent (1.3 L) and softener (0.5 L). To fill up, open the related flap of the detergent drawer and add a non-concentrated product until the "MAX limit line" is reached. At last, push the drawer back gently.

Select a programme

To get the best washing results, select a programme that fits the degree of soiling and the type of laundry. Turn the programme knob to select the right programme.

Select options

Select the required options (refer to "Control Panel").

Start wash programme

Touch the "Start/Pause" button to start. The appliance operates according to the present settings. Changes are only possible by cancelling the wash programme. At the end of the programme cycle, "End" is displayed, and afterwards the machine will shut off automatically.

Interrupt - cancel wash programme

To interrupt a running programme, press the "Start/Pause" button gently. Press it again to resume operation.

To cancel a running programme and all its individual settings, activate "Start/Pause" and then press "On/Off" for about 3 seconds.

General information and tips:

Choose programme settings carefully, referring to the icons on each laundry label and the "Care chart".

Removing laundry promptly at cycle end will be gentle and minimize wrinkling.

After washing

Turn off the water supply and unplug the power cord. Open the door to prevent formation of moisture and odours. Leave it open while not in use.

Care chart

Washing Process
95	Maximum washing temperature 95°C - normal process	60	Maximum washing temperature 60°C - normal process
40	Maximum washing temperature 40°C - normal process	40	Maximum washing temperature 40°C - mild process
30	Maximum washing temperature 30°C - normal process	30	Maximum washing temperature 30°C - mild process
Wash by hand max. temp. 40°C		Do not wash
Bleaching Process
Any bleaching agent allowed bleach allowed		Only oxygen / non-chlorine
Tumble Drying Process
Tumble drying possible normal temperature Line drying		Tumble drying possible lower temperature Flat drying
Ironing Process
Iron at a maximum sole-plate temperature of 200°C Do not iron		Iron at a maximum sole-plate temperature of 150°C
Professional Textile Care Process
Professional dry cleaning in tetrachloroethene		Professional dry cleaning in hydrocarbons
Wet clean		Do not professional wet clean

Cleaning the detergent drawer

Clean the drawer from detergent residues regularly. Pull out the drawer until it stops (1) and press the release button (2) to remove the drawer. Then flush the drawer with water until it is clean and insert the drawer back into the appliance.

Cleaning the machine

Unplug the machine during cleaning and maintenance. Use a soft cloth with soap liquid to clean the machine case and rubber components. Do not use organic chemicals or corrosive solvents.

General information and tips:

After each installation or longer downtime, run the first programme "Self Clean" with no load and added detergent in the washing agent compartment (2) to remove possibly corrosive residues.

Environmental information

To achieve the best use of energy, water, detergent, and time, you should use the recommended maximum load size.

Do not exceed indicated chemical dosages.

Choose always lowest washing temperature.

Modern detergents are cleaning efficiently below 60°C .

Only due to heavy soil raise accordingly default settings.

Using afterwards a domestic dryer max. spinning speed is recommended.

Pump filter

Please check the pump filter regularly and if the appliance

• doesn't drain the water,
• doesn't spin,
• cause unusual noise while running.

Warning!

Scalding Risk! Water in the pump filter can be very hot! Before any action please ensure water has cooled down.

I. Turn off and unplug the machine. 2. Open service flap. You can either use a coin or a screwdriver. 3. Provide a flat container to catch leach water. There could be bigger amounts! 4. Pull the drainhose out and hold its end above the container. 5. Take the sealing plug out of the drainhose. 6. After complete drainage, unscrew and remove counter clockwise the pump filter. 7. Remove contaminants and dirt. 8. Clean carefully pump filter, e.g. using running water. 9. Reflex it thoroughly. 10. Close drainhose and push it back into the machine. 11. Close service flap

Warning!

Pump filter sealing has to be clean and unhurt. If the lid is not full tightened, water can escape.

Water inlet valve and inlet valve filter

To prevent blockage of water supply by foreign substances, clean the inlet valve filter regularly.

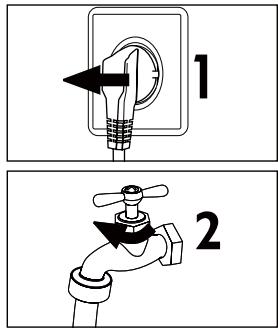

Period of disuse

If the appliance is left idle for a longer period, pull out the electrical plug (1) and turn off the water supply (2). Open the door to prevent formation of moisture and odors. Keep the door open while not in use.

Before next use, carefully check the power cord, water inlet, and drain hose. Make sure everything is properly installed and without leaks.

Choose the best detergent

	Universal	Color	Delicate	Special	Softener
Wool	-	-	-	L	O
Mix	L/P	L/P	-	-	O
Synthetic	L/P	L/P	L	-	O
Cotton	L/P	L/P	-	-	O
Express 15'	L	L	-	-	O
Delicate	-	-	L	-	O

	Detergent	Temperatur range in °C
L	Liquid	cold - 60
P	Powder	40 - 90
o	Optional	---
-	No	---

If using liquid detergent, it is not recommended to activate the delayed start. The amount of detergent must be chosen according to the package information! Info: Modern washing detergents work at low temperatures.

Troubleshooting

Display code

Code	Cause	Solution
Auto	Automatic load detection.	Laundry weight detection in progress, please wait until program cycle time is displayed.
Lo /HALF /FULL/HI	Weighing the laundry load in the drum.	Please wait until program cycle time is displayed: Lo = small load;HALF = half load; FULL = optimized weight load; HI = full load.
I:25	Remaining wash cycle time.	Refer to additional symbol.
I9:30	Remaining wash cycle time.	End is likely delayed - refer to symbol.
Lock	Door cannot be opened due to water level or hot water in the drum.	Wait to the end of program or cancel the program and select the drain program. In case of hot water is in the drum, to avoid scalding, select a handwash program and wash several minutes and then select a draining program before open the door.
End	End of cycle.
EI	Drainage error, water not emptied.	Clean pump filter. Check drain hose for blockage and proper installation.
E2	Lock - error.	Shut the door properly.
E4	Water level not reached after 8 minutes.	Check if water supply and water pressure is normal. Drain hose is self-syphoning.
E8	Water protective level - error.	Auto release. Otherwise contact the After sales service.
F3	Temperature sensor - error.	Contact the After sales service.
F4	Heating error (Appears at the end of a cycle).	Contact the After sales service.
F7	Motor - error.	Contact the After sales service.
Fb	Water overflow.	Close tap immediately. Contact the After sales service.
FA	Water level sensor error.	Contact the After sales service.
FC	Electronic control - error.	Contact the After sales service.
Unb	Unbalanced load and not able to spin.	Check and balance the laundry load in the drum. Also reduce the load if too heavy. Restart with a spin program.

Warning!

Code Fb: Water-overflow protection is placed at the deepest part of the appliance. In case of a leak, all functions will be shut down automatically except the drain pump, which will be activated for safety reasons.

Troubleshooting

In case of power failure

The current programme and its settings will be saved only for a short time. Probably a new programme cycle start is needed.

If a power failure cuts an operating wash programme, the door opening is mechanically blocked. To get out any laundry, the water level should not be visible in the glass porthole of the door - danger of burns!

The water level has to be lowered as described in "Pump filter". Only then pull the lever beneath the service flap until the door is unlocked with a gentle click. Afterwards, reassemble all parts.

Troubleshooting without display code

Problem Cause Solution

Washing machine fails to operate.	Programme is not yet started. Door is not properly closed. Machine has not been switched on. Power failure.	Press “Start/Pause” button. Close the door properly. Switch the machine on. Check power supply.
Washing machine will not be filled with water.	No chosen programme. No water. Inlet hose is knicked. Inlet hose filter is blocked. Water pressure is less than 0,03 MPa. Water supply failure.	Set programme and start it. Check water tap. Check inlet hose. Unblock inlet hose filter. Check water pressure. Ensure the water supply.
Machine is draining while being filled	Height of drain hose is below 80 cm. Drain hose end could reach into water.	Make sure that drain hose is properly installed.

(1) = , = , =

Inlet hose - Aqua Control System

The Aqua Stop inlet hose is an important element for safety and overall control. Its valves control the water supply and will interrupt it if the hose is leaking.

1. Connect the nut on the inlet hose to the connector on the water valve. 2. Apply the inlet hose to a water tap.

Warning!

The appliance is only qualified for cold water supply! Use the hose-set supplied with the appliance. Old hose-sets should not be reused.

Drain hose

Drainage can be installed in different ways. Nevertheless, the level of the drain hose must reach at one point 80-100 cm. If possible, always keep the drain hose fixed to the clip at the back of the appliance.

1. Drain hose to sink

Use the drain hose bracket to keep the drain hose end retained and out of any water level.

Fix the bracket sufficiently to avoid dropping down due to operational movements.

2. Drain hose to sink siphon

The connection has to be securely sealed and fixed to the corresponding adapter above the siphoning part!

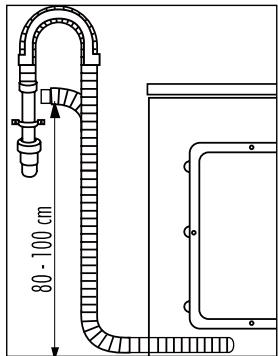

3. Drain hose to sewage pipe

Use the drain hose bracket to keep the drain hose end retained. Fix the bracket sufficiently to avoid dropping down due to operational movements.

Warning!

The drain hose should not be submerged in water and should be securely fixed and leak-free. If the drain hose is placed on the ground or if the pipe is at a height of less than 80 cm, the washing machine will continuously drain while being filled (self-siphoning). The drain hose is not to be extended. If necessary, contact after-sales service.

Power supply connection

Before each connection, check if:

• The socket is adequate for the maximum power of the appliance (the safety power circuit fuse should be rated not less than 15A).
• The voltage should meet the requirement.
• The power outlet should be appropriate for the appliance plug.
• The used power socket has to be earthed.

Note - only UK: The fuse in a UK 13A plug must comply with BS1362 standard.

Basic technical information regarding the appliance

HW80-BDI626

Power source	220 - 240V~/50Hz
Max. working current (A)	10
Water pressure (MPa)	0.03≤P≤1
Nominal load (kg)	8
Spinning speed (rpm)	1600
Washing programmes	16
Max. power (W)	2000
Dimensions (HxDxW mm)	845 × 650 × 595
Net. weight (kg)	71
Power consumption of the off-mode (W)	0,2
Power consumption of the left-on mode (W)	0,2

In case of trouble, please check the troubleshooting section of this manual. If required, please check your warranty card for after-sales service information.

For other countries, please refer to: www.haier.com service and support area. You can find FAQs and can activate service claims.

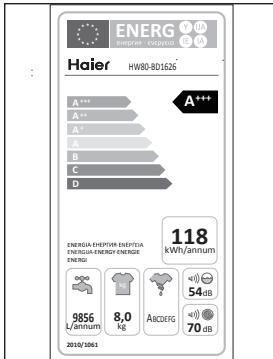

Product Fiche (according EU 1061/2010)
Trade mark	Haier
Model No.	HW80-BD1626
Rated capacity(kg)	8
Energy efficiency class	A+++
Energy consumption per year (\(kWh\))1)	118
Energy consumption of cotton 60°C, full load	0.55
Energy consumption of cotton 60°C, partial load	0.55
Energy consumption of cotton 40°C, partial load	0.40
Weighted power consumption of the off-mode	0.2
Weighted power consumption of the left-on mode	0.2
Water consumption per year (\(L\))2)	9856
Spin-drying efficiency class3)	A
Max.spin speed (\(rpm\))4)	1600
Remaining moisture content (\%)\(4)\)	44
standard 60°C cotton program5)	Cotton 60°C with max. spin speed setting and activated intensive function (level 3) without "smart dosing".
standard 40°C cotton program5)	Cotton 40°C with max. spin speed setting and activated intensive function (level 3) without "smart dosing".
Program time of cotton 60°C, full load (min)	175
Program time of cotton 60°C, partial load(min)	175
Program time of cotton 40°C, partial load (min)	169
Duration of the left-on mode (\(min\))6)	-
Airborne acoustical noise (washing/spinning)(\(dB(A)\))7)	54/70
Type	front loader freestanding
1) Based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load, and the consumption of the low-power modes. Actual energy consumption will depend on how the appliance is used.
2) Based on 220 standard washing cycles for cotton programmes at 60°C and 40°C at full and partial load. Actual water consumption will depend on how the appliance is used.
3) Class G is the least efficient and Class A is the most efficient.
4) Based on the standard 60°C cotton program at full load and the standard 40°C cotton program at partial load
5) "standard 60°C cotton program" and "standard 40°C cotton program" are the standard washing programmes to which the information in the label and fiche relates. These programmes are suitable to clean normally soiled cotton laundry and they are the most efficient programmes in terms of combined energy and water consumption.
6) In case there is a power management system
7) Based on the standard 60°C cotton program at full load

Smart Dosing (Taste coder Tasted)

For other countries, please refer to: www.haier.com service and support area. You can find FAQs and can activate service claims.

Compartment 2: Detergent drawer.

'Smart Dosing' (button c or button d)

2 Detergent compartment

3 Fabric softener reservoir

Program

Max. temp. Installation

Fiber type

If using liquid detergent, it is not recommended to activate the delayed start. The amount of detergent necessarily choose to package information! Info: Modern washing detergents at low temperatures.

Display code

"Detergent" (button c)

Touch this button to activate or deactivate the "Smart Dosing" mode when using liquid detergent. If the liquid detergent mode (see section "Smart Dosing") is activated (by default it is activated), compartment 2 is used for loading detergent of any type.

"Fabric softener compartment" (button d)

Touch this button to deactivate or activate the additional dose of fabric softener (see section "Smart Dosing").

"Smart Dosing" (button c or button d)

By default, the "Smart Dosing" mode is on. If this mode is active, then depending on the program, laundry load, and water hardness, automatic dosing of liquid detergent and fabric softener is performed respectively from compartments 1 (1.3 l) and 3 (0.5 l) of the detergent container. When this mode is active, the corresponding symbols are displayed on the display. This function allows you to get optimal results, and also ensures economy of detergent and increased environmental friendliness. One load is enough for several programs (up to 20). If the reservoir is empty, the corresponding symbol appears on the display.

"Delayed start" - delay of the end of washing (button e)

The icons in this book correspond to the symbols on the control panel and display the end time and current program. The start of the wash cycle is delayed depending on the program settings.

The end time of the wash cycle is set by turning the program selector knob to 30 minutes (0.5-24 hours). For example, the indication "6:30" means that the wash will be completed in 6.30 minutes.

It is not possible to use this mode for the "Soak/Wash" program.

Note: The end time of the wash must always be later than the program duration. Otherwise, the process starts immediately, despite the fact that the required end time cannot be ensured.

"Spin Speed" (button g)

Touch this button to adjust the spin speed.

"Memory" (button h)

The memory function is available for the programs "Cotton" (M1), "Synthetics" (M2), "Mixed Fabrics" (M3). After selecting the required parameters and values, touch the "Memory" button several times until the desired indicator "M1"/"M2"/"M3" appears. Start the program; the parameters set for that program will be saved in the corresponding memory. Subsequently, when selecting this program, you can press the "Memory" button to activate the saved settings and start immediately.

Smart Dosing mode

Conditioner compartment

Smart Dosing activated

Active mode

End delay

Wash

Set max.

Setting max. speed

Rotation

Memory setting

Program table

1 Reservoir for cold cleaning agent 2 Compartment for cleaning agent 3 Reservoir for conditioner for linen

Program

Drying speed

The given flow values may vary depending on local conditions.

Do not dry in a drum

Dry on a clothesline

Dry on a flat surface

Ironing

Iron at maximum temperature 200°C

Iron at max. temperature 150°C

Iron at max. temperature 110°C without steam (ironing with steam may cause irreversible damage to the product)

Do not iron

Professional dry cleaning

Professional dry cleaning in tetrachloroethylene

Professional dry cleaning in hydrocarbons

Do not dry clean

Cleaning container for care products

Empty the residual milk container. Pull the container by the handle (1) and remove it by pressing the release button (2). After emptying all residues, insert it back into the machine.

Machine faults

Before cleaning and maintenance, disconnect the power cable. Use a soft cloth and soapy water to clean the machine body and rubber parts. Do not use organic solvents or aggressive solutions.

• It does not drain water, the drum does not turn, it makes an unusual noise during operation.

Warning!

Danger of scalding! The water in the pump may be very hot! Before performing any actions, make sure the water has cooled down.

1. Switch off the machine and disconnect it from the power supply.
2. Open the service flap. It can be opened with a coin or a screwdriver. Place a flat container under it to collect residual water. It may be dirty!
3. Pull out the drain hose and hold its end over the container.
4. Remove the plug from the drain hose.
5. After the water has drained completely, unscrew and remove the pump filter, turning it counterclockwise.
6. Remove foreign objects and dirt.
7. Clean the pump filter thoroughly, for example under running water.
8. Install the filter back.
9. Close the drain hose and insert it back into the machine. 11. Close the service flap.

Attention!

The pump cover must be clean and undamaged.

If it is not properly closed, water may leak.

Water inlet valve and water inlet filter

To avoid blockage of the water inlet by foreign particles, it is necessary to regularly clean the water inlet filter.

Idle period

If the machine is not used for a long time, unplug the power cord (1) and close the water tap (2). Open the door to prevent the formation of odors and smells. During the idle period, leave the door open.

Before the next use, carefully check the hoses, water supply lines, and drain hose. Make sure they are correctly installed and have no leaks.

End of life

КoД	Прична	Реценье
Auto	Автomatuelle点点头 орейменце загузки.	Пробиматuelle сады堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞ы堕伞儿
Lo /HALF /FULL /HI	Взveшоване 6ья, загужени В барабан.	Проблиста, поождUTе, поka на диспee He отобразсITС: Lo = малая загузka HALF = среIGNЯ 3агузka FULL = onТIMальнay 3агузka HI = понайа загузka.
1:25	Оставшeesсь врем сикла стурkin.	См. дононеловные симвонь.
19:30	Оставшeesсь врем сикла стурkin.	Стоpee BCSEо,.akTINBИрOBaHa 3adepJka старта — СМ. COOTBEcTbYbUOuSII CImBOI.
Lock	Дерца не мочET 6ьITb OTkpbla n3-3a БыбOKOTO урOBнЯ ИПи ВысOKО temperatypbl BODbl Bбарабан.	ДождITEСь OKOHuaHЯ П proprpAMMbI, ИИОТМeHITe eë BынOLнЕи и зауSTITE П proprpAMMy сLИВа BODbl. Есln BODа BHyTpri 6aka ropryaJ, TO, BOИЗбЖаHne oxKOrOB, 3aYucSTITE Na HeCKOLbKO MInHT PproprpAMMy pyHna STIRPKA, 3aTeM PproprPAMMy CImBa BODbl..
End	Оkonчане пROSРамMbI.
E1	Ош�ба слИВа, BODа He ydalena.	Очир_STte Фильт hacoca. Пproberbte чИСТOTу и праВиьность мontжа сLИВНОг OlaHaHra.
E2	Ош�ба 6лOKИрВКи.	Т上诉ьно 3akpoiTE dВеру.
E4	Вoda Ne habираетсь в тученice 8 mInHyt.	Проб either NaIlyne PoDAuN iДaBleHne BODbl. Вoda слИBaETCЯ chepe3 сLИВНОshlaANr BCleДCTBVE сиФОHORO 3ФФeKTa.
E8	Ош�ба 3auzItbl no урOBnIO BODbl.	АуTo BbIyCTlNi, B pROTINHOM cIvyae obpatNTeB В отдENnoPLOpaJxHORO obClyKuBaHnia.
F3	Ош�ба Датчika TempeparTybl.	ObpatNTeB B oTdEN noPocIpoPaJxHORO obClyKuBaHnia.
F4	Ош�ба награва (погвяетсь в конце цИКЛa).	ObpatNTeB B oTdEN noPocIpoPaJxHORO obClyKuBaHnia.
F7	Ош�ба дВигателя.	ObpatNTeB B oTdEN noPocIpoPaJxHORO obClyKuBaHnia.
Fb	Переньене BODоI.	HemdeIeHNo 3akpoiTE kpan. ObpatNTeB B oTdEN noPocIpoPaJxHORO obClyKuBaHnia.
FA	Ош�ба Датчika урOBня BODbl.	ObpatNTeB B oTdEN noPocIpoPaJxHORO obClyKuBaHnia.
FC	Ош�ба элекtrponHORO 6blOka урразел�и.	ObpatNTeB B oTdEN noPocIpoPaJxHORO obClyKuBaHnia.
Unb	Hec6aIahsncroBaHannя загузka, OTЖIM HeBOZMOJeH	Рас畴дeЛITE 6bel'боilee paBHomeрно,InsIyaIte иЗбakaЧASTь,ЕСЛЗагузka СлИКOM ВELIKA, ЗATEM 3aYucSTITE пROSРamMy OTЖIMa.

Attention!

The float switch for overflow protection is located in the deepest part of the machine. In case of leakage, all functions are automatically switched off, except for the drain pump, which remains on for safety reasons.

In case of power failure

The current program and its settings are saved only for a short time. It may be necessary to reselect the program and its settings.

If the power is disconnected during operation, the program door is mechanically locked. The door can only be opened when the water level is no longer visible - to prevent burns!

The water level must be lowered using the method described in the "Pump filter" section. After that, you can pull the emergency release lever, and the door will open with a gentle click. Then all components must be reinstalled.

Check and repair faults in the absence of a code on the display

Manufacturer's address: Haier Group, Haier Industrial Park, No 1, Haier Road, Hi-tech Zone, 266101, Qingdao, P.R. China

Haier Industrial Park, Haier Road, Hi-tech Zone, Qingdao, 266101, PRC

Liquid detergents

Liquid detergents

empty tank

Setting

maximum

wash temperature

---

∴ S ΔOBC = S ΔCOD + S ΔBOC - S ΔBOC

#

(T1-T4) jlll aiaaall 1

2

(S1-S4) 3

aill 4

5

6

2

jieoll 3

4

5

6

7

C

aill oaii 1

ρ = ρ + ρ α = 1 + 1/2( 1 - x)

x4

(e 1) - "Delay"

(f) "Temperature"

(g) "Spin"

(h 11)

(M2) "Synthetic" (M1) "Cotton"

(a) "Function"

(b) "Selection"

"Selection" 150 "3" "2" "1" j 14 "Function" a 3 3

"Child Lock" (a + b)

Jol jio kki biai. Saill a juiuie n j i biii jll li gian aill jaoj 3 yal "Function"+Selection"le laol oJ Jsi Jda n j eall

(c) "Detergent"

"Smart Dosing" (Smart Dosing)

(d) "Softener"

(a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a) (a)

(d c j) "c

"Smart Dosing" 1111111111111111111111111111111111111111111111111111111

J 1

yess a y

jlll 1

120 2

Jusj 3

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

240V / 50Hz 220V

(1)

"Self Clean" 2 (2)

#

"Smart Dosing" -

i 1

"Smart Dosing" :a 100000000000000000000000000000000000000000000000000000000000000000000000000000000000000

#

i j 1

(2) gJy jge b

jglal glalil 15 jla lglbl glll

a

60 60 60

1.4: gi a sol S guoall

الإستعمالية الحرفية الإستعمالية الحرفية الإستعمالية الحرفية الإستعمالية الحرفية الإستعمالية الحرفية الإستعمالية الح部分内容 الإستعمالية الح部分内容 الإستعمالية الح部分内容 الإستعمالية الح部分内容 الإستعمالية الح部分内容 الإستعمالية الح部分内容 الإستعمالية الح部分内容 الإستعمالية الح部分内容 الإستعمالية الح部分内容 الإستعمالية الح部分内容 الإستعمالية الح部分内容 الإستعمالية الح部分内容 الإستعمالية الح部分内容 الإستعمالية الح部分内容 الإستعمالية الح部分内容 ALIEN ALIEN ALIEN ALIEN ALIEN ALIEN ALIEN ALIEN ALIEN ALIEN ALIEN ALIEN ALIEN ALIEN ALIEN ALIEN ALIEN ALIEN ALIEN ALIEN ALIEN ALIEN ALIEN ALIEN ALIEN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALI IN ALI IN ALI IN ALI IN ALI IN ALI IN ALI IN ALI IN ALI IN ALI IN ALI IN ALI IN ALI IN ALI IN ALI IN ALI IN ALI IN ALI IN ALI IN ALI IN ALI IN ALI IN ALI IN ALI IN ALI IN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALI-IN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIINA ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIHN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIn ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIINS ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIAIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIin ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIM ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIAS ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIAR ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIINI ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIAD ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIND ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIINC ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIIN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATN ALIATN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATN ALIATNN ALIATN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATN ALIATN ALIATN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATN ALIATNN ALIATNN ALIATN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATN ALIATNN ALIATN ALIATN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATN ALIATN ALIATNN ALIATN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATN ALIATN ALIATN ALIATN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATN ALIATNN ALIATNN ALIATNN ALIATN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATN ALIATNN ALIATNN ALIATN ALIATN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATN ALIATNN ALIATN ALIATNN ALIATN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATNN ALIATN ALIATNN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIAT N ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATNP ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATP ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATNTN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALI ATN ALI ATN ALI ATN ALI ATN ALI ATN ALI ATN ALI ATN ALI ATN ALI ATN ALI ATN ALI ATN ALI ATN ALI ATN ALI ATN ALI ATN ALI ATN ALI ATN ALI ATN ALI ATN ALI ATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATTN ALIATTN ALIATTN ALIATTN ALIATTN ALIATTN ALIATTN ALIATTN ALIATTN ALIATTN ALIATTN ALIATTN ALIATTN ALIATTN ALIATTN ALIATTN ALIATTN ALIATTN ALIATTN ALIATTN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATN ALIATAA ALIATAA

∴ m = 3/11

a i = a j ②

Jus

∴ α = y/x

∴ P 与 AQ = 1 .

Therefore, cos(angle BAC) = BC/AC = 1

aBb

J 1

Gaaal lalal

aill 2jldnLw ydo 05 j

15 0j

iiilaiiaaiialalgai

jlll lallae 1y

-

aaln 13A aaiiiaai iin

BS1362 Jgaa o aia

sally pailpbi -

aalaae aee 4y sill yll juaic elally pss
