Product Type	Ultra-thin laptop
Screen	13.3 inches (estimated)
Webcam	Yes, with built-in microphone
Connectivity	Wi-Fi, USB 2.0 (black) and USB 3.0 (blue), HDMI, audio jack
Card reader	2-in-1 (SD/SDHC/MMC)
Touchpad	Touch surface with integrated click
Special functions	Acer Green Instant On, special keys (communication, sleep, display, etc.)
Power supply	AC adapter, lithium-ion battery
Operating temperature	5°C to 35°C
Operating humidity	20% to 80% non-condensing
Maintenance	Clean with a soft, dry cloth, avoid liquids
Security	Do not insert objects into antenna holes; do not use a keyboard protector
Repairability	Battery reset hole; online warranty extension

Frequently Asked Questions - ASPIRE S3-371 ACER

How to register my Acer product?

Visit www.acer.com, select your country, click REGISTER YOUR PRODUCT and follow the instructions. You can also double-click the registration icon on the desktop.

How to use the special keys (Fn key combinations)?

Hold down the Fn key, then press the key corresponding to the desired function (e.g., Fn+F5 to turn off the screen).

How to enable or disable the touchpad?

Use the Fn + F7 combination (Touchpad special key) to enable or disable the touchpad.

How to adjust the screen brightness?

Use the special keys Fn + F6 (decrease) or Fn + F5 (increase) to adjust brightness.

How to connect to wireless Internet?

Wireless connection is enabled by default. Click the network icon in the taskbar, select your Wi-Fi network, and enter the password if required.

What to do if the computer does not turn on?

Check the power supply and battery. If necessary, insert a paperclip into the battery reset hole at the base of the computer and press for four seconds.

How does sleep and deep sleep mode (Acer Green Instant On) work?

Close the lid to enter Sleep mode (blinking orange LED). After a while, the computer enters deep sleep (LED off) to save power. Press the power button to wake it.

How to insert or remove a memory card?

Insert the card into the 2-in-1 card reader on the right side. To remove, simply pull the card out of the slot.

How to clean the screen and keyboard?

Use a soft, lint-free cloth slightly dampened (no liquid directly). Do not use abrasive products. Do not place a keyboard protector, as it may obstruct ventilation.

Where can I find accessories or spare parts for my Acer?

Visit store.acer.com to purchase accessories and warranty extensions. Availability varies by region.

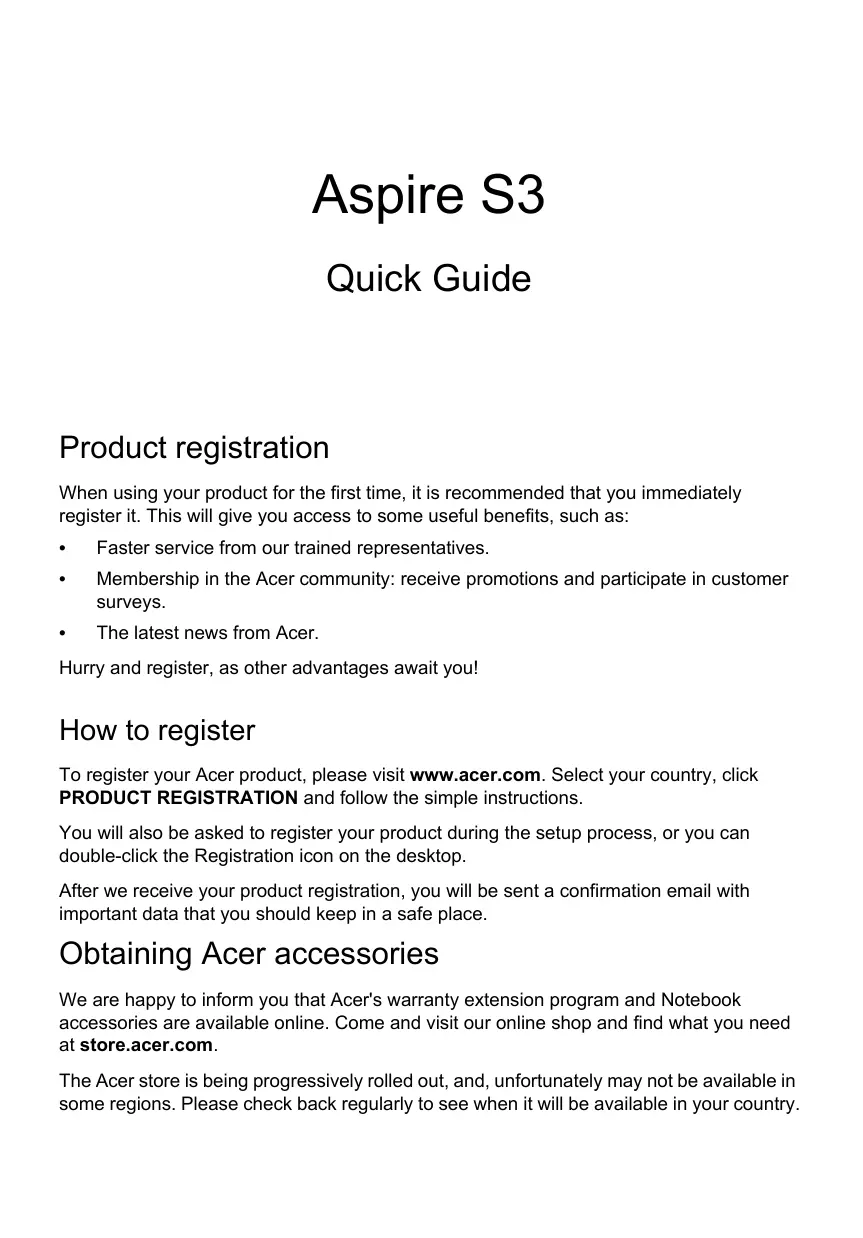

USER MANUAL ASPIRE S3-371 ACER

Product registration

When using your product for the first time, it is recommended that you immediately register it. This will give you access to some useful benefits, such as:

• Faster service from our trained representatives.
• Membership in the Acer community: receive promotions and participate in customer surveys.
  • The latest news from Acer.

Hurry and register, as other advantages await you!

How to register

To register your Acer product, please visit www.acer.com. Select your country, click PRODUCT REGISTRATION and follow the simple instructions.

You will also be asked to register your product during the setup process, or you can double-click the Registration icon on the desktop.

After we receive your product registration, you will be sent a confirmation email with important data that you should keep in a safe place.

Obtaining Acer accessories

We are happy to inform you that Acer's warranty extension program and Notebook accessories are available online. Come and visit our online shop and find what you need at store.acer.com.

The Acer store is being progressively rolled out, and, unfortunately may not be available in some regions. Please check back regularly to see when it will be available in your country.

Model number:

Serial number:

Date of purchase:

Place of purchase:

First things first

We would like to thank you for making an Acer notebook your choice for meeting your mobile computing needs.

Your guides

To help you use your Acer notebook, we have designed a set of guides: First off, the Setup Poster helps you get started with setting up your computer.

The Quick Guide introduces you to the basic features and functions of your new computer.

For more on how your computer can help you to be more productive, please refer to the Aspire S3 User's Manual. The Aspire S3 User's Manual contains useful information applying to your new computer. It covers basic topics such as using the keyboard and audio, etc.

This guide contains detailed information on such subjects as system utilities, data recovery, expansion options and troubleshooting. In addition it contains warranty information and the general regulations and safety notices for your notebook.

Follow these steps to access it:

1 Type 'User' from Start.
2 Click on Acer User's Manual.

Your Acer notebook tour

After setting up your computer as illustrated in the setup poster, let us show you around your new Acer notebook.

Screen view

1 2 acer

#	Icon	Item	Description
1		Display screen	Displays computer output.
2		Webcam	Web camera for video communication.A light next to the webcam indicates that the webcam is active.

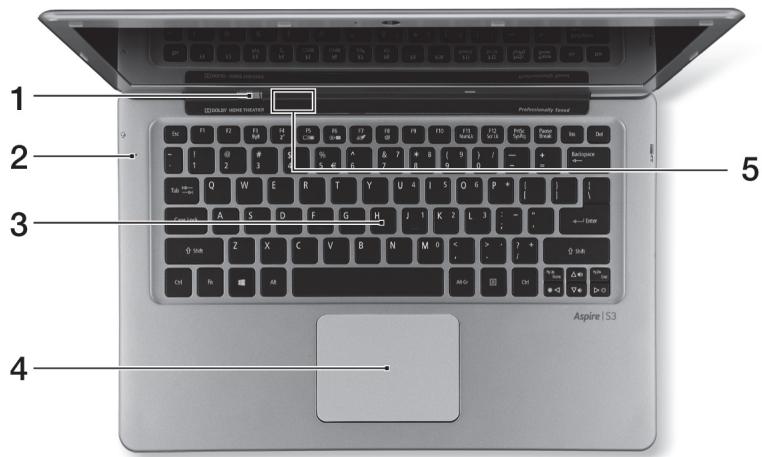

Keyboard view

1 2 3 4 5 Aspire | S3

#	Icon	Item	Description
1		Power button	Turns the computer on and off.
2		Microphone	Internal microphone for sound recording.
3		Keyboard	For entering data into your computer.Caution: Do not use a keyboard protector or similar cover as the keyboard design includes ventilation intakes for cooling.
4		Touchpad	Touch-sensitive pointing device.The touchpad and selection buttons form a single surface.Press down firmly on the touchpad surface to perform a left click.Press down firmly on the lower right corner to perform a right click.
5		Power indicator	Indicates the computer's power status.
		Battery indicator	Indicates battery status.Charging: The light is amber when the battery is charging.Fully charged: The light is blue.

Hotkeys

The computer employs hotkeys or key combinations to access most of the computer's controls like screen brightness and volume output.

To activate hotkeys, press and hold the key before pressing the other key in the hotkey combination.

Hotkey	Icon	Function	Description
	+	Communication	Enables/disables the computer's communication devices.
	+	Sleep	Puts the computer in Sleep mode.
	☐|☐	Display toggle	Switches display output between the display screen, external monitor (if connected) and both.
	[IMAGE]■	Screen blank	Turns the display screen backlight off to save power. Press any key to return.
	+	Touchpad toggle	Turns the internal touchpad on and off.
	+	Speaker toggle	Turns the speakers on and off.
	+	Brightness up	Increases the screen brightness.
	[cCHC]	Brightness down	Decreases the screen brightness.
		Volume up	Increases the sound volume.
		Volume down	Decreases the sound volume.
	+	Home	Move to the beginning of a file.
	+	End	Move to the end of a file.

Rear view

1 2 3

#	Icon	Item	Description
1		DC-in jack	Connects to an AC adapter.
2	HDMI	HDMI port	Supports high-definition digital video connections.
3		USB ports	Connects to USB devices.If a port is black it is USB 2.0 compatible, if it is blue it is also USB 3.0 compatible (see below).

Note: Small holes on the rear of the computer are part of the antenna assembly. Do not insert any object into the holes.

Information on USB 3.0

• Compatible with USB 3.0 and earlier devices.
  • For optimal performance, use USB 3.0-certified devices.
  • Defined by the USB 3.0 specification (SuperSpeed USB).

Left view

Side view of a silver electronic device with a labeled component (1), no visible text or symbols on the device itself.

#	Icon	Item	Description
1	[85zz]	Headset/speaker jack	Connects to audio devices (e.g., speakers, headphones) or a headset with microphone.

Right view

Side view of a silver ergonomic device with a labeled component (1), no visible text or symbols on the body itself.

#	Icon	Item	Description
1		2-in-1 card reader	Accepts one Secure Digital (SD or SDHC) card or one MultiMediaCard (MMC).Note:To remove the card, simply pull it from the slot.

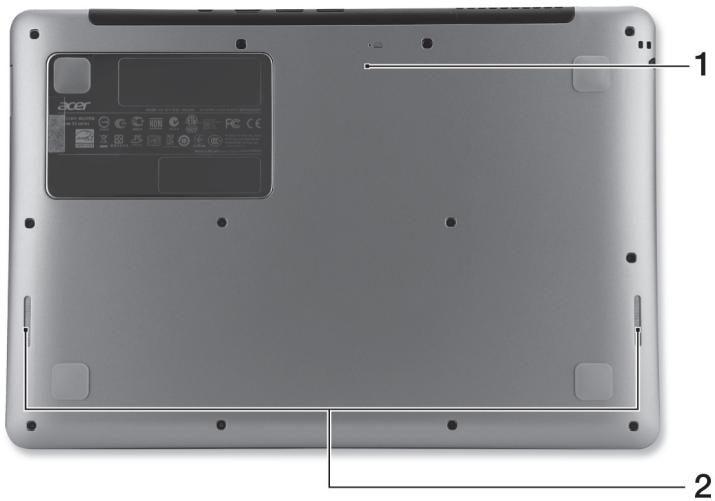

Base view

1 2

#	Icon	Item	Description
1	[γTKX]	Battery reset pinhole	Insert a paperclip into the hole and press for four seconds to reset the computer (simulates removing and reinstalling the battery).
2		Speakers	Deliver stereo audio output.

Environment

• Temperature:
  • Operating: 5 °C to 35 °C
  • Non-operating: -20 °C to 65 °C
  • Humidity (non-condensing):
  • Operating: 20% to 80%
  • Non-operating: 20% to 80%

Connecting to the Internet

Your computer's wireless connection is turned on by default.

Windows will detect and display a list of available networks during setup. Select your network and enter the password if required.

Otherwise, open Internet Explorer and follow the instructions. Please also refer to your ISP or router documentation.

Acer Instant Connect

Instant Connect ensures a faster connection to any of the networks that your computer connects to most frequently.

Power management

This computer has a built-in power management unit that monitors system activity, such as activity involving one or more of the following devices: keyboard, mouse, hard disk, peripherals connected to the computer, and video memory. If no activity is detected for a period of time, the computer stops some or all of these devices in order to conserve energy.

Acer Green Instant On

Note: For selected models only.

The Acer Green Instant On feature allows your computer to wake up from Sleep mode in less than the time it takes to open the lid. When you close the lid, or leave your computer for a while, your computer enters Sleep mode. While the computer is in Sleep mode, the power indicator LED will flash orange.

Open the lid or press any key to wake the computer from Sleep mode.

After a certain amount of time in Sleep mode, the computer will automatically enter Deep Sleep to preserve battery life. When the computer is in Deep Sleep, the power indicator LED will be turned off. In this state, battery remains ready to use for many weeks.

Press the power button to wake up from Deep Sleep.

Note: Once in Deep Sleep, your PC will consume significantly less power compared with Sleep mode, but it will take a little longer to wake up from Deep Sleep.

Deep Sleep and Sleep mode work together to ensure that your computer saves as much power as possible while still enabling quick, instant on access.

To save more power, your computer will typically enter and stay in Deep Sleep during times when it will not be frequently accessed, for example, during the middle of the night. To provide quicker access, your computer will enter and stay in Sleep mode during times when it will be frequently accessed, for example, during working hours.

Aspire S3

Guide rapide

Side view of a metallic electronic device with a labeled component (1), no visible text or symbols on the device itself.

Side view of a sleek, metallic electronic device with a labeled component (1), no visible text or symbols on the body itself.

Acer Instant Connect

Side view of a silver ergonomic device with a labeled component (1), no visible text or symbols on the body itself.

Side view of a sleek, silver-colored electronic device with a labeled component (1), no visible text or symbols on the body.

Acer Instant Connect

Side view of a modern electronic device with a labeled component (1), showing no visible text or symbols on the body.

Side view of a sleek, metallic electronic device with a labeled component (1), no visible text or symbols on the body.

Acer Instant Connect

Side view of a metallic electronic device with a labeled component (1), no visible text or symbols on the device itself.

Side view of a sleek, flat electronic device with a labeled component (1), no visible text or symbols on the body.

Acer Instant Connect

Acer notebook is bundled with the approved telecom modules for your networking. Those modules' model number and specific homologation number refers to below:

[Modem]

Modelo: RD02-D330	CNC 54-4512
Modelo: Delphi D40 (AM5)	CNC 54-5681

[Bluetooth]

Modelo: BCM92046	CNC 16-6735
Modelo: BCM92070MD_REF	CNC 16-7165
Modelo: T77H056	CNC 16-7788
Modelo: AR5BBU12	CNC 16-7946

[Bluetooth+802.11bgn]

Modelo: BCM943225HMB

CNC C-7497

[802.11AGN]

Modelo: 512AN_MMW	CNC C-6399
Modelo: 533AN_MMW	CNC C-6385
Modelo: 512AN_HMW	CNC C-7612
Modelo: 533AN_HMW	CNC C-7618
Modelo: 622ANHMW	CNC C-7682
Modelo: 633ANHMW	CNC C-7681

[802.11BGN]

Modelo: AR5B95	CNC C-7152
Modelo: AR5B93	CNC C-7151
Modelo: 112BNHMW	CNC C-7470
Modelo: 112BNMMW	CNC C-7471
Modelo: RTL8192SE	CNC C-7495
Modelo: BCM943225HM	CNC C-7395
Modelo: AR5B97	CNC C-7781
Modelo: BCM94313HMG2L	CNC C-7881

[802.11BG]

Modelo: BCM94312HMG

CNC 16-6180

[3G]

Modelo: UNDP-1	CNC 17-6334
Modelo: Gobi2000	CNC 17-7291

[Brasil] Noticia adicional de regulamento Anatel

Acer notebook is bundled with the approved telecom modules for your networking. Those modules' model number and specific homologation number refers to below:

[Modem]

Modelo: RD02-D330	COFETEL: TTDCORD06-536
Modelo: Delphi_D40 (AM5)	COFETEL: TTDAGDE07-056

[Bluetooth]

Modelo: BCM92046	COFETEL: RCPFOBC08-0472
Modelo: BCM92070MD_REF	COFETEL: RCPBRBC09-0213
Modelo: T77H056	COFETEL: RCPATT709-1049
Modelo: AR5BBU12	COFETEL: RCPATAR10-0064

[Bluetooth+802.11BGN]

Modelo: BCM943225HMB

COFETEL: RCPBRBC09-0574

[802.11AGN]

Modelo: 512AN_HMW	COFETEL:RCPIN5108-0260
Modelo: 512AN_MMW	COFETEL:RCPIN5108-0260-A3
Modelo: 533AN_HMW	COFETEL:RCPIN5108-0260-A2
Modelo: 533AN_MMW	COFETEL:RCPIN5108-0260-A1
Modelo: 622ANHMW	COFETEL:RCPIN6209-1009
Modelo: 633ANHMW	COFETEL:RCPIN6309-1010

[802.11BGN]

Modelo: AR5B95	COFETEL:RCPATAR09-0168
Modelo: AR5B93	COFETEL: RCPATAR09-0167
Modelo: 112BNHMW	COFETEL: RCPIN1109-0613-A1
Modelo: 112BNMMW	COFETEL: RCPIN1109-0613
Modelo: RTL8192SE	COFETEL: RCPRERT09-0751
Modelo: BCM943225HM	COFETEL: RCPBRBC09-0464
Modelo: AR5B97	COFETEL: RCPATAR09-1103
Modelo: BCM94313HMG2L	COFETEL: RCPBRBC09-1196

[802.11BG]

Modelo: BCM94312HMG

COFETEL: RCPBRBC08-0015

[3G]

Modelo: UNDP-1	COFETEL:RTIQUUN08-0253
Modelo: Gobi2000	COFETEL:RTIQUGO09-0555
Modelo: EM770W	COFETEL:RTIHUEM10-0096

[WiMax]

Modelo: 622ANXHMW

COFETEL: RCPIN6210-0219

Aspire S3

Guia rápido

Registo do produto

Side view of a sleek, metallic electronic device with a labeled component (1), no visible text or symbols on the body.

Side view of a sleek, metallic electronic device with a labeled component (1), no visible text or symbols on the body.

Acer Instant Connect

Side view of a silver electronic device with a labeled component (1), no visible text or symbols on the device itself.

Side view of a sleek, metallic electronic device with a labeled component (1), no visible text or symbols on the body itself.

Acer Instant Connect

Side view of a silver electronic device with a labeled component (1), no visible text or symbols on the body itself.

Side view of a silver ergonomic device with a labeled component (1), no visible text or symbols on the body itself.

#	Ikon	Element	Beskrivelse
1		2-i-1-kortleser	Godtar ett Secure Digital- (SD- eller SDHC) kort, eller ett MultiMediaCard (MMC).Merk:Hvis du vil fjerne kortet, trekker du det ganske enkelt ut av sporet.

Bunnvisning

1 2

Acer Instant Connect

Side view of a silver electronic device with a labeled component (1), no visible text or symbols on the device itself.

Side view of a sleek, silver-colored electronic device with a labeled component (1), no visible text or symbols on the body.

Acer Instant Connect

Side view of a modern electronic device with a labeled component (1), showing no visible text or symbols on the body.

Side view of a sleek, metallic electronic device with a labeled component (1), no visible text or symbols on the body.

Acer Instant Connect

Side view of a sleek, metallic electronic device with a labeled component (1), no visible text or symbols on the body.

Side view of a sleek, metallic electronic device with a labeled component (1), no visible text or symbols on the body.

Acer Instant Connect

Side view of a metallic electronic device with a labeled component (1), no visible text or symbols on the device itself.

Side view of a sleek, flat electronic device with a labeled component (1), no visible text or symbols on the body.

Acer Instant Connect

Side view of a silver electronic device with a labeled component (1), no visible text or symbols on the body itself.

Side view of a sleek, flat electronic device with a labeled component (1), no visible text or symbols on the body.

Acer Instant Connect

Side view of a modern electronic device with a labeled component (1), showing no visible text or symbols on the body.

Side view of a sleek, silver-colored electronic device with a labeled component (1), no visible text or symbols on the body.

Acer Instant Connect

Side view of a modern electronic device with a labeled component (1), showing no visible text or symbols on the body.

Side view of a sleek, silver-colored electronic device with a labeled component (1), no visible text or symbols on the body.

Acer Instant Connect

Side view of a silver electronic device with a labeled component (1), no visible text or symbols on the body itself.

Side view of a sleek, flat electronic device with a labeled component (1), no visible text or symbols on the body.

Acer Instant Connect

Side view of a silver electronic device with a labeled component (1), no visible text or symbols on the body itself.

Side view of a sleek, flat electronic device with a labeled component (1), no visible text or symbols on the body.

Acer Instant Connect

Side view of a silver electronic device with a labeled component (1), no visible text or symbols on the device itself.

#	Ikona	Stavka	Opis
1		Utičnica za slušalice/zvučnik	Povezuje audio uređaje (primjerice zvučnike, slušalice) ili naglavni uređaj slušalica s mikrofonom.

Pogled s desne strane

Side view of a sleek, silver-colored electronic device with a labeled component (1), no visible text or symbols on the body.

#	Ikona	Stavka	Opis
1		2-u-1 čitač kartica	Prihvaća Secure Digital (SD ili SDHC) karticu ili jednu MultiMediaCard (MMC) karticu.Napomena: Za uklanjanje kartice, jednostavno je izvucite iz utora.

Pogled odozdo

1 2

#	Ikona	Stavka	Opis
1		Iglični otvor za poništavanje akumulatora	Gurnite vršak otvorene spajalice za papir u otvor za poništavanje računala (simulira uklanjanje i ponovno postavljanje baterije).
2		Zvučnici	Omogućuju stereo audio izlaz.

Okruženje

• Temperatura:
  • Radna: 5°C do 35°C
  • Pohrana: - 20°C do 65°C
  • Vlažnost (nekondenzirajuća):
  • Radna: 20% do 80%
  • Pohrana: 20% do 80%

Spajanje na Internet

Bežična veza vašeg računala prema zadanim postavkama je uključena.

Acer Instant Connect

Instant Connect osigurava brže povezivanje na mrežu s kojom se vaše računalo najčešće povezuje.

Side view of a metallic electronic device with a labeled component (1), no visible text or symbols on the device itself.

Side view of a sleek, metallic electronic device with a labeled component (1), no visible text or symbols on the body.

Acer Instant Connect

Side view of a silver electronic device with a labeled component (1), no visible text or symbols on the device itself.

#	Икона	Елемент	Описание
1		Жак за слушалки/високоговорител	За връзка с аудио устройства (напр.високоговорители, слушалки) или слушалки с микрофон.

Изглед отдясно

Side view of a sleek, metallic electronic device with a labeled component (1), no visible text or symbols on the body.

Acer Instant Connect

Juhised selle avamiseks:

Side view of a sleek, metallic electronic device with a labeled component (1), no visible text or symbols on the body.

Side view of a sleek, metallic electronic device with a labeled component (1), no visible text or symbols on the body.

Acer Instant Connect

Side view of a silver electronic device with a labeled component (1), no visible text or symbols on the device itself.

Side view of a sleek, metallic electronic device with a labeled component (1), no visible text or symbols on the body.

Acer Instant Connect

Side view of a silver electronic device with a labeled component (1), no visible text or symbols on the device itself.

Side view of a sleek, silver-colored electronic device with a labeled component (1), no visible text or symbols on the body.

Acer Instant Connect

Side view of a silver electronic device with a labeled component (1), no visible text or symbols on the body itself.

Side view of a sleek, flat electronic device with a labeled component (1), no visible text or symbols on the body.

Acer Instant Connect

Side view of a sleek, flat electronic device with a labeled component (1), no visible text or symbols on the body itself.

Side view of a sleek, metallic electronic device with a labeled component (1), no visible text or symbols on the body.

Acer Instant Connect

Side view of a silver electronic device with a labeled component '1' (no text or symbols on the device itself)

Side view of a sleek, flat electronic device with a labeled component (1), no visible text or symbols on the body.

Acer Instant Connect

Side view of a modern electronic device with a labeled component (1), no visible text or symbols on the device itself.

Side view of a sleek, metallic electronic device with a labeled component (1), no visible text or symbols on the body.

Acer Instant Connect

Side view of a silver electronic device with a labeled component (1), no visible text or symbols on the body itself.

Side view of a sleek, silver electronic device with a labeled component (1), no visible text or symbols on the body.

Acer Instant Connect

Side view of a metallic electronic device with a labeled component (1), no visible text or symbols on the device itself.

Side view of a sleek, metallic electronic device with a labeled component (1), no visible text or symbols on the body.

Acer Instant Connect

Side view of a silver electronic device with a labeled component (1), no visible text or symbols on the device itself.

Side view of a sleek, metallic electronic device with a labeled component (1), no visible text or symbols on the body.

Acer Instant Connect

Instant Connect
