OBJ_DOKU-22605-003.fm Page 1 Friday, November 16, 2012 8:35 AM Robert Bosch GmbH Power Tools Division 70745 Leinfelden-Echterdingen Germany www.bosch-garden.com Rotak

F 016 L70 769 (2012.11) O / 119 UNI

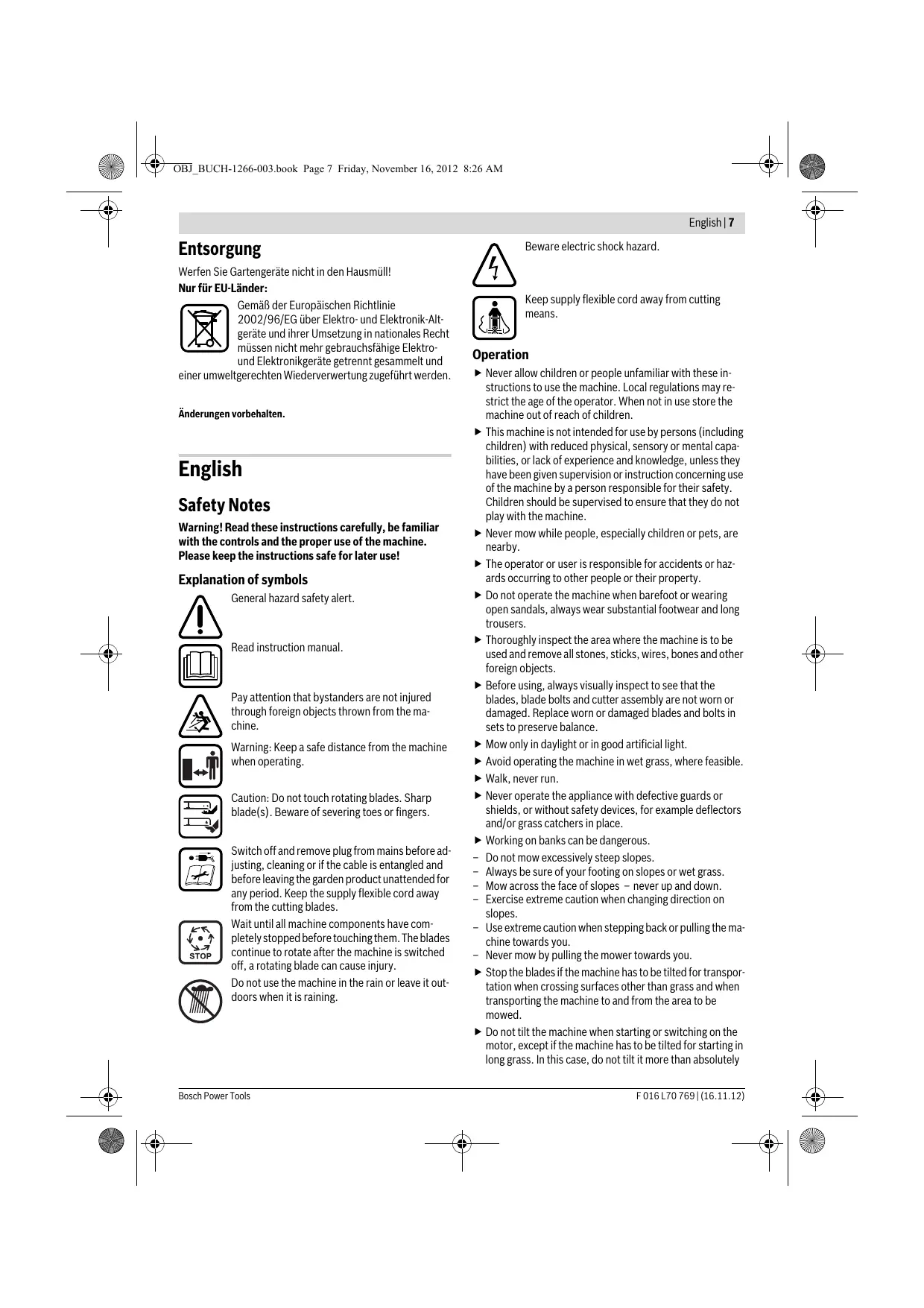

OBJ_BUCH-1266-003.book Page 2 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 3 Friday, November 16, 2012 8:26 AM Deutsch | 3 OBJ_BUCH-1266-003.book Page 4 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 5 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 6 Friday, November 16, 2012 8:26 AM 6 | Deutsch Fehlersuche STOP Bosch Power Tools OBJ_BUCH-1266-003.book Page 7 Friday, November 16, 2012 8:26 AM English | 7 English Safety Notes Warning! Read these instructions carefully, be familiar with the controls and the proper use of the machine. Please keep the instructions safe for later use! Explanation of symbols General hazard safety alert. Read instruction manual. Pay attention that bystanders are not injured through foreign objects thrown from the machine.

Warning: Keep a safe distance from the machine

when operating. Caution: Do not touch rotating blades. Sharp blade(s). Beware of severing toes or fingers. Switch off and remove plug from mains before adjusting, cleaning or if the cable is entangled and before leaving the garden product unattended for any period. Keep the supply flexible cord away from the cutting blades. Wait until all machine components have completely stopped before touching them. The blades continue to rotate after the machine is switched off, a rotating blade can cause injury. Do not use the machine in the rain or leave it outdoors when it is raining. Bosch Power Tools Beware electric shock hazard. Keep supply flexible cord away from cutting means. Operation Never allow children or people unfamiliar with these instructions to use the machine. Local regulations may restrict the age of the operator. When not in use store the machine out of reach of children. This machine is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety. Children should be supervised to ensure that they do not play with the machine. Never mow while people, especially children or pets, are nearby. The operator or user is responsible for accidents or hazards occurring to other people or their property. Do not operate the machine when barefoot or wearing open sandals, always wear substantial footwear and long trousers. Thoroughly inspect the area where the machine is to be used and remove all stones, sticks, wires, bones and other foreign objects. Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance. Mow only in daylight or in good artificial light. Avoid operating the machine in wet grass, where feasible. Walk, never run. Never operate the appliance with defective guards or shields, or without safety devices, for example deflectors and/or grass catchers in place. Working on banks can be dangerous. – Do not mow excessively steep slopes. – Always be sure of your footing on slopes or wet grass. – Mow across the face of slopes – never up and down. – Exercise extreme caution when changing direction on slopes. – Use extreme caution when stepping back or pulling the machine towards you. – Never mow by pulling the mower towards you. Stop the blades if the machine has to be tilted for transportation when crossing surfaces other than grass and when transporting the machine to and from the area to be mowed. Do not tilt the machine when starting or switching on the motor, except if the machine has to be tilted for starting in long grass. In this case, do not tilt it more than absolutely F 016 L70 769 | (16.11.12) OBJ_BUCH-1266-003.book Page 8 Friday, November 16, 2012 8:26 AM 8 | English necessary and tilt only the part which is away from the operator. Always ensure that both hands are in the operating position before returning the machine to the ground. Switch on the motor according to the instructions with feet well away from rotating parts. Do not put hands or feet near or under rotating parts. Always stand clear of the discharge zone when operating the machine. Never pick up or carry the machine while the motor is running. Keep supply cables and extension cables away from the blade. The blade can cause damage to the cables and lead to contact with live parts. Beware electric shock hazard. The voltage indicated on the rating plate must correspond to the voltage of the power source. We recommend that this equipment is only connected into a socket which is protected by a circuit-breaker that would be actuated by a 30 mA residual current. Only use or replace power supply cables for this unit which correspond to the types indicated by the manufacturer. See the operating instructions for the order no. and types. Never touch the mains plug with wet hands. Do not run over, crush or pull the power supply cable or extension lead, otherwise it may be damaged. Protect the cable from heat, oil and sharp edges. The extension lead must have a cross section in accordance with the operating instructions and be protected against splashed water. The connection must not be in water. Always wear gardening gloves when handling or working near the sharp blades. Extension cords/leads should only be used if they comply with H05VV-F, H05RN-F types or IEC type design (60227 IEC 53, 60245 IEC 57). If you want to use an extension cable when operating your product, only the following cable dimensions should be used: – 1.0 mm2: max. length 40 m – 1.5 mm2: max. length 60 m – 2.5 mm2: max. length 100 m Note: If an extension cable is used it must be earthed and connected through the plug to the earth cable of your supply network in accordance with prescribed safety regulations. If in doubt contact a qualified electrician or the nearest Bosch Service Centre. WARNING! Inadequate extension cables can be dangerous. Extension cable, plug and socket must be of watertight construction and intended for outdoor use. Cable connections should be kept dry and off the ground. It is recommended for increased electrical safety to use a Residual Current Device (RCD) with a tripping current of not more than 30 mA. Always check your RCD every time you use it. For products not sold in GB:

WARNING: For your safety, it is required that the plug attached to the machine is connected with the extension cord.

The coupling of the extension cord must be protected against splash water, be made of rubber or coated with rubber. The extension cord must be used with a cable strain relief. The connection lead must be inspected for signs of damage at regular intervals and may only be used if in perfect condition. If the supply cord is damaged, it must be replaced by a Bosch Service Centre. Products sold in GB only: Your product is fitted with an BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere. Products sold in AUS and NZ only: Use a residual current device (RCD) with a rated residual current of 30 mA or less. Electrical Safety Maintenance Warning! Switch off, remove plug from mains before adjusting, cleaning or if cable is cut, damaged or entangled. The blades continue to rotate for a few seconds after the machine is switched off. Caution – do not touch the rotating blade. Your machine is double insulated for safety and requires no earth connection. The operating voltage is 230 V AC, 50 Hz (for non-EU countries 220 V, 240 V as applicable). Only use approved extension cables. Contact your Bosch Service Centre for details. Always wear gardening gloves when handling or working near the sharp blades. Keep all nuts, bolts and screws tight to be sure that the machine is in safe working condition. Check the grass catcher frequently for wear or deterioration. Examine the machine and replace worn or damaged parts for safety. Ensure replacement cutting means of the right type are used. Ensure replacement parts fitted are Bosch approved. Remove the plug from the socket:

whenever you leave the machine, before clearing a blockage, before checking, cleaning or working on the machine, after striking a foreign object. Inspect the machine for damage and make repairs as necessary, – if the machine starts to vibrate abnormally (check immediately). Power supply F 016 L70 769 | (16.11.12) Bosch Power Tools OBJ_BUCH-1266-003.book Page 9 Friday, November 16, 2012 8:26 AM English | 9 Symbols Noise/Vibration Information The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the garden product in a better and safer manner. Measured sound values determined according to 2000/14/EC (1.60 m height, 1 m distance away). Typically the A-weighted noise levels of the product are: Sound pressure level 79 dB(A); sound power level 93 dB(A). Uncertainty K =1 dB. Vibration total values ah (triax vector sum) and uncertainty K determined according to EN 60335: ah <2.5 m/s2, K =1.5 m/s2. Symbol Meaning Movement direction Declaration of Conformity Reaction direction We declare under our sole responsibility that the product described under “Technical data” is in conformity with the following standards or standardization documents: EN 60335 according to the provisions of the directives 2011/65/EU, 2004/108/EC, 2006/42/EC, 2000/14/EC. 2000/14/EC: Guaranteed sound power level 94 dB(A). Conformity assessment procedure according to Annex VI. Equipment category: 32 Notified body: SRL, Sudbury, England, Nr. 1088 Technical file (2006/42/EC) at: Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England Dr. Egbert Schneider Helmut Heinzelmann Senior Vice President Head of Product Engineering Certification Wear protective gloves Weight Switching On Switching Off Permitted action Prohibited action Accessories/Spare Parts Intended Use The garden product is intended for domestic lawn mowing. Technical Data Lawnmower Article number Rated power input Blade width Height of cut Grassbox, capacity Weight according to EPTA-Procedure 01/2003 Protection class Serial number

Rotak 32 3 600 H85 B..

/II see type plate on the garden product The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary. Please observe the article number on the type plate of your garden product. The trade names of the individual garden products may vary. Bosch Power Tools Mounting and Operation Action Delivery Scope Handle Assembly Snap together the Grassbox Grassbox fitting/removing Adjusting the Cutting Height Connecting the Extension Lead Starting Stopping Working Advice Blade Maintenance Selecting Accessories Figure

F 016 L70 769 | (16.11.12) OBJ_BUCH-1266-003.book Page 10 Friday, November 16, 2012 8:26 AM 10 | English Troubleshooting STOP Problem Motor refuses to start Possible Cause Power turned off Mains socket faulty Extension cable damaged Fuse faulty/blown Possible clogging Motor protector has activated Mowing too low for the conditions Machine functions Extension cable damaged intermittently Internal wiring of garden product damaged Motor protector has activated Garden product leaves ragged Height of cut too low finish Cutting blade blunt and/or Possible clogging Motor labours Blade fitted upside down Blade not rotating while garden Cutting blade obstructed product switched on Blade nut/bolt loose Excessive vibrations/noise Blade nut/bolt loose Cutting blade damaged After-sales Service and Application Service www.bosch-garden.com In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the garden product. Great Britain Robert Bosch Ltd. (B.S.C.) P.O. Box 98 Broadwater Park North Orbital Road Denham Uxbridge UB 9 5HJ Tel. Service: (0844) 7360109 Fax: (0844) 7360146 E-Mail: boschservicecentre@bosch.com F 016 L70 769 | (16.11.12) Corrective Action Turn power on Use another socket Inspect cable, replace if damaged Replace fuse Check underneath the garden product and clear out as necessary (always wear gardening gloves) Allow motor to cool and increase height of cut Increase height of cut Inspect cable, replace if damaged Contact Service Agent Allow motor to cool and increase height of cut Increase height of cut Replace the blade Check underneath the garden product and clear out as necessary (always wear gardening gloves) Refit blade correctly Switch off garden product Clear obstruction (always wear gardening gloves) Tighten blade nut/bolt (17 Nm) Tighten blade nut/bolt (17 Nm) Replace the blade Ireland Origo Ltd. Unit 23 Magna Drive Magna Business Park City West Dublin 24 Tel. Service: (01) 4666700 Fax: (01) 4666888 Australia, New Zealand and Pacific Islands Robert Bosch Australia Pty. Ltd. Power Tools Locked Bag 66 Clayton South VIC 3169 Customer Contact Center Inside Australia: Phone: (01300) 307044 Fax: (01300) 307045 Inside New Zealand: Phone: (0800) 543353 Fax: (0800) 428570 Bosch Power Tools OBJ_BUCH-1266-003.book Page 11 Friday, November 16, 2012 8:26 AM Français | 11 Outside AU and NZ: Phone: +61 3 95415555 www.bosch.com.au Republic of South Africa Customer service Hotline: (011) 6519600 Gauteng – BSC Service Centre 35 Roper Street, New Centre Johannesburg Tel.: (011) 4939375 Fax: (011) 4930126 E-Mail: bsctools@icon.co.za KZN – BSC Service Centre Unit E, Almar Centre 143 Crompton Street Pinetown Tel.: (031) 7012120 Fax: (031) 7012446 E-Mail: bsc.dur@za.bosch.com Western Cape – BSC Service Centre Democracy Way, Prosperity Park Milnerton Tel.: (021) 5512577 Fax: (021) 5513223 E-Mail: bsc@zsd.co.za Bosch Headquarters Midrand, Gauteng Tel.: (011) 6519600 Fax: (011) 6519880 E-Mail: rbsa-hq.pts@za.bosch.com Disposal Do not dispose of garden products into household waste! Only for EC countries: According to the European directive 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national law, electrical and electronic equipment that are no longer usable must be collected separately and disposed of in an environmentally correct manner. Mode d’emploi Subject to change without notice. Bosch Power Tools OBJ_BUCH-1266-003.book Page 12 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 13 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 14 Friday, November 16, 2012 8:26 AM 14 | Français Dossier technique (2006/42/CE) auprès de : Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England Dr. Egbert Schneider Helmut Heinzelmann Senior Vice President Head of Product Engineering Certification Bosch Power Tools OBJ_BUCH-1266-003.book Page 15 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 16 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 17 Friday, November 16, 2012 8:26 AM Español | 17 OBJ_BUCH-1266-003.book Page 18 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 19 Friday, November 16, 2012 8:26 AM Español | 19 Bosch Power Tools F 016 L70 769 | (16.11.12) OBJ_BUCH-1266-003.book Page 20 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 21 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 22 Friday, November 16, 2012 8:26 AM OBJ_DOKU-31406-002.fm Page 23 Friday, November 16, 2012 8:58 AM Português | 23 OBJ_BUCH-1266-003.book Page 24 Friday, November 16, 2012 8:26 AM 24 | Italiano Bosch Power Tools OBJ_BUCH-1266-003.book Page 25 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 26 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 27 Friday, November 16, 2012 8:26 AM Categoria di prodotto: 32 Ente designato: SRL, Sudbury, England, Nr. 1088 Fascicolo tecnico (2006/42/CE) presso: Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England Dr. Egbert Schneider Helmut Heinzelmann Senior Vice President Head of Product Engineering Certification Bosch Power Tools OBJ_BUCH-1266-003.book Page 28 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 29 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 30 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 31 Friday, November 16, 2012 8:26 AM Bosch Power Tools F 016 L70 769 | (16.11.12) OBJ_BUCH-1266-003.book Page 32 Friday, November 16, 2012 8:26 AM 32 | Nederlands Bosch Power Tools OBJ_BUCH-1266-003.book Page 33 Friday, November 16, 2012 8:26 AM Dansk | 33 OBJ_BUCH-1266-003.book Page 34 Friday, November 16, 2012 8:26 AM 34 | Dansk Bosch Power Tools OBJ_BUCH-1266-003.book Page 35 Friday, November 16, 2012 8:26 AM Dansk | 35 Symbol Bosch Power Tools OBJ_BUCH-1266-003.book Page 36 Friday, November 16, 2012 8:26 AM 36 | Dansk Fejlsøgning STOP Bosch Power Tools OBJ_BUCH-1266-003.book Page 37 Friday, November 16, 2012 8:26 AM Svenska | 37 OBJ_BUCH-1266-003.book Page 38 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 39 Friday, November 16, 2012 8:26 AM Svenska | 39 Symbol Betydelse Vikt Bosch Power Tools OBJ_BUCH-1266-003.book Page 40 Friday, November 16, 2012 8:26 AM 40 | Norsk Felsökning STOP Bosch Power Tools OBJ_BUCH-1266-003.book Page 41 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 42 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 43 Friday, November 16, 2012 8:26 AM Angitt instans: SRL, Sudbury, England, Nr. 1088 Tekniske data (2006/42/EF) hos: Bosch Lawn and Garden Ltd., PT-LG/ENS4, Stowmarket, Suffolk IP14 1EY, England Dr. Egbert Schneider Helmut Heinzelmann Senior Vice President Head of Product Engineering Certification Bosch Power Tools OBJ_BUCH-1266-003.book Page 44 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 45 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 46 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 47 Friday, November 16, 2012 8:26 AM Suomi | 47 Dr. Egbert Schneider Senior Vice President Engineering Helmut Heinzelmann Head of Product Certification Bosch Power Tools OBJ_BUCH-1266-003.book Page 48 Friday, November 16, 2012 8:26 AM 48 | Eλληνικά OBJ_BUCH-1266-003.book Page 49 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 50 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 51 Friday, November 16, 2012 8:26 AM Eλληνικά | 51 Dr. Egbert Schneider Senior Vice President Engineering Helmut Heinzelmann Head of Product Certification Bosch Power Tools OBJ_BUCH-1266-003.book Page 52 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 53 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 54 Friday, November 16, 2012 8:26 AM 54 | Türkçe OBJ_BUCH-1266-003.book Page 55 Friday, November 16, 2012 8:26 AM Türkçe | 55 Dr. Egbert Schneider Senior Vice President Engineering Helmut Heinzelmann Head of Product Certification Hata arama STOP Bosch Power Tools OBJ_BUCH-1266-003.book Page 56 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 57 Friday, November 16, 2012 8:26 AM Polski | 57 OBJ_BUCH-1266-003.book Page 58 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 59 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 60 Friday, November 16, 2012 8:26 AM 60 | Polski Bosch Power Tools OBJ_BUCH-1266-003.book Page 61 Friday, November 16, 2012 8:26 AM Česky | 61 Bosch Power Tools OBJ_BUCH-1266-003.book Page 62 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 63 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 64 Friday, November 16, 2012 8:26 AM 64 | Česky Bosch Power Tools OBJ_BUCH-1266-003.book Page 65 Friday, November 16, 2012 8:26 AM Slovensky | 65 Bosch Power Tools OBJ_BUCH-1266-003.book Page 66 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 67 Friday, November 16, 2012 8:26 AM OBJ_DOKU-31406-002.fm Page 68 Friday, November 16, 2012 9:04 AM Dr. Egbert Schneider Senior Vice President Engineering Helmut Heinzelmann Head of Product Certification Bosch Power Tools OBJ_BUCH-1266-003.book Page 69 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 70 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 71 Friday, November 16, 2012 8:26 AM Magyar | 71 Bosch Power Tools OBJ_BUCH-1266-003.book Page 72 Friday, November 16, 2012 8:26 AM 72 | Magyar Bosch Power Tools OBJ_BUCH-1266-003.book Page 73 Friday, November 16, 2012 8:26 AM Bosch Power Tools F 016 L70 769 | (16.11.12) OBJ_BUCH-1266-003.book Page 74 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 75 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 76 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 77 Friday, November 16, 2012 8:26 AM Русский | 77 OBJ_BUCH-1266-003.book Page 78 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 79 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 80 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 81 Friday, November 16, 2012 8:26 AM Українська | 81 Dr. Egbert Schneider Senior Vice President Engineering Helmut Heinzelmann Head of Product Certification Bosch Power Tools OBJ_BUCH-1266-003.book Page 82 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 83 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 84 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 85 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 86 Friday, November 16, 2012 8:26 AM 86 | Română OBJ_BUCH-1266-003.book Page 87 Friday, November 16, 2012 8:26 AM Български | 87 Bosch Power Tools OBJ_BUCH-1266-003.book Page 88 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 89 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 90 Friday, November 16, 2012 8:26 AM 90 | Български Dr. Egbert Schneider Senior Vice President Engineering Helmut Heinzelmann Head of Product Certification OBJ_BUCH-1266-003.book Page 91 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 92 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 93 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 94 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 95 Friday, November 16, 2012 8:26 AM Bosch Power Tools F 016 L70 769 | (16.11.12) OBJ_BUCH-1266-003.book Page 96 Friday, November 16, 2012 8:26 AM 96 | Slovensko OBJ_BUCH-1266-003.book Page 97 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 98 Friday, November 16, 2012 8:26 AM 98 | Slovensko Dr. Egbert Schneider Senior Vice President Engineering Helmut Heinzelmann Head of Product Certification Bosch Power Tools OBJ_BUCH-1266-003.book Page 99 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 100 Friday, November 16, 2012 8:26 AM 100 | Hrvatski OBJ_BUCH-1266-003.book Page 101 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 102 Friday, November 16, 2012 8:26 AM 102 | Hrvatski Dr. Egbert Schneider Senior Vice President Engineering Helmut Heinzelmann Head of Product Certification Bosch Power Tools OBJ_BUCH-1266-003.book Page 103 Friday, November 16, 2012 8:26 AM Bosch Power Tools F 016 L70 769 | (16.11.12) OBJ_BUCH-1266-003.book Page 104 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 105 Friday, November 16, 2012 8:26 AM Bosch Power Tools Sümbol OBJ_BUCH-1266-003.book Page 106 Friday, November 16, 2012 8:26 AM 106 | Eesti Dr. Egbert Schneider Senior Vice President Engineering Helmut Heinzelmann Head of Product Certification Bosch Power Tools OBJ_BUCH-1266-003.book Page 107 Friday, November 16, 2012 8:26 AM Latviešu | 107 Bosch Power Tools OBJ_BUCH-1266-003.book Page 108 Friday, November 16, 2012 8:26 AM OBJ_BUCH-1266-003.book Page 109 Friday, November 16, 2012 8:26 AM Bosch Power Tools Simbols OBJ_BUCH-1266-003.book Page 110 Friday, November 16, 2012 8:26 AM 110 | Latviešu Dr. Egbert Schneider Senior Vice President Engineering Helmut Heinzelmann Head of Product Certification Bosch Power Tools OBJ_BUCH-1266-003.book Page 111 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 112 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 113 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 114 Friday, November 16, 2012 8:26 AM Bosch Power Tools OBJ_BUCH-1266-003.book Page 115 Friday, November 16, 2012 8:26 AM Lietuviškai | 115 Bosch Power Tools OBJ_BUCH-1266-003.book Page 116 Friday, November 16, 2012 8:26 AM 116 |

F 016 L70 769 | (16.11.12) Bosch Power Tools OBJ_BUCH-1266-003.book Page 117 Friday, November 16, 2012 8:26 AM | 117

20 mm 60 mm 40 mm STOP

Bosch Power Tools F 016 L70 769 | (16.11.12) OBJ_BUCH-1266-003.book Page 118 Friday, November 16, 2012 8:26 AM 118 |

STOP Auto-Stop 60 sec Start

STOP F 016 800 299 F 016 L70 769 | (16.11.12) Bosch Power Tools
