| Product type | Oscillating multi-tool |
| Brand | BOSCH |
| Model | PMF180 LI 10.8V |
| Rated voltage | 230 V |
| Rated power input | 180 W |
| Useful power | 73.5 W |
| No-load speed | 15,000 – 21,000 rpm |
| Oscillation angle | 1.4° |
| Weight (according to EPTA) | 1.0 kg |
| Protection class | II (double insulation) |
| Included working tools | Plunge cut saw blade, sanding pad, segment saw blade (optional) |
| Machinable materials | Wood, plastics, plaster, non-ferrous metals, soft wall tiles |
| Sound pressure level | 85 dB(A) |
| Sound intensity level | 96 dB(A) |
| Vibration value (sanding) | a_h = 6.4 m/s², K < 2.0 m/s² |
| Vibration value (plunge cutting) | a_p = 9.9 m/s², K < 1.5 m/s² |
| Vibration value (segment cutting) | a_h = 5.0 m/s², K < 1.5 m/s² |
| Dust extraction | Possible via evacuation nozzle (suction hose optional) |
| Maintenance and cleaning | Disconnect before maintenance; clean ventilation slots regularly |
| Safety | On/Off switch, speed preselection, double insulation |
| Spare parts and repairability | Repair only by Bosch authorized service; original parts mandatory |
Frequently Asked Questions - PMF180 LI 10.8V BOSCH
User questions about PMF180 LI 10.8V BOSCH
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Power tool in PDF format for free! Find your manual PMF180 LI 10.8V - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PMF180 LI 10.8V by BOSCH.
USER MANUAL PMF180 LI 10.8V BOSCH
Operating instructions
Senior Vice President
Engineering
Dr. Eckerhard Strötgen
Head of Product
Certification
General Power Tool SafetyWarnings
WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Machine-specific SafetyWarnings
- When working with the machine, always hold it firmly with both hands and provide for a secure stance. The power tool is guided more secure with both hands.
- Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
Do not work materials containing asbestos. Asbestos is considered carcinogenic.
Take protective measures when dust can develop during working that is harmful to one's health, combustible or explosive. Example: Some dusts are regarded as carcinogenic. Wear a dust mask and work with dust/chip extraction when connectable. - Keep your workplace clean. Blends of materials are particularly dangerous. Dust from light alloys can burn or explode.
- Never use the machine with a damaged cable. Do not touch the damaged cable and pull the mains plug when the cable is damaged while working. Damaged cables increase the risk of an electric shock.
Wear protective gloves when changing cutting tools. Cutting tools become hot after prolonged usage.
Use the machine only for dry sanding. Penetration of water into the machine increases the risk of an electric shock.
- Keep hands away from the sawing range. Do not reach under the workpiece. Contact with the saw blade can lead to injuries.
- Use suitable detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage or may cause an electric shock.
Functional Description
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Intended Use
The power tool is intended for sawing and separating wooden materials, plastic, plaster, non-ferrous metals and fasteners (e.g. nails and clamps) as well as for working on soft wall tiles and for dry grinding of small surfaces. It is especially suitable for working close to edges and for flush cutting. The power tool must be used with Bosch accessories only.
Product Features
The numbering of the product features refers to the illustration of the machine on the graphics page.
1 On/Off switch
2 Thumbwheel for orbit frequency preselection
3 Vacuum connection
4 Vacuum hose*
5 Venting slots
6 Tool holder
7 Plunge saw blade
8 Clamping bolt with washer
9 Allen key
10 Sanding plate
11 Sanding sheet
12 Segment saw blade
*The accessories illustrated or described are not included as standard delivery.
Noise/Vibration Information
Measured values determined according to EN 60745.
Typically the A-weighted noise levels of the product are: Sound pressure level 85 dB(A); Sound power level 96 dB(A). Uncertainty K < 1.5 dB.
Wear hearing protection!
Vibration total values (triax vector sum) determined according to EN 60745:
Sanding: Vibration emission value a_h = 6.4 m/s^2 , Uncertainty K<2.0 m/s²,
Cutting with plunge cut saw blade: Vibration emission value a_b = 9.9 m/s^2 , Uncertainty K < 1.5 m/s^2
Cutting with segmental saw blade: Vibration emission value a_h = 5.0 m/s^2 , Uncertainty K < 1.5 m/s^2 .
WARNING The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another.
The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet. This could lead to a significant underestimate of exposure when the tool is used regularly in such a way.
Note: To be accurate, an estimation of the level of exposure to vibration experienced during a given period of work should also take into account the times when the tool is switched off and when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.
Technical Data
| Multi-function tool | PMF 180 E | |
| Article number | 3 603 A00 0.. | |
| Preselection of orbital stroke rate | ||
| Rated power input | W | 180 |
| Output power | W | 73.5 |
| No-load speed n0 | rpm | 15000-21000 |
| Oscillation angle, left/right | ° | 1.4 |
| Weight according to EPTA-Procedure 01/2003 | kg | 1.0 |
| Protection class | ☐ / II | |
The values given are valid for nominal voltages [U] of 230/240 V. For lower voltage and models for specific countries, these values can vary.
Please observe the article number on the type plate of your machine. The trade names of the individual machines may vary.
Declaration of Conformity
C
We declare under our sole responsibility that this product is in conformity with the following standards or standardization documents: EN 60745 according to the provisions of the directives 89/336/EEC, 98/37/EC.
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Ströttgen
Head of Product Certification
ppa.
i.v. Moju
26.03.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen
Assembly
Changing the Tool
Before any work on the machine itself, pull the mains plug.
- When mounting the saw blade, wear protective gloves. Danger of injury when touching the saw blade.
Selecting the Application Tool/Accessory
| Accessory | Material | Application | |
| BIM segment saw blade | Wooden materials, plastic, non-ferrous metals | Separating and plunge cuts; also for sawing close to edges, in corners and hard to reach areas; Example: shortening already installed bottom rails or door hinges, plunge cuts for adjusting floor panels | |
| HCS plunge cut saw blade, wood | Wooden materials, plastic, gypsum and other soft materials | Separating and deep plunge cuts; also for sawing close to edges, in corners and hard to reach areas; Example: Sawing off water pipes (PVC) or cable ducts flush against walls, floors or ceilings | |
| Base plate for sand-ing, series Delta 93 mm | Depends on sanding sheet | Sanding surfaces close to edges, in corners or hard to reach areas; Depending on the sanding sheet for, e.g., sanding wood, paint, varnish, stone, glass | |
| HCS plunge cut saw blades, wood* | Wooden materials, plastic, gypsum and other soft materials | Smaller separating and plunge cuts; Example: Cut-outs in furniture for cable connections | |
| BIM plunge cut saw blades, metal* | Metal (e.g., nails, screws, small profiles), non-ferrous metals | Smaller separating and plunge cuts; Example: Shortening narrow profiles, cutting fastening elements such as staples | |
| HM-Riff segment saw blade* | Grouting joints, soft wall tiles, glass-fibre reinforces plastic and other abrasive materials | Cutting and separating close to edges, in corners or hard to reach areas; Example: Removing grouting joints between wall tiles for repair work, cutting openings in tiles, gypsum boards or plastic | |
| * Optional accessory; for the complete accessories please see Bosch accessory programme. | |||
Mounting/Replacing the Application Tool/ Accessory
Mount the application tool/accessory (e.g. plunge cut saw blade 7) in such a way on the tool holder 6 that the openings of the tool engage into the cams of the tool holder.
For a safe and fatigue-free working position it is possible to position the application tools/accessories in any snap-in positions on the tool holder. Position the tool in such a way that the depressed centre points downwards (marking on the tool is readable from above, see figure on the graphics page).
Use the screw 8 to fasten the application tool/accessory. Tightly fasten the screw 8 with the allen key 9.
- Check the tight seating of the application tool/accessory. Incorrect or not securely fastened application tools/accessories can come loose during operation and pose a hazard.
For removing the application tool/accessory loosen the screw 8 with the allen key 9 and remove the tool.
Mounting/Replacing a Sanding Sheet on the Sanding Plate
The sanding plate 10 is fitted with Velcro backing for quick and easy fastening of sanding sheets with Velcro adhesion.
Before attaching the sanding sheet 11, free the Velcro backing of the sanding plate 10 from any debris by tapping against it in order to enable optimum adhesion.
Position the sanding sheet 11 flush alongside one edge of the sanding plate 10, then lay the sanding sheet onto the sanding plate and press it against it with a light turning motion in clockwise direction.
To ensure optimum dust extraction, pay attention that the punched holes in the sanding sheet match with the holes in the sanding plate.
To remove the sanding sheet 11, grasp it at one of the tips and pull it off from the sanding plate 10.
You can use all sanding sheets, fleece pads/polishing cloth pads of the Delta 93 mm series of Bosch accessory program.
Sanding accessories, such as fleece pads/polishing cloth pads, are attached to the sanding plate in the same manner.
Selecting the Sanding Sheet
Depending on the material to be worked and the required rate of material removal, different sanding sheets are available:
| Material | Application | Grain size | ||
| RedwoodTop | - All wooden materials (e.g., hardwood, softwood, chip-board, building board) | For coarse-sanding, e.g. of rough, unplanned beams and boards | coarse | 4060 |
| - Metal materials | For face sanding and planing small irregularities | medium | 80100120 | |
| For finish and fine sanding of wood | fine | 180240320400 | ||
| White Paint | - Paint | For sanding off paint | coarse | 4060 |
| - Varnish | ||||
| - Filling compound | For sanding primer (e.g., for removing brush dashes, drops of paint and paint run) | medium | 80100120 | |
| - Filler | ||||
| For final sanding of primers before coating | fine | 180240320 | ||
| Black Stone | - Masonry, stone - Marble - Granite - Glass - Plexiglas - Glass-fibre plastics | For shaping and braking edges | medium | 80 100 120 |
| For final sanding and forming | fine | 180 240 320 400 | ||
| For polish-sanding and rounding off edges | very fine | 600 1200 | ||
Dust/Chip Extraction
For sanding, always connect dust extraction.
Avoid touching or breathing-in dusts that are harmful to one's health or carcinogenic. Always use suitable dust extraction, work in well ventilated areas and wear appropriate protective equipment. When disposing of dusts, pay attention that you or other persons do not come into contact with these dusts. Dusts dangerous to one's health develop, e.g., when sanding lead-containing coatings, chemically treated woods or some metals.
Place a vacuum hose 4 (accessory) onto the vacuum connection 3. Connect the vacuum hose 4 with a vacuum cleaner (accessory). An overview for the connection of various vacuum cleaners can be found at the end of these instructions.
The vacuum cleaner must be suitable for the material being worked.
When vacuuming dry dust that is especially detrimental to health or carcinogenic, use a special vacuum cleaner.
Operation
Starting Operation
Observe correct mains voltage! The voltage of the power source must agree with the voltage specified on the nameplate of the machine. Power tools marked with 230V can also be operated with 220V .
Switching On and Off
To start the machine, push the On/Off switch 1 forward so that the "I" is indicated on the switch.
To switch off the machine, push the On/Off switch 1 toward the rear so that the "0" is indicated on the switch.
Preselecting the Orbital Stroke Rate
With the thumbwheel for preselection of the orbital stroke rate 2, you can preselect the required orbital stroke rate, even during operation.
The required stroke rate depends on the material and the working conditions and can be determined through practical testing.
Operating Instructions
Note: Do not cover off the venting slots 5 of the machine while working, as this reduces the working life of the machine.
While working with HCS tools make sure that the covering of the tools is undamaged.
Operating Principle
Due to the oscillating drive the application tool/accessory swings up to 21000 times per minute for 2.8^ . This allows for precise work in narrow spaces.
Sawing
Use undamaged faultless saw blades only. Deformed, blunt saw blades or saw blades that are otherwise damaged can break.
- When sawing light building materials, observe the statutory provisions and the recommendations of the material suppliers.
- Plunge cuts may only be applied to soft materials, such as wood, gypsum plaster boards, etc.!
Before sawing with HCS saw blades in wood, particle board, building materials, etc., check these for foreign objects such as nails, screws, or similar. If required, remove foreign objects or use BIM saw blades.
Separating
Note: When separating wall tiles take into consideration that the tools wear heavily when used for longer periods of time.
Sanding
The removal rate and the sanding pattern are primarily determined by the choice of sanding sheet, the preset oscillation rate and the applied pressure.
Only flawless sanding sheets achieve good sanding capacity and extend the service life of the machine.
Pay attention to apply uniform sanding pressure; this increases the working life of the sanding sheets.
Intensifying the sanding pressure does not lead to an increase of the sanding capacity, but to increased wear of the machine and the sanding sheet.
For precise on-the-spot sanding of edges, corners and hard to reach areas, it is also possible to work only with the tip or an edge of the sanding plate.
A sanding sheet that has been used for metal should not be used for other materials.
Use only original Bosch sanding accessories.
Maintenance and Service
Maintenance and Cleaning
Before any work on the machine itself, pull the mains plug.
For safe and proper working, always keep the machine and ventilation slots clean.
Clean the HM-Riff segment saw blade (accessory) regularly with a wire brush.

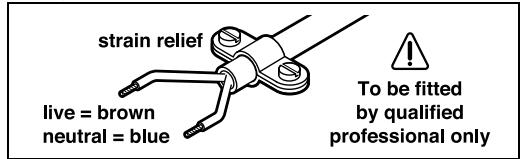

WARNING! Important instructions for connecting a new 3-pin plug to the 2-wire cable.
The wires in the cable are coloured according to the following code:
Do not connect the blue or brown wire to the earth terminal of the plug.
Important: If for any reason the moulded plug is removed from the cable of this power tool, it must be disposed of safely.
If the machine should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for Bosch power tools.
In all correspondence and spare parts order, please always include the 10-digit article number given on the type plate of the machine.
Service and Customer Assistance
Exploded views and information on spare parts can be found under:
www.bosch-pt.com
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O.Box 98
Broadwater Park
North Orbital Road
Denham-Uxbridge
MIDDLEX UB 9 5HJ
Service: +44 (0) 18 95 / 83 87 82
(6) Advice line: +44 (0) 1895 / 838791
Fax: +44 (0) 1895 / 838789
Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
© Service: .+353 (0)1 / 4666700
Fax: +353 (0)1 / 4666888
Australia and New Zealand
Robert Bosch Australia Pty. Ltd.
RBAU/SPT
1555 Centre Road
P.O.Box 66
3168 Clayton/Victoria
+61 (0)1 / 3 00 30 70 44
Fax: +61 (0)1 / 3 00 30 70 45
www.bosch.com.au
Disposal
The machine, accessories and packaging should be sorted for environmental-friendly recycling.
Only for EC countries:
Do not dispose of power tools into household waste!
According the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools
that are no longer usable must be collected separately and disposed of in an environmentally correct manner.
Subject to change without notice.
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen
Head of Product Certification
26.03.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen
Montage
Robert Bosch France S.A.S.
ServiceAprès-vente/Outillage
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen
Head of Product Certification
26.03.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen
Montaje
Cambio de uso
EN 60745 conforme as disponções das directivas 89/336/CEE, 98/37/CE.
Dr. Egbert Schneider
Dr. Eckerhard Strötgen
Senior Vice President
Head of Product
Engineering
Certification
ppa. Maee i.v. Nogcu
26.03.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen
Montagem
Troca de ferramenta
Antes de todoseworkos na ferramenta elec tricadeferapeuxaraficha de rede da tomada.
Senior Vice President
Head of Product
Engineering
Certification
26.03.2007, Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
Montaggio
Senior Vice President Head of Product
Engineering Certification
26.03.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen
Montage
Senior Vice President
Engineering
Dr. Eckerhard Strötgen
Head of Product
Certification
ppa. Maee i.v. Nogcu
26.03.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen
Montering
Værktjsskift
Senior Vice President
Engineering
Dr. Eckerhard Strötgen
Head of Product
Certification
26.03.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen
Montage
Verktygsbyte
Senior Vice President Head of Product
Engineering Certification
26.03.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen
Montering
Verktøyskifte
Det不同程度, including the degree of variation in the number of subjects and the number of patients, are included. The results are presented as mean ± standard deviation (SD).
Arbeidshenvisninger
Senior Vice President
Engineering
Dr. Eckerhard Strötgen
Head of Product
Certification
26.03.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen
Asennus
Tyokalunvaihto
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen
Head of Product Certification
i.v. Mo7gc
26.03.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen
Συναρμολόγηση
AvtikataoTaon eXapntμatoc
ByaTeTOiCAnoTnVPiCiPiiv ano onoi- dHnotEpyaia oTo nAekptipkoEpyaIeio.
ΦopéOTE ppooTATEUTIKA yavTiA yia va ouvapmooynogeTe Tn λaμa. YnApxekivouoc Tpaumoiou av ayyiEte Tn λaμa.
Eniayn epyaalxiou
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen
Head of Product Certification
ppa. Maee i.v. Nogcu
26.03.2007, Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen
Montaj
Uc degistirme
Bosch San. ve Tic. A.S.
Ahi Evran Cad. No:1 Kat:22
Polaris Plaza
80670 Maslak/Istanbul
Müsteri Danismani: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 06 66
Müsteri Servis Hatti: . . . . . . +90 (0)2 12 / 3 35 07 52
