PMF 10.8 LI - Power tool BOSCH - Free user manual and instructions
Find the device manual for free PMF 10.8 LI BOSCH in PDF.
| Product type | Oscillating multi-tool (saw, sander, scraper) |
| Brand | Bosch |
| Model | PMF 10.8 LI |
| Rated voltage | 10.8 V (Li-Ion) |
| No-load speed | 5,000 – 20,000 rpm |
| Oscillation angle | 1.4° (left/right) |
| Weight (with battery) | 0.9 kg (according to EPTA 01/2003) |
| Power source | Li-Ion battery 10.8 V (not included) |
| Sound level | Sound pressure 81 dB(A) / Sound power 92 dB(A) |
| Vibration level (sanding) | 4 m/s² (uncertainty K=1.5 m/s²) |
| Vibration level (plunge cutting) | 20 m/s² (uncertainty K=2.0 m/s²) |
| Vibration level (segment sawing) | 16 m/s² (uncertainty K=2.5 m/s²) |
| Vibration level (scraping) | 6 m/s² (uncertainty K=1.5 m/s²) |
| Tool attachment system | Snap-in tool holder with hexagon socket screw (wrench included) |
| Variable speed control | Preselection wheel (5 positions + Eco-electronics) |
| Battery charge indicator | LED indicator (green/yellow/red) |
| Battery protection | Electronic Cell Protection (ECP) against deep discharge |
| Dust extraction capability | Connection possible via optional dust extraction device |
| Compatible materials | Wood, plastics, non-ferrous metals, soft wall tiles, plaster |
| Main applications | Sawing (plunge and segment), sanding, scraping, cutting |
| Maintenance | Clean ventilation slots regularly; brush Riff tools |
| Repairability | Repair by Bosch authorized service; spare parts available |
| Safety standards | EN 60745; CE declaration conforming to directives 2004/108/EC and 2006/42/EC |
Frequently Asked Questions - PMF 10.8 LI BOSCH
User questions about PMF 10.8 LI BOSCH
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Power tool in PDF format for free! Find your manual PMF 10.8 LI - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PMF 10.8 LI by BOSCH.
USER MANUAL PMF 10.8 LI BOSCH
Power Tools Division
70745 Leinfelden-Echterdingen
Germany
www.bosch-pt.com
2 609 004 157 (2010.05) T / 153 WEU
PMF 10,8 LI
BOSCH


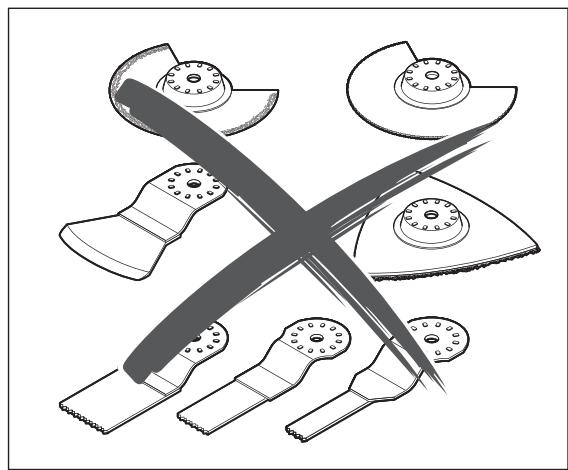

Illustration of crossed saw blades and a flat blade assembly (no text or symbols)Sicherheitshinweise
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
i.v. Mogen
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.03.2010
Montage
Akku laden
General Power Tool Safety Warnings
WARNING
Read all safety warnings and all instructions. Failure to follow
the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
18 | English
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5) Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
6) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Safety Warnings for Multi-function Tools
Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.
▶ Use the machine only for dry sanding. Penetration of water into the machine increases the risk of an electric shock.
▶ Keep hands away from the sawing range. Do not reach under the workpiece. Contact with the saw blade can lead to injuries.
English | 19
▶ Use suitable detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage or may cause an electric shock.
▶ When working with the machine, always hold it firmly with both hands and provide for a secure stance. The power tool is guided more secure with both hands.
- Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
▶ Keep your workplace clean. Blends of materials are particularly dangerous. Dust from light alloys can burn or explode.
▶ Do not open the battery. Danger of short-circuiting.
Protect the battery against heat, e.g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.
In case of damage and improper use of the battery, vapours may be emitted. Provide for fresh air and seek medical help in case of complaints. The vapours can irritate the respiratory system.
▶ Use the battery only in conjunction with your Bosch power tool. This measure alone protects the battery against dangerous overload.
▶ Use only original Bosch batteries with the voltage listed on the nameplate of your power tool. When using other batteries, e.g. imitations, reconditioned batteries or other brands, there is danger of injury as well as property damage through exploding batteries.
▶ Wear protective gloves when changing application tools/accessories. Application tools/accessories become hot after prolonged usage.
▶ Do not scrape wetted materials (e.g. wallpaper) or on moist surfaces. Penetration of water into the machine increases the risk of an electric shock.
▶ Do not treat the surface to be worked with solvent-containing fluids. Materials being warmed up by the scraping can cause toxic vapours to develop.
▶ Exercise extreme caution when handling the scraper. The accessory is very sharp; danger of injury.
Functional Description
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Intended Use
The machine is intended for sawing and cutting wooden materials, plastic, gypsum, non-ferrous metals and fastening elements (e.g., unhardened nails, staples). It is also suitable for working soft wall tiles, as well as for dry sanding and scraping of small surfaces. It is especially suitable for working close to edges and for flush cutting. Operate the power tool exclusively with Bosch accessories.
Product Features
The numbering of the product features refers to the illustration of the machine on the graphics page.
1 Battery unlocking button
2 Battery*
3 Thumbwheel for orbit frequency preselection
4 Battery charge-control indicator
5 On/Off switch
6 Venting slots
7 Tool holder
8 Handle (insulated gripping surface)
9 Plunge saw blade*
10 Clamping bolt with washer
11 Allen key
12 Sanding plate*
13 Sanding sheet*
20 | English
14 Segment saw blade*
15 Felt ring of the dust extraction*
16 Retaining clip of the dust extraction*
17 Vacuum connection*
18 Dust extraction*
19 Vacuum hose*
*Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.
Technical Data
| Multi-function tool | PMF 10,8 LI | |
| Article number | 3 603 A01 9.. | |
| Preselection of orbital stroke rate | ● | |
| Rated voltage | V= | 10.8 |
| No-load speed n0 | min-1 | 5000–20000 |
| Oscillation angle,left/right | ° | 1.4 |
| Weight according to EPTA-Procedure | ||
| 01/2003 | kg | 0.9 |
| Please observe the article number on the type plate of your machine. The trade names of the individual machines may vary. | ||
Noise/Vibration Information
Measured sound values determined according to EN 60745.
Typically the A-weighted noise levels of the product are: Sound pressure level 81 dB(A); Sound power level 92 dB(A). Uncertainty K = 1.8 dB.
Wear hearing protection!
Vibration total values (triax vector sum) determined according to EN 60745:
Sanding: Vibration emission value a_h=4 m/s^2 , uncertainty K=1.5 m/s^2
Cutting with plunge cut saw blade: Vibration emission value a_h=20 m/s^2 , uncertainty K=2.0 m/s^2
Cutting with segmential saw blade: Vibration emission value a_h=16 m/s^2 , uncertainty K=2.5 m/s^2
Scraping: Vibration emission value a_h=6 m/s^2 , uncertainty K=1.5 m/s^2 .
The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.
The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.
An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.
Declaration of Conformity CE
We declare under our sole responsibility that the product described under “Technical Data” is in conformity with the following standards or standardization documents: EN 60745 according to the provisions of the directives 2004/108/EC, 2006/42/EC.
Technical file at:
Robert Bosch GmbH, PT/ESC,
D-70745 Leinfelden-Echterdingen
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
i.v. Mogen
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.03.2010
English | 21
Assembly
Battery Charging
▶ Use only the battery chargers listed on the accessories page. Only these battery chargers are matched to the lithium ion battery of your power tool.
Note: The battery is supplied partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time.
The lithium ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.
The battery is equipped with a NTC temperature control which allows charging only within a temperature range of between 0 °C and 45 °C. A long battery service life is achieved in this manner.
Removing the Battery
To remove the battery 2, press the unlocking buttons 1 and pull the battery out of the machine to the rear. Do not exert any force.
Battery Charge-control Indication
When the power tool is switched on, the battery charge-control indicator 4 signals the still available battery capacity or an overload.
| Indication | Capacity |
| Continuous lighting, green | >70 % |
| Continuous lighting, yellow | 30–70 % |
| Continuous lighting, red | <30 % |
When the battery charge-control indicator 4 flashes red, the machine is subject to overload. Please observe the information in section “Temperature-dependent Overload Protection”, page 25.
Changing the Tool
▶ Before any work on the machine itself (e.g. maintenance, tool change, etc.) as well as during transport and storage, remove the battery from the power tool. There is danger of injury when unintentionally actuating the On/Off switch.
▶ Wear protective gloves when changing application tools/accessories. Contact with the application tool/accessory can lead to injuries.
Selecting the Application Tool/Accessory
The following table shows examples for application tools. Further application tools can be found in the extensive Bosch accessories program.
| Accessory | Material | Application | |
 | BIM segment saw blade | Wooden materials, plastic, non-ferrous metals | Separating and plunge cuts; also for sawing close to edges, in corners and hard to reach areas;Example: shortening already installed bottom rails or door hinges, plunge cuts for adjusting floor panels |
 | Base plate for sanding, series Delta 93 mm | Depends on sanding sheet | Sanding surfaces close to edges, in corners or hard to reach areas;Depending on the sanding sheet for, e.g., sanding wood, paint, varnish, stone |
 | HCS plunge cut saw blade, wood | Wooden materials, soft plastics | Separating and deep plunge cuts; also for sawing close to edges, in corners and hard to reach areas;Example: narrow plunge cut in solid wood for installing a ventilation grid |
22 | English
| Accessory | Material | Application | |
 | HCS plunge cut saw blades, wood | Wooden materials, soft plastics | Smaller separating and plunge cuts;Example: Cut-outs in furniture for cable connections |
 | BIM plunge cut saw blades, metal | Metal (e.g. unhardened nails, screws, smaller profiles), non-ferrous metals | Smaller separating and plunge cuts;Example: Shortening narrow profiles, cutting fastening elements such as staples |
 | HM-Riff segment saw blade | Grouting joints, soft wall tiles, glass-fibre reinforces plastic and other abrasive materials | Cutting and separating close to edges, in corners or hard to reach areas;Example: Removing grouting joints between wall tiles for repair work, cutting openings in tiles, gypsum boards or plastic |
 | HM-Riff delta plate | Mortar, concrete remainders, wood, abrasive materials | Rasping and sanding on hard surfaces;Example: Removing mortar or tile adhesive (e.g. when replacing damaged tiles) |
 | Scraper, rigid | Carpets, coverings | Scraping on hard surfaces;Example: Removing carpet and tile adhesive |
Mounting/Replacing the Application Tool/Accessory
If required, remove an already mounted application tool/accessory.
For removing the application tool/accessory loosen the screw 10 with the allen key 11 and remove the tool.
Mount the application tool/accessory (e.g. plunge cut saw blade 9) in such a way on the tool holder 7 that the openings of the tool engage into the cams of the tool holder.
For a safe and fatigue-free working position it is possible to position the application tools/accessories in any snap-in positions on the tool holder. Position the tool in such a way that the depressed centre points downwards (marking on the tool is readable from above, see figure on the graphics page).
Use the screw 10 to fasten the application tool/accessory. Tightly fasten the screw 10 with the allen key 11.
▶ Check the tight seating of the application tool/accessory. Incorrect or not securely fastened application tools/accessories can come loose during operation and pose a hazard.
Mounting/Replacing a Sanding Sheet on the Sanding Plate
The sanding plate 12 is fitted with Velcro backing for quick and easy fastening of sanding sheets with Velcro adhesion.
Before attaching the sanding sheet 13, free the Velcro backing of the sanding plate 12 from any debris by tapping against it in order to enable optimum adhesion.
Position the sanding sheet 13 flush alongside one edge of the sanding plate 12, then lay the sanding sheet onto the sanding plate and press firmly.
To ensure optimum dust extraction, pay attention that the punched holes in the sanding sheet match with the holes in the sanding plate.
To remove the sanding sheet 13, grasp it at one of the tips and pull it off from the sanding plate 12.
You can use all sanding sheets, fleece pads/polishing cloth pads of the Delta 93 mm series of Bosch accessory program.
Sanding accessories, such as fleece pads/polishing cloth pads, are attached to the sanding plate in the same manner.
English | 23
Selecting the Sanding Sheet
Depending on the material to be worked and the required rate of material removal, different sanding sheets are available:
| Sanding disc | Material | Application | Grain size | |
 Red quality | - All wooden materials (e.g., hardwood, softwood, chipboard, building board)- Metal materials | For coarse-sanding, e.g. of rough, un-planned beams and boards | coarse | 4060 |
| For face sanding and planing small irregularities | medium | 80100120 | ||
| For finish and fine sanding of wood | fine | 180240320400 | ||
 White quality | - Paint- Varnish- Filling compound- Filler | For sanding off paint | coarse | 4060 |
| For sanding primer (e.g., for removing brush dashes, drops of paint and paint run) | medium | 80100120 | ||
| For final sanding of primers before coating | fine | 180240320 | ||
Dust/Chip Extraction
Dusts from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one's health. Touching or breathing-in the dusts can cause allergic reactions and/or lead to respiratory infections of the user or bystanders.
Certain dusts, such as oak or beech dust, are considered as carcinogenic, especially in connection with wood-treatment additives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists.
- Use dust extraction whenever possible.
- Provide for good ventilation of the working place.
- It is recommended to wear a P2 filter-class respirator.
Observe the relevant regulations in your country for the materials to be worked.
Connecting the Dust Extraction (see figure A)
Remove the application tool/accessory when mounting the dust extraction 18 (accessory). If required, assemble the parts of the dust extraction 18 as shown in the figure. Position the assembled dust extraction onto the machine via the tool holder 7. Turn the dust extraction in such a manner that the cams of the dust extraction engage into the corresponding recesses on the housing. Fasten the dust extraction to the machine with the retaining clip 16 as shown in the figure.
Pay attention that the felt ring 15 is undamaged and faces tightly against the sanding plate 12.
Replace a damage felt ring immediately.
Place a vacuum hose 19 (accessory) onto the vacuum connection 17. Connect the vacuum hose 19 with a vacuum cleaner (accessory). An overview for the connection of various vacuum cleaners can be found at the end of these instructions.
The vacuum cleaner must be suitable for the material being worked.
When vacuuming dry dust that is especially detrimental to health or carcinogenic, use a special vacuum cleaner.
24 | English
Operation
Starting Operation
Inserting the Battery
▶ Use only original Bosch lithium ion batteries with the voltage listed on the nameplate of your power tool. Using other batteries can lead to injuries and pose a fire hazard.
Note: Use of batteries not suitable for the machine can lead to malfunctions of or cause damage to the power tool.
Insert the charged battery 2 into the handle until it can be felt to engage and faces flush against the handle.
Switching On and Off
To switch on the power tool, push the On/Off switch 5 toward the front in the direction of the "1" on the switch.
To switch off the power tool, push the On/Off switch 5 toward the rear in the direction of the "0" on the switch.
The lithium ion battery is protected against deep discharging by the “Electronic Cell Protection (ECP)”. When the battery is empty, the machine is switched off by means of a protective circuit: The inserted tool no longer rotates.
Note: If the machine should automatically switch off because of a discharged or overheated battery, make sure to set the machine's On/Off switch 5 to off. Charge the battery and allow it to cool down before restarting the machine. Otherwise the battery can become damaged.
Preselecting the Orbital Stroke Rate
With the thumbwheel for preselection of the orbital stroke rate 3, you can preselect the required orbital stroke rate, even during operation.
The required stroke rate depends on the material and the working conditions and can be determined through practical testing.
When sawing and cutting harder materials, e.g., wood or metal, it is recommended to work with orbital stroke rate “5” or “E”; for softer materials, such as plastic, orbital stroke rate “4” is recommended.
When sanding harder materials, e.g., wood or metal, it is recommended to work with orbital stroke rate “5”; for softer materials, such as soft-wood, orbital stroke rate “4” is recommended.
The Eco electronics are active at the maximum orbital stroke rate “E”: When the application tool is not subject to load, the orbital stroke rate is automatically reduced (after approx. 1 s). The reduction extends the battery operating duration per charge, and the reduced vibrations enable precise applying of the application tool onto the workpiece. As soon as load is applied to the application tool again, the machine automatically accelerates to the maximum orbital stroke rate.
The Eco electronics, however, are not suitable for sanding activities. Instead, orbital stroke rate “5”, which has the same oscillation rate as setting “E” yet without the Eco electronics, is suitable for sanding.
Working Advice
Note: Do not cover off the venting slots 6 of the machine while working, as this reduces the working life of the machine.
While working with HCS tools make sure that the covering of the tools is undamaged.
Operating Principle
Due to the oscillating drive the application tool/accessory swings up to 20000 times per minute for 2.8^ . This allows for precise work in narrow spaces.
Work with low and uniform application pressure, otherwise, the working performance will decline and the application tool can become blocked.
While working, move the machine back and forth, so that the application tool does not heat up excessively and become blocked.
Sawing
▶ Use undamaged faultless saw blades only. Deformed, blunt saw blades or saw blades that are otherwise damaged can break.
▶ When sawing light building materials, observe the statutory provisions and the recommendations of the material suppliers.
▶ Plunge cuts may only be applied to soft materials, such as wood, gypsum plaster boards, etc.!
Before sawing with HCS saw blades in wood, particle board, building materials, etc., check these for foreign objects such as nails, screws, or similar. If required, remove foreign objects or use BIM saw blades.
Separating
Note: When separating wall tiles take into consideration that the application tools/accessories wear heavily when used for longer periods of time.
Sanding
The removal rate and the sanding pattern are primarily determined by the choice of sanding sheet, the preset oscillation rate and the applied pressure.
Only flawless sanding sheets achieve good sanding capacity and extend the service life of the machine.
Pay attention to apply uniform sanding pressure; this increases the working life of the sanding sheets.
Intensifying the sanding pressure does not lead to an increase of the sanding capacity, but to increased wear of the machine and the sanding sheet.
For precise on-the-spot sanding of edges, corners and hard to reach areas, it is also possible to work only with the tip or an edge of the sanding plate.
When selectively sanding on the spot, the sanding sheet can heat up considerably. Reduce the orbital stroke rate and allow the sanding sheet to cool down regularly.
A sanding sheet that has been used for metal should not be used for other materials.
Use only original Bosch sanding accessories.
To reduce the dust exposure and achieve better working results when sanding, use dust extraction as far as possible.
Scraping
For scraping, select a high oscillation rate.
Work on a soft surface (e.g. wood) at a flat ange, and apply only light pressure. Otherwise the scraper can cut into the surface.
Temperature-dependent Overload Protection
When using the machine as intended for, it cannot be subject to overload. In case of excessive load or when not within the permitted battery temperature range of -20 ^ to +65 ^ , the machine switches off. In case of overload, the battery charge-control indicator 4 will additionally flash red for a few seconds.
After an automatic shut-off, switch the machine off. Wait until the battery temperature is within the allowable range before switching the machine on again.
Recommendations for Optimal Handling of the Battery
Protect the battery against moisture and water.
Store the battery only within a temperature range between 0 °C and 45 °C. As an example, do not leave the battery in the car in summer.
A significantly reduced working period after charging indicates that the battery is used and must be replaced.
Observe the notes for disposal.
26 | English
Maintenance and Service
Maintenance and Cleaning
▶ Before any work on the machine itself (e.g. maintenance, tool change, etc.) as well as during transport and storage, remove the battery from the power tool. There is danger of injury when unintentionally actuating the On/Off switch.
▶ For safe and proper working, always keep the machine and ventilation slots clean.
Clean Riff application tools (accessory) regularly with a wire brush.
If the machine should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for Bosch power tools.
In all correspondence and spare parts order, please always include the 10-digit article number given on the type plate of the machine.
After-sales Service and Customer Assistance
Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:
www.bosch-pt.com
Our customer service representatives can answer your questions concerning possible applications and adjustment of products and accessories.
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
Tel. Service: +44 (0844) 736 0109
Fax: +44 (0844) 736 0146
E-Mail: boschservicecentre@bosch.com
Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: +353 (01) 4 66 67 00
Fax: +353 (01) 4 66 68 88
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: +61 (01300) 307 044
Fax: +61 (01300) 307 045
Inside New Zealand:
Phone: +64 (0800) 543 353
Fax: +64 (0800) 428 570
Outside AU and NZ:
Phone: +61 (03) 9541 5555
www.bosch.com.au
Republic of South Africa
Customer service
Hotline: +27 (011) 6 51 96 00
Gauteng - BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: +27 (011) 4 93 93 75
Fax: +27 (011) 4 93 01 26
E-Mail: bsctools@icon.co.za
KZN - BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
Tel.: +27 (031) 7 01 21 20
Fax: +27 (031) 7 01 24 46
E-Mail: bsc.dur@za.bosch.com
Western Cape - BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: +27 (021) 5 51 25 77
Fax: +27 (021) 5 51 32 23
E-Mail: bsc@zsd.co.za
Bosch Headquarters
Midrand, Gauteng
Tel.: +27 (011) 6 51 96 00
Fax: +27 (011) 6 51 98 80
E-Mail: rbsa-hq.pts@za.bosch.com
Transport
Dispatch batteries only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging.
When dispatching lithium-ion batteries, compulsory labeling may be required. Please observe the respective national regulations.
Disposal
The machine, accessories and packaging should be sorted for environmental-friendly recycling.
Only for EC countries:
Do not dispose of power tools into household waste!
According to the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national
right, power tools that are no longer usable must be collected separately and disposed of in an environmentally correct manner.
Battery packs/batteries:
Li-ion:
Please observe the instructions in section "Transport", page 27.
Do not dispose of battery packs/batteries into household waste, fire or water. Battery packs/batteries should, if possible, be discharged, collected, recycled or disposed of in an environmental-friendly manner.
Only for EC countries:
Defective or dead out battery packs/batteries must be recycled according the guideline 2006/66/EC.
Batteries no longer suitable for use can be directly returned at:
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
Tel. Service: +44 (0844) 736 0109
Fax: +44 (0844) 736 0146
E-Mail: boschservicecentre@bosch.com
Subject to change without notice.
Français
Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification
ppa. A##ca i.v. Nu#gen
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.03.2010
Montage
Charger l'accu
Robert Bosch (France) S.A.S.
Senior Vice President
Engineering
Dr. Eckerhard Strötgen
Head of Product
Certification
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
52 | Português
Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification
ppa. Macaca i.v. Nuoyen
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.03.2010
Montagem
Senior Vice President
Engineering
Dr. Eckerhard Strötgen
Head of Product
Certification
i.v. Mogen
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
Senior Vice President
Engineering
Dr. Eckerhard Strötgen
Head of Product
Certification
ppa. Macaca i.v. Nuoyen
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
Senior Vice President
Engineering
Dr. Eckerhard Strötgen
Head of Product
Certification
i.v. Mogen
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
Bosch Service Center
Telegrafvej 3
2750 Ballerup
Tel. Service Center: +45 (4489) 8855
Fax: +45 (4489) 87 55
E-Mail: vaerktoej@dk.bosch.com
Transport
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.03.2010
Montage
Batteriets laddning
Bosch Service Center
Telegrafvej 3
2750 Ballerup
Danmark
Tel.: +46 (020) 41 44 55
Fax: +46 (011) 18 76 91
Transport
Senior Vice President
Engineering
Dr. Eckerhard Strötgen
Head of Product
Certification
i.v. Morgen
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
Dr. Egbert Schneider Dr. Eckerhard Strötgen Senior Vice President Head of Product Engineering Certification
ppa. Macala i.v. Nuoyen
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.03.2010
Asennus
Akun lataus
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
i.v. Morgen
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen Leinfelden, 31.03.2010
Montaj
Akünün şarji
Bosch San. ve Tic. A.S.
Ahi Evran Cad. No:1 Kat:22
Polaris Plaza
80670 Maslak/Istanbul
∅ 19 mm:
2 600 793 009 (3 m)
1 610 793 002 (5 m)
2 607 000 748
PAS 11-21
PAS 11-27
PAS 11-27 F
- Robert Bosch GmbH
- PMF 10,8 LI
- BOSCH
- Sicherheitshinweise
- Montage
- Akku laden
- General Power Tool Safety Warnings
- WARNING
- Save all warnings and instructions for future reference.
- 1) Work area safety
- 2) Electrical safety
- 3) Personal safety
- | English
- 4) Power tool use and care
- 5) Battery tool use and care
- 6) Service
- Safety Warnings for Multi-function Tools
- Functional Description
- Intended Use
- Product Features
- | English
- Noise/Vibration Information
- Wear hearing protection!
- Declaration of Conformity CE
- Assembly
- Battery Charging
- Removing the Battery
- Battery Charge-control Indication
- Changing the Tool
- Selecting the Application Tool/Accessory
- | English
- Mounting/Replacing the Application Tool/Accessory
- Mounting/Replacing a Sanding Sheet on the Sanding Plate
- Selecting the Sanding Sheet
- Dust/Chip Extraction
- Connecting the Dust Extraction (see figure A)
- | English
- Operation
- Starting Operation
- Inserting the Battery
- Switching On and Off
- Preselecting the Orbital Stroke Rate
- Working Advice
- Operating Principle
- Sawing
- Separating
- Sanding
- Scraping
- Temperature-dependent Overload Protection
- Recommendations for Optimal Handling of the Battery
- Maintenance and Service
- Maintenance and Cleaning
- After-sales Service and Customer Assistance
- www.bosch-pt.com
- Great Britain
- Ireland
- Australia, New Zealand and Pacific Islands
- Republic of South Africa
- Customer service
- Gauteng - BSC Service Centre
- KZN - BSC Service Centre
- Western Cape - BSC Service Centre
- Bosch Headquarters
- Transport
- Disposal
- Only for EC countries:
- Battery packs/batteries:
- Li-ion:
- Charger l'accu
- | Português
- Montagem
- Batteriets laddning
- Asennus
- Akun lataus
- Montaj
- Akünün şarji
Brand : BOSCH
Model : PMF 10.8 LI
Category : Power tool
