Product Type	Mini Chopper
Brand	VOX
Model	MC-9005
Voltage / Frequency	AC220-240V 50/60Hz
Power Consumption	400W
Bowl Capacity	1.5 L
Number of Speeds	2
Speed I (Soft Food)	Vegetables, soft fruits
Speed II (Hard Food)	Meat, carrots, nuts
Bowl Material	Glass
Blade Material	Stainless steel
Blade Type	S-shaped main and side blades
Non-Slip Base	Detachable anti-slip mat
Accessories Included	Spatula
Safety Features	Motor overheat protection, safety lock mechanism
Maximum Continuous Operation	30 seconds
Cooling Time Between Uses	2 minutes
Cleaning Method	Hand wash removable parts; wipe motor unit with damp cloth
Dishwasher Safe	No
Assembly Required	Yes

Frequently Asked Questions - MC9005 VOX

How do I assemble the VOX MC9005 mini chopper?

Place the bowl on the anti-slip mat. Insert the main and side blade units onto the spindle. Add food, then cover the lid. Place the motor unit on top, aligning the blade unit handle with the middle hole. Plug in and press the switch.

Why doesn't my chopper start?

Ensure the lid is properly closed. The appliance has a safety lock; lay it flat and press the switch firmly. Also check that the plug is connected and the voltage is correct.

What should I do if the motor stops during operation?

This may be due to motor temperature protection. Turn off the switch, unplug, and let it cool for 20-30 minutes before restarting. Also check if the voltage is too low.

How long can I run the chopper continuously?

Do not run the appliance for more than 30 seconds continuously. After 30 seconds, let it cool for at least 2 minutes before using again.

What types of food can I chop?

Use Speed I for soft foods like vegetables. Use Speed II for hard foods like meat and carrots. Cut food into small pieces (1-2 cm). Do not process frozen meat, soybeans, rice, or dry hard foods.

How do I clean the mini chopper?

Unplug before cleaning. Wash removable parts (lid, blades, bowl, anti-slip mat) in warm soapy water, rinse, and air dry. Wipe the motor unit with a clean damp cloth. Do not immerse the motor unit in water or use a dishwasher.

Can I wash the motor unit in water?

No, never immerse the motor unit in water or any liquid. Only wipe it with a damp cloth to avoid electric shock.

What does the safety lock do?

The safety lock ensures the appliance only operates when properly assembled and placed flat. It prevents accidental activation if the parts are not correctly aligned.

What if the blade gets stuck during operation?

Turn off the switch, unplug the device, remove the food, and cut it into smaller pieces before processing again.

Is the chopper bowl dishwasher safe?

No, do not put any part of the appliance in a dishwasher. Hand wash only to avoid damage.

USER MANUAL MC9005 VOX

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

MC-9005

OPERATING INSTRUCTIONS MINI CHOPPER MANUALE DELL'UTENTE MINI TRITATUTTO BEDIENUNGSANLEITUNG MINI ZERKLEINERER ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ

МИНИ-ЧОППЕР

UPUTSTVO ZA UPOTREBU MINI ČOPER MANUAL DE USUARIO MINI PICADORA MANUAL DO USUÁRIO MINI PICADORA ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΤΗ MINI ΚΟΠΤΗΡΙΟ NAVODILA ZA UPORABO MINI SEKLJALNIK UPUTE ZA UPORABU MINI SJECKALICA UPUTSTVO ZA UPOTREBU MINI ČOPER ΥΠΑΤСТВА ЗА РАКУВАЊЕ МИНИ СЕЦКАЛКА MANUALI I PERDORUESIT MINI GRIRЁSE

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GBR

INSTRUCTION MANUAL

MINI CHOPPER

MC-9005

CONTENTS

•TECHNICAL SPECIFICATIONS ----2
- KNOW YOUR MINI CHOPPER----2
•HOW TO USE 4
- IMPORTANT SAFETY INSTRUCTIONS----8
- CLEANING AND MAINTENANCE 8
- WARNING 8
- COMMON PROBLEM ANALYSIS 9

• TECHNICAL SPECIFICATIONS

Model:	MC-9005
Voltage/Frequency: AC220-240V 50/60Hz
Power rating: 400W
Capacity 1.5 L
Speed 2 Speeds

- KNOW YOUR MINI CHOPPER

1. I level Button
2. II level Button
3. Power code
4. Motor unit
5. Lid
6. Seal ring
7. Side blade unit
8. Main blade unit
9. Spindle
10. SS gasket
11. Shaft Seal ring
12. Bowl
13. SS gasket
14. SS Screw
15. Non Slip mat
16. Spatula

Item Part Function

1 I level Button To control on/off, to chop soft food like vegetable

2 Illevel Button To control on/off, to chop hard food like meat and carrot

3 Motor unit Main unit, power source of appliance

4 Lid Safety protections during operation

5 Side blade unit Making food (vegetable, fruit, meat) mashed and stuffing after assembling with main blade unit, bowl and lid.

6 Main blade unit Making food (vegetable, fruit, meat) mashed and stuffing after assembling with side blade unit, bowl and lid.

7 Bowl Serving food

8 Non Slip mat Anti-slip, need to assemble on the product during operation, can be detached for cleaning

9 Spatula Take out the food

The advantage of your mini chopper

1) S blade design makes perfect chopper effect.
2) Micro switch can control the chopper level easily.
3) Motor overheat protection, good for safe use.
4) Glass chopper bowl, healthy and easy cleaning.
5) Detachable parts, easy cleaning.
6) Change-speed gear box, smooth running, low noise and strong chopping
7) With Spatula and easy taking the food out.

- HOW TO USE

Before use, please clean all parts which will touch the food.

1. Take out the mini chopper and accessories, use the food cleanser and water to clean the lid, main/side blade units, chopper bowl. Use wet cloth to clean the motor unit.

2. Put the anti-slip mat to the flat surface, then assemble the chopper bowl on it. Avoid knocking it by other things and keep it away from children.

3. Assembling

a) Put the chopper bowl on the non-slip mat. (Fig 1)

Line drawing of a two-part bucket with a lid, shown before and after transformation (no text or symbols)

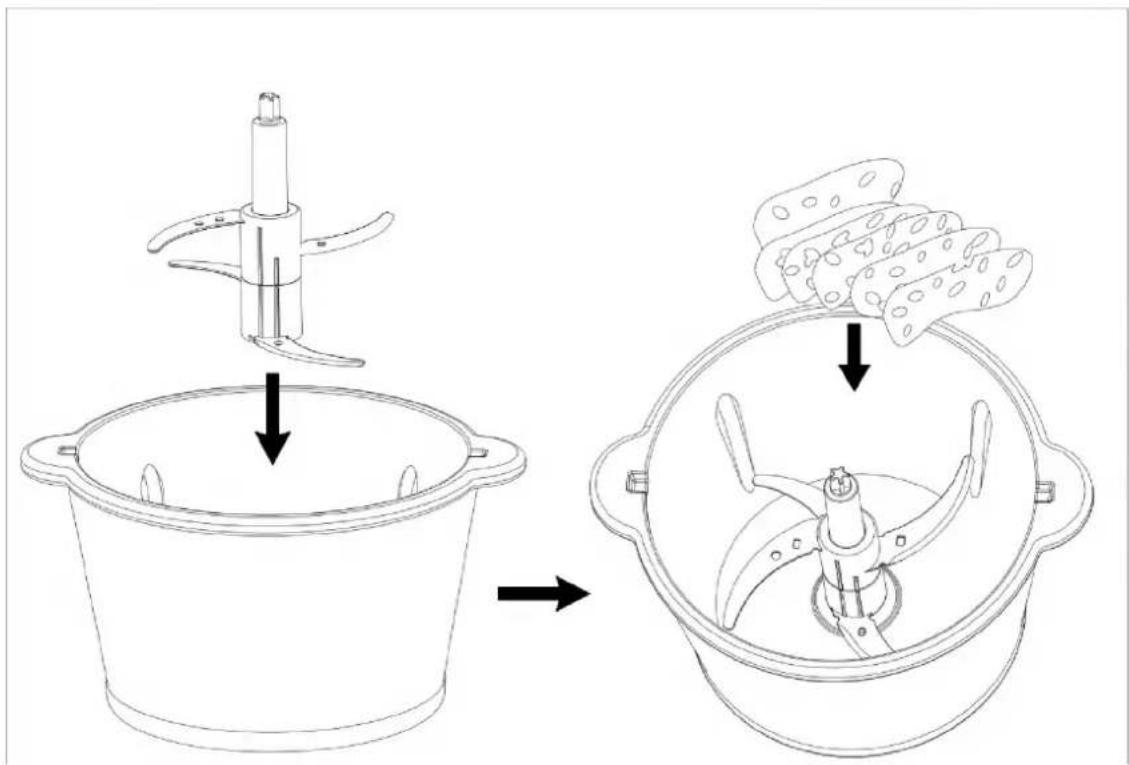

b) Fi x the main/side blade unit into the blow shaft, then put the food. (Fig 2)

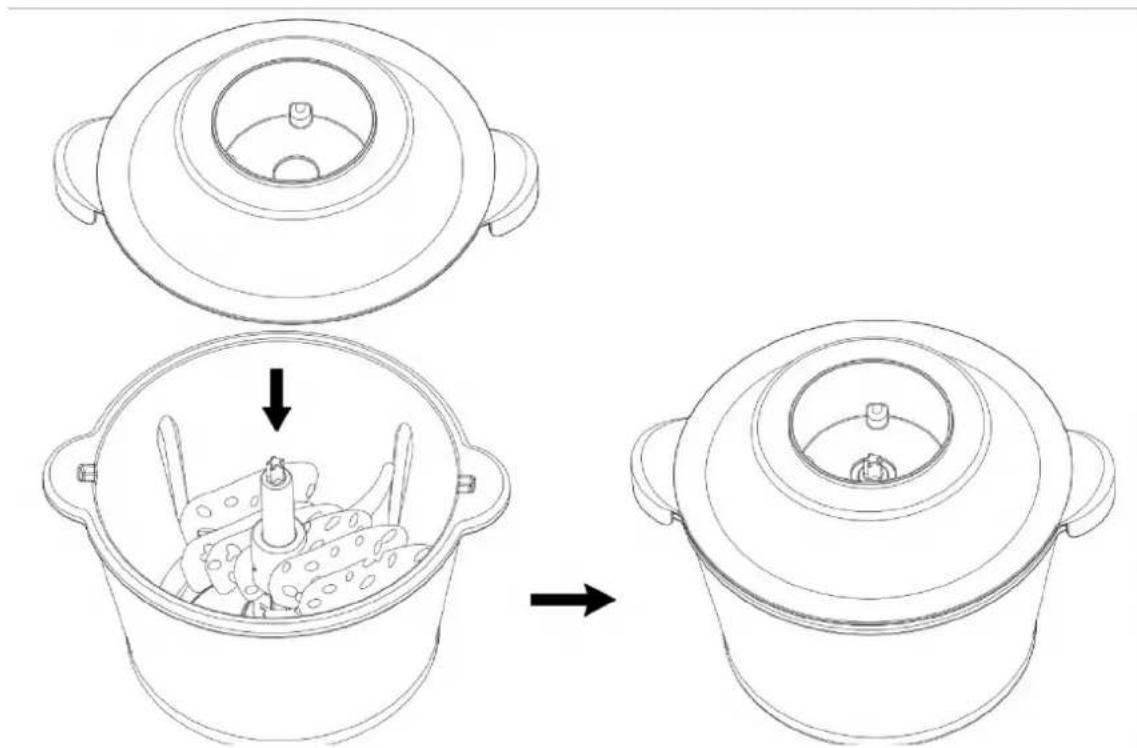

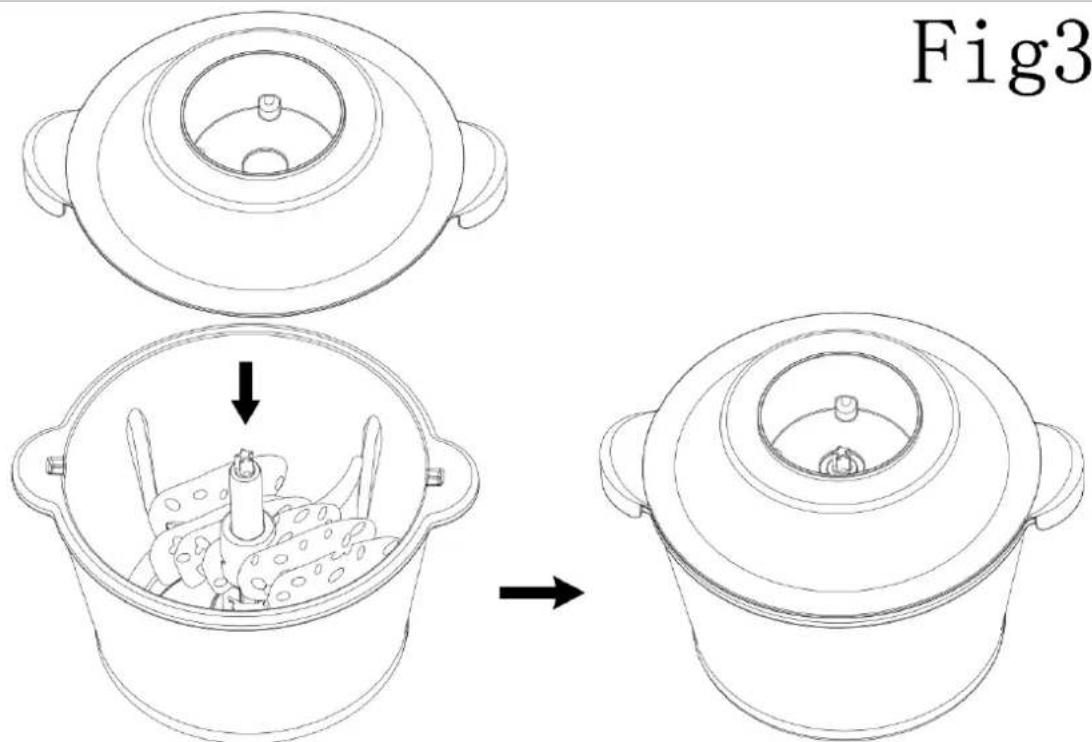

c) After putting the food, cover the lid as Fig 3.

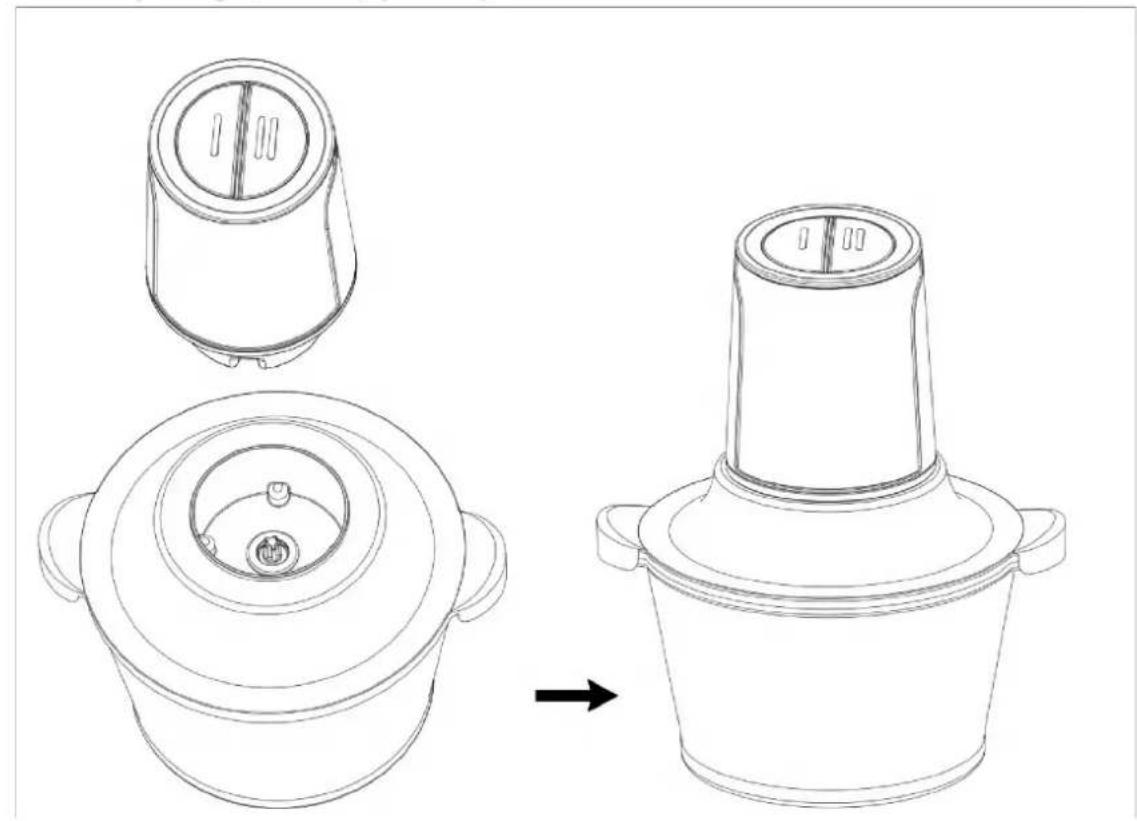

d) Put the motor unit on the chopper lid, the blade unit handle is aligning with the middle hole of the main unit.(Fig 4)

Technical line drawing of a cooking pot with three views (top, front, side) showing internal components and a final view (no text or symbols)

e) After assembling the appliance well, plug in the power code and press the switch, the appliance will start working. With your finger off the switch, the appliance will stop running.
f) How to assemble/disassemble the main/side blade unit.
Assemble method: Put the side blade unit to the main blade unit (Fig 1 and Fig 2), and screw the side blade unit anticlockwise(Fig 3), then take off the blade protective sleeve

Disassemble method: Take out the side blade unit by clockwise from the main blade unit.

Fig1↓Front viewside blade status	Fig2Front viewside blade status	Fig3screw sidebladeanticlockwise	Fig4take off the blade sleeve
Platform	Platform	Platform

Remark

1. There are 2 anti –slip lines on the main/side blade unit. If the 2 lines didn't align well it means the main/side blade unit is not well assembled.

2. If you didn't assemble the side blade well before using, the side blade unit may lose and touch the bowl or lid and hurt the human. Please use it correctly.

3. There is a safety lock on the main unit. During operation, please lay the appliance flat and press the button strongly to start operating, otherwise the appliance cannot be activated.

4. Meat food making method: can choose only single layer or double layers blades for your mini chopper. Install the blade into chopping bowl, remove the muscle, bone, skin of the meat food before processing, cut the food into 1-2 cm size and put into the bowl. The processing food cannot exceed the maximum limit of the scale line of corresponding meat food.

Fruits and vegetables making method: choose double layers blade, install the main or side blade into bowl, cut the food into strips wide about 1-2 cm, length should not be more than 5-10 cm. The massive food should not more than 2-3 cm. The processing food cannot exceed four-fifths of the total bowl, make the lid exactly match the edge of the bowl.

1. Connect the power supply, press the switch lightly, start working. Do not run the appliance for more than 30 seconds continuously

2. This appliance has 2 levels.

3. After processing, unplug the device. After the blade has stopped running, move out the main unit and open the lid, remove the chopping blade, and take out the food with a spatula or chopsticks.

4. If the processing food sticks on the bowl, please turn off the switch and unplug the device, use a spatula or chopsticks to scrape it off and then make the processing again.

5. If within 30 seconds the effect you want is not achieved, please loosen the switch and after interval of

2 minutes process aagain, which is conducive to extend the product life.

Processing table

Ingredients	Recommended quantity	Ingredients	Recommended quantity
Vegetable 300 Bread 2 piece
Garlic 300	Onion(quar	tered)	300
Capsicum	200	Pork(20mm cubes)	300
Peanut	200	Beef (20mm cubes)	300

- IMPORTANT SAFETY INSTRUCTIONS

** Read all the instructions before use.

**Please learn this part well and use the appliance correctly. This instructions explain the possibility hazards and accident involved.

1. The input voltage is AC220-240V-50Hz.
2. Make sure to unplug the device before dismantling /assembling or adjusting it.
3. If the cable is damaged, return the appliance, as to avoid hazard.
4. The chopper will not run unless it is properly assembled.
5. Do not detach or amend the appliance by non-professional repair personnel, to avoid hazard.
6. Do not use the appliance for any purpose other than these described in the instructions.
7. Do not use the appliance run empty or overload.
8. Please do not heat the appliance in the microwave oven or freeze in the refrigerator, in order to avoid the appliance burst.
9. Please do not use the appliance for dry grinding hard food like soybean, rice and frozen meat ect., and succulent liquid foods.
10. Please do not touch the blade unit or motor during the appliance is running, to avoid personal injury or damage the appliance.
11. Do not use the appliance for more than 30 seconds continuously, after 30 seconds, let it cool for 2 minutes before using it again.
12. Please unplug the device before opening it. Do not open the chopper until the motor and blades stop moving.
13. If the appliance stops running during the normal operation, it may be caused by motor temperature protection. Please turn off the switch and unplug the device, cool it about 20-30 minutes before using again.
14. The chopper bowl and blade unit, lid can tolerate 100^ C hot water for cleaning and sterilizing.
15. Do not put the motor unit in water or other liquid, or wash it under water or other liquid.
16. Please DO NOT use a steel ball and other abrasive cleaning tools as to avoid the appliance scratch.
17. Don't use dishwasher to clean the appliance.
18. Keep the appliance and cable out of reach of children and and persons with no capacity. Children and must not use or play with the appliance.
19. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.
20. The appliance is only suitable for personal or family use. It's no suitable for commercial use.

1. Unplug before dismantling or cleaning
2. Wipe the outside of the motor unit with a clean damp cloth, do not immerse the motor unit in water.
3. Wash the removable parts in warm soapy water, rinse well, drain, and air dry
4. Do not put any part of the appliance in a dishwasher.
5. Blades are extremely sharp, please do not clean them by hand directly to avoid injury. Please use clear water to clean it so that you can clearly see the blade.
6. Please dry the appliance part before re-assembling the parts.

● W ARNINNG

Please check the plug before using. Ensure the plug is in good condition to avoid electric shock.

Please use the rated voltage and use10A plug, do not use the universal plug with the other appliance

Do not let the power code hang over beside the table or touch the high temperature object.

The appliance is only for indoor use. Do not use outdoor

Do not put the appliance into water or other liquid. Do not touch it by wet hand as to avoid leakage of electricity accident

If the cable is damaged, do not use it to avoid hazard.

Do not retrofit the appliance. Do not detach or amend the appliance by non-professional repair personnel, to avoid fire, electric shock or injury

Keep the appliance out of reach of children and persons with no capacity

● COMMON PROBLEM ANALYSIS

Phenomenon Reason Handling method
The appliance cannot work when turned on	The lid is not well covered it well	Check the lid and cover
Bad smell from motor It is normal phenomenon from a new motor		If you have used several times but it still has bad smell, please send it back to maintenance station.
The appliance stops running during the normal operation	1.The voltage is too low2.Motor temperature protection	1.Check if the voltage is too lower2.Rest 20-30 minutes
The knife is stuck The knife is stuck by food		Turn off the switch, unplug the device, take out the food and cut it into small pieces
Abnormal noise or shock	1. The blade inut is not well assembled.2. The appliance is not laid flat.3. The voltage is too high4. Too much food	1.Take out the food and assemble the blade unit well2.Lay the appliance on the flat surface.3.Check if the voltage is too high4.Turn off the switch, unplug and take out extra food

Symbol of a hand pointing to the right, crossed by two diagonal lines (no text or numbers present)

Simple line drawing of a cylindrical object with three curved blades, no text or symbols present

Line drawing of a blender with a lid and base (no text or symbols)

Remark: If still unable to sort out the troubles after the above analysis, please contact our maintenance station or the dealer. It is forbidden to disassembly by non-professional personnel

Line drawing of two buckets with handles, one solid and one hollow, both showing a transformation from an original to a second, no text or symbols present.

Figura 1

Figura 2

Line drawing of a cooking pot with lid and interior components, showing a step-by-step assembly (no text or symbols)

Technical line drawings of a cooking pot with three views (top, front, side) showing internal components and a final view (no text or symbols)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

DEU

BEDIENUNGSANLEITUNG

MINI-ZERKLEINERER

MC-9005

INHALT

Line drawing of a two-part bucket with side handles, shown before and after transformation (no text or symbols)

Abb. 1

Abb. 2

Line drawing of a cooking pot with lid and side view showing internal components (no text or symbols)

Technical line drawing of a cooking pot with three views: top, side, and side (no text or symbols)

Abb. 4

Line drawing of two buckets with handles, one solid and one hollow, both showing a transformation arrow (no text or symbols)

Рис. 1

Line drawing of a cooking pot with lid and interior components, showing a step-by-step assembly from top to side (no text or symbols)

Technical line drawings of a cooking pot with three views showing internal components (no text or symbols)

1. Dugme za I nivo brzine
2. Dugme za II nivo brzine
3. Strujni kabl
4. Motorna jedinica
5. Poklopac
6. Zaptivni prsten
7. Bočno sečivo
8. Glavno sečivo
9. Vreteno
   10.SS zaptivka
   11.Zaptivni prsten vratila
   12.Posuda
   13.SS zaptivka
   14.SS šraf
10. Protivklizna podloga
    16.Špatula

Broj	Deo	Funkcija
1	Dugme za I nivo brzine	Za uključivanje/isključivanje, za seckanje meke hrane poput povrća
2	Dugme za II nivo brzine	Za uključivanje/isključivanje (on/off), za seckanje tvrde hrane poput mesa i šargarepe
3	Motorna jedinica	Glavna jedinica uređaja, izvor napajanja el. energijom
4	Poklopac	Zaštita tokom rada
5	Bočni nož	Priprema hrane u obliku kaše i smese za punjenje (povrće, voće, meso), spaja se sa glavnim sečivom, posudom i poklopcem.
6	Glavno sečivo	Priprema hrane u obliku kaše i smese za punjenje (povrće, voće, meso), spaja se sa bočnim sečivom, posudom i poklopcem.
7	Posuda	Serviranje hrane
8	Protivklizna podloga	Protiv klizanja, potrebno je spojiti sa uređajem tokom rada, može se odvojiti radi čišćenja.
9	Špatula	Za vađenje hrane.

Line drawing of a two-part bucket with side handles, shown before and after transformation (no text or symbols)

Slika 1

b) Pričvrstite glavno/bočno sečivo na vratilo, zatim stavite hranu. (Slika 2)

Slika 2

c) Nakon stavljanja hrane, stavite poklopac kao na slici 3.

Line drawing of a cooking pot with lid and interior components, showing a step-by-step assembly (no text or symbols)

Slika 3
d) Postavite motornu jedinicu na poklopac čopera, treba da se poklopi sa otvorom na sredini i postoljem sečiva.(Slika 4)

Technical line drawing of a cooking pot with three views showing the top, front, and side views (no text or symbols)

● VAŽNA BEZBEDNOSNA UPUTSTVA

Observación

MANUAL DE INSTRUÇÕES

MINI PICADORA

MC-9005

INDICE

•ESPECIFICAÇÕES TÉCNICAS ---- 2
•CONHEÇA A SUA MINI PICADORA ---- 2
- COMO UTILIZAR 4
- INSTRUÇÕES DE SEGURANÇA IMPORTANTES -- 8
•LIMPEZA E MANUTENÇÃO ----8
•AVISO 8
•ANÁLISE DE PROBLEMAS COMUNS ---- 9

- ESPECIFICAÇÕES TÉCNICAS

Line drawing of a bucket with two handles, showing an arrow indicating transformation from top to bottom (no text or symbols)

Technical line drawing of a cooking pot with three views (top, front, side) showing internal components and a final view (no text or symbols)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GRC

ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ

MINI KONTHPIO

MC-9005

ΠΕΡΙΕΧΟΜΕΝΑ

Line drawing of a two-part bucket with a lid, showing an arrow indicating transformation (no text or symbols on the buckets themselves)

Simple line drawing of an electrical outlet and a plug (no text or symbols)

Simple line drawing of a blender with an electric plug and explosion sparks (no text or symbols)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SVN

NAVODILO ZA UPORABO

MINI SEKLJALNIK

MC-9005

VSEBINA

• TEHNIČNI PODATKI 2
• SPOZNAJTE VAŠ MINI SEKLKALNIK----2
• UPORABA APARATA----4
• POMEMBNI VARNOSTNI NAPOTKI 8
• ČIŠČENJEIN VZDRŽEVANJE 8
• OPOZORILA 8
  • ODPRAVLJANJE NAJPOGOSTEJŠIH TEŽAV ----9

- TEHNIČNI PODATKI

Model:	MC-9005
Napetost/Frekvenca: AC220-24	0V 50/60Hz
Moč: 400 W
Prostornina 1,5 l
Hitrost 2 hitrosti

● SPOZNAJTE VAŠ MINI SEKLJALNIK

Line drawing of a two-part bucket with side handles, shown before and after transformation (no text or symbols)

Slika 1

b) Pričvrstite glavno / bočno rezilo na os, nato dodajte hrano. (Slika 2)

Slika 2

c) Ko dodate hrano, postavite pokrov, kot je prikazano na sliki 3.

Line drawing of a cooking pot with lid and interior components, showing a step-by-step assembly from top to side (no text or symbols)

Slika 3
d) Postavite pogonsko enoto na pokrov sekljalnika. Prilegati se mora z odprtino v sredini in osnovo rezila (Slika 4)

Technical line drawing of a cooking pot with three views showing the top, front, and side views (no text or symbols)

Slika 4

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

HRV

UPUTE ZA UPORABU

RUČNA SECKALICA

MC-9005

SADRŽAJ

•TEHNIČKE SPECIFIKACIJE 2
- UPOZNAJTE VAŠ SJECKALICU----2
- UPORABA UREĐAJA----4
• VAŽNA BEZBJEDNOSNA UPOZORENJA 8
- ČIŠĆENJE I ODRŽAVANJE 8
• UPOZORENJE 8
- RJEŠENJE NAJČEŠĆIH PROBLEMA----9

• TEHNIČKE SPECIFIKACIJE

Model:	MC-9005
Napon/Frekvencija: AC220-240V 50/60Hz
Snaga: 400W
Zapremina 1.5 L
Brzina 2 brzine

● UPOZNAJTE VAŠU MINI SJECKALICU

Line drawing of a two-part bucket with side handles, shown before and after transformation (no text or symbols)

Slika 1

Slika 2

c) Nako n stavljanja hrane, stavite poklopac kao na slici 3.

Line drawing of a cooking pot with lid and interior components, showing a step-by-step assembly from top to side (no text or symbols)

Slika 3

Technical line drawing of a cooking pot with three views showing the top, front, and side views (no text or symbols)

Slika 4

Simple line drawing of a cooking pot with a tool and explosion effect (no text or symbols)

Nemojte ponovo montirati uređaj. Ne odvajajte i ne popravljajte aparat sami ili kod nekvalificirane osobe, da biste izbjegli požar, strujni udar ili ličnu povredu.	Držite uređaj dalje od djece i osoba sa smanjenim sposobnostima.
Ne dirajte sječiva da biste izbjegli povredu.	Ne puštajte uređaj da radi više od 30 sekundi u kontinuitetu.

• ANALIZA MOGUĆIH PROBLEMA

Problem Uzrok Moguće rješenje
Uređaj ne radi nakon uključivanja.	Poklopac nije dobro zatvoren.	Provjerite poklopac i dobro ga zatvorite.
Čudan miris iz motora. To	je normalno za novi motor.	Ukoliko ste već nekoliko puta koristili uređaj, a miris se i dalje oseća, molimo vratite ga u servisni centar.
Uređaj se zaustavio u toku normalnog rada.	1. Napon je suviše nizak.2.Zaštita motora od pregrijevanja.	1. Provjerite da li je napon suviše nizak.2. Ostavite da uređaj odmori 20-30 minuta.

Sječivo je zaglavljeno. Hrana je blokirala sječivo.

Isključite prekidač, skinite s napajanja, izvadite hranu i isjecite je na manje dijelove.

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

BIH

MNE

UPUTSTVO ZA UPOTREBU

MINI ČOPER

MC-9005

SADRŽAJ

•TEHNIČKE SPECIFIKACIJE 2
- UPOZNAJTE VAŠ MINI ČOPER----2
- UPOTREBA UREĐAJA----4
- VAŽNA BEZBJEDNOSNA UPOZORENJA 8
- ČIŠĆENJE I ODRŽAVANJE 8
- UPOZORENJE 8
- RJEŠENJE NAJČEŠĆIH PROBLEMA----9

• TEHNIČKE SPECIFIKACIJE

Model:	MC-9005
Napon/Frekvencija: AC220-240V 50/60Hz
Snaga: 400W
Zapremina 1.5 L
Brzina 2 brzine

• UPOZNAJTE VAŠ MINI ČOPER

Line drawing of a two-part bucket with side handles, shown before and after transformation (no text or symbols)

Slika 1

Slika 2

c) Nako n stavljanja hrane, stavite poklopac kao na slici 3.

Line drawing of a cooking pot with lid and interior components, showing a step-by-step assembly from top to side (no text or symbols)

Technical line drawing of a cooking pot with three views showing the top, front, and side views (no text or symbols)

Slika 4

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

MKD

1. Копче за І ниво на брзина
2. Копче за II ниво на брзина
3. Струен кабел
4. Ку́киште
5. Капак
6. Заптивен прстен
7. Бочно сечиво
8. Главно сечиво
9. Вратило
   10.SS заптивка
   11.Заптивен прстен на вратилото
   12.Сад
   13.SS заптивка
   14.SS завртка
   15.Противлизгачка подлога
   16.Шпатула

Line drawing of a two-part bucket with side handles, shown before and after transformation (no text or symbols)

Слика 1

Слика 2

Line drawing of a cooking pot with lid and interior components, showing a step-by-step assembly from top to side (no text or symbols)

Слика 3

Technical line drawing of a cooking pot with three views showing the top, front, and side views (no text or symbols)

Слика 4

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ALB

UDHËZIMI I PËRDORIMIT

MINI GRIRËSE

MC-9005

PËRMBAJTJA

• BECIFIKACIONET TEKNIKE 2
  • NJIHUNI ME MINI GRIRËSEN TUAJ 2
• UDHËZIME PËR PËRDORIM ----4
  • UDHËZIME TË RËNDËSISHME TË SIGURISË---- 8
  • PASTRIMI DHE MIRËMBAJTJA----8
  • VËREJTJE 8
  • ZGJIDHJA E PROBLEMEVE TË SHPESHTA 9

- SPEQFIKACIONET TEKNIKE

● NIHUNI ME MINI GRIRËSEN TUAJ

Line drawing of a bucket with two handles, shown before and after transformation (no text or symbols)

Technical line drawing of a cooking pot with three views (top, front, side) showing structural changes, no text or symbols present.
