USER MANUAL WS 11-115 AEG

Please read and save these instructions! English Technical Data,Safety Instructions, Specified Conditions of Use, EC-Declaration of Conformity, Mains connection, Maintenance, Symbols

WARNING The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure. The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period. An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns. English

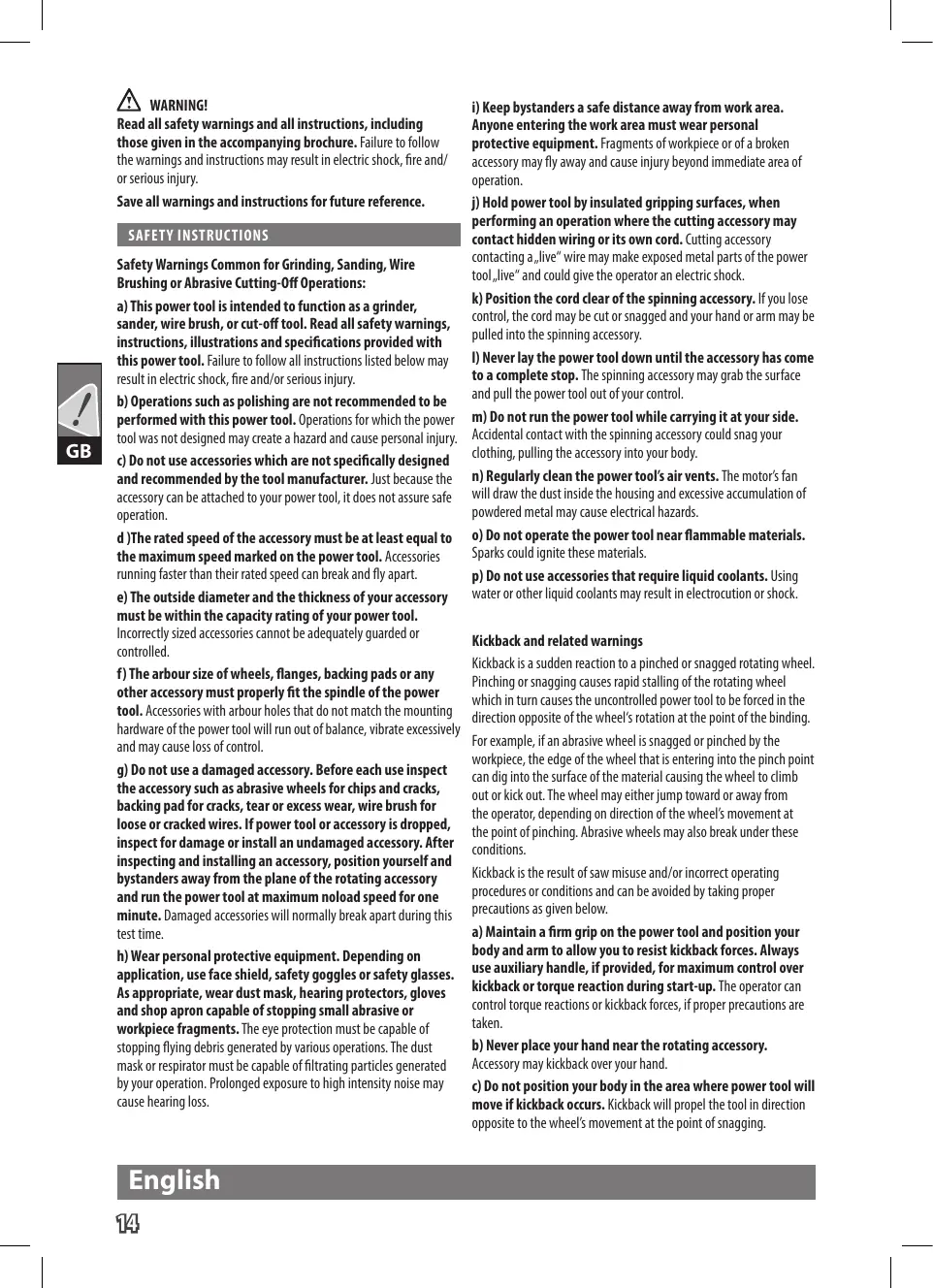

WARNING! Read all safety warnings and all instructions, including those given in the accompanying brochure. Failure to follow the warnings and instructions may result in electric shock, fire and/ or serious injury. Save all warnings and instructions for future reference.

i) Keep bystanders a safe distance away from work area.

Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation. j) Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may SAFETY INSTRUCTIONS contact hidden wiring or its own cord. Cutting accessory contacting a „live“ wire may make exposed metal parts of the power Safety Warnings Common for Grinding, Sanding, Wire tool „live“ and could give the operator an electric shock. Brushing or Abrasive Cutting-Off Operations: k) Position the cord clear of the spinning accessory. If you lose a) This power tool is intended to function as a grinder, sander, wire brush, or cut-off tool. Read all safety warnings, control, the cord may be cut or snagged and your hand or arm may be pulled into the spinning accessory. instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may l) Never lay the power tool down until the accessory has come to a complete stop. The spinning accessory may grab the surface result in electric shock, fire and/or serious injury. and pull the power tool out of your control. b) Operations such as polishing are not recommended to be performed with this power tool. Operations for which the power m) Do not run the power tool while carrying it at your side. tool was not designed may create a hazard and cause personal injury. Accidental contact with the spinning accessory could snag your c) Do not use accessories which are not specifically designed clothing, pulling the accessory into your body. and recommended by the tool manufacturer. Just because the n) Regularly clean the power tool’s air vents. The motor’s fan accessory can be attached to your power tool, it does not assure safe will draw the dust inside the housing and excessive accumulation of powdered metal may cause electrical hazards. operation. d )The rated speed of the accessory must be at least equal to o) Do not operate the power tool near flammable materials. Sparks could ignite these materials. the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart. p) Do not use accessories that require liquid coolants. Using e) The outside diameter and the thickness of your accessory water or other liquid coolants may result in electrocution or shock. must be within the capacity rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or Kickback and related warnings controlled. Kickback is a sudden reaction to a pinched or snagged rotating wheel. f) The arbour size of wheels, flanges, backing pads or any Pinching or snagging causes rapid stalling of the rotating wheel other accessory must properly fit the spindle of the power which in turn causes the uncontrolled power tool to be forced in the tool. Accessories with arbour holes that do not match the mounting direction opposite of the wheel‘s rotation at the point of the binding. hardware of the power tool will run out of balance, vibrate excessively For example, if an abrasive wheel is snagged or pinched by the and may cause loss of control. workpiece, the edge of the wheel that is entering into the pinch point g) Do not use a damaged accessory. Before each use inspect can dig into the surface of the material causing the wheel to climb the accessory such as abrasive wheels for chips and cracks, out or kick out. The wheel may either jump toward or away from backing pad for cracks, tear or excess wear, wire brush for the operator, depending on direction of the wheel’s movement at loose or cracked wires. If power tool or accessory is dropped, the point of pinching. Abrasive wheels may also break under these inspect for damage or install an undamaged accessory. After conditions. inspecting and installing an accessory, position yourself and Kickback is the result of saw misuse and/or incorrect operating bystanders away from the plane of the rotating accessory procedures or conditions and can be avoided by taking proper and run the power tool at maximum noload speed for one minute. Damaged accessories will normally break apart during this precautions as given below. a) Maintain a firm grip on the power tool and position your test time. body and arm to allow you to resist kickback forces. Always h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. use auxiliary handle, if provided, for maximum control over kickback or torque reaction during start-up. The operator can As appropriate, wear dust mask, hearing protectors, gloves control torque reactions or kickback forces, if proper precautions are and shop apron capable of stopping small abrasive or taken. workpiece fragments. The eye protection must be capable of b) Never place your hand near the rotating accessory. stopping flying debris generated by various operations. The dust Accessory may kickback over your hand. mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may c) Do not position your body in the area where power tool will cause hearing loss. move if kickback occurs. Kickback will propel the tool in direction opposite to the wheel’s movement at the point of snagging. English

d) Use special care when working corners, sharp edges, etc. Avoid bouncing and snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause loss of control or kickback. e) Do not attach a saw chain, woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control. Safety Warnings Specific for Grinding and Abrasive CuttingOff Operations: a) Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe. b) The guard must be securely attached to the power tool and positioned for maximum safety, so the least amount of wheel is exposed towards the operator. The guard helps to protect operator from broken wheel fragments and accidental contact with wheel. c) Wheels must be used only for recommended applications. For example: do not grind with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these wheels may cause them to shatter. d) Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges. e) Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst. Additional Safety Warnings Specific for Abrasive Cutting-Off Operations: a) Do not “jam” the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage. b) Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you. c) When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take corrective action to eliminate the cause of wheel binding. d) Do not restart the cutting operation in the workpiece. Let the wheel reach full speed and carefully reenter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the workpiece. e) Support panels or any oversized workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their own weight. Supports must be placed under the workpiece near the line of cut and near the edge of the workpiece on both sides of the wheel. f) Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback. Safety Warnings Specific for Sanding Operations: a) Do not use excessively oversized sanding disc paper. Follow manufacturers recommendations, when selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration hazard and may cause snagging, tearing of the disc or kickback. Safety Warnings Specific for Wire Brushing Operations: a) Be aware that wire bristles are thrown by the brush even during ordinary operation. Do not overstress the wires by applying excessive load to the brush. The wire bristles can easily penetrate light clothing and/or skin. b) If the use of a guard is recommended for wire brushing, do not allow any interference of the wire wheel or brush with the guard. Wire wheel or brush may expand in diameter due to work load and centrifugal forces. Appliances used at many different locations including open air should be connected via a residual current device (FI, RCD, PRCD) of 30mA or less. Sawdust and splinters must not be removed while the machine is running. Only plug-in when machine is switched off. Never reach into the danger area of the plane when it is running. Always use the auxiliary handle. Always use the protecting cap when roughing-down and separating. Immediately switch off the machine in case of considerable vibrations or if other malfunctions occur. Check the machine in order to find out the cause. Always use and store the grinding disks according to the manufacturer’s instructions. When grinding metal, flying sparks are produced. Take care that no persons are endangered. Because of the danger of fire, no combustible materials should be located in the vicinity (spark flight zone). Do not use dust extraction. Due care should be taken that no sparks or sanding dust flying from the workpiece come into contact with you. When separating stone the guide shoe must be used! The adjusting nut must be tightened before starting to work with the machine. The workpiece must be fixed if it is not heavy enough to be steady. English

Never lead the workpiece to the grinding disk with your hand. Under extreme conditions (e.g. smooth-grinding metals with the arbour and vulcanized fibre grinding wheel), significant contamination can build up on the inside of the angle grinder. For safety reasons, in such conditions the inside should be cleaned thoroughly of metal deposits and a residual current device (FI, RCD, PRCD) must be connected in series. If the residual current device responds, the machine must be sent for repair. For accessories intended to be fitted with threaded hole wheel, ensure that the thread in the wheel is long enough to accept the spindle length. When cutting-off material, use the closed safety guard from the accessories range.

SPECIFIED CONDITIONS OF USE

The angle grinder may be used for cutting, grinding, sanding and wire brushing a wide range of materials, such as metal or stone. If you have any doubts, please refer to the instructions supplied by the accessory manufacturer. Do not use this product in any other way as stated for normal use. MAINS CONNECTION Connect only to single-phase AC current and only to the system voltage indicated on the rating plate. It is also possible to connect to sockets without an earthing contact as the design conforms to safety class II.

EC-DECLARATION OF CONFORMITY

We declare under our sole responsibility that this product is in conformity with the following standards or standardized documents. EN 60745, EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3, in accordance with the regulations 2006/42/EC, 2004/108/EC Winnenden, 2010-12-09 Rainer Kumpf Manager Product Development Authorized to compile the technical file MAINTENANCE The ventilation slots of the machine must be kept clear at all times. Do not let any metal parts enter the airing slots - danger of short circuit! Use only AEG accessories and spare parts. Should components need to be replaced which have not been described, please contact one of our AEG service agents (see our list of guarantee/service addresses). If needed, an exploded view of the tool can be ordered. Please state the Article No. as well as the machine type printed on the label and order the drawing at your local service agents or directly at: AEG Elektrowerkzeuge, Max-Eyth-Straße 10, D-71364 Winnenden, Germany.

ELECTRONICS WS 12-125 XE

The built-in electronic will keep a constant speed even under increased load. Should the machine be overloaded, the rotational speed is being reduced to standstill. SYMBOLS Please read the instructions carefully before starting the machine. CAUTION! WARNING! DANGER! Always wear goggles when using the machine. Always disconnect the plug from the socket before carrying out any work on the machine. Accessory - Not included in standard equipment, available as an accessory. Do not dispose of electric tools together with household waste material! In observance of European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. TECHNISCHE DATEN Winkelschleifer WS 9-100 WS 9-115 WS 9-125

ELEKTRONIK WS 12-125 XE

ELEKTRONIK WS 12-125 XE

ELEKTRONIK WS 12-125 XE
