USER MANUAL SC-MAX-4000 PANASONIC

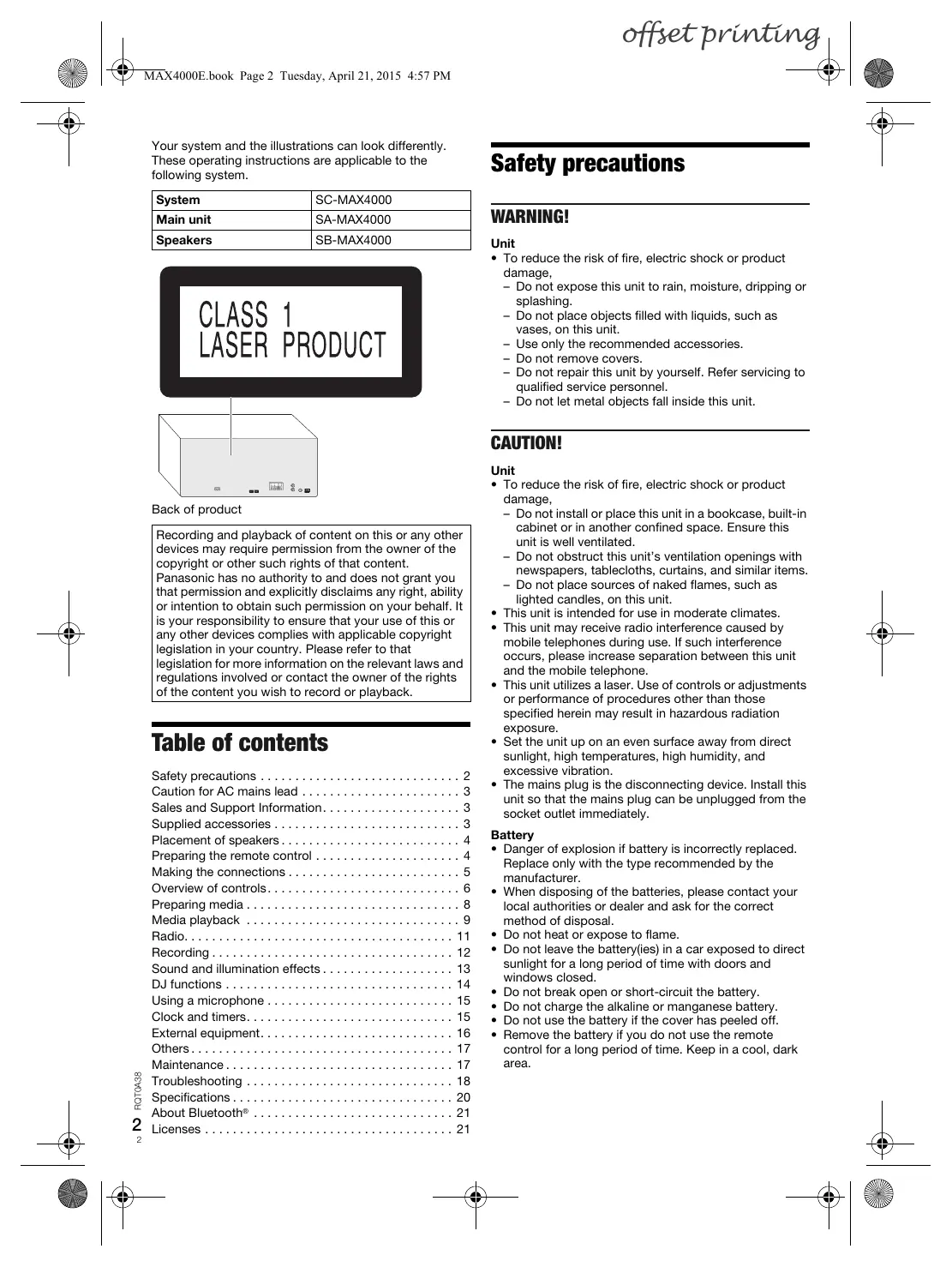

offset printing MAX4000E.book Page 2 Tuesday, April 21, 2015 4:57 PM Your system and the illustrations can look differently. These operating instructions are applicable to the following system. Safety precautions System SC-MAX4000 Main unit SA-MAX4000 WARNING! Speakers SB-MAX4000 Unit

• To reduce the risk of fire, electric shock or product damage, – Do not expose this unit to rain, moisture, dripping or splashing. – Do not place objects filled with liquids, such as vases, on this unit. – Use only the recommended accessories. – Do not remove covers. – Do not repair this unit by yourself. Refer servicing to qualified service personnel. – Do not let metal objects fall inside this unit. CAUTION! Back of product Recording and playback of content on this or any other devices may require permission from the owner of the copyright or other such rights of that content. Panasonic has no authority to and does not grant you that permission and explicitly disclaims any right, ability or intention to obtain such permission on your behalf. It is your responsibility to ensure that your use of this or any other devices complies with applicable copyright legislation in your country. Please refer to that legislation for more information on the relevant laws and regulations involved or contact the owner of the rights of the content you wish to record or playback. RQT0A38 Table of contents

• Safety precautions p. 2
• Caution for AC mains lead p. 3
• Sales and Support Information p. 3
• Supplied accessories p. 3

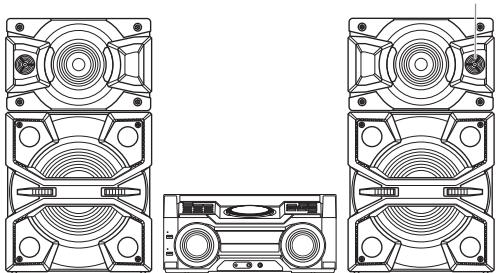

• Placement of speakers p. 4

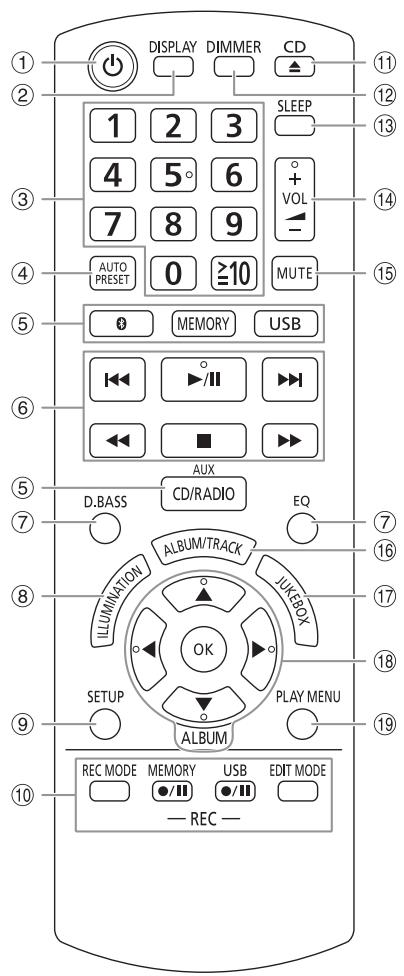

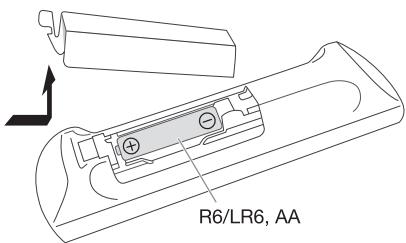

• Preparing the remote control p. 4
• Making the connections p. 5

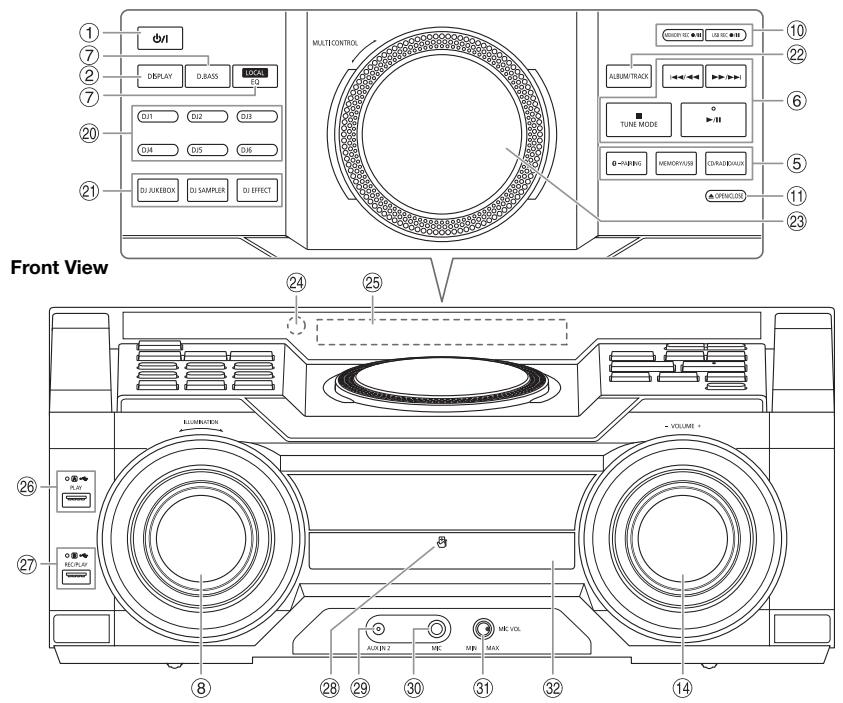

• Overview of controls p. 6
• Preparing media p. 8
• Media playback p. 9
• Radio p. 11
• Recording p. 12
• Sound and illumination effects p. 13
• DJ functions p. 14
• Using a microphone p. 15
• Clock and timers p. 15

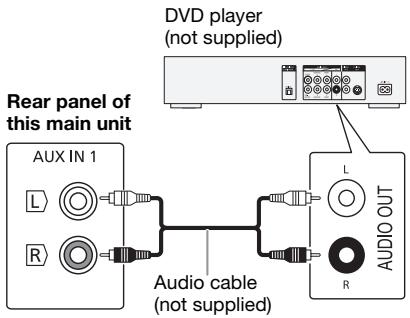

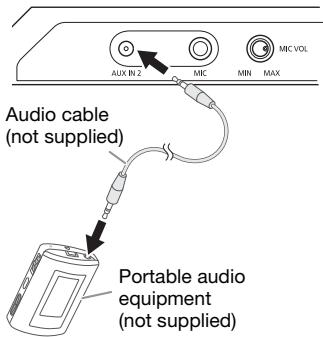

• External equipment p. 16
• Others p. 17
• Maintenance p. 17
• Troubleshooting p. 18
• Specifications p. 20
• About Bluetooth® p. 21
• Licenses Unit p. 21

• To reduce the risk of fire, electric shock or product damage, – Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated. – Do not obstruct this unit’s ventilation openings with newspapers, tablecloths, curtains, and similar items. – Do not place sources of naked flames, such as lighted candles, on this unit.
• This unit is intended for use in moderate climates.
• This unit may receive radio interference caused by mobile telephones during use. If such interference occurs, please increase separation between this unit and the mobile telephone.
• This unit utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
• Set the unit up on an even surface away from direct sunlight, high temperatures, high humidity, and excessive vibration.
• The mains plug is the disconnecting device. Install this unit so that the mains plug can be unplugged from the socket outlet immediately. Battery
• Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer.
• When disposing of the batteries, please contact your local authorities or dealer and ask for the correct method of disposal.
• Do not heat or expose to flame.
• Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed.
• Do not break open or short-circuit the battery.
• Do not charge the alkaline or manganese battery.
• Do not use the battery if the cover has peeled off.
• Remove the battery if you do not use the remote control for a long period of time. Keep in a cool, dark area. offset printing MAX4000E.book Page 3 Tuesday, April 21, 2015 4:57 PM Sales and Support Information (For the AC mains plug of three pins) For the United Kingdom and Ireland For your safety, please read the following text carefully. Customer Communications Centre
• For customers within the UK: 0344 844 3899
• For customers within Ireland: 01 289 8333
• Monday – Friday 9:00am – 5:00pm (Excluding public holidays).
• For further support on your product, please visit our website: www.panasonic.co.uk This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5-ampere fuse is fitted in this plug. Should the fuse need to be replaced please ensure that the replacement fuse has a rating of 5-ampere and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark body of the fuse. or the BSI mark on the If the plug contains a removable fuse cover you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local dealer. Before use Remove the connector cover. How to replace the fuse The location of the fuse differ according to the type of AC mains plug (figures A and B). Confirm the AC mains plug fitted and follow the instructions below. Illustrations may differ from actual AC mains plug.

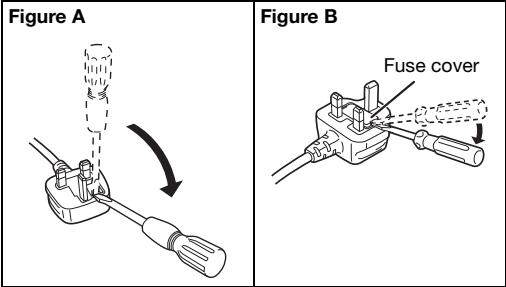

1. Open the fuse cover with a screwdriver.

Figure A ENGLISH Caution for AC mains lead Direct Sales at Panasonic UK

• Order accessory and consumable items for your product with ease and confidence by phoning our Customer Communications Centre Monday – Friday 9:00am – 5:00pm (Excluding public holidays).
• Or go on line through our Internet Accessory ordering application at www.pas-europe.com.
• Most major credit and debit cards accepted.
• All enquiries transactions and distribution facilities are provided directly by Panasonic UK.
• It couldn’t be simpler!
• Also available through our Internet is direct shopping for a wide range of finished products. Take a browse on our website for further details. Supplied accessories Figure B Fuse cover Check and identify the supplied accessories. Use numbers indicated in parentheses when asking for replacement parts. (Product numbers correct as of May 2015. These may be subject to change.) 2 AC mains leads For the United Kingdom and Ireland (K2CT2YY00097) 1 AM loop antenna (N1DYYYY00011)

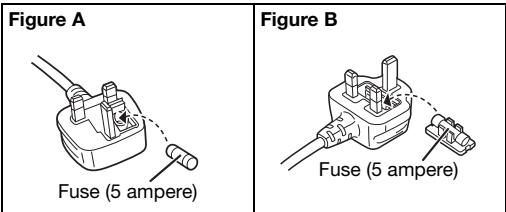

2. Replace the fuse and close or attach the fuse cover.

Figure A Figure B 1 FM indoor antenna (RSAX0002) 1 Remote control (N2QAYB001022) Fuse (5 ampere) 1 Remote control battery For the United Kingdom and Ireland 1 Antenna plug adaptor (K1YZ02000013) CAUTION! Keep the antenna plug adaptor out of reach of children to prevent swallowing. Note: Use the AC mains lead that is suitable for your household mains socket. RQT0A38 Fuse (5 ampere)

offset printing MAX4000E.book Page 4 Tuesday, April 21, 2015 4:57 PM Placement of speakers Put the speakers so that the tweeter is on the outside. Tweeter CAUTION!

• Use the speakers only with the recommended system. If not, you can cause damage to the amplifier and speakers and can cause a fire. Consult an approved service personnel if damage occurs or if there is a sudden apparent change in performance.
• Do not modify the speaker or speaker wires as this can cause damage to the system.
• Do the procedures included in these instructions when you attach the speakers.
• Do not touch the speaker cone’s reverberating surfaces: – This may damage the speaker cone. – The speaker cone may be hot.
• Be careful when babies or children are near.

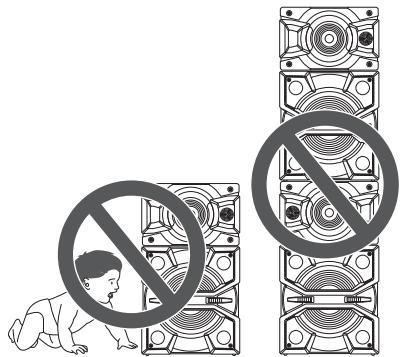

• Do not stack the speakers. Use only the supplied speakers. You can cause damage to the system and decrease the sound quality if you use other speakers. Note:
• Keep your speakers more than 10 mm from the main unit for ventilation.
• Put the speakers on a flat safe surface.

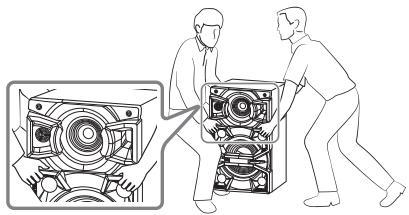

• More than one person is required to move, tilt or carry the speakers.

• These speakers do not have magnetic shielding. Do not put them near TVs, PCs or other equipment easily influenced by magnetism.
• When you play at high levels for a long period, it can cause damage to the speakers and decrease the life of the speakers.
• Decrease the volume in these conditions to prevent damage: – When the sound is distorted. – When you adjust the sound quality. Preparing the remote control Use alkaline or manganese battery. RQT0A38 Install the battery so that the poles (+ and –) align with those in the remote control.

offset printing MAX4000E.book Page 5 Tuesday, April 21, 2015 4:57 PM ENGLISH Making the connections Connect the AC mains lead only after all the other connections have been made.

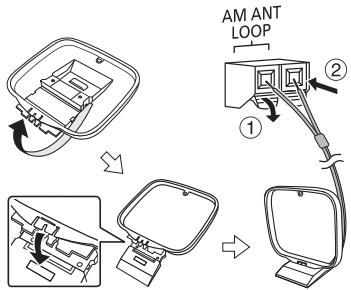

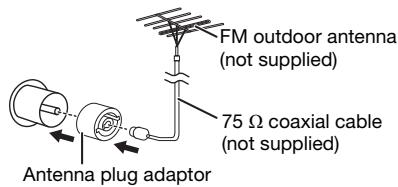

Connect the AM loop antenna. Stand the antenna up on its base until it clicks.

Connect the speakers. Connect the speaker cables to the terminals of the same colour. Connect the FM indoor antenna. Put the antenna where reception is best. Adhesive tape (not supplied)

Connect the AC mains lead. For the United Kingdom and Ireland READ THE “Caution for AC mains lead” BEFORE CONNECTION. For the United Kingdom and Ireland Connect the FM outdoor antenna. Use an outdoor antenna if the reception is poor. To household mains socket Do not use an AC mains lead from other equipment. FM outdoor antenna (not supplied) 75 Ω coaxial cable (not supplied) Conserving power The system consumes a small amount of power even when it is in standby mode. Disconnect the power supply if you do not use the system. Some settings will be lost after you disconnect the system. You have to set them again. Note:

• Do not use the outdoor antenna during a lightning storm.
• Disconnect the outdoor antenna if you do not use the system. RQT0A38 Antenna plug adaptor

offset printing MAX4000E.book Page 6 Tuesday, April 21, 2015 4:57 PM Overview of controls Do the procedures with the remote control. You can also use the buttons on the main unit if they are the same. A Standby/on switch [`], [1] Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power. B View the content information C Numeric buttons To select a 2-digit number Example: 16: [ 10]=[1]=[6] D Auto preset the radio station E Select the audio source On the main unit: To start Bluetooth® pairing, press and hold [ –PAIRING]. F Basic playback control G Select the sound effects H Select the illumination effects I View the setup menu J Recording operation control K Open or close the disc tray L Decrease the brightness of the display panel To cancel, press the button again. M Set the sleep timer N Adjust the volume level O Mute the sound To cancel, press the button again. “MUTE” is also cancelled when you adjust the volume or when you switch off the system. P Select MP3 album or track Q Select DJ jukebox R Select or confirm the option RQT0A38 S View the play menu

offset printing MAX4000E.book Page 7 Tuesday, April 21, 2015 4:57 PM ENGLISH Top View Front View T DJ function direct buttons Press [DJ JUKEBOX], [DJ SAMPLER] or [DJ EFFECT] to switch on the DJ function. Press [DJ1] to [DJ6] on the main unit to select the desired function. To cancel, press the selected [DJ1] to [DJ6] again. U Switch on the DJ function To cancel, press the button again. V Select MP3 album or track Press [ALBUM/TRACK] to select album or track. Browse tracks or albums Turn [MULTI CONTROL] to browse. To start playback from the selection, press [4/9].

USB B USB port ( USB status indicator Play MP3 tracks. Record sound or music tracks. b NFC touch area c AUX IN 2 jack d Microphone jack W Turntable for DJ and multi control e Adjust the microphone volume level X Remote control sensor f Disc tray Distance: Within approximately 7 m Angle: Approximately 20° up and down, 30° left and right RQT0A38 Y Display panel

offset printing MAX4000E.book Page 8 Tuesday, April 21, 2015 4:57 PM Using the main unit Preparing media Disc

█ Connecting a device Decrease the volume and connect the USB device to the USB port. Hold the main unit when connecting or disconnecting the USB device. Press [USB] (main unit: [MEMORY/USB]) to select “USB A” or “USB B”. USB status indicator lights up in red when selected. Bluetooth® You can connect and play an audio device wirelessly through Bluetooth®. Preparation

• Switch on the Bluetooth® feature of the device and put the device near the system.
• Read the operating instructions of the device for details. █ Pairing a device Preparation If this system is connected to a Bluetooth® device, disconnect it (Z“Disconnecting a device”).

Select “SC-MAX4000” from the Bluetooth® menu of the device. Press [CD/RADIO/AUX] to select “CD”. Note: Do not use a USB extension cable. The system cannot recognise USB device connected through a cable.

–PAIRING] until “PAIRING” is Note: You can pair up to 8 devices with this system. If a 9th device is paired, the device that has not been used for the longest time will be replaced. Preparation Before you connect a USB device to the system, make sure you do a backup of the data.

Press and hold [ shown. Press [CD x] (main unit: [x OPEN/CLOSE]) to open the disc tray. Put in a disc with the label facing up. Press again to close the disc tray. USB

Press [ ]. If “PAIRING” is shown, continue with step 4. Press [PLAY MENU] to select “PAIRING”. Press [Y, U] to select “OK? YES” and then press [OK]. “PAIRING” is shown. To cancel, select “OK? NO”. Select “SC-MAX4000” from the Bluetooth® menu of the device. If prompted for a passkey, input “0000”. The device connects with this system automatically after pairing is complete. The name of the connected device is shown for a few seconds. Preparation If this system is connected to a Bluetooth® device, disconnect it (Z“Disconnecting a device”).

Press [ ]. “BLUETOOTH READY” is shown. Select “SC-MAX4000” from the Bluetooth® menu of the device. The name of the connected device is shown for a few seconds. Start playback on the device. Note:

• A device must be paired to connect.
• This system can only connect to one device at a time.
• When “BLUETOOTH” is selected as the source, this system will automatically try to connect to the last connected device. (“LINKING” is shown during this process.) █ Disconnecting a device

Press [ ]. Press [PLAY MENU] to select “DISCONNECT?”. Press [Y, U] to select “OK? YES” and then press [OK]. “BLUETOOTH READY” is shown. To cancel, select “OK? NO”. Using the main unit Press and hold [ shown. –PAIRING] until “PAIRING” is Note: A device is disconnected when you:

• Select a different source.
• Move the device out of the maximum range.
• Disable the Bluetooth® transmission of the device.
• Switch off the system or the device. offset printing MAX4000E.book Page 9 Tuesday, April 21, 2015 4:57 PM For NFC-compatible Bluetooth® devices (Android™ devices) only Simply by touching an NFC (Near Field Communication)compatible Bluetooth® device on the system, you can complete all preparations, from registering a Bluetooth® device to establishing a connection. Android device version lower than 4.1 requires the installation of the “Panasonic MAX Juke” app (free of charge). Media playback ENGLISH █ One-Touch Connection (NFC) The following marks indicate the availability of the feature. CD : USB : BLUETOOTH MEMORY : CD-R/RW in CD-DA format or with MP3 files. USB device with MP3 files. : Bluetooth® device. 2 GB internal memory (refer to “Recording” for adding tracks to the internal memory). A Enter “Panasonic MAX Juke” in the search box of Google Play™ to search and then select “Panasonic MAX Juke”. Basic playback

CD USB BLUETOOTH MEMORY

B Start the app. – Follow the instructions to complete the settings. – Make sure to use the latest version of the app. Play Press [4/9]. Stop Press [8]. USB MEMORY Preparation Switch on the NFC feature of the device.

The position is memorised. “RESUME” is shown. Press again to stop fully. Press [ ]. Touch and hold the device on the NFC touch area of the main unit [ ]. Pause Press [4/9]. Press again to continue playback. Skip Press [2] or [6] (main unit: [2/3] or [5/6]) to skip track.

Press [R, T] to skip MP3 album. Search Bluetooth® device (not supplied) – Hold the device until it beeps, vibrates or displays a pop-up window, and then move the device away from the system. – Once the registration and connection of the device is complete, the name of the connected device is shown on the system for a few seconds. – When the connection is not established even if the device has touched the NFC touch area, change its touching position. The connection may improve if you use the “Panasonic MAX Juke” app.

Start playback on the device. Press and hold [3] or [5] (main unit: [2/3] or [5/6]). Note: Depending on the Bluetooth® device, some operations may not work. Viewing available information

CD USB BLUETOOTH MEMORY

You can view the available information, such as MP3 album and track number, on the display panel. Press [DISPLAY]. Note:

• Maximum characters that can be shown: Approximately 32
• This system supports ver. 1.0, 1.1 and 2.3 ID3 tags.
• Text data that the system does not support can show differently. RQT0A38 Note:
• While connected, you can connect another device by touching and holding it on the NFC touch area of the main unit. The previous device will be disconnected automatically.
• Depending on the device: – The one-touch connection may not work. – The position of the NFC touch area of the device may be different. – When the connection is established, playback may start automatically.

offset printing MAX4000E.book Page 10 Tuesday, April 21, 2015 4:57 PM █ Note on disc Play menu

Press [PLAY MENU]. Press [Y, U] to select the setting and then press [OK]. OFF PLAYMODE Cancel the setting. █ Note on USB device 1-TRACK Play one selected track. Press the numeric buttons to select the track.

• This system does not guarantee connection with all USB devices.
• This system supports USB 2.0 full speed.
• This system can support USB devices of up to 32 GB.
• Only FAT 12/16/32 file system is supported.

Play one selected MP3 album. Press [R, T] to select the MP3 album. RANDOM Play all tracks randomly. RND 1-ALBUM RANDOM

RND Play all tracks in one selected MP3 album randomly. Press [R, T] to select the MP3 album. ALL REPEAT Repeat all tracks. 1-TRACK REPEAT Repeat 1-TRACK.

Repeat 1-ALBUM RANDOM. RND Note:

• During random playback, you cannot skip to tracks which have been played.
• The setting is cancelled when you open the disc tray. Link mode BLUETOOTH You can change the link mode to suit the connection type. Preparation If this system is connected to a Bluetooth® device, disconnect it (Z“Disconnecting a device”). RQT0A38

• This system can play CD-R/RW with CD-DA or MP3 format content.
• Before playback, finalise the disc on the device it was recorded on.
• Some CD-R/RW cannot be played because of the condition of the recording. Press [PLAY MENU] to select “LINK MODE”. Press [Y, U] to select the mode and then press [OK]. MODE 1 Emphasis on connectivity. MODE 2 Emphasis on sound quality. Note: Select “MODE 1” if the sound is interrupted. █ Note on MP3 file
• Files are defined as tracks and folders are defined as albums.
• Tracks must have the extension “.mp3” or “.MP3”.
• Tracks will not necessarily be played in the order you recorded them.
• Some files can fail to work because of the sector size. MP3 file on disc
• This system can access up to: – 255 albums (including root folder) – 999 tracks – 20 sessions
• Disc must conform to ISO9660 level 1 or 2 (except for extended formats). MP3 file on USB device
• This system can access up to: – 800 albums (including root folder) – 8000 tracks – 999 tracks in one album offset printing MAX4000E.book Page 11 Tuesday, April 21, 2015 4:57 PM ENGLISH Improving the sound quality Radio When “FM” is selected Preparation Press [CD/RADIO/AUX] to select “FM” or “AM”.

Manual tuning Press [3] or [5] to tune in to the station. To tune automatically, press and hold the button until the frequency starts changing quickly. “STEREO” is shown when a stereo broadcast is being received. Using the main unit

Press [TUNE MODE] to select “MANUAL”. Press [PLAY MENU] to select “FM MODE”. Press [Y, U] to select “MONO” and then press [OK]. To cancel, select “STEREO”. “MONO” is also cancelled when you change the frequency. To memorise the setting Continue with step 2 of “Manual presetting”. When “AM” is selected

Press [2/3] or [5/6] to tune in to the station. Press [PLAY MENU] to select “BEATPROOF”. Press [Y, U] to select the setting that provides the best reception and then press [OK]. AM allocation setting Memory presetting You can preset up to 30 FM and 15 AM stations. █ Automatic presetting

Press [AUTO PRESET] to select “LOWEST” or “CURRENT”. LOWEST Tuning begins from the lowest frequency. CURRENT Tuning begins from the current frequency. Press [OK] to start presetting. The tuner presets all the stations it can receive into the channels in ascending order. To cancel, press [8]. By main unit only This system can also receive AM broadcasts allocated in 10 kHz steps.

Press [CD/RADIO/AUX] to select “FM” or “AM”. Press and hold [CD/RADIO/AUX]. After a few seconds, the display panel shows the current minimum radio frequency. Release the button when the minimum frequency changes.

• To go back to the initial setting, do the above steps again.
• Preset frequencies are erased after you change the setting. █ Manual presetting

Press [3] or [5] (main unit: [2/3] or [5/6]) to tune in to the station. Press [OK]. Press the numeric buttons to select a preset number. Do steps 1 through 3 again to preset more stations. The new station replaces any station that occupies the same preset number. █ Selecting a preset station Press the numeric buttons, [2] or [6] to select the preset station. Using the main unit Press [TUNE MODE] to select “PRESET”. Press [2/3] or [5/6] to select the preset station. RQT0A38

offset printing MAX4000E.book Page 12 Tuesday, April 21, 2015 4:57 PM █ High-speed recording Recording This system can record up to 800 folders (maximum 999 tracks in an album) or a total of 8000 tracks, depending on the available storage capacity of the internal memory or the USB device in USB B . To check storage space In the stop mode, press [DISPLAY].

• “UPDATE” is shown when the system is reading the device.
• “NO DEVICE” is shown if there is no USB device connected to USB B . Note:
• All recordings are in “.mp3” format.
• You cannot do recording when you are using random playback mode.
• The DJ function is switched off during recording.
• Repeat playback mode is cancelled during recording.
• A new album is added each time you do a recording.
• The sequence of album may change after the recording.
• The recordings are kept in a folder named “REC_DATA” in the USB device or the internal memory.
• USB status indicator blinks in red during USB recording. Basic recording

Select the source you want to record. CD-DA Prepare the disc playback mode. Record all tracks Select “OFF PLAYMODE” (Z“Play menu”). Record a specified track Select “1-TRACK” (Z“Play menu”). Make sure the disc is stopped. Radio Tune in to the radio station. External equipment Connect and play the equipment (Z“External equipment”).

Press [MEMORY REC 7/9] or [USB REC 7/9] to start recording. The name of the folder that keeps the recording is shown. Stop recording Press [8]. “WRITING” is shown. Pause recording Press [MEMORY REC 7/9] or [USB REC 7/9] during recording. Press again to continue recording. RQT0A38 Note: You can pause during recording from the radio, AUX 1 or AUX 2 (except in “SYNCHRO” mode). A track mark is added every time you pause (Z“Adding track marks”).

• Wait for a few seconds for the system to prepare the USB device before you start recording.
• When the next track of the disc is being recorded, it will be shown on the display. CD-DA disc recording speed: CD, CD-R: Three times (3x) the normal speed. CD-RW: Two times (2x) the normal speed.

Put in the disc you want to record. Press [REC MODE] to select “NORMAL” or “HI-SPEED” and then press [OK]. Press [USB REC 7/9] or [MEMORY REC 7/9] to start recording. Note:

• If you cannot record at high-speed because of the condition of the disc, record at normal speed.
• The sound is muted during high-speed recording. █ Adding track marks When recording from radio or external equipment, you can divide tracks using various modes. Before recording Press [REC MODE] to select the mode. MANUAL Add a track mark manually. Press [OK] during recording to add a track mark. SYNCHRO (For AUX 1 or AUX 2 source) Recording starts automatically when the other equipment starts to play. Recording pauses when it detects silence for 3 seconds. TIME MARK A track is automatically divided at 5-minute intervals. Note:
• During recording, if you press [OK] or pause recording while using “TIME MARK” mode, the 5-minute counter is reset.
• You cannot add track marks manually in “SYNCHRO” mode. offset printing MAX4000E.book Page 13 Tuesday, April 21, 2015 4:57 PM You can record MP3 tracks from:
• MP3 disc to USB B or internal memory
• USB A to USB B or internal memory

Press [MEMORY REC 7/9] or [USB REC 7/9] to start recording. Stop recording Press [8]. Recording stops at the last fully recorded track in the album. For example, if you stop recording during the fourth track, only the first three tracks are recorded. “NO FILE RECORDED” is shown if no track is recorded. Note:

• Some tracks can use a longer time to record.
• Some tracks cannot be recorded because of the condition of the source.
• When recording from an MP3 disc, the recorded file name is different from the original file.
• When recording from USB A , the recorded file name is the same as the original file (maximum 32 characters). Deleting the recorded tracks

MEMORY Press [MEMORY] (main unit: [MEMORY/USB]) to select “MEMORY”. USB B Press [USB] (main unit: [MEMORY/USB]) to select “USB B”.

Press [R, T] to select the album. Press [2] or [6] to select the track. Press [EDIT MODE] to select the mode. TRACK DEL Delete a single track. ALBUM DEL Delete one album (maximum 999 tracks). FORMAT Format the USB device. ALL DEL Delete all albums in the internal memory. Press [OK]. The selected item to be deleted is shown. Sound effects Preset EQ

Press [EQ] (main unit: [LOCAL EQ]) to select “PRESET EQ”. Press [R, T] to select the desired preset EQ setting and then press [OK]. Or turn [MULTI CONTROL] to select the desired preset EQ setting. Manual EQ

Press [EQ] (main unit: [LOCAL EQ]) to select “MANUAL EQ”. Press [R, T] to select the sound effect. Or turn [MULTI CONTROL] to select the sound effect. Press [Y, U] to select the setting and then press [OK]. Or press [2/3] or [5/6] to select the setting. BASS/MID/TREBLE –4 to +4 SURROUND “ON SURROUND” or “OFF SURROUND” D.Bass

Press [D.BASS] to select “D.BASS LEVEL” or “D.BASS BEAT”. To cancel, select “OFF D.BASS”. Press [R, T] to select the setting and then press [OK]. Or turn [MULTI CONTROL] to select the setting. Note: D.BASS BEAT: This function emphasizes the attack level of the drum beat and produces a punchy sound. Depending on the track, the effect may be small. Illumination effects You can change the illumination effect on the system. Press [ILLUMINATION] to select the desired effect. COLOR Illuminate in one colour. AUTO Illuminate in one colour. The colour changes automatically. OFF Cancel the effect. You can also press [R, T] to select the next or previous effect. Using the main unit Turn [ILLUMINATION]. Press [OK]. “SURE? NO” is shown. Press [Y, U] to select “SURE? YES” and then press [OK]. “WRITING” is shown. To cancel, select “SURE? NO”. RQT0A38

Sound and illumination effects ENGLISH Recording MP3 tracks

offset printing MAX4000E.book Page 14 Tuesday, April 21, 2015 4:57 PM DJ functions You can use the DJ functions to add sound effect or sample sound between songs. Using the “Panasonic MAX Juke” app You can download and install the free Android app “Panasonic MAX Juke” on Google Play for additional features, such as to request song playback from multiple devices simultaneously. Note: The DJ function is switched off when you switch off the system, change to another source or during recording. DJ jukebox USB MEMORY Press [JUKEBOX] (main unit: [DJ JUKEBOX]). To cancel, select “OFF”. Note: The system switches to repeat mode automatically when you switch on the DJ Jukebox. █ Changing the repeat setting

Press [PLAY MENU]. Press [Y, U] to select the setting and then press [OK]. Using the main unit In the stop mode, turn [MULTI CONTROL] to select the setting and then press [4/9]. RANDOM REPEAT Repeat random playback. RND

Repeat random playback. Sample sound is added to the intervals of all tracks. RND Using the “Panasonic MAX Juke” app You can call up the tracks you want to play through the app.

• When “MAKING LIST” is shown, you can call up a part of tracks.
• When “WAITING REQUEST” is shown, you can call up the tracks you want to play through the app. DJ sampler (Except for AUX 1 and AUX 2 source) By main unit only By turning [MULTI CONTROL], you can apply a scratch sound or sample sound to the track you are playing.

Using the “Panasonic MAX Juke” app You can change the sample sound on the app. (To return all sample sounds to the factory preset, press and hold [DJ SAMPLER] when the DJ sampler is switched off.) DJ effect (Except for AUX 1 and AUX 2 source) By main unit only You can use the DJ effect function to add the sound effects.

Press [DJ EFFECT]. Press [DJ1] to [DJ6] to select the effect. [DJ1] PHASER Add space and dimension to the sound. [DJ2] FILTER Enhance or filter specific ranges of the sound. [DJ3] █ Changing the DJ jukebox effect SOUND CHOPPER Cut off the sound periodically. [DJ4] Press [DJ1] to [DJ6] on the main unit to select the effect. ELECTRO ECHO Add digital echo to the sound. [DJ5] PITCH SHIFTER Adjust the keys of the sound. [DJ6] HARMONIZER Add notes to the sound to create harmony. [DJ2] to [DJ6] Cross-fade: The current track volume Sample sound mix: Sample sound is added to the intervals of all tracks. To cancel, press the button again. Note: You cannot select the DJ jukebox effect when you are using “RANDOM MIX REPEAT” mode. RQT0A38 Turn [MULTI CONTROL]. To cancel DJ sampler Press [DJ SAMPLER]. gradually becomes soft, and the next track volume gradually becomes loud.

Press [DJ1] to [DJ6] to select the desired sound. When “WAITING REQUEST” is shown, you can proceed to the next step without using the “Panasonic MAX Juke” app. [DJ1]

Turn [MULTI CONTROL] to select the setting. To cancel DJ effect Press [DJ EFFECT]. offset printing MAX4000E.book Page 15 Tuesday, April 21, 2015 4:57 PM Preparation Decrease the volume of the system to its minimum before you connect or disconnect a microphone.

Connect a microphone (not supplied) to the microphone jack. Plug type: Ø 6.3 mm monaural

For record timer, press [Y, U] to select “MEMORY” or “USB B” to keep the recording and then press [OK]. To start the timer

Prepare the source. Play timer Prepare the source you want to listen to (disc, USB, internal memory or radio) and set the volume. Record timer Connect the USB device to USB B (for USB recording) and tune in to the radio station. Turn [MIC VOL, MIN/MAX] on the main unit to adjust the volume of the microphone. If you want to sing with the background music.

Press [Y, U] to select the source you want to play or record and then press [OK]. Play the music source and adjust the volume of the system. Note:

• If a strange noise (howling) is emitted, move the microphone away from the speakers, or decrease the volume of the microphone.
• When you do not use the microphone, disconnect it from the microphone jack, and decrease the volume of the microphone level to “MIN”.
• This system cannot record from microphone. ENGLISH Using a microphone

Press [SETUP] to select “TIMER SET”. Press [Y, U] to select the setting and then press [OK]. PLAY ON Start the play timer. PLAY OFF Cancel the play timer. REC ON Start the record timer. REC OFF Cancel the record timer. “#” is shown. The system must be switched off for the timer to operate. Clock and timers To check the setting Setting the clock This is a 24-hour clock.

Press [SETUP] to select “CLOCK”. Press [Y, U] to set the time and then press [OK]. To check the time Press [SETUP] to select “CLOCK”. In standby mode, press [DISPLAY]. Note: Reset the clock regularly to maintain accuracy. Play timer and record timer

Press [SETUP] to select “TIMER ADJ”. Press [Y, U] to select “#PLAY” or “#REC” and then press [OK]. In standby mode, press [DISPLAY] two times. Note:

• The play timer starts at a low volume and increases gradually to the preset level.
• The record timer starts 30 seconds before the set time with the volume muted.
• The timer comes on at the set time every day if the timer is on.
• If you switch off the system and then switch on again while a timer is in operation, the timer will not stop at the end time. (Except for Bluetooth®, AUX 1 and AUX 2 source) You can set the timer to come on at a certain time to:
• Wake you up (play timer).
• Record from the radio (record timer). Play timer and record timer cannot be used together. Preparation Set the clock.

The sleep timer switches off the system after the set time. Press [SLEEP] to select the setting (in minutes). To cancel, select “OFF”. 30 MIN ĺ 60 MIN ĺ 90 MIN ĺ 120 MIN ĺ OFF Press [SETUP] to select “TIMER ADJ”. Press [Y, U] to select “#PLAY” or “#REC” and then press [OK]. Press [Y, U] to set the start time and then press [OK]. Do step 3 again to set the end time. Note:

• The remaining time is always shown on the display. The display changes temporarily when you perform other operations.
• The play timer and sleep timer or the record timer and sleep timer can be used together.
• The sleep timer always comes first. Be sure not to set an overlap of timers. RQT0A38

offset printing MAX4000E.book Page 16 Tuesday, April 21, 2015 4:57 PM External equipment Connecting a portable audio equipment You can play music from a portable audio equipment. Preparation

• Disconnect the AC mains lead.
• Switch off all equipment and read the appropriate operating instructions. Note: Components and cables are sold separately. Preparation
• Switch off the equaliser (if any) of the portable audio equipment to prevent sound distortion.
• Decrease the volume of the system and the portable audio equipment before you connect or disconnect the portable audio equipment. Using the auxiliary input You can connect a VCR, DVD player etc. and listen to the audio through this system. Audio cable (not supplied) DVD player (not supplied) Rear panel of this main unit Portable audio equipment (not supplied)

Audio cable (not supplied)

Connect the external equipment. Press [CD/RADIO/AUX] to select “AUX 1”. Play the external equipment. RQT0A38 Note:

• If you want to connect equipment other than those described, refer to the audio dealer.
• Sound distortion can occur when you use an adaptor.

Connect the portable audio equipment. Plug type: Ø 3.5 mm stereo Press [CD/RADIO/AUX] to select “AUX 2”. Play the portable audio equipment. To adjust the input level

Press [PLAY MENU] to select “INPUT LEVEL”. Press [Y, U] to select “NORMAL” or “HIGH” and then press [OK]. Note:

• You cannot adjust the input level during recording.
• Select “NORMAL” if the sound is distorted during “HIGH” input level.
• Read the operating instructions of the portable audio equipment for details. offset printing MAX4000E.book Page 17 Tuesday, April 21, 2015 4:57 PM Auto off This system automatically switches off when you do not use it for approximately 20 minutes.

Maintenance ENGLISH Others To clean this system, wipe with a soft, dry cloth.

• Never use alcohol, paint thinner or benzine to clean this system.
• Before using chemically treated cloth, read the instructions that came with the cloth carefully. Press [SETUP] to select “AUTO OFF”. Press [Y, U] to select “ON” and then press [OK]. To cancel, select “OFF”. Note: This function does not work when you are in radio source or when a Bluetooth® device is connected. Bluetooth® standby This function automatically switches on the system when you establish a Bluetooth® connection from a paired device.

Press [SETUP] to select “BLUETOOTH STANDBY”. Press [Y, U] to select “ON” and then press [OK]. To cancel, select “OFF”. Note: Some devices may take longer to respond. If you are connected to a Bluetooth® device before switching off the system, wait for a minimum of 5 seconds before connecting to this system from your Bluetooth® device again. Software version You can check the software version of the system.

Press [SETUP] to select “SW VER.” and then press [OK]. The software version is shown. Press [OK] again to exit. RQT0A38

offset printing MAX4000E.book Page 18 Tuesday, April 21, 2015 4:57 PM Troubleshooting Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions indicated do not solve the problem, consult your dealer for instructions. █ Common problems The unit does not work.

• The safety device has been activated. Do the following:

1. Press [1] on the main unit to switch the unit to standby

mode. If the unit does not switch to standby mode, – Press and hold the button for a minimum of 10 seconds. Or, – Disconnect the AC mains lead and then connect it again.

2. Press [1] again to switch on the unit. If the problem

persists, consult your dealer. The display panel lights up and changes continuously in standby mode.

• Press and hold [8] on the main unit to select “DEMO OFF”. No operations can be done with the remote control.

• Examine that the battery is installed correctly. Sound is distorted or no sound.
• Adjust the volume of the system.
• Switch off the system, determine and correct the cause, and then switch on again. It can be caused by straining of the speakers through excessive volume or power, and when using the system in a hot environment. A humming sound can be heard during playback.
• An AC mains lead or fluorescent light is near the cables. Keep other appliances and cords away from the cables of this system. The sound level reduces.
• The protection circuit has been activated due to the continuous use at high volume output. This is to protect the system and maintain the sound quality. █ Disc Display not shown correctly. Playback does not start.
• You have not put in the disc correctly. Put it in correctly.
• Disc is dirty. Clean the disc.
• Replace the disc if it is scratched, warped, or non-standard.
• There is condensation. Let the system dry for 1 to 2 hours. RQT0A38 The total number of tracks displayed is incorrect. The disc cannot be read. Distorted sound is heard.
• You put in a disc that the system cannot play. Change to a playable disc.
• You put in a disc that has not been finalised.

█ Bluetooth® Pairing cannot be done.

• Check the Bluetooth® device condition.
• The device is out of the 10 m communication range. Move the device nearer to the system. The device cannot be connected.
• The pairing of the device was unsuccessful. Do pairing again.
• The pairing of the device has been replaced. Do pairing again.
• This system might be connected to a different device. Disconnect the other device and try pairing the device again.
• The system may have a problem. Switch off the system and then switch on again. The device is connected but audio cannot be heard through the system.
• For some built-in Bluetooth® devices, you have to set the audio output to “SC-MAX4000” manually. Read the operating instructions of the device for details. Sound from the device is interrupted.
• The device is out of the 10 m communication range. Move the device nearer to the system.
• Remove any obstacle between the system and the device.
• Other devices that use the 2.4 GHz frequency band (wireless router, microwaves, cordless phones, etc.) are interfering. Move the device nearer to the system and distance it from the other devices.
• Select “MODE 1” for stable communication. The one-touch connection (NFC) is not working.
• Make sure the system and the NFC feature of the device are switched on.
• Touch and hold the device on the NFC touch area of this system again. Playback image and sound are not synchronised.
• Restart the playback app of the device.
• Connect the device to the system with an audio cable (not supplied). █ Radio Sound is distorted.
• Use an optional FM outdoor antenna. The antenna should be installed by a competent technician. A beat sound is heard.
• Switch off the TV or move it away from the system.
• Move mobile telephones away from the system if the interference is apparent.
• When in AM tuner mode, select the “BEATPROOF” setting that provides the best reception. A low hum is heard during AM broadcasts.
• Move the antenna away from other cables and cords. █ Main unit displays █ USB “ADJUST CLOCK”
• The clock is not set. Adjust the clock. The USB device or the contents in it cannot be read.
• The format of the USB device or the contents in it are not compatible with the system.
• USB devices with storage capacity of more than 32 GB cannot work in some conditions. “ADJUST TIMER”
• The play timer and/or record timer is not set. Adjust the play timer and/or record timer. Slow operation of the USB device.
• Large content size or large memory USB device takes longer time to read. “ALB FULL”
• The number of albums has exceeded the supported limit. “AUTO OFF”
• The system has not been used for 20 minutes and will switch off within a minute. To cancel, press any button. offset printing MAX4000E.book Page 19 Tuesday, April 21, 2015 4:57 PM “ERROR” (during recording)
• You cannot select other playback source (example: radio, USB etc.) or press [2] or [6] during recording. Stop the recording function.
• You cannot open the disc tray when recording from an AM source. “F61”
• Examine and correct the speaker cords connection.
• Disconnect the USB device. Switch off the system and then switch on again. “F70”
• Examine the Bluetooth® connection.
• Disconnect the Bluetooth® device. Switch off the system and then switch on again. “F76”
• There is a problem with the power supply.
• Disconnect the AC mains lead and consult your dealer. “F77”
• Disconnect the AC mains lead and consult your dealer. “NO DEVICE”
• The USB device is not connected. Examine the connection.
• You cannot do recording or check available storage space because there is no USB device connected to USB B . “NO DISC”
• You have not put in a disc. “NO PLAY” “UNSUPPORT”
• Examine the content. You can only play supported format.
• The files in the USB device can be corrupted. Format the USB device and try again.
• The system may have a problem. Switch off the system and then switch on again. “NO TRACK”
• There is no album or track in the USB device or the internal memory. “PLAYERROR”
• You played an unsupported MP3 file. The system will skip that track and play the next one. “REC ERROR”
• You disconnected the USB device during recording. Connect the USB device and do recording again.
• An error occurred during USB recording. Disconnect the USB device and then connect it again. “REMOTE 1” “REMOTE 2”
• The remote control and the main unit are using different codes. Change the code of the remote control. – When “REMOTE 1” is shown, press and hold [OK] and [1] for a minimum of 4 seconds. – When “REMOTE 2” is shown, press and hold [OK] and [2] for a minimum of 4 seconds. ENGLISH “ERROR”
• An incorrect operation was done. Read the instructions and try again. “TEMP NG”
• The temperature protection circuit has been activated, and the system will switch off. Let the unit cool down before switching it on again.
• Check that the ventilation opening of the unit is not obstructed.
• Ensure this unit is well ventilated. “TRK FULL”
• The number of files has exceeded the supported limit.

“USB OVER CURRENT ERROR”

• The USB device is using too much power. Disconnect the USB device, switch off the system and then switch on again. “VBR”
• The system cannot show the remaining play time for variable bit rate (VBR) tracks. Remote control code When other Panasonic equipment responds to the remote control of this system, change the remote control code for this system. Preparation Press [CD/RADIO/AUX] to select “AUX 1” or “AUX 2”. █ To set the code to “REMOTE 2”

Press and hold [CD/RADIO/AUX] on the main unit and [2] on the remote control until “REMOTE 2” is shown. Press and hold [OK] and [2] for a minimum of 4 seconds. █ To set the code to “REMOTE 1”

Press and hold [CD/RADIO/AUX] on the main unit and [1] on the remote control until “REMOTE 1” is shown. Press and hold [OK] and [1] for a minimum of 4 seconds. System memory reset Reset the memory when the following situations occur:

• There is no response when buttons are pressed.
• You want to clear and reset the memory contents.

Disconnect the AC mains lead. While you press and hold [1] on the main unit, connect the AC mains lead again. Continue to press and hold the button until “– – – – – – – – –” is shown. Release [1]. All the settings are set back to the factory preset. It is necessary to set the memory items again. RQT0A38

• You cannot do recording because the remaining recording time of the USB device is less than the total time of the music source. Change to a USB device which has enough recording time and do the recording again.

offset printing MAX4000E.book Page 20 Tuesday, April 21, 2015 4:57 PM Specifications █ Amplifier section █ Terminal section RMS output power stereo mode High Ch 350 W per channel (3 Ω), 1 kHz, 30% THD Mid Ch 350 W per channel (3 Ω), 1 kHz, 30% THD Low Ch 500 W per channel (2 Ω), 100 Hz, 30% THD Total RMS stereo mode power 2400 W USB port USB standard Media file format support USB device file system █ Disc section Disc played (8 cm or 12 cm) CD, CD-R/RW (CD-DA, MP3 ) MPEG-1 Layer 3, MPEG-2 Layer 3 Pick up Wavelength 790 nm (CD) Bluetooth® Ver. 2.1 + EDR Class Supported profiles USB recording Bit rate USB recording speed Recording file format 128 kbps 1x, 3x (CD only) MP3 (*.mp3) AUX IN 1 Audio input Pin jack AUX IN 2 Terminal Stereo, 3.5 mm jack Microphone Terminal █ Bluetooth® section Version USB 2.0 full speed MP3 (*.mp3)

Operating frequency Operation distance

10 m line of sight █ Tuner section Frequency modulation (FM) Preset memory 30 stations Frequency range

87.50 MHz to 108.00 MHz (50 kHz step)

Antenna terminals 75 Ω (unbalanced) Amplitude modulation (AM) Preset memory 15 stations Frequency range 522 kHz to 1629 kHz (9 kHz step) 520 kHz to 1630 kHz (10 kHz step) Mono, 6.3 mm jack █ Speaker section Speaker unit(s) Tweeter Woofer Super Woofer 6 cm cone type 20 cm cone type 30 cm cone type Impedance High 3 Ω / Mid 3 Ω / Low 2 Ω Dimensions (W x H x D) 407 mm x 709 mm x 389 mm Mass 19 kg █ General Power supply AC 220 V to 240 V, 50 Hz Power consumption Dimensions (W x H x D) 155 W 492 mm x 221 mm x 421 mm Mass Operating temperature range RQT0A38 █ Internal memory section

0°C to +40°C Operating humidity range 35% to 80% RH (no condensation) Memory Memory size Media file format support 2 GB MP3 (*.mp3) Memory recording Bit rate Memory recording speed Recording file format 128 kbps 1x, 3x max (CD only) MP3 (*.mp3) Power consumption in standby mode (approximate)

Power consumption in standby mode (approximate) (With “BLUETOOTH STANDBY” set to “ON”)

• Specifications are subject to change without notice. Mass and dimensions are approximate.
• Total harmonic distortion is measured by the digital spectrum analyser. offset printing MAX4000E.book Page 21 Tuesday, April 21, 2015 4:57 PM Panasonic bears no responsibility for data and/or information that can possibly be compromised during a wireless transmission. Frequency band
• This system uses the 2.4 GHz frequency band. Certification
• This system conforms to the frequency restrictions and has received certification based on frequency laws. Thus, a wireless permit is not necessary.
• The actions below are punishable by law: – Taking apart or modifying the main unit. – Removing specification indications. Restrictions of use
• Wireless transmission and/or usage with all Bluetooth® equipped devices is not guaranteed.
• All devices must conform to standards set by Bluetooth SIG, Inc.
• Depending on the specifications and settings of a device, it can fail to connect or some operations can be different.
• This system supports Bluetooth® security features. But depending on the operating environment and/or settings, this security is possibly not sufficient. Transmit data wirelessly to this system with caution.
• This system cannot transmit data to a Bluetooth® device. Disposal of Old Equipment and Batteries Only for European Union and countries with recycling systems ENGLISH About Bluetooth® These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries must not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation. By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment. For more information about collection and recycling, please contact your local municipality. Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation. Note for the battery symbol (bottom symbol): This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved. Range of use
• Use this device at a maximum range of 10 m.
• The range can decrease depending on the environment, obstacles or interference. Interference from other devices
• This system may not function properly and troubles such as noise and sound jumps may arise due to radio wave interference if this unit is located too close to other Bluetooth® devices or the devices that use the
• This system may not function properly if radio waves from a nearby broadcasting station, etc. is too strong. Intended usage
• This system is for normal, general use only.
• Do not use this system near an equipment or in an environment that is sensitive to radio frequency interference (example: airports, hospitals, laboratories, etc.). Licenses The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of their respective owners. MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson. RQT0A38 Google Play and Android are trademarks of Google Inc.
