SBC700E - Pregnant PANASONIC - Free user manual and instructions

Brand	PANASONIC
Model	SB-C700
Product type	2-way coaxial bass reflex speaker
Dimensions (W × H × D)	220 mm × 336 mm × 286 mm (grille and rear terminals included)
Weight	Approx. 8.5 kg
Woofer	16 cm (6 1/2") flat type × 1
Tweeter	1.9 cm (3/4") dome type × 1
Impedance	4 Ω
Power handling (IEC)	100 W (max) / 50 W (nominal)
Sound pressure level	85 dB (2.83 V/m) / 82 dB (W/m)
Frequency response	40 Hz - 100 kHz (-16 dB) / 45 Hz - 80 kHz (-10 dB)
Crossover frequency	2.5 kHz
Operating temperature	0 °C to +40 °C
Operating relative humidity	20 % to 80 % (no condensation)
Care and cleaning	Clean with a soft, dry cloth. Do not use solvents.
Safety	Install on a flat surface. Do not hang from ceiling or wall. Do not insert objects into vents.
Supplied accessories	2 speaker grilles, 2 speaker cables
Warranty	3 years parts and labor (Canada)

Frequently Asked Questions - SBC700E PANASONIC

Where should the speakers be placed for best sound quality?

Install speakers on a flat, stable surface, at least 5 cm from walls to avoid obstructing rear vents. Place them at equal distance from your listening position and aim them toward you. For optimal bass, adjust the distance from the front wall between 30 and 60 cm.

How to connect speaker cables?

Strip the ends of the cables, unscrew the terminals on the back of the speaker, insert the wires into the holes respecting polarity (red for +, black for -), then tighten firmly. Be careful not to short-circuit the wires.

What to do if sound suddenly stops?

Reduce amplifier volume. Check the source and connections. If no problem is found, the protection circuit resets automatically after a few minutes. Avoid turning up the volume excessively afterwards.

How to clean the speakers?

Use a soft, dry cloth. For stubborn dirt, wipe with a well-wrung damp cloth then dry with a dry cloth. Never use solvents like alcohol, thinner, or household detergents.

Can I mount the speakers on the wall or ceiling?

No, the speakers are designed only for floor installation on a flat surface. Hanging or mounting them on the wall could cause a fall and result in injury.

What amplifier power is recommended?

These speakers support a maximum input power of 100 W (IEC) and nominal power of 50 W. Use a suitable amplifier and avoid driving a small amplifier into distortion, as this could damage the speakers.

Can I use only one speaker?

Yes, you can use one speaker in stereo or mono, but to fully enjoy the stereo soundstage, it is recommended to use both identical speakers.

Are the speaker grilles removable?

Yes, the grilles are removable and attach via magnets. Remove instruction labels before use. Be sure to install them correctly (the 'Upper' mark at the top) to avoid affecting sound quality.

What to do if an object falls into the bass reflex port?

Do not attempt to remove it yourself. Turn off the amplifier and contact a qualified technician. Inserting objects into the port may cause fire or injury.

Where is the speaker's serial number located?

The model number and serial number are on the nameplate on the bottom of the speaker (product identification mark). Note them for any after-sales service requests.

USER MANUAL SBC700E PANASONIC

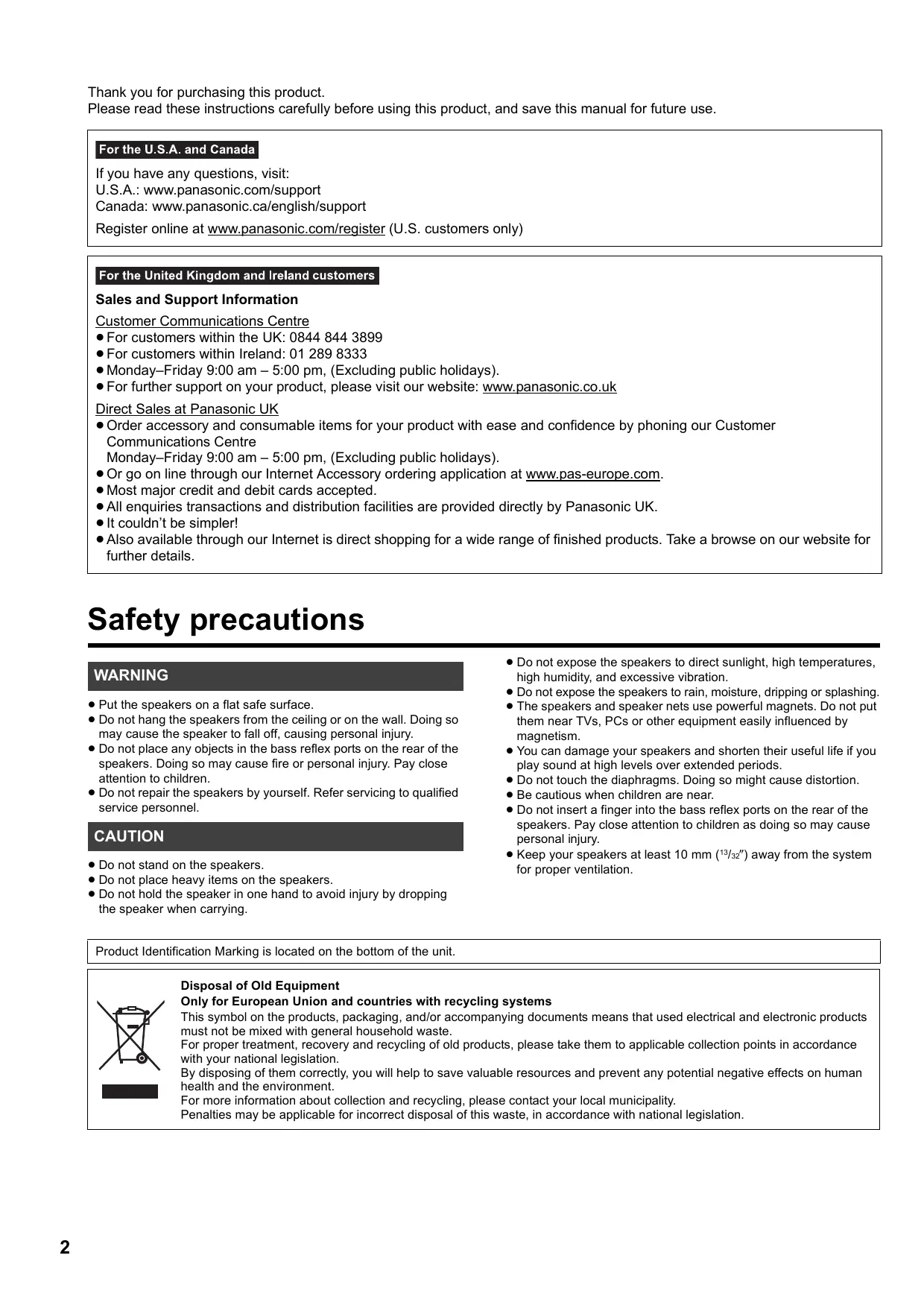

Thank you for purchasing this product.

Please read these instructions carefully before using this product, and save this manual for future use.

For the U.S.A. and Canada

If you have any questions, visit:

U.S.A.: www.panasonic.com/support

Canada: www.panasonic.ca/english/support

Register online at www.panasonic.com/register (U.S. customers only)

For the United Kingdom and Ireland customers

Sales and Support Information

Customer Communications Centre

● For customers within the UK: 0844 844 3899
- For customers within Ireland: 01 289 8333
- Monday–Friday 9:00 am – 5:00 pm, (Excluding public holidays).
- For further support on your product, please visit our website: www.panasonic.co.uk

Direct Sales at Panasonic UK

• Order accessory and consumable items for your product with ease and confidence by phoning our Customer Communications Centre
  Monday–Friday 9:00 am – 5:00 pm, (Excluding public holidays).
• Or go on line through our Internet Accessory ordering application at www.pas-europe.com.
• Most major credit and debit cards accepted.
• All enquiries transactions and distribution facilities are provided directly by Panasonic UK.
• It couldn't be simpler!
• Also available through our Internet is direct shopping for a wide range of finished products. Take a browse on our website for further details.

Safety precautions

WARNING

• Put the speakers on a flat safe surface.
• Do not hang the speakers from the ceiling or on the wall. Doing so may cause the speaker to fall off, causing personal injury.
• Do not place any objects in the bass reflex ports on the rear of the speakers. Doing so may cause fire or personal injury. Pay close attention to children.
• Do not repair the speakers by yourself. Refer servicing to qualified service personnel.

CAUTION

• Do not stand on the speakers.
• Do not place heavy items on the speakers.

• Do not hold the speaker in one hand to avoid injury by dropping the speaker when carrying.

• Do not expose the speakers to direct sunlight, high temperatures, high humidity, and excessive vibration.

• Do not expose the speakers to rain, moisture, dripping or splashing.
• The speakers and speaker nets use powerful magnets. Do not put them near TVs, PCs or other equipment easily influenced by magnetism.
• You can damage your speakers and shorten their useful life if you play sound at high levels over extended periods.
• Do not touch the diaphragms. Doing so might cause distortion.
• Be cautious when children are near.
• Do not insert a finger into the bass reflex ports on the rear of the speakers. Pay close attention to children as doing so may cause personal injury.
• Keep your speakers at least 10 mm ( ^13/_32 ) away from the system for proper ventilation.

Product Identification Marking is located on the bottom of the unit.

Disposal of Old Equipment

Only for European Union and countries with recycling systems

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Safety precautions....2

Accessories 3

About this unit.... 3

Installation 4

Connections 6

Notes on use....8

Unit care 8

Specifications 9

Limited Warranty (ONLY FOR U.S.A.) 64

Limited Warranty (ONLY FOR CANADA)......65

About descriptions in this Owner's Manual

- The illustrations shown may differ from your unit.

Accessories

□ 2 Speaker nets

(RYB0400)

□ 2 Speaker cables

(RFA3620)

- Product numbers provided in this Owner's Manual are correct as of October 2014. These may be subject to change.

About this unit

■ Names of parts and features of the speakers

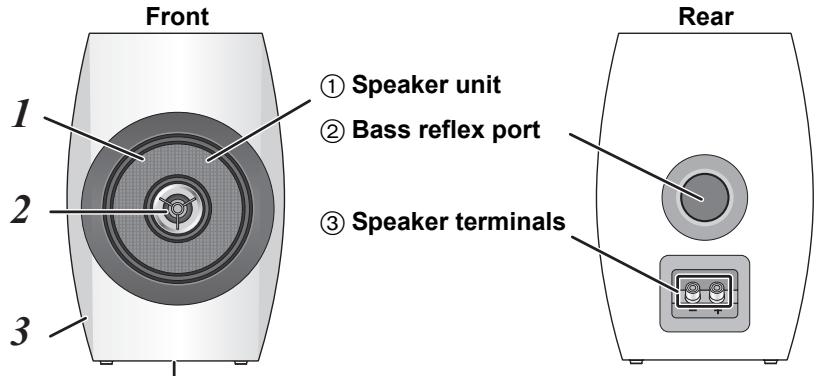

Front 1 2 3 ① Speaker unit ② Bass reflex port ③ Speaker terminals Rear

④ Product Identification Marking
- The model number is located on the Product Identification Marking on the bottom of this unit.

1 Flat coaxial 2-way speaker unit

The newly developed flat coaxial 2-way speaker unit (woofer, tweeter) realises a point sound source, providing smooth directional characteristics over the entire frequency range.

2 Dome tweeter that can reproduce frequencies of up to 100 kHz

The lightweight aluminium diaphragm allows the reproduction of sound over an ultra-wide frequency range that extends up to 100 kHz.

3 High rigidity entasis form cabinet

Designed to eliminate unwanted vibration, diffraction reflection, and standing waves, the cabinet allows the reproduction of faithful and rich sound ambience.

■ Recommended devices

We recommend using Technics devices (optional) for superior audio quality.

Product name	Model number
Network Audio Player	ST-C700
Compact Disc Player	SL-C700*
Stereo Integrated Amplifier	SU-C700

* This product is set to be released in March 2015.

e.g.,

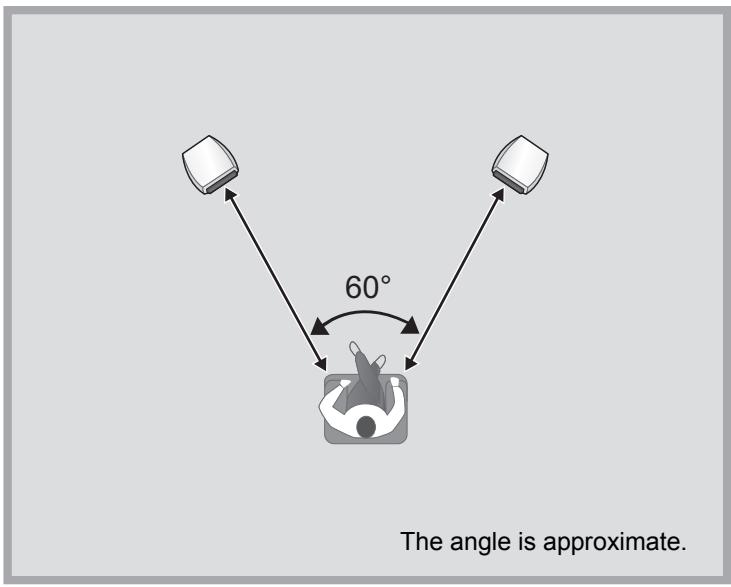

60° The angle is approximate.

• Place the speakers at approximately the same distance from the listening position.
• The speakers produce bass sound from the bass reflex ports on the rear as well as from the front. Install the speakers at least 5 cm (2") away from the walls so that they do not cover the bass reflex ports on the rear.

■ For optimum position

The quality and volume of the bass sound, sound localisation performance, sound ambience, and other factors that determine the audio quality vary depending on the installation location of this unit, listening position, room conditions, and other factors. Refer to the information below when installing the speakers.

Determining an installation location.

• Put the speakers on a flat safe surface.
• To minimise the gap in audio quality between the left and right speakers, install them so that acoustic conditions (reflection and absorption of sound) around them are the same.

Adjusting the distances between the rear of the speakers and the walls

If you install the speakers close to a wall or in a corner, the bass sound will be more powerful; however, when the speakers are too close to it, sound localisation performance and sound ambience may deteriorate. If this occurs, adjust the distance between the speakers and the front wall, which should be between 30 cm (12") to 60 cm (24"). (Please note that the distance between the speakers and the side walls should be greater than 60 cm (24").)

Adjusting the height and angle of the speakers

Using stands or similar items, place the speakers at a height about level with the listener's ears. Angle the front side of the speakers toward the listener. Following these steps will help the speakers deliver more precise sound localisation.

Adjusting the acoustics of the room and speaker layout

Depending on the room environment (including the size and shape of the room, distance to the walls and reverberation level), certain sounds may be exaggerated or suppressed, making them difficult to hear. In such cases, adjusting the reverberation level by moving the speakers, changing your listening position or covering the walls and windows with thick curtains may help resolve the problem.

Attaching and removing the speaker nets

The speakers are supplied with speaker nets, which protect the speaker units from dust. Use the magnets to fix the speaker nets to the speakers.

• Attach each speaker net so that the upper part of its back indicated as [Upper] is attached to the upper part of each speaker.
• Instruction labels are attached to the upper part of each speaker net. Remove them before use.

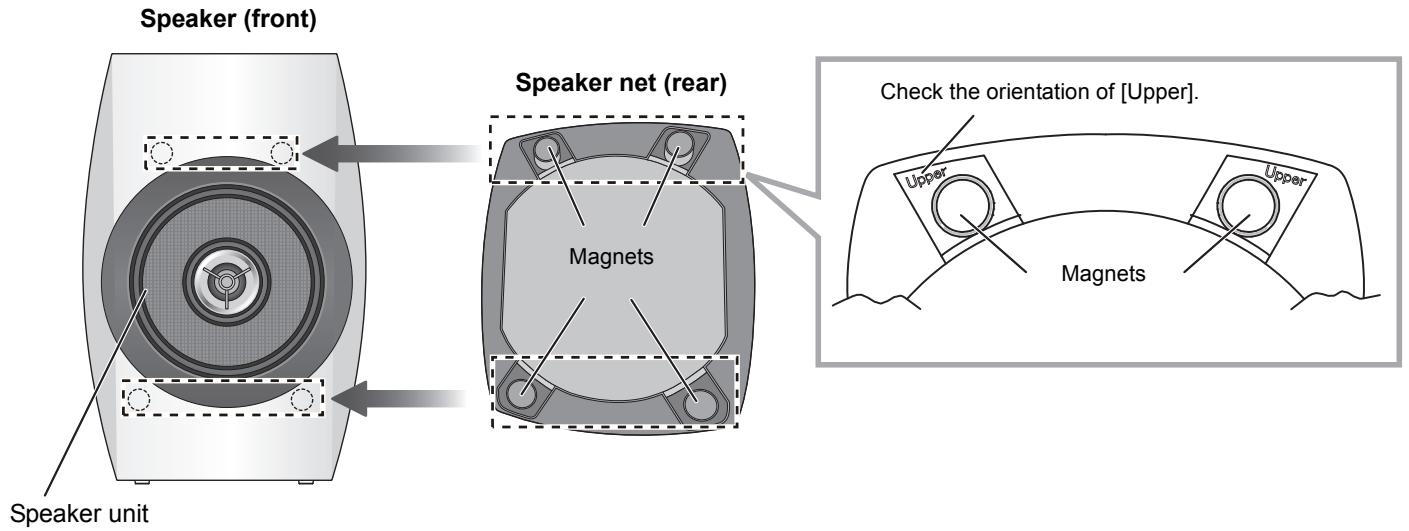

Speaker (front) Speaker net (rear) Speaker unit Magnets Check the orientation of [Upper]. Upper Upper Magnets

DO

• Attach the speaker nets so that they fully cover the speaker units.

DO NOT

• Attaching the speaker nets upside down may cause the sound quality to deteriorate.

Connecting the speaker cables

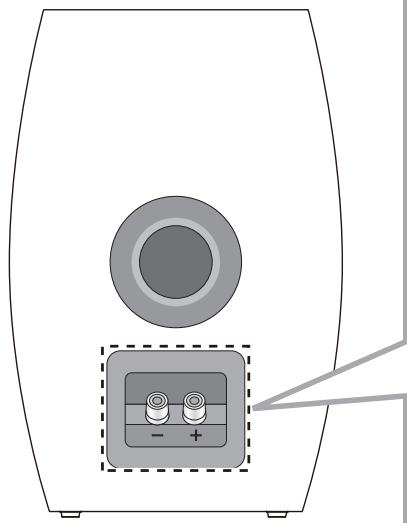

Speaker (rear)

Diagram of a speaker with a circular head and two buttons inside a dashed box (no text or symbols)

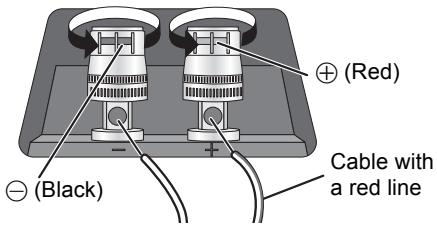

① Twist the insulation covering the tips of the speaker cables to pull them out.

② Turn the knobs to loosen them, and insert the core wires into the holes.

⊕ (Red) ⊖ (Black) Cable with a red line

③ Tighten the knobs.

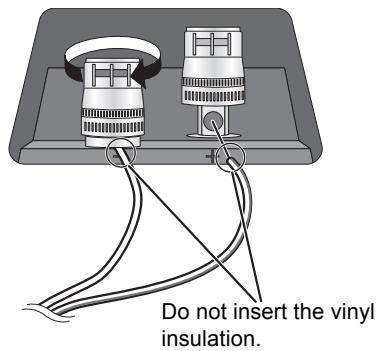

Do not insert the vinyl insulation.

- Be careful not to cross (short-circuit) or reverse the polarity of the speaker wires as doing so may damage the amplifier.

DO NOT

- Check the colors of the speaker cables (supplied) to connect the left and right speakers correctly. Incorrect connection can damage the speakers.

Connecting with an amplifier

• Before connection, turn off the amplifier and disconnect its power cord.
• For details, refer to the operating instructions of the amplifier.

e.g.,

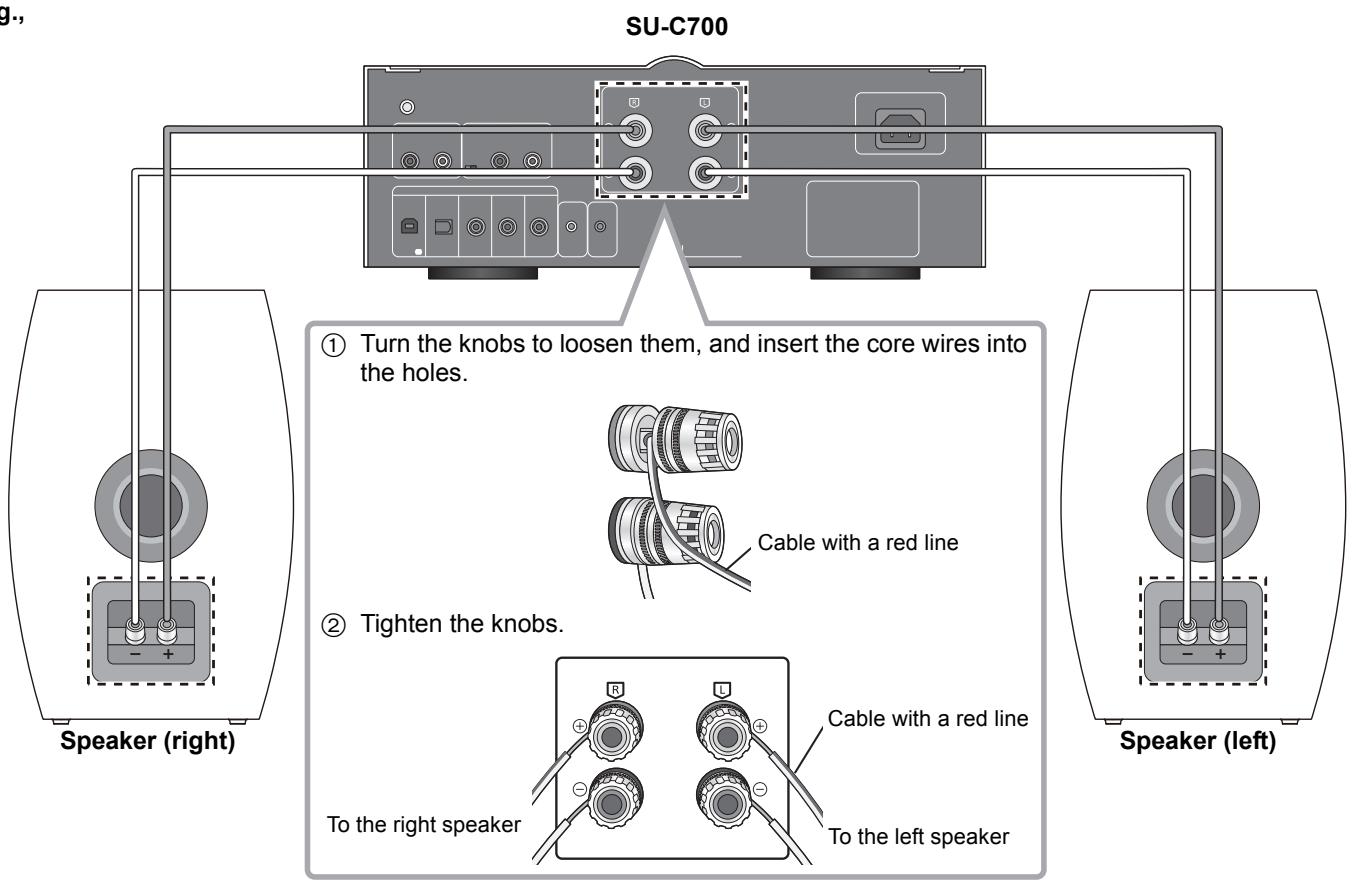

SU-C700 ① Turn the knobs to loosen them, and insert the core wires into the holes. Cable with a red line ② Tighten the knobs. To the right speaker Cable with a red line To the left speaker Speaker (right) Speaker (left)

• Do not move the speaker while the speaker cables are connected. This may cause a short circuit.
• When the connections are completed, pull the speaker cables lightly to check that they are connected firmly.
• Wire the polarity (+/-) of the terminals correctly. Not doing so may adversely affect stereo effects or cause malfunction.

To protect the speakers from damage caused by excessive input, observe the following precautions:

• Do not apply inputs exceeding the permissible range.
• Avoid raising the volume level too much when enhancing the treble sound with a graphic equalizer.
• Avoid outputting excessively loud sound with a small power amplifier. Doing so will increase the amplifier's harmonic distortion and may damage the speakers.

Protection circuitry

These units incorporate protection circuitry to protect them from damage caused by excessive input or abnormal signals; when excess input is detected, input is automatically interrupted.

- If sound is interrupted...

1. Reduce the volume of the receiver (or amplifier).
2. Check the sound source and connections for any problems. If there is no problem, the protection circuitry will reset in a few minutes.

- After the protection circuit is reset...

Take care not to increase the receiver's volume too high.

Unit care

Clean the speakers with a soft, dry cloth.

• When dirt is heavy, wring a wet cloth tightly to wipe the dirt, and then wipe it with a dry cloth.
• Do not use solvents including benzine, thinner, alcohol, kitchen detergent, a chemical wiper, etc. This might cause the exterior case to be deformed or the coating to come off.

Specifications

Type	Coaxial 2 way 2 Speaker Bass reflex
Speaker unit
Woofer	16 cm (6 ^1/_2 ") Flat Type×1
Tweeter	1.9 cm ( ^3/_4 ") Dome Type×1
Impedance	4 Ω
Input power (IEC)	100 W (MAX)50 W (RATED)
Sound pressure level	85 dB (2.83 V/m)82 dB (W/m)
Frequency range	40 Hz to 100 kHz (-16 dB)45 Hz to 80 kHz (-10 dB)
Crossover frequency	2.5 kHz
Dimensions (W×H×D)	220 mm×336 mm×286 mm (8 ^11/_16 ′′×13 ^7/_32 ′′×11 ^1/_4 ′′)(include net 8 mm ( ^5/_16 ′′) and back terminal knob 5 mm ( ^3/_16 ′′))
Mass (Weight)	Approx. 8.5 kg (18.7 lbs)
Operating temperature range	0 °C to +40 °C (+32 °F to +104 °F)
Operating humidity range	20 % to 80 % RH (no condensation)

- Specifications are subject to change without notice.

- Mass and dimensions are approximate.

Simple illustration of a gray rounded rectangle inside a rectangular frame (no text or symbols)

Simple illustration of a gray square object inside a rectangular frame (no text or symbols)

Diagram of a speaker with a circular head and two buttons labeled - and +, no text or symbols present.

Simple illustration of a gray rectangular object with rounded corners, resembling a stylized monitor or container (no text or symbols)

Simple line drawing of a gray square object inside a rounded rectangular frame (no text or symbols)

Diagram of a speaker with a circular head and two buttons labeled - and +, enclosed in a dashed box (no text or symbols beyond basic labels)

Diagram of a speaker with a circular head and two buttons labeled - and +, no text or symbols present.

Simple illustration of a gray rectangular object with rounded corners, resembling a stylized monitor or container (no text or symbols)

Simple geometric diagram of a rounded rectangle with a shaded inner square, no text or symbols present.

Simple illustration of a gray square button inside a rounded rectangular frame (no text or symbols)

Diagram of a speaker with a circular head and two buttons labeled - and +, no text or symbols present.

Simple illustration of a gray rectangular object resembling a monitor or button (no text or symbols)

Simple line drawing of a gray square object inside a rectangular frame (no text or symbols)

Diagram of a speaker with a circular head and two labeled buttons (no text or symbols present)

Simple illustration of a gray CRT television set with no text or symbols

Simple diagram of a gray square object inside a rectangular frame (no text or symbols)

Simple illustration of a gray rectangular object with rounded corners, resembling a stylized monitor or container (no text or symbols)

Simple gray rounded rectangle shape with no text or symbols

Diagram of a speaker with a circular head and two buttons labeled - and +, no text or symbols present

Diagram of a speaker with a circular head and two buttons labeled - and +, no text or symbols present.

Technics Products – Limited Warranty

Limited Warranty Coverage (For USA Only)

If your product does not work properly because of a defect in materials or workmanship, Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by the warrantor.

Product or Part Name	Parts	Labor
Technics Stereo Integrated Amp	3 (three) years	3 (three) years
Technics Network Audio Player
Technics Speaker System
Technics Compact Disc Player	2 (two) years	2 (two) years

During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there will be no charge for parts. This Limited Warranty excludes both parts and labor for non-rechargeable batteries, antennas, and cosmetic parts (cabinet). This warranty only applies to products purchased and serviced in the United States. This warranty is extended only to the original purchaser of a new product which was not sold “as is”.

Mail-In Service--Online Repair Request

Online Repair Request

To submit a new repair request and for quick repair status visit our Web Site at www.panasonic.com/support.

When shipping the unit, carefully pack, include all supplied accessories listed in the Owner's Manual, and send it prepaid, adequately insured and packed well in a carton box. When shipping Lithium Ion batteries please visit our Web Site at www.panasonic.com/BatteryHandling as Panasonic is committed to providing the most up to date information. Include a letter detailing the complaint, a return address and provide a daytime phone number where you can be reached. A valid registered receipt is required under the Limited Warranty.

IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD. THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Limited Warranty Limits and Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE".

THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY.

(As examples, this excludes damages for lost time, travel to and from the servicer, loss of or damage to media or images, data or other memory or recorded content. The items listed are not exclusive, but for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to:

Consumer Affairs Department

Panasonic Corporation of North America

661 Independence Pkwy

Chesapeake, VA 23320

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.

Shop Accessories!

for all your Technics gear

Go to

www.panasonic.com/accessories

Get everything you need to get the most out of your Technics products

Accessories & Parts for your Camera, Phone, A/V

products, TV, Computers & Networking, Personal

Care, Home Appliances, Headphones, Batteries, Backup Chargers & more...

Customer Services Directory

For Product Information, Operating Assistance, Parts, Owner's Manuals, Dealer and Service info go to www.panasonic.com/support

For the hearing or speech impaired TTY: 1-877-833-8855

As of October 2014

The model number and serial number of this product can be found on either the back or the bottom of the unit. Please note them in the space provided below and keep for future reference.

MODEL NUMBER

SB-C700

SERIAL NUMBER

User memo:

DATE OF PURCHASE

DEALER NAME

DEALER ADDRESS

TELEPHONE NUMBER

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

TECHNICS PRODUCT – LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.

Technics Stereo Integrated Amp	3 (three) years parts and labour
Technics Network Audio Player	3 (three) years parts and labour
Technics Speaker System	3 (three) years parts and labour
Technics Compact Disc Player	2 (two) years parts and labour

This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Technics brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold “as is”, and which product was delivered to you in new condition in the original packaging.

IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS REQUIRED

LIMITATIONS AND EXCLUSIONS

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than an Authorized Servicer, or damage that is attributable to acts of God.

Dry cell batteries are also excluded from coverage under this warranty.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is not exhaustive, but for illustration only.)

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives you specific legal rights and you may have other rights which vary depending on your province or territory.

WARRANTY SERVICE

For product operation, repairs and information assistance, please visit our Support page on:

www.panasonic.ca/english/support

IF YOU SHIP THE PRODUCT TO A SERVICENTRE

Carefully pack and send prepaid, adequately insured and preferably in the original carton. Include details of the defect claimed, and proof of date of original purchase.

Panasonic Canada Inc.

5770, Ambler Drive, Mississauga (Ontario) L4W 2T3

PRODUIT TECHNICS – GARANTIE LIMITÉE

Kadoma, Osaka, Japan

Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

For the U.S.A.

Panasonic Corporation of North America

Two Riverfront Plaza, Newark, NJ 07102-5490

http://www.panasonic.com

For Canada

Panasonic Canada Inc.

5770 Ambler Drive,

Mississauga, Ontario,

L4W 2T3

www.panasonic.com

For the United Kingdom and Ireland

For Continental Europe

For Australia and New Zealand

Panasonic Corporation

Web Site: http://panasonic.net

En Cf Ge Fr It Sp Da Du Sw Fi
