Product Type	Sonic vibration electric toothbrush (household)
Brand	PANASONIC
Model	EW-DL82
Power Source	Built-in rechargeable Lithium-ion battery (3.6 V; 500 mAh)
Charger	RE8-52 (automatic voltage conversion)
Charging Time	Approximately 17 hours
Battery Life	Approximately 90 minutes (after full charge)
Brushing Modes	WHITE (WHITENING) and SOFT (GENTLE)
Special Functions	Soft start, 30-second timer, tongue cleaner
Brush Type	Stain treatment brush head with extra-fine side bristles and high-density bristles
Recommended Operating Temperature	5 °C to 35 °C
Recommended Charging Temperature	5 °C to 35 °C
Water Resistance	Washable under running water (do not immerse)
Cleaning the Main Unit	Under running water (max 40 °C), dry before recharging
Cleaning the Brush Head	Under running water (max 80 °C), do not pull the bristles
Cleaning the Charger	Soft dry cloth; guide washable with water
Battery Life Span	Approximately 3 years (depending on usage and storage conditions)
Spare Parts	Replacement head WEW0929, stain treatment brush EW0940, interdental brush (sold separately)
Included Accessories	Charger RE8-52, travel case, main unit guide
Noise	57 dB (A) ref 1 pW
Usage	Household use only

Frequently Asked Questions - EW-DL82 PANASONIC

How long does it take to fully charge the Panasonic EW-DL82 toothbrush?

The full charging time is approximately 17 hours. After a full charge, the battery lasts about 90 minutes.

How do I know if the toothbrush is charging?

During charging, the charging status indicator lights up. When charging is complete, this indicator turns off.

What should I do if the toothbrush briefly stops every 30 seconds?

This is not a malfunction. It is the 30-second brushing notification timer function that helps you brush each area of your mouth evenly.

How do I clean the main unit and brush head?

Wash the brush head under running water (max 80 °C) and the main unit under running water (max 40 °C). Do not immerse the unit. Dry thoroughly before recharging.

Can I use the toothbrush if I have sensitive gums?

Yes, use the SOFT (GENTLE) mode which is gentler. If you experience discomfort, consult your dentist.

How often should I replace the brush head?

It is recommended to replace the brush head every 3 months for hygiene reasons, or sooner if the bristles are worn.

Can the toothbrush be used with whitening toothpaste?

Avoid high-abrasive toothpastes (such as stain-removing or whitening toothpastes) as they could damage teeth or gums.

What should I do if the toothbrush does not work even though the battery is charged?

Check that the operating temperature is between 5 °C and 35 °C. If the problem persists, the battery may have reached the end of its life (about 3 years); contact an authorized service center.

How do I remove the battery for disposal?

Fully discharge the battery by leaving the toothbrush running, then remove the battery following the steps illustrated in the manual. Do not disassemble the unit for other reasons.

Can the travel case be cleaned?

Yes, the travel case can be cleaned with water. Wipe it dry after cleaning.

USER MANUAL EW-DL82 PANASONIC

Operating Instructions

(Household) Sonic Vibration Toothbrush

Model No. EW-DL82

Line drawing of a toothbrush with teeth removed (no text or symbols)

English	3	Dansk	99	Česky	191
Deutsch	19	Português	115	Slovensky	207
Français	35	Norsk	131	Magyar	223
Italiano	51	Svenska	145	Română	237
Nederlands	67	Suomi	159	Türkçe	253
Español	83	Polski	175

Panasonic

Operating Instructions

(Household) Sonic Vibration Toothbrush

Model No. EW-DL82

Contents

Safety precautions......5

Parts identification 8

Storing and charging the toothbrush ...8

Before cleaning your teeth....9

Using the toothbrush 10

Tips on usage 11

How to clean .... 12

Troubleshooting 14

Battery life....16

Removing the built-in rechargeable battery....16

Specifications ...... 16

Changing the brush head (Sold separately)....16

Thank you for purchasing this Panasonic product.

Before operating this unit, please read these instructions completely and save them for future use.

Warning

• Be sure to switch off the appliance and remove the plug from a household outlet before performing any maintenance. Failure to do so may result in electric shock.
• Do not wash the charger. Doing so may result in electric shock.
• If the power cord of the charger is damaged, the entire charger should be discarded.
• Toothbrushes can be used by children and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children without supervision.
  • Children shall not play with the appliance.

Safety precautions

To reduce the risk of injury, loss of life, electric shock, fire, malfunction, and damage to equipment or property, always observe the following safety precautions.

Explanation of symbols

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

DANGER

Denotes a potential hazard that will result in serious injury or death.

WARNING

Denotes a potential hazard that could result in serious injury or death.

CAUTION

Denotes a hazard that could result in minor injury.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

DANGER

This product has a built-in rechargeable battery. Do not throw into fire, apply heat, or charge, use, or leave in a high temperature environment.

- Doing so may cause overheating, ignition, or explosion.

WARNING

Immediately stop using and remove the power plug if there is an abnormality or failure.

- Failure to do so may cause fire, electric shock, or injury.

- The main unit or charger is deformed or abnormally hot.

- The main unit or charger smells of burning. - There is abnormal sound during use or charging of the main unit or charger. - Immediately request inspection or repair at an authorized service center.

Always ensure the appliance is operated on an electric power source matched to the rated voltage indicated on the charger.

Fully insert the power plug. - Failure to do so may cause fire or electric shock.

Regularly clean the power plug to prevent dust from accumulating.

- Failure to do so may cause fire due to insulation failure caused by humidity. Disconnect the power plug and wipe with a dry cloth.

WARNING

Do not connect or disconnect the power plug to a household outlet with a wet hand.

- Doing so may cause electric shock or injury.

Do not place the charger over or near water filled sink or bathtub.

- Doing so may cause electric shock or fire due to a short circuit.

Never disassemble except when disposing of the product.

- Doing so may cause fire, electric shock, or injury.

Do not store within the reach of children or infants. Do not let them use it.

- Doing so may cause an accident or injury due to accidental ingestion of removable parts.

Do not use when the cord or the power plug is damaged or when the fitting into the household outlet is loose.

Do not damage, modify, forcefully bend, pull, twist, or bundle the cord.

Also, do not place anything heavy on or pinch the cord.

- Doing so may cause electric shock or fire due to a short circuit.

Do not use anything other than the supplied charger. Also, do not charge any other product with the supplied charger.

- Doing so may cause burn or fire due to a short circuit.

Do not use in a way exceeding the rating of the household outlet or the wiring.

- Exceeding the rating by connecting too many power plugs to one household outlet may cause fire due to overheating.

Do not modify or repair.

- Doing so may cause fire, electric shock, or injury. Contact an authorized service center for repair (battery change, etc.).

CAUTION

Disconnect the power plug from the household outlet when not using for extended period of time.

- Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration.

Disconnect the power plug by holding onto it instead of the cord.

- Failure to do so may cause electric shock or fire due to a short circuit.

People who have severe gum disease, have teeth being treated, or are concerned about symptoms within their mouth should consult a dentist before use.

- Failure to do so may cause injury or damage to teeth and gums.

CAUTION

Do not use the brush with toothpaste that contains a high abrasive content, such as toothpaste for removing tar or for whitening.

Do not let anyone that cannot operate the brush themselves use it.

People with a low sensitivity within their mouth should not use the brush.

Do not apply the brush head strongly against teeth or gums, or use it continuously against same spot. Do not apply the plastic part of the main unit or brush head to teeth.

- Doing so may cause injury or damage to teeth and gums.

Never use for a purpose other than cleaning your teeth.

- Doing so may cause an accident or injury.

Do not share the brush head with your family or other people.

- Doing so may result in infection or inflammation.

Do not drop or subject to shock.

- Doing so may cause injury.

Do not wrap the cord tightly around the charger when storing.

- Doing so may cause the wire in the cord to break with the load, and may cause fire due to a short circuit.

Do not place a metallic object such as a coin or a clip on top of the charger.

- Doing so may cause burns due to excessive heat.

▶ Notes

When you first begin using the toothbrush, you may experience slight bleeding of the gums even though your gums may be healthy. This is because your gums are receiving stimulation by the toothbrush for the first time. The bleeding should stop after one or two weeks of use. Bleeding that persists for more than two weeks may be indication of an abnormal condition of your gums, such as pyorrhea. In this case, stop using the toothbrush and consult your dentist.

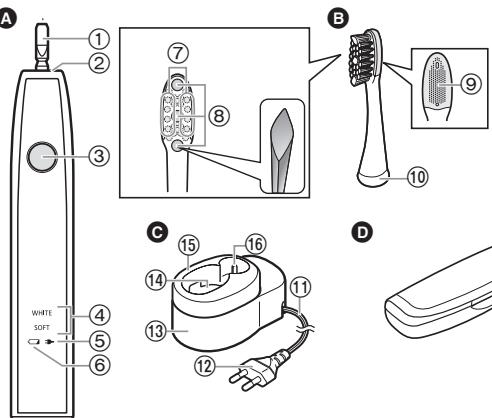

Parts identification

A

A ① ② ③ ④ ⑤ ⑥ WHITE SOFT ⑦ ⑧ ⑨ ⑩ B C D 14 15 16 13 12 11 12 10

A Main unit

① Toothbrush shaft
② Waterproof rubber seal
③ Power switch
④ Mode indicator
⑤ Charge status lamp (→)
⑥ Battery capacity lamp (☐)

B Stain care brush

⑦ Extra fine side bristles
⑧ High-density bristles
⑨ Tongue cleaner
⑩ Identification ring

Characteristics of brush bristles (⑧)

The bristles in the center (high-density bristles) are arranged in a diamond shape, which is designed for stain care.

© Charger (RE8-52)

(The shape of the power plug differs depending on the area.)

⑪ Cord
⑫ Power plug
⑬ Charger base
⑭ Charging section
⑮ Main unit guide
⑯ Brush head storage

Accessory

D Carrying case

Storing and charging the toothbrush

• If the toothbrush stops operating when first using it (immediately after purchasing it, or after not using it for 3 months or more) or during use, charge the main unit.
• Adequate ambient temperature for charging is 5^ - 35^ . The battery may not charge properly or not at all under extreme low or high temperatures.
• You can keep the main unit attached on the charger when not in use to maintain the full battery capacity. It will not overcharge the main unit.
• The main unit may become warm during use and charging. However, this is normal.

1 Place the charger on a stable horizontal surface such as countertop.
2 Align the main unit so it is facing forward, and set it straight into the charging section.
3 Insert the power plug into the household outlet.

• The charge status lamp glows and the charging will start.
• Charging cannot start when the main unit is tilted or the bottom of the main unit is not in contact with the charging section.

1 2

If not charging constantly

• You can fully charge the toothbrush in approx. 17 hours. The charging time may decrease depending on the charging capacity.
• A full charge will supply enough power for approx. 90 minutes use.
• Disconnect the power plug when the charge status lamp turns off.

▶ About storage

The toothbrush can only be stored in a compact size with the main unit guide.

1. Slide and remove the main unit guide, and place it on horizontal and stable place.

2. Store the main unit and the brush head.

Illustration of a handheld device with two arrows indicating motion or transformation (no text or symbols present)

About the lamp

When the battery capacity is low

WHITE SOFT

The battery capacity lamp blinks.

While charging

WHITE

SOFT

The charge status lamp glows.

After charging is completed

WHITE

SOFT

The charge status lamp turns off

- The toothbrush may not charge even if the charge status lamp turns on when a charger other than the supplied charger is used.

Before cleaning your teeth

• Recommended ambient temperature for using is 5^ - 35^ .
• Do not allow hair products (e.g., gel or oil) or hand lotion to come in contact with the unit as they may damage its surface.
• Do not forcefully turn the brush head with the brush head attached to the main unit. Doing so may cause the brush head or main unit to become damaged.

▶ About soft start function (For WHITE mode only)

The toothbrush will gradually reach the selected speed and vibration approximately 2 seconds after it starts operating.

▶ About the 30-second brushing notification timer function

The timer will signal once at 30-second intervals to indicate the brushing time for each part of your mouth. It will signal twice at 2-minute intervals to indicate the recommended total brushing time. It is important to brush each area in the same sequence and with the same amount of time, every time you brush, to uniformly brush and clean your teeth.

Use the 30-second brushing notification timer function wisely so there will be no missed spot in your mouth.

- Divide your teeth into 4 parts (upper and lower, left and right), and brush one part in order such as “(1) front of the teeth”, “(2) biting plane of the teeth”, and “(3) back of the teeth” spending 30 seconds.

Brush the other parts in the same manner, and brush your whole mouth in about 2 minutes.

(1)(2)(3)

The brush head of this sonic vibration toothbrush vibrates at a high speed.

Therefore:

• You only need to lightly press the bristles against your teeth for brushing.
• When first using this appliance, some may experience a tickling or tingling sensation caused by the high-speed vibrations. The sensation should subside after you use the toothbrush several more times.

Using the toothbrush

1 Place the brush head firmly onto the toothbrush shaft.

• Attaching or removing diagonally or while twisting may cause the brush head or the main unit to become damaged.
• The toothbrush shaft will move when a force is applied. This is required for operation, and is not a malfunction.

- There will be a small gap between the brush head and the main unit.

2 Place the toothbrush in your mouth.

- Apply a small amount of toothpaste to the brush head, if desired, before turning the power on to prevent the toothpaste from spattering.

Diagram showing a toothbrush being inserted into an electric tooth, with labeled step 1 and directional arrow indicating process.

3 Press the power switch to select the mode.

• Each time you press the power switch, the mode changes.

Mode	Description
	WHITE modeRecommended for removing plaque and stain care with normal tooth brushing
	SOFT modeRecommended when you feel the white mode is too powerfulRecommended for tongue cleaning
	OFF

• Stains refer to discolouration on the surface of the teeth due to food and drink such as coffee, wine and tea.
• It is not possible to whiten the color of teeth beyond their original color, yellowing teeth due to aging, or discolored teeth.
• The sound may increase when the brush head is pressed too strongly against the teeth, but this is not a malfunction. Apply the brush head lightly against the teeth.

4 Turn off the main unit when you have finished brushing.

- Turn off the main unit before removing it from your mouth to prevent foam from spattering.

Tips on usage

How to apply/move when brushing your teeth

Mode: WHITE/SOFT

▶ For the boundary between the tooth surfaces, or teeth and gums Place the bristles at a 45^ angle.

▶ For the back of the front teeth or misaligned teeth

Brush vertically.

Move toothbrush to match the angle of the teeth.

▶ For the biting surface (back teeth)

Apply from top.

• Place the bristles of the brush gently against your teeth and move the toothbrush slowly.
  The movement will slow down when the brush head is applied too strong.
• Apply a small amount when using toothpaste.

How to apply/move when cleaning your tongue

Mode: SOFT

Apply the tongue cleaner so that it barely touches the tongue, and move forward with slight force from the area that becomes dirty.

Repeat several times.

- You may injure your tongue if the tongue cleaner is pressed against the tongue too hard.

Illustration of a dental implant or dental tool with a magnified inset showing internal structure (no text or symbols)

▶ To prevent emetic response

Poke your tongue out and apply the brush while you are breathing out.

How to clean

Use mild detergent when cleaning the product with detergent. Never use chemical agents such as thinner, benzine, or alcohol.

Cleaning the main unit and the brush head

- Cleaning and user maintenance should not be made by children.

- Turn off the main unit and remove the brush head before cleaning them with water.

Line drawing of a toothbrush being inserted into a second toothbrush (no text or symbols present)

▶ Brush head

Wash the brush head under running water.

• Shake well to remove water after washing.
• Do not pull the bristles of the brush.
• Do not wash with water hotter than 80^ .
• Do not wash the tongue cleaner excessively with a pointed object or fingernails.

▶ Main unit

Wash the main unit under running water.

• Do not rub or damage the waterproof rubber seal.
• Do not immerse the main unit under water.
• Do not wash with water hotter than 40^ .

▶ After washing with water

1. Wipe dry with a cloth.
2. Do not charge while it is wet.
3. Return the main unit and the brush head to the charger.

Line drawing of a handheld electric toothbrush with a downward arrow indicating compression (no text or symbols)

If the identification ring comes off

Put the identification ring back on.

• The identification ring may break if pulling it too strong.
• Using the toothbrush without the identification ring has no effect on its performance. The ring is simply for user identification purposes.

Line drawing of two hands holding a small object, possibly a flower or seed pod (no text or symbols)

Cleaning the charger

1. Slide and remove the main unit guide from the charger base.
2. Wipe off any dirt on the charger base using a soft cloth.

3. Wash the main unit guide with water.

4. Wipe off water after washing.

5. Only use water to wash the main unit guide.
6. Wipe the prongs of the power plug with a dry cloth about once every 6 months.

Cleaning the carrying case

1. Wash with water.
2. Wipe off water after washing.

Diagram of a mechanical device with a curved housing and directional arrow (no text or symbols)

Simple line drawing of a closed container with bubbles and steam rising (no text or symbols)

Line drawing of a hand inserting a plastic bag into a box (no text or symbols)

If the top case has come off

1. Align the mounting section of the top case and the bottom case as shown in the figure.
2. Press the top case in the direction indicated by arrows.

Technical diagram showing a mechanical assembly with labeled parts 1 and 2, likely illustrating a component or assembly.

Troubleshooting

Problem	Possible cause	Action
The charge status lamp does not turn on.	You have just purchased the toothbrush or have not used it for a while.	The toothbrush may not blink or turn on for several minutes after starting to charge it, however it will turn on if you continue to charge it. If it continues to blink after a while, contact an authorized service center for repair.
The charge status lamp is blinking rapidly.(Twice every second)	The temperature is too low or high while charging.	Charge the toothbrush within the recommended charging temperature of 5 °C to 35 °C. If it continues to blink even when charging within the recommended charging temperature, contact an authorized service center for repair.
The toothbrush can be used only for several minutes, even if it is charged.	The charging time is short.	Charge the toothbrush for 17 hours or longer.(See pages 8 and 9.)
	The main unit does not stand straight on the charger.	Stand the main unit so the bottom is in contact with the charging section of the charger, and check that the charge status lamp comes on.
The toothbrush does not operate without the battery capacity lamp blinks.	The rechargeable battery has reached its operating life.(Approx. 3 years)	Contact an authorized service center for repair.
The toothbrush does not operate.	The temperature is too low or high while using it.	Use within the recommended usage temperature of 5 °C to 35 °C.
The toothbrush stops operating every once in a while.	The “30-second brushing notification timer function” is in operation.(See page 10.)	This is not a malfunction.Continue using it.
The vibration increases gradually when pressing the power switch.	The “Soft start function” is in operation.(See page 9.)

Problem	Possible cause	Action
The movement decreases when the brush head is pressed against teeth.	The brush head is pressed against teeth too strong.(See page 11.)	Apply the brush head lightly against teeth.
The sound increases when the brush head is pressed against teeth.
The toothbrush shaft moves.	This is not a malfunction. (See page 10.)

English

Battery life

Approximately 3 years. The battery may have reached its operating life if the usage frequency decreases drastically, even after a full charge.

(The operating life of the battery may differ depending on usage or storage conditions)

Removing the built-in rechargeable battery

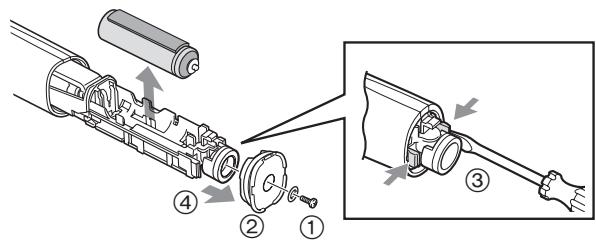

Remove the built-in rechargeable battery before disposing the toothbrush.

Please make sure that the battery is disposed of at an officially designated location if there is one.

This figure must only be used when disposing the toothbrush, and must not be used to repair it. If you dismantle the toothbrush yourself, it will no longer be waterproof, which may cause it to malfunction.

• Remove the toothbrush from the charger when removing the battery.
• Press the power switch to turn on the power and then keep the power on until the battery is completely discharged.
• Perform steps ① to ④ and lift the battery, and then remove it.
• Please take care not to short-circuit the battery.

Technical diagram showing exploded and assembled views of a mechanical assembly with numbered components

For environmental protection and recycling of materials

This toothbrush contains a Li-ion battery.

Please make sure that the battery is disposed of at an officially assigned location, if there is one in your country.

Specifications

Power source	See the name plate on the product (Automatic voltage conversion)
Battery	1 Lithium-ion battery(3.6 V; 500 mAh)
Charging time	Approx. 17 hours
Airborne Acoustical Noise	57 (dB (A) re 1 pW)

This product is intended for household use only.

Changing the brush head (Sold separately)

• The brush should be replaced with a new one every 3 months or so due to hygiene reasons, even if its shape is unchanged.
• If the bristles are bent to one side or worn, the toothbrush is not effective for brushing. Replace the brush head with a new one.

Part number	Replacement Brush for EW-DL82
WEW0929	Stain care brush
EW0940	Point brush

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent

any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Panasonic

© Ladestation (RE8-52)

Diagram of a handheld electric shaver with labeled parts 1 and 2, showing internal structure and wiring.

Illustration of a handheld device with two arrows indicating direction (no text or symbols)

Kontrollleuchten

WHITE SOFT

(1)(2)(3)

Diagram showing a toothbrush being inserted into an electric tooth, with labeled component '1' and directional arrow.

Illustration of a medical device with a catheter inserted, showing internal structure and a downward arrow (no text or symbols)

Line drawing of a toothbrush being inserted into a toothbrush (no text or symbols)

▶ Bürstenkopf

Line drawing of a hand holding an electric toothbrush with a downward arrow indicating compression (no text or symbols)

Line drawing of two hands holding a small object, possibly a flower or seed pod (no text or symbols)

Illustration of a mechanical device with a circular component and a curved arrow indicating direction (no text or symbols)

Reinigen des Reiseetuis

Simple line drawing of a container with steam rising from the side (no text or symbols)

Line drawing of a hand inserting a plastic bag into a box (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts 1 and 2, likely illustrating a component or assembly.

Fehlersuche

Technical diagram showing exploded and assembled mechanical components with numbered parts labeled ① to ④

A Appareil principal

Diagram of a handheld electric shaver with labeled parts 1 and 2, showing internal structure and mounting point.

Illustration of a handheld device with two arrows indicating direction of movement (no text or symbols present)

À propos du voyant

WHITE SOFT

(1)(2)(3)

Diagram showing a toothbrush being adjusted to form an electric tooth, with labeled step 1 and directional arrow.

Illustration of a dental implant or tooth with a magnified view showing internal structure and a downward arrow (no text or symbols)

Line drawing of a toothbrush being inserted into a toothbrush (no text or symbols)

▶ Tête de la brosse

▶ Appareil principal

Line drawing of a handheld electric shaver with a downward arrow indicating compression (no text or symbols)

Line drawing of two hands holding a small object, no text or symbols present

Diagram of a mechanical device with a curved housing and directional arrow (no text or symbols)

Simple line drawing of a container with liquid and steam rising (no text or symbols)

Line drawing of a hand inserting a card into a box (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts 1 and 2, likely illustrating a component or assembly.

Dépannage

Technical diagram showing exploded and assembled mechanical components with numbered parts labeled ① to ④

Illustration of a handheld device with two views: top shows internal casing, bottom shows base device (no text or symbols)

WHITE SOFT

(1)(2)(3)

Diagram showing a toothbrush being inserted into an electric tooth, with labeled step 1 and directional arrow indicating process.

Illustration of a medical device with a catheter inserted, showing internal structure and a downward arrow (no text or symbols)

Illustration of a toothbrush being inserted into a toothbrush (no text or symbols present)

▶ Testina

Line drawing of a handheld electric toothbrush with a downward arrow indicating compression (no text or symbols)

Line drawing of two hands holding a small object, no text or symbols present

Diagram of a mechanical device with a curved housing and directional arrow (no text or symbols)

Simple line drawing of a container with steam rising (no text or symbols)

Line drawing of a hand inserting a plastic bag into a box (no text or symbols)

Technical diagram showing a mechanical assembly with numbered components, likely illustrating a turning or disassembly process.

Technical diagram showing exploded view of mechanical assembly with numbered components and directional arrows indicating assembly steps.

Specifications....80

Diagram of a handheld electric shaver with labeled parts 1 and 2, showing internal structure and wiring.

Illustration of a handheld device with two arrows indicating motion or assembly (no text or symbols present)

Het lampje

WHITE SOFT

(1)(2)(3)

Diagram showing a toothbrush with labeled step 1 and directional arrow indicating movement or process

Illustration of a medical device with a catheter inserted, showing internal structure and a downward arrow (no text or symbols)

Line drawing of a toothbrush being inserted into a toothbrush (no text or symbols)

▶ Borstelkop

Line drawing of a handheld electric toothbrush with a downward arrow indicating compression (no text or symbols)

Line drawing of a hand holding a small object, possibly a flower or seed pod, with no text or symbols present.

Reinigen van de oplader

Diagram of a mechanical device with a curved housing and directional arrow (no text or symbols)

Simple line drawing of a container with liquid and steam rising (no text or symbols)

Line drawing of a hand inserting a card into a box (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts 1 and 2, likely illustrating a component or assembly.

Technical diagram showing exploded view of mechanical assembly with numbered components and directional arrows indicating assembly steps.

Diagram of a toothbrush with labeled parts and an inset showing detailed cross-sections labeled ⑨ and ⑩.

Diagram of a device with numbered parts, likely an electrical or mechanical component, showing connections between pins 11 through 16.

A Unidad principal

Diagram of a handheld electric shaver with labeled parts 1 and 2, showing internal structure and mounting point.

Illustration of a handheld device with two arrows indicating direction of movement (no text or symbols present)

WHITE SOFT

Diagram showing a toothbrush being inserted into an electric tooth, with labeled component '1' and directional arrow indicating process.

Illustration of a medical device with a catheter inserted, showing internal structure and a downward arrow (no text or symbols)

Line drawing of a toothbrush being inserted into a toothbrush (no text or symbols)

Line drawing of a handheld electric toothbrush with a downward arrow indicating compression (no text or symbols)

Line drawing of a hand holding a small object, possibly a flower or seed pod (no text or symbols)

Diagram of a mechanical device with a circular component and directional arrow (no text or symbols)

Simple line drawing of a container with steam rising (no text or symbols)

Line drawing of a hand holding a small object inside a container (no text or symbols)

Technical diagram showing a mechanical assembly with numbered components, likely illustrating a device or assembly step.

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating movement

Illustration of a handheld device with two arrows indicating direction of movement (no text or symbols present)

Om lampen

WHITE SOFT

Batterikapaciteteslampen blinker.

Under opladning

WHITE SOFT

WHITE SOFT

(1)(2)(3)

Diagram showing a toothbrush being inserted into an electric tooth, with labeled component '1' and directional arrow indicating process.

Illustration of a medical device with a catheter inserted, showing internal structure and a downward arrow (no text or symbols)

▶ For at undgå opkastningsfornemmelse

Line drawing of a toothbrush being inserted into a toothbrush (no text or symbols)

▶ Børstehoved

Line drawing of a handheld electric toothbrush with a downward arrow indicating compression (no text or symbols)

Line drawing of two hands holding a small flower, no text or symbols present

Diagram of a mechanical device with a circular housing and a curved handle, showing directional arrow (no text or symbols)

Simple line drawing of a container with steam rising, no text or symbols present

Line drawing of a hand inserting a small object into a box (no text or symbols)

Diagram showing hands operating a device with labeled parts 1, 2, and 3, indicating a mechanical or electronic component.

Dansk

109

Dansk
Fejlfinding

Technical diagram showing exploded view of mechanical assembly with numbered components and directional arrows indicating assembly steps.

Diagram of a handheld electric shaver with labeled parts 1 and 2, showing internal structure and wiring.

Illustration of a hand holding an electric shaver device, showing top and side views (no text or symbols)

WHITE SOFT

(1)(2)(3)

Diagram showing a toothbrush being inserted into an electric tooth, with labeled step 1 and directional arrow indicating process.

Modo: WHITE/SOFT (BRANCO/SUAVE)

Illustration of a dental implant or dental implant with a tool inserted, showing internal structure and a downward arrow (no text or symbols)

Illustration of a toothbrush being inserted into a toothbrush (no text or symbols present)

▶ Cabeça da escova

Line drawing of a handheld electric toothbrush with a downward arrow indicating compression (no text or symbols)

Line drawing of two hands holding a small flower petal (no text or symbols)

Diagram of a mechanical device with a curved housing and directional arrow (no text or symbols)

Simple line drawing of a box with steam rising from its side (no text or symbols)

Line drawing of a hand holding a small object inside a container (no text or symbols)

Se a parte superior se soltar

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating movement or force.

Technical diagram showing exploded view of mechanical assembly with numbered components and directional arrows indicating assembly steps.

Diagram of a handheld electric shaver with labeled parts 1 and 2, showing internal structure and wiring.

Illustration of a handheld device with two arrows indicating direction of movement (no text or symbols present)

WHITE SOFT

Batterilampen blinker.

Under lading

WHITE SOFT

Ladelampen lyser.

(1)(2)(3)

Diagram showing a toothbrush being adjusted to form an electric tooth, with labeled step 1 and directional arrow.

Illustration of a medical device with a catheter inserted, showing internal structure and a downward arrow (no text or symbols)

Line drawing of a toothbrush being inserted into a toothbrush (no text or symbols)

▶ Børstehode

Vask børstehodet under rennende vann.

Line drawing of a handheld electric toothbrush with a downward arrow indicating compression (no text or symbols)

Line drawing of two hands holding a small object, possibly a flower or seed pod (no text or symbols)

Vask av laderen

Diagram of a mechanical device with a circular component and directional arrow (no text or symbols)

Simple line drawing of a closed container with internal compartments and steam rising (no text or symbols)

Line drawing of a hand inserting a plastic bag into a box (no text or symbols)

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or force.

Problemløsning

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Illustration of a handheld device with two arrows indicating direction of movement (no text or symbols present)

Om lampan

WHITE SOFT

Batterinivålampan blinkar.

Diagram showing a toothbrush being inserted into an electric tooth, with labeled step 1 and directional arrow indicating process.

Illustration of a medical device with a catheter inserted, showing internal structure and a downward arrow (no text or symbols)

Line drawing of a toothbrush being inserted into a toothbrush (no text or symbols)

▶ Borsthuvud

Line drawing of a handheld electric toothbrush with a downward arrow indicating compression (no text or symbols)

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Diagram of a mechanical device with a curved housing and directional arrow (no text or symbols)

Simple line drawing of a closed container with internal compartments and steam rising (no text or symbols)

Line drawing of a hand inserting a plastic bag into a box (no text or symbols)

Technical diagram showing a mechanical assembly with numbered components and directional arrows indicating motion or force.

Felsökning

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

Diagram of a handheld electric shaver with labeled parts 1 and 2, showing internal structure and wiring.

Illustration of a handheld device with two arrows indicating direction of movement (no text or symbols present)

WHITE SOFT

WHITE SOFT

WHITE SOFT

(1)(2)(3)

Diagram of a U-shaped structure with internal gear-like patterns and directional arrows (no text or symbols)

Diagram showing a toothbrush being inserted into an electric tooth, with labeled step 1 and directional arrow indicating process.

Illustration of a medical device with a catheter inserted, showing internal tissue structure (no text or symbols)

Illustration of a toothbrush being inserted into a toothbrush (no text or symbols present)

Line drawing of a handheld electric toothbrush with a downward arrow indicating compression (no text or symbols)

Line drawing of two hands holding a small flower (no text or symbols)

Diagram of a mechanical device with a circular component and directional arrow (no text or symbols)

Simple line drawing of a container with steam rising (no text or symbols)

Line drawing of a hand holding a small object inside a container (no text or symbols)

Technical diagram showing hands operating a mechanical device with numbered components and directional arrows indicating movement or force.

Vianetsintä
Sioni

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

© Ładowarka (RE8-52)

Illustration of a handheld device with two arrows indicating direction (no text or symbols)

WHITE SOFT

Diagram showing a toothbrush with labeled step 1 and directional arrow indicating process

Illustration of a medical device with a catheter inserted, showing internal structure and a downward arrow (no text or symbols)

Line drawing of a toothbrush being inserted into an electric toothbrush (no text or symbols)

▶ Główka szczoteczki

Line drawing of a handheld electric shaver with a downward arrow indicating compression (no text or symbols)

Line drawing of two hands holding a small flower, no text or symbols present

Diagram of a mechanical component with a curved housing and directional arrow (no text or symbols)

Simple line drawing of a closed container with internal compartments and steam rising (no text or symbols)

Line drawing of a hand inserting a small object into a box (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts 1 and 2, likely illustrating a component or assembly.

Technical diagram showing exploded and assembled views of a mechanical assembly with numbered components

© Nabíječka (RE8-52)

Diagram of a handheld electric shaver with labeled parts 1 and 2, showing internal structure and mounting point.

Illustration of a handheld device with two arrows indicating direction of movement (no text or symbols present)

WHITE SOFT

Kontrolka kapacity baterie bliká.

Během nabíjení

WHITE SOFT

WHITE SOFT

(1)(2)(3)

Diagram showing a toothbrush being inserted into an electric tooth, with labeled step 1 and directional arrow indicating process.

Illustration of a medical device with a catheter inserted, showing internal structure and a downward arrow (no text or symbols)

Line drawing of a toothbrush being inserted into a toothbrush (no text or symbols)

▶ Hlavice kartáčku

Line drawing of a handheld electric toothbrush with a downward arrow indicating compression (no text or symbols)

Line drawing of two hands holding a small flower, no text or symbols present

Čištění nabíječky

Diagram of a mechanical device with a circular housing and a curved handle, showing directional arrow (no text or symbols)

Simple line drawing of a container with steam rising, no text or symbols present

Line drawing of a hand inserting a small object into a box (no text or symbols)

Technical diagram showing hands operating a mechanical device with numbered components and directional arrows indicating movement or force.

Řešení potíží

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating movement

Diagram showing a connector pinout with labeled parts and a magnified view of the connector tip.

B

Diagram of a toothbrush with labeled parts, showing magnified view of tooth structure

©

Diagram of a hand holding an electrical plug with numbered parts for labeling.

D

A Hlavná jednotka

Diagram of a handheld electric shaver with labeled parts 1 and 2, showing internal structure and mounting point.

Illustration of a handheld device with two arrows indicating direction of movement (no text or symbols present)

WHITE SOFT

Indikátor kapacity batérie bliká.

Počas nabíjania

WHITE

SOFT

Indikátor stavu nabitia sa svieti.

(1)(2)(3)

Diagram of a U-shaped structure with internal gear-like patterns and directional arrows (no text or symbols)

Diagram showing a toothbrush being inserted into an electric tooth, with labeled component '1' and directional arrow indicating process.

Illustration of a medical device with a catheter inserted, showing internal tissue structure (no text or symbols)

Line drawing of a toothbrush being inserted into a toothbrush (no text or symbols)

▶ Hlava kefky

Line drawing of a handheld electric toothbrush with a downward arrow indicating compression (no text or symbols)

Line drawing of two hands holding a small flower, no text or symbols present

Čistenie nabíjačky

Diagram of a mechanical device with a circular housing and a curved handle, showing directional arrow (no text or symbols)

Simple line drawing of a container with steam rising, no text or symbols present

Line drawing of a hand cleaning a small box with a handle (no text or symbols)

Technical diagram showing hands operating a device with numbered components and directional arrows indicating movement or assembly.

Slovensky

Technical diagram showing exploded view of mechanical assembly with numbered components and directional arrows indicating assembly steps.

Diagram showing labeled parts of a mechanical or electrical component with numbered annotations

B

Diagram of a toothbrush with labeled parts and an inset showing the tooth with numbered annotations.

©

Diagram of a device with numbered parts, likely illustrating electrical or mechanical components.

D

A Főegység

Diagram of a handheld electric shaver with labeled parts 1 and 2, showing internal structure and mounting point.

Illustration of a handheld device with two arrows indicating direction of movement (no text or symbols present)

A lámpa

WHITE SOFT

(1)(2)(3)

Diagram showing a toothbrush being inserted into an electric tooth, with labeled component '1' and directional arrow.

Magyar

Illustration of a dental implant or tooth with a magnified view showing internal structure (no text or symbols)

Line drawing of a toothbrush being inserted into an electric toothbrush (no text or symbols)

▶ Kefefej

Line drawing of a handheld electric toothbrush with a downward arrow indicating compression (no text or symbols)

Line drawing of two hands holding a small object, possibly a flower or seed pod (no text or symbols)

Magyar

A töltő tisztítása

Diagram of a mechanical device with a curved housing and directional arrow (no text or symbols)

Simple line drawing of a closed container with internal compartments and steam rising (no text or symbols)

Line drawing of a hand inserting a small object into a rectangular device (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts 1 and 2, likely illustrating a component or assembly.

Hibaelhárítás

Technical diagram showing exploded view of mechanical assembly with numbered components and directional arrows indicating assembly steps.

Diagram showing a connector pinout with labeled parts ⑦ and ⑧, including a magnified view of the connector.

B

Diagram of a toothbrush with labeled parts and an inset showing a detailed cross-section labeled 9

©

Diagram of a hand holding an electrical plug with numbered parts for labeling.

D

Diagram of a handheld electric shaver with labeled parts 1 and 2, showing internal structure and mounting point.

Illustration of a handheld device with two views: top shows internal casing, bottom shows a cylindrical device (no text or symbols)

WHITE SOFT

(1)(2)(3)

Diagram showing a toothbrush being inserted into an electric tooth, with labeled component '1' and directional arrow indicating insertion.

Illustration of a medical device with a catheter inserted, showing internal structure and a downward arrow (no text or symbols)

Line drawing of a toothbrush being inserted into a toothbrush (no text or symbols)

▶ Capul periutei

Line drawing of a handheld electric toothbrush with a downward arrow indicating compression (no text or symbols)

Line drawing of a hand holding a small object, possibly a flower or seed pod, with no text or symbols present.

Diagram of a mechanical device with a circular component and directional arrow (no text or symbols)

Simple line drawing of a container with contents and steam rising (no text or symbols)

Line drawing of a hand inserting a plastic bag into a tray (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts 1 and 2, likely illustrating a component or assembly.

Technical diagram showing a mechanical assembly with labeled parts 1 and 2, likely illustrating a component or assembly.

Româna
Depanare

Technical diagram showing exploded view of mechanical assembly with numbered components and directional arrows indicating assembly steps.

① ② ③ WHITE SOFT ④ ⑤ ⑥

Diagram showing labeled parts of a mechanical or electrical component with numbered annotations

B

Diagram of a toothbrush with labeled parts and an inset showing a detailed view of the tooth with numbered annotations.

©

Diagram of a device with numbered parts, likely illustrating electrical or mechanical components.

D

A Ana Ünite

Illustration of a handheld device with two arrows indicating movement or change, no text or symbols present.

Lamba hakkında

WHITE SOFT

Diagram showing a toothbrush being adjusted to form an electric tooth with directional arrows indicating movement.

Illustration of a dental implant or tooth with a tool inserted, showing internal structure and a downward arrow (no text or symbols)

Illustration of a toothbrush being inserted into an electric toothbrush, showing the brush tip and handle (no text or symbols present)

▶ Fırça kafası

Line drawing of a pair of electric toothbrushes with a downward arrow indicating compression (no text or symbols)

Line drawing of two hands holding a small object, possibly a flower or seed pod (no text or symbols)

Diagram of a mechanical device with a circular component and directional arrow (no text or symbols)

Simple line drawing of a box with internal compartments and steam rising (no text or symbols)

Line drawing of a hand inserting a plastic bag into a box (no text or symbols)

Üst kapak çıkarsa

Technical diagram showing hands operating a device with numbered components and directional arrows indicating movement or assembly.

Sorun giderme

Technical diagram showing exploded view of mechanical assembly with numbered components and directional arrows indicating assembly steps.

© Panasonic Corporation 2013

⑤ EN, GE, FR, IT, DU, SP, DA, PT, NW, SW, FI, PL, CZ, SK, HU, RO, TK

Printed in Japan

EW9700DL821E Y1013-0
