USER MANUAL EW-TDEF4 PANASONIC

B640462_EW-TDEF4_tori

1 15-11-13 17:27:39

Panasonic®

Operating Instructions

使用说明书

使用說明書

取扱説明書

Sonic Vibration Toothbrush Household

电动声波振动牙刷 家用

音波振動牙刷 家用型

音波振動ハブラシ ドルツ 家庭用

Model No. EW-TDEF4

Panasonic Corporation

Web site: http://www.panasonic.com

© Panasonic Corporation 2015

Thank you for purchasing the Panasonic product.

This product is intended for household use only.

Functions of Your Toothbrush ..... EN7

Parts Identification.....EN9

Charging Your Toothbrush ..... EN11

Using the Toothbrush ..... EN13

Tips on Usage....EN15

After Use....EN18

Parts Sold Separately ..... EN20

Ion Lamp Q&A....EN21

Before Asking for Repair ..... EN22

Specifications....EN24

Disposing of Your Toothbrush ..... EN25

目錄

安全须知.....TC2

您的牙刷的功能.....TC7

部件說明....TC9

對您的牙刷進行充電.....TC11

使用牙刷.....TC13

使用提示.....TC15

使用後....TC18

分開銷售之部件.....TC20

離子燈的問與答....TG21

要求維修前.....TC22

規格....TC24

丢棄牙刷.....TC25

目次

安全注意事项 SC2

牙刷的功能 ..... SC7

部件名称 .... SC9

给牙刷充电 ..... SC11

使用牙刷 .... SC13

使用小贴士....SC15

使用后 …… SC18

另售部件 .... SC20

关于离子灯的问答.....SC21

在要求维修前 …… SC22

规格....SC24

处理牙刷 SC25

もくじ

安全上のご注意 JP2

機能紹介 JP7

各部のなまえ JP9

充電のしかた JP11

使いかた JP13

上手な使いかた……JP15

使い終わったら JP18

別売品 JP20

イオンランプのQ&A……JP21

修理を依頼される前に……JP22

定格·仕様 JP24

廃棄するときのお願い……JP25

Safety Precautions Please observe

To reduce the risk of injury, loss of life, electric shock, fire, malfunction, and damage to equipment or property, always observe the following safety precautions.

The following symbols are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

DANGER

Denotes a potential hazard that will result in serious injury or death.

WARNING

Denotes a potential hazard that could result in serious injury or death.

CAUTION

Denotes a hazard that could result in minor injury or property damage.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safely.

DANGER

Preventing accidents

● Never use this product near electronic medical devices or home electrical therapy devices such as the following:

Pecemakers and other electronic medical devices implanted in the body • Heart-lung machines and other life-supporting electronic medical devices

- Wearable electronic medical devices, such as electrocardiographs and intravenous drip equipment

(Doing so may cause incorrect operation of electronic medical devices and home electrical therapy devices, resulting in accidents or causing patients to feel unwell.)

WARNING

Preventing accidents

Do not store within the reach of children or infants. Do not let them use it. (Doing so may cause an accident or injury due to accidental ingestion of removable parts.)

Do not use this product if you are pregnant or are within one month after given birth.

Do not use if you feel unwell or have a fever.

(Doing so may result in accidents or cause you to feel unwell.)

EN2

Safety Precautions (continued)

WARNING

Preventing accidents

● The following people should consult with a physician before using this product.

• People with heart disease

• People who have had severe illnesses in the past

• People suffering from acute diseases

• People with febrile conditions

• People with abnormal blood pressure

• People with infectious diseases

• People with malignant tumors

• People with hemophilia

• People with allergic tendencies or who have experienced irritation

from metals or other items

(Failure to do so may result in accidents or cause them to feel unwell.)

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

(Failure to do so may cause an accident or injury.)

Power supply

• Do not connect or disconnect the adaptor to a household outlet with a wet hand. (Doing so may cause electric shock or injury.)
• Do not immerse the AC adaptor and the charging stand in water or wash it with water.
• Never use the AC adaptor and the charging stand near a bathtub or in a shower room.
• Do not use when the AC adaptor is damaged or when the fitting into the household outlet is loose.

- Do not damage the cord.

Do not damage, modify, forcefully bend, pull, twist, or bundle the cord. Also, do not place anything heavy on or pinch the cord.

(Doing so may cause electric shock or fire due to a short circuit.)

- Do not use anything other than the supplied AC adaptor and the charging stand.

Also, do not charge any other product with the supplied AC adaptor and the charging stand.

(Doing so may cause a burn or fire due to a short circuit.)

- Do not use in a way exceeding the rating of the household outlet or the wiring.

( Exceeding the rating by connecting too many power plugs to one household outlet may cause fire due to overheating.)

EN3

WARNING

Power supply

- Only use 110 – 240 V AC.

● Fully insert the adaptor.

(Failure to do so may cause fire or electric shock.)

● Always unplug the adaptor from a household outlet when cleaning the AC adaptor and the charging stand.

(Failure to do so may cause electric shock or injury.)

● Regularly clean the power plug and the appliance plug to prevent dust from accumulating.

(Failure to do so may cause fire due to insulation failure caused by humidity.)

→Disconnect the adaptor and wipe with a dry cloth.

- The supply cord cannot be replaced. If the cord is damaged, the appliance should be scrapped.

(Failure to do so may cause an accident or injury.)

In case of an abnormality or malfunction

- Immediately stop using and remove the adaptor if there is an abnormality or failure.

(Failure to do so may cause fire, electric shock, or injury.)

< Abnormality or failure cases:>

• The main unit, adaptor, charging stand or cord is deformed or abnormally

hot.

• The main unit, adaptor, charging stand or cord smells of burning

- There is an abnormal sound during use or charging of the main unit, adaptor, charging stand or cord.

→Immediately request inspection or repair at an authorized service center (described in the warranty).

Regarding this product

- Do not throw into fire or apply heat.

Do not charge, use or leave in a high temperature environment.

( Since a rechargeable battery is built-in, doing so may cause overheating, ignition or explosion.)

- Do not modify or repair.

(Doing so may cause fire, electric shock, or injury.)

→Contact an authorized service center (described in the warranty) for repair (battery change, etc.).

● Never disassemble except when disposing of the product.

(Doing so may cause fire, electric shock, or injury.)

Safety Precautions (continued)

CAUTION

Preventing damage to teeth and gums

• Do not use the brush with toothpaste that contains a high abrasive content, such as toothpaste for removing tar or for whitening.
• Do not apply the brush head strongly against teeth or gums, or use it continuously against same spot.
• Do not apply the plastic part of the main unit or brush head to teeth.
• Do not let anyone who cannot operate the brush by themselves use it
  ● People with low sensitivity in their mouth should not use the brush. (Doing so may cause injury or damage to teeth and gums.)

● People who may have periodontal disease, have teeth being treated, or who are concerned about symptoms in their mouth should consult a dentist before use.

(Failure to do so may cause injury or damage to teeth and gums.)

Regarding this product

• Never use for a purpose other than cleaning your teeth. (Doing so may cause an accident or injury.)
• Do not use if doing so causes you to feel unwell.
  (Doing so may result in accidents or cause you to feel unwell.)
• Do not share the brush head with your family or other people. (Doing so may result in infection or inflammation.)
• Do not place a metallic object such as a coin or a clip on top of the charging stand.

(Doing so may cause burns due to excessive heat.)

Note the following precautions

• Do not drop or hit against other objects.
  (Doing so may cause injury.)
• Do not wrap the cord tightly around the adaptor when storing.
  ( Doing so may cause the wire in the cord to break with the load, and may cause fire due to a short circuit.)

Do not allow pins or trash to adhere to the power plug or the appliance plug. (Doing so may cause electric shock or fire due to a short circuit.)

- Disconnect the adaptor from the household outlet when not charging. (Failure to do so may cause electric shock or fire due to electrical leakage resulting from insulation deterioration.)

- Disconnect the adaptor or the appliance plug while holding onto the adaptor or the appliance plug instead of the cord.

(Failure to do so may cause electric shock or injury.)

EN5

Disposing of the rechargeable battery (lithium-ion battery)

DANGER

- The rechargeable battery is exclusively for use with this appliance.

Do not use the battery with other products.
- Do not charge. - Do not throw
- Do not throw into fire or apply heat. - Do not hit, disassemble, modify, or puncture with a nail.
- Do not let the positive and negative terminals of the battery come in contact with each other through metallic objects.
- Do not carry or store the battery together with metallic jewellery such as necklaces and hairpins.
Do not charge, use, or leave the battery where it will be exposed to high temperatures, such as under direct sunlight or near other sources of heat. ● Never peel off the tube.

(Doing so may cause overheating, ignition, or explosion.)

WARNING

• Do not keep it within reach of children and infants. (The battery will harm the body if accidentally swallowed.)
  (The battery will harm the body if accidentally swallowed.) →If this happens, consult a physician immediately.

- If the battery fluid leaks out, take the following procedures. Do not touch the battery with your bare hands.

(The battery fluid may cause blindness if it comes in contact with your eyes.) Do not rub your eyes. Wash immediately with clean water and consult a physician.

(The battery fluid may cause inflammation or injury if it comes in contact with the skin or clothes.)
→Wash it off thoroughly with clean water and consult a physician.

Please observe the following when charging

The charging time may vary when using for the first time, or when it has not been in use for more than 6 months. Also, the charge status lamp may not glow for a few minutes after charging starts, but it will glow if charging continues.

- Adequate ambient temperature for charging is 5 °C – 35 °C. The battery may not charge properly or not at all under extreme low or high temperatures. - (the charge status lamp blinks quickly (twice per second), it may be due to a charging error or because the main unit is not properly mounted on the charging stand. Confirm the recommended temperature and mount the main unit on the charging stand properly.

A lithium-ion battery is used

There is no influence on the battery if you charge after each time you use the product.

EN6

B640462_EW-TDEF4_tori 5 15-11-13 17:27:40

Functions of Your Toothbrush

Introduction

The Sonic Vibration Toothbrush is

an electric toothbrush with sonic vibration* of approximately 31,000 brush strokes/minute.

* Sonic vibration in acoustic wave field

When you first begin using the toothbrush, you may experience slight bleeding of the gums even though your gums may be healthy. This is because your gums are receiving stimulation by the toothbrush for the first time. The bleeding should stop after one or two weeks of use. Bleeding that persists for more than two weeks may be indication of an abnormal condition of your gums, such as pyorrhea. In this case, stop using the toothbrush and consult your dentist.

Soft start function

To prevent toothpaste from spattering and to get accustomed to the high speed vibration, the toothbrush will gradually reach the selected speed and vibration approximately 2 seconds after it starts operating.

● This function is only in NORMAL mode.

30-second brushing notification timer function

The toothbrush will pause once at 30-second intervals to indicate the brushing time.

The main unit pauses twice at 2-minute intervals then starts again.

● GUMCARE mode does not have this function.

Example of brushing sequence

Divide your teeth into 4 parts (upper and lower, left and right), and brush one part at a time in order such as "① front of the teeth", "② biting plane of the teeth", and "③ back of the teeth" spending 30 seconds on each.

By brushing the above 4 parts for 30 seconds each (about 2 minutes), you can evenly brush your teeth without missing any spots in your mouth.

EN7

Refine_0008_EW-TDEF4.p1.pdf Refine_0009_EW-TDEF4.p1.pdf Refine_15-10-14 13:55:44

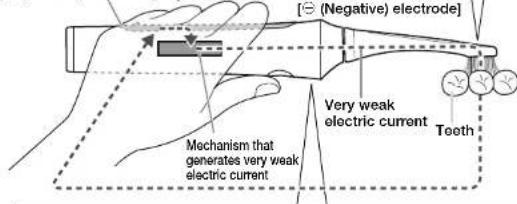

Sonic vibration toothbrush (ion type)

Touching the ion panel with your hand when you hold the main unit to brush your teeth causes a very weak electric current (ionic current) to flow between your teeth and the brush head.

When in use, the main unit of this toothbrush emits a very weak electric current in the oral cavity. The combination of the sonic wave from the linear motor and the force of ions improve its ability to remove dental plaque.

Ion panel [⊕ (Positive) electrode]

Brush head [⊖ (Negative) electrode]

[⊖ (Negative) electrode] Very weak electric current Teeth Mechanism that generates very weak electric current

The ion lamp turns on or blinks to indicate whether ionic power* is being applied to the teeth.

* Ion power is a weak electric current passed through the ions in saliva.

Pressing the power switch activates the mechanism that generates the very weak electric current, and the ion lamp blinks on and off.

Putting the brush in your mouth passes a very weak electric current in the oral cavity, ionic power is activated and the ion lamp turns on.

- You can easily see the lamp status if you use a mirror while brushing.

- Ionic power is not employed with the point brush. (The ion lamp blinks.)

Ion Lamp Q&A P. EN21

Refine_15-10-14 13:55:44

EN8

B640462_EW-TDEF4_tori

6 15-11-13 17:27:40

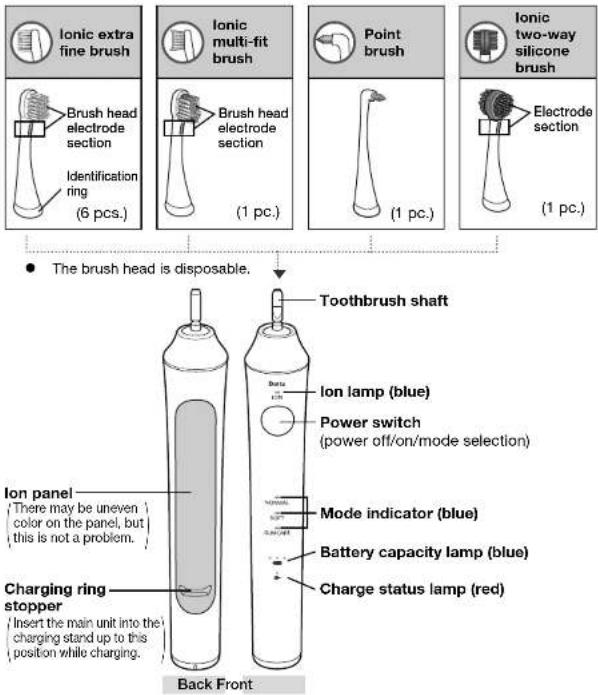

Parts Identification

Ionic extra fine brush Brush head electrode section Identification ring (6 pcs.) Ionic multi-fit brush Brush head electrode section (1 pc.) Point brush (1 pc.) Ionic two-way silicone brush Electrode section (1 pc.) ● The brush head is disposable. Toothbrush shaft Ion lamp (blue) Power switch (power off/on/mode selection) Ion panel There may be uneven color on the panel, but this is not a problem. Charging ring stopper Insert the main unit into the charging stand up to this position while charging. Mode indicator (blue) Battery capacity lamp (blue) Charge status lamp (red) Back Front

Changing the brush head
The brush head should be replaced with a new one every 3 months or for hygienic reasons, even if its shape is unchanged. Even within 3 months, please exchange the brush head if the bristles are frayed.

EN9

Refine_0010_EW-TDEF4.p1.pdf Refine_15-10-14 13:55:44

AC adaptor
Model number: RE7-87

Charging stand Brush st

Model number: RC8-1 Charging ring Stand socket

Carrying case

Storage diagram Inner frame

If the top case of the carrying case has come off

① Align the mounting section of the top case and the bottom case (2 places) as shown in the figure below.
② Press the top case in the direction indicated by arrows, taking care not to catch your fingers.

Top case Mounting section Bottom case

EN10

Refine_0011_EW-TDEF4.p1.pdf Refine_15-10-14 13:55:45

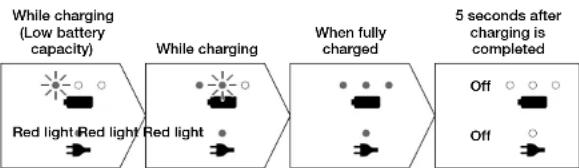

Charging Your Toothbrush

About charging

1. Place the charging stand on a horizontal and stable place such as sink or shelf.
2. Insert the appliance plug firmly into the stand socket.
3. With the main unit facing forwards, set straight into the charging ring.

- The main unit will stop in a raised position. (When the charging ring stopper touches the charging ring)

1. Insert the adaptor into the household outlet.

(How to check if charging is completed) Removing or attaching the main unit while charging will cause the charge status lamp to glow and then turn off after 5 seconds.

1. Disconnect the adaptor from the household outlet. (for safety and to reduce energy usage)

● Charging the battery for more than 1 hour will not damage the main unit.

EN11

Refine_0012_EW-TDEF4.p1.pdf Refine_0013_EW-TDEF4.p1.pdf Refine_15-10-14 13:55:45

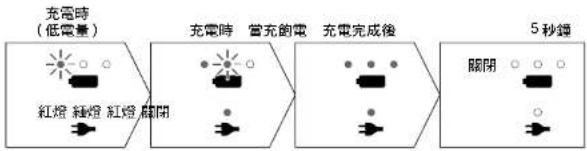

Display while charging

Charging is completed after approx. 1 hour.

The charging time may differ with the charging capacity.

● A full charge will supply enough power for approx. 60 minutes use. (Use time may vary depending on ambient temperature and use conditions.)

About battery capacity display

● The battery capacity is indicated in 3-level LEDs.

• The battery capacity lamp glows or blinks when the main unit is turned on. The battery capacity lamp will switch off after 5 seconds when the main unit is turned off.
  ● The lamp on the left side blinks, indicating it is time to charge.
• When you turn off the main unit while the battery capacity is low, the unit beeps.

About quick charge

- Even if the charge runs out, charging for 2 minutes will provide approximately 2 minutes of use. (Use time may vary depending on ambient temperature and use conditions.)

EN12

Refine_15-10-14 13:55:45

Using the Toothbrush

Notes

• Recommended ambient temperature for using is 5 °C – 35 °C.
  Toothbrush may not operate outside recommended temperature range.
• Do not put the main unit in contact with hair products, hand creams, etc. (Doing so may damage the exterior.)

1. Place the brush head firmly onto the toothbrush shaft.

• Ensure that the direction is correct.
  Align the front of the main unit and the front of the brush head.
• Do not attach the brush head by twisting it into place. (Doing so may damage the brush head and main unit.)
• The toothbrush shaft will move when a force is applied. This is required for operation, and is not a malfunction.
• There is a small gap between the brush head and the main unit (a few mm). This is necessary for operation and is not a malfunction.

2. Place the toothbrush in your mouth.

To avoid spattering of toothpaste, put the brush head in your mouth before turning the power on.

- Apply a small amount of toothpaste.

3. Press the power switch to turn on the main unit.

• Move the brush head with the bristles lightly touching your teeth.
• When first using this appliance, some people may experience a tickling or tingling sensation caused by the sonic vibrations.
  The sensation should subside after you use the toothbrush several more times.
  ● A sound may be heard when the brush head is pressed too strongly against the teeth, but this is not a malfunction.
• Move the brush head with the bristles lightly touching your teeth.
• When first using this appliance, some people may experience a tickling or tingling sensation caused by the sonic vibrations.
  The sensation should subside after you use the toothbrush several more times.
  ● A sound may be heard when the brush head is pressed too strongly against the teeth, but this is not a malfunction.

EN13

● The very weak electric current may not pass into the oral cavity if the toothbrush is held in the same way as a pen so that your hand does not touch the ion panel.
Please grasp the main unit as shown in the right figure, so that your hand comes in contact with the ion panel.

Ion panel Grasp Pen grip

4. Select the mode.

● Each time you press the power switch, the mode changes. NORMAL (When you turn the power on, the unit is in NORMAL mode.)

Mode Description Brush head
NORMAL Recommended for normal brushing.
SOFT	Recommended when you feel the NORMAL mode is too powerful.
GUMCARE	Uses rhythmical vibrations to care for your gums.

Brushing (P. EN15)

Brush difficult-to-reach areas (P. EN16)

Care for gums (P. EN17)

5. Turn off the main unit when you have finished brushing.

Turn off the main unit before removing it from your mouth to prevent saliva from spattering.

EN14

Tips on Usage

Brushing

Ionic extra fine brush

When you want to brush mainly the boundary between the teeth and gums. (You can also brush the teeth front surface and the biting surface.)

Ionic multi-fit brush

When you want to make your teeth front surface and biting surface clean. (You cannot brush the boundary between teeth and gums.)

- Choose the brush head depending on use and area.

How to apply/move the toothbrush

Apply the bristles of the brush lightly against the teeth and move the toothbrush slowly.

Boundary between teeth and gums

- Use the extra fine brush. - Place the brush head at a 45° angle.

- Apply the bristles of the extra fine brush lightly into the boundary between teeth and gums and move the toothbrush slowly.

Front surface and the biting surface of teeth

- Apply the brush head at a 90° angle.

For the back of the front teeth or misaligned teeth

- Place the brush vertically.

- Move toothbrus to match the angle of the teeth.

For the boundary between the teeth and gums

- Apply the brush head at a 45° angle.

Brush difficult-to-reach areas

Point brush

For the gap between teeth, the rear of the back teeth or misaligned teeth.

How to apply/move the toothbrush

Apply the bristles of the brush lightly against your teeth.

Gap between teeth Rear of the back teeth

- Place the brush at gap between teeth or areas that are hard to brush.

- Move the toothbrush slowly in line with the gums.

● Brush the rear of the back teeth thoroughly, as they are hard to reach.

Misaligned teeth Braces

- Apply the brush into the gap between braces and teeth, and then brush.

»» Continued on P. EN17 EN16

EN15

Refine_0016_EW-TDEF4.p1.pdf Refine_0017_EW-TDEF4.p1.pdf Refine_15-10-14 13:55:45

Refine_15-10-14 13:55:45

B640462_EW-TDEF4_tori 10 15-11-13 17:27:40

Tips on Usage (continued)

Care for gums

Ionic two-way silicone brush

Care for gums

• Use GUMCARE mode.

- Do not use the brush with toothpaste.

How to apply/move the toothbrush

Gums

Normal Stiff

use as close as possible to a right angle.

- Use the toothbrush so that the tips of the silicon brush bristles are lightly touching your gums. Move the brush back and forth gently across your entire gums.

- Recommended usage is once a day, for - Select your preferred stiffness approximately two minutes. from "normal" or "stiff."

- Use gently at points of concern. (Use for around 10 to 20 seconds at each area.)

CAUTION

With incorrect usage, or depending on the shape of your gums, there is a risk of damaging your gums. If you have a concern, please consult your dentist.

• Be careful when using the brush head. Forcefully pulling or biting the rubber section may cause it to come off.
• Do not apply the brush to your teeth. (This can cause the silicone brush to degrade.)
• Carbon is used in the rubber section, so gripping it firmly may cause a black powder to adhere to your hands, however this is not a safety concern.

EN17

Refine_0018_EW-TDEF4.p1.pdf Refine_0019_EW-TDEF4.p1.pdf Refine_15-10-14 13:55:45

After Use

Cleaning the brush head and the main unit

1. Remove the brush head.

Remove the brush head straight from the toothbrush shaft.

2. Wash the brush head under running water.

Wash the following parts thoroughly:

● Soiling on the inside and bottom areas of the brush head
● Soiling of the brush head electrode section

Observe caution regarding the following

• Do not pull the bristles of the brush forcefully.
• Do not force apart the rubber section of the silicone brush.
• Do not wash with water hotter than 80 °C. (Doing so may damage the brush head.)

Brush head electrode section

3. Wash the main unit under running water.

• Do not damage or rub the waterproof rubber seal with hard materials.
  Do not leave the main unit under water. (Water may enter inside.)
• Do not wash with water hotter than 40 °C. (Doing so may damage the main unit.)
• Completely remove any toothpaste or water stains from the ion panel.

Waterproof rubber

4. Wipe off water from the brush head and main unit for storage.

Do not charge while it is wet. (Doing so may cause soiling.)

»» Continued on P. EN19 EN18

Refine_15-10-14 13:55:46

B640462_EW-TDEF4_tori

After Use (continued)

If the identification ring comes off

As shown in the diagram at right, attach by aligning the indentation in the brush head with the raised part of the identification ring.

- Do not forcefully pull the identification ring. (Doing so may cause damage.)

- Using the toothbrush without the identification ring has no effect on its performance.

Cleaning the AC adaptor and the charging stand

Remove dirt with a cloth.

- Do not wash with water.

Cleaning the brush stand

ning the carrying case

Wipe off water after washing. Remove the inner frame, wash with water and wipe off water.

① Hold the right end of the carry case. ② With the right end of the inner frame facing up, pull up the inner frame.

Notes

- Use neutral kitchen detergent when cleaning the toothbrush with detergent. - Do not use thinner, benzine, alcohol, etc. to clean the appliance. (Doing so may cause failure, cracking or discoloration of the parts.)

EN19

Refine_0020_EW-TDEF4.p1.pdf Refine_15-10-14 13:55:46

11 15-11-13 17:27:40

Parts Sold Separately (replacement brush heads)

Please order if required, checking the main unit model number (EW-TDEF4) and the brush head number.

- Optional brush heads come with an identification ring to allow several people to share the main unit. - You can select a replacement brush head that suits the condition of your mouth or purpose other than the supplied brush head.

Optional replacement brush heads (ion type only) (In non-ion type brush heads, weak current does not flow in the oral cavity.)

Product name Part number Quantity
Accessories	Ionic extra fine brush EW0907-W (white)/-K (Black) 2 pcs.
	Ionic multi-fit brush EW0909-W (white)/-K (Black) 2 pcs.
	Ionic two-way silicone brush EW0906 2 pcs.

Optional replacement brush head (for sonic vibration toothbrush)

Product name Part number Quantity
Accessories	Point brush	EW0940	2 pcs.
Tongue cleaner ^c		EW0941	2 pcs.
Soft brush head for children		EW0942	2 pcs.

*1 Please use SOFT mode.

Products and specifications as of December 2015. Please note that there may be changes without notice.

● These optional replacement brush heads are only available in Japan.

EN20

Refine_0021_EW-TDEF4.p1.pdf Refine_15-10-26 16:22:17

Ion Lamp Q&A

Problem Possible cause Action
The ion lamp does not glow during use.	Your hands are dry.	Moisten your hands and try using it again.
	Toothpaste or water stains have adhered to the ion panel.	Clean the ion panel thoroughly and try using it again.	..
	You are holding the main unit without touching the ion panel.	Hold the main unit so that your hand is touching the ion panel and try using it again.(P. EN14)
The light turns on even though the toothbrush is not in my mouth.	During use, the weak electric current may flow through the moisture on your hands when you touch the ion panel and the brush head electrode section (or toothbrush shaft) with your hand.
	When you turn the power on and wash the main unit, the very weak electric current may flow through the moisture between the toothbrush shaft and the ion panel.
	When you remove the brush head from your mouth just after brushing without turning the power off, the weak electric current may flow through the liquid such as saliva on the brush head and the main unit.

Before Asking for Repair

Please check the following before making an inquiry or asking for repair.

Problem Possible	Cause and action
The charge status lamp does not glow when charging starts.	You have just purchased the toothbrush or have not used it for a while.→Also, the charge status lamp may not glow for several minutes after starting to charge it, but it will glow if you continue to charge it.If the charge status lamp does not glow after a while, consult with an authorized service center (described in the warranty) for repair.
The charge status lamp is bilinking rapidly.(Twice every second)	The main unit is not properly mounted on the charging stand.→Insert the main unit in the charging ring and check that the charge status lamp glows.(P. EN11-EN12)
	The temperature is too low or high while charging.→Charge the toothbrush within the recommended charging temperature of 5 °C - 35 °C.If the charge status lamp blinks even when charging within the recommended temperature range, please contact an authorized service center (described in the warranty) for repair.
The toothbrush can only be used for a few minutes, even if it is charged.	The main unit is not properly mounted on the charging stand.→Insert the main unit in the charging ring and check that the charge status lamp glows.(P. EN11-EN12)
The battery capacity lamp turns off without blinking.	The rechargeable battery has reached its operating life. (Approx. 3 years)→Please replace the battery. (P. EN24)Please contact the authorized service center (described in the warranty) where purchased.
The toothbrush does not operate.	The temperature is too low or high while using it.→Use within the recommended usage temperature of 5 °C - 35 °C.

EN21

»» Continued on P. EN23 EN22

Before Asking for Repair (continued)

Problem Possible	Cause and action
The toothbrush stops operating every once in a while.	The “30-second brushing notification timer function” is in operation.(P. EN7)→This is not a malfunction.Continue using it.
The vibration increases gradually when pressing the power switch.	The “Soft start function” is in operation.(P. EN7)→This is not a malfunction.Continue using it.
The toothbrush shaft moves.	This is not a malfunction. (P. EN13)
There is an acidic taste.	Some people may notice a taste or sense an electric current. This is because of the very weak electric current running inside the oral cavity.(Caution) This differs depending on the person.→This is not a malfunction.Concerned users are advised to use SOFT mode. (This mode uses a weaker electric current than NORMAL mode, so you should be less aware of it.)
The ion lamp turns on, even though I am not brushing.	This is not a malfunction.Please refer to “Ion Lamp Q&A”.(P. EN21)
The ion lamp does not turn on, even though I am brushing.

Loving Inspection

Inspect the Sonic Vibration Toothbrush you have been using for so many years!

Are these symptoms present?

• The cord or adaptor is abnormally hot.
• The main unit, charging stand or AC adaptor is deformed or produces the smell of something burning
• The appliance produces abnormal noise and vibration during use.

Stop using

To prevent accidents, unplug the adaptor from the power outlet and be sure to contact an authorized service center (as described in the warranty) for an inspection.

EN23

Refine_0024_EW-TDEF4.p1.pdf Refine_15-10-14 13:55:56

Specifications

Power source type Charging type
Charging time Approx. 1 hour (Room temperature: 5 ^ - 35 ^ )
Rated voltage 110 – 240 V ~ 50 – 60 Hz
Rated current 180 mA
Battery	1 Lithium-ion battery (DC 3.6 V; 400 mAh)
Power consumption	Approx. 5 W (with AC 110 V while charging)
Operating time	Approx. 60 minutes (at 20 ^ with 300 g load when fully charged)
Main unit dimensions	Approx. 28 (W) × 33 (D) × 235 (H) mm(including brush head)
Mass	Main unit: Approx. 105 g (including brush head)

This product has an A-2 plug for 110 - 240 V.
For regions that do not use an A-2 plug, please provide your own plug adaptor.

Battery life and replacement

Battery life Approximately 3 years. The battery may have reached the end of its operating life if the time that it can be used decreases drastically, even after a full charge. (The operating life of the battery may differ depending on usage or storage conditions.)
Replacement For battery replacement, please contact an authorized service center (described in the warranty). If you dismantle the toothbrush yourself, it will no longer be waterproof, which may cause it to malfunction.

Approximate dimensions for installation

① Approx. 270 mm (310 mm required to dismount the main unit) ② Approx. 205 mm (245 mm required to dismount the main unit)

© Approx. 73 mm
D Approx. 66 mm

(charging stand width)

⑤ Approx. 73 mm
(⑤) Approx. 113 mm
© Approx. 44 mm
⑧ Approx. 67 mm
① Approx. 67 mm
① Approx. 24 mm

A B C D E F G H ①

EN24

Refine_0025_EW-TDEF4.p1.pdf
Refine_15-11-13 16:46:27

Disposing of Your Toothbrush

For environmental protection and recycling of materials

This toothbrush contains a Li-ion battery.

Please make sure that the battery is disposed of at an officially designated location, if there is one.

Remove the built-in rechargeable battery before disposing of the toothbrush.

Please make sure that the battery is disposed of at an officially designated location, if there is one. This figure must only be used when disposing of the toothbrush, and must not be used to repair it. If you dismantle the toothbrush yourself, it may cause a malfunction.

• If there is still a charge, press the power switch to turn on the power and then keep the power on until the battery is completely discharged.
  Disassemble the toothbrush after discharging the battery completely.
• Using a screwdriver, please remove the battery by following the steps below. Disassemble the toothbrush following steps ① to ④. ⑤ Remove the battery.
  ● Take care not to short circuit the positive and negative terminals of the removed battery, and insulate the terminals by applying tape to them.

Lithium-Ion battery ① ② ③ ④ ⑤

安全注意事项 请注意

Refine_0026_EW-TDEF4.p1.pdf

Refine_15-11-10 11:51:13

SC2

Refine_0027_EW-TDEF4.p1.pdf

Refine_15-10-26 16:22:17

安全注意事项（续）

警告

预防意外事故

● 以下人士在使用本产品前请咨询医师。

Refine_0044_EW-TDEF4.p1.pdf Refine_0045_EW-TDEF4.p1.pdf

Refine_15-10-14 13:56:00

Refine_15-10-26 16:22:17

SC20

关于离子灯的问答

Refine_15-10-14 13:56:02

TC10

B640462_EW-TDEF4_tori 31 15-11-13 17:27:41

對您的牙刷進行充電

關於充電

Refine_0060_EW-TDEF4.p1.pdf Refine_0061_EW-TDEF4.p1.pdf Refine_15-10-14 13:56:02

充電中顯示

Refine_15-10-14 13:56:02

TC12

B640462_EW-TDEF4_tori 32 15-11-13 17:27:41

使用牙刷

註

Refine_15-10-14 13:56:02

Refine_15-10-14 13:56:02

使用提示

刷牙

離子型超細刷毛

Refine_15-10-14 13:56:03

使用後

清潔刷頭及主機

1. 移除刷頭。

直接從牙刷軸上移除刷頭。

2. 用自來水沖洗刷頭。

徹底清洗下列部位：

Refine_15-10-14 13:56:03

B640462_EW-TDEF4_tori

使用後（接上頁）

如果識別環脫落

Refine_15-10-14 13:56:03

Refine_0069_EW-TDEF4.p1.pdf

Refine_15-10-26 16:22:45

TC20

離子燈的問與答

Refine_15-10-26 16:22:46

規格

Technical diagram showing a mechanical assembly with labeled components and an inset view of a socket or socket connection.

TC24

Refine_0073_EW-TDEF4.p1.pdf

Refine_15-11-13 16:46:28

B640462_EW-TDEF4_tori

丢棄牙刷

環保及資源回收

本產品內附鋰電池。

Refine_15-10-14 13:56:34

安全上のご注意 (つづき)

警告

トラブルを防ぐために

Diagram showing how to remove teeth into an electric tooth, with a magnified view of the tooth being removed.

2. 口の中にブラシを入れる

Refine_15-10-14 13:56:53

47 15-11-13 17:27:42

別売品（替ブラシ）

Technical diagram showing a mechanical assembly with labeled components and an inset view of a connected electrical socket or connector.

田本語

JP24

Refine_0097_EW-TDEF4.p1.pdf

Refine_15-11-13 16:46:28

B640462_EW-TDEF4_tori 50 15-11-13 17:27:42

廃棄するときのお願い

環境保護と資源回収のために
