Product type	Range hood
Brand	Candy
Model	CCE16/2X-6
Dimensions (W x D x H)	60 x 50 x 15 cm
Net weight	8 kg
Power supply	220-240 V ~ 50 Hz
Motor power	200 W
Energy class	A+
Max noise level	65 dB(A)
Max airflow	600 m³/h
Control type	Mechanical (push buttons)
Number of speeds	3
Lighting	1 x LED (2 W)
Grease filter	Dishwasher safe (aluminum)
Charcoal filter	Optional (for recirculation)
Air outlet diameter	120 mm
Installation	Wall-mounted, external exhaust or recirculation
Certifications	CE
Recommended maintenance	Clean grease filter every month
Repairability index	6.5 / 10

Frequently Asked Questions - CCE16/2X-6 CANDY

How to install the Candy CCE16/2X-6 hood?

Installation must be carried out by a qualified professional. Ensure the hood is securely fixed to the wall and the air outlet is connected to an external exhaust duct or configured in recirculation mode with a charcoal filter.

How to clean the grease filter?

The aluminum grease filter can be washed in the dishwasher or by hand with mild detergent. Let it dry completely before reinstalling. Regular cleaning every month is recommended to maintain performance.

Is a charcoal filter necessary?

A charcoal filter is necessary if you use the hood in recirculation mode (without external exhaust). It should be replaced every 3 to 6 months depending on usage.

How to change the LED bulb?

Disconnect the appliance. Remove the lighting diffuser, then replace the faulty LED bulb with a new one of the same type and power (2 W). Replace the diffuser. If the problem persists, contact after-sales service.

The hood is noisy, is this normal?

A certain noise level is normal, especially at high speed (up to 65 dB). If the noise is unusual, check that the filters are clean and nothing is obstructing the duct. A rattling noise may indicate a loose part.

What distance between the hood and the hob?

For electric cooking, the minimum distance is 50 cm; for gas cooking, it is 65 cm. Respect these distances for optimal safety.

How to activate recirculation mode?

In recirculation mode, the air is filtered by a charcoal filter and then returned to the room. Make sure the charcoal filter is installed. The external exhaust must be blocked. Refer to the manual for the recirculation kit.

The controls no longer work, what to do?

Check the power supply and circuit breaker. If the problem persists, it may be an electronic fault. Contact an authorized Candy technician for diagnosis and repair.

How to get spare parts?

Spare parts (filters, bulbs, etc.) are available from Candy after-sales service or partner websites. Use the model number CCE16/2X-6 to identify the correct parts.

The hood does not capture odors well, why?

Check that the grease and charcoal filters are not saturated. Ensure the hood is set to an appropriate speed and the exhaust is not blocked. Regular maintenance usually resolves this issue.

USER MANUAL CCE16/2X-6 CANDY

Diagram of a mechanical or fluidic system with directional arrows indicating flow or movement (no text or symbols present)

1. Prije ugradnje, isključite uređaj i odspojite iz električne mreže.

1. Za najbolji radni učinak, kuhinjska napa treba biti postavljena na visini 65 \~75 cm iznad štednjaka/ploče za kuhanje.

Technical line drawing of two mechanical components with mounting base (no text or symbols)

Isometric line drawing of a brick wall with a mounted structure and a circular object, no text or symbols present.

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Pri unutarnjoj ventilaciji, za filtriranje dima i para koristi se aktivni ugljeni filter. Prije ugradnje aktivnog ugljenog filtera, prvo uklonite filter za masnoću. Pritisnite zasun i povucite filter prema dole.

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Illustration of a hand pressing down on a mechanical component with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

CLOSE ZATVARANJE

VAŽNA NAPOMENA:

o Budite sigurni da je aktivni ugljeni filter sigurno i ispravno učvršćen. U suprotnom se može olabaviti i izazvati opasnost.
o Sa ugrađenim aktivnim ugljenim filterom, usisna snaga kuhinjske biti će manja.

OPIS DIJELOVA KUHINJSKE NAPE

RADNE TIPKE

Tipka za malu brzinu

Pure technical line drawing of a mechanical or electrical component with downward arrows indicating force or direction (no text or symbols)

Diagram of airflow or heat transfer through a mechanical structure with directional arrows (no text or symbols)

Diagram showing a brick wall with an electrical outlet and a ceiling-mounted device, with an arrow indicating rotation (no text or symbols)

Isometric line drawing of a brick wall with a small cylindrical object on top (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a hand pressing down on a piano keyboard (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

Poznámka:

Pure electrical circuit lines without any symbols

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION 29

SAFETY PRECAUTION 29

SPECIFICATION 31

INSTALLATION (VENT OUTSIDE) 32

INSTALLATION (VENT INSIDE) 36

DESCRIPTION OF COMPONENTS 37

OPERATION 38

MAINTENANCE 38

TROBULESHOOTING 39

CONFORMITY WITH DIRECTIVES 40

ENVIRONMENTAL PROTECTION 40

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

The cooker hood uses high quality materials, and is made with a streamlined design. Equipped with large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

SAFETY PRECAUTION

□ Never let the children operate the machine.
☐ The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purpose.
☐ The cooker hood and its filter should be clean regularly in order to keep in good working condition.
□ Clean the cooker hood according to the instruction manual and keep the unit from danger of burning.
☐ Forbid the direct baking from the gas cooker.
☐ Please keep the kitchen room a good convection.
☐ Before connecting this appliance check that the power supply cord is not damaged. A damage supply cord must be replaced by qualified service personnel only.
☐ There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels;

□□□□□□□he air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels;

☐ Regulations concerning the discharge of air have to be fulfilled.
This appliance if not intended for use by persons(including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person slide for their safety.
Children should be supervised to ensure that they do not play with the appliance.
☐ Do not flambé under the range hood.
☐ The range hood is not intended to be installed over a hob having more than four hob elements

Electrical Shock Hazard

☐ Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer.
☐ Failure to follow these instructions can result in death, fire, or electrical shock.

Standard Installation Accessories List

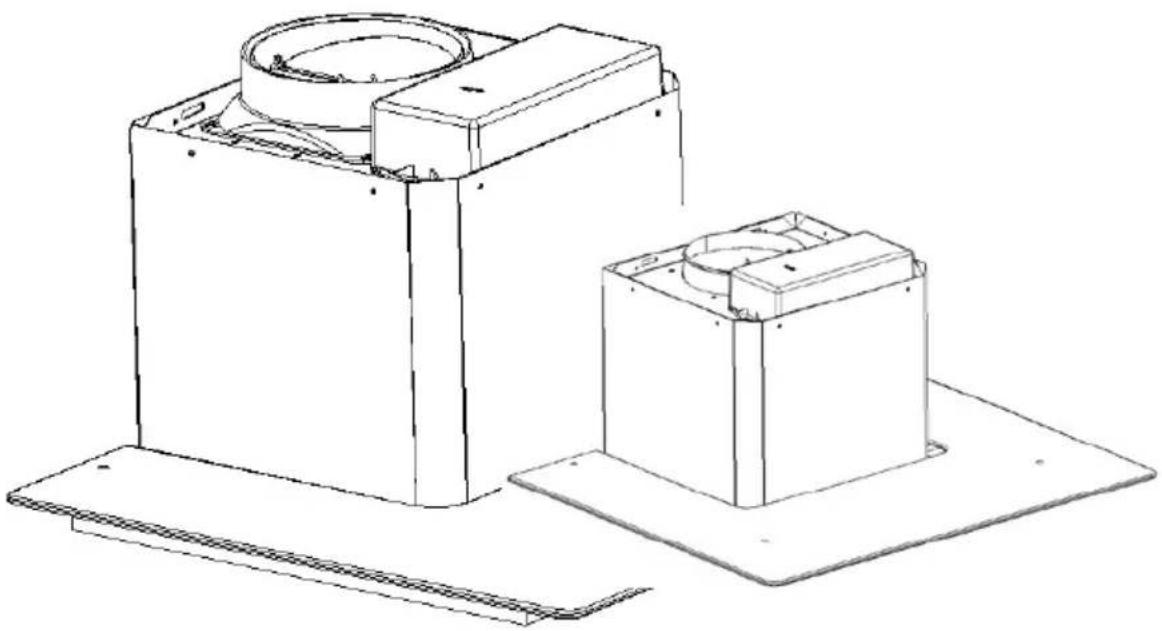

Spec.	Illustration Picture	Qty
Casing		1
Upper Chimney		1
Lower Chimney		1
Lower chimney bracket		1
Upper chimney bracket		1
Hanging Board		1
φ8 rawl plugs φ8×φ6 white color		9
Screws ST4.0×30		9
φ7.2screws ST4.0×8		2

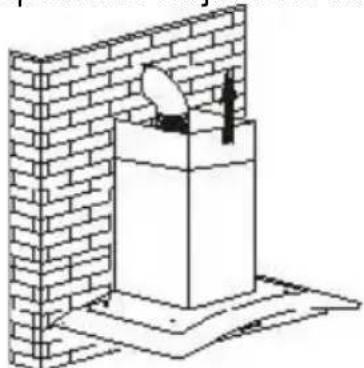

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or inflammable material with an interior diameter of 150mm)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hood should be placed at a distance of 65\~75cm above the cooking plane for best effect.

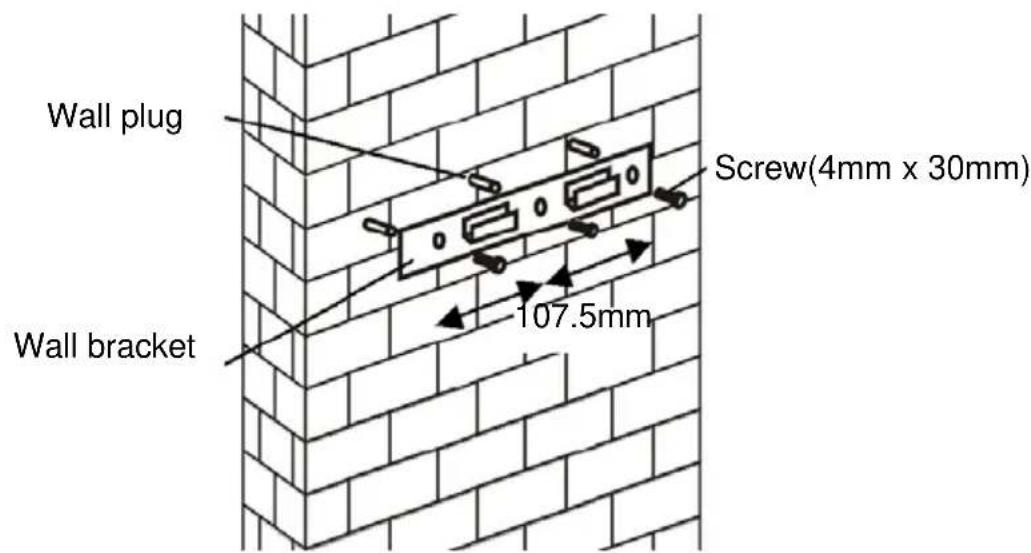

1. Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws provided.

1. Leave up the cooker hood and hang onto the wall bracket hook.

Technical line drawing of two mechanical components with mounting base (no text or symbols)

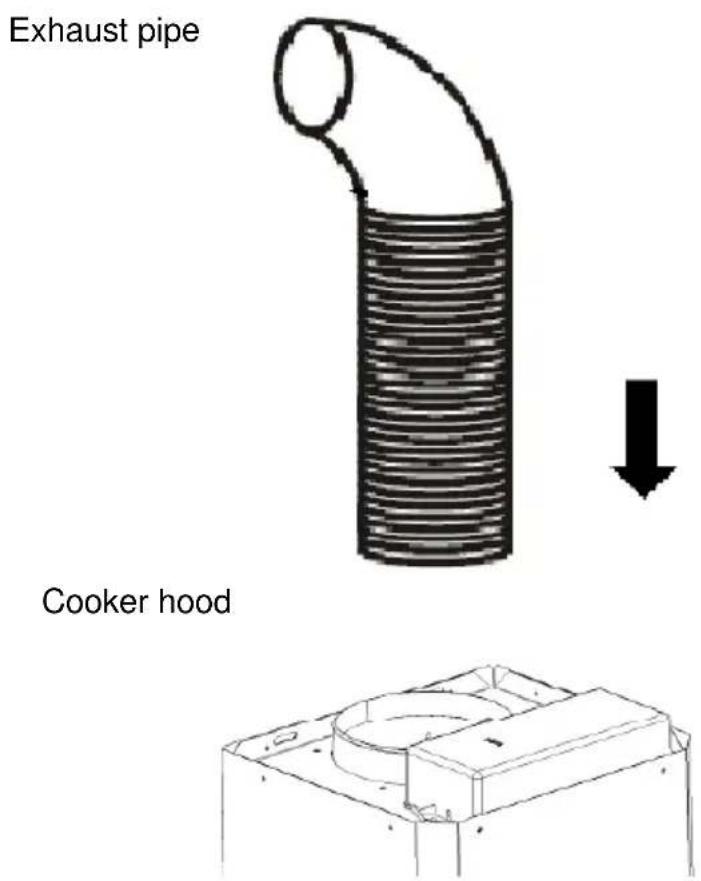

1. Fix the one-way-valve to the air outlet of the cooker hood. Then, attached the exhaust pipe onto the one-way-valve as shown below.

6.

i. Place the glass in appropriate position on the top the cooker hood.

ii. Fix with 4 screws and washer. In order to avoid the glass cracking, please do not tighten the screws too strongly.

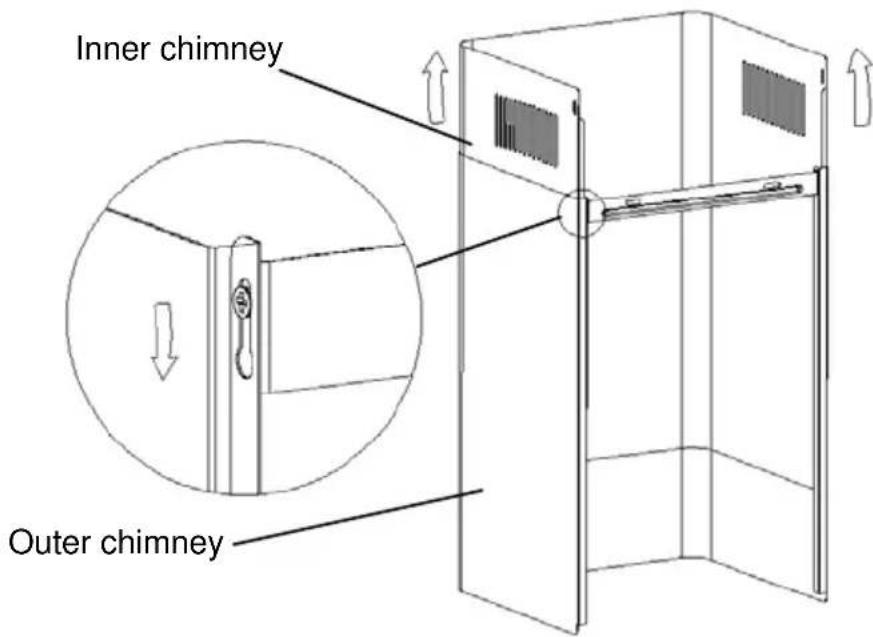

i. By Put the inner chimney into outer chimney . Then pulling out the inner chimney upwards. Adjust to reach the height required.

Isometric line drawing of a brick wall with a cylindrical object inserted into a pedestal (no text or symbols)

ii. Sliding the chimney to adjust the chimney height. When the height you required is reached, then hang the fixing hole to the fixing screws as showed in below pictures.

8.

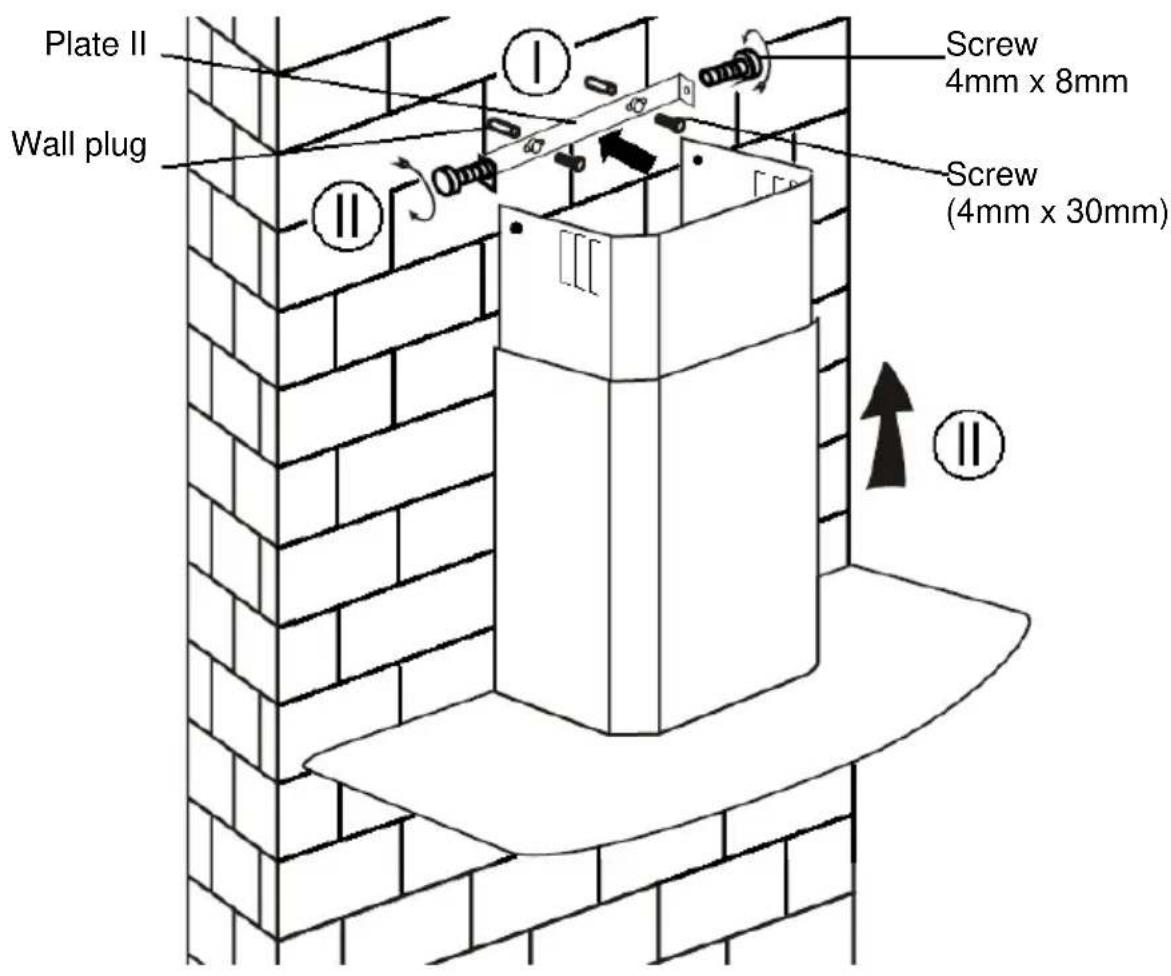

i. Drill 2 x 8mm holes to accommodate the plate II. Screw and tighten the plate II onto the wall with 2 screws provided.
ii. Assembly the chimney onto the unit and fix it with 2 screws.

INSTALLATION (VENT INSIDE)

If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section "INSTALLATION (VENT OUTSIDE)".

Diagram of a mechanical or fluidic component with directional arrows indicating flow or movement (no text or symbols)

Activated carbon filter can be used to trap odors.

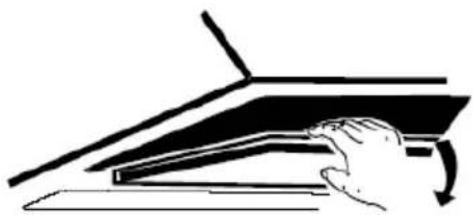

In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a hand pressing down on a mechanical component with an arrow indicating rotation (no text or symbols)

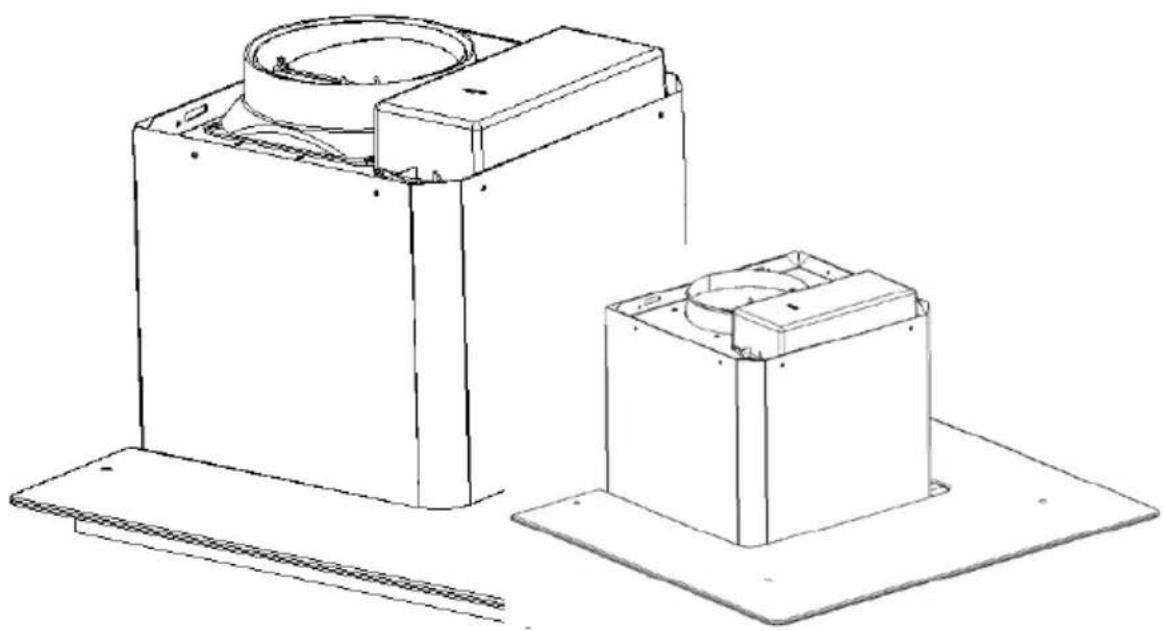

Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.

Technical line drawing of a mechanical component with no visible text or symbols

NOTE:

o Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
o When activated carbon filter attached, the suction power will be lowere

DESCRIPTION OF COMPONENTS

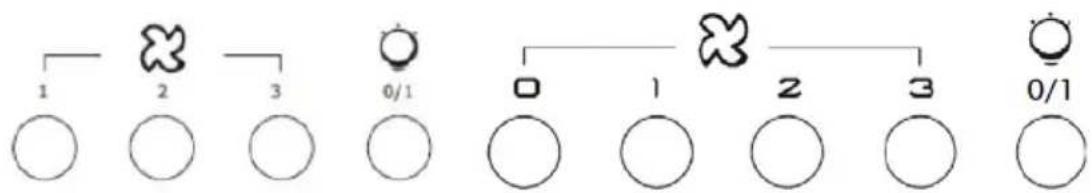

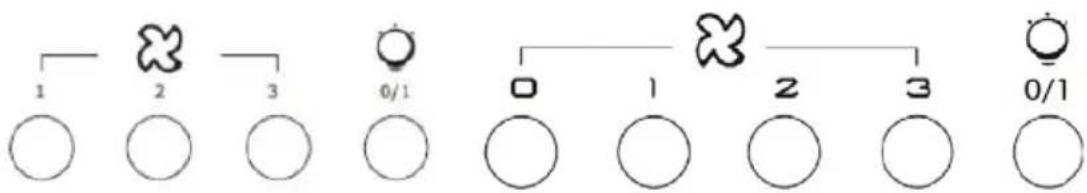

OPERATION

Low Speed button

It's used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam.

Medium Speed button

Airflow speed is ideally for ventilation in standard cooking operation.

High Speed button

When high density of smoke or steam produced, press high-speed button for highest effective ventilation.

Light button

NOTE: If Low / Medium / High speed buttons are press at the same time, the unit will only operate at the highest speed.

MAINTENANCE

Before cleaning switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust..... so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter traps odors and must be replaced at least once a year

depending on how frequent the cooker hood used.

IV. Changing a light bulb

Remove the screws on the glass, take off the hood glass. Find the bulb that requires replacement, you will find it located in the light fixture which is inside the exposed section of the canopy.

Pure electrical circuit lines without any symbols

Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It's not possible to replace the bulbs individually, it will be necessary to obtain the bulbs, bulb holders and wiring as a complete part. (LED light: G4, MAX 1.5W)

Fit the replacement bulbs, bulb holders and wiring in the same manners as the originals. Then reconnect the light wiring point.

Refit the hood glass and fasten the glass screws. Make sure the screws are fully tightened.

TROBULESHOOTING

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch off the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	Halogen light bulb burn.	Replace the bulb with correct rating.
	Power cord looses.	Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch off the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

CUSTOMER ASSISTANCE SERVICE

If you cannot identify the cause of the operating anomaly, switch off the appliance and contact the Assistance Service.

PRODUCT SERIAL NUMBER. Where can I find it?

It is important you to inform the Assistance Service of your product code and its serial number (a 16 character code which begins with the number 3); this can be found on the guarantee certificate or on the data plate located on the appliance.

It will help to avoid wasted journeys to technicians, thereby (and most significantly) saving the corresponding callout charges.

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

NOTICE D'INSTALLATION ET D'UTILISATION

Sommaire

INTRODUCTION 42

Installation (Evacuation) 45

Installation (Recyclage) 49

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of two mechanical components with mounting base (no text or symbols)

Diagram of a pipe with a curved duct and a downward arrow indicating flow or direction (no text or symbols)

Hotte

Technical line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

6.

Installation (En recyclage)

Installation (En recyclage)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Hand holding a pen or ruler above a flat surface, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand pressing down on a mechanical component with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

CLOSE

Enclenché

NOTE :

Pure diagram of a road with two directional arrows indicating flow or movement (no text or symbols)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of two mechanical components with mounting base and side plate (no text or symbols)

Isometric line drawing of a brick wall with a small object inside, no text or symbols present

Simple line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with a downward arrow (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

HINWEIS:

Pure electrical circuit lines without any symbols

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of two mechanical components with mounting base (no text or symbols)

Diagram of a coiled pipe with a downward arrow indicating flow or compression (no text or symbols)

Καπέλο

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

6.

Isometric line drawing of a brick wall with a cylindrical object inserted into a pedestal (no text or symbols)

Diagram of a mechanical or fluidic component with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with a downward arrow (no text or symbols)

Simple line drawing of a hand pressing down on a laptop keyboard (no text or symbols)

Technical line drawing of a mechanical fan or motor assembly with no visible text or symbols

ΣΗΜΕΙΩΣΗ:

CLOSE

Pure electrical circuit lines without any symbols

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of two mechanical components with mounting base (no text or symbols)

Diagram showing a pipe with ribbed material being reduced by a downward arrow, alongside a 3D mechanical component (no text or symbols)

Cappa

6.

Isometric line drawing of a brick chimney mounted on a base, with no text or symbols present.

Diagram of a mechanical or fluid system with directional arrows and a central block, no text or symbols present.

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating direction (no text or symbols)

Illustration of a hand pressing down on a laptop keyboard (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

NOTE:

Pure technical line drawing of a mechanical assembly with no text or symbols

(Waste Electrical and Electronic Equipment - WEEE).

MONTAŻ (WERSJA WYWIEWOWA) 98

MONTAŻ (WERSJA Z RECYRKULACJA) 102

PANEL STEROWANIA 103

DZIAŁANIE 103

OBSŁUGA 104

MOŻLIWE USTERKI 105

OCHRONA ŚRODOWISKA 106

WPROWADZENIE

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of two mechanical components with mounting base (no text or symbols)

Diagram of a pipe with a curved duct and a downward arrow indicating flow or direction (no text or symbols)

Okap

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

6.

Technical line drawing of a brick chimney mounted on a base, with no visible text or symbols

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand holding a small object over a flat surface, with an arrow indicating direction (no text or symbols)

Hand pressing down a mechanical component with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

UWAGA:

Pure mechanical diagram showing two downward arrows pointing to a horizontal beam with a central component (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or recycling (no text present)

☐ Regulations concerning the discharge of air have to be fulfilled.

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Parafuso (4mm x 30mm)

Technical line drawing of two mechanical components with mounting base (no text or symbols)

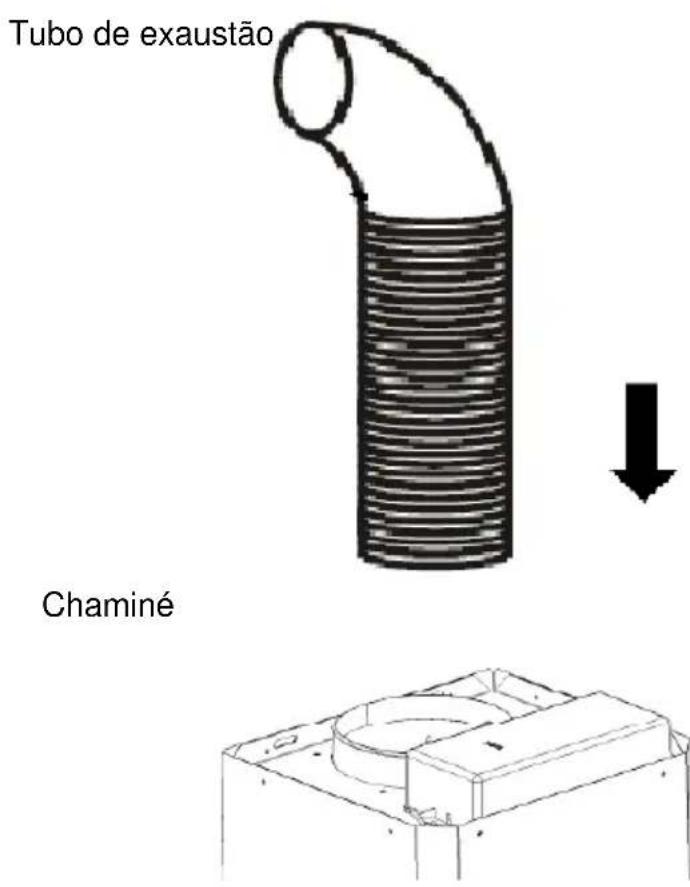

1. Fixe a válvula unidireccional para a saída de ar do exaustor. De seguida encaixe o tubo de saída do ar na válvula, como se exemplifica de seguida no desenho

Isometric line drawing of a brick wall with a mounted structure and a chimney, no text or symbols present.

Diagram of a mechanical or fluid system with directional arrows and a central rectangular block (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Hand pressing down a mechanical component with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Pure technical line drawing of a mechanical assembly with downward arrows indicating force or direction (no text or symbols)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Diagram of a brick wall with a mounted component and directional arrows indicating force or movement (no text or symbols)

Surub (4mmx30mm)

107.5mm

Technical line drawing of two mechanical components with mounting base (no text or symbols)

Isometric line drawing of a chimney mounted on a brick wall, no text or symbols present

8.

INSTALARE (VENTILARE ÎN INTERIOR)

Diagram of a mechanical or fluidic component with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a hand pressing down on a laptop (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

NOTĂ:

Pure electrical circuit lines without any symbols

Diagram of airflow or heat transfer through a mechanical structure with directional arrows (no text or symbols)

1. Pred priključitevanjem cevi izklopite napo in potegnite vtikač iz vtičnice.

Technical line drawing of two mechanical components with mounting base (no text or symbols)

Technical line drawing of a brick chimney mounted on a base, with no visible text or symbols

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

V tem primeru v napo vstavite filter z aktivnim oglem, ki zadrži vonjave. Najprej morate sneti filter za maščobe, nato pa lahko vstavite ogleni filter. Potisnite na zapah in potegnite filter za maščobe navzdol.

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a hand pressing down on a laptop (no text or symbols)

Potisnite aktivni ogleni filter v napo in ga zavrtite v desno, v smeri vrtenja urinega kazalca. Postopek ponovite na drugi strani nape.

Technical line drawing of a mechanical component with no visible text or symbols

(PRITRJEVANJE)

OPOMBA:

Pure electrical circuit lines without any symbols

Odklopite žico za žarnico in z nape odklopite držalo žarnice in žico. Pomembno: Ni mogoče zamenjati samo žarnico, ampak potrebujete komplet – žarnico, nosilec in žico. (lučka LED: G4, MAX 1.5W)

Pritrdite novo žarnico z nosilcem in žico tako, kot je bila pritrjena pregorela žarnica. Nato ponovno priključite žico.

Ponovno namestite steklo in privijte vijake. Prepričajte se, da ste jih do konca zategnili.

ODPRAVLJANJE NEPRAVILNOST V DELOVANJU

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of two mechanical components with mounting base (no text or symbols)

Diagram showing a cylindrical pipe with ribbed material being reduced by an arrow, above a 3D mechanical component (no text or symbols)

Campana

6.

Isometric line drawing of a brick chimney mounted on a base, with no text or symbols present.

Diagram of a mechanical or fluidic component with directional arrows indicating flow or movement (no text or symbols)

Two-step diagram showing hand pressing a component on a flat surface, with no text or symbols present.

Technical line drawing of a mechanical component with no visible text or symbols

NOTA:

Pure electrical circuit lines without any symbols

INSTALLATIE (VENTILATIE BUITEN) 165

INSTALLATIE (VENTILATIE BINNEN) 169

BESCHRIJVING VAN DE COMPONENTEN 170

WERKING 171

ONDERHOUD 171

PROBLEMEN OPLOSSEN 172

OVEREENSTEMMING MET RICHTLIJNEN 173

MILIEUBESCHERMING 173

INTRODUCTIE

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

Technical line drawing of two mechanical components with mounting base (no text or symbols)

Diagram of a coiled pipe with a downward arrow indicating flow or direction (no text or symbols)

Afzuigkap

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

6.

Illustration of a chimney mounted on a brick wall, with no visible text or symbols

INSTALLATIE (BINNEN VENTILATIE)

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a hand pressing down on a flat surface with an arrow indicating downward motion (no text or symbols)

Simple line drawing of a hand pressing down on a mechanical component (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

NOTA:

Pure electrical circuit lines without any symbols
