Product Type	Range Hood
Brand	Candy
Model	CSD6MXGG
Dimensions (WxDxH)	60 cm x 50 cm x 13 cm
Weight	Approximately 12 kg
Power Supply	220-240V, 50/60 Hz
Maximum Power Consumption	160 W
Number of Speeds	3 speeds
Extraction Capacity (Max)	600 m³/h
Noise Level (Max Speed)	62 dB(A)
Type of Controls	Electronic push buttons
Lighting Type	LED
Number of Filters	2 aluminium grease filters
Filter Cleaning	Dishwasher safe or hand wash
Ducting Diameter	150 mm
Installation Type	Under cabinet or wall-mounted
Energy Class	A+
Safety Features	Auto shut-off, overheat protection
Spare Parts Availability	Filters, bulbs, motor available
Warranty	2 years
Noise Level (Min Speed)	45 dB(A)
Grease Filter Material	Aluminium
Remote Control	Not included

Frequently Asked Questions - CSD6MXGG CANDY

How do I clean the grease filters on the Candy CSD6MXGG?

Remove the filters by pulling the handle downwards. Wash them in warm soapy water or in a dishwasher at low temperature. Let them dry completely before reinstalling.

What type of light bulb does the CSD6MXGG use?

The hood uses LED bulbs (type G4, 3W). To replace, twist the bulb counterclockwise and pull out.

How often should the carbon filter be replaced if recirculating?

If used in recirculation mode, the carbon filter should be replaced every 3-6 months depending on usage.

Can the Candy CSD6MXGG be installed as an island hood?

No, this model is designed for under cabinet or wall-mounted installation only. It requires a back wall for mounting.

Why is my hood making a loud noise?

Check if the grease filters are clogged or if the ducting is blocked. A loose fan blade or motor issue may also cause noise. Contact support if persistent.

How do I adjust the fan speed?

Press the speed buttons on the control panel: Speed 1 (low), Speed 2 (medium), Speed 3 (high). The current speed is indicated by LED lights.

What is the maximum extraction capacity?

The maximum extraction capacity is 600 m³/h on speed 3.

Does the CSD6MXGG come with a remote control?

No, remote control is not included. It operates via electronic push buttons on the hood.

How do I clean the exterior of the hood?

Use a soft cloth and mild detergent. Avoid abrasive cleaners or scouring pads. Dry with a clean cloth.

The hood does not turn on. What should I check?

Ensure the power cord is plugged in and the circuit breaker is on. Check if the safety switch (if any) is activated. If still not working, consult a technician.

USER MANUAL CSD6MXGG CANDY

Line drawing of a double-door air conditioner unit with ventilation slots and cooling fins (no text or symbols)

Instructions Book

MADE IN CHINA

Information and advice

CAUTION:Accessible parts may become hot when used with cooking appliances.

In certain circumstances electrical appliance may be a danger hazard.

A) There must be adequate ventilation of the room when the cooker hood is used at the same time as appliances burning gas or other fuels.
B) Do not check the status of the filters while the cooker hood is operating.
C) Do not touch the light bulb within half an hour after appliance has been use.
D) Do not light a flame under the cooker hood.
E) Avoid opening gasometer when there is no pan on the stove, as it is damaging for the filters and a fire hazard.
F) Constantly check food frying to avoid overheated oil splashing and becoming a fire hazard.
G) Disconnect the electrical plug prior to any maintenance.
H) Regulations concerning the discharge of air have to be fulfilled.
I) When the range hood and appliances supplied with energy Other than electricity are simultaneously in operation. The negative pressure in the room must not exceed 4 Pa ( 4 × 10^-5 bar)

Information and advice

CAUTION:Accessible parts may become hot when used with cooking appliances.

J) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
K) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
L) the range hood is intended to be installed over a hob having no more than four hob elements.
M) Indoor use and household use only
N) When the appliance is not in use and before cleaning, unplug the appliance from the outlet.
O) Attention! Observe the warning in the instruction sheet concerning the operation of the appliance when air is discharged from the room
P) There is a fire risk if cleaning is not carried out in accordance with the instructions.

Information and advice

CAUTION:Accessible parts may become hot when used with cooking appliances.

Q) The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room.
I) Children should be supervised to ensure that they do not play with the appliance.
S) Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
T) The installation height of hood shall not be less than 65cm.
U) The filter screen must be cleaned regularly, otherwise there is a danger of fire.
V) The installation must be carried out according to the screws and positions required by the instructions, which will easily damage the connecting wires.
W) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

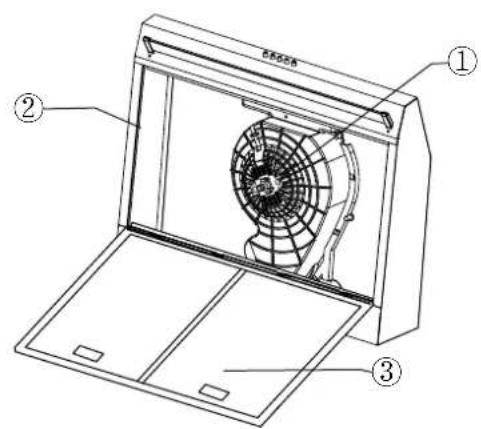

Know your cooker hood

Please read these instructions before using your cooker hood

1. Air duct assembly 2. Main body
2. Grease Filter (metal filter optional)

Also included:

*Damper flap
*User instructions

i

Information

Congratulations on the purchase of our Cooker hood, which is designed to include many superior features that permit you the fullest expression of your living. Before installing and/or using the cooker hood carefully read all the instructions.

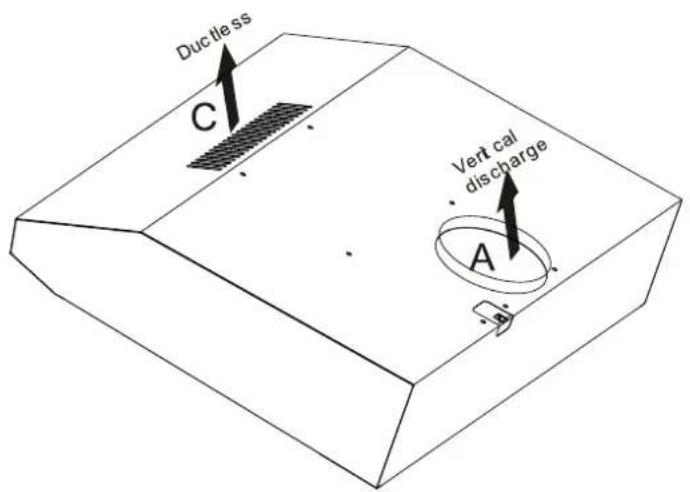

Selection of Venting Direction

Fully convertible for vertical, horizontal or ductless operation.

1

Information

The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. Regulations concerning the discharge of air have to be fulfilled.

2

Vertical discharge

Vertical is the most common.

If you select this venting direction, you only need to open the ducting knockout A. Remove the ducting knockout by inserting a Flat head screwdriver under one end and prying it up. Then snip or break the attachment points by tin snips. You must make sure that the ducting knockout B is not removed.

3

Ductless

In a ductless installation the air is re-circulated back into the kitchen. If you do not anticipate heavy cooking this method will be preferred. It will not be necessary to remove any duct knockouts, you only need chose knockout C. You should use filters to help remove cooking odors. These filter must be washed and replaced at regular intervals.

i

Information

Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting.

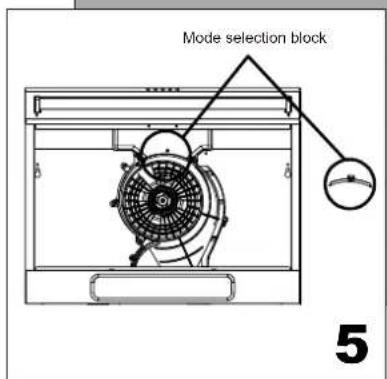

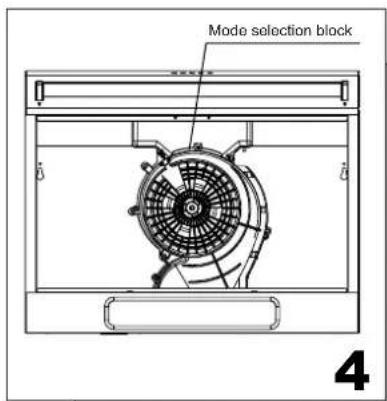

To select recirculation mode, remove the mode block at the position indicated in fig 5, and to select ducted operation, insert mode block into the position indicated in fig 4.

Information

Ductless fans must always be vented to the outdoors.

Installation

Ensure the power has been turned off before beginning this installation.

6

To install this hood you will require two assistants.

You will need the following tools and material to complete this installation: *Drill*Flat head screwdriver*Phillips head screwdriver or cordless drill and Phillips head bit*Tin snips*3/8" nut driver or ratchet with extension*measuring tape*hand saw or jig saw*electrical tape*duct tape

1. Remove the range hood from the carton.
2. Lay the hood upside down on a table covered with cardboard or paper to prevent scratching of the table or hood.
3. Hood installation should be within 0.8m radius range.
4. We recommend that after installation the bottom of the hood should be no less than 650mm and no more than 750mm above the stove's heating elements and burners.

Information

Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.

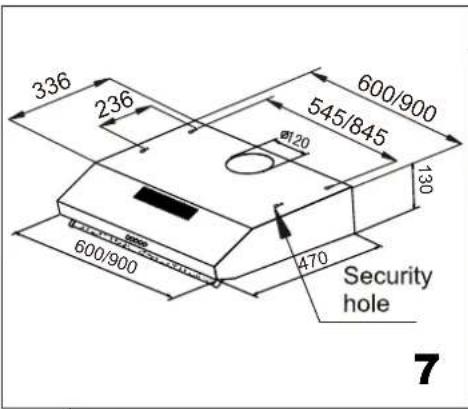

1. According to the figure, make sure the position of hood in the cabinet. The wood strips should be line up with the 4 keyholes slots on the top of the range hood. On the cabinet, install 4 screws (supplied) according to the relative position of 4 key holes on the bottom of hood. The extent of screwing should be convenience to the next installation.

2. Hang the hood and let it's 4 key holes aim at screws, the 4 screws should be in the narrow parts of key holes. Screws should be fasten firmly, make sure that the installation between the hood and cabinet is enough fasten.

3. Install screws in the security holes, in case of front and back moving of hood, so that the using is safer.

Information

When cutting or drilling into wall or ceiling, do not damage electrical wiring or other hidden utilities.

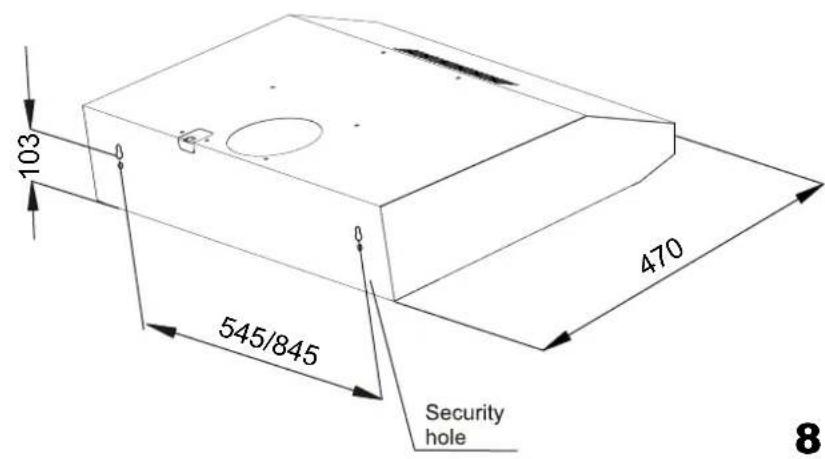

If the installation surface in cabinet don't adapt to install the cooker hood, then as per FIG. 8, fix the position of cooker hood on the wall. On the wall, install 2 screws (supplied) according to the relative position of 2 key holes on the back of hood. The extent of screwing should be convenience to the next installation. Also install screws in the security holes, in case of front and back moving of hood, so that the using is safer.

Information

The cooker hood must be installed and connected to flues where other appliances are installed and which run off other energy supplied different to electricity (water heaters boiler cookers (range/agas) etc.).

Hood Using Method

Turn the hood ON when cooking at high heat or when cooking flaming foods.

Simple line drawing of a boat hull with a small rectangular object on top and a small triangular shape on the side (no text or symbols)

1. Adjust the knob to be right position.
2. Insert the power plug firmly.

Press the the switch of light to be on, the bulbs light on. Otherwise the bulbs don't work. When press the push button “•”: on, the motor runs at low speed. When press the push button “•” on, the motor runs at middle speed. When press the push button “••” on, the motor runs at high speed. When press the push button “0” on, the motor stops running.

Replacing Bulb: Removing the bulb that need to be replaced, then reinstall the new bulb. The power of bulb must not be more than 4 W.

Information

Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.

Cleaning Instructions

Disconnect range hood from power supply before cleaning or servicing.

1. Cleaning the surface of hood frequently. Use mild soap or detergent to clean the hood.
2. Do not use harsh alkalis or abrasives.
3. Avoid the use of scouring powers or dishwasher compounds.
4. Grease filter may be washed using mild soap or detergent. (heavy grease build-up may not be cleaned easily and the filter may require replacement)
5. Charcoal filters cannot be cleaned and must be replaced regularly.

Information

When cleaning, water must not inter into motor, control switch etc. electrical parts.

This appliance is labelled in accordance with European Directive 2012/19/EU on Waste Electrical and Electronic Equipment Regulations 2013 regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules:

- the WEEE should not be treated as domestic waste;

- the WEEE should be taken to dedicated collection areas managed by the town council or a registered company. In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

The manufacturer shall decline all responsibility if the foregoing recommendations and instruction regarding installation, maintenance and use are not observed and respected when using the cooker hood.

Simple line drawing of a boat hull with a small rectangular top and a small triangular base, labeled with the number 9 (no text or symbols on the diagram itself)

Technical line drawing of a front-mounted air conditioner unit with fan and vent (no text or symbols)

Line drawing of a double-door air duct system with ventilation grilles (no text or symbols)
