CPY5MWP-07 - Range hood CANDY - Free user manual and instructions

Product Type	Range Hood
Brand	Candy
Model	CPY5MWP-07
Installation Type	Built-in (under cabinet)
Control Type	Push buttons (Off, Low, Medium, High, Light)
Number of Fan Speeds	3 (Low, Medium, High)
Lighting	LED, 220V max, 2W
Filter Type	Aluminum grease filter (washable) + optional activated carbon filter
Duct Diameter	150 mm
Cut-out Dimensions (W x D)	490 x 250 mm
Distance Above Cooking Surface	65 - 75 cm
Electrical Connection	Direct connection via omnipolar circuit breaker (min 3 mm contact gap)
Voltage	220-240 V (typical)
Fuse Rating	3 A
Class	I (earthed)
Grease Filter Cleaning	Monthly with household detergent
Activated Carbon Filter Replacement	At least once a year
Safety Features	Child safety (8+ years), no flambé cooking, adequate ventilation required
Environmental Protection	WEEE compliant, do not dispose with household waste

Frequently Asked Questions - CPY5MWP-07 CANDY

What is the recommended installation height above the cooking surface?

The cooker hood should be placed at a distance of 65 to 75 cm above the cooking plane for best effect.

How often should I clean the grease filter?

Clean the grease filter monthly using household cleaning detergent. This prevents fire risk and maintains efficiency.

Can I use the hood without ducting to the outside?

Yes, the hood can be used in recirculation mode by installing an activated carbon filter (sold separately) to trap odors.

How do I replace the LED bulb?

Switch off and unplug the appliance. Remove the lamp cover by unscrewing the 2 screws, then unscrew the LED lamp and replace with the same type (220V max, 2W).

What electrical connection is required?

The appliance must be connected to the mains via an omnipolar circuit breaker with a minimum 3mm contact gap. It is a Class I appliance and must be earthed.

Can children operate the cooker hood?

This appliance can be used by children aged 8 years and above with supervision. Children should not play with the appliance. Cleaning and maintenance should not be done by children unsupervised.

What should I do if the hood vibrates excessively?

Excessive vibration may be caused by a damaged fan blade, loose motor, or improper mounting. Switch off the unit and contact qualified service personnel.

The fan does not work but the light is on. What is the issue?

This could indicate a jammed fan blade or a damaged motor. Switch off the unit and have it repaired by qualified service personnel only.

How should I dispose of the range hood at the end of its life?

Do not dispose with household waste. Follow local regulations for recycling of electrical and electronic equipment (WEEE). Contact your local authority or retailer for advice.

What is the duct diameter for extraction?

If connecting to an outside outlet, use an extraction duct with an interior diameter of 150 mm (enamel, aluminum, flexible pipe, or inflammable material).

USER MANUAL CPY5MWP-07 CANDY

INSTALLATION AND USER'S MANUAL

CONTENT

INTRODUCTION....3

SAFETYPRECAUTION....3-4

PREPARE FOR INSTALLATION......6

SKPECIFICATIONS....7

INSTALLATION....7-8

OPERATION....9

MAINTENANCE.... 10

TROUBLESHOOTING....11

ENVIRONMENTALPROTECTION....11

INTRODUCTION

Thank you for choosing this cooker hood.

This instruction manual is designed to provide you with all required Instructions related to the installation, use and maintenance of the appliance.

In order to operate the unit correctly and safety, please read this instruction manual carefully before installation and usage.

The cooker hood use high quality materials, and is made with a streamlined design. Equipped with large power electric motor and centrifugal fan, it also provides strong suction power, low noise operation, non-stick grease filter and easy assembly installation.

SAFETY PRECAUTION

• Never let the children operate the machine.
• The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purpose.
• The cooker hood and its filter should be clean regularly in order to keep in good working condition.
• Clean the cooker hood according to the instruction manual and keep the unit from danger of burning. There is a fire risk if cleaning is not carried out in accordance with the instructions.
• Forbid the direct baking from the gas cooker.
• Please keep the kitchen room a good convection.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent similarly qualified persons in order to avoid a hazard.

• There shall be adequate ventilation of the room when the range hoods used at the same time as appliances burning gas or other fuels;

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels;

• Regulations concerning the discharge of air have to be fulfilled.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Do not flame under the range hood.
• CAUTION: Accessible parts may become hot when used with cooking appliance.
• The warning shall be in the same part of the instructions that include details of how to mount the equipment.

Electrical Shock Hazard

- Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer.

- Failure to follow these instructions can result in death, fire, or electrical shock.

The lamp used in this product is not suitable for use in the lighting of a room.

The purpose of this lamp is to provide illumination for using the product.

Electrical Installation

All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate.

Direct Connection

The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3mm between the contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with the wiring diagram.

The cable must not be bent or compressed.

Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

WARNING: This is a Class I appliance and MUST be earthed

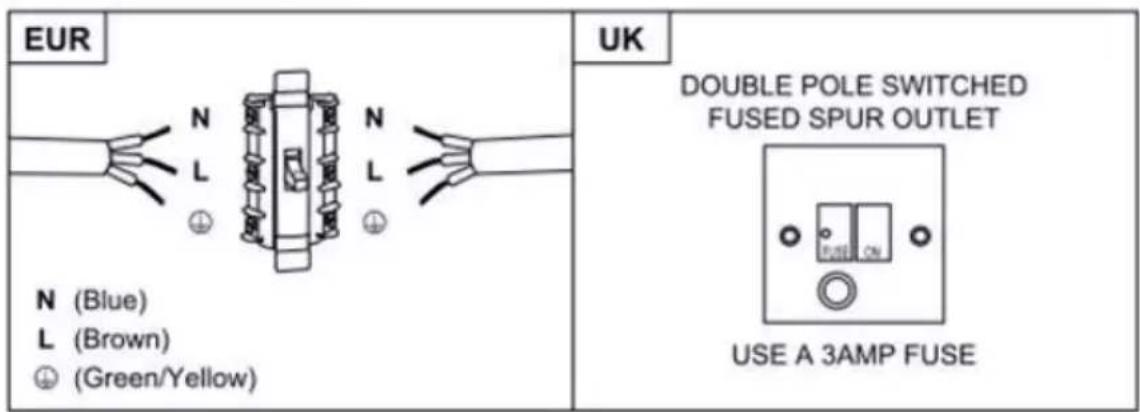

This appliance is supplied with a 3 core mains cable coloured as follows:

Brown = L or Live

Blue = N or Neutral

Green and Yellow = E or Earth

The fuse must be rated at 3 Amps.

Prepare for installation:

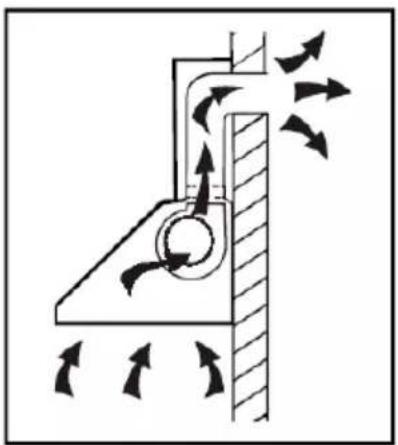

a. If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or inflammable material with an interior diameter of 150mm)

Diagram of airflow around a mechanical structure with directional arrows indicating movement (no text or symbols)

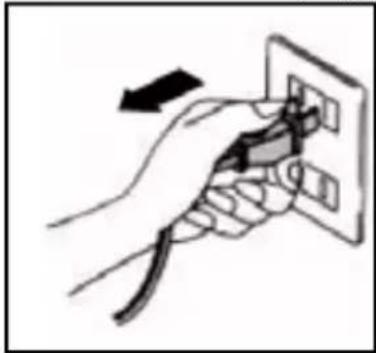

b. Before installation, turn the unit off and unplug it from the outlet.

Hand holding a plug inserted into an electrical outlet (no text or symbols visible)

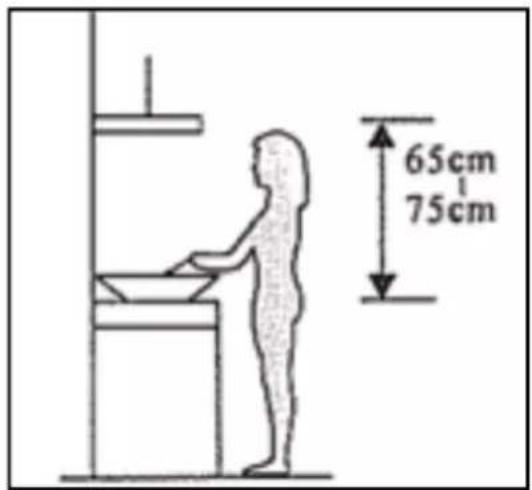

c. The cooker hood should be placed at a distance of 65\~75cm above the cooking plane for best effect.

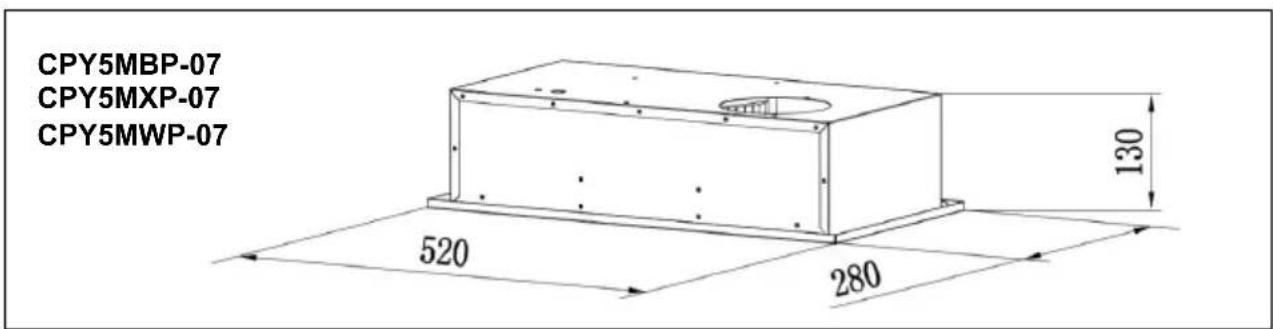

Specifications

Installation

- The typical installation method for your range hood is into a purpose built overhead/wall cabinet.

- Using a jigsaw, create the required cut-out for your range hood, as 490 × 250mm

• Make sure the cut-out is at least 35mm from the cabinet edge.

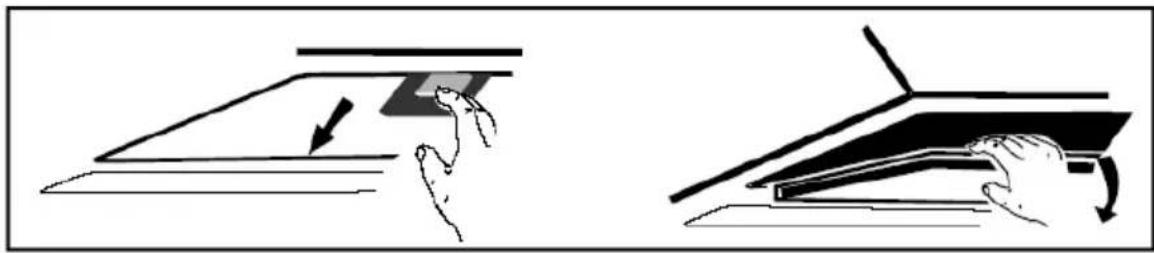

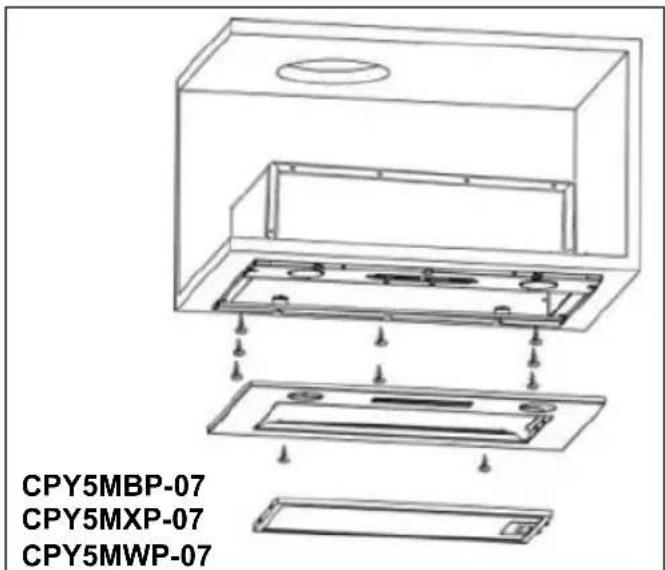

• Remove the grease filter and remove the 2 screws on the panel.
• Screw the range hood into the cabinet using 8 screws (supplied).
• Re-fit the panel with the 2 screws (previously removed).

Activated carbon filter can be used to trap odors.

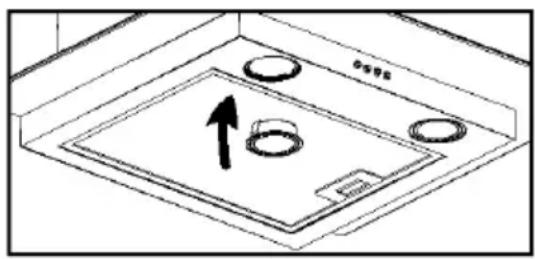

In order to install the activated carbon filter, the grease filter should be detached first. Press the lock and pull it downward.

Illustration showing two hand gestures interacting with a flat surface, one pointing downward and the other holding a flat surface (no text or symbols)

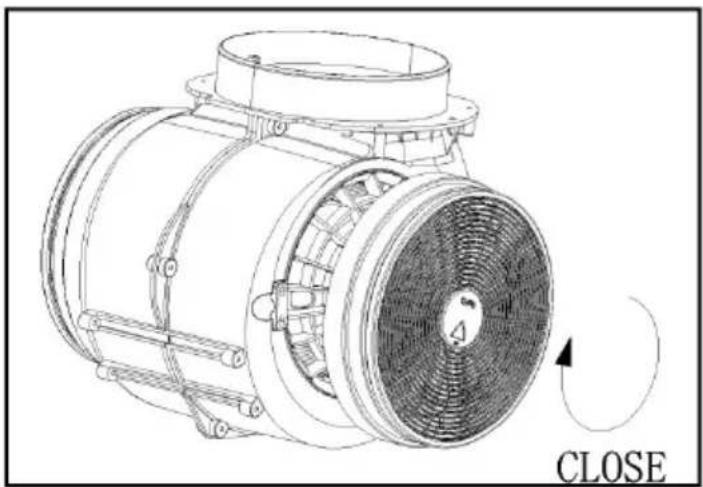

Plug the activated carbon filter into the unit and turn it in clockwise direction. Repeat the same on the other side.

Technical line drawing of a mechanical component with no visible text or symbols

NOTE:

○ Make sure the filter is securelylocked. Otherwise, it would loosen and cause dangerous.
- When activated carbon filter attached, the suction power will be lower.

DESCRIPTION OF COMPONENTS

OPERATION

Off button 0

It's used for turning off the fan.

Low Speed button

It's used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam.

Medium Speed button

Airflow speed is ideally for ventilation in standard cooking operation.

High Speed button

When high density of smoke or steam produced, press high-speed button for highest effective ventilation.

NOTE: If Low / Medium / High speed buttons are press at the same time, the unit will only operate at the highest speed.

Light button

MAINTENANCE

Before cleaning switch the unit off and pull out the plug.

I. Regular Cleaning

Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

II. Monthly Cleaning for Grease Filter

ESSENTIAL: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust.....so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

III. Annual Cleaning for Activated Carbon Filter

Apply SOLELY to unit that installed as a recirculation unit (not vented to the outside). This filter traps odours and must be replaced at least once a year depending on how frequent the cooker hood used.

III. Bulb Replacement

1. Switch the unit off and unplug the appliance.
2. Remove the lamp cover by unscrewing the 2 screws.
3. Unscrew the LED lamp
4. Replace with the same type and lamp

● LED lamp (220V max, 2W).

TROUBLESHOOTING

Fault	Cause	Solution
Light on, but fan does not work	The fan blade is jammed.	Switch of the unit and repair by qualified service personnel only.
	The motor is damaged.
Both light and fan do not work	light bulb burn.	Replace the bulb with correct rating.
	Power cord looses.	Plug in to the power supply again.
Serious Vibration of the unit	The fan blade is damaged.	Switch of the unit and repair by qualified service personnel only.
	The fan motor is not fixed tightly.	Switch of the unit and repair by qualified service personnel only.
	The unit is not hung properly on the bracket.	Take down the unit and check whether the bracket is in proper location.
Suction performance not good	Too long distance between the unit and the cooking plane	Readjust the distance to 65-75cm

ENVIRONMENTAL PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
