USER MANUAL HE46A SAMSUNG

Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Country

Customer Care Centre

www.samsung.com/be (Dutch) www.samsung.com/be_fr (French)

062 SAMSUNG (062 726 7864)

800 - SAMSUNG (800-726786)

© 2011 Samsung Electronics Co., Ltd. All rights reserved.

E-MANUAL BN68-03673B-01

2011-05-31 �� 5:57:34

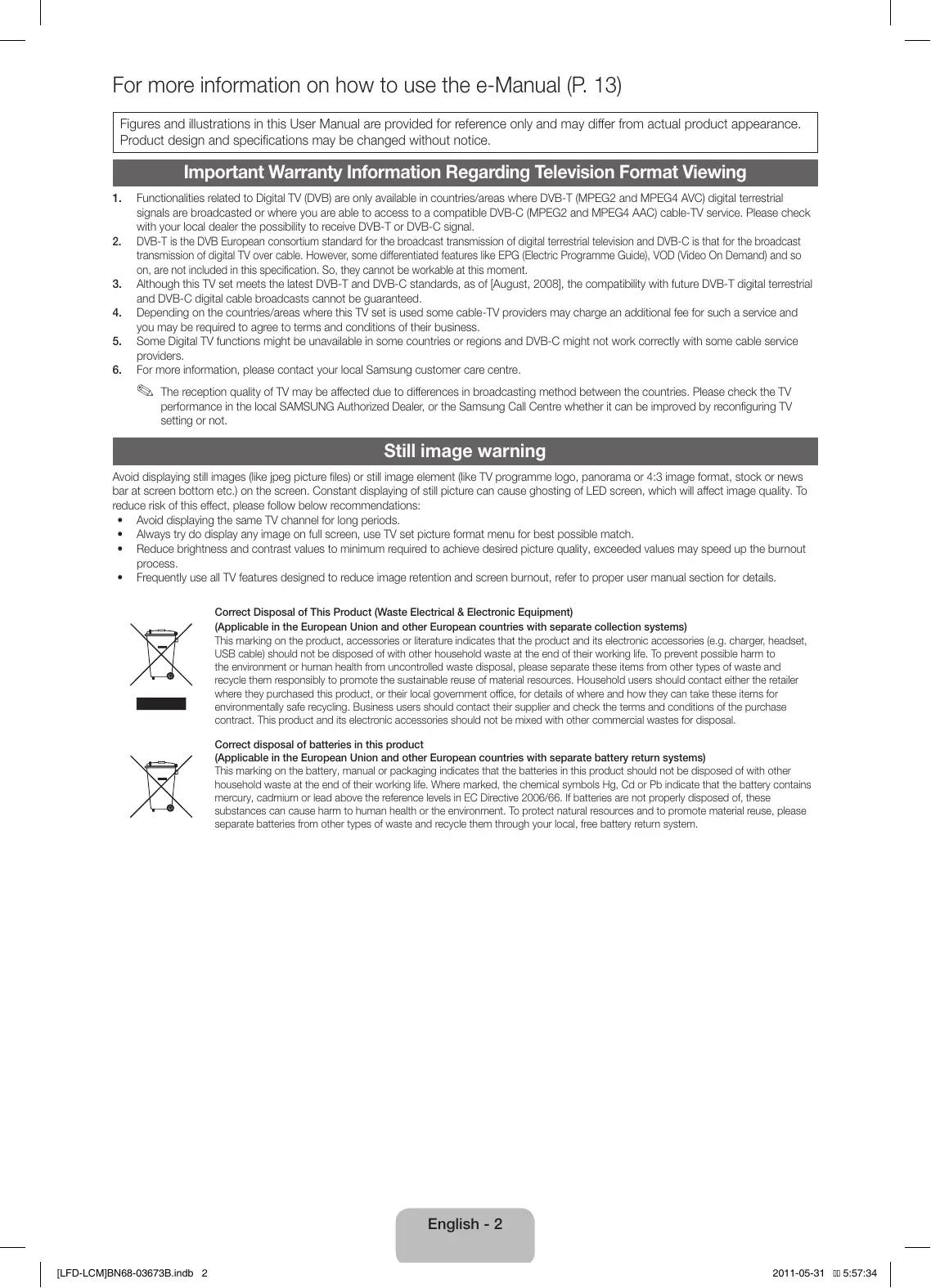

For more information on how to use the e-Manual (P. 13)

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice.

Important Warranty Information Regarding Television Format Viewing

Functionalities related to Digital TV (DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are broadcasted or where you are able to access to a compatible DVB-C (MPEG2 and MPEG4 AAC) cable-TV service. Please check with your local dealer the possibility to receive DVB-T or DVB-C signal.

DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C is that for the broadcast transmission of digital TV over cable. However, some differentiated features like EPG (Electric Programme Guide), VOD (Video On Demand) and so on, are not included in this specification. So, they cannot be workable at this moment. Although this TV set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T digital terrestrial and DVB-C digital cable broadcasts cannot be guaranteed. Depending on the countries/areas where this TV set is used some cable-TV providers may charge an additional fee for such a service and you may be required to agree to terms and conditions of their business. Some Digital TV functions might be unavailable in some countries or regions and DVB-C might not work correctly with some cable service providers. For more information, please contact your local Samsung customer care centre.

✎✎ The reception quality of TV may be affected due to differences in broadcasting method between the countries. Please check the TV

performance in the local SAMSUNG Authorized Dealer, or the Samsung Call Centre whether it can be improved by reconfiguring TV setting or not.

Avoid displaying still images (like jpeg picture files) or still image element (like TV programme logo, panorama or 4:3 image format, stock or news bar at screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of LED screen, which will affect image quality. To reduce risk of this effect, please follow below recommendations: • Avoid displaying the same TV channel for long periods. • Always try do display any image on full screen, use TV set picture format menu for best possible match. • Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout process. • Frequently use all TV features designed to reduce image retention and screen burnout, refer to proper user manual section for details. Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal. Correct disposal of batteries in this product (Applicable in the European Union and other European countries with separate battery return systems) This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment. To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

[LFD-LCM]BN68-03673B.indb 2

2011-05-31 �� 5:57:34

✎✎Please make sure the following items are included with your TV. If any items are missing, contact your dealer.

✎✎The items’ colours and shapes may vary depending on the models. ✎✎Cables not included in the package contents can be purchased separately. CAUTION: INSERT SECURELY LEST SHOULD BE DETACHED IN SET yy Remote Control & Batteries (AAA x 2) yy Owner’s Instructions yy Warranty Card

yy Power Cord yy Cleaning Cloth

✎✎An administration fee may be charged if either

(a) an engineer is called out at your request and there is no defect in the product (i.e. where you have failed to read this user manual) (b) you bring the unit to a repair centre and there is no defect in the product (i.e. where you have failed to read this user manual).

✎✎The amount of such administration charge will be advised to you before any work or home visit is carried out.

[LFD-LCM]BN68-03673B.indb 3

2011-05-31 �� 5:57:36

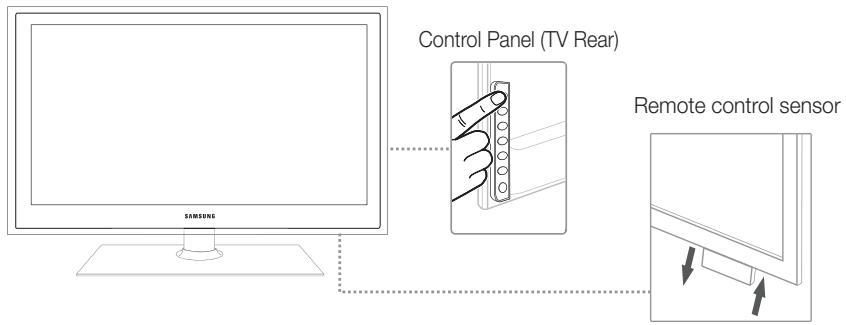

Viewing the Control Panel

✎✎The product colour and shape may vary depending on the model.

Control Panel (TV Rear) Remote control sensor

Remote control sensor

The remote control sensor will appear when pulling down the right bottom part of the TV.

Blinks and turns off when the power is on and lights up in standby mode.

SOURCEE Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTERE button on the remote control.

Displays an on-screen menu, the OSD (on screen display) of your TV’s features.

Adjusts the volume. In the OSD, use the + ◄ ► - buttons as you would use the

◄ and ► buttons on the remote control.

Changes the channels. In the OSD, use the < ▼▲ > buttons as you would use the ▼ and ▲ buttons on the remote control.

Turns the TV on or off.

Do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). A small amount of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.

[LFD-LCM]BN68-03673B.indb 4

2011-05-31 �� 5:57:37

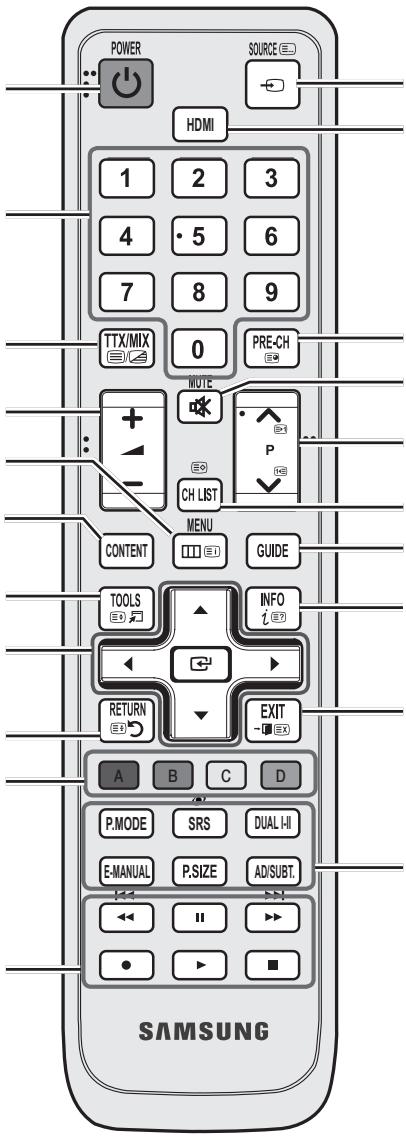

Viewing the Remote Control

✎✎This is a special remote control for the visually impaired persons and has Braille points on the Power, Channel, and

Displays and selects the available video sources.

Turns the TV on and off.

HDMI Selects the HDMI mode directly.

Press to directly access to channels.

Returns to the previous channel.

Alternately select Teletext ON, Double,

Cuts off the sound temporarily.

Displays the main on-screen menu.

Displays the My Downloads, Watch TV and Source.

Displays channel lists on the screen.

Displays the EPG (Electronic Programme Guide). Displays information on the TV screen.

CONTENT Quickly select frequently used functions.

Selects the on-screen menu items and changes the values seen on the menu.

Returns to the previous menu.

Buttons used in the Channel List, Channel Manager, My Downloads, Network, Allshare™ menu, etc.

A B P.MODE E-MANUAL C SRS D DUAL I-II AD/SUBT.

Use these buttons in a specific feature.

For details, refer to the e-Manual.

P.MODE: Selects picture mode.

SRS: Selects the TruSurround HD mode. DUAL I-II: Select Dual sound mode. E-MANUAL: Displays the e-Manual guide. P.SIZE: Selects the picture size. AD: Audio Description selection. (Not available in some locations) SUBT.: Displays digital subtitles.

Installing batteries (Battery size: AAA)

[LFD-LCM]BN68-03673B.indb 5

2011-05-31 �� 5:57:37

Connecting to an Antenna

When the TV is initially powered on, basic settings proceed automatically.

✎✎Preset: Connecting the mains and antenna.

Plug & Play (Initial Setup)

When the TV is initially powered on, a sequence of on-screen prompts will assist in configuring basic settings. Press the POWERP button. Plug & Play is available only when the Input source is set to TV.

✎✎To return to the previous step, press the Red button.

Selecting a language

Press the ▲ or ▼ button, then press the ENTERE button.

Select the desired OSD (On Screen Display) language.

Selecting Store Demo or

Press the ◄ or ► button, then press the ENTERE button.

Select the Home Use mode. Store Demo mode is for retail environments. To return the unit’s settings from Store Demo to Home Use (standard): Press the volume button on the TV. When the OSD volume is displayed, press and hold MENU for 5 sec. Store Demo is only for shop display. If you select it, several functions are not able to use. Please select Home Use when you watch at home.

Press the ▲ or ▼ button, then press the ENTERE button.

Select the appropriate country.

✎✎After selecting the country in the Country menu, some models may proceed with an additional option to setup the pin number.

✎✎When you input the PIN number, 0-0-0-0 is not available.

Setting the Clock Mode

Set the Clock Mode automatically or manually.

Selecting an antenna

Press the ▲ or ▼ button, then press the ENTERE button.

Select the channel source to memorise. When setting the antenna source to Cable, a step appears allowing you to assign numerical values (channel frequencies) to the channels. For more information, refer to Channel → Auto Tuning. Press the ENTERE button at any time to interrupt the memorisation process.

Select the Watch TV. Press the ENTERE button.

✎✎If you select the Network Settings, set the network. For more information, refer to

“Network” in the e-Manual.

If You Want to Reset This Feature...

Select System - Plug & Play (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0”. If you want to change the PIN number, use the Change PIN function. You should do Plug & Play (MENU → System) again at home although you did in shop.

✎✎If you forget the PIN code, press the remote control buttons in the following sequence in Standby mode, which resets the PIN to “0-0-0-0”: MUTE → 8 → 2 → 4 → POWER (on).

[LFD-LCM]BN68-03673B.indb 6

2011-05-31 �� 5:57:38

Connecting to an AV devices

¦¦ Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite

receiver, VCR, Digital Audio System, Amplifier, DVD Home Theatre, PC HDMI connection

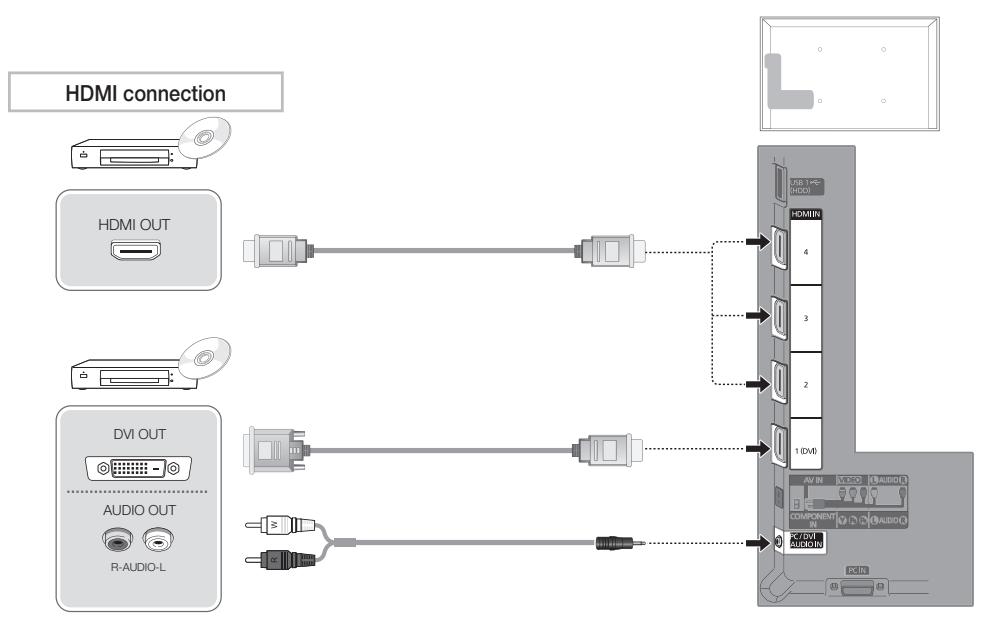

HDMI OUT DVI OUT AUDIO OUT R-AUDIO-L Using an HDMI cable or HDMI to DVI Cable (up to 1080p)

xx For better picture and audio quality, connect to a digital device using an HDMI cable. xx An HDMI cable supports digital video and audio signals, and does not require an audio cable.

–– To connect the TV to a digital device that does not support HDMI output, use an HDMI/DVI and audio cables.

xx The picture may not display normally (if at all) or the audio may not work if an external device that uses an older version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external device about the HDMI version and, if out of date, request an upgrade.

xx Be sure to use an HDMI cable with a thickness of 14 mm or less. xx Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may occur.

xx A basic high-speed HDMI cable or one with ethernet is recommended. This product does not support the ethernet function via HDMI.

[LFD-LCM]BN68-03673B.indb 7

2011-05-31 �� 5:57:39

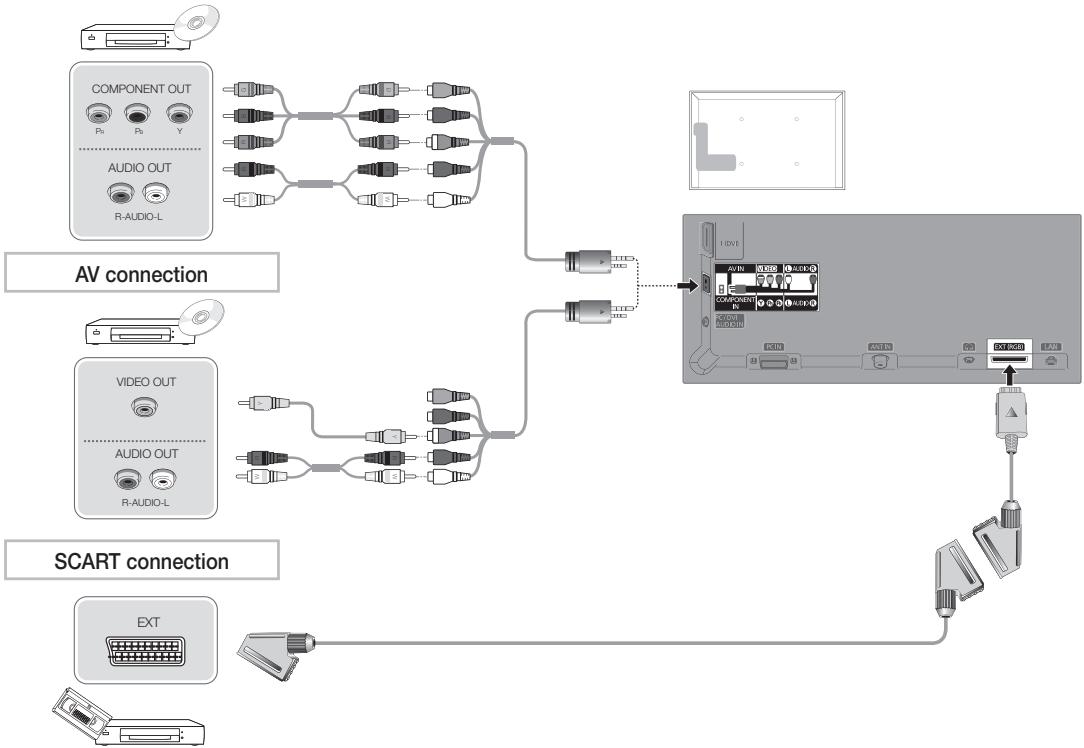

G B R R R R W PB B PR G COMPONENT OUT W Component connection

Y AUDIO OUT R-AUDIO-L AV connection

Y VIDEO OUT R R W Y W AUDIO OUT R-AUDIO-L SCART connection

EXT Using a Component (up to 1080p) or Audio/Video (480i only) and Scart Cable

✎✎In Ext. mode, DTV Out supports MPEG SD Video and Audio only.

✎✎To obtain the best picture quality, the Component connection is recommended over the A/V connection.

[LFD-LCM]BN68-03673B.indb 8

2011-05-31 �� 5:57:41

Connecting to a PC and Audio device

¦¦ Available devices: Digital Audio System, Amplifier, DVD Home Theatre

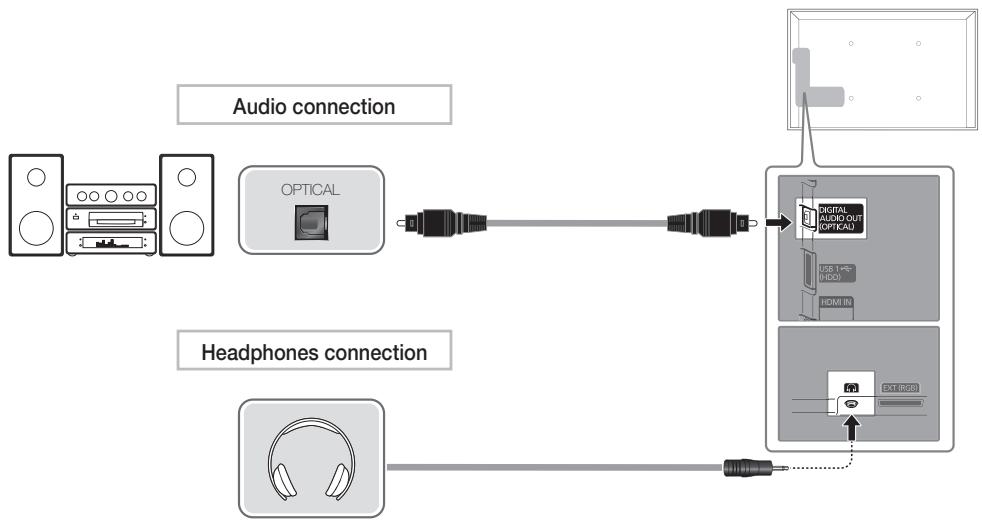

OPTICAL Headphones connection

Using an Optical (Digital) Cable or Headphone Connection

✎✎DIGITAL AUDIO OUT (OPTICAL)

xx When a digital audio system is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume of both the TV and the system.

xx 5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH. xx When the receiver (home theatre) is set to on, you can hear sound output from the TV’s optical jack. When the TV is receiving a DTV signal, the TV will send 5.1 CH sound to the home theatre receiver. When the source is a digital component such as a DVD / Blu-ray player / cable box / STB (Set-Top-Box) satellite receiver and is connected to the TV via HDMI, only 2 CH audio will be heard from the home theatre receiver. If you want to hear 5.1 CH audio, connect the digital audio out jack from your DVD / Blu-ray player / cable box / STB satellite receiver directly to an amplifier or home theatre.

✎✎Headphones H: You can connect your headphones to the headphones output on your set. While the headphones are connected, the sound from the built-in speakers will be disabled.

xx Sound function may be restricted when connecting headphones to the TV. xx Headphone volume and TV volume are adjusted separately.

[LFD-LCM]BN68-03673B.indb 9

2011-05-31 �� 5:57:42

✎✎Connecting through the HDMI cable may not be supported depending on the PC.

✎✎An HDMI cable supports digital video and audio signals, and does not require an audio cable. PC connection

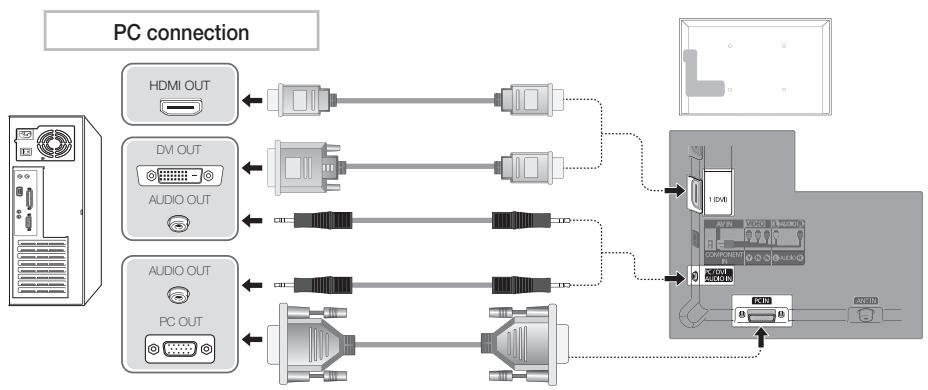

HDMI OUT DVI OUT AUDIO OUT AUDIO OUT PC OUT Display Modes (D-Sub and HDMI/DVI Input)

Optimal resolution is 1920 X 1080 @ 60 Hz. Mode

IBM MAC VESA DMT VESA DMT / DTV CEA

720 x 400 640 x 480 832 x 624 1152 x 870 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1152 x 864 1280 x 1024 1280 x 1024 1280 x 800 1280 x 800 1280 x 960 1360 x 768 1440 x 900 1440 x 900 1680 x 1050

-/-/-/-/-/-/+/+ +/+ +/+ -/-/+/+ +/+ +/+ +/+ -/+ -/+ +/+ +/+ -/+ -/+ -/+

xx For HDMI/DVI cable connection, you must use the HDMI IN 1(DVI) jack. xx The interlace mode is not supported. xx The set might operate abnormally if a non-standard video format is selected. xx Separate and Composite modes are supported. SOG(Sync On Green) is not supported.

[LFD-LCM]BN68-03673B.indb 10

2011-05-31 �� 5:57:44

Changing the Input Source

¦¦ Source List Use to select TV or other external input sources such as DVD / Blu-ray players / cable box / STB satellite receiver connected to the TV. ■■

✎✎ In the Source List, connected inputs will be highlighted.

✎✎ If you want to see connected devices only, move to Connected using ◄ or ► button. ✎✎ Ext. and PC always stay activated. ✎✎ If the connected external devices are not highlighted, press the red button. The TV will search for connected devices.

How to use Edit Name

In the Source, press the TOOLS button, and then you can set an external input sources name you want. ■■

VCR / DVD / Cable STB / Satellite STB / PVR STB / AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray /

HD DVD / DMA: Name the device connected to the input jacks to make your input source selection easier.

✎✎ When connecting a PC to the HDMI IN 1(DVI) port with HDMI cable, you should set the TV to PC mode under Edit Name.

✎✎ When connecting a PC to the HDMI IN 1(DVI) port with HDMI to DVI cable, you should set the TV to DVI PC mode under Edit Name. ✎✎ When connecting an AV devices to the HDMI IN 1(DVI) port with HDMI to DVI cable, you should set the TV to DVI Devices mode under Edit Name.

You can see detailed information about the selected external device.

✎✎For best cable connection to this product, be sure to use cables with a maximum thickness as below: xx Maximum thickness - 0.55 inches (14mm)

Connecting to a COMMON INTERFACE slot Attaching the CI Card Adaptor Attach the adapter as shown in the right. To connect the CI CARD Adapter, follow these steps.

✎✎Make sure that you attach the adaptor before you mount the TV on a wall.

Insert the CI CARD Adapter into the two holes on the product 1.

✎✎ Please find the two holes on the rear of the TV. The two holes are beside the COMMON INTERFACE port.

Connect the CI CARD Adapter into the COMMON INTERFACE port.

Insert the “CI or CI+ CARD”.

Using the “CI or CI+ CARD”

To watch paid channels, the “CI or CI+ CARD” must be inserted. yy If you do not insert the “CI or CI+ CARD,” some channels will display the message “Scrambled Signal”. yy The pairing information containing a telephone number, the “CI or CI+ CARD” ID the Host ID and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider. yy When the configuration of channel information has finished, the message “Updating Completed” is displayed, indicating the channel list is updated.

xx You must obtain a “CI or CI+ CARD” from a local cable service provider. xx When removing the “CI or CI+ CARD”, carefully pull it out with your hands since dropping the “CI or CI+ CARD” may cause damage to it.

xx Insert the “CI or CI+ CARD” in the direction marked on the card. xx The location of the COMMON INTERFACE slot may be different depending on the model. xx “CI or CI+ CARD” is not supported in some countries and regions; check with your authorized dealer. xx If you have any problems, please contact a service provider. xx Insert the “CI or CI+ CARD” that supports the current antenna settings. The screen will be distorted or will not be seen.

[LFD-LCM]BN68-03673B.indb 11

2011-05-31 �� 5:57:46

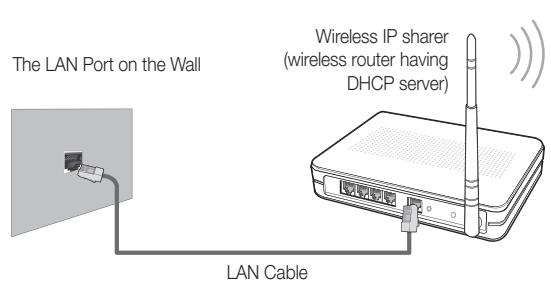

You can set up your TV so that it can access the Internet through your local area network (LAN) using a wired or wireless connection. Network Connection - Wireless You can connect your TV to your LAN through a standard wireless router or modem. To connect wirelessly, you must first attach a “Samsung Wireless LAN Adapter” (WIS09ABGN, WIS09ABGN2, WIS10ABGN - sold separately) to either the USB 1 (HDD) or USB 2 port on the back of your TV. See the illustration below. TV Side Panel Wireless IP sharer (wireless router having DHCP server)

The LAN Port on the Wall

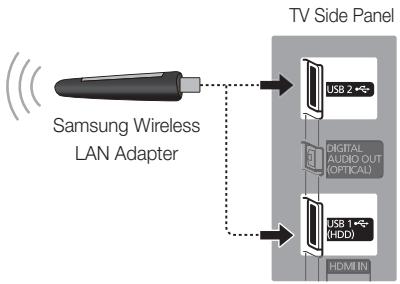

Samsung’s Wireless LAN adapter is sold separately and is offered by select retailers and Ecommerce sites. Samsung’s

Wireless LAN adapter supports the IEEE 802.11a/b/g and n communication protocols. Samsung recommends using IEEE 802.11n. When you play video over a network connection, the video may not be played smoothly. Most wireless network systems incorporate a security system that requires devices that access the network through an access point or wireless router (typically a wireless IP Sharer) to transmit an encrypted security code called an access key. If Pure High-throughput (Greenfield) 802.11n mode is selected and the Encryption type is set to WEP, TKIP or TKIP AES (WPS2Mixed) for your wireless router, Samsung TVs will not support a connection in compliance with new Wi-Fi certification specifications. Network Connection - Wired There are two main ways to connect your TV to your network using cable, depending on your network setup. They are illustrated below: External Modem (ADSL / VDSL / Cable TV)

The Modem Port on the Wall

The LAN Port on the Wall

✎✎A network speed of lower than 10 Mbps is not supported.

[LFD-LCM]BN68-03673B.indb 12

2011-05-31 �� 5:57:48

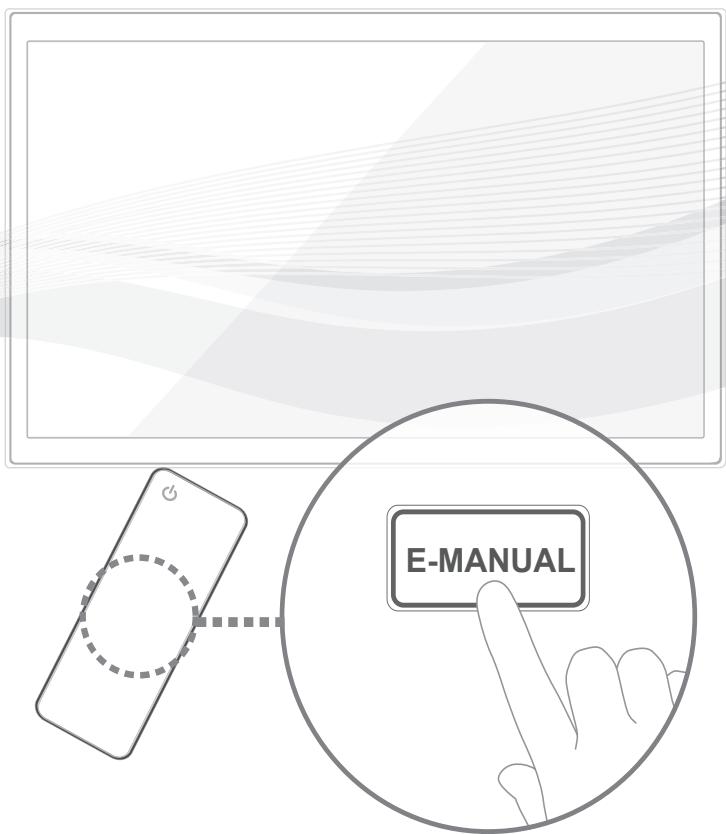

How to view the e-Manual

E-MANUAL You can find instructions about your TV’s features in the e-Manual in your TV. To use, press the E-MANUAL button on your remote. Move the cursor using the up/ down/right/left buttons to highlight a category, then a topic, and then press the

ENTERE button. The e-Manual displays the page you want to see. You can also access it through the menu:

✎ To return to the e-Manual main menu, press the E-MANUAL button on the remote.

✎ You cannot use Try Now directly if the TV is set to an external input source.

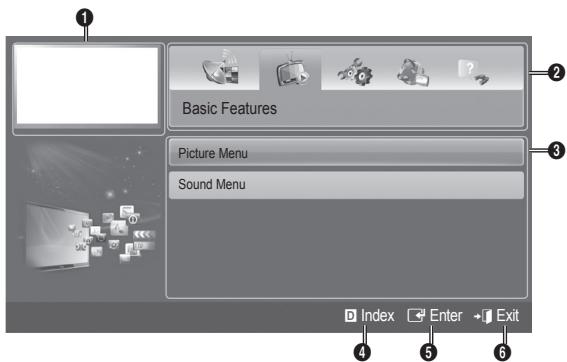

1 Currently displayed video, TV program, etc.

2 The category list. Press ◄ or ► button to select category you want.

3 Displays the sub-menu list. Use the arrow buttons on your remote to move the cursor. Press

ENTERE button to select the sub-menu you want.

How to toggle between an e-Manual topic and the corresponding OSD menu(s).

Basic Features > Picture Menu (3/17)

E-MANUAL a Try Now b Home { Zoom } Index L Page e Exit

Contrast Brightness Sharpness Colour Tint (G/R) Screen Adjustment

✎ This function is not enabled in some menus.

1. If you want to use the menu that corresponds to an e-Manual topic, press the red button to select Try Now.

1. Press the ENTERE button when a topic is displayed.

“Are you sure?” appears. Select Yes, and then press the ENTERE button. The OSD window appears. 2. To return to the e-Manual screen, press the E-MANUAL button. 2. To return to the e-Manual screen, press the E-MANUAL button.

[LFD-LCM]BN68-03673B.indb 13

2011-05-31 �� 5:57:52

Viewing the Contents

1 Contents Area: Contains the topic contents, if you selected a sub-menu. To move previous or next page, press the ◄ / ► button.

2 Try Now: Displays the OSD menu that corresponds to the topic. To return to the e-Manual screen, press the E-MANUAL button.

3 Home: Moves to the e-Manual home screen. 4 Zoom: Magnifies a screen. You can scroll through the magnified screen by using ▲ / ▼ buttons.

a Try Now b Home { Zoom } Index L Page e Exit

5 L (Page): Moves to previous or next page.

Select the Zoom, and then press ENTERE to magnify the screen. You can scroll through the magnified screen by using the ▲ or ▼ buttons.

✎ To return to the screen to normal size, press the

How to search for a topic on the index page

1. To search for a topic, press the left or right arrow button to select a letter, and then press ENTERE. The Index displays a list of topics and keywords that begin with the letter you selected. 2. Press the up or down arrow button to select a topic or keyword, and then press the ENTERE button. 3. The e-Manual page with the topic appears.

[LFD-LCM]BN68-03673B.indb 14

2011-05-31 �� 5:57:56

Installing the Wall Mount

The wall mount kit (sold separately) allows you to mount the TV on the wall. For detailed information on installing the wall mount, see the instructions provided with the wall mount. Contact a technician for assistance when installing the wall mount bracket. Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own. Wall Mount Kit Specifications (VESA) Case A. Installing the SAMSUNG Wall-Mount

Case B. Installing another company’s Wall-Mount

Wall mount kit is not supplied but sold separately.

Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contact your nearest dealer. If installed on a ceiling or slanted wall, it may fall and result in severe personal injury.

xx Standard dimensions for wall mount kits are shown in the table below. xx When purchasing our wall mount kit, a detailed installation manual and all parts necessary for assembly are provided. xx Do not use screws that do not comply with the VESA standard screw specifications. xx Do not use screws longer than the standard dimension, as they may cause damage to the inside of the TV set. xx For wall mounts that do not comply with the VESA standard screw specifications, the length of the screws may differ depending on their specifications.

xx Do not fasten the screws too strongly, this may damage the product or cause the product to fall, leading to personal injury. Samsung is not liable for these kinds of accidents.

xx Samsung is not liable for product damage or personal injury when a non-VESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.

xx Do not exceed 15 degrees tilt when mounting this TV.

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

[LFD-LCM]BN68-03673B.indb 15

2011-05-31 �� 5:57:58

If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, visit “www.samsung.com,” then click on Support, or call Samsung customer service centre. Issues

Solutions and Explanations

The TV will not turn on.

• Make sure the AC power cord is securely plugged in to the wall outlet and the TV.

• Make sure the wall outlet is working. • Try pressing the POWER button on the TV to make sure the problem is not the remote. If the TV turns on, refer to “Remote control does not work” below.

There is no picture/video.

• Check cable connections (remove and reconnect all cables connected to the TV and external devices).

• Set your external device’s (Cable/Set top Box, DVD, Blu-ray etc) video outputs to match the connections to the TV input. For example, if an external device’s output is HDMI, it should be connected to an HDMI input on the TV. • Make sure your connected devices are powered on. • Be sure to select the TV’s correct source by pressing the SOURCE button on the remote control. • Reboot the connected device by reconnecting the device’s power cable.

The remote control does not work.

• Replace the remote control batteries with the poles (+/–) in the right direction.

• Clean the sensor’s transmission window on the remote. • Try pointing the remote directly at the TV from 5~6 feet away.

The cable/set top box remote control doesn’t turn the TV on or off, or adjust the volume.

• Program the Cable/Set top box remote control to operate the TV. Refer to the Cable/Set user manual for the SAMSUNG TV code.

✎✎You can keep your TV as optimum condition to upgrade the latest firmware on web site (samsung.com -> Support ->

✎✎This TFT LED panel uses a panel consisting of sub pixels which require sophisticated technology to produce. However, there may be a few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

Excellent Digital Interface & Networking: With a built-in HD digital tuner, nonsubscription HD broadcasts can be viewed without a cable box / STB (Set-Top-Box) satellite receiver. My Downloads Allows you to play music files, pictures, and movies saved on a USB device. AllShare™ AllShare™ connects your TV and compatible Samsung mobile phones/devices through a network. Anynet+(HDMI-CEC) Allows you to control all connected Samsung devices that support Anynet+ with your Samsung TV’s remote.

[LFD-LCM]BN68-03673B.indb 16

2011-05-31 �� 5:57:59

Storage and Maintenance

✎✎If you remove the attached sticker on the TV screen, clean the residues and then watch TV.

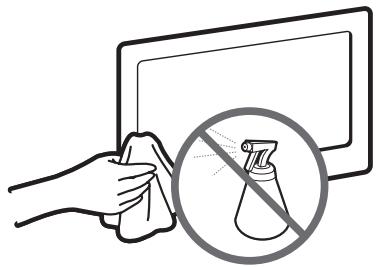

Do not spray water or a cleaning agent directly onto the product. Any liquid that goes into the product may cause a failure, fire, or electric shock.

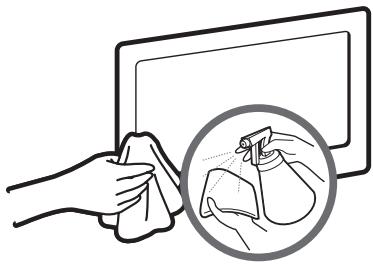

Clean the product with a soft cloth dapped in a small amount of water.

Display Resolution Environmental Considerations Operating Temperature Operating Humidity Storage Temperature Storage Humidity TV System Colour/Video System Sound System HDMI IN

0°C to 40°C (50°F to 104°F) 10% to 80%, non-condensing -20°C to 45°C (-4°F to 113°F) 5% to 95%, non-condensing Analogue: B/G, D/K, L, I (Depending on your country selection) Digital: DVB-T/DVB-C Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60 Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3, MP@L4.0, HP@L4.0 BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC Video: 1080 24p, 1080p, 1080i, 720p, 576p, 480p Audio: 2Ch Linear PCM 32/44.1/48kHz, 16/20/24bits.

(Output) Dimensions (WxDxH) Body Weight

921.2 X 29.9 X 536.1 (mm)

1056.3 X 29.9 X 612.3 (mm)

✎✎Design and specifications are subject to change without prior notice.

✎✎For information about power supply, and more about power consumption, refer to the label attached to the product.

[LFD-LCM]BN68-03673B.indb 17

2011-05-31 �� 5:58:00

P.MODE E-MANUAL C SRS D DUAL I-II AD/SUBT.

✎✎DIGITAL AUDIO OUT (OPTICAL)

VESA DMT / DTV CEA Résolution

720 x 400 640 x 480 832 x 624 1152 x 870 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1152 x 864 1280 x 1024 1280 x 1024 1280 x 800 1280 x 800 1280 x 960 1360 x 768 1440 x 900 1440 x 900 1680 x 1050

-/-/-/-/-/-/+/+ +/+ +/+ -/-/+/+ +/+ +/+ +/+ -/+ -/+ +/+ +/+ -/+ -/+ -/+

P.MODE E-MANUAL C SRS D DUAL I-II AD/SUBT.

✎✎DIGITAL AUDIO OUT (OPTICAL)

720 x 400 640 x 480 832 x 624 1152 x 870 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1152 x 864 1280 x 1024 1280 x 1024 1280 x 800 1280 x 800 1280 x 960 1360 x 768 1440 x 900 1440 x 900 1680 x 1050

Polaridad de sincronización (H/V)

+/-/+ -/-/-/-/-/-/+/+ +/+ +/+ -/-/+/+ +/+ +/+ +/+ -/+ -/+ +/+ +/+ -/+ -/+ -/+ +/+

P.MODE E-MANUAL B C SRS D DUAL I-II AD/SUBT.

✎✎DIGITAL AUDIO OUT (OPTICAL)

VESA DMT / DTV CEA Resolução

720 x 400 640 x 480 832 x 624 1152 x 870 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1152 x 864 1280 x 1024 1280 x 1024 1280 x 800 1280 x 800 1280 x 960 1360 x 768 1440 x 900 1440 x 900 1680 x 1050

-/-/-/-/-/-/+/+ +/+ +/+ -/-/+/+ +/+ +/+ +/+ -/+ -/+ +/+ +/+ -/+ -/+ -/+

P.MODE E-MANUAL C SRS D DUAL I-II AD/SUBT.

✎✎DIGITAL AUDIO OUT (OPTICAL)

VESA DMT / DTV CEA Auflösung

Horizontalfrequenz (kHz)

Vertikalfrequenz (Hz)

720 x 400 640 x 480 832 x 624 1152 x 870 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1152 x 864 1280 x 1024 1280 x 1024 1280 x 800 1280 x 800 1280 x 960 1360 x 768 1440 x 900 1440 x 900 1680 x 1050

Synchronisationspolarität

(H/V) +/-/+ -/-/-/-/-/-/+/+ +/+ +/+ -/-/+/+ +/+ +/+ +/+ -/+ -/+ +/+ +/+ -/+ -/+ -/+

✎✎HINWEIS P.MODE E-MANUAL C SRS D DUAL I-II AD/SUBT.

✎✎DIGITAL AUDIO OUT (OPTICAL)

720 x 400 640 x 480 832 x 624 1152 x 870 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1152 x 864 1280 x 1024 1280 x 1024 1280 x 800 1280 x 800 1280 x 960 1360 x 768 1440 x 900 1440 x 900 1680 x 1050

P.MODE E-MANUAL C SRS D DUAL I-II AD/SUBT.

✎✎DIGITAL AUDIO OUT (OPTICAL)

720 x 400 640 x 480 832 x 624 1152 x 870 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1152 x 864 1280 x 1024 1280 x 1024 1280 x 800 1280 x 800 1280 x 960 1360 x 768 1440 x 900 1440 x 900 1680 x 1050

416 Maetan-3 Dong, Yeongtong-Gu, Suwon-City Gyeonggi-Do, Korea, 443-742

Tel. : +82-2-2255-0114

Fax: +82-2-2255-0117

LVD EMC KTL(Korea Testing Laboratory)

KTL(Korea Testing Laboratory)

DIGITAL EMC CO., LTD. NEMKO Korea Co.,Ltd SAMSUNG ELECTRONICS CO., LTD. CTK Co., Ltd.

222-13, Guro-3dong, Guro-gu, Seoul, 152-718, Korea Tel: +82-2-860-1114

✎✎DIGITAL AUDIO OUT (OPTICAL)

VESA DMT / DTV CEA Rozdzielczość

720 x 400 640 x 480 832 x 624 1152 x 870 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1152 x 864 1280 x 1024 1280 x 1024 1280 x 800 1280 x 800 1280 x 960 1360 x 768 1440 x 900 1440 x 900 1680 x 1050

P.MODE E-MANUAL C SRS D DUAL I-II AD/SUBT.

✎✎DIGITAL AUDIO OUT (OPTICAL)

VESA DMT/DTV CEA Resolution

640 x 350 720 x 400 640 x 480 832 x 624 1152 x 870 640 x 480 640 x 480 640 x 480 800 x 600 800 x 600 800 x 600 1024 x 768 1024 x 768 1024 x 768 1152 x 864 1280 x 1024 1280 x 1024 1280 x 800 1280 x 800 1280 x 960 1360 x 768 1440 x 900 1440 x 900 1680 x 1050

Pixlar, klockhastighet (MHz) Synkpolaritet (H/V)

25.175 +/28.322 -/+ 30.240 -/57.284 -/100.000 -/25.175 -/31.500 -/31.500 -/40.000 +/+ 50.000 +/+ 49.500 +/+ 65.000 -/75.000 -/78.750 +/+ 108.000 +/+ 108.000 +/+ 135.000 +/+ 83.500 -/+ 106.500 -/+ 108.000 +/+ 85.500 +/+ 106.500 -/+ 136.750 -/+ 146.250 -/+ 148.500

Mata in “CI eller CI+ CARD”.

E-MANUAL VESA-spec. (A * B)

LED-TV Standardskruv Kvantitet
