USER MANUAL DS27425 SANYO

"Read this manual before assembling (or using) this product."

Important Safety Instructions 2

Welcome to the World of Sanyo . . . 3

Features 3

Specifications 3

Basic Set-up and Connections 4

Front and Back Panels 5

Using the Component Video

and Audio Input Jacks 6

Using Audio Output Jacks 7

Using the Front A/V Input Jacks 7

Using the Rear A/V Input Jacks 8

Mexico Americana, S. DE R.L. DE C.V.

AV. Nextengo N° 78, Col. Santa Cruz

Acayucan, Del. Azcapotzalco, Mexico

D.F.; C.P. 02770, R.F.C. CMA 9109119LO

Using the Remote Control 9\~10

TV Adjustment and Setup

How to Operate the

On-Screen Menu 11

Audio Mode 11

Adjusting Picture/Sound 11~12

Channel Search 12

Adding or Deleting a Channel 12

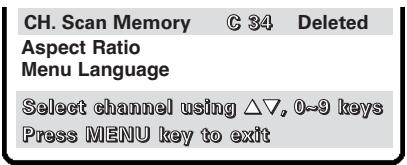

Aspect Ratio 12

Closed-Captioning 13

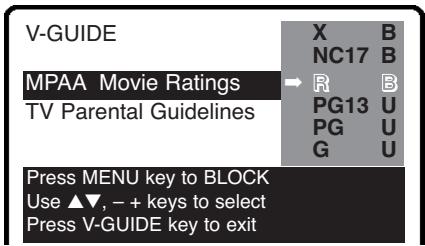

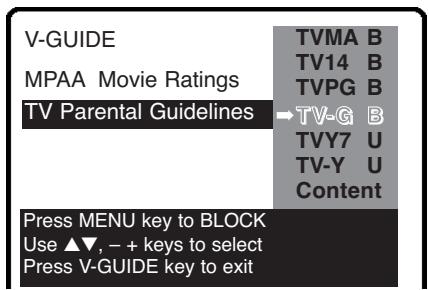

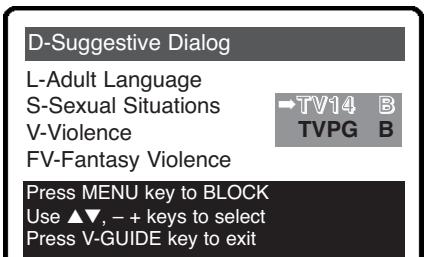

V-Guide Operation

(Parental Control) 14 ~ 15

Care and Cleaning 15

Helpful Hints (problems/solutions) .. 16

Warranty (Mexico) 17

Warranty (U.S.A. and Canada) 18

Child Safety . Back Cover

ESPANOL 19~37

Contenido 19

Printed in U.S.A. SMC, February 2006

Impreso en U.S.A. SMC, Febbrero 2006

Part No. / No. de Parte/

No de piece: 1JC6P1P0201C-

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.

THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THIS UNIT.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT SAFETY INSTRUCTIONS

CAUTION: PLEASE ADHERE TO ALL WARNINGS ON THE PRODUCT AND IN THE OPERATING INSTRUCTIONS. BEFORE OPERATING THE PRODUCT, PLEASE READ ALL OF THE SAFETY AND OPERATING INSTRUCTIONS. RETAIN THIS

LITERATURE FOR REFERENCE. Follow all instructions...

Positioning the appliance

1. Do not place your appliance on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the appliance, may result

if it should fall. Your salesperson can recommend approved carts and stands or shelf and wall mounting instructions. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

1. Slots and openings in the cabinet and in the back or bottom are provided for ventilation. To ensure reliable operation of the appliance and to protect it from overheating, these openings must not be blocked or covered. The openings should never be covered with a cloth or other material, and the bottom openings should not be blocked by placing the unit on a bed, sofa, rug, or other similar surface. This appliance should never be placed near or over a radiator or heat register. This appliance should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.
2. Do not expose the appliance to rain or use near water . . . for example, near a bathtub, swimming pool, kitchen sink, in a wet basement, etc.

Hooking Up Outdoor Antenna

LIGHTNING PROTECTION FOR YOUR ANTENNA AND SET AS PER NATIONAL ELECTRICAL CODE INSTRUCTIONS.

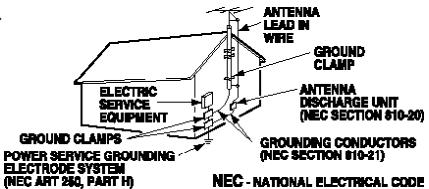

EXAMPLE OF ANTENNA GROUNDING ACCORDING TO NATIONAL

ELECTRICAL

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical."

1. If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

Plug in the power cord

1. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. This product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of this polarized plug. Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
2. Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

Cleaning

1. Before cleaning, unplug the unit from the wall outlet. Do not apply liquid cleaners or aerosol cleaners directly to the unit. Use a dry cloth for cleaning.

Service & Repair

1. Unplug the appliance from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. If the power cord or plug is damaged or frayed.
B. If liquid has been spilled into the appliance.
C. If the appliance has been exposed to rain or water.
D. If the appliance has been dropped or the cabinet has been damaged.
E. If the appliance exhibits a distinct change in performance.
F. If the appliance does not operate normally by following the operating instructions, adjust only those controls that are covered in the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the appliance to normal operation.

1. Upon completion of any service or repair, request the service technician's assurance that only Factory Authorized Replacement Parts that have the same characteristics as the original parts were used, and that routine safety checks have been performed to determine that the appliance is in safe operating condition. Unauthorized substitutions may result in fire, electrical shock, or other hazards.
2. Never add accessories that have not been specifically designed for use with this appliance as they may cause hazards.
3. For added protection during a lightning storm, or when the set is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the set due to lightning or power line surges.
4. Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

Welcome to the World of Sanyo

Thank you for purchasing a Sanyo Color Television. You made an excellent choice for Performance, Styling, Reliability, and Value. The TV is designed with easy to use on-screen set-up instructions and operating features. Please retain this owner's manual for future reference. Need assistance? Visit our Web site at www.sanyoctv.com or call toll free 1-800-877-5032. We can Help!

FEATURES

Trilingual On-Screen Menu
Automatic Channel Search
Auto Shut Off
Closed-Captioning/Quikcap
Digital picture controls with on-screen display
MTS stereo/SAP Decoder
Auto Flesh Tone
Factory preset adjustments for picture/sound
Front Surround Sound
Tone
V-Guide (Parental Control)

181 Channel Tuning System

Aspect Ratio settings
Game Mode
480i Component AV Input Jacks
Audio/Video In Jacks 2 sets—Front (AV1), Rear (AV2)
Audio Out Jacks (Fixed)
S-Video In Jack
Sleep Timer (3 hours)
TV Reset

VHF Channels 2-13

UHF Channels 14-69

Cable TV (CATV) 1, 14-125

Automatic Fine Tuning

VHF and Cable Channels

Remote Control

0~9 Numbered Channel Selection Channel Scanning

Volume Mute

Power Recall

Display Sleep

Caption Reset

Menu V-Guide

Input

SPECIFICATIONS

PICTURE TUBE SIZE, (Measured Diagonally)

PICTURE RESOLUTION 260 Lines

Video Input 500 Lines

ANTENNA INPUT UHF/VHF/CATV 75Ω

POWER REQUIREMENT 120VAC 60Hz

DEPTH DIM. (Thickness) DS27425 19.3 in. (489mm)

DS32225 21.2 in. (538mm)

AMPLIFIER Built-in with 1W/ch

AUDIO/VIDEO INPUT JACKS Video Input

Audio Input (2 sets, R/L - Front/Rear)

S-Video Input

480i COMPONENTVIDEO

INPUT JACKS . Component Video Inputs (Y, Pb, Pr - R/L)

AUDIO OUTPUT JACKS Fixed, Audio Out (R/L)

(RCA Connectors)

Specifications are subject to change without notice.

CAUTION: FCC Regulations state that improper modifications or unauthorized changes to this unit may void the user's authority to operate the unit.

BASIC SET-UP AND CONNECTIONS

INITIAL SET-UP

1. Install batteries in remote control, see page 9.
2. Connect signal, see below.

3. Plug in AC power cord.

4. Press POWER key to turn on TV.

5. Follow on-screen instructions, see pages 11 12

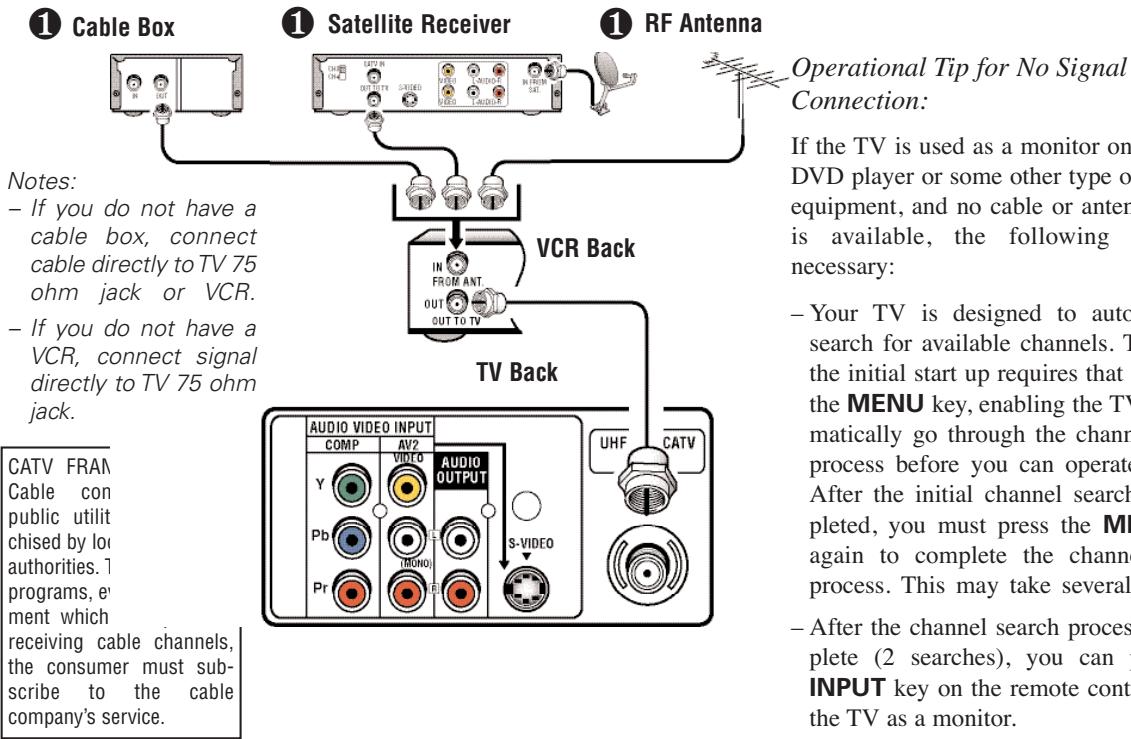

CONNECTING CABLE SERVICE, OR RF ANTENNA, OR SATELLITE DISH RECEIVER TO TV

1 Cable Box

Quick Tips

The TV will automatically select the correct Antenna mode for the type of RF signal you connect.
TV will switch off automatically after 15 minutes if there is no signal reception (cable out or station not broadcasting).

Exception—When the Video mode is selected, the TV will not automatically switch off when signal reception has stopped for 15 minutes.
If you move the TV to a new location, press the RESET key twice after connecting the signal and turning on the TV.

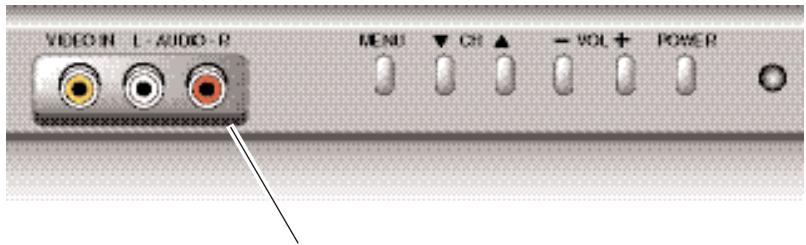

FRONT

Model DS27425

Audio/Video In Jacks (AV1)

Connect video equipment here (see page 7).

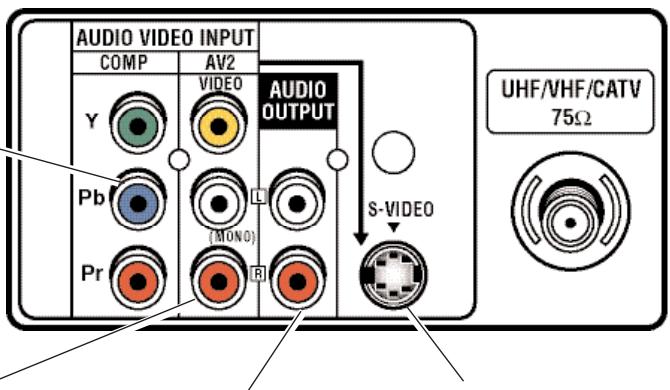

BACK

480i Component Video In Jacks (Component 2, Y, Pb, Pr)

Connect video equipment here (see page 6).

Note: Audio/Video Input (AV2) and Component inputs share the same audio (R/L) input jacks.

Audio/Video In Jacks (AV2)

Connect video equipment here (see pages 6 and 8).

Note: S-Video connection will override an AV2 video connection.

Audio Out Jacks

Connect external audio equipment here (see page 7).

S-Video In Terminal

To enhance video detail use the AV2 S-Video jack instead of the AV2 Video jack, if available on your external equipment. (An S-Video connection will override connection to the AV2 video input jack. See page 8.)

POSITIONING THE TV

Do not position the TV in a confined area. Allow space for normal air circulation around electronic parts.

USING THE COMPONENT VIDEO AND AUDIO INPUT JACKS

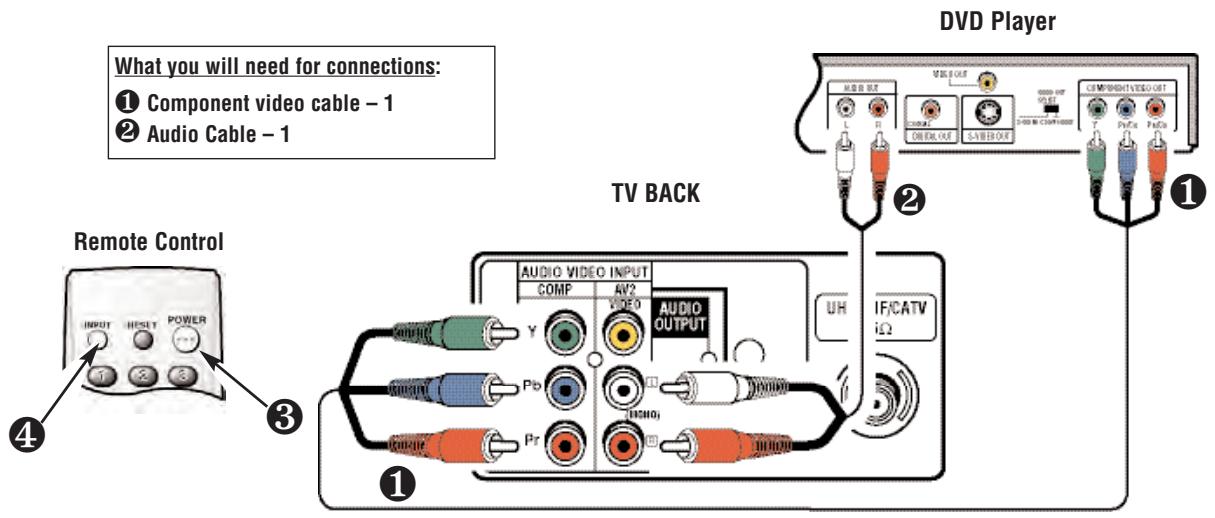

CONNECTING A DVD PLAYER

Switch off TV and external equipment before connecting cables. (Cables are not supplied.)

1 Connect a DVD Player or other equipment's interlaced Component Video Out to the TV Component Video In (Y-Pb-Pr) Jacks.
Connect the DVD Player's Audio Out to the TV A/V2 Audio In (L/R) Jacks.
3 Press POWER to turn on the TV. Turn on external equipment also.
4 To access Audio/Video inputs, press the INPUT key to select COMPONENT2.

Notes: DVD Player component output must be set to Interlaced (480i).

Audio/Video Input (AV2) and Component inputs share the same audio (R/L) input jacks.

Connect equipment to the Component2 video input or the AV2 video input, but not both types at the same time.

Quick Tips

A solid Blue screen with COMPONENT2 displayed means that the Video mode is selected, but no signal is being detected at the Component jacks. Check connection, and turn on external equipment.

Press INPUT key after connecting cables to access the A/V inputs. There is NO need to tune to a blank channel.

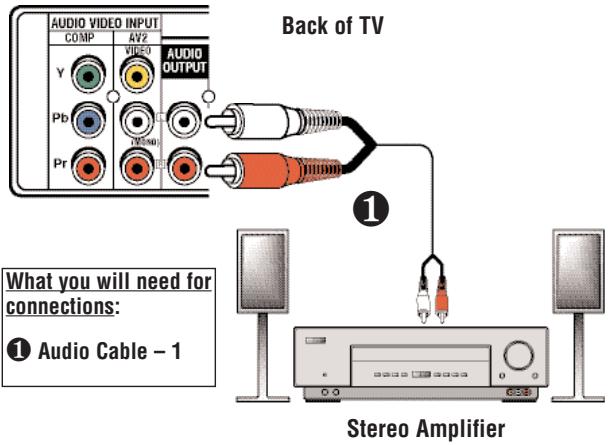

CONNECTING AUDIO OUT JACKS TO A STEREO AMPLIFIER

Switch off TV and external equipment before connecting cables. (Cables are not supplied.)

1 Connect the TV Audio Out (R/L) to the Stereo Amplifier In (R/L).
Press POWER to turn on the TV. Turn on external equipment also.

Note: DO NOT connect external speakers directly to the TV.

Quick Tips

Position your TV at least 2 feet from stereo speakers. The magnets in the speakers may affect the picture quality.

USING THE FRONTVIDEO AND AUDIO INPUT JACKS

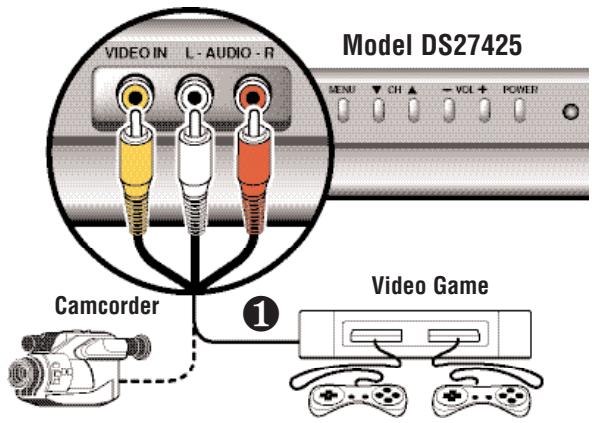

CONNECTING A VIDEO GAME OR OTHER EQUIPMENT

Switch off TV and external equipment before connecting cables. (Cables are not supplied.)

1 Connect game Audio Output (R/L) to the TV Audio Input (R/L). Then connect game Video Output to the TV Video Input.
Press POWER to turn on the TV. Turn on external equipment also.
To access Audio/Video inputs, press the INPUT key to select GAME or select using the menu.

Quick Tips

A solid Blue screen with the word VIDE01 displayed, means that the Video mode is selected, but no signal is being detected at the Video jacks. Check connections, turn on external equipment.
Press INPUT key after connecting cables to access the A/V inputs.There is NO need to tune to a blank channel.

Remote Control

What you will need for connections:
Audio/Video Cable - 1

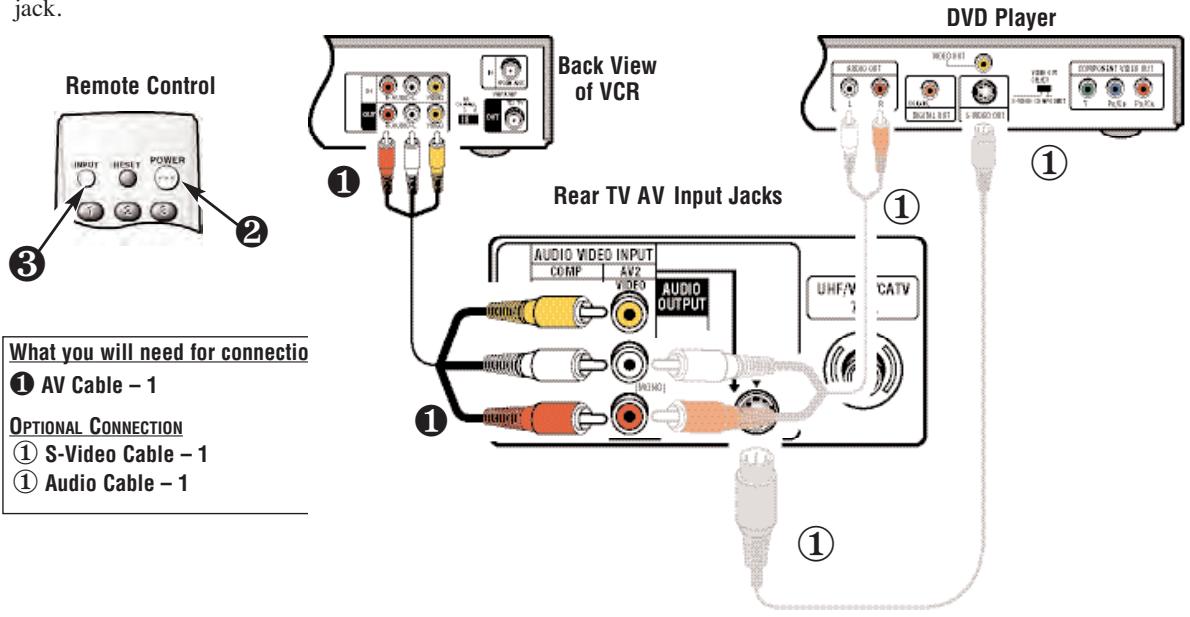

CONNECTING A VCR OR OTHER EQUIPMENT

Switch off TV and external equipment before connecting cables. (Cables are not supplied.)

Connect VCR or other equipment's Audio Video Out to the TV Audio Video Input.

For Mono VCR (Single Audio Jack) connect VCR Audio Out to TV Audio (L) Input.

① OR

Connect DVD Player or other equipment's S-Video Out and Audio Out to the TV S-Video and Audio In Jacks.

Using the S-Video jack overrides the Video (AV1) jack.

Press POWER to turn on the TV. Turn on external equipment also.
To access Audio/Video inputs, press the INPUT key to select VIDEO2.

Note: Audio/Video Input (AV2) and Component inputs share the same audio (R/L) input jacks.

Quick Tips

Make sure all cable connectors are fully seated on jacks.
Always match A/V cables according to the colors; red for right audio, white for left audio and yellow for video.
Press INPUT key after connecting cables to access the AV inputs. There is NO need to tune to a blank channel.

A solid Blue screen with the word VIDE02 displayed, means that the Video mode is selected, but no signal is being detected at the Video jacks. Check connections, turn on external equipment.

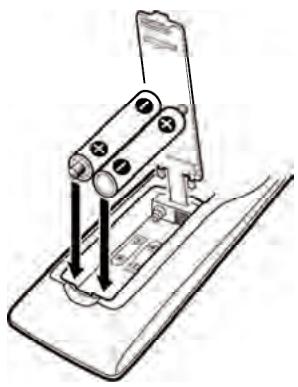

INSTALL BATTERIES AS SHOWN (2 AAA, not included)

Notes:

• Do not mix old batteries with new ones or mix different types of batteries together.
• Remove the batteries if the remote control will not be used for a month or more. Weak batteries may leak and cause damage. (Normal battery life is roughly six months.)

IMPORTANT NOTE: Spent or discharged batteries must be recycled or disposed of properly in compliance with all applicable laws. For detailed information, contact your local County Solid Waste Authority.

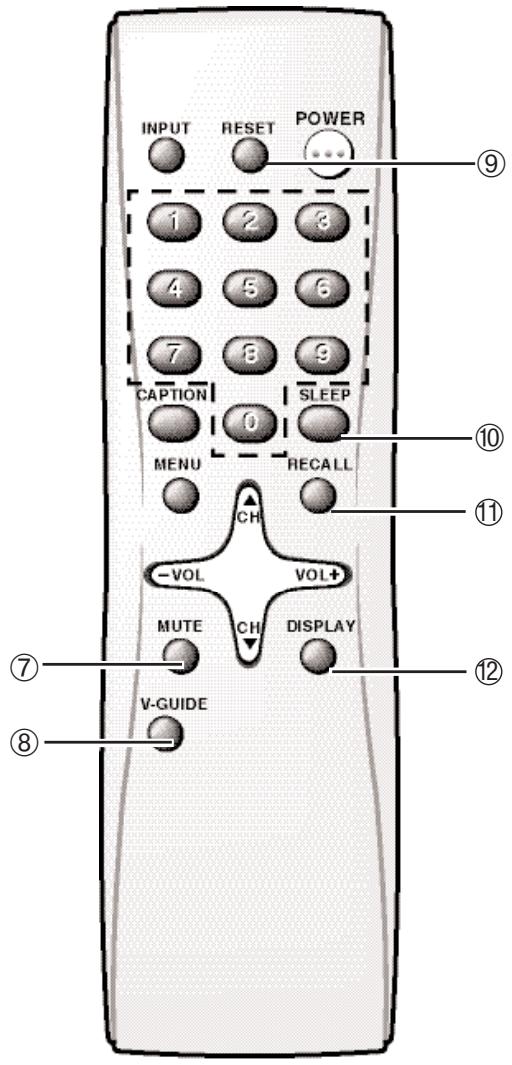

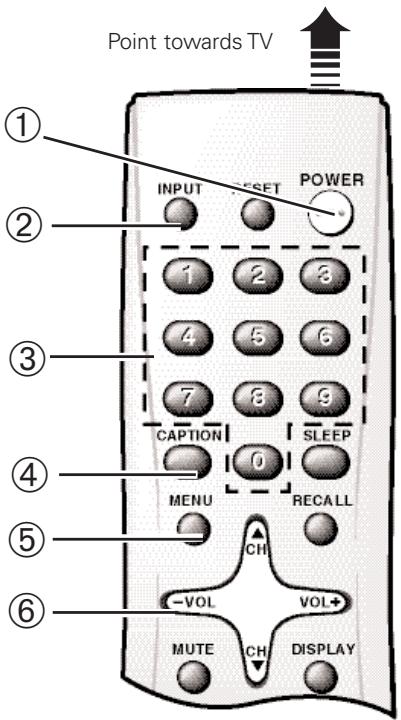

REMOTE CONTROL KEYS

① Power Key—Press to turn TV ON or OFF.
② Input Key—Press to select the program source to watch: TV signal or signal from DVD Player or other equipment you have connected to the A/V jacks.
③ Number Keys—Press two keys to select a channel. Example: Press 0 then 6 to select channel 6. For cable channels 100 through 125, press and hold the 1 key until C1-- appears. Then press the other two numbers.
④ Caption Key-(See page 13.)
⑤ Menu Key—Use this key with the and + keys to navigate and adjust features of the on-screen menu system. (See pages 11 ~ 12.)
⑥ Channel Scanning (CH ▲▼) and Volume (VOL - +) Keys—Press to scan through the channels in memory and to adjust the volume.

Quick Tips

■ Be sure batteries are installed correctly.
Point the remote control toward the TV. Objects between the remote control may cause misoperation of the remote control function.
Cannot select channel with number keys. Press "0" in front of numbers 1~9. Example: Channel 05.
Adjusting the volume level: Flashing Right arrow indicates volume is increasing and flashing Left arrow indicates volume is decreasing.

(Continued on page 10.)

⑦ Mute Key—Press once to minimize the volume. Press again to restore.

Note: When using the audio out jacks this key will not mute the sound.

⑧ V-Guide Key—See pages 14 15
⑨ Reset Key—Press this key twice to restore factory settings. The TV will automatically start Channel Search and clear all customized settings. These features will automatically reset:

• Picture Adjustments: Color, Tint, Contrast, Bright, Sharpness, Tone, and Surround
  Audio to Stereo
• Aspect Ratio to 4:3 (normal)
• Channel Memory
• Caption to OFF
  V-Guide to OFF
  Language to English
• Sleep Timer
  Video to TV

If desired, personal settings can be made again using the menu options.

⑩ Sleep Key—Press this key then press the “0” key to set the Sleep Timer. The desired time can be set from 30 minutes up to 3 hours in 30-minute increments. Sleep Timer will switch off the TV automatically.

Note: The Sleep Timer cancels when the TV is turned off or if a power failure occurs.

① Recall Key—Press to switch between the last two channels you selected.
⑫ Display Key—Press once to display the channel number. Press twice to display the channel number continuously. Press again to remove the channel number.

The on-screen menu provides the viewer with easy access to adjustments and settings. Just use the keys on the remote control and follow the on-screen instructions.

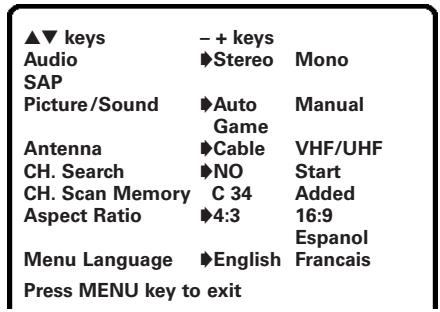

HOW TO OPERATE THE ON-SCREEN MENU

1. Press MENU key.
2. Use the keys to highlight the desired feature.
3. Use the - + keys to choose desired option. (♦ indicates selected item.)
4. Press the MENU key to exit.

Items with submenus require additional steps.

Note: The menu will display on the screen for approximately 20 seconds. Press Menu again to redisplay.

SETTING AUDIO MODE

Select desired sound setting, Stereo, Mono, or SAP (secondary audio program).

Note: Stereo and SAP must be part of the broadcast signal.

1. Choose Stereo, Mono, or SAP from the Audio options.

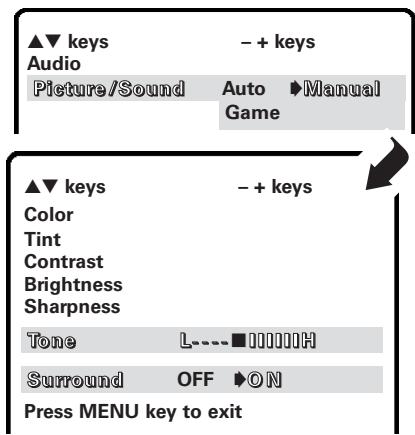

ADJUSTING PICTURE/SOUND

For automatic picture/sound adjustment

Choose Auto from the Picture/Sound options.

Adjust the picture/sound manually

1. Choose Manual from the Picture/Sound options.
2. Press the MENU key to open the picture/sound settings submenu.
3. Use the keys to highlight the picture or sound setting you want to change.
4. Use the - + keys to adjust settings.

(Continued on page 12.)

Note: The TV will automatically reset to stereo if unplugged or a power failure occurs.

Quick Tips

The menu will display on the screen for approximately 20 seconds. Press MENU again to redisplay.
Under weak stereo signal conditions, you may receive better quality sound in the "Mono" position.

• Surround sound will expand the sound effect while receiving MTS stereo signals.

For automatic game settings

1. Choose Game from the Picture/Sound options. The screen and sound will automatically change to factory preset settings.
2. Press the MENU key to exit.

Note: Select the front A/V input jacks by pressing the INPUT key on the remote control.

RESETTING THE ANTENNA/CABLE MODE AND CHANNEL SEARCH

Resetting the Antenna/Cable Mode or CH. (Channel) Search is required only if additional channels become available, such as moving to another city or having a cable service installed.

1. Choose Start from the Ch. Search menu options.

ADDING OR DELETING CHANNELS

1. Press the MENU key.
2. Use the keys to highlight CH. Scan Memory.
3. Press the ^+ key to highlight channel number entry area.
4. Enter the channel number you want to add or delete (example): C34. For cable channels above 99, press and hold the 1 key until C1-- appears. Then enter the other two numbers.
5. Press the ^+ key to change the present setting. Example: Added will change to Deleted. This takes about three

ASPECT RATIO

Use this feature when equipment is connected to the component input jacks. The 4:3 setting is for normal viewing. The 16:9 setting changes the picture image to widenscreen viewing with minimal portion of top and bottom compressed.

1. Press the MENU key.

seconds. During that time, the word "Added" or "Deleted" will become yellow.

1. Use the 0 9 or keys to choose other channels to delete or add, or press the MENU key to exit.

1. Use the keys to highlight Aspect Ratio.
2. Press the - + keys to select 4:3 or 16:9.

Quick Tips

When setting the Antenna mode, choose Cable if your TV is connected to a cable system, otherwise choose VHF/UHF.
Channels deleted from scan memory can be selected with the number keys.

• Restoring deleted channels, use the on-screen menu to manually add channels or start CH. (Channel) Search from the menu. It may take a few minutes to search thru the available channels or press the RESET key twice.

Captioning is text information transmitted along with the picture and sound so it can be displayed on the TV screen. Because different types of captions can be transmitted with the TV signal, separate captioning modes are provided. The captioning modes recognized by this model are: Caption1, Caption2, Text1, and Text2. Local broadcasters decide which caption signals to transmit.

CAPTION1: The main mode used for program captioning (words match the program you are watching). These captions are generally one or two lines.

CAPTION2: An alternative mode for program captioning. Caption2 may be used by the broadcaster to provide captions in another language, such as, Spanish or French.

TEXT1: This mode is used to display large amounts of text. This text will appear within a black box that may be nearly as large as the TV screen. Text displayed in this manner does not generally relate to the program. Captions may be used by broadcasters to provide weather reports, community bulletins, etc.

Caption1/2

Text1/2

TEXT2: Alternative mode used to display large amounts of text (same as Text1).

QUIKCAP: Allows captions to toggle on and off with the Mute function. Press the MUTE key on the remote control to block the TV sound; the captions display automatically. Press the MUTE key again to restore the sound, the captions will disappear. Quikcap displays program captions in the Caption1 mode.

SETTING CAPTIONS

1. Press the CAPTION key on the remote control.
2. Press the 0 key on the remote control to select options: OFF, CAPTION1, CAPTION2, TEXT1, TEXT2, or QUIKCAP.

Quick Tips

Channels deleted from scan memory can be selected with the number keys.
Restoring deleted channels, use the on-screen menu to manually add channels or start CH. (Channel) Search from the menu. It may take a few minutes to search thru the available channels or press the RESET key twice.
If Caption Text mode is selected and no captioned text is broadcasted, a black box may appear and remain on the TV screen as shown.

To remove this black box, set captioning to any mode other than Text1 or Text2 or press the RESET key to cancel captioning and other customized settings.

• Channel number will not display continuously when captioning is on.

V-Guide (PARENTAL CONTROL)

NOTE: THIS FEATURE IS DESIGNED TO COMPLY WITH THE UNITED STATES OF AMERICA'S FCC V-CHIP REGULATIONS. THEREFORE, IT MAY NOT FUNCTION WITH BROADCASTS THAT ORIGINATE IN OTHER COUNTRIES.

ABOUT MPAA AND TV PARENTAL GUIDELINES

MPAA and TV Parental Guidelines are rating systems that provide advance cautionary information to parents about the content of movie and television programming.

The V-Guide system contain both age-based and content-based settings. This gives parents discretionary ways of choosing appropriate material for their children to view.

Content ratings are represented by the initials D (Suggestive Dialog), L (Adult Language), S (Sexual Situations), V (Violence), and FV (Fantasy Violence). When program

ming contains any or all of these conditions, these letters become part of the icon that is displayed on the TV screen.

A rating icon will generally appear in the upper left hand corner of the TV screen for about fifteen seconds at the beginning of a program and should be repeated at the beginning of the second hour of a long program. It may also appear when returning from commercials. There may be other instances when these icons will be displayed as well. Parents are encouraged to become familiar with these icons and their meanings.

V-Guide OPERATION

Use this feature to supervise television viewing for young children. This television can be set to automatically block programs with content you deem as inappropriate for your children to view, including: suggestive dialog, adult language, sexual situations, violence, and fantasy violence.

The ability of the television to block the reception of specific programming content depends upon several conditions: 1) The program must be rated, 2) Networks must broadcast the rating code data, 3) Cable companies must transmit the rating code signal, and 4) The TV must be properly setup to decode the signal.

Quick Tips

Use the CHANNEL keys and the VOLUME- ^+ keys to navigate through the menus.
V-Guide feature is accessible only from the remote control.
The V-Guide display remains on screen for approximately 20 seconds. If it disappears, press the V-Guide key.
The TV will automatically block (B) ratings above or unblock (U) ratings below selection. For example, if you block rating R, NC17 and X will be blocked as well.

• Blocking TVY7 does not block higher ratings.
  You can block a content rating such as TVPG-V and still be able to watch TVPG programs with ratings of S-L-D provided TVPG is unblocked (U).
  To temporarily unblock or view blocked (B) programs, set V-GUIDE to OFF, or press the RESET key twice to clear all blocked (B) ratings and other customized settings.

SETTING MPAA MOVIE RATING

1. Press the V-GUIDE key on the remote control to display menu.
2. Press the ^+ key to switch V-Guide ON.
3. Press the + key again. Then use the keys to highlight rating.
4. Press the MENU key to Block (B) or Unblock (U) selected rating.( Arrow indicates selection.)
5. Press the - key to return to the V-Guide Options menu.

SETTINGTV PARENTAL GUIDELINES

1. Use the keys to highlight TV Parental Guidelines.
2. Press the ^+ key. Then use the keys to highlight rating.
3. Press the MENU key to Block (B) or Unblock (U) selected rating. ( Arrow indicates selection.)

Note: Networks and local stations may or may not include the content ratings portion of the TV Parental Guidelines.

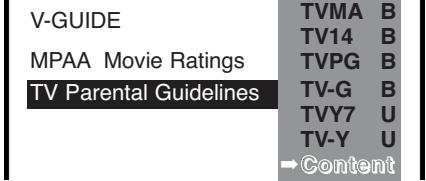

SETTING CONTENT-BASED GUIDELINES

1. Follow steps 6 and 7. Use the keys to highlight Content.

1. Press the

MENU key to display the Content Option menu.

1. Use the keys to highlight a category (D-Suggestive Dialog, L-Adult Language, S-Sexual Situations, V-Violence, FV-Fantasy Violence).
2. Press the ^+ key. Then use the keys to highlight a rating.
3. Press the MENU key to Block (B) or Unblock (U) selected rating. ( Arrow indicates selection.)
4. Press the V-Guide key to exit; or press the -key to return to the Content Options menu.
5. Repeat steps 11 through 13 to Block (B) or Unblock (U) additional content ratings, if desired.

TURNING OFF THE V-Guide

1. Press the V-Guide key.
2. Use the - + keys to select OFF.

CARE AND CLEANING

The surface of the cabinet can be damaged if not properly maintained. Many common household aerosol sprays, cleaning agents, solvents, and polishes will cause permanent damage to the fine surface.

1. Unplug the power cord before cleaning the television.
2. Clean the screen and cabinet with a soft dry cloth.

Note: Never spray liquids on the screen because it can run down and drip onto the chassis.

This may cause component failure not covered under Warranty.

HELPFUL HINTS (Problems/Solutions)

Because of the Quality we build into our product, very few problems are actual TV defects. Most problems only involve simple hookup or setup changes that can be solved by the customer. Please check the chart below and try the solutions listed for your problem. If the problem still persists, before returning your TV, please visit our website at www.sanyoctv.com or call us toll free at 1.800.877.5032. We can Help!

Problem:	Check these Conditions:	Try these Solutions:	Page No.
TV turns off automatically.	·Check signal (Cable/Ant.) connection. ·Power surge protection feature.	·Press POWER key. ·The sleep timer may have been set. ·Unplug TV momentarily.	4
No picture, poor picture, or wavy lines in picture.	·Check antenna connections. ·May be station trouble. ·Brightness or Contrast misadjusted. ·Possible interference from household appliance.	·Adjust antenna. ·Try a different channel. ·Select AUTO from Picture/Sound on-screen menu or press RESET key. ·Turn off Mixer, Drill, Blender, etc.	4, 11 ~ 12
No sound, poor sound. No sound on some channels.	·May be station trouble. ·MUTE function may be on. ·Check Audio/Video connections.	·Try a different channel. ·Adjust Volume.	6 ~ 9
Black box on screen.	·Caption Text Mode without display information.	·Press RESET key twice. ·Switch OFF Captions (see page 12).	13
No Cable channels above number 13.	·Cable Channel Indicator C should appear next to channel number.	·Select CABLE from Antenna on-screen menu; then start CH. (channel) Search using the menu.	12
No Captioning.	·Check if station is broadcasting a Closed-Caption signal.	·Press CAPTION key to select Captioning.	13
Poor color or no color.	·Check if program is in color. ·Check antenna connections. ·Color or Tint misadjusted. ·May be station trouble.	·Try a different channel. ·Adjust antenna. ·Press RESET key to restart channel search.	11 ~ 12
Blue Screen with Video1, Video2, or Component2 displayed.	·Check Audio/Video connections. ·Check external equipment. ·Check external equipment setting. ·check DVD setting.	·Press INPUT key. ·Switch on external equipment. ·Set external equipment output connections to match input connections.	6 ~ 8
No TV Stereo or SAP sound.	·Check if station is broadcasting a true MTS stereo signal or a SAP signal.	·Select STEREO or SAP from Audio on-screen menu.	11
Cannot select or scan some channels.	·Channel may be removed from memory. ·Check antenna connections. ·V-Guide is set to block programming.	·Select CH. SCAN MEMORY and manually add channels or start CH. (channel) search. ·Set V-Guide to OFF or press RESET key to clear all setting.	12 14 ~ 15
Remote Control will not work TV.	·Check batteries. ·Check if TV is plugged in.	·Replace batteries. ·Aim remote control at front of TV.	9 ~ 10
Menu System words seem misspelled.	·May be a different language is selected.	·Reselect menu language choice using the on-screen menu.	11
Cabinet makes popping sound.	·This is a normal condition during warm-up and cool down of the plastic cabinet parts.

MEXICO GUARANTEE

Mexico Americana, S. DE R.L. DE C.V.

AV. Nextengo N° 78, Col. Santa Cruz

Acayucan, Del. Azcapotzalco, Mexico

D.F.; C.P. 02770, R.F.C. CMA 9109119LO

DESCRIPTION: Television

BRAND: SANYO

MODELS: DS27425

DS32225

ELECTRICAL SPECS: 120 V ~ 60 Hz 2,5 A MAXIMUM

REMOTE CONTROL: 3 V cc, USES 2 AAA 1,5 V BATTERIES

GUARANTEE

THE APPARATUS THAT YOU HAVE ACQUIRED HAS A ONE YEAR GUARANTEE FOR MANUFACTURING DEFECTS AND A ONE YEAR SERVICE WARRANTY FROM THE DATE OF PURCHASE GRANTED BY:

COMERCIALIZadora MEXICO-AMERICANA, S. DE R.L. DE C.V.

UNDER THE FOLLOWING CONDITIONS:

1. TO MAKE THE GUARANTEE EFFECTIVE, SIMPLY SHOW THIS POLICY Filled OUT BY THE STORE OR SUPPLIER UNIT OR THIS SALES INVOICE, WITH THE APPARATUS IN ANY OF THE SERVICE CENTERS INDICATED ON THIS GUARANTEE.
2. IF THE FAULT IS ATTRIBUTED TO A MANUFACTURING DEFECT, THE APPARATUS WILL BE REPLACED OR YOUR MONEY REFUNDED. DURING THE 30 DAYS SUBSEQUENT TO THE PURCHASE THE GUARANTEE WILL BE VALID AT THE STORE WERE THE APPARATUS WAS PURCHASED, PRESENTING THE ABOVE DOCUMENTS.
3. REPAIR TIME WILL NEVER BE MORE THAN 30 DAYS. IF THIS TIME HAS ELAPSED, AND THE PRODUCT IS NOT REPAIRED, COMERCIALIZadora MEXICO AMERICANA, S. DE R.L. DE C.V. WILL PROCEED TO EFFECTUATE THE EXCHANGE FOR AN EQUIVALENT APPARATUS OR THE RETURN OF THE BUYING-SALE COST RESPECTIVELY.
4. THIS GUARANTEE WILL COVER ITS TOTALITY OF PIECES, COMPONENTS AND SERVICE REPAIR OF PRODUCT, AND THE RESPECTIVE COST OF TRANSPORTATION.

THIS GUARANTEE WILL BE NULL AND VOID IN THE FOLLOWING CIRCUMSTANCES:

• WHEN PRODUCT HAS BEEN USED IN A DIFFERENT CONDITION THAN ITS NORMAL USE.
• WHEN PRODUCT HASN'T BEEN OPERATING CORRECTLY ACCORDING TO THE INSTRUCTIONS IN THIS MANUAL.
• WHEN PRODUCT HAS BEEN CHANGED OR REPAIRED BY PERSONS NOT AUTHORIZATION FROM THE MANUFACTURER, IMPORTER, OR MERCHANT RESPONSIBLE RESPECTIVE.

CENTRO DE SERVICIO Y LUGAR DONDE OBTENER PARTES, COMPONENTES, CONSUMIBLES Y ACCESORIOS:

SUCURSAL VALLEJO

Poniente 126 No 288 B

Col. Nueva Vallejo

Mexico, D.F.

Tels. 5567-5378

5368-0105, 8589-8033

SUCURSAL MINERVA

Silos No 135, Col. Minerva

Deleg. Iztapalapa

México, D.F. 09810

Tels. 5646-4551

5646-4550

DESCRIPTION: TELEVISION

CLIENT'S NAME:

ADDRESS:

EXTERIOR NUMBER:

SUB DIVISION:

TELEPHONE:

BRAND: SANYO

MODEL:

STAMP, DATE AND SIGNATURE

OF

STORE

ONE-YEAR LIMITED WARRANTY

THIS LIMITED WARRANTY IS VALID ONLY ON SANYO TELEVISIONS PURCHASED AND USED IN THE UNITED STATES OF AMERICA, CANADA, AND PUERTO RICO, EXCLUDING THE UNITED STATES' OTHER TERRITORIES AND PROTECTORATES. THIS LIMITED WARRANTY APPLIES ONLY TO THE ORIGINAL PURCHASER, AND DOES NOT APPLY TO PRODUCTS USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES.

FOR ONE YEAR from the date of purchase, Sanyo Manufacturing Corporation will replace any defective TV.

To insure proper warranty exchange, keep the original sales receipt for evidence of purchase. Return the defective TV to the retailer along with the receipt and the included accessories, such as the remote control. The defective TV will be exchanged for the same model, or a replacement model of equal value, if necessary. Replacement model will be contingent on availability and at the sole discretion of Sanyo Manufacturing Corporation.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

OBLIGATIONS

For one year from the date of purchase, Sanyo Manufacturing Corporation warrants this product to be free from defects in material and workmanship under normal use and conditions. Should replacement be necessary under this warranty for any reason due to manufacturing defect or malfunction during the first year from date of original purchase, Sanyo Manufacturing Corporation will provide a new TV via exchange at the retailer.

For customer assistance, whether during or out of the warranty period, call toll free 1-800-877-5032.

Weekdays 7:30 AM - 7:00 PM Central Time

Saturday 7:30 AM - 4:00 PM Central Time

This warranty expresses specific contractual rights; retail purchasers may have additional statutory rights which vary from state to state.

(EFFECTIVE: August 1, 2002)

For your protection in the event of theft or loss of this product, please fill in the information requested below and KEEP IN A SAFE PLACE FOR YOUR OWN PERSONAL RECORDS.

Model No.

Date of Purchase

Serial No.

Purchase Price

(Located on back of unit)

Where Purchased

Sanyo Manufacturing Corp. 3333 Sanyo Road, Forrest City, AR 72335

This symbol on the nameplate means the product is Listed by Underwriters' Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

Fijo (R/L) (RCA Connectors)

Asegürese que lasbaterías estar instaladas correctamente.
Apunte el control remoto hacía de TV. Objetos entre el control remoto,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO,SEO, SEO
No puede selectionar un canal con las teclas numeradas.

Sanyo Manufacturing Corp.

3333 Sanyo Road, Forrest City, AR 72335

FRANÇAIS MANUEL D'INSTRUCTIONS

POIDS APPROX. (KG/LB)

Cable audio/video - 1

BRANCHEMENT D'UN MAGNETOSCOPE OU D'UN AUTRE EQUIPÉMENT

INSTALLATION DES PILES (2 AAA, non fournies)

Remarques :

GARANTIE LIMITÉE D'UN AN

LA PRESENTE GARANTIE LIMITEE N'EST ACCORDEE QU'AUX TELÉCOULEURS SANYO ACHETÉS ET UTILISÉS AU CANADA, AUX ÉTATS-UNIS ET À PORTO RICO, MAIS À L'EXCEPTION DES AUTRES TERRITOIRES ET PROTECTORATS DES ÉTATS-UNIS. CETTE GARANTIE LIMITEE NE S'APPLIQUE QU'A L'ACHETEUR INITIAL; ELLE NE COUVRE PAS LES ARTICLES UTILISÉS À DES FINS INDUSTRIELLES OU COMMERCIALES.

Sanyo Manufacturing Corp.

3333 Sanyo Road, Forrest City, AR 72335

CHILD SAFETY

Sanyo is committed to making home entertainment safe and enjoyable. Always use an appropriate table or stand when positioning your TV. Use appropriate brackets, braces, or straps to anchor your furniture in place. But never screw anything directly to the television.

Do not place televisions on dressers, shelves, desks, carts, etc. where curious or excited children could pull, push, or otherwise cause the unit to fall and cause personal injury.

Never place toys or other items on top of the TV that could pique children's curiosity causing them to climb about the furniture.

Always use stands that are designed to support the size and combined weight of your television and other electronic devices.
