Product Type	HD 1080p LCD TV with LED backlight
Brand	Sanyo
Model	LCD55L4
Screen Size	55 inches (139.7 cm)
Resolution	1920 x 1080 pixels (Full HD)
Refresh Rate	120 Hz (Motion Sync)
Power Supply	AC 120 V, 60 Hz
Power Consumption	195 W
Weight	34 kg
Video Inputs	HDMI (x3), Component (x2), Composite, S-Video, PC (VGA), USB
Audio Inputs	HDMI (3), Composite audio (RCA), PC audio (mini-jack)
Audio Outputs	Digital coaxial, Analog stereo (RCA)

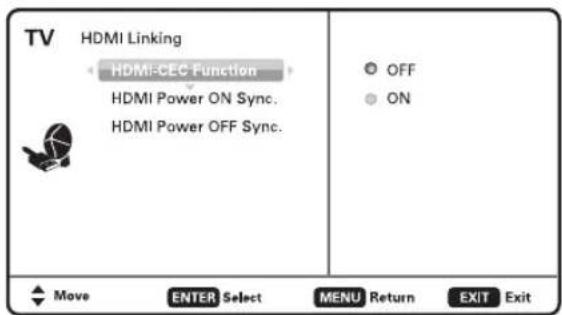

Connectivity	HDMI-CEC (compatible Xacti), Ethernet (service)
Picture Functions	Modes Vivid, Soft, Standard, Manual; Dynamic Contrast; Detailed Settings

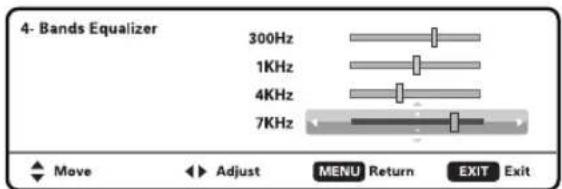

Audio Functions	Modes Auto, Dynamic, Soft, Standard, Manual; 4-Band Equalizer

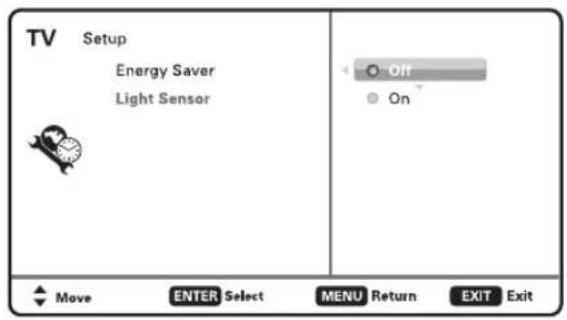

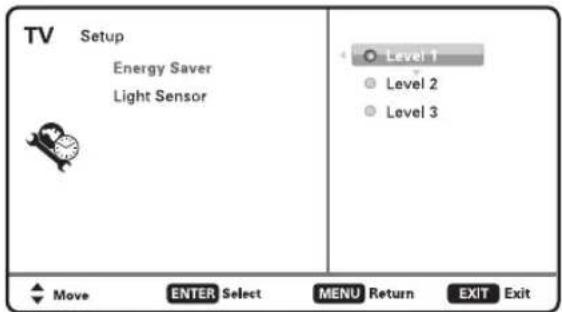

Energy Saving	Energy Saver (3 levels), Brightness Sensor
Parental Control	V-Chip (MPAA and TV)
Closed Captioning	Analog and digital (configurable)
USB Functions	JPEG photo viewer (USB key)
Wall Mount	VESA standard 400 x 400 mm, M6 screws (max length 12 mm)
PC Compatibility	Resolutions up to 1920x1080 @60 Hz
Included Accessories	Remote control (batteries not included), stand, manual
Warranty	1 year parts and labor (Canada)

Frequently Asked Questions - LCD55L4 SANYO

How to connect an antenna or cable to the TV?

Connect the coaxial cable (75 ohms) from your antenna or cable service to the ANT input on the back of the TV. Make sure the indoor antenna is at least one meter away from the TV.

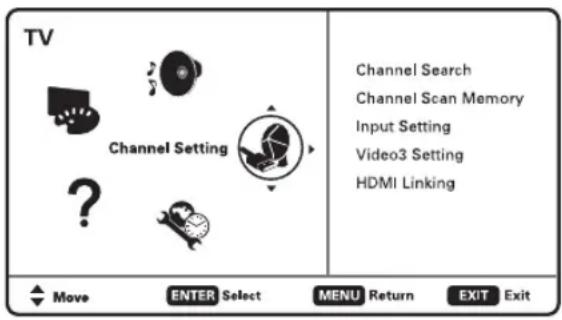

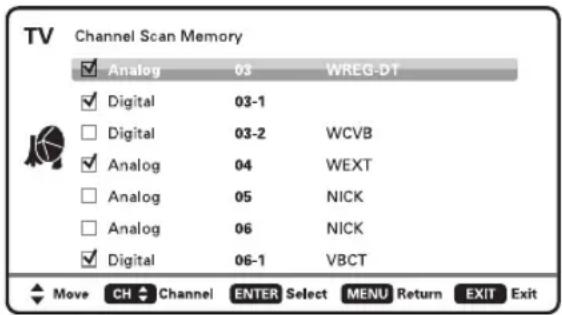

How to perform the initial channel search?

After connecting the antenna or cable, turn on the TV. Follow the on-screen instructions to choose the mode (Home or Store), then start the automatic search. You can also restart it via the menu Channel / Input > Channel Search.

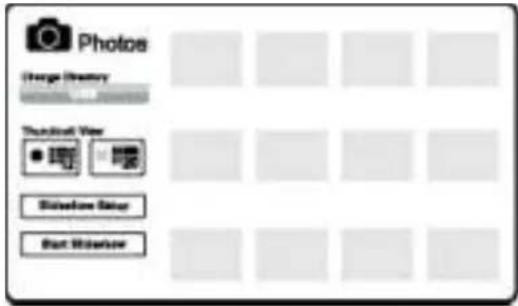

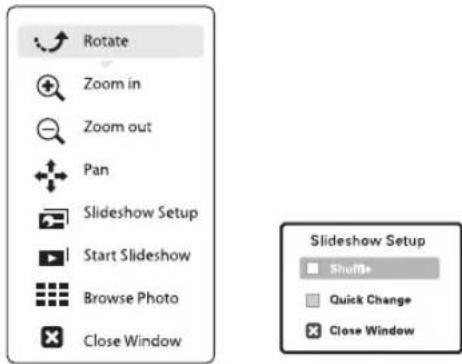

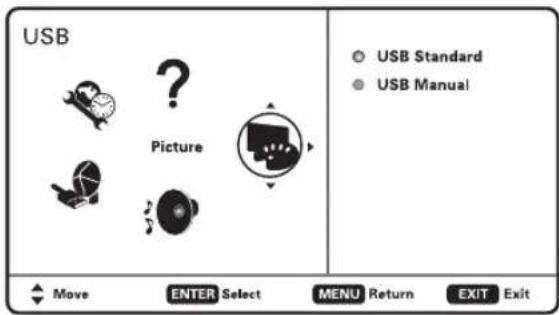

How to use the USB photo viewer?

Insert a USB key containing JPEG photos into the USB port (side panel). Press the USB button on the remote control. Use the arrow keys to navigate, press ENTER to open options (rotation, full view, slideshow).

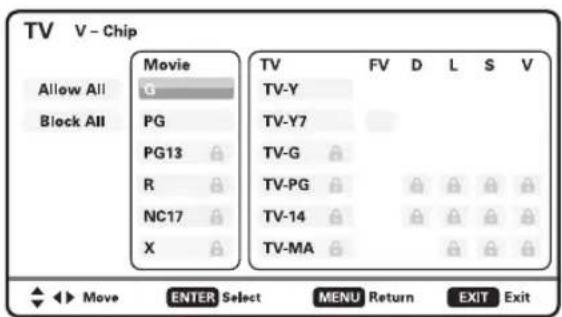

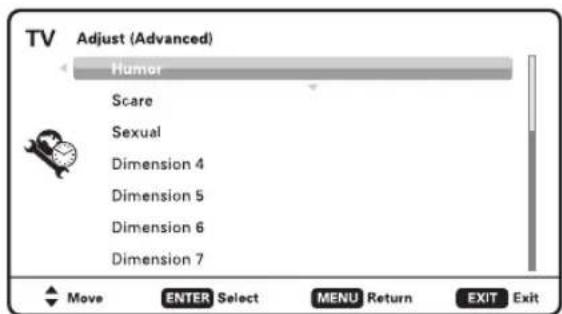

How to enable parental control (V-Chip)?

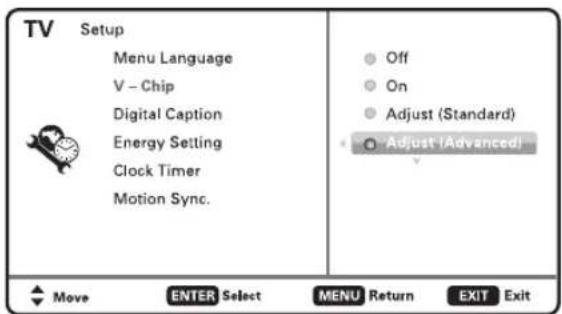

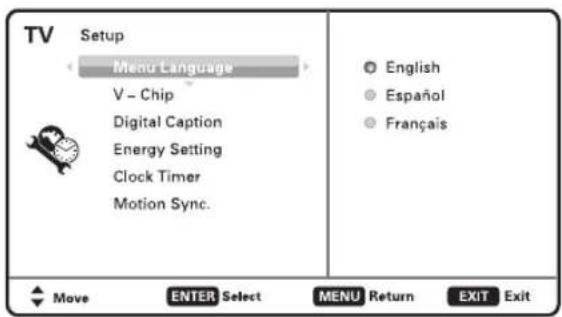

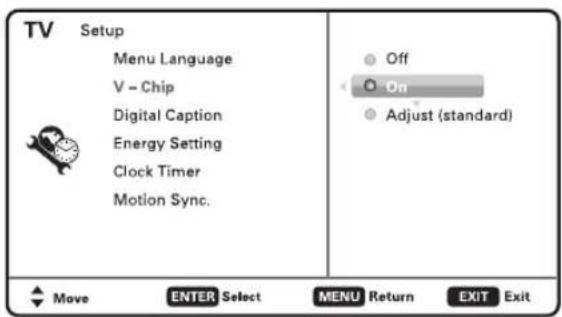

Go to the menu Setup > V-Chip. Turn the option ON. Choose Adjust (Standard) then select the ratings to block (MPAA or TV). Once blocked, the corresponding programs will be locked.

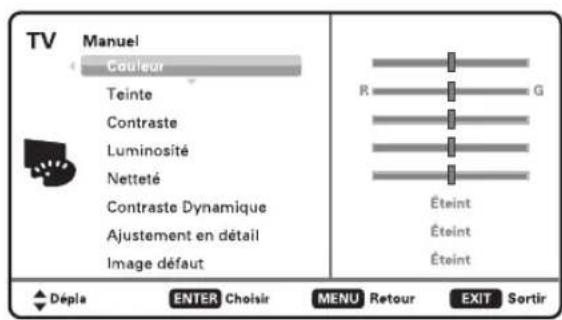

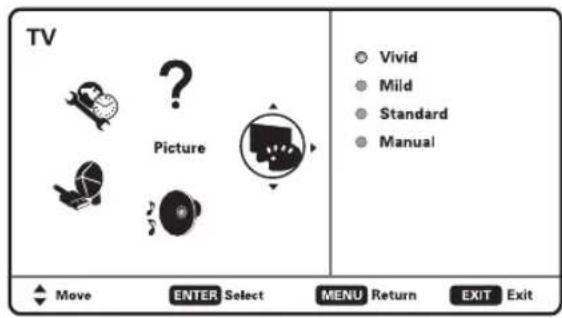

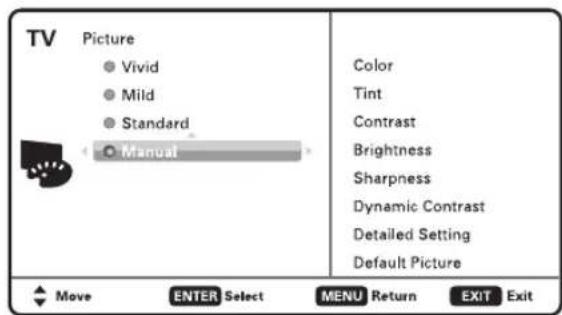

How to adjust the picture quality?

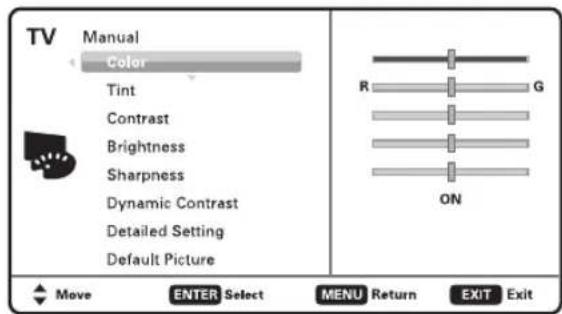

Press MENU, go to Picture. Choose a preset mode (Vivid, Soft, Standard) or select Manual to individually adjust color, tint, contrast, brightness, sharpness, and dynamic contrast. Detailed settings are also available.

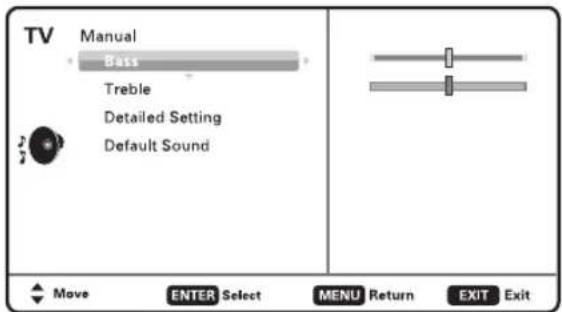

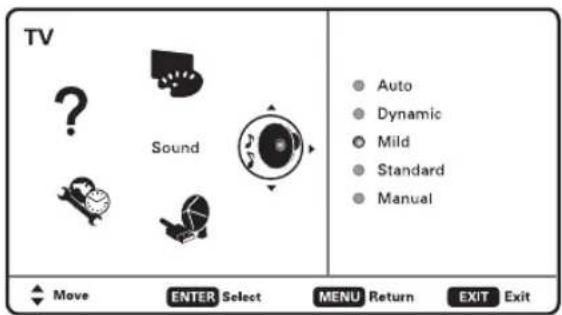

How to adjust the sound?

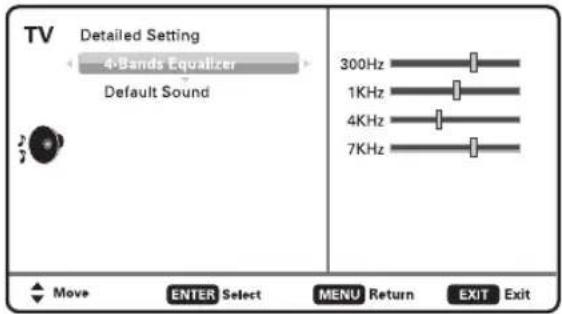

In the Sound menu, you can choose a mode (Auto, Dynamic, Soft, Standard) or switch to Manual to adjust bass, treble, bass extension, and the 4-band equalizer via Detailed Adjustment.

How to mount the TV on the wall?

Remove the stand by unscrewing the 4 screws at the base. Use the 4 pre-inserted screws on the back (VESA 400x400 mm, M6 screws max length 12 mm) to attach a suitable wall mount. Mounting should be done by an experienced person.

What to do if the screen displays 'No Signal'?

Check that the input source is correctly selected using the INPUT button on the remote control. Make sure the antenna or device cable is properly connected. Restart the TV and perform a new channel search if necessary.

How to reset the TV to factory settings?

Press the RESET button on the remote control twice. All custom settings (channels, picture, sound) will be erased. You can also go through the menu for certain options like default picture.

How to clean the LCD screen?

Use a soft, dry cloth. Do not press too hard to avoid discoloration. Never spray liquid directly onto the screen. Do not use hard objects like stiff paper.

USER MANUAL LCD55L4 SANYO

55" Stereo HDTV LCD television with LED edge-lighting and USB socket

(ORIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THIS UNIT.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANO RAIN OR MOISTURE.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including 16 amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or third prong are provided for your safety. If the provided plug does not fit fully into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when you were unused for long periods of time.

14. Refer all servicing to qualified service personnel. 17. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fall. en into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 19.

15. If an outside antenna is connected to the television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. In the U.S. Selection 810-21 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrodes.

16. An outside antenna system should not be located in the vicinity of overhead power lines or other electrical light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

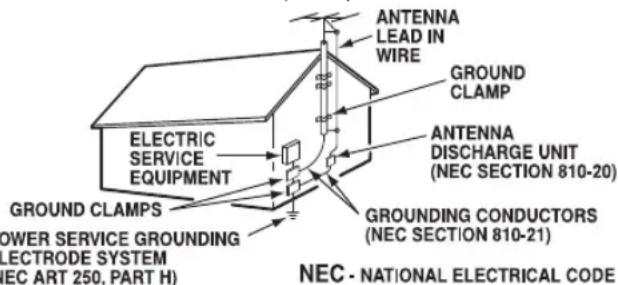

EXAMPLE OF ANTENNA GROUNDING ACCORDING TO NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

"Note to CATV system installer:
This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical."

1. Wall or Ceiling Mounting—The product should be mounted to a wall or ceiling only as recommended by plug the manufacturer.
   a18. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
2. When the MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.

FCC INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION: FCC Regulations state that improper modifications or unauthorized changes to this unit may void the user's authority to operate the unit.

TRADEMARKS

Manufactured under license from Dolby Laboratories. "Dolby" is a trademark of Dolby Laboratories.

HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

As an Energy Star ^® Partner, SANYO Manufacturing Corporation has determined that this product meets the Energy Star ^® guidelines for energy efficiency.

This symbol on the nameplate means the product is Listed by Underwriter's Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety standards against risk of fire, casualty and electrical hazards.

This Class B digital apparatus complies with Canadian ICES-003.

PC RESOLUTION CHART

RESOLUTION	ASPECT RATIO	REFRESH RATE	HORIZONTAL FREQUENCY	VERTICAL FREQUENCY
640 x 480	4 : 3	60 Hz	31.47 kHz	59.94 Hz
		72 Hz	37.86 kHz	72.81 Hz
		75 Hz	37.50 kHz	75.00 Hz
		85 Hz	43.27 kHz	85.01 Hz
720 x 400	18 : 10	70 Hz	31.47 kHz	70.00 Hz
800 x 600	4 : 3	56 Hz	35.16 kHz	56.25 Hz
		60 Hz	37.88 kHz	60.32 Hz
		72 Hz	48.08 kHz	72.19 Hz
		75 Hz	46.88 kHz	75.00 Hz
		85 Hz	53.67 kHz	85.06 Hz
1024 x 768	4 : 3	60 Hz	48.36 kHz	60.00 Hz
		70 Hz	56.48 kHz	70.07 Hz
		75 Hz	60.02 kHz	75.02 Hz
		85 Hz	68.68 kHz	85.00 Hz
1152 x 864	4 : 3	75 Hz	67.50 kHz	75.00 Hz
1280 x 768	5 : 3	60 Hz	47.40 kHz	60.00 Hz
		60 Hz	47.78 kHz	59.87 Hz
		75 Hz	60.29 kHz	74.89 Hz
		85 Hz	68.63 kHz	84.84 Hz
1280 x 960	4 : 3	60 Hz	60.00 kHz	60.00 Hz
		85 Hz	85.94 kHz	85.00 Hz
1280 x 1024	5 : 4	60 Hz	63.98 kHz	60.02 Hz
		75 Hz	79.98 kHz	75.02 Hz
		85 Hz	91.15 kHz	85.02 Hz
1360 x 768	16 : 9	60 Hz	47.71 kHz	60.00 Hz
1440 x 900	16 : 10	60 Hz	55.93 kHz	59.89 Hz
		60 Hz	55.47 kHz	59.90 Hz
1920 x 1080	16 : 9	60 Hz	67.50 kHz	60.00 Hz

Thank you for choosing SANYO. SPECIFICATIONS Please read all instructions to obtain maximum benefit of your product. Power Requirement: Source: AC 120V, 60Hz AC Power Consumption: Weight:

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS

FCC INFORMATION

TRADEMARKS

PC RESOLUTIONS

CONTENTS

SPECIFICATIONS

PROTECTING THE SCREEN

POSITIONING THE HDTV

STAND REMOVAL / WALL MOUNTING

GETTING STARTED—

Remote Control Battery Installation

Antenna Connections for off-air or cable

HDTV INPUT/OUTPUT REFERENCE

A/V CONNECTIONS (SIDE PANEL)

A/V CONNECTIONS (BACK PANEL)

POWER CONNECTION / INITIAL CHANNEL SEARCH . . .9

AC Power Consumption:

195 watts

Weight:

75 lbs.

Dimensions:

MODEL . . .3 WIDTH	HEIGHT	DEPTH
LCD55L4 . . .3 51.2	34.5	10.9
w/o stand . . .3	32.3	2.4

NOTE: ^4 Dimensions are in inches

Please read before operating your HDTV!

.5

PROTECTING THE SCREEN

CAUTION: The screen can be damaged if it is not maintained properly. ...10

• Do not use hard objects such as hard cloth or paper to clean the screen.
• Do not use excessive pressure when cleaning the screen; excessive pressure can cause permanent discoloration or dark spots.
  • NEVER ^12 spray liquids on the screen.

HANDLING PRECAUTIONS

•. Handle1By the cabinet only.
• Never touch the screen when handling.
- Handling damage is not covered under warranty. 16 17

18

POSITIONING THE HDTV

• Always use ^20 a firm and flat surface when positioning your HDTV.
- Do not position the unit in a confined area.
- Allow adequate space for proper ventilation.

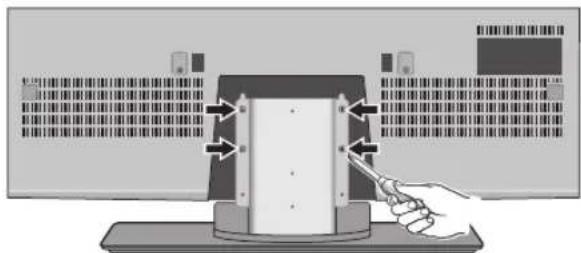

STAND REMOVAL AND WALL MOUNTING (OPTIONAL)

Tools Needed: Phillips screwdriver

IMPORTANT NOTE: Place HDTV face down on a padded or cushioned flat surface to protect the screen and finish.

Wall mounting of the HDTV must be performed by a skilled person.

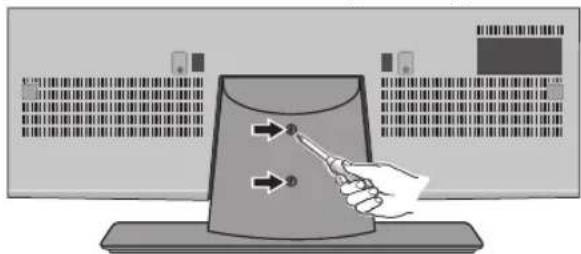

1 Remove the two (2) screws holding the stand base cover and carefully dislodge.

2 Remove the four (4) screws securing the stand base to the HDTV. CAUTION: Hold the stand firmly as you remove the last screw.

Illustration of a hand using a tool to interact with a device, surrounded by control panels (no text or symbols visible)

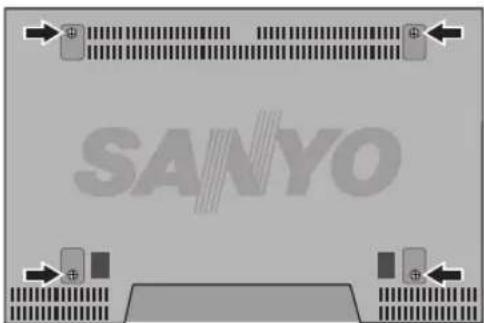

3 Use the screws that are threaded into the four (4) inserts on the back of your HDTV to secure it to an appropriate wall mounting kit.

VESA standard interface: 400 x 400

Mounting screws measurements:

M6 (6mm) Diameter, Length—12mm (maximum)

NOTE: Wall mounting kit is not included.

GETTING STARTED

1 BATTERY INSTALLATION

Install two (2) "AAA" batteries in the remote control. (Not included)

To ensure safe operation, please observe the following precautions:

• Replace both batteries at the same time. Do not use a new battery with a used battery.
• There's a risk of explosion if a battery is replaced by an incorrect type.
• Do not expose the Remote Control unit to moisture or heat.
• Be sure to match the “+” and “−” signs on the batteries with marks inside the remote control.

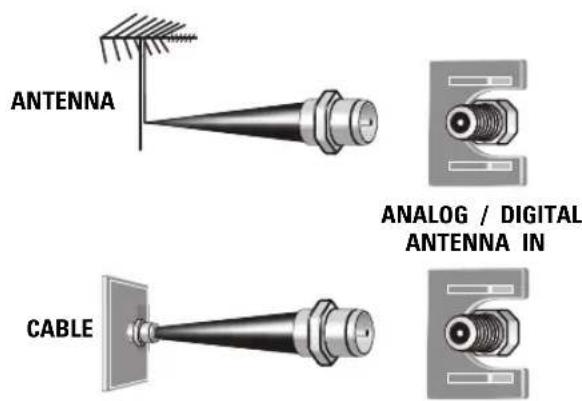

2 ANTENNA CONNECTION FOR OFF-AIR SIGNALS OR CABLE

Hook up your antenna or your cable service to the HDTV's ANT terminal with the use of a 75 OHM coaxial cable.

NOTE: Keep your indoor antenna at least 3 ft. away from the television set and any other electronic equipment.

The tuner in this HDTV can receive:

• Digital and Analog off air signals from an antenna
- Analog or ClearQAM cable channels from a direct Cable TV connection.

GETTING STARTED

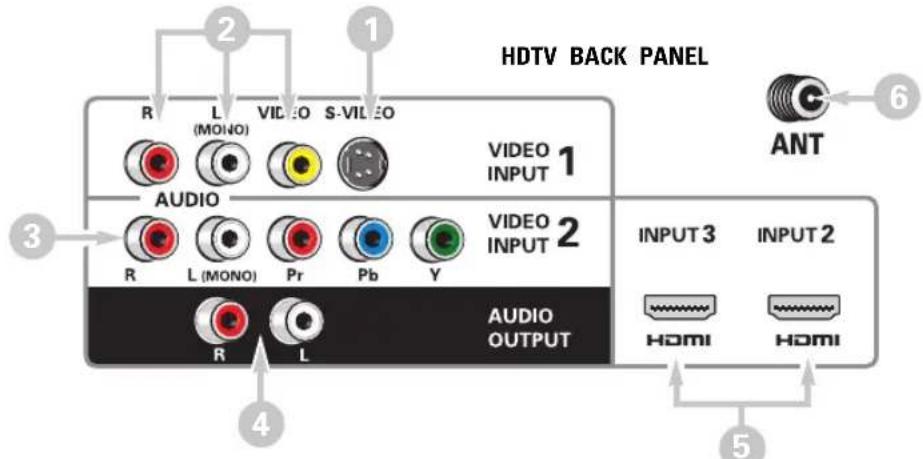

HDTV INPUT/OUTPUT REFERENCE

1 S-Video Input (VIDEO1)

NOTE: An S-Video connection will override a connection to the Video1 (yellow) input jack.

2 Composite AV Input (VIDEO1) - Yellow (Video), plus white and red (Audio) input jacks.

3 Component AV Input (VIDEO2) – Green (Y), blue (Pb), and red (Pr) Video inputs plus the white and red Audio inputs.

4 Stereo Audio Out (L/R) Jacks

5 HDMI (INPUT2 & 3) – An all digital AV interface accepting uncompressed video signals up to 1080p for the best picture possible.

6 Analog / Digital Antenna Input - Connect a 75 OHM cable from an antenna or direct Cable service.

7 Digital Audio Output (Coaxial)

8 AV Component Input (VIDEO3) - Green (Y), blue (Pb), and red (Pr) Video inputs plus the white and red Audio inputs.

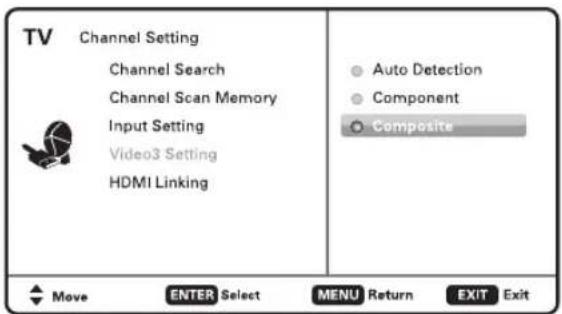

NOTE: A Composite connection is possible via VIDEO INPUT3 using the Y (VIDEO) jack and the L/R audio jacks. (See Video 3 Setting on page 12.)

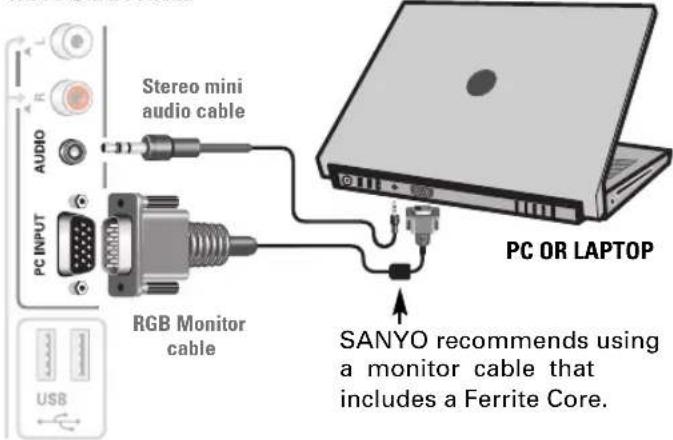

PC Input and Stereo Audio (Mini)

• MONITOR RGB (D-SUB)

• AUDIO R/L (Stereo Mini Jack)

NOTE: See page 18 for proper PC hookup and setup.

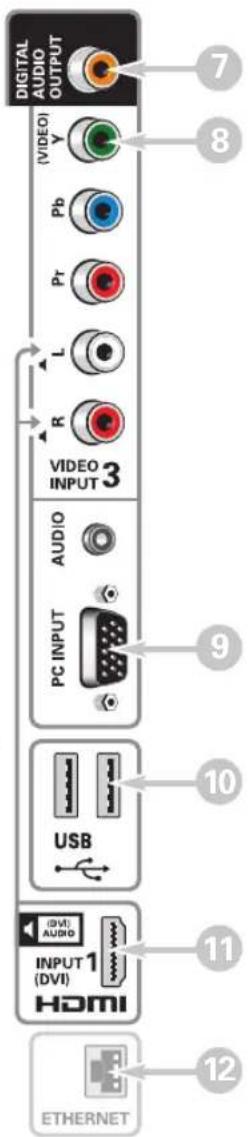

HDTV SIDE PANEL

10 USB Input

View pictures stored in a USB flash drive.

11 HDMI (INPUT1)

An all digital AV interface that can accept uncompressed video signals up to 1080p for the very best picture possible.

NOTE: A DVI connection is possible via the HDMI INPUT1 (DVI) using an appropriate adapter and the VIDEO3 Audio jacks for sound output.

12 ETHERNET Port

For Service use only.

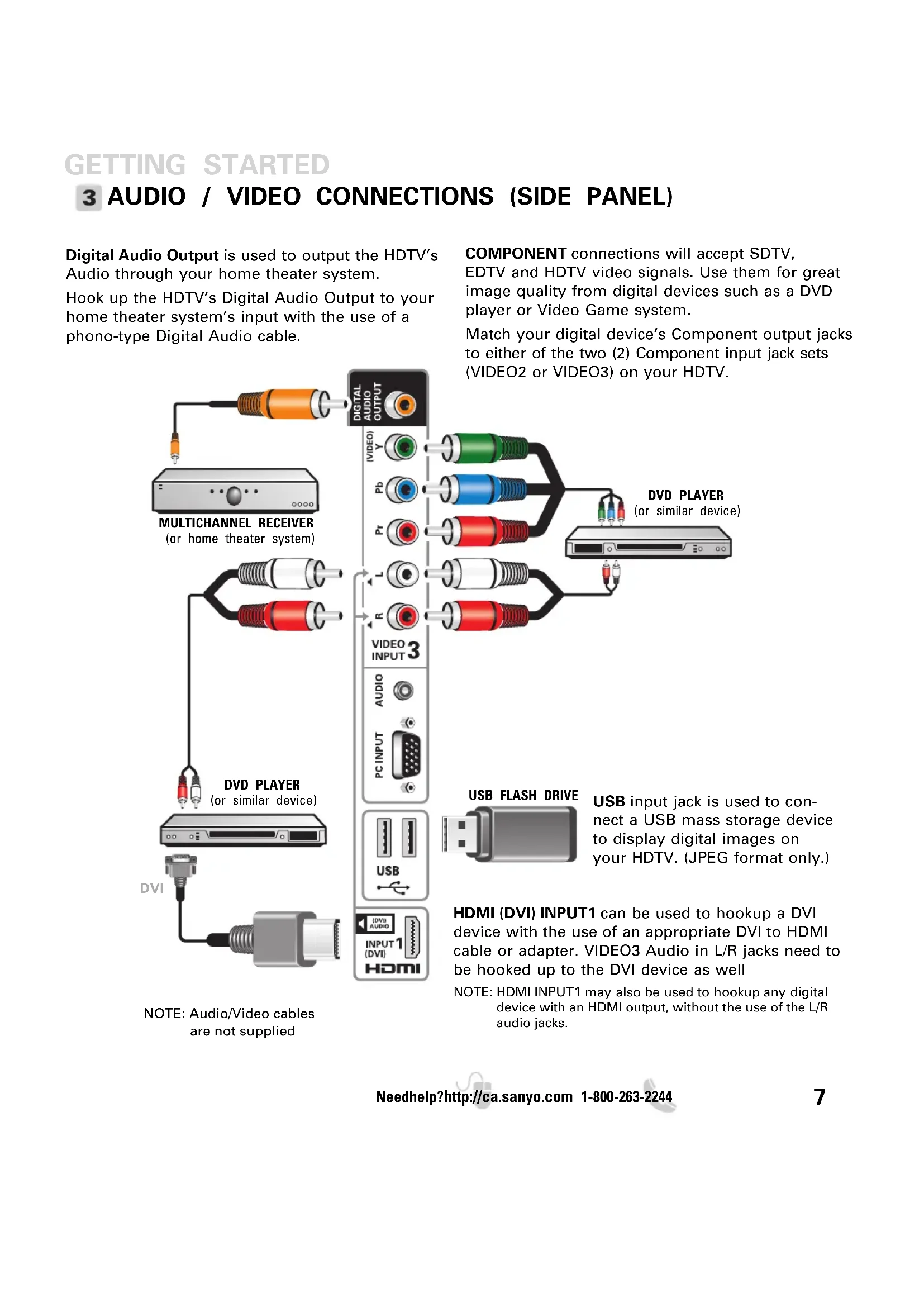

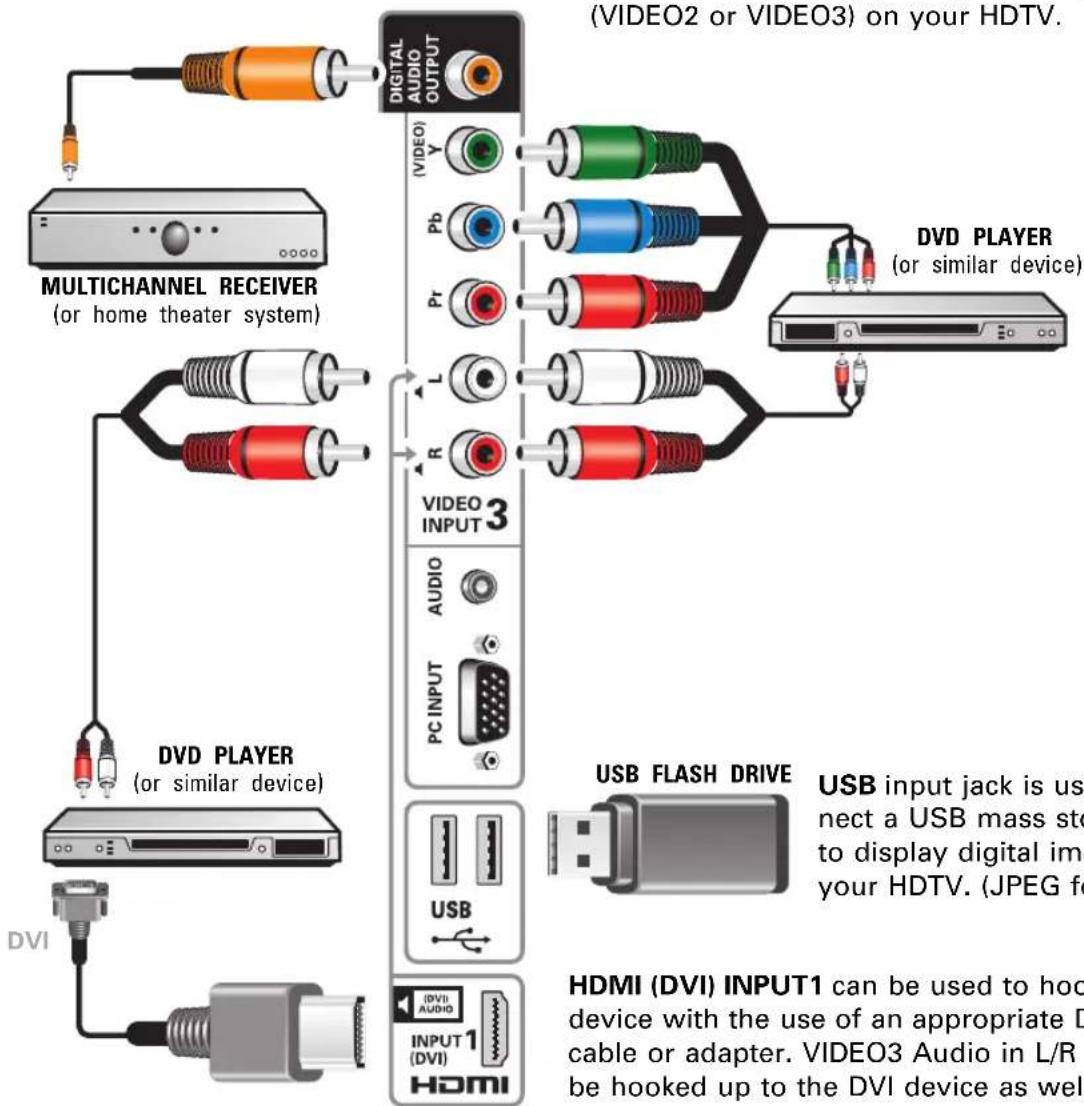

3 AUDIO / VIDEO CONNECTIONS (SIDE PANEL)

Digital Audio Output is used to output the HDTV's Audio through your home theater system.

Hook up the HDTV's Digital Audio Output to your home theater system's input with the use of a phono-type Digital Audio cable.

COMPONENT connections will accept SDTV, EDTV and HDTV video signals. Use them for great image quality from digital devices such as a DVD player or Video Game system.

Match your digital device's Component output jacks to either of the two (2) Component input jack sets (VIDEO2 or VIDEO3) on your HDTV.

NOTE: Audio/Video cables are not supplied

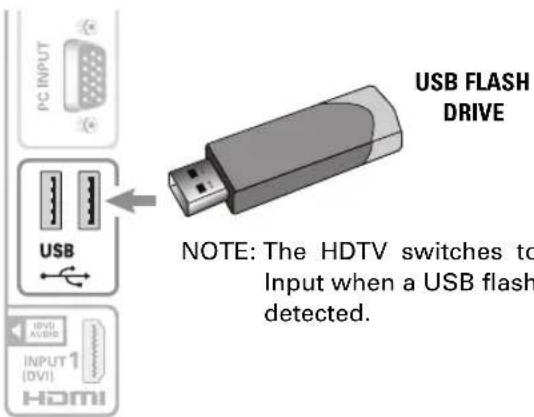

USB input jack is used to connect a USB mass storage device to display digital images on your HDTV. (JPEG format only.)

HDMI (DVI) INPUT1 can be used to hookup a DVI device with the use of an appropriate DVI to HDMI cable or adapter. VIDEO3 Audio in L/R jacks need to be hooked up to the DVI device as well

NOTE: HDMI INPUT1 may also be used to hookup any digital device with an HDMI output, without the use of the L/R audio jacks.

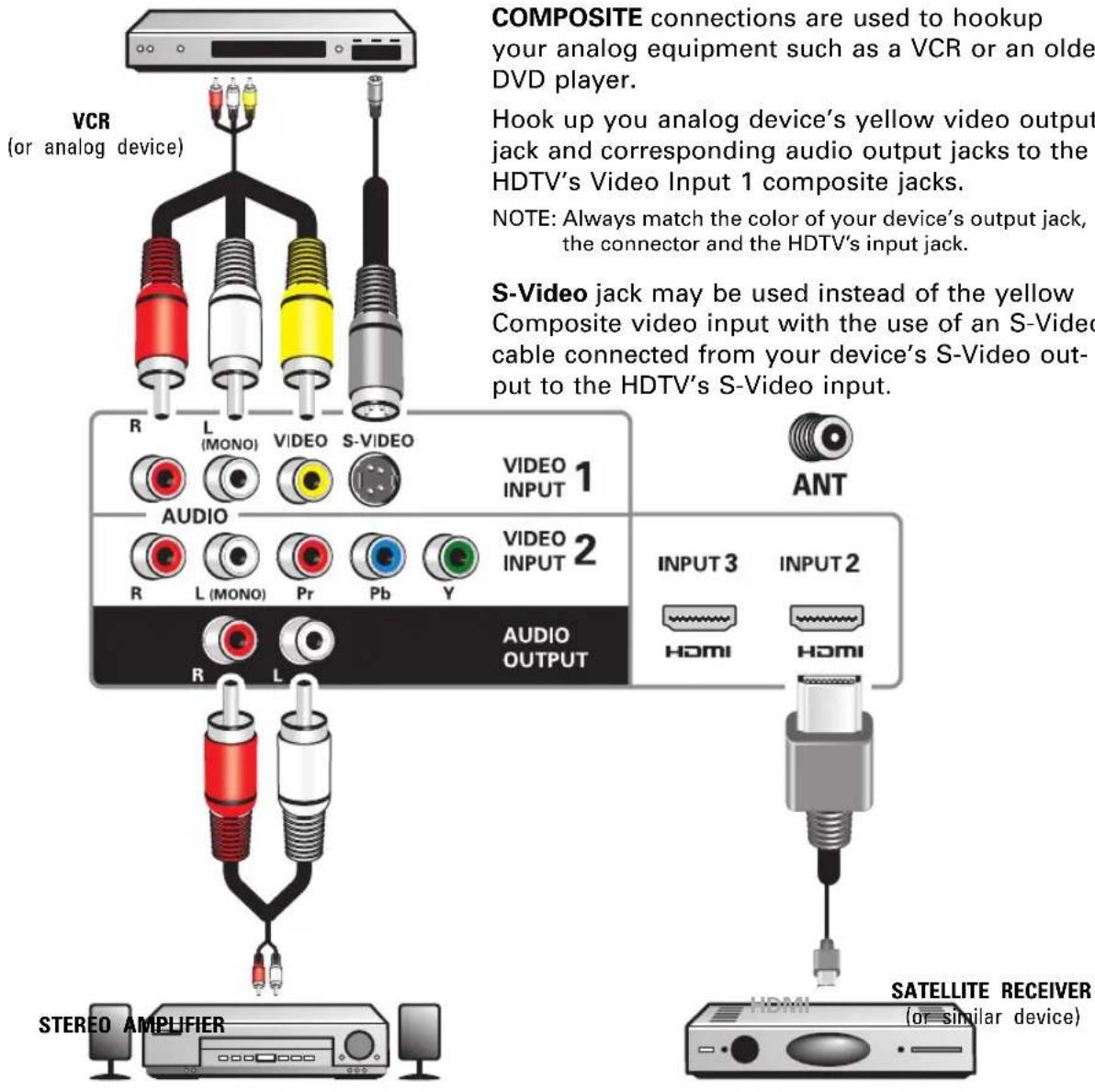

3 AUDIO / VIDEO CONNECTIONS (BACK PANEL)

Audio Output L/R are used to hookup an external stereo Amplifier. Connect your home stereo's input jacks to the HDTV's Audio Output jacks with a pair of audio red and white connectors.

NOTE: Do not connect external speakers directly to the HDTV.

Use HDMI INPUT1, 2 & 3 to hookup HD digital devices such as a Blu-ray player, HD Cable Box, HD Satellite Receiver or Video-game System.

Connect your digital device's HDMI output to any of the three (3) HDMI inputs on your HDTV with the use of an HDMI cable.

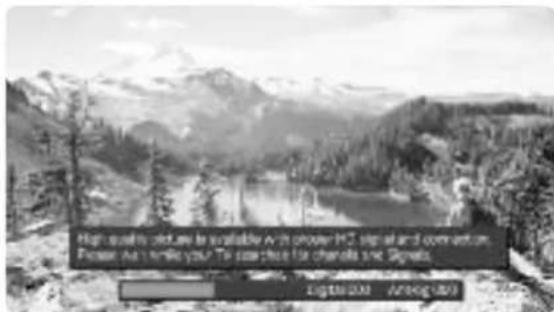

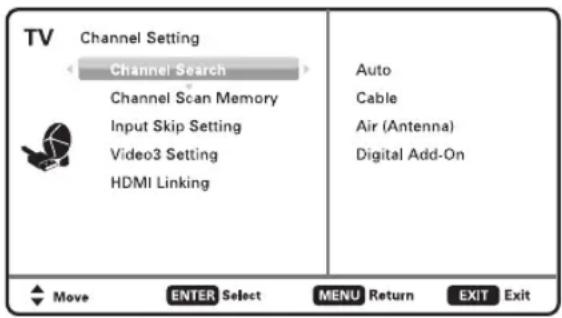

4 INITIAL CHANNEL SEARCH

Before proceeding, please make sure to hook up your antenna or cable connection and all AV equipment correctly to your HDTV.

PLUG IN AC POWER CORD

120V AC, 60Hz

TURN ON TV (PRESS POWER BUTTON)

Wait for on-screen instructions to set an Initial Energy Saving Mode, and perform an Initial Channel/Signal Search.

TV SET LOCATION SELECTION:

Select "Home Mode" by pressing the CH▼ key to set the HDTV's backlight to an Energy Star qualified level, or select "Store Mode" by pressing CH▲to set the backlight to a retail display level.

CHANNEL AND AV SIGNAL SEARCH:

Press the CH▲▼key to perform a channel search from an Antenna or a direct Cable connection, and a signal search from devices hooked up to the HDTV's AV input jacks.

ON SCREEN HELP (OPTIONAL)

Press the CH▼ key if you wish to access an on screen trouble shooting guide.

NOTE: On screen help is also accessible via the main menu.

CHANNEL AND SIGNAL SETUP SCREEN

The final setup screen displays analog and digital channels found as well as AV inputs detected. Pressing the CH▲▼key finalizes the setup process.

NOTE: To repeat the initial setup process press VOL▼.

5 AV INPUT SELECTION

Press the INPUT key to select the correct AV input for the video source you wish to watch.

Please select the proper location for your TV, the display will be adjusted for best results.

• Press CHannel UP for Store Mode.
• Press Channel DOWN for Home Mode.

Store mode is for the retail display setup. Home mode qualifies for ENERGY STAR.

INITIAL ENERGY SAVING MODE SCREEN

Please connect all antennas ^® and signals to the jacks and terminals. Make sure all of your equipment is switched on.

• Press Channel UP or DOWN for Channel/Signal search.
• Press VOLUME DOWN for On Screen Help.
  • To avoid signal interference when searching for channels using an Indoor Antenna, place the antenna at least 3 feet away from TV.

INITIAL CHANNEL/SIGNAL SEARCH SETUP SCREEN

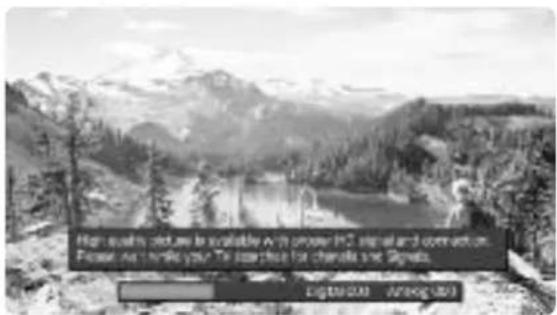

CHANNEL SEARCH PROGRESS SCREEN

Channel and Signal Setup:

Analog Channels...16

Digital Channels...24

Video 1...Yes

HDMI 1..Yes

Video 2...no

HDMI 2...no

Video 3...no

HDMI 3...no

Press Channel UP or DOWN to exit the Setup process. Press Volume DOWN to repeat the process.

If you are having problems, call us toll-free at 1-800-877-5032

CHANNEL/SIGNAL LIST SCREEN

• POWER Key—Turns your HDTV On or Off.
• ECO Key—Modifies the Energy Saver level (see page 13.)
• AUDIO Key—Selects the desired Audio mode. Stereo, Mono, or SAP (when available.)
• ON TIMER Key—Displays the current switch on time (see Clock Timer on page 14.)
• CAPTION Key—Cycles through the available Caption modes.
• RESET Key—Pressing it twice restores your HDTV to its factory settings. All user customized settings will be cleared.
• SLEEP Key—Displays the "Off" Timer. While Off Timer is on-screen, press the "0" key to Set the amount of time (in 30 minute increments) at which the HDTV will turn off.
• PICTURE Key—Cycle through the picture modes.
• SOUND Key—Cycle through the sound modes.
• NUMERICAL Keys—Select channels directly.
  NOTE: For channels 100 and up, press and hold the first number, then enter the remaining two numbers.
• “—” (sub ch) key —Allows for the direct selection of digital subchannels. For example: to select channel 39.1 press the 3, 9, -, and 1 keys.
• INPUT Key—Selects the video source to view. Holding down the key displays the Input List.
• Volume + - keys—Increases or decreases the audio level.
• Channel ▲ ▼ keys—Scan through the channels in the memory database.
• MUTE Key—Mute or restore the sound.
• RECALL Key—Switch between current channel and last selected channel.
• DYN VOL Key—Select sound enhancement feature.
• USB Key—Selects the USB input directly.

- PIX SHAPE Key—Cycles through the available aspect ratios. The different settings either stretch, zoom, or fill the image on your screen. Bars may appear on top and bottom of your screen (or on left and right sides) depending on the broadcasted signal or program.

NOTE: Pix6-7 are setup as Pix1-2 in PC mode. Use of Pix6-7 in TV mode is not recommended.

- MENU—Displays or hides the on-screen menu.

- HELP—Displays on-screen Help menu.

- INFO Key—Displays the Channel Information banner.

- EXIT Key—Exits the on-screen menu.

- Cursor ▲ (UP) ▼ (DOWN) keys—Move the on-screen cursor up and down.

- Cursor t (LEFT) u (RIGHT) keys—Move the on-screen cursor left and right.

- ENTER Key—Set or select the highlighted option on the screen.

The PLAY, PAUSE, STOP, REW, FF, W, T, CAMERA, and XACTI MENU keys control playback features on a SANYO Xacti digital camera when the HDMI-CEC feature has been activated on both the HDTV and the Xacti camera (see HDMI Linking feature on page 12.)

NOTE: These playback keys may or may not react with other devices other than the Xacti camera.

Display the On Screen menu and use the CURSOR ▲▼keys to select Channel / Input. Press ENTER.

Channel Search

Auto - Searches the detected mode, Cable or Air.

Cable - Searches for analog and unscrambled (ClearQAM) digital cable channels.

Air (Antenna) – Searches for analog and digital off-air channels.

Digital Add-On - Searches digital off-air channels adding newly found digital channels to the channel map database.

NOTE: Digital Add-On option is not available when the current mode is Cable.

Channel Scan Memory

Channel Scan Memory lists all Analog and Digital channels found. It also lists Analog channels that were not found, which can be added.

Use the CURSOR ▲▼keys to move the channel select bar through all enabled and disabled channels, or use the CH ▲▼keys to skip all disabled channels.

Press ENTER to enable or disable the selected channel.

IMPORTANT FACT: This HDTV maintains only one database of digital channels. Therefore, when you search for cable channels, the database of antenna digital channels will be deleted. You will only be able to receive those ClearQAM channels your cable company provides.

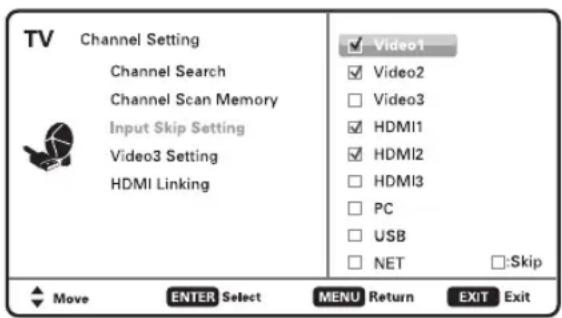

Input Setting

Input Setting feature allows the removal of unused inputs from the AV input loop.

Use the CURSOR ▲▼ keys to select an AV input. Press ENTER to disable (unchecked) or enable (check) the highlighted input.

NOTE: At least one input must and will remain enabled.

☐:Skip is for reference only.

MAIN MENU SCREEN

CHANNEL SETTING SCREEN

CHANNEL SCAN MEMORY SCREEN

INPUT SETTING SCREEN

Use this feature to establish either a Component or Composite connection to the VIDEO INPUT 3 jacks on your HDTV.

Use the CURSOR ▲▼ keys to select the type of hook up that will be used in the Video3 input.

Press ENTER, a blue mark will appear next to the selected option.

HDMI Linking

NOTE: Designed for use with a SANYO Xacti Digital Video/Movie Camera, and may not support all HDMI-CEC functions of other equipment.

Use the HDMI-CEC Function to enable or disable all available CEC functions.

HDMI Power ON Sync and Power OFF Sync enable specific features including the automatic power ON process and power OFF process.

Xacti-LINK

With a SANYO Xacti Digital Video/Movie Camera hooked up to your HDTV's HDMI input, setting the HDMI-CEC Function to ON enables you the use of keys on your GXEA remote to operate your Xacti camera.

NOTE: The HDMI-CEC function of the Xacti must also be turned ON to enable the Xacti-Link.

VIDEO3 SETTING SCREEN

HDMI LINKING SCREEN

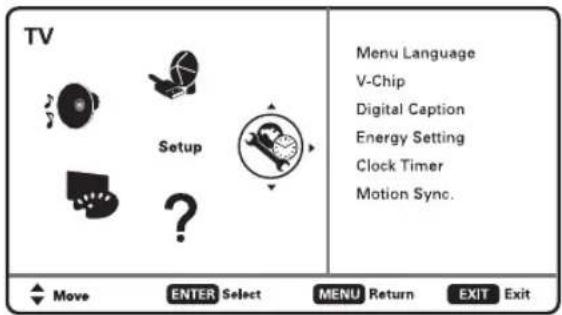

Display the On Screen menu and use the CURSOR ▲▼ keys to select Setup. Press ENTER.

Menu Language

Choose the language in which you On Screen menus will be displayed.

• English
• Español
• Français

Press ENTER on the desired language.

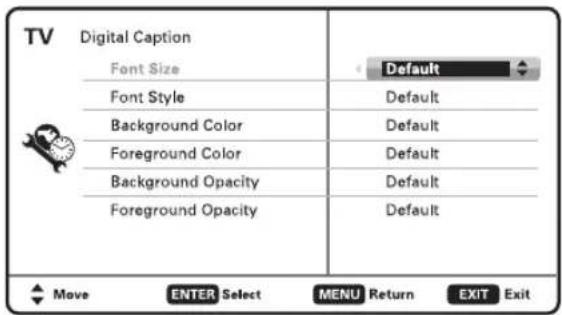

Digital Caption

Captioning is textual information transmitted along with the picture and sound. Turning Captioning ON (by pressing the CAPTION key during normal TV viewing) causes the HDTV to open these captions (digital or analog) and superimpose them on the screen.

NOTE: Local broadcasters decide which caption signals to transmit.

Use the CURSOR ▲▼ and tu keys to modify Font, Background, and Foreground of digital caption text.

Energy Setting

Use the Energy Saver and Light Sensor features found under Energy Setting to lower power consumption by controlling the LED backlight brightness levels.

Energy Saver – This settings control the LCD backlight brightness to reduce power consumption.

• Level 1: Energy Saver feature is off.
• Level 2: Low power consumption.
• Level 3: Lowest power consumption.

Press ENTER on the desired level.

NOTE: ECO key may also be used as a shortcut to modify the Energy Saver settings.

MAIN MENU SCREEN

MENU LANGUAGE SCREEN

DIGITAL CAPTION SCREEN

ENERGY SAVER SCREEN

Light Sensor – Detects ambient room light brightness and uses that reading to control the panel brightness level and picture parameters to reduce the HDTV's power consumption.

NOTE: When room lighting is dark, the panel brightness and/or the picture setting parameters such as brightness and cotrast are lowered. When room lighting is bright, parameters are affected opposite.

LIGHT SENSOR SCREEN

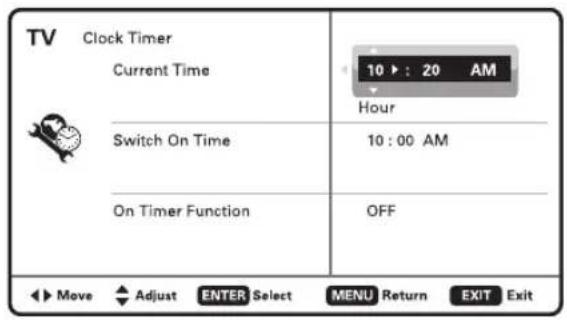

Clock Timer

This feature allows you to set a Current Time for your HDTV and enable a Switch On Time for the HDTV to turn on at a specific time of day.

When On Timer Function is set to ON, the TV will automatically turn on at the previously set Switch on Time.

CLOCK TIMER SCREEN

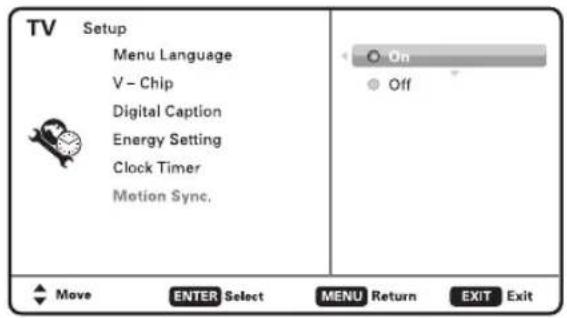

Motion Sync

Your HDTV has a refresh rate of 120 Hz, it basically means that it "redraws" the image on the screen twice as often than a common 60 Hz refresh rate TV would, allowing for less blur in scenes with fast motion.

• On – Takes full advantage of your TV's refresh rate capabilities for the best picture quality.
• Off – Disables the Motion Sync. feature.

NOTE: Even with Motion Sync set to Off, your HDTV still displays all images at a 120 Hz refresh rate.

MOTION SYNC SCREEN

Use this feature to automatically block programs with content you deem as inappropriate for viewing by your children.

NOTE: This feature is designed to comply with the United States of America's FCC V-Chip regulations. Therefore, it may not function with broadcasts that originate in other countries.

ADJUSTING THE V-CHIP RATINGS

Select ON and press ENTER.

Select Adjust (Standard) and press ENTER.

Use the CURSOR ▲▼ and tu keys to navigate and the ENTER key to Block or Unblock a selected rating. A lock symbol will appear beside the selected rating option indicating that it is blocked.

NOTE: Blocking a rating will automatically block all higher ratings. Unblocking a rating automatically unblocks all lower ratings.

ADVANCED V-CHIP SYSTEM (RRT5)

RRT5 (V-Chip Regional Ratings 5) is an advanced V-Chip ratings system for digital channels that are received with an antenna.

When the HDTV detects compatible RRT5 data, it's downloaded & stored in memory, and the Setup V-Chip screen is then modified to show the Adjust (Advanced) option.

Use the CURSOR ▲▼ and tu keys to highlight the different options, and use the ENTER key to block or unblock the selected rating.

NOTE: There may be more ratings than can be displayed on one screen. When vertical scroll bars appear, press CURSOR ▲▼ to gain access to the additional ratings.

MORE INFORMATION

Additional information about MPAA (Motion Picture Association of America) and V-Chip rating can be found at: www.mpaa.org and www.v-chip.org, respectively.

V-CHIP SETUP SCREEN

ADJUST (STANDARD) SCREEN

V-CHIP SETUP SCREEN WITH ADJUST (ADVANCED) OPTION

ADJUST (ADVANCED) SCREEN

Display the On Screen menu and use the CURSOR ▲▼ keys to select Picture. Press ENTER.

You may choose between Vivid, Mild, , and Standard, which have predetermined fixed picture parameter values, or choose the Manual option for customized personal settings.

NOTE: Each AV input can have its own picture mode (pre-determined or manual.) Current input's selected option is indicated by a blue marker.

MANUAL PICTURE SETTINGS

Manual parameters to adjust include:

• Color

• Tint

- Contrast

- Brightness

- Sharpness

• Dynamic Contrast

The Detailed Setting option allows for the adjustment of 7 additional parameters such as:

- Signal Balancer

- Noise Reduction

- White Balance

- Vertical Sharpness

- Edge Enhancer

• H-Size

• V-Size

NOTE: Default Picture option returns all picture parameters to their original factory settings.

ADJUSTING A PICTURE SETTING

Use the CURSOR ▲▼ keys to highlight the picture parameter you wish to adjust. Press the ENTER key to enter the value adjustment screen. Modify the selected parameter's value by pressing the CURSOR tu keys.

NOTE: CURSOR ▲▼ keys select the next/previous parameter without returning to the previous menu screen.

Once adjustments are complete, press the EXIT key to return to normal TV viewing.

MAIN MENU SCREEN

PICTURE SCREEN (MANUAL)

PARAMETER SELECTION SCREEN

VALUE ADJUSTMENT SCREEN EXAMPLES

Display the On Screen menu and use the CURSOR ▲▼ keys to select Sound. Press ENTER.

Choose an option for your sound settings:

Auto – Sound settings are linked to the current Picture option and parameters are adjusted accordingly.

Dynamic, Mild, Standard - 3 different predetermined sound parameters not linked with any Picture option.

MANUAL SOUND SETTINGS

The Manual option provides different parameters that can be personally adjusted:

• Bass
• Treble
• Detailed Setting

- 4-Band Equalizer: Personalize audio highs and lows.

NOTE: Default Sound option returns all sound parameters to their original factory settings.

ADJUSTING A SOUND SETTING

Use the CURSOR ▲▼ keys to highlight the sound parameter you wish to adjust. Press the ENTER key to enter the value adjustment screen. Modify the selected parameter's value by pressing the CURSOR tu keys.

NOTE: CURSOR ▲▼ keys select the next/previous parameter without returning to the previous menu screen.

Once adjustments are complete, press the EXIT key to return to normal TV viewing.

MAIN MENU SCREEN

MANUAL PARAMETER SCREEN

DETAILED SETTING SCREEN

VALUE ADJUSTMENT SCREEN EXAMPLES

PC INPUT

Use your HDTV as a computer monitor by hooking up your PC or Laptop to the TV with the use of an appropriate monitor cable (not included.)

Before connecting any cables, disconnect the AC power cords of both the HDTV and PC from the AC outlets.

Power on the HDTV and any other peripheral equipment before powering on the computer.

To avoid an "Out of Range" condition please set your PC's output resolution to one compatible with your HDTV. See PC Resolution chart on page 3.

NOTE: If computer has only DVI Output, a DVI to RGB adapter will be required, or, a DVI to HDMI cable and RCA audio cables (see HDMI (DVI) INPUT1 on page 7.)

RGB OUTPUT JACK

DVI OUTPUT JACK

HDTV SIDE PANEL

Laptop Display

When using your SANYO HDTV to display a Laptop's screen display, holding down the Fn (or FN) key while pressing the appropriate function key (F5, F7, F8, etc) should cycle through different display modes between the laptop and the HDTV.

Modes may include displaying only on the laptop screen, on both the laptop and the HDTV, or displaying only on the HDTV.

Hold down

and press

NOTE: Fn key and function key symbols on the laptop's keyboard may vary from one brand to another.

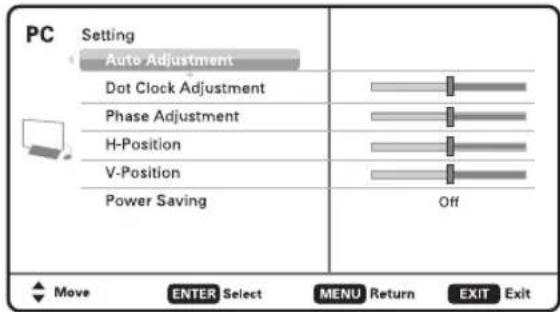

PC Setting

Auto Adjustment – Automatically adjusts display position, dot clock and phase.

Dot Clock – Adjust the Dot frequency to match your computer's Dot frequency.

Phase - Adjust this parameter when the picture appears to flicker or is blurred.

H-Position - Move the image horizontally

V-Position - Move the image vertically

Power Saving – Enable the HDTV to turn to Standby Mode when computer is not in use.

PC SETTING SCREEN

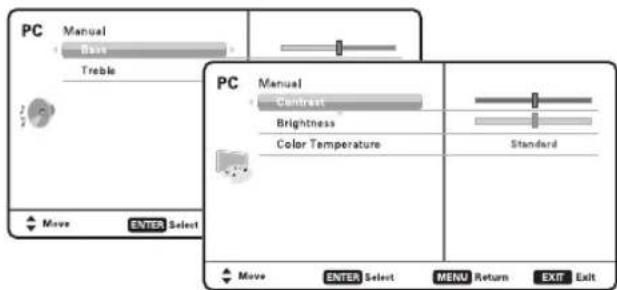

PC Picture and Sound

Standard - Sets predetermined values to the Picture or Sound parameters.

Manual – Adjust Contrast, Brightness, and Color Temperature screen settings, and the Bass and Treble audio settings.

PC PICTURE AND SOUND SCREENS

NOTE: These settings do not affect normal TV viewing.

PHOTO VIEWER

View pictures on your HDTV with the use of a USB mass storage device (not included.)

Any of the two USB inputs on your HDTV may be used.

NOTE: When two devices are hooked up, only the first one is recognized and available as an input.

USING THE PHOTO VIEWER

Press ENTER on a thumbnail photo to enable the Rotate, Full View and Start Slideshow functions.

Once in Full View mode:

Use the CURSOR tukeys to change picture.

Press ENTER to show the full view options menu.

SLIDE SHOW

In the Slideshow Setup menu you may turn the Shuffle and Quick Change options ON or OFF.

Press ENTER on Start Slideshow from the Thumbnail View Screen or from the full view options menu to start the slideshow from the current picture.

JPEG VIEWER USB MENU

Press MENU when in Full View or Slideshow mode to display the USB On screen menu.

Picture Setting - Adjust Color, Tint, Contrast, Brightness, Sharpness and Dynamic Contrast.

NOTE: Picture Settings are separate configurations from the settings in TV and AV inputs.

THUMBNAIL VIEW SCREEN
NOTE: A thumbnail hide icon will appear if a picture cannot be decoded or if no thumbnail data is available.

FULL VIEW OPTIONS MENU
SLIDE SHOW SETUP MENU

USB MAIN MENU SCREEN

SANYO COMFORT WARRANTY

WARRANTY APPLICATION

New, unused SANYO Color Television products purchased in WARRANTY BECOMES VOID This warranty becomes void if Canada through a SANYO authorized dealer are warranted. The product's serial numbers are altered or removed or if any against manufacturing defects in materials and workmanship repair to the product is made other than by SANYO Canada Inc. for ONE YEAR for parts and labor, from the date of purchase or by an authorized SANYO Service Depot. by the original retail purchaser for non-commercial use. This

warranty only applies in favor of the original retail purchaser the warranted product.

SANYO CANADA INC.'S RESPONSIBILITY

During the warranty period, SANYO Canada Inc. will repair, or at our option, replace a Color Television product which shows evidence of a manufacturing defect in materials or workman(b) ship.

Replacement PARTS are warranted for the remaining portion of the warranty period.

WHAT IS NOT COVERED

(a) Color Television products purchased outside Canada.
(b) Color Television products purchased in a used condition.
(c) Problems due to product set-up and installation.
(d) Adjustments that are outlined in the Operating Manual.
(e) Accessory items including antenna, batteries and connecting cables.
(f) Damage in or due to transportation.
(g) Damage due to improper maintenance, accident, abuse, misuse or negligence.
(h) Damage caused by lightning and power surges.

ORIGINAL RETAIL PURCHASER'S RESPONSIBILITY

You, the original retail purchaser, must present your original, Woodbridge Ont. L4L 9T1 dated bill-of-sale together with this warranty to SANYO Canada [phone] Inc. or to an authorized SANYO Service Depot* when you 1-800-263-2244 make a claim under this warranty.

You, the original retail purchaser, are responsible for any costs of TRANSPORTING the product to and from SANYO Canada Inc. or an authorized SANYO Service Depot. You also are responsible for the cost of any MAINTENANCE necessary in respect of the product.

*In-home service is only available to the units whose screen size is 46 inches or over, and limited to the locations within a 30-km radius of any authorized SANYO Service Depot, throughout Canada.

LIMITATIONS

(a) SANYO Canada Inc. reserves the right to change or improve the design of the model of the product warranted hereunder without incurring any obligation to make any modifications to or to install any improvement in or on the product.

In no event shall SANYO Canada Inc. or any of its Authorized Dealers be liable for special or consequential damage arising from the use of this product.

STATUTORY WARRANTIES

The above provisions do not preclude the operation of any applicable provincial statute which in certain circumstances may not allow some of the limitations and exclusions described in this Warranty. Where any terms of this Warranty are prohibited by such a statute, they shall be deemed null and void but the remainder of this warranty shall remain in effect.

HOW TO OBTAIN WARRANTY SERVICE

Please contact the SANYO Authorized Dealer from whom the product was purchased or contact us directly at:

SANYO Canada Inc.

201 Creditview Road

Woodbridge Ont. L4L 9T1

ATTENTION

RISQUE DE CHOC ÉLECTRIQUE, NE PAS OUVRIR.

ATTENTION : AFIN DE RÉDUIRE LES RISQUES DE CHOC ÉLECTRIQUE, NE RETIREZ PAS LE COUVERCLE (OU L'ENDOS). CET APPAREIL NE CONTIENT AUCUNE PIECE POUVANT ÊTRE RÉPARÉE PAR L'UTILISATEUR. FAITES APPEL À UN TECHNICIEN COMPÉTENT POUR TOUS LES TRAVAUX D'ENTRETIEN OU DE RÉPARATION.

CE SYMBOLE INDIQUE LA PRÉSENCE D'UNE TENSION ÉLECTRIQUE D'UNE INTENSITÉ SUFFISANTE POUR CONSTITUER UN RISQUE DE CHOC ÉLECTRIQUE.

CE SYMBOLE INDIQUE QUE LE MANUEL DE L'UTILISATEUR FOURNI AVEC CET APPAREIL CONTIENT DES INSTRUCTIONS IMPORTANTES CONCERNANT SON UTILISATION ET L'ENTRETIEN.

AVERTISSEMENT : AFIN DE RÉDUIRE LES RISQUES D'INCENDIE OU DE CHOC ÉLECTRIQUE, N'EXPOSEZ PAS L'APPAREIL À LA PLUIE OU À L'HUMIDITÉ.

CONSIGNES DE SÉCURITÉ IMPORTANTES

Illustration of a hand operating a device with arrows indicating motion, next to a grid-patterned panel (no text or symbols)

ENTRÉE D'ANTENNE ANALOGIQUE ET NUMÉRIQUE

Technical illustration of a cable connector with a conical tip and its side view (no text or symbols)

ÉCRAN D'AIDE (OPTIONEL)

Please select the proper location for your TV, the display will be adjusted for best results.

• Press CHannel UP for Store Mode.
• Press Channel DOWN for Home Mode.

Store mode is for the retail display setup. Home mode qualifies for ENERGY STAR.

ÉCRAN INITIAL D'ÉCONOMISEUR D'ÉNERGIE

Please connect all antennas* and signals to the jacks and terminals. Make sure all of your equipment is switched on.

• Press Channel UP or DOWN for Channel/Signal search.
• Press VOLUME DOWN for On Screen Help.

• To avoid signal interference when searching for channels using an Indoor Antenna, place the antenna at least 3 feet away from TV.

ÉCRAN INITIAL DE RECHERCHE DE CHAÎNES/SIGNAUX

Channel and Signal Setup:

Analog Channels...16

Digital Channels...24

Video 1...Yes

HDMI 1...Yes

Video 2...no

HDMI 2...no

Video 3...no

HDMI 3...no

Press Channel UP or DOWN to exit the Setup process. Press Volume DOWN to repeat the process.

If you are having problems, call us toll-free at 1-800-877-5032

ÉCRAN DE LISTES DE CHAÎNES/SIGNAUX

UTILISATION DE LA TÉLÉCOMMANDE

ÉCRAN D'IMAGE (MANUEL)

ÉCRAN DE PHOTO MINIATURE
