USER MANUAL DP46841 SANYO

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit fully into your outlet, consult an electri- cian for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the

12. Use only with the cart, stand, tripod,

bracket, or table specified by the manu- facturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when

unused for long periods of time.

14. Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

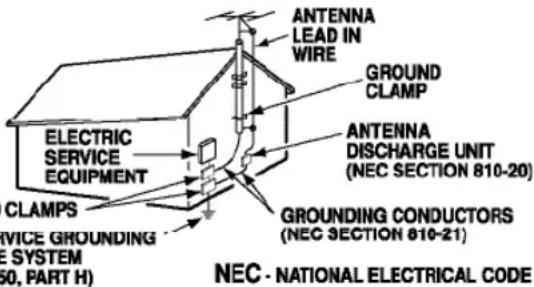

15. If an outside antenna is connected to the television

equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges. In the U.S. Selection 810-21 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding elec- trodes, and requirements for the grounding electrodes.

16. An outside antenna system should not be located in the

vicinity of overhead power lines or other electrical light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. EXAMPLE OF ANTENNA GROUNDING ACCORDINGTO NATIONAL ELECTRICAL CODE, ANSI/NFPA 70“Note to CATV system installer:This reminder is provided to call the CATV system installer’sattention to Article 820-40 of the NEC that provides guidelines forproper grounding and, in particular, specifies that the cableground shall be connected to the grounding system of the build-ing, as close to the point of cable entry as practical.”

17. Wall or Ceiling Mounting—The product should be

mounted to a wall or ceiling only as recommended by the manufacturer.

18. Apparatus shall not be exposed to dripping or splashing

and no objects filled with liquids, such as vases, shall be placed on the apparatus.

19. When the MAINS plug is used as the disconnect device,

the disconnect device shall remain readily operable. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN!CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (ORBACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SER-VICE PERSONNEL.THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING ARISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING ANDMAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THISUNIT.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO

FCC INFORMATION __________ This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interfer- ence in a residential installation. This equipment gen- erates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encour- aged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit dif- ferent from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV tech- nician for help. CAUTION: FCC Regulations state that improper modifi- cations or unauthorized changes to this unit may void the user’s authority to operate the unit. As an Energy Star® Partner, Sanyo Manufacturing Corporation has determined that this product meets the Energy Star® guidelines for energy efficiency. TRADEMARKS _______________ Manufactured under license from Dolby Laboratories. “Dolby” is a trademark of Dolby Laboratories. HDMI, the HDMI Logo and High- Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. This Class B digital apparatus complies with Canadian ICES-003. Manufactured under license from Audyssey Laboratories. U.S. and foreign patents pending. Audyssey Dynamic Volume

is a trademark of Audyssey Laboratories. SPECIFICATIONS Power Requirement: Source: AC 120V, 60Hz AC Power Consumption: Weight: DP42841 178 watts 33 lbs. DP46841 178 watts 41 lbs. Dimensions:

Always use a firm and flat surface when positioning your HDTV.

Do not position the unit in a confined area.

Allow adequate space for proper ventilation.

Do not position the HDTV where it is easily reachable by small children and may present risk of injury.

Once HDTV is positioned, remove the protective film covering the front cabinet. NOTE: Button area on bottom right hand corner will be more accesible once film is removed. “The American Academy of Pediatrics discourages television viewing for children younger than two years of age”

PROTECTING THE LCD SCREEN

CAUTION: The screen can be damaged if it is not maintained properly.

Do not use hard objects such as hard cloth or paper to clean the screen.

Do not use excessive pressure when cleaning the screen; excessive pressure can cause permanent discoloration or dark spots.

NEVER spray liquids on the screen. HANDLING PRECAUTIONS

Handle by the cabinet only.

Handling by two or more people is recommended.

Never touch the screen when handling.

Handling damage is not covered under warranty.

Do not remove the protective film covering the front cabinet while handling the HDTV. Please read before operating your HDTV! CONTAINS MERCURY LAMPS,

DISPOSE OF PROPERLY5

Need help? www.sanyoctv.com 1-800-877-5032 Hook up your antenna or your cable service to theHDTV’s ANT terminal with the use of a 75 OHMcoaxial cable.NOTE: Keep your indoor antenna at least 3 ft. awayfrom the television set and any other electronicequipment.The tuner in this HDTV can receive:• Digital and Analog off air signals from an antenna• Analog or ClearQAM cable channels from a directCable TV connection. GETTING STARTED Install two (2) “AAA” batteries in the remote control.(Not included)To ensure safe operation, please observethe following precautions:• Replace both batteries at the same time. Do not usea new battery with a used battery. • There’s a risk of explosion if a battery is replaced byan incorrect type.• Do not expose the Remote Control unit to moisture or heat.

• Be sure to match the “+” and “–” signs on the batteries with marks inside the remote control.• Please properly dispose of used up batteries.

ANTENNA CONNECTION FOR

OFF-AIR SIGNALS OR CABLE

ANTENNACABLEANALOG / DIGITALANTENNA IN

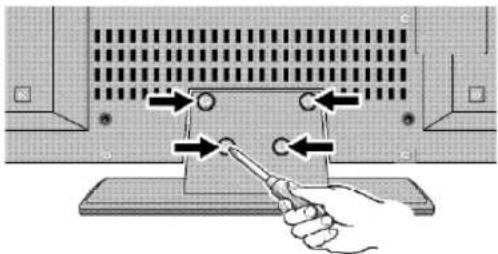

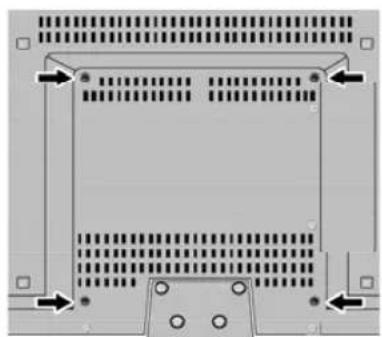

BATTERY INSTALLATION Wall mounting of the HDTV must be performedby a skilled person.If stand base disassembly is required: Place HDTV face downon a padded or cushionedflat surface to protect the screen and finish. Remove the four (4) screws securing the foot stand.CAUTION: Hold the stand firmly as you remove thelast screw.Use the screws you would use to attach the stand baseto secure the HDTV to a wall mounting kit.NOTE: Wall mounting kit is not included.VESA standard interface: 400 x 400Mounting screws measurements: M6 (6mm) Diameter, Length—12mm (maximum) WALL MOUNTING (OPTIONAL) Wall MountingInsertsNOTE: Skip these steps if you are wall mounting the TV. Place HDTV face down on a padded or cushionedflat surface to protect the screen and finish. Carefully insert the stand base to the bottom of theHDTV and secure the base by inserting 4 screws asindicated in the diagram below.NOTE: Stand base screws are located in the literaturepackage. Position the HDTV on a firm and flat surface withadequate space for proper ventilation. STAND ASSEMBLY ___________6 Need help? www.sanyoctv.com 1-800-877-5032 GETTING STARTED

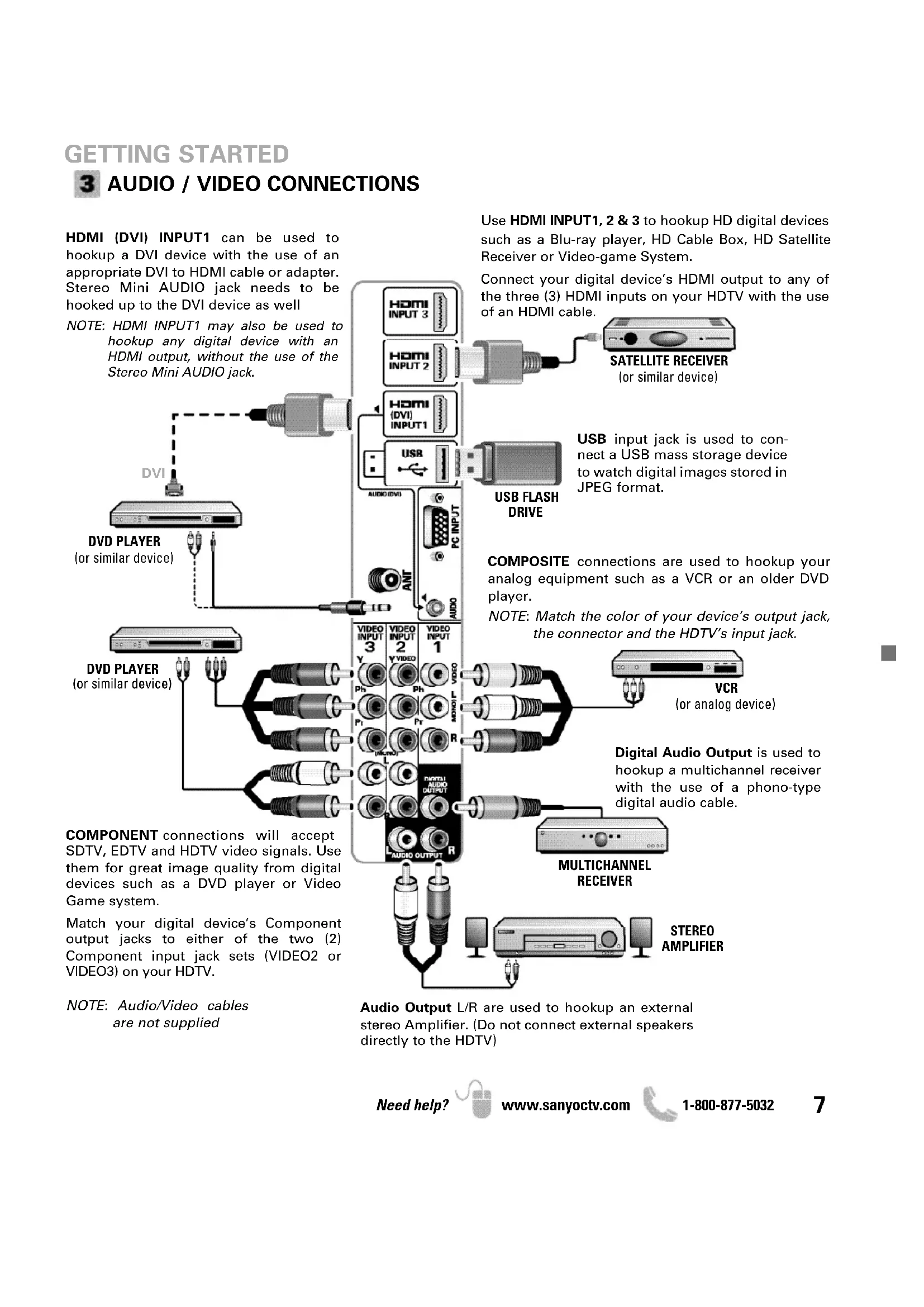

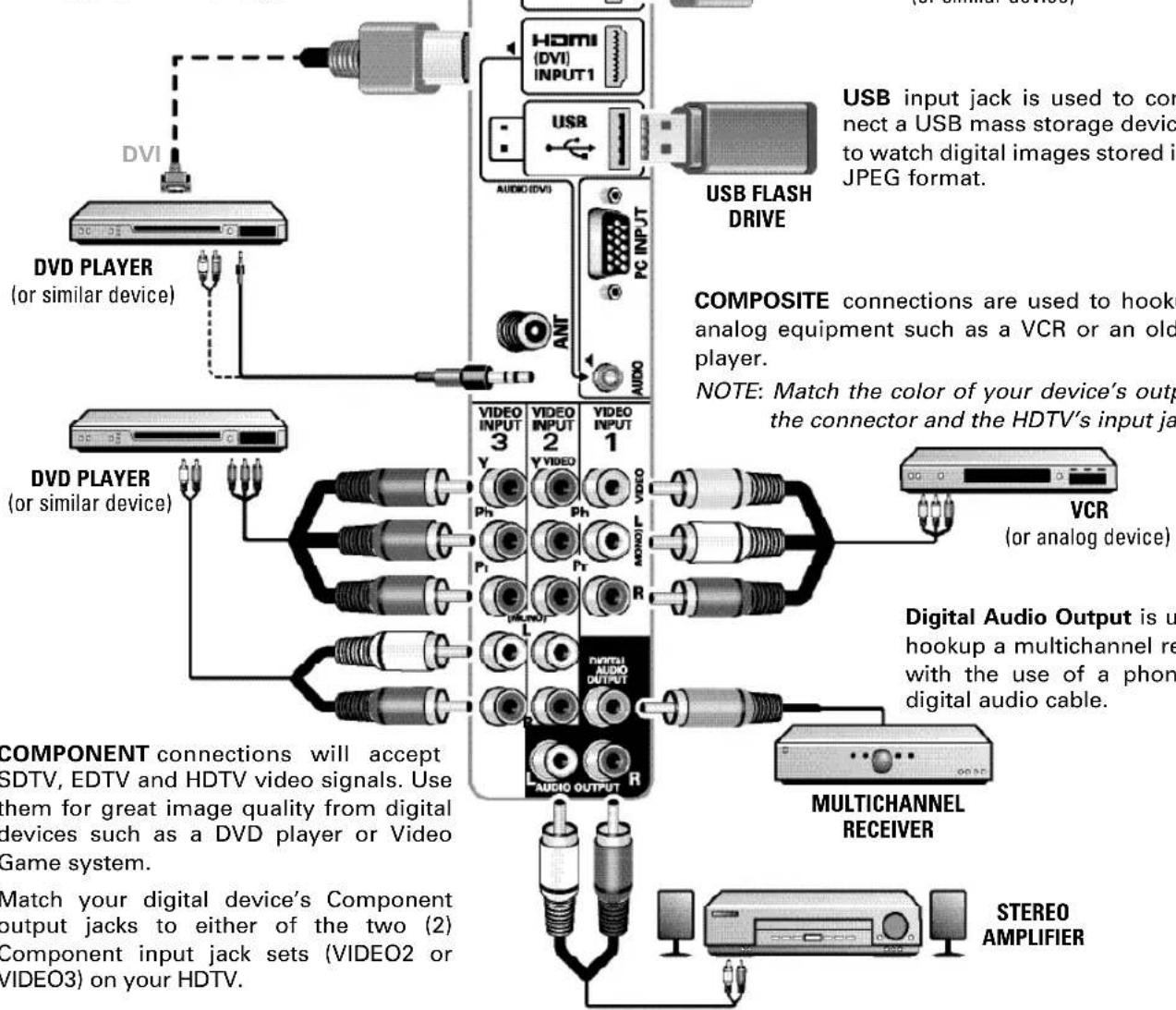

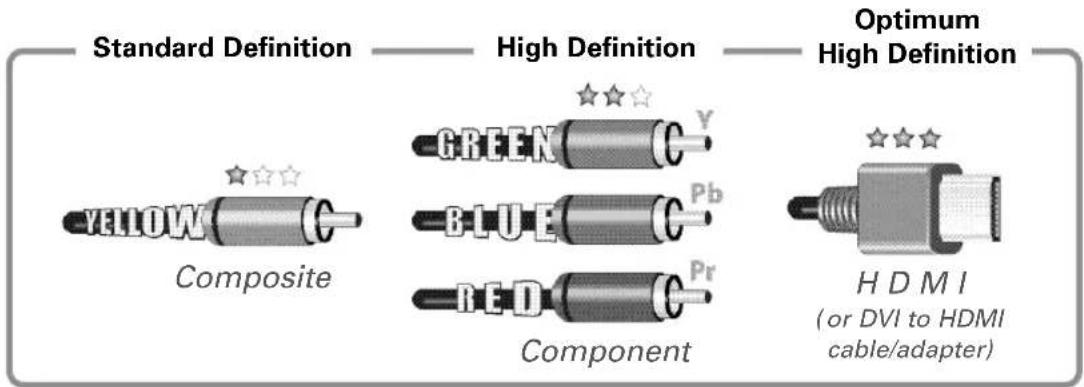

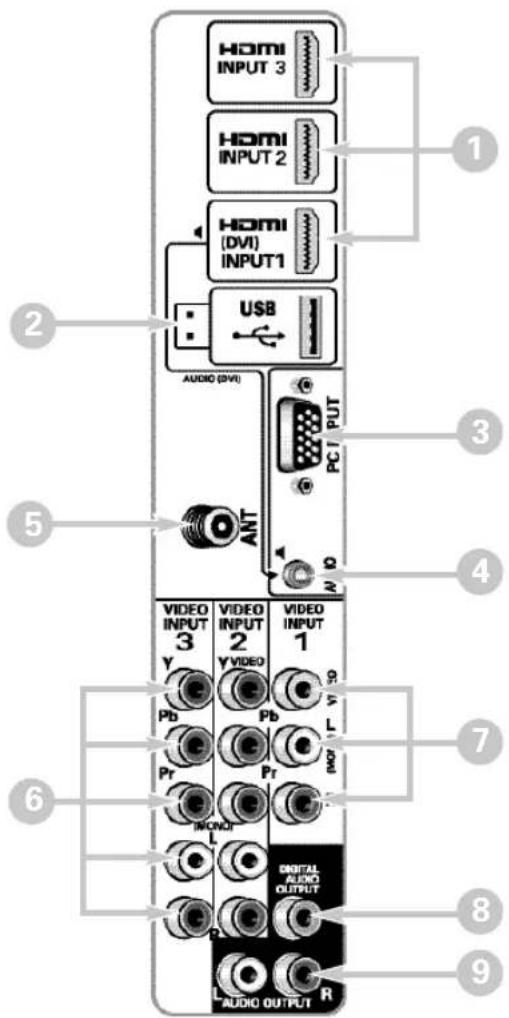

Composite Component NOTE: Composite, Component, and DVI video connections need their appropriate audio connections.High Definition image available from HD signals and HD equipment.Standard DefinitionHigh DefinitionOptimumHigh Definition H D M I (or DVI to HDMIcable/adapter)

DVD PLAYER (or similar device) VCR (or analog device) MULTICHANNEL RECEIVER NOTE: Audio/Video cables are not supplied COMPONENT connections will accept SDTV, EDTV and HDTV video signals. Use them for great image quality from digital devices such as a DVD player or Video Game system. Match your digital device’s Component output jacks to either of the two (2) Component input jack sets (VIDEO2 or VIDEO3) on your HDTV. SATELLITE RECEIVER (or similar device) USB FLASH DRIVE HDMI (DVI) INPUT1 can be used to hookup a DVI device with the use of an appropriate DVI to HDMI cable or adapter. Stereo Mini AUDIO jack needs to be hooked up to the DVI device as well NOTE: HDMI INPUT1 may also be used tohookup any digital device with anHDMI output, without the use of theStereo Mini AUDIO jack. USB input jack is used to con- nect a USB mass storage device to watch digital images stored in JPEG format. DVI Use HDMI INPUT1, 2 & 3 to hookup HD digital devices such as a Blu-ray player, HD Cable Box, HD Satellite Receiver or Video-game System. Connect your digital device’s HDMI output to any of the three (3) HDMI inputs on your HDTV with the use of an HDMI cable. Audio Output L/R are used to hookup an external stereo Amplifier. (Do not connect external speakers directly to the HDTV) STEREO AMPLIFIER COMPOSITE connections are used to hookup your analog equipment such as a VCR or an older DVD player. NOTE: Match the color of your device’s output jack, the connector and the HDTV’s input jack. Digital Audio Output is used to hookup a multichannel receiver with the use of a phono-type digital audio cable. DVD PLAYER (or similar device)8 Need help? www.sanyoctv.com 1-800-877-5032

REMOTE CONTROL OPERATION

Turns your HDTV On or Off. Selects the video source to view. Holding down the key displays the Input List. Modifies the Energy Saver level (see page 10 for details.) Selects the desired Audio mode. Stereo, Mono, or SAP (when available.) Displays the current switch on time (see Clock Timer on page 10 for details.) Cycles through the available Caption modes (when available.) Pressing it twice restores your HDTV to its factory settings. All user customized set- tings will be cleared. Displays the “Off” Timer. While Off Timer is on-screen, press the “0” key to Set the amount of time (in 30 minute increments) at which the HDTV will turn off. Select channels directly. For channels 100 and up, press and hold the first number, then enter the remaining two numbers. Scan through the channels in the memory database. Increases or decreases the audio level. Allows for the direct selection of digital subchannels. For example: to select channel 39.1 press the 3 and 9 keys, followed by the dash

, and 1 keys. Switch between current channel and last selected channel or input. Mute or restore the sound. Displays the Channel Information banner. Cycles through the available aspect ratios. The different settings either stretch, zoom, or fill the image on your screen. Bars may appear on top and bot- tom of your screen (or on left and right sides) depending on the broadcasted sig- nal or program. (See page 15) Modifies the Dynamic Volume feature settings (see page 13 for details.) Displays on-screen Help menu. Displays or hides the on-screen menu. Move the on-screen cursor in the desired direction. Set or select the highlighted option on the screen. Exits the on-screen menu.9 Need help? www.sanyoctv.com 1-800-877-5032 1. PLUG IN AC POWER CORD120V AC, 60Hz2. TURN ON TV (PRESS POWER BUTTON)Wait for on-screen instructions to set an Initial EnergySaving Mode, and perform an Initial Channel/SignalSearch.3. TV SET LOCATION SELECTION:Select “Home Mode” by pressing the CH key to setthe HDTV’s backlight to an Energy Star qualifiedlevel, or select “Store Mode” by pressing CH to setthe backlight to a retail display level.4. CHANNEL AND AV SIGNAL SEARCH:Press the CH key to perform a channel searchfrom an Antenna or a direct Cable connection, followed by a signal search from devices hooked upto the HDTV’s AV input jacks.5. CHANNEL AND SIGNAL SETUP SCREENThe final setup screen displays analog and digitalchannels found as well as AV inputs detected.Pressing the CH key finalizes the setup process.NOTE: To repeat the initial setup process pressthe MENU key. GETTING STARTED (CONTINUED)

INITIAL CHANNEL SEARCH

Before proceeding, please make sure to correctlyhook up your antenna or cable connection and allAV equipment to your HDTV.

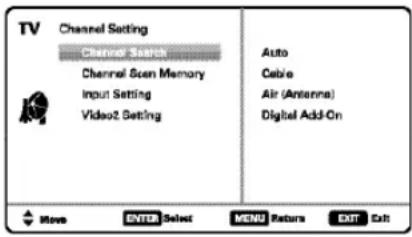

Press the INPUT key to select the correct AV input for the video source you wish to watch.NOTE: Unused AV inputs may be disabled with the InputSetting feature (see page 10). CHANNEL SETTING Auto – Searches the detected mode, Cable or Air.Cable – Searches for analog and unscrambled(ClearQAM) digital cable channels.Air (Antenna) – Searches for analog and digital off-airchannels.Digital Add-On – Searches digital channels adding newlyfound digital channels to the channel database. Channel Search Display the On Screen menu and use the CURSOR keys to select Channel Setting. Press ENTER.

ON-SCREEN MENU OPERATION

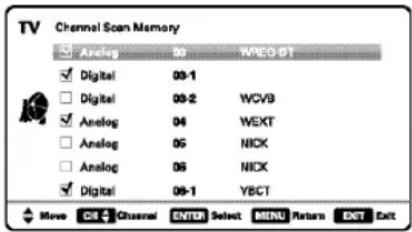

Channel Scan Memory lists all Analog and Digital chan-nels found. It also lists Analog channels that were notfound, which can be added.Use the CURSOR keys to move the channel selectbar through all enabled and disabled channels, or use the CH keys to skip all disabled channels. Press ENTER to enable or disable the selected channel.NOTE: For information on local digital channels, visitwww.antennaweb.org Channel Scan Memory IMPORTANT FACT: This HDTV maintains only one database ofdigital channels. Therefore, when you search for cable channels,the database of antenna digital channels will be deleted. You willonly be able to receive those ClearQAM channels your cablecompany provides.10 Need help? www.sanyoctv.com 1-800-877-5032 CHANNEL SETTING (CONTINUED)

ON-SCREEN MENU OPERATION

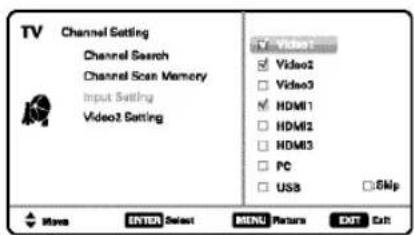

Input Setting feature allows the removal of unusedinputs from the AV input loop.Use the CURSOR keys to select an AV input. PressENTER to disable (uncheck) or enable (check) the high-lighted input.NOTE: At least one input must and will remain checked.:Skip is for reference only. Input Setting Use this feature to establish either a Component orComposite connection to the VIDEO INPUT 2 jacks onyour HDTV. Use the CURSOR keys to select the type of connec- tion you’ll use in VIDEO INPUT 2. Press ENTER, a blue mark will appear next to the selected option indicating it as the active option. Video2 Setting SETUP Display the On Screen menu and use the CURSOR keys to select Setup. Press ENTER. Menu Language Choose between English, Spanish and French for yourOn Screen menu’s display language. Press ENTER on the desired language.Captioning is textual information transmitted along withthe picture and sound. Turning Captioning ON (bypressing the CAPTION key during normal TV viewing)causes the HDTV to open these captions (digital or analog) and superimpose them on the screen.NOTE: Local broadcasters decide which caption signalsto transmit. Use the CURSOR and keys to modify Font, Background, and Foreground of digital caption text. Digital Caption Energy Saver settings control the LCD backlight brightness to reduce power consumption.• Level 1: Energy Saver feature is off.• Level 2: Low power consumption.• Level 3: Lowest power consumption.Press ENTER on the desired level.NOTE: ECO key may also be used as a shortcut to modify the Energy Saver settings. Energy Saver This feature allows you to set a Current Time for yourHDTV and enable a Switch On Time for the HDTV toturn on at a specific time of day. When On Timer Function is set to ON, the TV will automatically turn on at the previously set Switch onTime. Clock Timer11 Need help? www.sanyoctv.com 1-800-877-5032 This feature detects ambient room light brightness anduses that reading to control the panel brightness leveland picture parameters to reduce the HDTV’s powerconsumption.NOTE: When room lighting is dark, the panel bright-ness and/or the picture setting parameters suchas brightness and contrast are lowered. Whenroom lighting is bright, parameters are affectedopposite. Use the CURSOR keys to select On or OFF and press ENTER. Light Sensor Use this feature to automatically block programs withcontent you deem as inappropriate for viewing by yourchildren.NOTE: This feature is designed to comply with theUnited States of America’s FCC V-Chip regula-tions. Therefore, it may not function with broad-casts that originate in other countries.ADJUSTING THE V-CHIP RATINGS Select ON and press ENTER. Select Adjust (Standard) and press ENTER. V-Chip (parental control) NOTE: Blocking a rating will automatically block allhigher ratings. Unblocking a rating will auto-matically unblock all lower ratings.For V-Chip (Movie) ratings select Movie and pressENTER, and then select the desired MPAA rating limit.Press the EXIT key to close the V-Chip menu. For V-Chip (TV) ratings select TV and press ENTER. Use the CURSOR keys to select a rating and press ENTER. Use the CURSOR keys to set the rating’s status as Blocked or Viewable. Once ratings are set, press the EXIT key to close the V-Chip menu.NOTE: Some TV ratings offer more detailed settingssuch as Dialogue, Language, Sexual, andViolence. ADVANCED V-CHIP SYSTEM (RRT5)RRT5 (V-Chip Regional Ratings 5) is an advanced V-Chipratings system for over the air digital channels. When theHDTV detects compatible RRT5 data, it’s downloaded &stored in memory, and the Setup V-Chip screen is thenmodified to show the Adjust (Advanced) option. Use the CURSOR and keys to highlight the different options, and use the ENTER key to block orunblock the selected rating.NOTE: When vertical scroll bars appear, press CURSOR to gain access to the additional ratings.MORE INFORMATIONAdditional information about MPAA (Motion PictureAssociation of America) and V-Chip rating can befound at: www.mpaa.org and www.v-chip.org,respectively.When Auto Shut-off feature is set to ON, it will allowthe HDTV to automatically turn off when no videoand/or audio signals are being received.NOTES: By factory default, this feature is set to ON.TV will automatically turn off if no AV signalsare received in a time span of 15 minutes. Use the CURSOR keys to select On or OFF and press ENTER. Auto Shut-off12 Need help? www.sanyoctv.com 1-800-877-5032 Pix1 Shows a standard definition 4:3 image in its original format, a 16:9 wide image is slightly compressed horizontally. Pix2 Fills the entire image on the screen. A 4:3 image is slightly stretched horizontally. Pix3 Image is stretched vertically in comparison with Pix2. Pix4 Image is stretched horizontally in comparison with Pix3. Pix5 Similar to Pix2, image is enlarged horizontally but in a linear proportion in which center portionof screen is stretched less than the sides. Pix6 Similar to Pix1 with no Overscan*. Pix7 Similar to Pix2 with no Overscan*.

• Overscan permits the image to slightly exceed bot-tom and top edge limitations.NOTE: Pix6 and Pix7 are not optimal for StandardDefinition content (a thin white line may appearnear edge of screen). Pix6 and Pix7 use is recom-mended only for PC signal through HDMI. Pix-Auto (AFD) Active Format Description. Data carried in the video stream includes coded pictureframe information of the actual image, allowing the TVto adjust the Pix-Shape automatically.NOTE: AFD Pix-Shape mode is available only for Digital-RF input. UNDERSTANDING PIX-SHAPE PICTURE

ON-SCREEN MENU OPERATION

Display the On Screen menu and use the CURSOR keys to select Picture. Press ENTER. You may choose between Vivid, Mild, and Standard, which have predetermined fixed picture parameter values, or choose the Manual option for customizedpersonal settings.NOTE: Each AV input can have its own picture mode(pre-determined or manual.) Current input’sselected option is indicated by a blue marker.

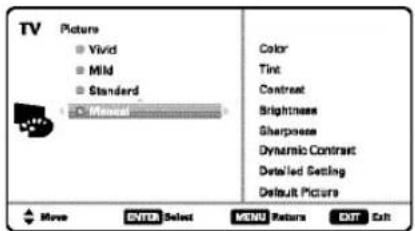

MANUAL PICTURE SETTINGS

Manual parameters to adjust include: Color

Contrast Brightness Sharpness Dynamic Contrast The Detailed Setting option allows for the adjustment of 7 additional parameters such as: Signal Balancer Noise Reduction White Balance Vertical Sharpness Edge Enhancer H-Size V-SizeNOTE: Default Picture option returns all picture parame-ters to their original factory settings.

ADJUSTING A PICTURE SETTING

Use the CURSOR keys to highlight the picture param- eter you wish to adjust. Press the ENTER key to enter thevalue adjustment screen. Modify the selected parameter’s value by pressing the CURSOR keys. NOTE: CURSOR keys select the next/previous parameter without returning to the previousmenu screen.Once adjustments are complete, press the EXIT key toreturn to normal TV viewing.NOTE: Images on left are for a 4:3 transmission whileimages on right are for a 16:9 transmission.13 Need help? www.sanyoctv.com 1-800-877-5032 SOUND

ON-SCREEN MENU OPERATION

Display the On Screen menu and use the CURSOR keys to select Sound. Press ENTER. Choose an option for your sound settings: Auto – Sound settings are linked to the current Picture option and parameters are adjusted accordingly. Dynamic, Mild, Standard – Predetermined sound parameters not linked with any Picture option.

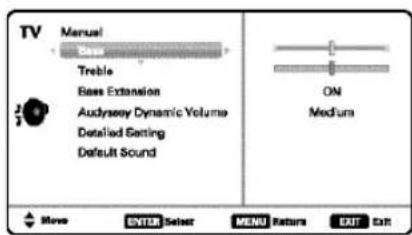

MANUAL SOUND SETTINGS

Detailed Setting – 4-Band Equalizer: Personalize audio highs and lows. NOTE: Default Sound option returns all sound parame- ters to their original factory settings.

Audyssey Dynamic Volume solves the problem of large varia-tions in volume level between television programs, commercials,and between the soft and loud passages of movies. AudysseyDynamic EQ is integrated into Dynamic Volume so that as the play-back volume is adjusted automatically, the perceived bassresponse, tonal balance, surround impression and dialog clarityremain the same.

ADJUSTING A SOUND SETTING

Use the CURSOR keys to highlight the sound param- eter you wish to adjust. Press the ENTER key to enter the value adjustment screen. Modify the selected parameter’s value by pressing the CURSOR keys. NOTE: CURSOR keys select the next/previous parameter without returning to the previous menu screen. Once adjustments are complete, press the EXIT key to return to normal TV viewing.

USING THE PHOTO VIEWER

Press ENTER on a thumbnail photo to enable the Rotate, Full View and Start Slideshow functions. Once in Full View mode: Use the CURSOR keys to change picture. Press ENTER to show the full view options menu.

Browse Photo SLIDE SHOW In the Slideshow Setup menu you may turn the Shuffle and Quick Change options ON or OFF. Press ENTER on Start Slideshow either from the Thumbnail View Screen or from the full view options menu to start the slideshow from the current picture.

JPEG VIEWER USB MENU

Press MENU when in Full View or Slideshow mode to display the USB On screen menu. Picture Setting – Adjust Color, Tint, Contrast, Brightness, Sharpness and Dynamic Contrast. NOTE: Picture Settings are separate configurations from the settings in TV and AV inputs. NOTE: A thumbnail hide icon will appear if a picture cannot be decoded or if no thumbnail data is available. View pictures on your HDTV with the use of a USB mass storage device (not included.) NOTE: The HDTV switches to USB Input when a USB flash drive is detected. USB FLASH DRIVE PHOTO VIEWER USB INPUT14 Need help? www.sanyoctv.com 1-800-877-5032 PC Setting Auto Adjustment – Automatically adjusts display posi- tion, dot clock and phase. Dot Clock – Adjust the Dot frequency to match your computer’s Dot frequency. Phase – Adjust this parameter when the picture appears to flicker or is blurred. H-Position – Move the image horizontally V-Position – Move the image vertically Power Saving – Enable the HDTV to turn to Standby Mode when computer is not in use. PC Picture and Sound Standard – Sets predetermined values to the Picture or Sound parameters. Manual – Adjust Contrast, Brightness, and Color Temperature screen settings, and the Bass and Treble audio settings. NOTE: These settings do not affect normal TV viewing. Laptop Display When using your Sanyo HDTV to display a Laptop’s screen display, holding down the Fn (or FN) key while pressing the appropriate function key (F5, F7, F8, etc) should cycle through different display modes between the laptop and the HDTV. Modes may include displaying only on the laptop screen, on both the laptop and the HDTV, or displaying only on the HDTV. NOTE: Fn key and function key symbols on the laptop’s keyboard may vary from one brand to another. Hold down and press

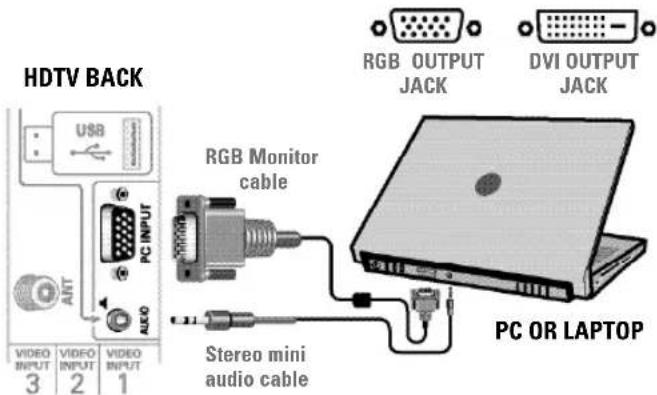

HDTV BACK RGB Monitor cable Stereo mini audio cable NOTE: Sanyo recommends using a monitor cable that includes a Ferrite Core. DVI OUTPUT JACK RGB OUTPUT JACK Use your HDTV as a computer monitor by hooking up your PC or Laptop to the TV with the use of an appropri- ate monitor cable (not included.) Before connecting any cables, disconnect the AC power cords of both the HDTV and PC from the AC outlets. Power on the HDTV and any other peripheral equipment before powering on the computer. To avoid an “Out of Range” condition please set your PC’s output resolution to one compatible with your HDTV. See PC Resolution chart on page 3. NOTE: If computer has only DVI Output, a DVI to RGB adapter will be required, or, a DVI to HDMI cable and RCA audio cables (see HDMI (DVI) INPUT1 on page 7.) PC INPUT15 Need help? www.sanyoctv.com 1-800-877-5032 Your Sanyo HDTV is registered at the time of purchase, please keep sales receipt for future reference. For your protection in the event of theft or loss of this product, please fill in the information requested below and KEEP IN A SAFE PLACE FOR YOUR OWN PERSONAL RECORDS. Model No.______________________________ Date of Purchase _________________________ Serial No.______________________________ Purchase Price ___________________________ Where Purchased_________________________ (Located on back of unit) Sanyo Manufacturing Corp. 3333 Sanyo Road, Forrest City, AR 72335

ONE-YEAR LIMITED PARTS AND LABOR WARRANTY

THIS LIMITED PARTS AND LABOR WARRANTY IS VALID ONLY ON SANYO TELEVISIONS PURCHASED AND USED IN THE UNITED STATES OF AMERICA, CANADA, AND PUERTO RICO, EXCLUDING ALL OTHER U.S. TERRITORIES AND PROTECTORATES. THIS LIMITED WARRANTY APPLIES ONLY TO THE ORIGINAL RETAIL PURCHASER, AND DOES NOT APPLY TO PRODUCTS USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES. WARRANTY APPLICATION FOR ONE YEAR from the date of original retail purchase Sanyo Manufacturing Corporation (SMC) warrants this TV to be free from manufacturing defects in materials and workmanship under normal use and conditions for parts and labor. For the FIRST 90 DAYS from the date of original retail purchase, Sanyo Manufacturing Corporation will replace any defective TV via exchange at the retailer. To ensure proper warranty application, keep the original-dated-sales receipt for evidence of purchase. Return the defective TV to the retailer along with the receipt and the included accessories, such as the remote control. The defective TV will be exchanged for the same model, or a replacement model of equal value, if necessary. Replacement model will be contingent on availability and at the sole discretion of Sanyo Manufacturing Corporation. THE FOREGOING WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. OBLIGATIONS For one year from the date of purchase, Sanyo Manufacturing Corporation warrants this product to be free from defects in material and workmanship under normal use and conditions. During the first 90 days under this warranty for any manufacturing defect or malfunction Sanyo Manufacturing Corporation will provide a new TV via exchange at the retailer. HOW TO MAKE A CLAIM UNDER THIS WARRANTY Please call 1-800-877-5032. Please be prepared to give us the television’s model number and serial number when you call. The model number and serial number are printed on a label attached to the back of the unit. For customer assistance, call toll free 1-800-877-5032. This warranty expresses specific contractual rights; retail purchasers may have additional statutory rights which vary from state to state. (EFFECTIVE: March 1, 2007)16 ¿Necesita ayuda? www.sanyoctv.com 1-800-877-5032 PRECAUCIÓN RIESGO DE CHOQUE ELÉCTRICO ¡NO ABRIR!PRECAUCIÓN: PARA REDUCIR EL RIESGO DE CHOQUE ELÉCTRICO, NO QUITE LA CUBIERTA(O LA TAPA TRASERA). NO HAY PARTES ADENTRO QUE LAS PUEDA REPARAR EL USUARIO.REFIÉRASE A PERSONAL CALIFICADO PARA REPARAR EL APARATO.ESTE SÍMBOLO INDICA QUÉ VOLTAJES PELIGROSOS QUE CONSTI-TUYEN UN RIESGO DE CHOQUE ELÉCTRICO ESTÁN PRESENTES DEN-TRO DE ESTA UNIDAD.ESTE SÍMBOLO INDICA QUE HAY INSTRUCCIONES IMPORTANTES DEOPERACIÓN Y MANTENIMIENTO EN LA LITERATURA QUE SE ANEXA AESTA UNIDAD. ADVERTENCIA: PARA REDUCIR EL RIESGO DE FUEGO O CHOQUE ELÉCTRICO, NO EXPONGA ESTE APARATO A LLUVIA O HUMEDAD.

CONTIENT DES LAMPES AU
