USER MANUAL CE47FD51-B SANYO
Safety Precautions 4
Power Source 4
Power Cord 4
Moisture and Water 4
Cleaning.... 4
Ventilation 5
Heat and Flames 5
Lightning 5
Replacement Parts 5
Servicing.... 5
Waste Disposal....5
Information for Users in European Union
Countries 5
Disconnecting the Device 6
Headphone Volume......6
Installation.... 6
LCD Screen 6
Warning 6
Overview of the Remote Control 7
LCD TV and Operating Buttons 8
Viewing the Connections 9
Power Connection 11
Aerial Connection 11
Connecting the LCD TV to a PC 12
Connecting to a DVD Player 13
Using Side Connectors 14
InsertingBatteriesin theRemoteControlHandset .... 15
Operating Range for the Remote Control ..... 15
Switching the TV On/Off 16
To Switch the TV On 16
To Switch the TV Off 16
Navigating the Menu System 16
Initial Settings.... 16
Basic Operations 17
Operation with the Buttons on the TV 17
Volume Setting 17
Programme Selection 17
Entering Main Menu 17
AV Mode 17
Operation with the Remote Control 17
Volume Setting 18
Programme Selection (Previous or Next Programme) 18
Programme Selection (Direct Access) ..... 18
Everyday Operation 18
Information Banner 18
Electronic Programme Guide (EPG) 18
Displaying the Subtitles 19
Digital Teletext 20
Over Air Download 20
Widescreen 20
IDTV Menu System 21
Channel List 21
Navigating the Entire Channel List 21
Deleting the Channels in the Channel List ... 21
Renaming Channels 22
Adding Locks to Channels 22
Setting Favourites 22
On Screen Help 23
Installation 23
Add New Channels 23
Automatic Search 23
Manual Search.... 23
Configuration 24
Audio Language 25
Subtitle 25
Favourite Mode 25
EPG Preference 25
Receiver Upgrade 25
Automatic Download (Automatic Upgrade) 26
Search for New Version (Manual Upgrade) 26
Parental Settings 26
Timers 27
Language.... 27
TV Setup.... 28
Common Interface 28
Menu System 29
Picture Menu 29
Mode.... 29
Contrast/Brightness/Sharpness/Colour/Hue 29
ColourTemp 29
Noise Reduction.... 29
FilmMode 29
Store 29
Reset 29
Sound Menu.... 30
Volume 30
Equalizer 30
Balance 30
Headphone.... 30
Volume 30
Balance.... 30
Sound Mode.... 30
AVL 30
Effect 30
Dynamic Bass.... 31
3DPanorama.... 31
Subwoofer.... 31
Store 31
Feature Menu.... 31
Sleep Timer 31
Child Lock 31
Language.... 32
EXT-2 Out.... 32
Default Zoom.... 32
©
©
Introduction
Thank you for choosing this product. This manual will guide you for the proper operation of your TV. Before operating the TV, please read this manual thoroughly.
Please do keep this manual in a safe place for future references.
Preparation
For ventilation, leave a free space of at least 10 cm all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set.
Use this device in moderate climates.
Safety Precautions
Please read the following recommended safety precautions carefully for your safety.
Power Source
The TV set should be operated only from a 220-240 V AC, 50 Hz outlet. Ensure that you select the correct voltage setting for your convenience.
Power Cord
Do not place the set, a piece of furniture, etc.
on the power cord (mains lead) or pinch the cord. Handle the power cord by the plug. Do not unplug the appliance by pulling from the power cord and never touch the power cord with wet hands as this could cause a short circuit or electric shock. Never make a knot in the cord or tie it with other cords. The power cords should be placed in such a way that they are not likely to be stepped on. Adamaged power cord can cause fire or give you an electric shock. When it is damaged and needs to be replaced, it should be done by qualified personnel.
Moisture and Water
Do not use this device in a humid and damp place (avoid the bathroom, the sink in the kitchen, and near the washing machine). Do not expose this device to rain or water, as this may be dangerous and do not place objects filled with liquids, such as flower vases, on top. Avoid from dripping or splashing.
If any solid object or liquid falls into the cabinet, unplug the TV and have it checked by qualified personnel before operating it any further.
Cleaning
Before cleaning, unplug the TV set from the wall outlet. Do not use liquid or aerosol cleaners. Use soft and dry cloth.
Ventilation
The slots and openings on the TV set are intended for ventilation and to ensure reliable operation. To prevent overheating, these openings must not be blocked or covered in anyway.
Heat and Flames
The set should not be placed near to open flames and sources of intense heat such as an electric heater. Ensure that no open flame sources, such as lighted candles, are placed on top of the TV. Batteries should not be exposed to excessive heat such as sunshine, fire or the like.
Lightning
In case of storm and lightning or when going on holiday, disconnect the power cord from the wall outlet.
Replacement Parts
When replacement parts are required, make sure that the service technician has used replacement parts, which are specified by the manufacturer or have the same specifications as the original one. Unauthorized substitutions may result in fire, electrical shock or other hazards.
Servicing
Please refer all servicing to qualified personnel. Do not remove the cover yourself as this may result in an electric shock.
Waste Disposal
Instructions for waste disposal:
- Packaging and packaging aids are recyclable and should principally be recycled. Packaging materials, such as foil bag, must be kept away from children.
- Batteries, including those which are heavy metal-free, should not be disposed of with household waste. Please dispose of used battery in an environment friendly manner. Find out about the legal regulations which apply in your area.
- Cold cathode fluorescent lamp in LCD PANEL contains a small amount of mercury; please follow the local laws or regulations for disposal.
Information for Users in European Union Countries
This symbol on the product or on its packaging means that your electrical and electronic device should be disposed at the end of its service life separately from your household wastes. There are
separate collection systems for recycling in EU.
For more information, please contact the local authority or the dealer where you purchased the product.
Disconnecting the Device
The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable.
Headphone Volume
Excessive sound pressure from earphones and headphones can cause hearing loss.
Installation
To prevent injury, this device must be securely attached to the wall in accordance with the installation instructions when mounted to the wall (if the option is available).
LCD Screen
The LCD panel is a very high technology product with about a million thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product.
Warning
Do not leave your TV in standby or operating mode when you leave your house.

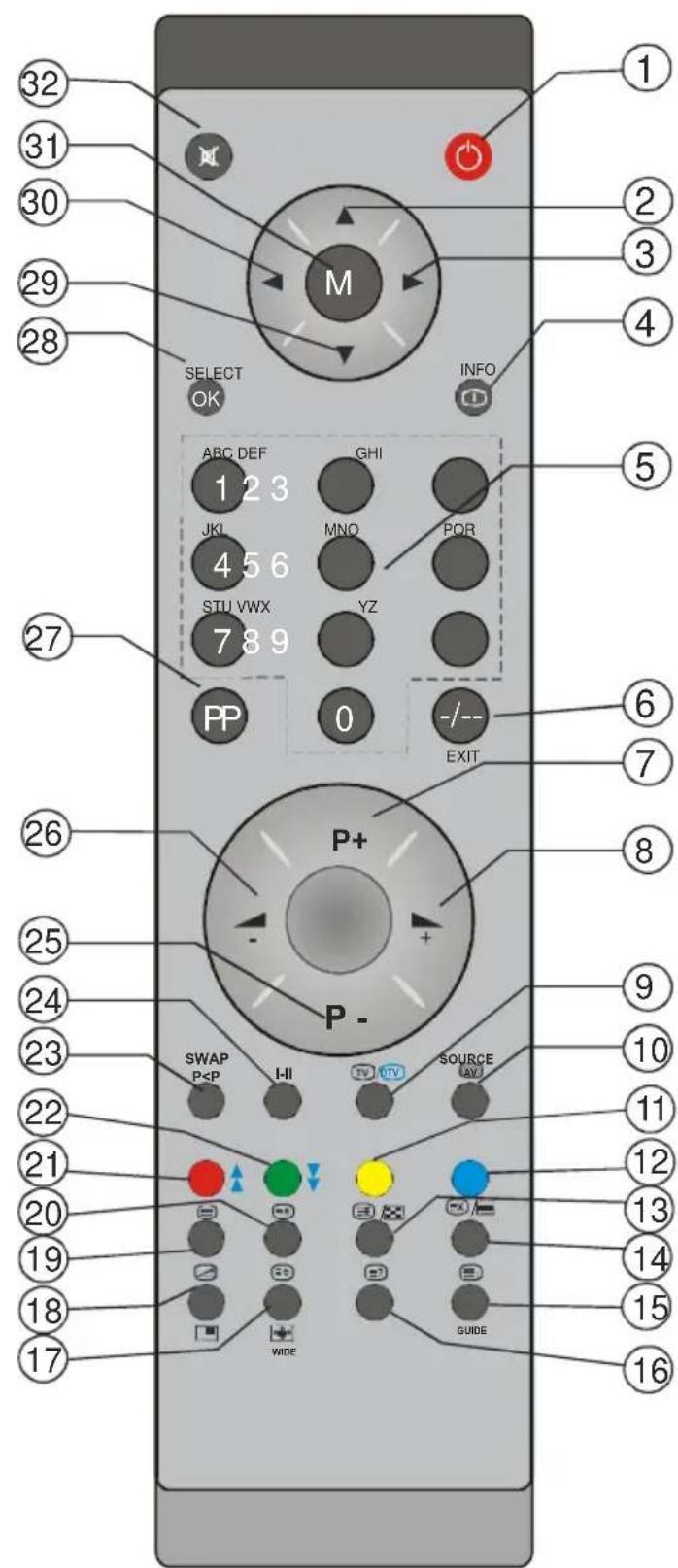

Overview of the Remote Control
① Stand By
② Cursor Up
③ Cursor Right
④ Info
⑤ Direct Programme
⑥ No function
⑦ Programme Up
⑧ Volume Up
⑨ TV / DTV
⑩ External Source
⑪ Feature Menu
⑫ Installation Menu
⑬ Hold / PIP position
⑭ Update, PAP Mode
⑮ Index Page
⑯ Reveal / Switch from TV to PC
⑰ Expand / Image size
18 Mix / PIP mode
⑲ Teletext
20 Time
⑳ Page Up
⑳ Page Down
23 Previous Programme
24 Mono/Stereo - Dual I-II
25 Programme Down
26 Volume Down
27 Picture Mode Selection
28 Okay (Store)
29 Cursor Down
③0 Cursor Left
③1 Menu
32 Mute
LCD TV and Operating Buttons
Top-down schematic of a computer room layout with monitor, keyboard, and drive unit (no text or labels)Viewing the Connections
IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz. • After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. - Plug the power cable to the mains socket outlet.Aerial Connection
\- Connect the aerial or cable TV plug to the AERIAL INPUT socket located at the rear of the TV. text_image
Aerial InputConnecting the LCD TV to a PC
For displaying your computer's screen image on your LCD TV, you can connect your computer to the TV set. - Power off both computer and display before making any connections. - Use 15-pin D-sub display cable to connect a PC to the LCD TV. - When done, switch to PC source. See, "Input selection" section. - Set the resolution that suits your viewing requirements. PC audio inputs REAR VIEW PC audio cable (not supplied) to audio output PC RGB cable (not supplied) to PC RGB outputConnecting to a DVD Player
If you want to connect a DVD player to your LCD TV, you can use connectors of the TV set. DVD players may have different connectors. Please refer to your DVD player's instruction book for additional information. Power off both the TV and the device before making any connections. Note: Cables shown in the illustration are not supplied. - If your DVD player has an HDMI socket, you can connect via HDMI. When you connect to DVD player as illustrated below, switch to HDMI source. See, "Source menu" section. - Most DVD players are connected through COMPONENT SOCKETS. Use a component video cable to connect video input. For enabling audio, use a component audio cable as illustrated below. When done, switch to YPbPr source. See, "Input selection" section. - You may also connect through the SCART 1 or SCART 2. Use a SCART cable as shown below. text_image
SCART cable HDMI inputs Component audio inputs Component video inputs SCART sockets HDMI cable Component audio cable Component video cableUsing Side Connectors
You can connect a range of optional equipment to your LCD TV. Possible connections are shown below. Note that cables shown in the illustration are not supplied. - For connecting a camcorder, connect to the S-VIDEO or VIDEO IN socket and the AUDIO SOCKETS. Do not connect the camcoder to S-VIDEO and VIDEO IN socket at the same time since it can cause noise in the picture. For selecting the related source, see the section "Input selection" in the following parts. - To connect external speakers, use an audio cable. Do not reverse the AUDIO LEFT and AUDIO RIGHT jacks. Turn on the LCD TV and external speaker set after all connections are made. Refer to your speaker set's manual for further queries. - To listen the sound from headphones, connect to the HEADPHONE jack of theTV. - For connecting a subwoofer, connect to the SUBWOOFER OUT. Videocamera CuffieInserting Batteries in the Remote Control Handset
WARNING: Remote control is battery included. A plastic protector is used to disconnect the batteries in order to prevent the battery life from reducing. Please remove the plastic protector before the first use. - Remove the battery cover located on the back of the handset by gently pulling backwards from the indicated part. - Insert two AAA/R03 or equivalent type batteries inside. Place the batteries in the right directions and replace the battery cover. natural_image
3D rendering of a white battery with one open lid and internal cylinder (no text or symbols visible)Operating Range for the Remote Control
\- Point the top of the remote control toward the LCD TV's remote sensor LED while pressing a button. text_image
30° 30°text_image
ELECTRONIC PROGRAMME GUIDE(7 Day) Saturday 21/8 13:49 Chuckle Vision 13:00-14:00 Triple bill, In the Ring/Romany Days/On the Radin; Paul and Barry grapple with the world of wrestling; hunt for a mysterious Emperor's underpants; and record their first pop song. Channels Programmes on Saturday 21/8, 13:00 - 15:00 80. CBBC Channel 13:00 Chuckle Vision (Now) 40. BBC NEWS 24 14:00 Tracy Beaker 41. ITV News 14:55 Newsround 50. Four Text 14:55 Newsround 800. BLUE/LEFT 1k... 801. CCIR17/1kHz...text_image
ELECTRONIC PROGRAMME GUIDE(7 Day) Saturday 21/8 13:51 Newsround 16:55-17:00 CBBC joins the Newsround team, keeping you up to date on the latest stories and events happening at home and abroad. Channels Programmes on Saturday 21/8, 15:00 - 17:00 30. CBBC Channel 15:00 Even Stevers 40. BBC NEWS 24 15:50 Newsround Showbiz 41. ITV News 16:00 Basil Brush 50. Four Text 16:55 Newsround 51. BBCI L 800. BLUE/LEFT 1k... 801. CCIR17/1kHz...Displaying the Subtitles
With digital terrestrial broadcasting (DVB-T), some programmes are broadcast with subtitles. Subtitles can be displayed while watching these programmes. Press the M button to display the main menu, highlight the Configuration line using ▲ button and press the OK button to display the configuration menu. Highlight the "Subtitle" item in configuration menu and use ▶ or button to set Subtitle to Off or a language. If “Subtitle” is on and a language option is set, pressing the button causes the following warning message display on the screen: text_image
Interactive services cannot be used while subtitles are on. Would you like to turn subtitles off now? NoYesDigital Teletext
With digital terrestrial broadcasting (DVB-T), in addition to pictures and sound, you can also view digital teletext. Digital teletext is sometimes broadcast at the same time with the normal broadcasting. - Press the button. • The digital teletext information appears. - Operate it with the coloured buttons, ▲ buttons and OK button.  The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on digital teletext screen. \- When “Press SELECT” button or similar message appears on the screen, press the OK button. \- When the (Text) button is pressed, the TV returns to television broadcasting. \- With digital terrestrial broadcasting (DVB-T), in addition to digital teletext broadcasting together with the normal broadcasting, there are also channels with just digital teletext broadcasting. - The aspect ratio when watching a channel with just digital teletext broadcasting is the same as the aspect ratio of the picture viewed previously. - When you press the (Text) button again, the digital teletext screen will be displayed.Over Air Download
To ensure that your IDTV always has the most up-to-date information, please ensure that, after use, it is set to standby mode. At 3 A.M. each day, the IDTV automatically searches for any updates which may be broadcast and will download this to your IDTV automatically. This operation will normally take approximately 30 seconds. If you want to perform this, you need to set Automatic Download to "Enabled" in Receiver Upgrade setting.Widescreen
Depending on the type of the broadcast being transmitted, programmes can be viewed in a number of formats. Press the WIDE button repeatedly to select between Auto, Full, 4:3, Panoramic, 14:9 Zoom, Cinema or 16:9 Subtitle. When Auto is selected, the format being displayed is determined by the picture being broadcast. PLEASE NOTE: Menu size changes depending on the chosen image size.IDTV Menu System
The IDTV menu can only be viewed when watching digital terrestrial broadcasting. Press the TV / DTV button to turn IDTV on while the TV is in analogue mode. Press the M button. The menu below appears on the screen: text_image
Main Menu Channel List Installation Configuration Timers Language TV Setup Common InterfaceChannel List
Using the ⬆ button on the remote control, make sure that the first item, Channel List, is highlighted and press the OK button to display the Channel List. The following operations can be performed in this menu: • Navigating the entire list of channels - Deleting channels - Renaming channels - Adding locks to channels - Setting favourites Channel List is the place where the channels are managed. text_image
CHANNEL LIST 1 BBC ONE 1. BBC ONE 2. BBC TWO 3. ITV 8 4. Channel 4 5. BBC THREE 6. Teletext 7. BBC FOUR 8. Sky Travel 9. UKHistory 10. RTL Select Delete Edit Name Lock Favourites Function Select Channel SELECT Watch MoreNavigating the Entire Channel List
Press ▲ or ▼ button for selecting the previous or next channel. You can press REDor GREEN button to move page up or page down. To watch a specific channel, highlight it using ▲ or □ button and then press OK button, while the "Select" item on Channel List menu is highlighted by using ◀ or ▶ button. Then the name and number of the selected channel will be displayed in the top-left and top-right of the channel display at the top-right of the screen, respectively.Deleting the Channels in the Channel List
Press ▲ or ▼ button to select the channel that will be deleted. Press ◀ or button to select the "Delete" item on Channel List menu. As seen on Channel List menu, SELECT is displayed next to Delete item at the bottom of the screen to indicate that you must press the OK button to delete the highlighted channel in the channel list. text_image
CHANNEL LIST 1 BBC ONE 1. BBC ONE 2. BBC TWO 3. ITV 8 4. Channel 4 5. BBC THREE 6. Teletext 7. BBC FOUR 8. Sky Travel 9. UKHistory 10. RTL Select Delete Edit Name Lock Favourites Function Select Channel Delete ME SELECTtext_image
The selected service will be permanently deleted. Are you sure? Yes NoRenaming Channels
To rename a specific channel, the channel must be highlighted by pressing ▲ or ▼ button. Then highlight the Edit Name item by pressing ◀ or ▶ button as illustrated below. Press the OK button to activate the rename feature. text_image
CHANNEL LIST 1. BBC ONE 2. BBC TWO 3. ITV 8 4. Channel 4 5. BBC THREE 6. Teletext 7. BBC FOUR 8. Sky Travel 9. UKHistory 10. RTL BBC ONE Select Delete Edit Name Lock Favourites Function Select Channel Select Edit Name MoreAdding Locks to Channels
Channel locking provides a password-protected access to channels selected by parents. In order to lock a channel you should know the parental lock password (default value is set to 0000 in the factory and can only be changed from the Configuration menu). Select the channel to be locked by highlighting it and select the Lock option by pressing ◀ or ▶ button. When the OK button is pressed, a dialog OSD asking for the password will be displayed. text_image
CHANNEL LIST 1 BBC ONE 1. BBC ONE 2. BBC TWO 3. ITV 8 4. Channel 4 5. BBC THREE 6. Teletext 7. BBC FOUR 8. Sky Travel 9. UKHistory 10. RTL Select Delete Edit Name Lock Favourites Function Select Channel Select Lock/Unlock Moretext_image
Enter Lock KeySetting Favourites
You can set various channels as favouritesso that only the favourite channels are navigated. To set a favourite you should highlight the Favourites item at the bottom of the Channel List menu. Use the ◀ or button to highlight the "Favourites" item at the bottom of the screen and then, in turn, highlight each channel you want to add to the favourites list, using the ▲ and buttons (or red/green buttons), and press the OK button. A channel selected as a favourite appears in the main channel list with a favourites icon  against the channel name as illustrated /: text_image
CHANNEL LIST 1 BBC ONE 1. BBC ONE 2. BBC TWO 3. ITV 8 4. Channel 4 5. BBC THREE 6. Teletext 7. BBC FOUR 8. Sky Travel 9. UKHistory 10. RTL Select Delete Edit Name Lock Favourites Function Select Channel SELECT Add/Remove... MoreOn Screen Help
For all menus, press the ⓘ button to display the help information about the menu functions. For Channel List menu the following message is displayed on the screen: Press the SELECT button on your remote control to tune to the highlighted channel. Press MENU to exit this screen.Installation
The Installation menu is mainly intended to help you for creating a Channel Table in the most efficient way. text_image
Main Menu Channel List Installation Configuration Timers Language TV Setup Common InterfaceAdd New Channels
This tuning menu consists of two parts: - Automatic Search - Manual Search text_image
Installation Add New Channels • Automatic Search First Time Installation Manual SearchAutomatic Search
Automatic search is started by pressing the OK button in the auto-search pop up menu. All the services will be searched and a channel table will be created automatically. All channels found are stored in a sorted form with respect to their channel numbers. Some services may not appear with the correct channel number. This may occur due to missing information when the broadcaster does not transmit any channel information.Manual Search
In manual search, the number of the multiplex is entered manually and only that multiplex is searched for the channels. For every valid channel number, signal level, signal quality and network name are shown at the bottom of the screen. In both manual and auto search, any existing channel in the database is not re-stored to avoid redundant duplicates of that channel.First Time Installation
The user can use this item to load default settings, which were loaded to the receiver at the factory. To install factory settings, highlight "First Time Installation" menu and press the OK button. text_image
Installation Add New Channels First Time Installationtext_image
Your previous digital channel list will be destroyed. Are you sure you want to delete all digital channels and settings for first time installation? Yes Notext_image
Please ensure aerial is plugged in. Do you want to start first time installation? Yes Notext_image
Do you want to search for analogue channels? Yes Notext_image
AUTO PROGRAM Language English Country UK Text language West PLEASE CHECK ANTENNA CABLE AUTO. PROGRAMMING SYSTEM OK Canceltext_image
APS is running... UK - I 155,25 Mhz CancelConfiguration
Press the M button to display the main menu and press the ▼ button twice to highlight Configuration. Then press the OK button to display the configuration menu. Press the M button to leave the menu screen.| Main Menu |
| Channel List |
| Installation |
| Configuration |
| Timers |
| Language |
| TV Setup |
| Common Interface |
Digital terrestrial television channels can broadcast simultaneous soundtracks in more than one language. This function selects which language soundtrack you will hear when switching to a channel broadcasting with the multiple soundtracks. Highlight the Audio Language line in the Configuration menu and use the ◀ or ▶ button to cycle through the language options.Subtitle
Digital terrestrial television channels can broadcast subtitles displayed on the screen for hard-of-hearing people. This function selects the desired subtitle language and enables the automatic display of subtitles whenever subtitle information is broadcast. Highlight the Subtitle line in the Configuration menu and use the ◀ or ▶ button to cycle through "Off" and language options.Favourite Mode
This function enables or disables the favourite channel list mode. Use ◀ or ▶ button to turn on/off favourite mode. If the “Favourite Mode” is on; while in normal operating mode, pressing P+ and P-buttons will only navigate through the channels that were previously defined as favourites in the channel list.EPG Preference
Digital terrestrial television channels can broadcast simultaneous Next&Now and 7-Day electronic programme. Highlight the EPG Preference line in the Configuration menu and use the ◀ or ▶ button to select Next&Now or 7-Day.Receiver Upgrade
The IDTV can be upgraded via the configuration menu, entered from the main menu. In the configuration menu, highlight the "Receiver Upgrade" item by pressing ▲ or ▼ button and press the OK button to start upgrade process. There are two options for receiver software to be upgraded: automatic and manual. © © and use or button to highlight the Language line and press the OK button:| Main Menu |
| Channel List |
| Installation |
| Configuration |
| Timers |
| Language |
| TV Setup |
| Common Interface |
| Languages |
| English |
TV Setup
You can use this item to display the TV functions. The digital TV Setup menu screen is accessed from the main menu. Press the M button to display the main menu and use or ▼ button to highlight "TV Setup", press the OK button to display TV Setup menu screen.| Main Menu |
| Channel List |
| Installation |
| Configuration |
| Timers |
| Language |
| TV Setup |
| Common Interface |
Common Interface
\- Press the M button to display the main menu and use the ▲ or ▼ button to highlight the “Common Interface” line and press the OK button:| Main Menu |
| Channel List |
| Installation |
| Configuration |
| Timers |
| Language |
| TV Setup |
| Common Interface |
Sound Menu
Press ▲or ▼button to select Volume. Press / button to change the level of the Volume.Equalizer
Press ▲or ▼button to select Equalizer. Press / or OK button to enter equalizer menu. In equalizer menu the sound mode can be changed to User, Music, Movie, Speech, Flat and Concert by pressing / button. Select the desired frequency by ▲ or ▼ button and increase or decrease the frequency gain by pressing / button. Press the M button to return to the previous menu. Note: Equalizer menu settings can be changed only when the Equalizer Mode is in User.Balance
This setting is used for emphasizing left or right speaker balance. Press ▲ or ▼ button to select Balance. Press / button to change the level of the balance. Balance level can be adjusted between -32 and +32.Headphone
Press ▲or ▼button to select Headphone. Press button to view the hedphone menu. Headphone sub-menu options are described below:Volume
Press ▲ or ▼ button to select Volume. Press button to increase headphone volume level. Press button to decrease headphone volume level. Headphone volume level can be adjusted between 0 and 63.Balance
Press ▲ or ▼ button to select Balance. Press button to increase balance to the right. Press button to decrease balance to the left. Balance level can be adjusted between -32 and +32. Press the M button to return to the previous menu.Sound Mode
Press ▲or ▼button to select Sound Mode. Using / button, you can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel supports that mode.AVL
Automatic Volume Limiting (AVL) function adjusts the sound to obtain fixed output level between programmes (For instance, volume level of advertisements tend to be louder than programmes). Press ▲ or ▼ button to select AVL. Press / button to set the AVL as On or Off.Effect
If you are watching a mono broadcast, set Effect on to obtain a better sound effect which will be more stereo-like. If the current sound system is stereo, switching this effect on will give a more spatial effect. Press or button to select Effect. Press / ▶ button to set Effect as On or Off.Dynamic Bass
Dynamic Bass is used to increase bass effect of the TV set. Press or button to select Dynamic Bass. Use ◀ / ▶ button set Dynamic bass to Low, High or Off. It is not recommended to select High while listening at high volume levels.3D Panorama
This feature is used to create the impression that sound is coming from around the room instead of from the speakers of the TV set. Press or button to select 3D Panorama. Use ◀ / ▶ button to set 3D Panaroma as On or Off.Subwoofer
It is possible to connect an external, active subwoofer to the TV set to give a much deeper bass effect. Press or button to select Subwoofer. Subwoofer can be set to On or Off. Dynamic Bass is not available if Subwoofer is set to On. Set Subwoofer to On when you connect an external subwoofer to the set.Store
Press or button to select Store. Press ▶ or OK button to store the settings. “Stored” will be displayed on the screen.Feature Menu
| Sleep Timer | Off |
| Child Lock | Off |
| Language | English |
| Ext-2 Out | TV |
| Default Zoom | Full |
| Blue Background | On |
| Menu Background | Translucent |
| Menu Timeout | 60 sec |
| Teletext Language | West |
Sleep Timer
Press or button to select Sleep Timer. Use ◀ / ▶ button to set the Sleep Timer. The timer can be programmed between Off and 120 minutes in steps of 10 minutes. If Sleep Timer is activated, at the end of the selected time, the TV goes automatically to standby mode.Child Lock
Press or button to select Child Lock. Use ◀ / ▶ button to set the Child Lock On or Off. When On is selected, the TV can only be controlled by the remote control handset. In this case the control panel buttons (except for the STANDBY button) will not work. Hence, if one of those buttons is pressed, "Child Lock On" will be displayed on the screen when the menu screen is not visible.Language
Press or button to select Language. Use ◀ / ▶ button to select the Language.EXT-2 Out
Use this setting to define Ext-2 signal output. Press ▲ or ▼ button to select Ext-2 Out. Use ◀ / ▶ button to set Ext-2 Out to TV/DTV, EXT1, EXT3, EXT4, EXT6, EXT7 or PC RGB.Note:
- Only audio output is available for EXT-3, EXT-6 and EXT-7. The other options have both audio and video outputs. - If you connect a device to EXT-1, when you switch to a different source or activate PIP/PAP functions while in DTV mode, there will be no output from EXT-1 Out. - For copying from a DVD or VCR device, you should set desired option for EXT-2 output. If you plug your device to EXT-1, you will copy the picture that comes from the tuner.Default Zoom
While zoom mode is set as AUTO, the TV will set the zoom mode in accordance with the signal of the broadcast. If there is no WSS or aspect ratio information, the TV will then use this setting to adopt. Press ▲ or button to select Default Zoom. You can set Default Zoom to Full, Panoramic, 4:3 or 14:9 Zoom by pressing ◀/▶ button.Blue Background
If the signal is weak or absent, the TV will automatically change to a blue screen. To enable this, set Blue Background to On. By pressing ▲ or ▼ button, select Blue Background. Press ◀ / ▶ button to set Blue Background as On or Off.Menu Background
Press ▲ or ▼ button to select Menu Background. You can change menu background to Translucent or Opaque by pressing ◀ / ▶ button.Menu Timeout
To set a specific display timeout for menu screens, set a value for this option. Press ▲ or ▼ button to select Menu Timeout. Use ◀ / ▶ button to change menu timeout to 15 sec, 30 sec or 60 sec.Teletext Language
Press ▲ or ▼ button to select Teletext Language. Use ◀ / ▶ button to change Teletext Language to West, East, Turk/Gre, Cyrillic or Arabic. Text language combinations are given below.| TEXT LANGUAGE | LANGUAGE | TEXT LANGUAGE | LANGUAGE |
| West | ENGLISHFRENCHSWEDISHFINNISHDANISHCZECHSLOVAKGERMANDUTCHSPANISHPORTUGUESEITALIANHUNGARIANICELANDIC | Turk/Gre | ENGLISHFRENCHSWEDISHFINNISHDANISHGERMANDUTCHSPANISHPORTUGUESEITALIANHUNGARIANTURKISHGREEKICELANDIC |
| East | FRENCHSWEDISHFINNISHDANISHCZECHSLOVAKGERMANDUTCHITALIANHUNGARIANPOLISHSLOVENIANCROATIANROMANIAN | Cyrillic | ENGLISHCZECHSLOVAKYAGERMANDUTCHRUSIANLITHUANIANLETTISHUKRANIANESTONIAN |
| Arabic | ENGLISHFRENCHARABICHEBREW |
PC Mode Menu System
See “Connecting the LCD TV to a PC” section for connecting a PC to the TV set. For switching to PC source, press AV button on your remote control and select PC input. You can also use "Source" menu to switch to PC mode. Note that PC mode menu settings are available only while the TV is in PC source.Sound Menu
The items in this menu are described at "Sound Menu" section explained in "Analogue TV Menu System".Feature Menu
Feature menu settings are identical to the settings explained in "Feature Menu" section in "Analogue TV Menu System".PC Picture Menu
For adjusting PC picture items, do the following: Press ▲ or ▼ button to select the second icon. PC Picture menu appears on the screen. Brightness, Contrast and Colour Temperature settings in this menu are identical to settings defined in TV picture menu under "Analogue TV Menu System".PC Picture Position Menu
Select the first icon by pressing ▲ or ▼ button. Press then ▶ or OK button. PC Picture Position menu appears on the screen: text_image
PC PICTURE POSITION Autoposition H Position 9 V Position 50 Dot Clock 100 Phase 31Autoposition
If you shift the picture horizontally or vertically to an unwanted position, use this item to put the picture into correct place automatically. This setting therefore automatically optimizes the display. Select Autoposition item by using ▲ or ▼ buttons. Press OK button. Warning: Auto position adjustment recommended to be done with the full screen image for the proper adjustment.H (Horizontal) Position
This item shifts the image horizontally to right hand side or left hand side of the screen. SelectH Position itemby using ▲ or ▼ button. Use ◀ / ▶ button to adjust the value.V (Vertical) Position
This item shifts the image vertically towards the top or bottom of the screen. SelectV Position item by using ▲ or ▼ button. Use ◀ / ▶ button to adjust the value.Dot Clock
Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts. © ©Teletext
Teletext system transmits information such as news, sports and weather on your TV. Note that if the signal becomes insufficient, some text errors may occur or the teletext mode may be quitted. Teletext function buttons are listed below: Teletext On/Off / PAT mode
Activates teletext mode when pressed once. Pressing this button again will split the screen into two windows, one displaying the teletext and the other displaying the current channel. Pressing again will quit the teletext mode. Index
Selects the teletext index page. Mix
Places the teletext screen over the programme. Expand
Press once to enlarge top half of the page, press again to enlarge the bottom half of the page. Press again to revert back to normal size. Reveal
Shows hidden information (e.g. solutions of games). Hold
Holds a text pagewhen convenient. Pressagain to resume. Subcode Pages / Time
Selects subcode pages if available when the teletext is activated. When the teletext is not activated, displays time info if the programme has teletext transmission.P+ / P- and numbers (0-9)
Press to select a page. Note: Most TV stations use code 100 for their index pages.Coloured Buttons
(RED/GREEN/YELLOW/BLUE)
Your TV supports both FASTEXT and TOP text systems. When these systems are available, the pages are divided into groups or topics. When FASTEXT system is available, sections in a teletext page will become colour-coded and can be selected by pressing the coloured buttons. Press a coloured button that corresponds to with your needs. The coloured writings will appear, showing you which coloured buttons to use when TOP text transmission is present. Pressing P - or P + commands will request the next or previous page respectively.Tips
Care of the Screen
Clean the screen with a slightly damp, soft cloth. Do not use abrasive solvents as they may damage the coating layer of the TV screen. For your safety, unplug the mains plug when cleaning the set. When moving the TV, hold it properly from the bottom part.Image Persistence
Please note that ghosting may occur while displaying a persistent image. LCD TVs' image persistence may disappear after a short time. Try turning off the TV for a while. To avoid this, do not leave the screen in still picture for extended periods.No Power
If your TV system has no power, please check the main power cable and connection to the mains socket outlet.Poor Picture
Have you selected the correct TV system? Is your TV set or house aerial located too close to a non-earthed audio equipment or neon lights, etc.? Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial. Is the picture or teletext unrecognisable? Check if you have entered the correct frequency. The picture quality may degrade when two peripherals are connected to the TV at the same time. In such a case, disconnect one of the peripherals.No Picture
Is the aerial connected properly? Are the plugs connected tightly to the aerial socket? Is the aerial cable damaged? Are suitable plugs used to connect the aerial? If you are in doubt, consult your dealer. No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more.Sound
You can not hear any sound. Did you perhaps interrupt the sound, pressing the 📄 button? Sound is coming from only one of the speakers. Is the balance set to one extreme? See Sound menu.Remote Control
Your TV no longer responds to the remote control. Perhaps the batteries are exhausted. If so you can still use the local buttons at the bottom of the TV.Input Sources
If you cannot select an input source, it is possible that no device is connected. Check the AV cables and connections if you have tried to connect a device.CI Module
If you are experiencing a problem with the CI module, it is possible that CI module is not properly inserted. Remove the CI card and then reinsert. If the problem persists, it is possible that your CI module is not recognized. Try inserting a different CI module.Appendix A: PC Input Typical Display Modes
The display has a maximum PC resolution of 1360 x 768, frequency range of 56-85 Hz. The following table is an illustration of some of the typical video display modes. Your TV may not support different resolutions. Supported resolution modes are listed below. If you switch your PC to an unsupported mode, a warning OSD will appear on the screen.| M ode | Resolution Frequency | |||
| Horizontal Vertical Hor.(kHz) Ver.(Hz) | ||||
| 1 | 640 | 480 | 31,5 | 60 |
| 2 | 640 | 480 | 37,9 | 72 |
| 3 | 640 | 480 | 37,5 | 75 |
| 4 | 800 | 600 | 35,2 | 56 |
| 5 | 800 | 600 | 37,9 | 60 |
| 6 | 800 | 600 | 48,1 | 72 |
| 7 | 800 | 600 | 46,9 | 75 |
| 8 | 800 | 600 | 53,7 | 85 |
| 9 | 1024 | 768 | 48,4 | 60 |
| 10 | 1024 | 768 | 56,5 | 70 |
| 11 | 1024 | 768 | 60 | 75 |
| 12 | 1280 | 1024 | 64 | 60 |
| 13 | 1280 | 768 | 47,8 | 60 |
| 14 | 1360 | 768 | 47,7 | 60 |
Appendix B: Main and PIP-PAP Picture Combinations
Main and PIP, PAP picture combinations| MAIN TUNER EXT-1 EXT-1 EXT-2 EXT-2 EXT-3 EXT-4 EXT-5 EXT-6 EXT-7 PC | |||||||||
| CVBS RGB CVBS RGB YPBPR CVBS SVHS HDMI HDMI | |||||||||
| PIP,PAP | |||||||||
| TUNER / DTV * | O O O | O O | O O | O | O | ||||
| EXT-1 O | O O X | O O | O O | O | N | N | |||
| CVBS | O | O | |||||||
| EXT-1 O | O X O | O O | O O | O | P | P | |||
| RGB | I | I | |||||||
| EXT-2 O | O O O | O X | O O | O | P | P | |||
| CVBS | & | & | |||||||
| EXT-2 O | O O O | X O | O O | O | P | P | |||
| RGB | A | A | |||||||
| EXT-3 X | X X X | X X | X X | X | V | V | |||
| YPBPR | A | A | |||||||
| EXT-4 O | O O O | O O | O O | O | L | L | |||
| CVBS | A | A | |||||||
| EXT-5 O | O O O | O | O | O | B | B | |||
| SVHS | L | L | |||||||
| EXT-6XX X | X | X | X | E | E | ||||
| HDMI | I | I | |||||||
| EXT-7 X X X | X X X | X X | F | F | |||||
| HDMI | M | M | O | ||||||
| PC RGB | X | X | X | X | X | X | A | A | |
| I | I | ||||||||
| N | N | ||||||||
| X | X | ||||||||
| I | I | ||||||||
| S | S | ||||||||
| A | A | X | |||||||
| V | V | ||||||||
| - | - | ||||||||
| 5 | 6 | X | |||||||
Appendix C: AV and HDMI Signal Compatibility
Source AvSillplerted Signals| PAL 50/60 | O | |
| EXT-1(SCART 1) | NTSC 60 | O |
| RGB 50 | O | |
| RGB 60 | O | |
| PAL 50/60 | O | |
| EXT-2(SCART-2) | NTSC 60 | O |
| S-VHS 50 | X | |
| S-VHS 60 | X | |
| 480I 60Hz | O | |
| 480P 60Hz O | ||
| 576I 50Hz | O | |
| EXT-3(YPbPr) | 576P 50Hz O | |
| 720P 50Hz O | ||
| 720P 60Hz O | ||
| 1080I 50Hz O | ||
| 1080I 60Hz | O | |
| EXT-4(FAV) | PAL 50/60 | O |
| NTSC 60 | O | |
| EXT-5(S-Video) | PAL 50/60 | O |
| NTSC 60 | O | |
| 480I 60Hz O | ||
| 480P 60Hz O | ||
| 576I 60Hz | O | |
| 576P 60Hz O | ||
| HDMI1HDMI2 | 720P 60Hz | O |
| 720P 50Hz O | ||
| 1080I 50Hz | O | |
| 1080I 50Hz O | ||
| 1080P 50Hz O | ||
| 1080P 60Hz O | ||
| 1080P 24 Hz | O |
