Sano ZHB4572 - Hand blender Zelmer - Free user manual and instructions

Product Type	Hand Blender
Brand	Zelmer
Model	Sano ZHB4572
Power Consumption	1900 W
Voltage	220-240 V
Frequency	50/60 Hz
Speed Settings	Variable knob (low I, high II) and TURBO button
Accessories Included	Blender rod, whisk with handle, chopper with S-blade and lid, measuring cup (600 ml)
Blender Rod Material	Stainless steel shaft with plastic base
Chopper Blade Material	Stainless steel
Whisk Material	Stainless steel wire
Measuring Cup Capacity	600 ml
Safety Features	Thermal cut-out protection; sharp blade warning; automatic shutdown on overheating (15 min cooldown required)
Maximum Altitude	2000 m above sea level
Warranty	2 years
Indoor Use Only	Yes
Dishwasher Safe Parts	Measuring cup, blender rod, chopper bowl, chopper blade
Manual Clean Only Parts	Main unit, blender rod tip (mixing blade), whisk components, chopper lid
Cleaning Instructions	Wipe motor unit with damp cloth; do not immerse
Intended Use	Blending, chopping, whisking for home use

Frequently Asked Questions - Sano ZHB4572 Zelmer

How do I assemble the hand blender for blending?

Insert the blender rod into the motor unit until it clicks into place. Then immerse the tip in the container and press switch I (low speed) or switch II (high speed). To detach, press the release buttons on both sides simultaneously.

Can I blend hot liquids with this blender?

Be careful when blending hot liquids as they can be ejected due to sudden steaming. Allow hot liquids to cool slightly before blending, and do not fill the container above the safe level.

How should I clean the blender?

First, unplug the device. Wipe the motor unit with a dry or damp cloth; never immerse it in water. The measuring cup, blender rod, chopper bowl, and chopper blade are dishwasher safe. Other parts like the whisk and chopper lid should be hand washed. Avoid using metal brushes or harsh detergents.

Why does my blender stop suddenly during use?

The blender has a thermal cut-out that activates if it overheats. Unplug the device and let it cool for at least 15 minutes before resuming use. This is a normal safety feature.

Can I use the chopper to crush ice?

No, the chopper is not designed for very hard foods like ice cubes, nutmeg, coffee beans, or grains. It works best for chopping meat, cheese, onions, herbs, and similar ingredients.

How do I use the whisk attachment?

Insert the whisk into the whisk handle, then slide the handle onto the main unit until it clicks. Place the whisk in the bowl and press switch I or II. To remove, press the release buttons and pull the whisk out of the handle.

What is the TURBO button for?

The TURBO button runs the blender at maximum speed regardless of the speed knob setting. Use it for short bursts when extra power is needed.

What should I do if the power cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard. Do not use the appliance until repaired.

How do I store the hand blender?

Before storing, ensure all parts are clean and dry. Keep the appliance and its cord out of reach of children. Store in a dry place away from heat sources.

What are the recommended operating times for the chopper?

Refer to the recipe table in the manual: for example, soaked carrots (30 seconds at maximum), cubes of meat (10 seconds at maximum), egg whites (120 seconds at maximum with whisk). Do not exceed these times.

USER MANUAL Sano ZHB4572 Zelmer

Close-up of a black and white kitchen tool inside a transparent container (no text or symbols visible)

Illustration of a wire whisker with black base (no text or symbols)

Close-up of a black and silver SANO 1900W blender with a metallic handle (no visible text or symbols on the device body)

ZHB4572 SANO

FIG. 3

DZIEKUJEMY ZA WYBÓR MARKI ZELMER. ŻYCZYMY SATYSFAKCJI Z UŻYTKOWANIA URZĄDZENIA.

OSTRZEŻENIE

PRZED UŻYCIEM PRODUKTU NALEŻY UWAŻNIE PRZECZYTAĆ INSTRUKCJĘ UŻYTKOWANIA. PRZECHOWUJ JĄ W BEZPIECZNYM MIEJSCU DO WYKORZYSTANIA W PRZYSZŁOŚCI

OPIS

WE WOULD LIKE TO THANK YOU FOR CHOOSING ZELMER. WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE

DESCRIPTION

1. Speed control knob
2. ON/OFF button
3. TURBO button
4. Main unit
5. Release buttons
6. Blender rod
7. Chopper cover
8. Chopper "S" blade
9. Shredder container
10. Whisk handle
11. Whisk
12. Measuring cup

SAFETY INSTRUCTIONS

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Respect the operating times of the accessories indicated in their specific sections of the manual.

Proceed according to maintenance and cleaning section of this manual for cleaning.

Warning: potential injury from misuse!

Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.

Be careful if hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming.

Always disconnect the blender from the supply if it is left

EN

unattended and before assembling, disassembling or cleaning.

Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

This appliance is intended for use at a maximum altitude of 2000m above sea level.

IMPORTANT WARNINGS

This appliance is designed for home use and should never be used for commercial or industrial use under any circumstances. Any incorrect use or improper handling of the product shall render the warranty null and void.

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

The mains connection cable must not be tangled or wrapped around the product during use.

Do not use the device, or connect and disconnect to the supply mains with the hands and / or feet wet.

In order to ensure the sealing effect of blending blade, please do not allow the blending blade to work without load.

Do not pull on the connection cord in order to unplug it or use it as a handle Unplug the product immediately from the mains in the event of any breakdown or damage and contact an official technical support service. In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device.

Only for indoor use.

Product has a thermal safety component that operates in case of abnormal higher temperatures. In case of operation of this component, it is needed to unplug the product from mains and let cool for at least 15min.

B&B TRENDS SL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

INSTRUCTIONS FOR USE

BLENDING WITH SPEED KNOB (FIG.1)

The hand blender is perfect for making dips, sauces, soups, mayonnaise and baby food, as well as blending and milkshakes.

1. Insert the blender attachment into the motor unit until it clicks into place.
2. Immerse the blender tip in the container. Then press switch I or switch II. Switch I is the lowest speed, Switch II is the highest speed. Stop pressing and the blender will stop working. Switch II (TURBO) always works at full speed.
3. Detach then press the release buttons on both sides at the same time to remove the blender tip after use.

HOW TO USE THE SHREDDER (FIG.2)

1. The chopper is great for chopping hard food such as meat, cheese, onions, herbs, garlic, carrots, walnuts, almonds, prunes, etc.
2. Do not chop very hard products such as ice cubes, nutmeg, coffee beans and grains.

Before use

1. Carefully remove the plastic cover from the blade.
   Note: the blade is very sharp! Always hold them by the upper plastic part.
2. Place the blade on the center pin of the chopper container. Press down on the blade and lock the bowl. Always place the shredder on a non-slip base.
3. Place the food in the chopper bowl.
4. Place the chopper lid on the chopper hopper.
5. Place the main unit on the chopper cover until it locks into place.
6. Press the switch to start the chopper. When processing, hold the main unit with one hand and the chopper bin with the other hand.
7. When finished, unplug the plug and then press the release buttons to remove the main unit.
8. Then remove the chopper cover.
9. Carefully remove the blade.
10. Remove the processed food from the chopper bowl.

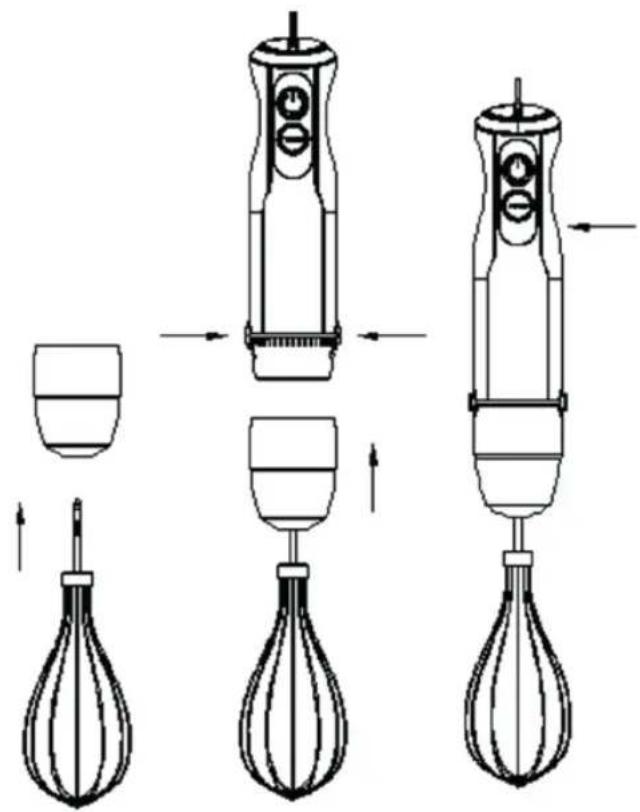

HOW TO USE THE WHISKER (FIG.3)

Use the whisk only for whipping cream, whipping egg whites and mixing biscuits and ready-made desserts.

1. Insert the whisk into the whisk holder, then slide the whisk holder onto the main unit until it clicks into place.
2. Place the whisk in the bowl. Then press switch I or switch II to operate it.
3. Detach then press the release buttons to remove the whisk holder after use. Then pull the whisk out of the whisk holder.

MAINTENANCE AND CLEANING

You should unplug the power cord plug before cleaning. Do not touch the sharp blade.

Please use dry dishcloth to wipe the product body. And it is strictly prohibited to let the main unit rinse with water or immerse to the water.

Please do not use metal brush, nylon brush, household cleanser, diluent and other similar cleaning supplies to clean this product, as they may damage the product surface structure.

EN

Please use soft dry cloth to wipe the dirt on the power cord.

1. All other parts are dishwasher safe. However, after processing very salty foods, rinse the blades immediately.
2. Also, be careful not to use too much detergent or descaling agent in the dishwasher.
3. When processing colored food, the plastic parts of the appliance may become discolored. Wipe these parts with vegetable oil before putting them in the dishwasher.
4. The blades are very sharp, attention please.
5. Unplug the device before cleaning.

Cleaning requirements for each accessory

CLEANING ACCESSORIES	WASHING	RINSING	CLEANING BY IMMERSION	DISHWASHER	OBSERVATIONS
Mixing blade	√	√	X	X	Do not immerse in water
Measuring cup	√	√	√	√
Components for whisking egg whites	√	X	X	X	Do not immerse in water
Rod	√	√	√	√
Chopper lid	√	X	X	X	Do not immerse in water
Chopper	√	√	√	√
Chopper blade	X	√	√	√

Table of recipes

CONTENTS	TIME	SPEED	ACCESSORY
Soaked carrots: 240gWater: 360g	30"	MAXIMUM	Mixing blade
Cubes of meat: 200g	10"	MAXIMUM	Chopper
Egg whites: 4 eggs	120"	MAXIMUM	Whisk

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.

DANKE FÜR IHRE WAHL DER MARKE ZELMER. WIR WÜNSCHEN IHNEN GENUSS, DAS GERÄT ZU BENUTZEN

WARNUNG

B&B TRENDS, S.L. guarantees compliance of this product for the use for which it is intended for a period of two years. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfill or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B&B TRENDS, S.L. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, S.L. authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, S.L., or the careless or improper use of the same shall render this warranty null and void. The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights under this warranty.

This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Polish territory, please submit your query to the point of sale where you purchased the item or check for further aftersales information at www.zelmer.com
