USER MANUAL KD0804-A15 Clas Ohlson

8" Digital Photo Frame

Digital fotoram 8"

Digital fotoramme 8"

Please read the entire instruction manual before using the product and save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions regarding technical problems please contact Customer Services.

1. Product description

• 8-inch digital photo frame for displaying your digital JPEG images.
• USB memory and memory card slots (SD/SDHC/MMC).
• Comes with mains adaptor and remote control.
• Displays time and calendar.
• Slideshow with 10 different transition options.

2. Contents

• Digital photo frame
• Instruction manual
• Mains adaptor
• Remote control
• Stand

3. Safety

• Warning! Do not open the casing. Certain components within the product's casing carry dangerous currents. Contact with these may give you an electric shock.
• The product should only be repaired by qualified service technicians.
• The product should not be taken apart or modified.
• Do not place the product where there is a risk of it falling into water or other liquid. Do not place any objects containing liquid on the product, e.g. flower vases or soft drinks.
• Do not cover the ventilation openings. Do not place the product close to heat sources such as on top of the radiator or TV, or on e.g. the sofa which will block the ventilation openings.
• Always unplug the adaptor from the electrical outlet if the product is not be used for an extended period.
• The product is designed for 8 – 10 hours of continuous operation. Avoid any prolonged use. Allow the product to rest for a while before using it again.
• The product is intended for indoor use only.
• Do not expose the product to direct sunlight for prolonged periods.
• Do not use the product in damp, dusty, or dirty environments.
• Only use a lightly moistened soft cloth with a little washing up liquid to clean the screen.
• Do not disconnect the mains adaptor while the frame is in use. The attached memory storage device may be damaged. Neither should the connected memory storage device be removed when the frame is in use.

4. Buttons and functions

SD/SDHC/MMC

USB


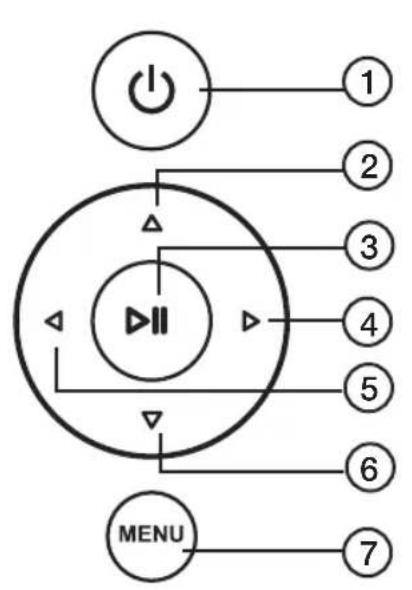

Rear buttons

1. [ ⏻ Power on/off.
2. [▲] Move cursor up.
3. [▶II] Start slideshow, pause or confirm.
4. [▶] Move cursor right.
5. [◀] Move cursor left.
6. [▼] Move cursor down.
7. [MENU] Return to main menu, or open file processing (copy/delete file).

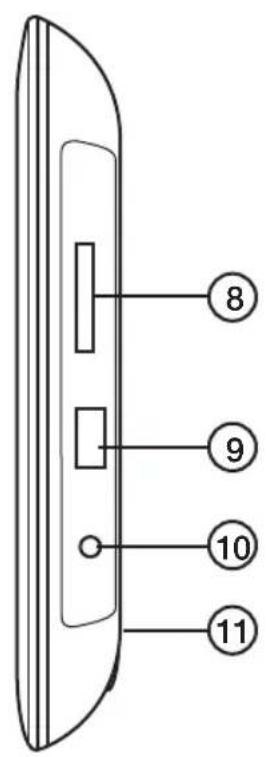

On the right hand side of the photo frame

1. Memory card slot: SD/SDHC/MS/MMC
2. USB port
3. DC 5 V
4. Stand attachment point

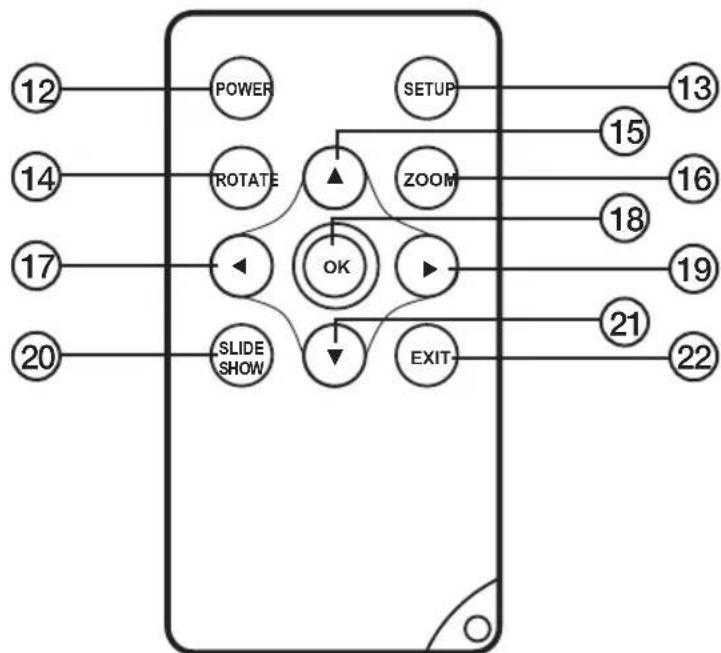

Remote control

1. ON/OFF switch.

2. [SETUP] Copy or delete images.

3. [ROTATE] Rotate image (in pause mode during single image display). Rotates image 90° anticlockwise each time it is pressed.

4. [▲] Move cursor up

5. [ZOOM] Change image size (in pause mode during single image display).

6. [◀] Move cursor left

7. [OK] Start slideshow, pause or confirm selection.

8. [▶] Move cursor right.

9. [SLIDE SHOW] Start slideshow straight away.

10. [▼] Move cursor down.

11. [EXIT] Return to main menu, or return to previous menu.

Changing batteries in the remote control

1. Remove the battery holder.

2. Insert the battery according to the markings (+ up).

3. Reinsert the battery holder.

5. Use

This photo frame is intended for tabletop use.

1. Screw the stand onto the back (11).
2. Remove the plastic film from the display and from the battery in the remote control.
3. Plug the mains adaptor into a wall socket and then plug the DC connector into the DC 5 V socket on the photo frame.

4. Connect a SD/SDHC/MMC memory card or USB memory to the photo frame.

5. Press [⏻] (1) or (12) to turn the photo frame on.

6. The slideshow will start automatically if a memory card or USB memory stick (containing images) is inserted.

7. Press [MENU] (7) twice to display the main menu: Photo (images), File (displays list of images/folders in memory), Calendar (time and date) or Setup (settings).

8. If you highlight Photo, the start page will appear.

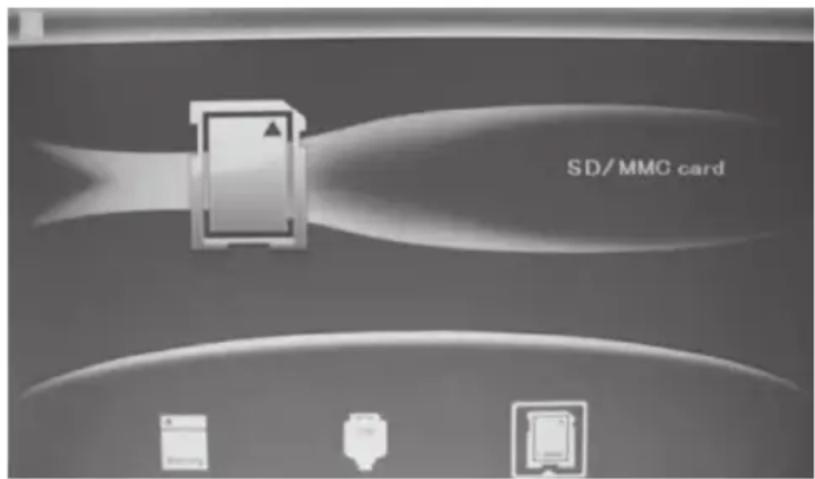

9. Symbols representing the connected memory devices will appear on the display. Highlight the desired memory and press [OK] (18) to start viewing images.

6. Main menu

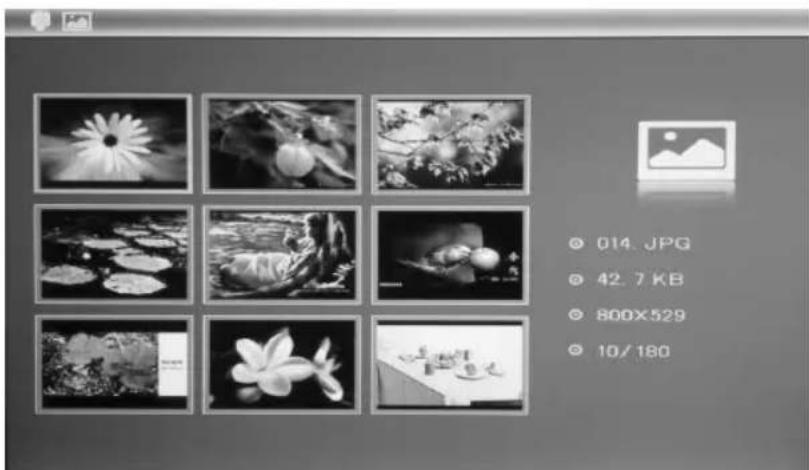

6.1 Photo – display of images in thumbnail size

The slideshow starts as soon as a memory card is connected.

1. Press [EXIT] (22) twice to display the main menu.
2. Highlight the Photo symbol (on the far left) using the arrow keys (17) (19).
3. Press [SETUP] (13).
4. Highlight the memory card containing the images.

5. Press [SLIDE SHOW] (20) to start the slideshow.

6. Press [EXIT] (22) to display the images in thumbnail size.

7. Highlight the desired image using the arrow keys (2) (4) (5) (6).

8. Information about the highlighted image will be displayed: File name, file size, image size and image number plus the total number of images on the memory device.

9. Press [EXIT] (22) to return to the main menu or press [OK] (18) to start the slideshow from the highlighted image.

Grid of black-and-white photos of flowers and leaves, displayed in a photo editing interface (no text or symbols on the images themselves)

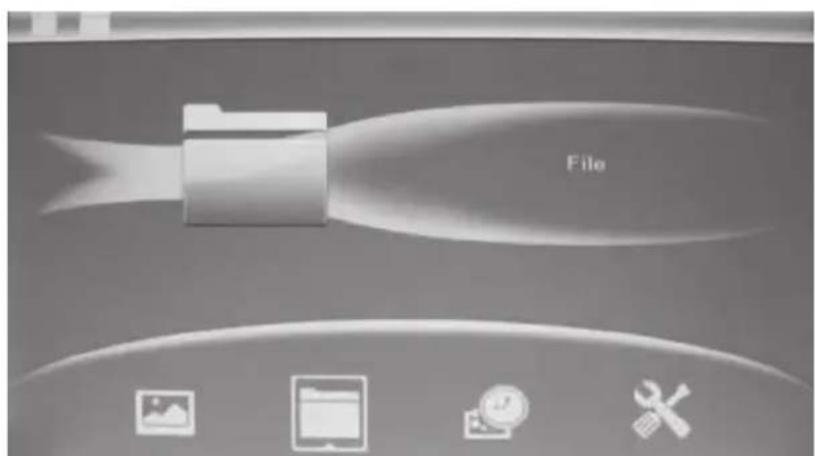

6.2 File – display of files and folder on the selected memory device

1. Highlight the desired memory device using the arrow keys (17) (19) and then press [OK] (18).

2. Information about the files and folders on the memory device will be displayed.

3. You can display JPEG images by pressing [▶II].

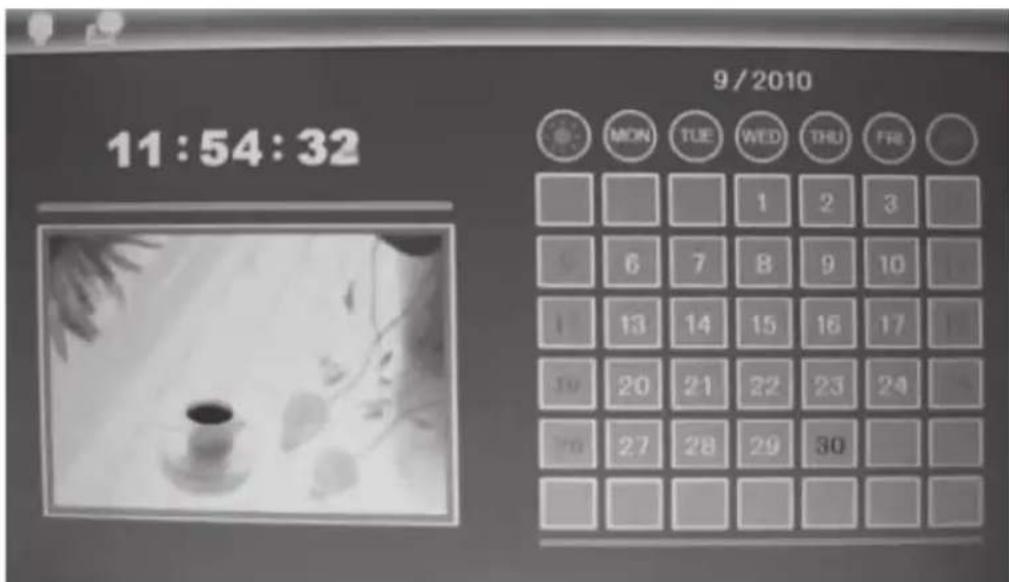

6.3 Calendar - display of time and date

1. Press [EXIT] (22) twice to display the main menu.
2. Move to the Calendar symbol using the arrow keys (17) (19). Press [OK] (18) to confirm.

Setting the time and date:

a. Go back to the main menu and enter Setup, then press [OK] (18).
b. Highlight Set time/date using the arrow keys (15) (21). Press [OK] (18) to confirm.
c. The year will be highlighted, press [OK] (18) to confirm. Adjust the year, if necessary, using the arrow keys (17) (19). (In setup mode the highlighted text is red). Press [OK] (18) to confirm.
d. Set the month, day, hour, minute and seconds in the same way.
e. Advance to Save Time using the arrow keys (15) (21) to save your settings. Press [OK] (18) to confirm. Exit the menu by pressing [EXIT] (22).

Setting the time format:

a. Advance to Set Time Format.
b. Press [OK] (18) to confirm.
c. Select a 12 or 24 hour display.
d. Press [OK] (18) to confirm. Exit the menu by pressing [EXIT] (22).

6.4 Setup

1. Press [EXIT] (22) twice to display the main menu.
2. Move to the Setup symbol using the arrow key [▶] (19).
3. Press [OK] (18) to confirm.
4. Press [EXIT] (22) to return to normal display mode when you have finished your settings.

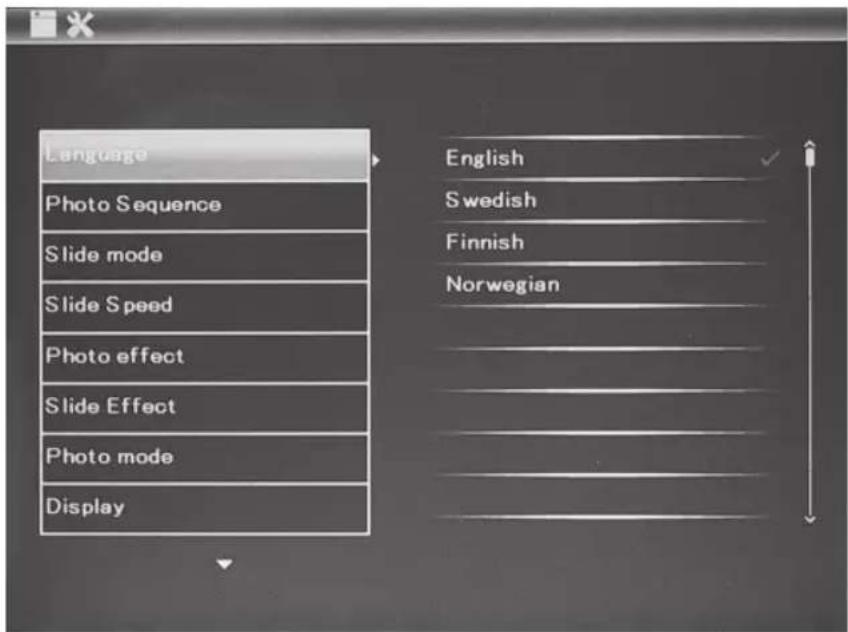

The main menu has settings for:

a. Language – English, Swedish, Finnish or Norwegian
b. Photo Sequence – Sequential or random display.
c. Slide mode - 1 image, 4 images or 3 images.
d. Slide speed – from 3 seconds to 1 hour.
e. Photo effect – Colour, Monochrome (black&white), Sepia (sepia-toned)
f. Slide effect (transition effect) – Random, Split horizontal in, etc.
g. Photo mode (display size) – Auto fit, Optimal or Full.
h. Display – Contrast, Brightness, Saturation and Tint.
i. Set time/date (see section 6.3 Calendar).
j. Set time format (display in 12 or 24 hour clock format).
k. Format built-in memory.
I. Reset setting (return to default factory settings).
m. Exit (finish and return to normal display mode).

6.5 Copy, rotate or zoom images

1. Highlight the Photo symbol (on the far left) using the arrow keys (17) (19).
2. Highlight the desired image using the arrow keys (15) (17) (19) (21).
3. Press [OK] (18) to display the entire image.
4. Push [SETUP] (13) to enter the setup mode.

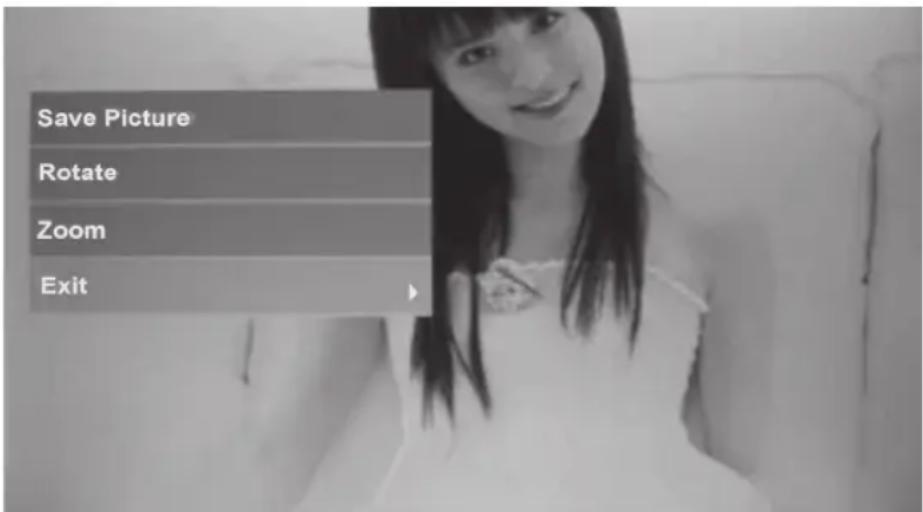

5. You have now accessed the settings. Highlight a function: Rotate or Zoom.
6. Adjust the settings by pressing several times on [OK] (18) until the image is correct.
7. Highlight Save Picture and press [OK] (18) to save the image you have changed.
8. Press [EXIT] (22) to return to normal display mode.

6.6 Deleting images

1. Highlight the Photo symbol (on the far left) using the arrow keys (17) (19).
2. Highlight the image to be deleted using the arrow keys (15)(17)(19)(21).
3. Push [SETUP] (13) to enter the setup mode.
4. You have now accessed the settings. Highlight a function: Delete File or Exit.
5. Press [OK] (18) to confirm.

7. Care and maintenance

Wipe the surface clean using a soft, damp cloth. Never use solvents or strong detergents.

8. Troubleshooting guide

Problem Solution
The device does not start/no photo is shown.	Check that the mains adaptor is correctly connected.
The remote control does not work.	Check the battery.Point the remote control directly at the photo frame without any obstructions in between.
The memory card cannot be read.	Make sure that the files on the memory card are supported by the device. See Specifications.
Some photos are uploaded quicker than others.	Images with high resolution take longer to load.Use images with lower resolution for quicker display.The recommended resolution is 800 x 600 pixels.

9. Disposal

Follow local ordinances when disposing of this product. If you are unsure of how to dispose of this product, please contact your local authority.

10. Specifications

Screen 8"colour TFT LCD (4x3)

Resolution 800 (h) x 600 (v)

Viewing angle 60° (left/right/vertically), 40° (horizontally)

Contrast 500:1

Light intensity 250 cd/m²

Response time 20 ms

Input voltage 5 V DC, 1 A via the supplied mains adaptor

(100-240 V AC, 50/60 Hz)

USB port USB 2.0

Memory card slot SD (Secure Digital), MMC (Multimedia Card),

SDHC (Secure Digital High Capacity)

Internal memory 8 MB

Picture format JPEG

Operating temperature 0 °C to 40 °C (at humidity level of 10-85 % RH)

Size 221 x 177 x 22 mm
