USER MANUAL EXO JANE

Car seat with black and red colors, no visible text or symbols

OXE

español 3

english 29

français 55

deutsch 81

italiano 107

português 133

ÍNDICE

Illustration of a person's seatbelt buckle being adjusted, showing red banding and blue gait (no text or symbols)

Illustration of hands adjusting a car seatbelt device (no text or symbols visible)

Illustration of a hand holding a handheld tool with a label and red arrow (no text or symbols on the tool itself)

Illustration of two printer presses with green indicator lights, no text or symbols present

Illustration of hands using a handheld tool to adjust or install a device (no text or symbols visible)

1h

Illustration of hands installing a device on a seatbelt (no text or symbols visible)

1i

Illustration of a car seatbelt with red arrows indicating downward motion (no text or symbols)

Close-up of a hand adjusting a red and black car seatbelt buckle (no text or symbols visible)

Illustration of a hand adjusting a car seatbelt with red safety stripes (no text or symbols)

Illustration of a hand holding a jacket with red arrows indicating movement or force (no text or symbols)

Illustration of hands adjusting a car seatbelt with red arrows indicating force (no text or symbols)

Illustration of a hand adjusting a seatbelt with a red clip (no text or symbols)

Illustration of hands adjusting a seatbelt buckle (no text or symbols visible)

Illustration of a hand adjusting a jawbone with a red component, no text or symbols present

3e Tire de la cinta tensora (6).

Illustration of a baby car seat being lifted by adult hands, showing seatbelt and seatbelt buckle (no text or symbols)

Hand holding a device with red measurement markings (no text or symbols visible)

Symbol of a trash bin crossed with diagonal lines, representing waste sorting or disposal (no text or labels)

Illustration of a hand inserting a component into a car door panel, with battery packs nearby (no text or symbols)

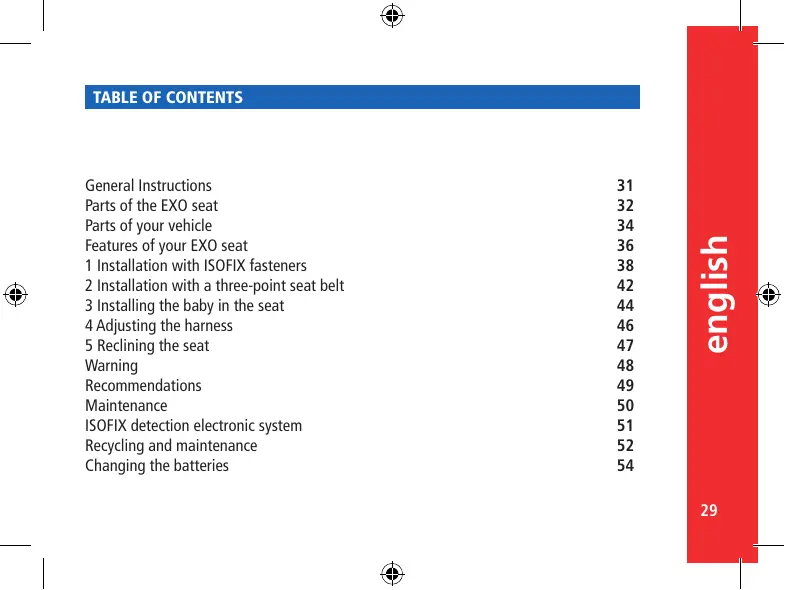

TABLE OF CONTENTS

General Instructions 31

Parts of the EXO seat 32

Parts of your vehicle 34

Features of your EXO seat 36

1 Installation with ISOFIX fasteners 38

2 Installation with a three-point seat belt 42

3 Installing the baby in the seat 44

4 Adjusting the harness 46

5 Reclining the seat 47

Warning 48

Recommendations 49

Maintenance 50

ISOFIX detection electronic system 51

Recycling and maintenance 52

Changing the batteries 54

Your new EXO from JANÉ is a seat designed to protect the child in the car from approximately 9 months (from 9 Kg. in weight) up to approximately 4 years old (18 Kg. in weight).

EXO has passed the safety requirements covered by the European directive ECE 44/04 for group 1.

EXO is compatible with the majority of vehicle seats. When the vehicle manufacturer has stated that the seats are prepared for the installation of "Universal" type seats, there is complete compatibility.

It is very important to read these instructions carefully before using the EXO seat for the first time. Make sure that everyone who is going to use the seat at any time is also familiar with the instructions for correct installation and use. It has been noted that a significant percentage of safety seat users do not install the seat correctly, understanding the instruction manuals and correctly applying the information is as important for safety as the actual seat.

Keep the instructions and the quick guide in the compartment on one side of the base, consult them if you have any doubts. You can also find them on our web page: www.jane.es

GENERAL INSTRUCTIONS

In the aim of suitably protecting the child and, ensuring his comfort and safety in the vehicle, it is important to respect the following instructions:

• Your EXO seat can be installed on the front seat, if it does not have an Air Bag, or on the back seat of the vehicle. It is advisable to install it on the back seat. If you fit it onto the front seat of the vehicle, it must NOT be fitted with an AIR BAG or it must be disconnected.
• It is only valid for vehicles fitted with automatic 3-point seat belts, certified under regulation ECE-16 or other equivalent regulations. DO NOT use with a 2-point seat belt.
• Not all safety systems are exactly the same, therefore we recommend you test your EXO in the vehicle in which it is going to be fitted.
• It is very important not to use second-hand products, since JANÉ can only guarantee complete safety for articles used by the original buyer.
• JANÉ recommends you replace your EXO seat with a new one when it has been subjected to significant strain after an accident.
• Check that all the seat belts are in the correct position and duly fitted to your EXO. Make sure that no seat belt is twisted. The child must understand that under no circumstances is he to play with the seat belts or the fastening elements.
• This seat is designed for use in the car and must not be used out of it.

1 Stand, base
2 Seat
3 Headrest
4 Strap to adjust headrest height
5 5-point buckle
6 Harness tensor
7 Shoulder strap
8 Shoulder padding
9 Crotch strap
10 Isofix fasteners
11 ISOfix state panel
11a Testing button
11b ISOfix state light
11c Light battery dead
12 ISOfix removal lever
13 ISOfix unblocking buttons
14 Anti-rotation strap (Top Tether)
14a Top Tether hook
14b Tensor

14c Bag
14d Tension indicator
15 Vehicle abdominal seat belt guide
16 Shoulder strap lock
17 Shoulder strap ring
18 Belt tensor lever
19 Reclining adjustment lever
20 Instructions compartment
21 ISOfix guides
22 Instruction manual
23 Quick guide

Parts of your vehicle

1 Three-point fastening seat belt. Consisting of two distinguishable parts:

1a Sub-abdominal or shoulder part, that goes from the buckle over the chest and the shoulders

1b Abdominal part, this is the part that goes over the top of the legs

1c Buckle

2 Two-point fastening seat belt. WARNING. The EXO seat can not be installed with this type of seat belt.

3 ISOfix fasteners. The fasteners are situated at the intersection between the seat and the

backrest. Not all seats or all vehicles have these fasteners, consult your vehicle manual for more information.

4 Anti-rotation strap (Top tether). The manufacturer of your vehicle should have left some rings on the rear part of the seat to fasten the ISOfix anti-rotation system. Their location varies for each make and model, consult your vehicle manual to know where to find them.

Features of your EXO seat

The EXO seat has been designed with the latest advances in safety and comfort:

1. EXO can be installed with three-point seat belts or ISOfix fasteners.
2. If you use ISOfix, EXO has a tightening strap, "Top Tether" as an anti-rotation system.
3. The ISOfix fasteners are secured to the seat by a pneumatic piston, this unique and patented system absorbs the shock of impact.

4. The height of the shoulder straps can be adjusted without having to take the straps off. This action is connected to the headrest that gives greater protection in the event of a side impact while at the same time it supports the head.

5. If the shoulder straps are adjusted upwards, the crotch strap moves outwards. Therefore, as your child grows he will also have more space in the crotch area.

6. The abdominal straps are used to tighten the harness of your EXO, while the majority of seats use the shoulder straps to do this. This improves performance in the event of a collision and also gives a longer strap to install your child.
7. EXO incorporates electronic sensors to check that the ISOfix fasteners have been correctly installed. From time to time you should check that the fasteners are secured correctly.
8. If the seat has been installed with a three-point seat belt, EXO has a tensor. With this, the
9. If the shoulder straps are adjusted upwards, the crotch strap moves outwards. Therefore, as your child grows he will also have more space in the crotch area.
10. The abdominal straps are used to tighten the harness of your EXO, while the majority of seats use the shoulder straps to do this. This improves performance in the event of a collision and also gives a longer strap to install your child.
11. EXO incorporates electronic sensors to check that the ISOfix fasteners have been correctly installed. From time to time you should check that the fasteners are secured correctly.
12. If the seat has been installed with a three-point seat belt, EXO has a tensor. With this, the

car seat is firmly fastened to the vehicle seat.

1. The inside of the seat is covered with impact absorbing material. Although this material is only required on the head area, your EXO uses it on the whole surface that comes into contact with your child, even on the foot area.

2. The seat has plenty of air vents.

Installing the seat in the vehicle

The EXO seat should be installed FACING FORWARDS. Preferably on rear seats and never on seats that are fitted with a frontal airbag. If you want to install the seat with the ISOFIX fasteners, make sure that the vehicle seat is fitted with the fasteners.

WARNING. THE FACING FORWARDS POSITION IS COMPLETELY INADVISIBLE FOR BABIES THAT WEIGH LESS THAN 9 KG.

1 Installation with ISOFIX fasteners

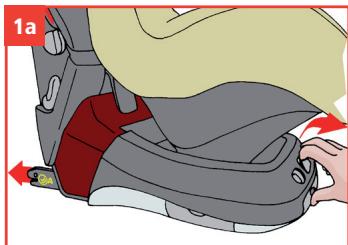

1a Extract the ISOfix fasteners (10) pulling the lever (12) situated on the front of the base.

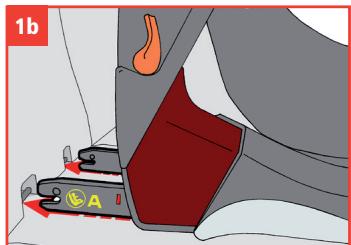

1b Guide both fasteners towards the axles and press until both sides are locked, two green lights on the front panel (11b) or two green signals on the fasteners (10) will indicate that both are fastened. If one or both lights and / or signals are red, try it again.

Illustration of a car seatbelt buckle being adjusted for a hand (no text or symbols present)

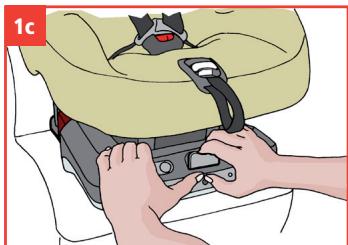

1c Pulling the fastener extraction lever again (12), press the seat against the backrest of the vehicle. Continue to press while releasing the lever and the fasteners will remain immobile.

1d Take the Top Tether strap out of the bag (14a) situated on the rear part of the seat.

Illustration of hands adjusting a car seatbelt device (no text or symbols visible)

1e Hook it onto one of the fasteners supplied by the vehicle manufacturer.

1f Lastly, tighten the strap until the red signal disappears from the tension indicator (14c).

Illustration of a hand holding a handheld tool with a label and red arrow (no text or symbols on the tool itself)

Illustration of two printer presses with green indicator lights (no text or symbols)

To remove the seat when using ISOfix:

1g Loosen the Top Tether strap and disconnect the hook (14b)

1h Release the fasteners sliding both unlocking buttons (13) inwards. The lights on the front panel (11c) will light up in red.

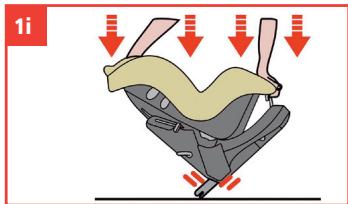

1i Remove the seat. You can store the ISOfix fasteners by pulling the front lever (12) and pressing the fasteners inside the base. You can store the Top Tether strap (14) in the bag (14a).

Illustration of hands using a tool to adjust or install a device (no text or symbols visible)

2 Installation with a three-point seat belt.

2a Place the EXO seat in its most reclined position (see 5, adjusting the backrest) and turn the tightening lever (18) towards the rear part of the seat. Pass the buckle of the three-point seat belt between the base and the seat (15) and fasten it.

Close-up of a hand adjusting a red and black car seatbelt buckle (no text or symbols visible)

2b Slide the shoulder strap of the vehicle seat belt through the clip (16) on the top part of the seat, only the one on the side opposite to the buckle. Close the clip.

Illustration of a hand adjusting a car seatbelt with red adhesive tape (no text or symbols)

2c Press the EXO against the seat and manually tighten the vehicle seat belt.

2d Pass the strap through the red ring (17) of the seat

2e Lastly, turn the tightening lever (18) towards the front of the seat.

Close-up of a hand adjusting a car seatbelt with red directional arrows (no text or symbols)

Illustration of a hand holding a jacket with red arrows indicating movement or force (no text or symbols)

3 Installing the baby in the seat.

3a Loosen the harness pulling the straps over the buckle while pressing the tightening button.

Illustration of hands adjusting a seatbelt on a car seat (no text or symbols)

3b Unfasten the buckle (5). To make it easier to install the baby in the seat, you can fasten the seat belts in the side straps.

Illustration of a hand adjusting a seatbelt with a red clip (no text or symbols)

3c Position the baby in the seat making sure that he is sitting as far back as possible and with the backrest upright. Join together the upper ends of the buckles.

Illustration of hands adjusting a seatbelt with a red button (no text or symbols)

3d Insert them in the lock and press until it clicks.

Illustration of a hand adjusting a jawbone with a red component, no text or symbols present

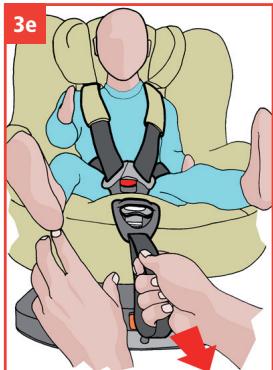

3e Pull the tightening strap (6).

Illustration of a baby car seat being lifted by adult hands, showing seatbelt and seatbelt buckle (no text or symbols)

4 Adjusting the harness.

Adjusting the height of the shoulder strap.

With the child correctly seated in the seat check that the shoulder straps are in the correct position, they should be slightly above the baby's shoulders. EXO has 4 heights, when the height is adjusted the headrest moves. To change the height, follow the steps detailed below:

4a Pull the ring situated on the headrest (4), this will unlock the headrest.
4b Move the headrest (3) into the position suitable for the baby and release the ring.
4c Move the headrest until you hear the locking click. Pull the headrest to check that it is secure.

5 Reclining the seat.

The EXO seat is reclined by using a lever situated on the front part of the seat (19). It has 5 positions. To recline the seat, press the lever (19) and slide the seat into the required position.

WARNING

• Never leave the child alone.
• Any alteration or addition to the product without the express authorisation of JANÉ may seriously affect the safety of the retention system.
• If you do not carefully follow the instructions for the correct use of the retention system it may endanger your child's safety.
• This safety device must not be used without its upholstery, nor may it be replaced by another one that is not the original, as it forms an integral part of the safety characteristics of the system.
• Check that the seat has been positioned correctly.
• Make sure that the seat belt has not got trapped between the folding seats or doors.
• DO NOT use the seat facing forwards for babies that weigh less than 9 Kg.

RECOMMENDATIONS

• Guarde este libro de instrucciones para futuras consultas. Llévelo siempre en su compartimiento situado en el lateral de la base (20).
• In the vehicle make sure that all baggage as well as any other object that could cause injury in the event of an accident is duly secured or stored.
• The EXO seat should be duly fastened with the seat belts, even when it is not in use, as in the event of an accident it could be flung about causing injury to the occupants of the vehicle.
• Remember not to use the EXO seat in vehicles fitted with a frontal airbag, unless it can be disconnected or deactivated, which should be consulted with the vehicle manufacturer or retailer.

MAINTENANCE

Do not expose the upholstery to sunlight for long periods of time, while the seat is not in use cover it up or store it in the luggage compartment.

Wash the plastic parts with soap and warm water, then carefully dry all the components. The upholstery can be removed for washing. Follow the instructions listed below:

Uncover the headrest and the shoulder protectors. Remove the upholstery from around the edge of the seat. Undo the Velcro on the central part and take the upholstery off.

Hand wash at a temperature not exceeding 30^ C.

To fit the upholstery again, follow the same steps in reverse order.

ISOfix detection electronic system.

This system detects if the ISOfix fasteners are connected. You can see the state of the ISOfix system by the lights on the front panel and hear it with the beeps it emits. The front panel has 3 leds, the sides (11b) indicate the state of the ISOfix fasteners: green if they are connected well (long beep), red if they are disconnected (intermittent beep). During installation with ISOfix fasteners the electronic system is automatically activated. To find out the current state of the ISOfix fasteners after installation, press the "TEST" key.

The central (11c) will flash when the batteries are about to wear out.

Hand holding a device with red measurement markings (no text or symbols visible)

Recycling and maintenance

This detection system should be recycled in accordance with directive 2002/96/EC. All electric or electronic apparatus should be disposed of correctly at specific collection points designated by local councils.

Symbol of a trash bin crossed with diagonal lines, representing waste sorting or disposal (no text or labels)

WARNINGS: Warning! The batteries should only be changed by an adult. Always keep batteries out of the reach of children. Only use the recommended batteries. Insert the batteries with the correct polarity. Do not mix different types of batteries or mix new batteries with old ones. Do not recharge non-rechargeable batteries. Remove dead batteries from the electronic detection system. Do not cause short circuits in the terminals. Always keep the packaging out of the child's reach. Rechargeable batteries should only

be recharged under the supervision of an adult. Do not expose this product or the batteries to a naked flame, the batteries could explode or burst.

WARNING! Never use batteries that display signs of leaks or cracks, never mix battery types, makes, age or different charges. Used batteries must not be thrown on the fire.

Changing the batteries

When the batteries are about to wear out a blue light (11c) will light up on the front panel. To replace them with new ones, turn the seat round and open the compartment with a star screwdriver. The product takes 3 AA batteries.

Illustration of a hand inserting a component into a car door panel with battery packs (no text or symbols)

INDEX

Illustration of a car seatbelt buckle being adjusted for a hand (no text or symbols present)

Illustration of hands adjusting a car seatbelt device (no text or symbols visible)

Illustration of a hand holding a handheld tool with a label and red arrow (no text or symbols on the tool itself)

Illustration of two printer presses with green indicator lights, no text or symbols present

Illustration of hands using a tool to adjust or install a device (no text or symbols visible)

Close-up of a hand adjusting a red and black car seatbelt buckle (no text or symbols visible)

Illustration of a hand adjusting a car seatbelt with red adhesive tape (no text or symbols)

Illustration of a hand holding a jacket with red arrows indicating movement or force (no text or symbols)

Illustration of hands adjusting a car seatbelt with red arrows indicating force (no text or symbols)

Illustration of a hand adjusting a seatbelt with a red clip (no text or symbols)

Illustration of hands adjusting a seatbelt buckle (no text or symbols visible)

Illustration of a hand adjusting a jawbone with a red component, no text or symbols present

Illustration of a baby car seat being lifted by adult hands, showing seatbelt and seatbelt buckle (no text or symbols)

Hand holding a device with red measurement markings (no text or symbols visible)

Symbol of a trash bin crossed with diagonal lines, representing waste sorting or disposal (no text or labels)

Illustration of a hand inserting a component into a car door panel, with battery packs nearby (no text or symbols)

INHALT

Illustration of hands adjusting a car seatbelt device (no text or symbols visible)

Illustration of a hand holding a handheld tool with a label and red arrow (no text or symbols on the tool itself)

Illustration of two printer presses with green indicator lights, no text or symbols present

Illustration of hands using a tool to adjust or install a device, no text or symbols present

Close-up of a hand adjusting a red and black car seatbelt buckle (no text or symbols visible)

Illustration of a hand adjusting a car seatbelt with red safety stripes (no text or symbols)

Illustration of a hand adjusting a jacket with red arrows indicating movement (no text or symbols)

Illustration of a hand adjusting a seatbelt with a red clip (no text or symbols)

Illustration of hands adjusting a seatbelt with a red button (no text or symbols)

Illustration of a hand adjusting a jawbone with a red component, no text or symbols present

Illustration of a baby car seat being lifted by adult hands, showing seatbelt and seatbelt buckle (no text or symbols)

Hand holding a device with red measurement markings (no text or symbols visible)

Symbol of a trash bin crossed with diagonal lines, representing waste sorting or disposal (no text or labels)

Illustration of a hand inserting a component into a car door panel with battery packs (no text or symbols)

INDICE

Illustration of a car seatbelt buckle being adjusted for a hand (no text or symbols present)

Illustration of hands adjusting a car seatbelt device (no text or symbols visible)

Illustration of a hand holding a handheld tool with a label and red arrow (no text or symbols on the tool itself)

Illustration of two printer presses with green indicator lights, no text or symbols present

Illustration of hands using a handheld tool to adjust or install a device (no text or symbols visible)

1h

Illustration of hands installing a device on a seatbelt (no text or symbols visible)

1i

Illustration of a car seatbelt with red arrows indicating downward motion (no text or symbols)

Close-up of a hand adjusting a red and black car seatbelt buckle (no text or symbols visible)

Illustration of a hand adjusting a car seatbelt with red safety stripes (no text or symbols)

Illustration of a hand holding a jacket with red arrows indicating movement or force (no text or symbols)

Illustration of hands adjusting a car seatbelt with red arrows indicating force (no text or symbols)

Close-up of a hand adjusting a seatbelt buckle (no text or symbols visible)

Illustration of hands adjusting a seatbelt buckle (no text or symbols visible)

Illustration of a hand adjusting a jawbone with a red component, no text or symbols present

Illustration of a baby car seat being lifted by adult hands, showing seatbelt and seatbelt buckle (no text or symbols)

Hand holding a device with red measurement markings (no text or symbols visible)

Symbol of a trash bin crossed with diagonal lines, representing waste sorting or disposal (no text or labels)

Illustration of a hand inserting a component into a car door panel with battery packs (no text or symbols)

INDICE

1 Base
2 Assento
3 Cabeça
4 Puxador ajuste altura cabeçote
5 Fivela 5 pontos
6 Tensor arnés
7 Cinta de ombros
8 Acolchoado ombros
9 Cinta entrepernas
10 Ancoragens Isofix
11 Painel de estado ISOfix
11a Botão de teste
11b Piloto estado ISOfix
11c Piloto pilha esgotada
12 Alavanca extracção ISOfix
13 Botões desbloqueio ISOfix
14 Cinta antirotación (Top Tether)
14a Gancho Top Tether
14b Tensor

Illustration of a car seatbelt buckle being adjusted for a hand (no text or symbols present)

Illustration of hands adjusting a car seatbelt device (no text or symbols visible)

Illustration of a hand holding a handheld tool with a label and red arrow (no text or symbols on the tool itself)

Illustration of two printer printing process steps, one with red handle and green motion indicator (no text or symbols)

Para retirar a cadeira quando se utiliza ISOfix:

1g Afrouxe a cinta do Top Tether e desligue o gancho (14b)

Illustration of hands using a tool to adjust or install a device (no text or symbols visible)

Close-up of a hand adjusting a red and black car seatbelt buckle (no text or symbols visible)

Illustration of a hand adjusting a car seatbelt with red adhesive tape (no text or symbols)

Illustration of a hand holding a jacket with red arrows indicating movement or force (no text or symbols)

Illustration of a hand adjusting a seatbelt with a red clip (no text or symbols)

Illustration of hands adjusting a seatbelt buckle (no text or symbols visible)

Illustration of a hand adjusting a jawbone with a red component, no text or symbols present

3e Puxe a cinta tensora (6).

Illustration of a baby car seat being lifted by adult hands, showing seatbelt and seatbelt buckle (no text or symbols)

Hand holding a device with red measurement markings (no text or symbols visible)

Symbol of a trash bin crossed with diagonal lines, representing waste sorting or disposal (no text or labels)

Illustration of a hand inserting a component into a car door panel with battery packs (no text or symbols)

Pure red vertical bar on white background with no text or symbols

JANÉ, S.A. Pol. Industrial Riera de Caldes
