CR50GR - Alarm clock radio BLAUPUNKT - Free user manual and instructions

Product Type	Alarm clock radio
Brand	Blaupunkt
Model	CR50GR
Power Supply	AC 230 V ~ 50 Hz
Power Consumption	3.5 W
Battery Backup	2 x AA (LR06) batteries (not included)
Radio Band	FM
Frequency Range	87.5 – 108.0 MHz
Radio Presets	Up to 40 (P01 – P40)
Alarms	Dual (AL1 and AL2) with wake-up source selection (buzzer or radio)
Snooze Time	9 minutes
Sleep Timer	10 – 90 minutes (adjustable in 10-minute steps)
Display Dimming	High / Low brightness levels
Backup Battery Function	Maintains clock time during power interruptions (display off)
Clock Format	12 or 24 hours selectable
Antenna	FM wire antenna
Operating Temperature Range	Up to 35 °C
Dimensions	Approx. 200 x 80 x 120 mm (estimated)
Weight	Approx. 400 g (estimated)
Cleaning	Wipe with a clean, dry or slightly damp cloth; do not use chemical solvents

Frequently Asked Questions - CR50GR BLAUPUNKT

How do I set the time on the Blaupunkt CR50GR?

Press and hold the TIME SET button for 2 seconds. Use HOUR and MINUTE buttons to set the hour and minute. Press TIME SET again to confirm each step. The setting automatically saves after 3 seconds of inactivity.

How do I set the alarm?

Press and hold the AL1 or AL2 button for 2 seconds. The hour digits flash; use HOUR and MINUTE to set the hour and minute. Press the alarm button again to move to alarm source (BUZZ or RADIO) and then to volume level (1-12). Press the alarm button to finish.

How do I use the snooze function?

When the alarm sounds, press the SNOOZE button. The alarm will silence for 9 minutes and then ring again. The alarm indicator will blink during snooze.

How can I preset FM radio stations?

Tune to a station, then press and hold the MEMORY button. Use TUNING +/- to select a preset number (P01-P40), then press MEMORY again to save. To recall a preset, press MEMORY repeatedly.

What batteries are needed for backup and how long do they last?

Insert 2 x AA (LR06) batteries into the compartment. The backup only maintains the clock time during temporary power interruptions; the display does not light up. Battery life depends on usage, but is intended for short outages.

How do I adjust the display brightness?

In clock mode, press the DIMMER button repeatedly to toggle between high and low brightness levels.

Can I set the sleep timer to turn off the radio automatically?

Yes. In radio mode, press the SLEEP button repeatedly to select a sleep time from 10 to 90 minutes (in 10-minute steps) or OFF. The radio will turn off when the timer expires.

How do I automatically scan and save all available FM stations?

Press and hold the SNOOZE/DIMMER/SLEEP button for 2 seconds. The radio will scan and automatically store up to 40 stations into preset memory.

What should I do if the clock resets after a power cut?

This can happen if the backup batteries are missing or exhausted. Replace the AA batteries and reset the clock by following the time setting procedure.

How do I clean the Blaupunkt CR50GR?

Unplug the unit and wipe the exterior with a clean, dry or slightly damp cloth. Do not use chemical solvents or abrasive cleaners, as they may damage the finish.

USER MANUAL CR50GR BLAUPUNKT

To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

Explanation of Graphical Symbols:

The lightning flash within an equilateral triangle is intended to alert you to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute an electric shock to a person or persons.

1

The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

Important Notes

• This safety and operating instruction should be retained for future reference.
• The apparatus should not be exposed to dripping or splashing or placed in a humid
• atmosphere such as a bathroom.
• Do not install the product in the following areas:
- Places exposed to direct sunlight or close to radiators.
• On top of other stereo equipment that radiate too much heat.
- Blocking ventilation or in a dusty area.
• Areas where there is constant vibration.
• Humid or moist places.
• Do not place near candles or other naked flames.
- Operate the product only as instructed in this manual.
- Before turning on the power for the first time, make sure the power adaptor is properly connected.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel.

Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow instructions - All operating and users' instructions should be followed.
5. Installation - Install in accordance with the manufacturer's instructions.

6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.

7. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to rain, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).

8. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.

9. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

10. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

11. The highest environmental temperature suitable for this product is 35°C.

12. ESD hints - If the product maybe reset or not reset to operation of control due to electrostatic discharge, just switch off and reconnect again, or move the product to another location.

ERP2 (Energy Related Products) note

This product with ecodesign complies with the stage 2 requirements of Commission Regulation (EC) NO. 1275/2008 implementing Directive 2009/125/EC regard to standby and off mode electric power consumption of electronic household and office equipment.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. Never use the device unsupervised! Switch off the device whenever you are not using it, even if this only for a short while.

2. The appliance is not intended to be operated by means of an external timer or separate remote control system.

3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

4. Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.

5. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture or dust.

6. Do not place this unit close to a strong magnetic field.

7. Do not place the unit on a amplifier or receiver.

8. Do not place this unit in a damp area as the moisture will affect the life of electric components.

9. If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.

10. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry or slightly damp cloth.

NOTICE

Conformity

Hereby, Blaupunkt Competence Center 2N-Everpol Sp. z o.o., declares that this equipment is in compliance with the essential requirement and other relevant provisions of Directive 2014/53/EU. Declaration of conformity can be obtained from the product page at www.blaupunkt.com.

Responsible party: 2N-Everpol Sp. z o.o, Puławska 403A, 02-801 Warsaw, Poland, Phone: [phone], E-mail: [e-mail]

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Please cat according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be dispose with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health. Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment. Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958

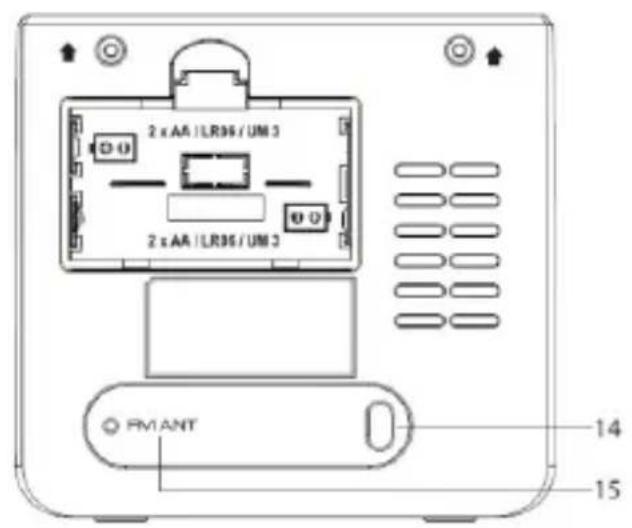

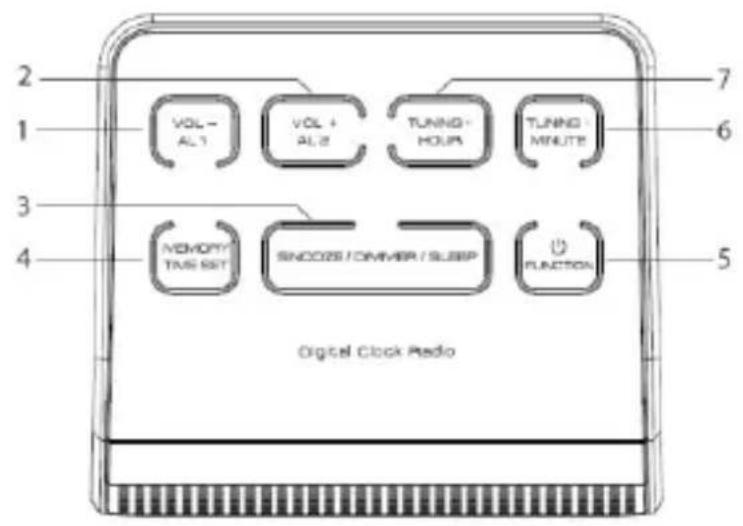

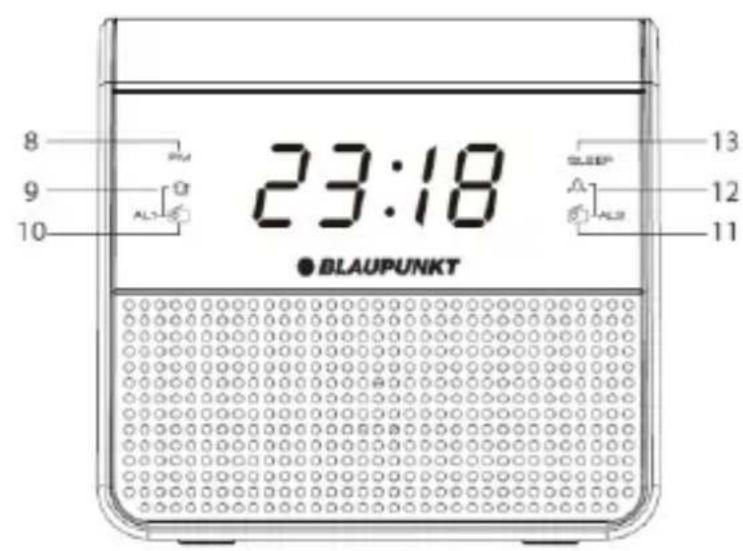

LOCATION OF CONTROL

1. VOLUME + / AI2
2. VOLUME - / AI1
3. SNOOZE / DIMMER / SLEEP
4. MEMORY / TIME SET
5. ⏻ / FUNCTION
6. TUNING +/ MINUTE
7. TUNING - / HOUR
8. PM INDICATOR
9. ALARM
10. AL1 INDICATOR
11. AL2 INDICATOR
12. ALARM
13. SLEEP INDICATOR
14. AC POWER
15. FM ANTENNA WIRE

CONNECT POWER

CAUTION

• Risk of product damage! Ensure that the power voltage corresponds to the voltage printed on the back or underside of the clock radio.
• Risk of electric shock! When you unplug the AC adaptor, always pull the plug from the socket. Never pull the cord.

SET TIME

1. Press and hold time set button for two seconds.
2. Press hour or minute button to select 12/24 hours and then press time set button again to confirm setting, and then skip to hour setting.
3. Press hour and minute button to adjust the hour, which you desired.
4. press time set button again to confirm setting, then skip to minute setting which is same as hour's setting operation
5. press time set button to confirm and quite the setting operation.
6. The setting will be confirmed automatically if no button is used within 3 seconds.

Listen to FM radio

For better reception, fully extend and adjust the position of the FM antenna wire. Press power/function button to turn on or off FM radio, press volume+/- button to adjust the output volume level.

FM tuning: press tuning +/- button two seconds to scan the available station automatically. Short press the tuning +/- button to adjust the station frequency per 0.1MHz.

Store FM radio stations manually: when you tuned a favorite radio station, press and hold memory button to activate the storing mode, press tuning +/- button to select the preset station number (P 01 \~ P 40), press memory button again to confirm and save the current FM station. In order to pick up a preset FM station for listening, short press the memory button repeatedly for switching.

All-in-one tuning (auto scan and save station): long press the snooze/dimmer/sleep button 2 seconds to scan and save the available station automatically. It can save up to 40 preset station maximum.

Sleep: in radio mode, short press the snooze/dimmer/sleep button repeatedly to adjust the sleep time between 10/20/30/40/50/60/70/80/90/off circularly, short press the button again to review the sleep remaining time. The radio will off automatically when the sleep time is being.

Alarm operation

Before start alarm setting, please make sure you have set up correct clock time. You can set up two separation alarm timers according to following.

1. Long press the alarm1 button 2 seconds to activate the alarm setting mode, then the hour digits will flash on display, press the hour and minute button to adjust the hour setting, press the alarm 1 button again to confirm and skip to minute setting which is same operation as hour's setting. Using and repeat the same operation to finish the rest setting for alarm source (buzz/Radio) and volume (1\~12), short press the alarm1 button again to confirm and quite the alarm setting mode.
2. The operation method is same for alarm 2 setting, but you need long press the alarm 2 for starting.
3. In case of you set up the alarm successfully, the relevant alarm indicator will light up on display.
4. When alarm is activate and ring up, press power/function button to cancel the sound, and the alarm will ring up again tomorrow when the time is on.

Note:

Please do not remove the power; otherwise, the alarm will be disappeared base on no battery power inside.

SNOOZE: When alarm sounds, press SNOOZE to activate the snooze time for 9 minutes. The AL1 / AL2 indicator keeps blinking.

Display brightness (Dim) adjustment: in clock mode, long press the dimmer button repeatedly to select high or low brightness level.

Battery back-up

(For Temporary Time Storage Only)

Install 2 x LR06, AA or EU-3 battery (not included) according to polarity shown inside the battery compartment. In the event of a power interruption, your set will not work normally from the mains supply but there is now the advantage that your clock will continue to work. The clock display will not light up, as the clock time will be held in the memory. This also enables you to move the set from place to place without re-setting the clock every time. The battery back-up system is only meant to be used from short temporary power interruption. For longer durations, the battery may become exhausted or there may be some deviation in accuracy. When the battery is exhausted, it should be removed from the set to prevent leakage. If you do not wish to take advantage of the battery back-up system, your set will work normally without a battery.

However, if disconnected from the mains, the clock figures will flash when the mains are re-connected and you must re-set the clock as described in the Electronic Clock Operation paragraph. Attention should be drawn to the environmental aspects of battery disposal. Don't throw used batteries in dustbin. Please contact your retailer in order to protect the environment.

Attention should be drawn to the environmental aspects of battery disposal.

Electrical products should not be disposal of with household waste. Please recycle where facilities exist. Check with your Local Authority of retailer for recycling device. (Batteries pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

SPECIFICATION

Power Source: AC 230V\~50Hz

Tuner Range: FM 87.5-108.0MHz

Power Consumption: 3.5 Watt

ZAGROŻENIE PORAŻENIEM ELEKTRYCZNYM NIE OTWIERAĆ

Przestroga:

1. VOL + / AL2
2. VOL-/AL1
3. SNOOZE / DIMMER / SLEEP
4. MEMORY / TIME SET
   5./FUNCTION
5. TUNING +/ MINUTE
6. TUNING - / HOUR
7. PM INDIKÁTOR
8. ALARM
9. AL1 INDIKÁTOR
10. AL2 INDIKÁTOR
11. ALARM
12. SLEEP INDIKÁTOR

13. FM ANTÉNA

14. KONEKTOR PRO PŘIPOJENÍ NAPÁJECÍHO KABELU

NAPÁJENÍ UPOZORNĚNÍ

Rozsah FM rádia: FM 87.5-108.0MHz

Spotřeba energie: 3.5 Watt

1. VOL+/AL2
2. VOL - / AL1
3. / / SNOOZE DIMMER SLEE
4. / MEMORY TIME SET
5. FUNCTION /
6. +/ TUNING MINUTE

TUNNING - / HOUR

1. PM INDIKÁTOR
2. ALARM
3. AL1NDIKÁTOR
4. AL2NDIKÁTOR
5. ALARM
6. SLEEP INDIKÁTOR
7. KONEKTOR PRE PRIIPOJENIE NAPÁJACIEHO KÁBLU
8. FM ANTÉNA

NAPÁJANIE

UPOZORNENIE

Rozsah FM rádia: FM 87.5-108.0MHz

Spotreba energie: 3.5 Watt

FIGYELEM!

ÁRAMÜTÉS VESZÉLYE NE NYISSA KI!

Figyelem:

1. VOLUME + / AL2
2. VOLUME - / AL1
3. SNOOZE / DIMMER / SLEEP
4. MEMORY / TIME SET
5. ⏻ / FUNCTION
6. TUNING +/ MINUTE
7. TUNING - / HOUR
8. PM KIJELZÉSE
9. ÉBRESZTÉS
10. AL1 VISSZAJELZÖJE
11. AL2 VISSZAJELZÖJE
12. ÉBRESZTÉS
13. SLEEP (ALVÁS) VISSZAJELZŐJE
14. TÁPCSATLAKOZÓ
15. FM-ANTENNA

HÁLÓZATI ÁRAM CSATLAKOZTATÁSA VIGYÁZAT

1. Glasnoća + / alarm 2
2. Glasnoća - / alarm 1
3. Drijemež / prigušivač / timer
4. Memorija / postavke vremena
5. Napajanje / odabir funkcije
6. Podešavanje + / minuta
7. Podešavanje - / vrijeme
8. PM indikator (popodnevni sati)
9. Alarm
10. Prikaz alarma 1
11. Prikaz alarma 2
12. Alarm
13. Prikaz odbrojavanja vremena
14. Napajanje sa izmjeničnim naponom
15. Kabel FM antene

Raspon tunera: 87,5-108,0 MHz FM

Potrošnja struje: 3,5 W.

PERICOL DE ELECTROCUTARE

Avertisement:

NU DESCHIDETI

Interval tuner: 87,5-108,0 MHz FM

Consum de putere: 3,5 W.

ОПАСНОСТ ОТ ТОКОВ

УДАР

Внимание:

НЕ ОТВАРЯЙ

02-801 Warsaw, Poland

phone:[phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their

respective owners. Specifications are subject to change without prior notice.
