Product Type	Alarm Clock Radio
Brand	Blaupunkt
Model	CR80USB
Display Type	Digital LED with dimmer (high/low levels)
Power Supply	AC/DC adaptor (5V-1.2A, included); DC jack input
Backup Battery	One CR2032 lithium coin cell (not included)
Alarm Functions	Dual alarms (Alarm 1 and 2); wake-up by buzzer or radio; snooze (5–60 min adjustable)
Radio Tuner	FM (manual tuning per 0.1 MHz); auto scan; up to 20 presets
USB Charging	Type-A USB port (5V-1.2A) for charging mobile phones; iPad/Notepad not supported
Indoor Temperature	Display range: -20°C to +50°C / -4°F to +122°F; switchable °C/°F; alternate display option
Mood Light	Yes, with adjustable brightness gear on side; low-level gear
Dimmer	Button for high/low display brightness; gear for fine-tuning in low mode
Snooze Duration	5 to 60 minutes (default 5 minutes)
Dimensions (approx.)	150 x 80 x 80 mm
Weight (approx.)	300 g
Material	Plastic casing
Color	Black (typical)
Included Accessories	AC/DC adaptor, wire antenna, user manual
Safety Certifications	CE, RoHS; complies with EU Directive 2014/53/EU; ERP2 Stage 2
Cleaning Instructions	Wipe with a clean, dry or slightly damp cloth; do not use chemical solvents
Repairability	No user-serviceable parts; refer servicing to qualified personnel

Frequently Asked Questions - CR80USB BLAUPUNKT

How do I set the alarm on the Blaupunkt CR80USB?

Press and hold the Alarm 1-2 on/off button until the hour digits flash. Use the Up or Down button to set the hour, then press the alarm button again to set minutes. Choose alarm source (buzzer or radio) and volume level (low/high for radio). Repeat for alarm 2 if desired.

How do I set the clock time?

Short press the Set button. The hour digits flash; use Up or Down to adjust. Press Set again to set minutes, then snooze duration (5-60 min), and temperature scale (°C or °F). Short press Set to finish.

How do I turn on the radio and tune stations?

Press the Radio/Sleep button to turn on. Extend the wire antenna for better reception. Short press Up or Down to tune manually (0.1 MHz steps). Press and hold Up or Down to auto-scan. To save presets, press and hold Set until 'PXX' flashes, select preset number with Up/Down, then press Set again.

How does the snooze function work?

When the alarm sounds, press the Snooze/Dimmer button. The alarm will silence and reactivate after the set snooze duration (default 5 minutes, adjustable up to 60 minutes in clock setting). Pressing the alarm button cancels the alarm until the next day.

Can I charge my phone using the CR80USB?

Yes, connect your phone's charging cable to the USB charge port at the back of the unit. The clock radio will charge your phone automatically. Use only the original adaptor (5V-1.2A) supplied with the device. iPad and NotePad charging is not supported.

What type of backup battery does the CR80USB use?

The backup battery is a CR2032 lithium coin cell (not included). Open the battery compartment on the back using a coin, insert the battery with the '+' side facing upward, and close the lid. It keeps time and alarm settings during power outages.

How do I adjust the display brightness?

Short press the Dimmer button to toggle between high and low brightness. For finer adjustment in low mode, rotate the brightness gear on the left side of the unit.

How do I check the indoor temperature?

When the radio is off, short press the Down/Time/Temperature button to display the temperature. Press again to return to clock. To show temperature alternately with clock, press and hold the button for 3 seconds; press and hold again to cancel.

What should I do if the clock displays incorrect time or malfunctions?

Unplug the DC jack, remove the backup battery, then re-plug and reinstall the battery with correct polarity. This resets the unit to factory defaults. Set the clock and alarms again.

How do I set the sleep timer?

While listening to the radio, press and hold the Sleep button, then release and short press repeatedly to select a duration (5, 10, 15, 30, 45, 60, 75, 90 minutes, or OFF). The radio will turn off automatically after the set time.

USER MANUAL CR80USB BLAUPUNKT

Alarm clock radio with USB charging and indoor temperature

Important Notes

• safety and operating instruction should be retained for future reference.
• The apparatus should not be exposed to dripping or splashing or placed in a humid atmosphere such as a bathroom.
• Do not install the product in the following areas:
• Places exposed to direct sunlight or close to radiators.
• On top of other stereo equipment that radiate too much heat.
• Blocking ventilation or in a dusty area.
• Areas where there is constant vibration.
  • Humid or moist places.
• Do not place near candles or other naked flames.
• Operate the product only as instructed in this manual.
• Before turning on the power for the first time, make sure the power adaptor is properly connected.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel.

Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow instructions - All operating and users' instructions should be followed.
5. Installation - Install in accordance with the manufacturer's instructions.
6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
7. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to train, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).
8. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.
9. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
10. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
11. The highest environmental temperature suitable for this product is 35°C.
12. ESD hints - If the product maybe reset or not reset to operation of control due to electrostatic discharge, just switch off and reconnect again, or move the product to another location.
13. Battery
    a. The batteries must not be exposed to excessive heat such as sunshine, fire or the like.
    b. The batteries should be drawn to the environmental aspects of battery disposal.

c. Battery usage CAUTION-to prevent battery leakage which may result in body injuries, property damage, or damage to the apparatus:

. Install all batteries correctly, + and - as marked on the apparatus.

. Do not mix batteries (old and new or carbon and alkaline, etc.)

. Remove batteries when the unit is not used for a long time.

ERP2 (Energy Related Products) note

This product with ecodesign complies with the stage 2 requirements of Commission Regulation (EC) NO. 1275/2008 implementing Directive 2009/125/EC regard to standby and off mode electric power consumption of electronic household and office equipment.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. Never use the device unsupervised! Switch off the device whenever you are not using it, even if this only for a short while.

2. The appliance is not intended to be operated by means of an external timer or separate remote control system.

3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

4. Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.

5. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture or dust.

6. Do not place this unit close to a strong magnetic field.

7. Do not place the unit on a amplifier or receiver.

8. Do not place this unit in a damp area as the moisture will affect the life of electric components.

9. If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.

10. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry or slightly damp cloth.

NOTICE

Conformity

Hereby, Blaupunkt Competence Center 2N-Everpol Sp. z o.o., declares that this equipment is in compliance with the essential requirement and other relevant provisions of Directive 2014/53/EU. Declaration of conformity can be obtained from the product page at www.blaupunkt.com.

Responsible party: 2N-Everpol Sp. z o.o, Puławska 403A, 02-801 Warsaw, Poland, Phone: [phone], E-mail: [e-mail]

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Please cat according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be dispose with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam(buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment. Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

Many thanks to purchase our model, please read and reference this manual carefully before operate the unit. Please keep the manual for future operation reference.

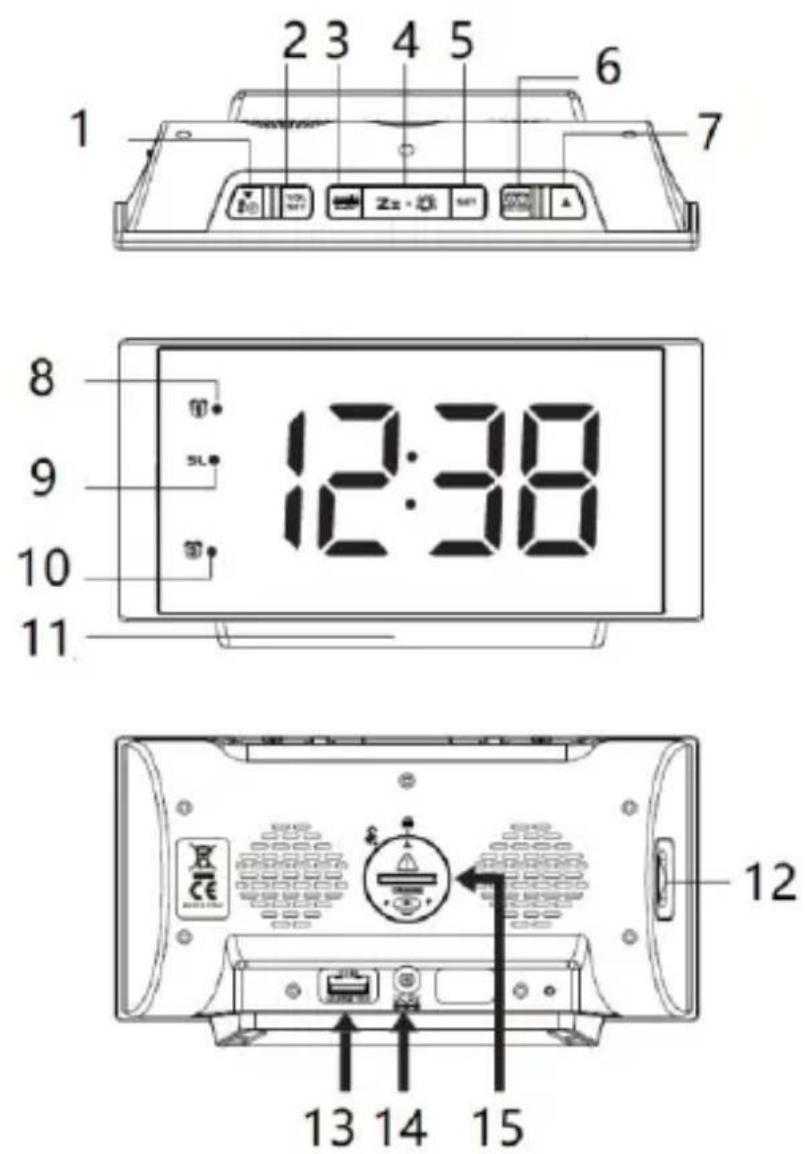

Control locations

1-down/time/temperature button;

2-volume set button;

3-radio/sleep button;

4- snooze/dimmer button;

5-set button;

6-alarm 1-2 on/off button;

7-up button;

8-alarm 1 on icon;

9-sleep on icon;

10-alarm 2 on icon;

11-mood light;

12-low dimmer brightness gear;

13-USB charge port;

14-DC IN jack;

15-Backup battery compartment(CR2032, not included)

Install backup battery power: Place your clock radio face down on a flat and soft surface; use a coin to turn the battery cover anti-clockwise at the back of your unit; insert one new lithium cell "CR2032" battery(not included) into the battery compartment by observing the "+" polarity facing upward; replace the battery cover and turn clockwise to lock it. The time and all setting will be kept in case of AC power interrupted, but the backup battery is available.

Remark: Do not use old or used battery; do not use rechargeable battery; new battery is recommended for optimal usage of this clock.

Unit power on: insert the power connector into the DC jack of the unit, and plug in the AC/DC adaptor to an AC household outlet in order to get the power; then the display will light on.

Clock time setting: Short press the set button, the hour digit will flicker on the display, press the up or down button to adjust the desired hour, press and hold the up or down button to accelerate setting at high speed; Short press the set button again skip to the minute setting. Using the same method like the hour setting to operate the rest setting for minute/snooze time(5 min to 60 min)/temperature(°C or °F option). Short press the set button to finish the setting, and clock time will become stable on display.

Alarm setting: press and hold the alarm 1-2 on/off button till the hour digits flare on display, and the alarm 1 icon LED will light on at same time; press the up or down button to adjust the desired hour, press and hold up or down button to accelerate setting at high speed; short press the alarm 1-2 on/off button again skip to the minute setting, press the up or down button to adjust the desired minute; short press the alarm 1-2 on/off button again skip to the alarm source selection, press the up or down button to select alarm source between buzz or radio (if radio was selected as alarm source, press the up or down button to select the alarm volume in low or high level (LO = low, HI= high)); press the alarm 1-2 on/off button skip to alarm 2 setting which is same operation as alarm 1.

Alarm on/off: you need turn on the alarm after finished above alarm setting; press the alarm 1-2 on/off button repeatedly can turn on or off alarm 1 and alarm 2. Please make sure the relative alarm LED will light on after you selected which means the alarm is working now.

Alarming and snooze: when unit is sounding due to the alarm time is being, press the alarm 1-2 on/off button to cancel the voice, and will wake up again at the same time of next day; if you press the snooze button, the alarm will be silenced momentarily and come on again after the set snooze duration.

Note:

1. The unit will exist the clock or alarm setting mode when no key is pressed in approximate 10 seconds.

2. if your second alarm is activate while the first alarm is sounding or it is in the snooze mode, the second alarm overrides the first alarm (the first alarm is reset to come on the next day).

3. The alarm only works when the DC/AC power adaptor is connected. Please double check the alarm setting in case of power interrupted.

Radio

Before listen to the radio, please extend the wire antenna and move the unit next to the window as you can in order to get better reception. Short press the radio button to turn on or off the radio mode; press the volume set button first, then continue to press the up or down button immediately for the output volume adjustment.

Tuning and auto scan: short press the up or down button to tune the radio frequency per 0.1MHz; press and hold the up or down button to scan and play the available station; press and hold the snooze button to scan and save the available station automatically( Max support 20 preset stations).

Manual memory station: When you tuned a favorite station, press and hold the set button till the "PXX" flare on display, press the up or down button to select the preset station number you desire to save, press the set button again to confirm. Then the radio station will be saved. Pick up preset station: short press the set button first, press the up or down button to select the preset station number for listening.

Sleep: in radio listening mode, press and hold the sleep button first, and short press the sleep button immediately to select the sleep time (05, 10, 15, 30, 45, 60, 75, 90 or OFF); the unit will revert to clock interface after few seconds, press and hold the sleep button again can check the remaining sleep time. And the radio listening will auto off when the sleep time is being.

Indoor temperature: in radio off mode, short press the down/time/temperature button to check the indoor temperature on display, press it again return the clock time interface. Press and hold the down/time/temperature button(3 seconds), the display will show the clock time and temperature alternately; press and hold the button again will cancel it.

Display dimmer and mood light: short the press the dimmer button to adjust the brightness in high or low level; rotate the brightness gear on the left side of unit to customize the brightness in low level.

USB charging: Connect the charging cable of your mobile phone to the A-type USB port at the back of the unit, then connect the other end to your mobile phone. The clock radio will charge the mobile phone automatically.

Note :

1. Make sure the original cable of your mobile phone's original charging cable for charging
2. Make sure the original adaptor (5V-1.2A) enclosed with your clock radio is being used to power your clock radio. Using other adaptors may not charge your phone.
   3.iPad and Notepad charging is not applicable.

Trouble shooting

If your clock displays irrelevant time or does not function properly, which maybe caused by electro-static discharge or other interference. Unplug the DC jack at the back of the unit, slide open the battery cover and take out the batteries. Then re-plug the DC jack and reinstall batteries by observing the correct +/- polarity. Your unit will be reset to default settings and you need to set it again.

Specification

Alarm duration Buzzer 5 minutes/ Radio 1 hour

Snooze duration 5 to 60 minutes

OUT Temperature range -20°C \~ +50°C / -4°F \~ +122°F

Default settings:-

Time 24HR format

Alarm 1 and 2 6:00am (OFF)

Snooze duration 05 (5 minutes)

Ważne informacje

02-801 Warsaw, Poland

phone:[phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

Enjoy it.

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.
