Brand	Whirlpool
Model	WIO 3T133 PLE
Product type	Built-in dishwasher
Capacity	14 standard place settings
Dimensions (W x H x D)	60 cm x 85 cm x 60 cm
Net weight	45 kg
Electrical supply	220-240 V, 50/60 Hz
Number of programs	11 programs (including Eco, 6th Sense, Intensive, Quick, etc.)
Eco program	50°C, duration 3h20, water consumption 9.5 L, energy 0.64 kWh
Available options	Multizone, Delay, Turbo, Power Clean, Tablet
Drying	NaturalDry (automatic door opening)
Special technology	6th Sense (soil detection), Power Clean (high-pressure jets)
Salt reservoir	Capacity approx. 1 kg, with level indicator
Rinse aid dispenser	With level indicator
Water softener	Automatic regeneration with salt
Filtration system	Cleanable filter assembly, pump protection
Spray arms	Upper and lower removable
Maintenance	Regular cleaning of filters and arms, Self-Cleaning program
Safety	Anti-overflow protection, child lock (not specified)
Spare parts	Available up to 7 to 10 years according to regulations
Regulatory information	Compliant with EN 60436 standard, energy label via QR code

Frequently Asked Questions - WIO 3T133 PLE WHIRLPOOL

How to start a wash cycle?

Select the desired program with the selector, then press the Start/Pause button. The indicator lights up and the cycle starts.

When should I fill the salt reservoir?

Fill the reservoir when the Salt level indicator is on. Use the provided funnel and start a wash cycle immediately after adding.

What to do if the dishwasher does not dry properly?

Check that the rinse aid is sufficient and that the NaturalDry option is enabled (unless Turbo is selected). Make sure the dishes are properly loaded.

How to use the Power Clean function?

Press the Power Clean button to activate high-pressure jets in the lower basket, ideal for pots and pans.

What does error code H6 mean?

Code H6 indicates a water supply problem. Check that the tap is open and the inlet hose is not kinked or blocked.

How to clean the filters?

Remove the lower basket, unscrew the filter assembly, clean it under running water and reassemble. Never remove the pump protection (black part).

Can I use all-in-one detergents?

Yes, activate the Tablet option to optimize the program. Otherwise, use powder or liquid in the designated dispenser.

How to set the delayed start?

Press the Delay button to postpone the start by 1 to 12 hours. Confirm with the Start/Pause button.

Why does the door open during the cycle?

It is the NaturalDry function that automatically opens the door to improve drying. This is normal and safe.

How to get additional information?

Scan the QR code on the appliance or visit docs.whirlpool.eu for technical details and guides.

USER MANUAL WIO 3T133 PLE WHIRLPOOL

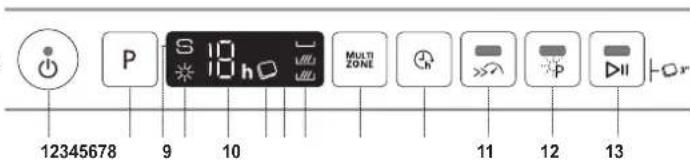

1. ON-OFF/Reset button with indicator light
2. Program selection button
3. Salt refill indicator light
4. Rinse Aid refill indicator light
5. Program number and delay time indicator
6. Tablet indicator light
7. Display

8. Multizone indicator lights

9. Multizone button

10. Delay button
11. Turbo button with indicator light
12. Power Clean button with indicator light
13. START/Pause button with indicator light / Tab

FIRST TIME USE

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on the machine's functional components.

• It is mandatory that the salt reservoir never be empty.

• It is important to set the water hardness.

The salt reservoir is located in the lower part of the dishwasher and must be filled when the SALT REFILL indicator light S in the control panel is lit.

1. Remove the lower rack and unscrew the reservoir cap (anticlockwise).
2. Position the funnel (see figure) and fill the salt reservoir right up to its edge (approximately 1 kg); it is not unusual for a little water to leak out.

3. Only the first time you do this: fill the salt reservoir with water.

4. Remove the funnel and wipe any salt residue away from the opening. Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash program (this could damage the water softener beyond repair).

Whenever you need to add salt, it is mandatory to complete the procedure before the beginning of the washing cycle to avoid corrosion.

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid dispenser A should be filled when the RINSE AID REFILL indicator light ✦ in the control panel is lit.

NEVER pour the rinse aid directly into the appliance tub.

FILLING THE DETERGENT DISPENSER

To open the detergent dispenser use the opening device C. Introduce the detergent into the dry dispenser D only. Place the amount of detergent for pre-washing directly inside the tub.

If all-in-one detergents are used, we recommend using the TABLET button, because it adjusts the program so that the best washing and drying results are always achieved.

Usage of detergent not designed for dishwashers may cause malfunction or damage to the appliance.

WATER SOFTENING SYSTEM

Water softener automatically reduces water hardness, consequently preventing scale buildup on heater, contributing also to better cleaning efficiency. This system regenerates itself with salt, therefore it is required to refill salt container when empty.

Frequency of regeneration depends on water hardness level setting - regeneration takes place once per 6 Eco cycles with water hardness level set to 3. Regeneration process starts in final rinse and finishes in drying phase, before cycle ends.

• Single regeneration consumes: \~3.5L of water;
  • Takes up to 5 additional minutes for the cycle;
  • Consumes below 0.005kWh of energy.

PROGRAMS TABLE

Program		Programs description	Drying phase	NaturalDry	Available options*)	Duration of wash program (h:min)**)	Water consumption (litres/cycle)	Energy consumption (kWh/cycle)
1.	ECO	Eco 50°- Program is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU Ecodesign legislation.	√	√		3:20	9.5	0.64
2.		6^th Sense® 50°- 60°- For normally soiled dishes with dried food residues. Senses the level of soiling on the dishes and adjusts the program accordingly.	√	√		1:25 - 3:00	7.0 - 14.0	0.90 - 1.40
3.		Intensive 65° - Program recommended for heavily soiled crockery, especially suitable for pans and saucepans.	√	√		2:50	14.0	1.50
4.		Mixed 60°- Mixed soil. For normally soiled dishes with dried food residues.	√	√		2:30	16.0	1.30
5.		Fast Wash&Dry 50° - Normally soiled crockery. Everyday cycle, that ensures optimal cleaning and drying performance in shorter time.	√	√		1:25	11.5	1.10
6.		Crystals 45° - Program for delicate items, which are more sensitive to high temperatures, for example glasses and cups.	√	√		1:40	11.5	1.20
7.		Rapid 30' 50° - Program to be used for half load of lightly-soiled dishes with no dried food residues. Without drying.	-	-		0:30	9.0	0.50
8.		Silent 50° - Suitable for night-time operation of the appliance. With the lowest noise.	√	√		3:30	15.0	1.15
9.		Sanitizing 65°- Normally or heavily soiled crockery, with additional antibacterial wash. Can be used to perform maintenance of the dishwasher	√	-		1:40	10.0	1.30
Program		Programs description	Drying phase	NaturalDry	Available options *)	Duration of wash program (h:min)**	Water consumption (litres/cycle)	Energy consumption (kWh/cycle)
10.		Prewash - Use to refresh crockery planned to be washed later. No detergent to be used with this program.	-	-	MULTI ZONE	0:12 4.5	0.01
11.		Self-Clean 65°- Program to be used to perform maintenance of the dishwasher, to be carried out only when the dishwasher is EMPTY using specific detergents designed for dishwasher maintenance.	-	-	h	0:50 8.0	0.85

ECO program data is measured under laboratory conditions according to European Standard EN 60436:2020.

Note for Test Laboratories: For information on comparative EN testing conditions, please send an email to the following address: [e-mail] Pre-treatment of the dishes is not needed before any of the programs.

*) Not all options can be used simultaneously.

** Values given for programs other than the program Eco are indicative only. The actual time may vary depending on many factors such as temperature and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration up to 20 min.

OPTIONS AND FUNCTIONS

Please scan the QR code on your product in order to have more detailed information.

OPTIONS can be selected directly by pressing the corresponding button (see CONTROL PANEL). If an option is not compatible with the selected program (see PROGRAMS TABLE), the corresponding LED flashes rapidly 3 times and beeps will sound. The option will not be enabled.

MULTI ZONE MULTIZONE - If there are not many dishes to be washed, a half loading may be used in order to save water, electricity and detergent. By default the appliance washes dishes in all racks.

DELAY - The start time of the program may be delayed for a period of time between 1 and 12 hours.

The DELAY function cannot be set once a wash cycle has been started.

TURBO - This option can be used to reduce the duration of the main programs while maintaining the same washing and drying performance levels.

POWER CLEAN® - Thanks to the additional power jets this option provides a more intensive and powerful wash in the lower rack, in the specific area. This option is recommended for washing pots and casseroles.

TABLET (Tab)- If you use powder or liquid detergent, this option should be off.

OPERATION INDICATOR - A LED light projected on the floor indicates that the dishwasher is working.

One of the following operating modes can be selected:

a) Disabled function.

b) When the cycle starts the light goes on for few seconds, stays off during the cycle and flashes at the end of the cycle.

c) The light stays on during the cycle and flashes at the end of the cycle (default mode).

NaturalDry is a convection drying system which automatically opens the door during/after drying phase to ensure exceptional drying performance every day. Door opens at the temperature that is safe to your kitchen furniture, thus door will not be opened when the option of TURBO is on.

LOADING THE RACKS

CAPACITY: 14 standard place-settings

CUTLERY RACK

Metallic tray with grid pattern and cylindrical objects, no visible text or symbols

Architectural floor plan showing room layouts and structural elements (no text or labels)

(loading example for the cutlery rack)

The third rack was designed to house the cutlery.

The cutlery basket is equipped with two sliding side trays to make the most of the height of the space below and enable the loading of high items into upper rack.

UPPER RACK

Cross-sectional diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

(loading example for the upper rack)

Load delicate and light dishes: glasses, cups, saucers, low salad bowls.

FOLDABLE FLAPS WITH ADJUSTABLE POSITION

Diagram of a kitchen sink with plates and a tray, no text or symbols present

(loading example for the lower rack)

LOWER RACK

For pots, lids, plates, salad bowls, cutlery etc. Large plates and lids should ideally be placed at the sides to avoid interferences with the spray arm.

The lower rack has tip-up supports which can be used in a vertical position when arranging plates or in a horizontal position (lower) to load pans and salad bowls easily.

POWER CLEAN®

Power Clean ^® uses the special water jets in the rear of cavity to wash more intensively the high dirty items. The lower rack has a Space Zone, a special pull-out support in the rear of the rack that can be used to support frying pans or baking pans in upright position, thus taking up less space.

Placing the pots/casseroles faced to the Power Clean® component please activate the POWER CLEAN on the panel.

CLEANING AND MAINTENANCE

More information in the Daily Reference Guide on website.

CLEANING THE FILTER ASSEMBLY CLEANING THE SPRAY ARMS

2

3

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

To remove the upper spray arm, turn the plastic locking ring in a clockwise direction.

The lower spray arm may be removed by pulling it upwards.

In case you find foreign objects (such as broken glass, porcelain, bones, fruit seeds etc.) please remove them carefully.

NEVER REMOVE the wash-cycle pump protection (black detail) (Fig 4).

TROUBLESHOOTING

Please scan the QR code on your product in order to have more detailed information.

In case your dishwasher doesn't work properly, check if the problem can be solved by going through the following list. For other errors or issues please contact authorized After-sales Service which contact details can be found in the warranty booklet. Spare parts will be available for a period of either up to 7 or up to 10 years, according to the specific Regulation requirements.

PROBLEMS POSSIBLE CAUSES SOLUTIONS
The dishwasher does not fill the water. Display shows: H, 6 and On/Off LED is blinking rapidly	No water in the water supply or the tap is closed.	Make sure there is water in the water supply or the tap running.
	The inlet hose is bent.	Make sure the inlet hose is not bent (see INSTALLATION) reprogram the dish-washer and reboot.
	The sieve in the water inlet hose is clogged; it is necessary to clean it	After having carried out the verification and cleaning, turn off and turn on the dishwasher and restart a new program.
Dishwasher finishes the cycle prematurely. Display shows: 15 and On/Off LED is blinking rapidly	Drain hose positioned too low or siphoning into home sewage system.	Check if end of drain hose is placed at correct height (see INSTALLATION). Check for siphoning into home sewage system, install air admittance valve if necessary.
	Air in water supply. Check water supply for leaks	or other issues letting air inside.

Policies, standard documentation, ordering of spare parts and additional product information can be found by:

• Using QR code on your product.

- Visiting our website docs.whirlpool.eu and parts-selfservice.whirlpool.com

- Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

The model information can be retrieved using the QR-Code reported in the energy label.

The label also includes the model identifier that can be used to consult the portal of the registry at https://eprel.ec.europa.eu.

БЛАГОДАРИМ ВИ, ЧЕ ЗАКУПИХТЕ ПРОДУКТ НА WHIRLPOOL.

Architectural grid layout with building footprints and a bird perched on the floor (no text or symbols)

Architectural floor plan showing room layouts and structural elements (no text or labels)

Cross-sectional diagram of a mechanical or architectural component with internal structures and no visible text or symbols

Diagram of a kitchen sink with plates and utensils (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Metallic tray with grid pattern containing cylindrical objects, no visible text or symbols

Architectural floor plan showing room layouts and structural elements (no text or labels)

Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

Diagram of a basket containing various items including plates, candles, and a tray (no text or labels)

Technical line drawing of a mechanical assembly or component (no visible text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Black-and-white photo of a grid-patterned mechanical or electrical component with no visible text or symbols

Architectural floor plan showing room layouts and structural grid layout (no text or labels)

Illustration of a basket filled with various kitchen utensils and plates (no text or symbols)

UNTERKORB

Top-down schematic of a multi-level mechanical or electrical component layout (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a mechanical assembly with a hand holding a tool, showing internal components and motion direction (no text or labels)

Illustration of a hand pressing down on a mechanical component with an upward arrow (no text or symbols)

MERCI D'AVOIR CHOISI UN PRODUIT WHIRLPOOL.

OPTIONS ET FONCTIONS

Interior view of a mechanical or electrical enclosure with grid patterns and cylindrical components (no visible text or symbols)

Architectural floor plan showing room layouts and structural elements (no text or labels)

Cross-sectional diagram of a storage or warehouse interior with multiple compartments and fixtures (no text or labels)

Diagram of a multi-tiered kitchen appliance with a tray and dish (no text or labels)

Diagram of a mechanical or biological assembly with no visible text, numbers, or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand using a propeller to lift a cylindrical component (no text or symbols visible)

Close-up of a mechanical component with grid pattern and central hub (no visible text or symbols)

Architectural floor plan showing room layouts and structural grid layout (no text or labels)

Cross-sectional diagram of a multi-level kitchen or dining area with no visible text or symbols

Diagram of a kitchen appliance with multiple plates and a handle, no text or symbols present

Diagram of a medical procedure with surgical tools and tubing (no text or labels)

Diagram of a mechanical assembly with gears and a handle, no visible text or symbols

Illustration of a hand using a tool to press or install a mechanical component on a base (no text or symbols visible)

Gornji krak mlaznice skinite tako da okrenete plastični prsten za zabravljivanje u smjeru kazaljke na satu.
Donji krak mlaznice može se skinuti tako da se povuče prema gore.

Black-and-white photo of a grid-patterned mechanical or electrical component with no visible text or symbols

Architectural floor plan showing room layouts and structural grid layout (no text or labels)

Cross-sectional diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

Diagram of a computer monitor with a keyboard and mouse, surrounded by stacked circular components (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical diagram of a mechanical assembly with hand and tool, no visible text or symbols

Interior view of a mechanical or electrical enclosure with grid-like compartments and no visible text or symbols

Architectural floor plan showing room layouts and structural elements (no text or labels)

Illustration of a basket containing various household items including plates, chairs, and a monitor (no text or symbols)

Technical line drawing of a mechanical assembly with multiple components (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with a hand holding a tool (no text or symbols present)

Black-and-white photo of a grid-patterned object with no visible text or symbols

Technical diagram of a mechanical assembly with grid-like components and a central shaft (no visible text or labels)

Cross-sectional diagram of a mechanical or electronic component with multiple components and no visible text or symbols

Diagram of a kitchen sink with plates and a tray, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a mechanical assembly with a hand holding a tool, showing internal components and motion arrows (no text or labels)

Interior view of a grid-patterned industrial or construction site with no visible text or symbols

Architectural floor plan showing room layouts and structural elements (no text or labels)

Technical line drawing of a mechanical assembly with multiple components and no visible text or symbols

Diagram of a multi-tiered rack with plates and a monitor, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical illustration of a mechanical assembly with a hand holding a tool, no visible text or symbols

Interior view of a grid-patterned industrial or mechanical component (no visible text or symbols)

Architectural site plan showing building layout and grid layout (no text or labels)

Top-down schematic of a mechanical or electrical component with internal components and connections (no text or symbols)

Illustration of a kitchen sink with plates and utensils (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a mechanical device with rotating components and a hand holding a spring (no text or symbols)

POLNJENJE POSODE ZA TEKOČINO ZA LESK

Metallic tray with grid pattern containing various mechanical components (no visible text or symbols)

Architectural floor plan showing room layouts and structural elements (no text or labels)

(primer nalaganja posode v košaro za pribor)

Tretja košara je bila zasnovana za pribor.

Technical line drawing of a multi-level mechanical assembly or housing (no text or symbols)

ZLOŽLJIVA
POLIČKA Z NASTAVLJIVIM POLOŽAJEM

(primer nalaganja posode v zgornjo košaro)

Illustration of a shopping basket filled with plates and a tray, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand using a portable stove to lift a cylindrical stove (no text or symbols visible)

V primeru, da najdete tujke (kot so razbito steklo, porcelan, kosti, sadna semena itd.), jih previdno odstranite.

Sredstvo za ispiranje olakšava SUŠENJE posuđa. Posuda za sredstvo za ispiranje A treba da se napuni kada se upali svetlosni indikator DOPUNA SREDSTVA ZA ISPIRANJE na kontrolnoj tabli.

Metallic tray with grid pattern and mechanical components (no visible text or symbols)

Architectural floor plan showing room layouts and structural elements (no text or labels)

(primer punjenja korpe za pribor)

Technical line drawing of a multi-tiered kitchen appliance with no visible text or symbols

(primer punjenja gornje korpe)

Diagram of a mechanical device with gears and a central rotating element (no text or symbols)

(primer punjenja donje korpe)

DONJA KORPA

Technical line drawing of a mechanical assembly with no visible text or symbols

Ukoliko pronađete strane predmete (kao što je slomljeno staklo, porcelan, kosti, semenke voća itd.) pažljivo ih uklonite.

NIKADA NE UKLANJAJTE zaštitu pumpe za ciklus pranja (crni deo) (slika 4).

Diagram of a mechanical assembly with a lever and rotating component (no text or labels)

Illustration of a hand using a portable stove to press down a cylindrical device (no text or symbols visible)

Da biste uklonili gornju prskalicu, okrenite plastični prsten za zaključavanje u smeru kretanja kazaljki na satu.

Interior view of a mechanical or electrical enclosure with grid patterns and internal components (no visible text or symbols)

Architectural floor plan showing room layouts and structural elements (no text or labels)

Technical line drawing of a mechanical assembly with multiple components (no text or symbols)

Diagram of a kitchen sink with plates and a tray, no text or symbols present

Diagram of a mechanical assembly with a hand holding a tool, showing internal components and motion direction (no text or labels)
