Product type	Dishwasher
Brand	Whirlpool
Model	WH6IB10BS7LA0
Dimensions (H × W × D)	85 × 60 × 60 cm
Net weight	45 kg
Power supply	220-240 V, 50 Hz, 10 A
Energy class	A+
Standard capacity	10 place settings
Number of programs	6
Main functions	Delayed start, child lock, salt and rinse aid indicator
Noise level	49 dB(A)
Water consumption per cycle	9.5 L
Energy consumption per cycle	0.95 kWh
Installation type	Freestanding or built-in
Basket material	Stainless steel
Drying system	Condensation
Required water pressure	0.03 – 1.0 MPa
Power cord length	1.5 m
Warranty	2 years

Frequently Asked Questions - WH6IB10BS7LA0 WHIRLPOOL

How to start a washing program?

Close the door, press the On/Off button, select the desired program with the selector, then press Start/Pause.

What to do if the appliance does not drain?

Check that the drain hose is not kinked or blocked. Clean the drain filter located at the bottom of the tub. If the problem persists, contact after-sales service.

How to clean the filters?

Remove the lower basket, unscrew the cylindrical filter and the flat filter. Wash them under running water with a soft brush. Reassemble in reverse order.

What is the regenerating salt for?

The regenerating salt softens the water to prevent limescale on dishes and inside the appliance. Fill the salt reservoir when the indicator lights up.

How to use the rinse aid?

Pour the rinse aid into the designated compartment up to the MAX mark. Adjust the dosage according to the setting (usually between 1 and 6).

What to do if dishes remain wet at the end of the cycle?

Use a program with enhanced drying, check the rinse aid level, and clean the filters. Avoid overloading the dishwasher.

How to activate the child lock?

Press simultaneously the buttons for programs 1 and 2 for 3 seconds until the lock symbol appears. To deactivate, repeat the operation.

What detergent products to use?

Use specific dishwasher detergents in powder, gel or tablets. Follow the dosages indicated on the packaging.

How to maintain the spray arms?

Unscrew the spray arms and clean the nozzles with a toothpick or under running water. Reassemble ensuring they rotate freely.

What to do in case of error code F6 / E6?

This code indicates a heating problem. Check that the water supply is open, that the filters are not blocked, and contact a technician if the fault persists.

USER MANUAL WH6IB10BS7LA0 WHIRLPOOL

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT. In order to receive more complete assistance, please register your appliance on: www.whirlpool.eu/register

Before using the appliance, carefully read the Safety and Installation Instructions.

After installation, please remember to remove all transport protection parts from the dishwasher.

PLEASE SCAN THE QR CODE ON YOUR APPLIANCE IN ORDER TO HAVE MORE DETAILED INFORMATION

PRODUCT DESCRIPTION

APPLIANCE

1. Upper rack
2. Cutlery rack
3. Foldable flaps
4. Upper rack height adjuster
5. Upper spray arm
6. Lower rack
7. Power Clean® support
8. Lower spray arm
9. Filter Assembly
10. Salt reservoir
11. Detergent and Rinse Aid dispensers
12. Rating plate
13. Control panel

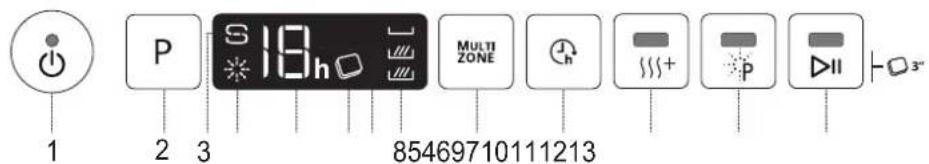

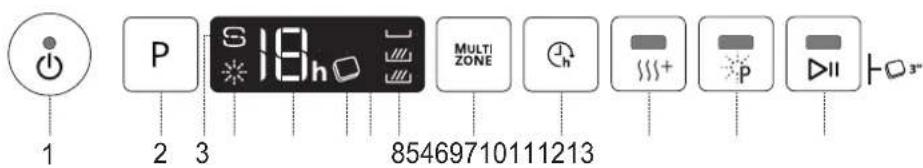

CONTROL PANEL

1. ON-OFF/Reset button with indicator light
2. Program selection button
3. Salt refill indicator light
4. Rinse Aid refill indicator light
5. Program number and delay time indicator
6. Tablet indicator light
7. Display
8. Multizone indicator lights
9. Multizone button
10. Delay button
11. Extra Dry button with indicator light
12. Power Clean® button with indicator light
13. START/Pause button with indicator light / Tab

FIRST TIME USE

SALT, RINSE AID AND DETERGENT

ADVICE REGARDING THE FIRST TIME USE

After installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack.

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on the machine's functional components.

• It is mandatory that THE SALT RESERVOIR NEVER BE EMPTY.
• It is important to set the water hardness.

The salt reservoir is located in the lower part of the dishwasher (see PRODUCT DESCRIPTION) and must be filled when the SALT REFILL indicator light ☑ in the control panel is lit.

1. Remove the lower rack and unscrew the reservoir cap (anticlockwise).
2. Only the first time you do this: fill the salt reservoir with water.
3. Position the funnel (see figure) and fill the salt reservoir right up to its edge (approximately 1 kg); it is not unusual for a little water to leak out.
4. Remove the funnel and wipe any salt residue away from the opening.

Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash program (this could damage the water softener beyond repair).

Whenever you need to add salt, it is mandatory to complete the procedure before the beginning of the washing cycle to avoid corrosion.

SETTING THE WATER HARDNESS

To allow the water softener to work in a perfect way, it is essential that the water hardness setting is based on the actual water hardness in your house. This information can be obtained from your local water supplier. The factory sets the default value for the water hardness.

• Switch on the appliance by pressing the ON/OFF button.
• Switch off the appliance by pressing the ON/OFF button.
• Hold down button P for 5 seconds, until you hear a beep.
• Switch on the appliance by pressing the ON/OFF button.
• The current selection level number and the salt indicator light both flash.
• Press button P to select the desired hardness level (see WATER HARDNESS TABLE).

Water Hardness Table
Level		°dHGerman degrees	°fHFrench degrees	°ClarkEnglish degrees
1	Soft	0 - 6	0 - 10	0 - 7
2	Medium	7 - 11	11 - 20	8 - 14
3	Average	12 - 16	21 - 29	15 - 20
4	Hard	17 - 34	30 - 60	21 - 42
5	Very hard	35 - 50	61 - 90	43 - 62

- Switch off the appliance by pressing the ON/OFF button. Setting is complete!

As soon as this procedure is complete, run a program without loading. Only use salt that has been specifically designed for dishwashers.

After the salt has been poured into the machine, the SALT REFILL indicator light switches off.

If the salt container is not filled, the water softener and the heating element may be damaged as a result of limescale accumulation. Using salt is recommended with any type of dishwasher detergent.

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid dispenser A should be filled when the RINSE AID REFILL indicator light ✦ in the control panel is lit.

1. Open the dispenser B by pressing and pulling up the tab on the lid.
2. Pour in the rinse aid (max. 110 ml), making sure it does not overflow from the dispenser. If this happens, clean the spill immediately with a dry cloth.
3. Press the lid down until you hear a click to close it. NEVER pour the rinse aid directly into the appliance tub.

ADJUSTING THE DOSAGE OF RINSE AID

If you are not completely satisfied with the drying results, you can adjust the quantity of rinse aid used.

• Switch the dishwasher on using the ON/OFF button.
• Switch it off using the ON/OFF button.
• Press button P three times - a beep will be heard.
• Switch it on using the ON/OFF button.
• The current selection level number and rinse aid indicator light flash.
• Press button P to select the level of rinse aid quantity to be supplied.
• Switch it off using the ON/OFF button. Setting is complete!

If the rinse aid level is set to ZERO, no rinse aid will be supplied. The LOW RINSE AID indicator light will not be lit if you run out of rinse aid.

A maximum of 5 levels can be set according to the dishwasher model. The factory setting is specific to the model, please follow the instruction above to check this for your machine.

- If you see bluish streaks on the dishes, set a low number (1-2).

- If there are drops of water or limescale marks on the dishes, set a mid-range number (3-4).

FILLING THE DETERGENT DISPENSER

To open the detergent dispenser, use the opening device C. Introduce the detergent into the dry dispenser D only.

Place the amount of detergent for pre-washing directly inside the tub.

1. When measuring out the detergent, refer to the information mentioned earlier to add the proper quantity. Inside the dispenser D there are indications to help with detergent dosing.
2. Remove detergent residues from the edges of the dispenser and close the cover until it clicks.
3. Close the lid of the detergent dispenser by pulling it up until the closing device is secured in place.

The detergent dispenser automatically opens up at the right time according to the program.

If all-in-one detergents are used, we recommend using the TABLET button, because it adjusts the program so that the best washing and drying results are always achieved.

Usage of detergent not designed for dishwashers may cause malfunction or damage to the appliance.

PROGRAMS TABLE

Program			Drying phase	NaturalDry 1)	Available options **	Duration of wash program (h:min) ***	Water consumption (litres/cycle)	Energy consumption (kWh/cycle)
1. Eco 50°	Eco		√	√	MULTI ZONE +	3:35 8.7 0.51
2. Intensive 65°			√	√	MULTI ZONE +	2:45 17.5 1.60
3. 6th SENSE® 50-60°			√	√	MULTI ZONE +	1:20 - 3:00 7.0 - 14.0 0.70 - 1.10
4. Fast Wash&Dry 50°			√	√	MULTI ZONE +	1.25 11.5 1.10
5. Crystals		45°	√	√	MULTI ZONE +	1:40 12.0 1.20
6. Rapid 30'		45°	-	√	MULTI ZONE	0:30 9.0 0.50
7. Silent 50°			√	√	MULTI ZONE +	3:30 16.0 1.15
8. Sanitizing 65°			√	-		1.50 12.0 1.30
9. Prewash		-	-	-	MULTI ZONE	0:10 4.5 0.01

ECO program data is measured under laboratory conditions according to European Standard EN 60436:2020. Note for Test Laboratories: For information on comparative EN testing conditions, please send an email to the following address: [e-mail] Pre-treatment of the dishes is not needed before any of the programs. *) Door is opened before the program has been ended. This is to improve the drying efficiency. Wait until the time has reached 00:00 to unload the dishwasher **) Not all options can be used simultaneously. ***) Values given for programs other than the program Eco are indicative only. The actual time may vary depending on many factors such as temperature and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration by up to 20 min.

PROGRAMS DESCRIPTION

Instructions on wash cycle selection.

1 ECO

Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU Ecodesign legislation.

2 INTENSIVE

Program recommended for heavily soiled crockery, especially suitable for pans and saucepans (not to be used for delicate items).

For normally soiled dishes with dried food residues. Senses the level of soiling on the dishes and adjusts the program accordingly.

4 FAST WASH&DRY

Normally soiled crockery. Everyday cycle, that ensures optimal cleaning and drying performance in shorter time.

5 CRYSTALS

Program for delicate items, which are more sensitive to high temperatures, for example glasses and cups.

6 RAPID 30'

Program to be used for half load of lightly-soiled dishes with no dried food residues. Does not include drying phase.

7 SILENT

Suitable for night-time operation of the appliance. Ensures optimal cleaning and drying performance with the lowest noise emission.

8 SANITIZING

Normally or heavily soiled crockery, with additional antibacterial wash. Can be used to perform maintenance of the dishwasher.

9 PREWASH

Use to refresh crockery planned to be washed later. No detergent to be used with this program.

Notes:

Please note that cycle Rapid 30' is dedicated for lightly soiled dishes.

OPTIONS AND FUNCTIONS

OPTIONS can be selected directly by pressing the corresponding button (see CONTROL PANEL).

If an option is not compatible with the selected program (see PROGRAMS TABLE), the corresponding LED flashes rapidly 3 times and beeps will sound. The option will not be enabled.

MULTI ZONE

MULTIZONE

If there are not many dishes to be washed, a half loading may be used in order to save water, electricity and detergent.

Select the program and then press the MULTIZONE button: the symbol of the chosen rack will appear on the display. By default the appliance washes dishes in all racks.

To wash only the specific rack, press this button repeatedly:

shown on the display (only lower rack)

shown on the display (only upper rack)

shown on the display (only cutlery rack)

shown on the display (option is OFF and the appliance will wash dishes in all racks).

Remember to load the upper or lower rack only, and to reduce the amount of detergent accordingly. If the upper rack is removed, apply detergent directly to the tub instead of the detergent dispenser.

DELAY

The start time of the program may be delayed for a period of time between 1 and 12 hours.

1. Press the DELAY button: the corresponding «h» symbol appears on the display; each time you press the button, the time (1h, 2h, etc. up to max. 12h) from the start of the selected wash cycle will be increased.
2. Select the wash program, press the START/PAUSE button and within 4 seconds close the door: the timer will begin counting down.
3. Once this time has elapsed, the indicator light «h» switches off and the wash cycle begins.

To adjust the delay time and select a shorter period of time, press the DELAY button. To cancel it, press the button repeatedly until the selected delayed start indicator light «h» switches off.

The DELAY function cannot be set once a wash cycle has been started.

EXTRA DRY

To improve the drying of the dishes, after selecting the program, press the EXTRA DRY button and the indicator light comes on. A higher temperature during the final rinse and an extended drying phase allow for improving drying. To deselect the option, press the same button again. The EXTRA DRY option results in the lengthening of the wash cycle.

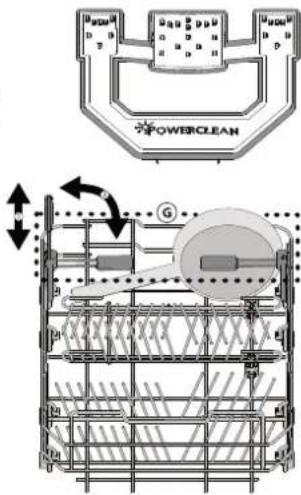

POWER CLEAN®

Thanks to the additional power jets, this option provides a more intensive and powerful wash in the lower rack, in the specific area. This option is recommended for washing pots and casseroles. Press this button to activate POWER CLEAN (the indicator lights up).

TABLET (Tab)

This setting allows you to optimize the performance of the program according to the type of detergent used. Press the START/PAUSE button for 3 seconds (the corresponding symbol will light up) if you use combined detergents in tablet form (rinse aid, salt and detergent in 1 dose).

If you use powder or liquid detergent, this option should be off.

OPERATION INDICATOR

A LED light projected on the floor indicates that the dishwasher is working. One of the following operating modes can be selected: a) Disabled function.

b) When the cycle starts, the light goes on for a few seconds, stays off during the cycle, and flashes at the end of the cycle. c) The light stays on during the cycle and flashes at the end of the cycle (default mode).

If the delayed start was set, the light goes on either for the first few seconds or the entire duration of the countdown, based on whether mode b) or c) was set.

The light goes off every time the door is opened. To select the mode you prefer, switch on the machine, hold down button P until one of the three letters appears on the display, press button P until you reach the desired letter (or mode), hold down button P to confirm the selection.

Note: If NaturalDry is active and it opens the door, then Operation Indicator will not flash at the end of the cycle.

NaturalDry

NaturalDry is a convection drying system which automatically opens the door during/after the drying phase to ensure exceptional drying performance every day. The door opens at a temperature that is safe for your kitchen furniture.

As additional steam protection, a specially designed protection foil is added together with the dishwasher. To see how to mount the protection foil, please refer to (INSTALLATION GUIDE).

NaturalDry functionality could be disabled by the user as follows:

1. Go to the Dishwasher software menu by pressing and holding the P button (6 sec).
2. You are currently in the Light Control Menu (please refer to the OPERATION INDICATOR description). If you don't want to change anything, press and hold the P button (until one of the two letters appears on the display).
3. You have switched to the NaturalDry Control Menu. You can change the status of the NaturalDry functionality by pressing the P button:

E - enabled, d - disabled

To confirm the change and exit the Control Menu, press and hold the P button (3 sec).

LOADING THE RACKS

CUTLERY RACK

The third rack was designed to house the cutlery. Arrange the cutlery as shown in the figure.

A separate arrangement of the cutlery makes collection easier after washing and improves washing and drying performance.

Knives and other utensils with sharp edges must be positioned with the blades facing downwards.

UPPER RACK

Load delicate and light dishes: glasses, cups, saucers, low salad bowls.

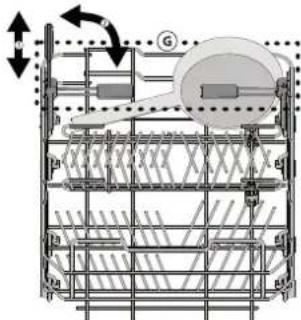

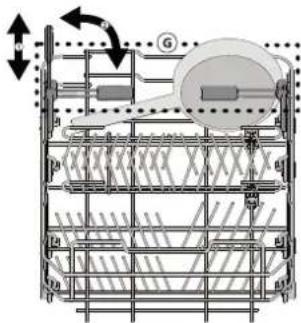

The upper rack has tip-up supports which can be used in a vertical position when arranging tea/dessert saucers or in a lower position to load bowls and food containers.

(loading example for the upper rack)

ADJUSTING THE HEIGHT OF THE UPPER RACK

The height of the upper rack can be adjusted: high position to place bulky crockery in the lower basket and low position to make the most of the tip-up supports by creating more space upwards and avoid collision with the items loaded into lower rack.

The upper rack is equipped with an Upper Rack height adjuster (see figure). Without pressing the levers, lift it up by simply holding the rack sides, as soon as the rack is stable in its upper position. To restore to the lower position, press

the levers A at the sides of the rack and move the basket downwards.

We strongly recommend that you do not adjust the height of the rack when it is loaded.

NEVER raise or lower the basket on one side only.

FOLDABLE FLAPS WITH ADJUSTABLE POSITION

The side foldable flaps can be folded or unfolded to optimize the arrangement of crockery inside the rack. Wine glasses can be placed safely in the foldable flaps by inserting the stem of each glass into the corresponding slots. In the case of the high position of the upper rack, flaps cannot remain in the vertical position.

Depending on the model:

• to unfold the flap there is needed to slide it up and rotate or release it from

• to fold the flap there is needed to rotate it and slide flap down or pull it up and attach flap to the snaps.

LOWER RACK

For pots, lids, plates, salad bowls, cutlery etc. Large plates and lids should ideally be placed at the sides to avoid interferences with the spray arm.

The lower rack has tip-up supports which can be used in a vertical position when arranging plates or in a horizontal position (lower) to load pans and salad bowls easily.

(loading example for the lower rack)

POWER CLEAN®

Power Clean® uses the special water jets in the rear of cavity to wash more intensively the high dirty items. The lower rack has a Space Zone, a special pull-out support in the rear of the rack that can be used to support frying pans or baking pans in upright position, thus taking up less space.

Place the pots/casseroles facing the Power Clean® component and activate the POWER CLEAN® on the panel. How to use Power Clean®:

1. Adjust the Power Clean® area G by folding down the rear plate holders to load pots.
2. Load pots and casseroles inclined vertically in the Power Clean® area. Pots have to be inclined towards the power water jets.

DAILY USE

1. CHECK WATER CONNECTION

Check that the dishwasher is connected to the water supply and that the tap is open.

2. SWITCH ON THE DISHWASHER

Open the door and press the ON/OFF button.

3. LOAD THE RACKS (see LOADING THE RACKS).

4. FILLING THE DETERGENT DISPENSER

5. CHOOSE THE PROGRAM AND CUSTOMISE THE CYCLE

Select the most appropriate program in accordance with the type of crockery and its soiling level (see PROGRAMS DESCRIPTION) by pressing the P button.

Select the desired options (see OPTIONS AND FUNCTIONS).

6. START

Start the wash cycle by pressing the START/Pause button (LED is lit) and closing the door within 4 seconds. When the program starts, you will hear a single beep. If the door was not closed within 4 seconds, an alarm sound will be played. In this case, open the door, press the START/Pause button, and close the door again within 4 seconds.

7. END OF WASH CYCLE

The end of the wash cycle is indicated by beeps and by the flashing of the wash cycle number on the display. Open the door and switch off the appliance by pressing the ON/OFF button.

Wait for a few minutes before removing the crockery to avoid burns. Unload the racks, beginning with the lower one.

The machine will switch off automatically during certain extended periods of inactivity to minimize electricity consumption. If the crockery is only lightly soiled or if it has been rinsed with water before being placed in the dishwasher, reduce the amount of detergent used accordingly.

MODIFYING A RUNNING PROGRAM

If a wrong program was selected, it is possible to change it, provided that it has only just begun: open the door, press and hold the ON/OFF button, and the machine will switch off.

Switch the machine back on using the ON/OFF button and select the new wash cycle and any desired options. Start the wash cycle by pressing the START/Pause button (LED is lit) and closing the door within 4 seconds.

ADDING EXTRA CROCKERY

Without switching off the machine, open the door (the START/Pause LED starts blinking) (beware of HOT steam!) and place the crockery inside the dishwasher. Press the START/Pause button and close the door within 4 seconds; the cycle will resume from the point at which it was interrupted.

ACCIDENTAL INTERRUPTIONS

If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. Press the START/Pause button and close the door within 4 seconds; the cycle will resume from the point at which it was interrupted.

ADVICE AND TIPS

TIPS

Before loading the baskets, remove all food residues from the crockery and empty the glasses. You do not need to rinse beforehand under running water.

Arrange the crockery so that it is held in place firmly and does not tip over; and arrange the containers with the openings facing downwards and the concave/convex parts placed obliquely, thus allowing the water to reach every surface and flow freely.

Warning: lids, handles, trays and frying pans do not prevent the sprayer arms from rotating.

Place any small items in the cutlery basket.

Very soiled dishes and pans should be placed in the lower basket because in this sector the water sprays are stronger and allow a higher washing performance.

After loading the appliance, make sure that the sprayer arms can rotate freely.

UNSUITABLE CROCKERY

• Wooden crockery and cutlery.
• Delicate decorated glasses, artistic handicraft and antique crockery. Their decorations are not resistant.
• Parts in synthetic material which do not withstand high temperatures. • Copper and tin crockery.
• Crockery soiled with ash, wax, lubricating grease or ink. The colours of glass decorations and aluminium/silver pieces can change and fade during the washing process. Some types of glass (e.g. crystal objects) can become opaque after a number of wash cycles too.

DAMAGE TO GLASS AND CROCKERY

• Only use glasses and porcelain guaranteed by the manufacturer as dishwasher safe.
• Use a delicate detergent suitable for crockery
• Collect glasses and cutlery from the dishwasher as soon as the wash cycle is over.

TIPS ON ENERGY SAVING

• When the household dishwasher is used according to the manufacturer's instructions, washing tableware in a dishwasher usually consumes less energy and water than hand dishwashing.
• In order to maximize dishwasher efficiency it is recommended to initiate the wash cycle once dishwasher is fully loaded. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings. Information on correct loading of tableware can be found in Loading chapter. In case of partial loading it is recommended to use dedicated wash options if available (Half load/ Zone Wash, Multizone), filling up only selected racks. Incorrect loading or overloading the dishwasher may increase resources usage (such as water, energy and time, as well as increase noise level), reducing cleaning and drying performance.
• Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended.

HYGIENE

To avoid odour and sediment which can be accumulated in the dishwasher please run a high temperature program at least one a month. Use a tea spoon of detergent and run it without the loading to clean your appliance.

CARE AND MAINTENANCE

CLEANING THE FILTER ASSEMBLY

Regularly clean the filter assembly so that the filters do not clog and that the waste water flows away correctly.

Using dishwasher with clogged filters or foreign objects inside filtration system or sprayarms may cause unit malfunction resulting in lose of performance, noisy work or higher resources usage.

The filter assembly consists of three filters which remove food residues from the washing water and then recirculate the water.

The dishwasher must not be used without filters or if the filter is loose.

At least once per month or after each 30 cycles, check the filter assembly and if necessary clean it thoroughly under running water, using a non-metallic brush and following the instructions below:

1. Turn the cylindrical filter A in an anti-clockwise direction and pull it out (Fig 1).
2. Remove the cup filter B by exerting a slight pressure on the side flaps (Fig 2).
3. Slide out the stainless-steel plate filter C (Fig 3).
4. If you find foreign objects (such as broken glass, porcelain, bones, fruit seeds, etc.), please remove them carefully.
5. Inspect the trap and remove any food residues. NEVER REMOVE the wash-cycle pump protection (black detail) (Fig 4).

After cleaning the filters, replace the filter assembly and fix it in position correctly; this is essential for maintaining the efficient operation of the dishwasher.

CLEANING THE WATER INLET HOSE

If the water hoses are new or have not been used for an extended period of time, let the water run to make sure it is clear and free of impurities before performing the necessary connections. If this precaution is not taken, the water inlet could become blocked and damage the dishwasher.

CLEANING THE SPRAY ARMS

On occasions, food residue may become encrusted onto the spray arms and block the holes used to spray the water. It is therefore recommended that you check the arms from time to time and clean them with a small non-metallic brush.

To remove the upper spray arm, turn the plastic locking ring in a clockwise direction. The upper spray arm should be replaced so that the side with the greater number of holes is facing upwards.

The lower spray arm may be removed by pulling it upwards.

WATER SOFTENING SYSTEM

Water softener automatically reduces water hardness, consequently preventing scale buildup on heater, contributing also to better cleaning efficiency.

This system regenerates itself with salt, therefore it is required to refill salt container when empty.

Frequency of regeneration depends on water hardness level setting - regeneration takes place once per 6 Eco cycles with water hardness level set to 3.

Regeneration process starts in final rinse and finishes in drying phase, before cycle ends.

• Single regeneration consumes: ~3.5 L of water; • Takes up to 5 additional minutes for the cycle;
• Consumes below 0.005 kWh of energy.

TROUBLESHOOTING

In case your dishwasher doesn't work properly, check if the problem can be solved by going through the following list. For other errors or issues please contact authorized After-sales Service whose contact details can be found in the warranty booklet. Spare parts will be available for a period of either up to 7 or up to 10 years, according to the specific Regulation requirements.

PROBLEMS POSSIBLE CAUSES SOLUTIONS
Salt indicator is lit	Salt reservoir is empty (after refill the salt indicator may remain lit for several wash cycles).	Refill reservoir with salt (for more information - see page 2).Adjust water hardness (see table, page 2).
Rinse aid indicator is lit	Rinse aid dispenser is empty (after refill the rinse aid indicator may remain lit for several wash cycles).	Refill dispenser with rinse aid (for more information - see page 2).
The dishwasher won't start or does not respond to commands.	The appliance has not been plugged in properly.	Insert the plug into the socket.
	Power outage.	For safety reasons, dishwasher will not re-start automatically when power returns. Open dishwasher door, press START/Pause button and close the door within 4 seconds.
	The dishwasher door is not closed.NaturalDry pin is not pulled in.	Vigorously push the door until you hear the "click".
	Cycle is interrupted by door opening for more than 4 seconds.	Press START/Pause and close the door within 4 seconds.
	It does not respond to commands.Display shows: 9 or 12 and On/Off LED is blinking rapidly	Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and restart the program. If problem persists, unplug the appliance for 1 minute, then plug it back in.
The dishwasher won't drain.Display shows:3 and On/Off LED is blinking rapidly	The wash cycle has not finished yet. Wait until the wash cycle finishes.	wash cycle finishes.
	The drain hose is bent. Check that the drain hose is not bent (see INSTALLATION INSTRUCTION).	The drain hose is bent. Check that the drain hose is not bent (see INSTALLATION INSTRUCTION).
	The sink drain pipe is blocked. Clean the sink drain pipe.	The sink drain pipe is blocked. Clean the sink drain pipe.
	The filter is clogged up with food residues. Clean the filter (see CLEANING THE FILTER ASSEMBLY).	The filter (see CLEANING THE FILTER ASSEMBLY).
The dishwasher makes excessive noise.	The dishes are rattling against each Position the crockery correctly (see LOADING THE RACKS).	The dishwashers has not been measured out correctly or it is not suitable for use in dishwashers (see FILLING THE DETERGENT DISPENSER). Restart the current cycle by switching OFF the dishwasher, then switch it on again, select a new program, press START/Pause and close the door within 4 seconds. Please do not add any detergent.
	An excessive amount of foam has been produced.
The dishes are not clean.	The crockery has not been arranged properly.	Arrange the crockery correctly (see LOADING THE RACKS).
	The spray arms cannot rotate freely, being hindered by the dishes.	Arrange the crockery correctly (see LOADING THE RACKS).
	The wash cycle is too gentle. Select an appropriate wash cycle (see PROGRAMS TABLE).	The wash cycle is too gentle. Select an appropriate wash cycle (see PROGRAMS TABLE).
	An excessive amount of foam has been produced.	The detergent has not been measured out correctly or it is not suitable for use in dishwashers (see FILLING THE DETERGENT DISPENSER).
	The cap on the rinse aid compartment has not been shut correctly.	Make sure the cap of the rinse aid dispenser is closed.
	The filter is soiled or clogged. Clean the filter assembly (see CARE AND MAINTENANCE).	Make sure the cap of the rinse aid dispenser is closed.
	There is no salt. Fill the salt reservoir (see FILLING THE SALT RESERVOIR).	Make sure the cap of the rinse aid dispenser is closed.
The dishwasher does not fill the water. Display shows: H,6 and On/Off LED is blinking rapidly	No water in the water supply or the tap is closed.	Make sure there is water in the water supply or the tap running.
	The inlet hose is bent.	Make sure the inlet hose is not bent (see INSTALLATION) reprogram the dishwasher and reboot.
	The sieve in the water inlet hose is clogged; it is necessary to clean it	After having carried out the verification and cleaning, turn off and turn on the dishwasher and restart a new program.
Dishwasher finishes the cycle prematurely. Display shows: 15 and On/Off LED is blinking rapidly	Drain hose positioned too low or siphoning into home sewage system.	Check if end of drain hose is placed at correct height (see INSTALLATION).Check for siphoning into home sewage system, install air admittance valve if necessary.
	Air in water supply.	Check water supply for leaks or other issues letting air inside.
Detergent leaks.	Depends on the liquid detergent used and can be emphasized in case of delay option is activated.	Small leaks will not cause machine malfunction and can be avoided by changing liquid detergent type or using tablets.

Policies, standard documentation, ordering of spare parts and additional product information can be found by:

• Using QR code on your product.

• Visiting our website docs.whirlpool.eu/docs and parts-selfservice.europeanappliances.com

• Alternatively, contact our After-sales Service (See phone number in the warranty booklet).

When contacting our After-sales Service, please state the codes provided on your product's identification plate.

The model information can be retrieved using the QR-Code reported in the energy label.

The label also includes the model identifier that can be used to consult the portal of the registry at https://eprel.ec.europa.eu.

®/TM/ © 2025 Whirlpool, Produced under license

ADJUSTABLE SHELVES

DAILY USE

1. CHECK THE WATER SUPPLY CONNECTION

®/TM/ © 2025 Whirlpool, Made under license

DAILY

REFERENCE OVERVIEW

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.

To receive more complete assistance, please register your appliance at www.whirlpool.eu/register

For delicate and light service: glasses, cups, saucers, low salad bowls.

FOLDABLE SHELVES WITH ADJUSTABLE POSITION

For pots, plates, salad bowls, cutlery, etc. Large plates and lids should be placed at the sides to avoid the spray arm hitting them.

DAILY USE

1. CHECK THE WATER CONNECTION

The upper spray arm is removed by turning the plastic locking ring clockwise. The upper spray arm is reinstalled so that the side with the most holes faces upward.

DAILY USE

DAILY USE

1. CHECKING THE CONNECTION

OPTIONS AND FUNCTIONS

ADJUSTABLE POSITIONS OF FOLDABLE FLAPS

DAILY USE

1. CHECK THE WATER CONNECTION

2. SWITCH ON THE DISHWASHER

THANK YOU FOR CHOOSING A WHIRLPOOL PRODUCT.

OPTIONS AND FUNCTIONS

FOLDABLE FLAPS WITH ADJUSTABLE POSITION

DAILY USE

1. CHECK THE WATER CONNECTION

UNEXPECTED INTERRUPTIONS

1. Upper basket
2. Cutlery rack
3. Movable folds
4. Mechanism for adjusting the upper basket height
5. Upper spray arm support
6. Lower basket
7. Power Clean® support
8. Lower spray arm support
9. Filter assembly
10. Salt container
11. Detergent and rinse aid dispensers
12. Rating plate
13. Control panel

CONTROL PANEL

1. On/Off/Reset button with indicator light
2. Program selection button
3. Indicator light for adding salt
4. Indicator light for adding rinse aid
5. Program number and delay time indicator
6. Tablet (Tab) indicator light
7. Display
8. Multizone indicator light
9. Multizone button
10. Delay button
11. Extra Dry button with indicator light
12. Power Clean button with indicator light
13. Start/Pause button with indicator light / tablet (Tab)

FIRST USE

SALT, RINSE AID AND DETERGENT

TIPS FOR FIRST USE

After installation, remove the retainers from the baskets and the elastic fastening elements from the upper basket.

FILLING THE SALT CONTAINER

1. Open dispenser B by pressing and pulling the tab on the lid.
2. Carefully introduce the rinse aid up to the reference mark of the maximum quantity (110 ml) of the filling space, being careful not to spill. If this happens, immediately clean the spill with a dry cloth.
3. Press the lid until it closes with a click.

1. When dosing detergent, refer to the information provided earlier to put the appropriate amount. Inside dispenser D there are marks that help you with dosing.
2. Remove detergent residues from the edges of the container before closing the lid so that it fits properly.
3. Close the detergent container lid by pulling it until the closing mechanism engages.

ADJUSTABLE HEIGHT FOLD-DOWN SHELVES

LOWER BASKET

For pots, pans, plates, salad bowls, cutlery, etc. Large plates and lids should ideally be placed on the sides to avoid interfering with the spray arm nozzles. The lower basket has support pegs that can be used in the vertical position when stacking plates or in the horizontal (lower) position for easy stacking of salad bowls.

DAILY USE

1. CHECKING THE WATER CONNECTION

The lower spray arm can be removed by pulling it upwards.

WATER SOFTENING SYSTEM

ADJUSTABLE HEIGHT FOLD-DOWN SHELVES

POWER CLEAN® IN THE LOWER BASKET

DAILY USE

1. CHECK THE WATER CONNECTION

FOLD-DOWN SHELVES WITH ADJUSTABLE POSITION

Depending on the model:

DAILY USE

1. CHECK THE WATER CONNECTION

DAILY USE GUIDE

THANK YOU FOR PURCHASING A WHIRLPOOL PRODUCT.

ADJUSTABLE POSITION FOLD-DOWN SHELVES

DAILY USE

1. CHECK THE WATER CONNECTION

FOLD-DOWN SHELVES WITH ADJUSTABLE POSITION

LOWER RACK

INSTRUCTIONS FOR USE

1. CHECK THE WATER CONNECTION

Place delicate and light dishes: glasses, cups, plates, low salad bowls.

DAILY USE

1. CHECK THE WATER CONNECTION

FOLD-DOWN TINES WITH ADJUSTABLE POSITION

DAILY USE

1. CHECK THE WATER CONNECTION

1. Upper basket
2. Cutlery drawer
3. Fold-down tines
4. Height adjustment for upper basket
5. Upper spray arm
6. Lower basket
7. PowerClean® supports
8. Lower spray arm
9. Filter unit
10. Salt container
11. Dispenser for detergent and rinse aid
12. Rating plate
13. Control panel

CONTROL PANEL

1. On/Off/Reset button with indicator light
2. Program selection button
3. Salt refill indicator light
4. Rinse aid refill indicator light
5. Program number and delay indicator
6. Tablet indicator light
7. Display
8. Multizone indicator light
9. Multizone button
10. Delayed start button
11. Extra Dry button with indicator light
12. Power Clean® button with indicator light
13. Start/Pause button with indicator light/ Tablet (Tab)

FIRST USE

SALT, RINSE AID AND DETERGENT

ADVICE FOR FIRST USE

Water hardness table

Nivå		°dHTyske grader	°fHFranske grader	°ClarkEngelske grader
1 B	løtt 0 - 6 0 - 10 0 - 7
2	Middels hardt	7 - 11	11 - 20	8 - 14
3	Gjennomsnittlig	12 - 16	21 - 29	15 - 20
4	Hardt	17 - 34	30 - 60	21 - 42
5	Svært hardt	35 - 50	61 - 90	43 - 62

Function indicator light

FOLDABLE SHELVES WITH ADJUSTABLE POSITION

DAILY USE

1. CHECK THE WATER CONNECTION

FOLDING AND MAINTENANCE

CLEANING THE FILTER UNIT

DAILY OPERATION INSTRUCTIONS

FILLING THE DETERGENT DISPENSER

FOLDING SHELVES WITH ADJUSTABLE POSITION

DAILY OPERATION

1. Upper rack
2. Cutlery basket
3. Foldable flaps
4. Adjusting the height of the upper rack
5. Upper spray arm
6. Lower rack
7. Power Clean® supports
8. Lower spray arm
9. Filter assembly
10. Salt container
11. Detergent and rinse aid dispensers
12. Rating plate
13. Control panel

CONTROL PANEL

Load fragile and light items into this basket: glasses, cups, saucers, bowls.

FOLDABLE FLAPS WITH ADJUSTABLE POSITION

DAILY USE

1. Upper rack
2. Cutlery rack
3. Foldable flaps
4. Upper rack height adjuster
5. Upper spray arm
6. Lower rack
7. Power Clean® support
8. Lower spray arm
9. Filter Assembly
10. Salt reservoir
11. Detergent and Rinse Aid dispensers
12. Rating plate
13. Control panel

Control panel

Setting the water hardness

Fold-down flaps with adjustable position

Daily use

Daily use

1. CHECK THE WATER CONNECTION

®/TM/ © 2025 Whirlpool. Made under license.

Troubleshooting guide

THANK YOU FOR PURCHASING A WHIRLPOOL PRODUCT.

To fully support the appliance, register it on the website: www.whirlpool.eu/register

After doing so, run a program without dishes.

FOLDABLE SHELF WITH ADJUSTABLE POSITION

– To unfold the shelf, pull it upward and turn it, or release it from the latches and pull it downward.

– To fold the shelf, turn it, pull it downward, or pull it upward and insert it into the latches.

LOWER BASKET

DAILY USE

1. CHECKING THE WATER CONNECTION

DAILY USE GUIDE

THANK YOU FOR PURCHASING A WHIRLPOOL PRODUCT.

FOLDABLE SHELVES WITH ADJUSTABLE POSITION

DAILY USE

1. CHECK THE WATER SUPPLY CONNECTION

3. LOAD THE RACKS (see LOADING THE RACKS)

4. FILLING THE DETERGENT DISPENSER

5. SELECTING THE PROGRAM AND CONFIGURING THE CYCLE

INSTRUCTIONS FOR DAILY

USE

THANK YOU FOR PURCHASING A WHIRLPOOL PRODUCT.

1. Upper rack
2. Cutlery basket
3. Fold-down flaps
4. Upper rack height adjuster
5. Upper spray arm
6. Lower rack
7. Power Clean® support
8. Lower spray arm
9. Filter assembly
10. Salt reservoir
11. Detergent and rinse aid dispensers
12. Rating plate
13. Control panel

CONTROL PANEL

1. On/Off/Reset button with indicator light
2. Program selection button
3. Salt refill indicator light
4. Rinse aid indicator light
5. Program number and delay indicator
6. Tablet (Tab) indicator light
7. Display
8. Multizone indicator light
9. Multizone button
10. Delay button
11. Button for the “Extra Dry” function with light indicator
12. “Power Clean” button with light indicator
13. Start/Pause button with light indicator / tablet (Tab)

FIRST USE

SALT, RINSE AID AND DETERGENT

TIPS FOR FIRST USE

1. Remove the lower basket and unscrew the reservoir cap (counterclockwise).
2. Only the first time you do this: fill the salt reservoir with water.
3. Place the funnel (see picture) and fill the salt reservoir to the edge (about 1 kg); it is not unusual for a little water to leak out.
4. Remove the funnel and wipe away any salt residue from the opening.

Make sure the cap is tightly screwed on, so that detergent cannot enter the container during the wash cycle (this can damage the water softener irreparably).

Whenever you need to add salt, be sure to do this procedure before starting a wash cycle to avoid corrosion.

WATER HARDNESS SETTING

1. Open container B by pressing and pulling up the tab on the lid.
2. Carefully pour rinse aid up to the maximum mark (110 ml) in the filling area - avoid spilling. If this happens, wipe up the spill immediately with a dry cloth.
3. Press the lid until it clicks. NEVER pour rinse aid directly into the tub.

ADJUSTING THE RINSE AID DOSAGE

If you are not completely satisfied with the drying results, you can adjust the amount of rinse aid used.

1. For detergent dosing, refer to the previously mentioned information to pour the appropriate amount. Compartment D has markings that can help you with detergent dosing.
2. Remove detergent residue from the edges of the compartments before closing the lid until it clicks.
3. Close the detergent compartment lid by pulling it upward until the closing device is firmly in place.

EXTRA DRY

To improve dish drying, after selecting a program, press the EXTRA DRY button and the indicator light will turn on.

Improved drying is achieved through a higher temperature during the final rinse and an extended drying phase. Press this button again to cancel the option. The EXTRA DRY option results in a longer wash cycle.

POWER CLEAN® Thanks to the additional

The third basket is intended for placing cutlery. Place the cutlery as shown in the figure. Separating the cutlery when placing it makes collection after washing easier and improves washing and drying performance.

FOLDABLE FLAPS WITH ADJUSTABLE POSITION

DAILY USE

1. CHECK THE WATER SUPPLY CONNECTION

Check that the dishwasher is connected to the water supply and that the tap is open.

2. TURN ON THE DISHWASHER

Open the door and press the ON/OFF button.

3. LOAD THE RACKS (see LOADING THE RACKS)

4. FILL THE DETERGENT DISPENSER

5. SELECT A PROGRAM AND ADJUST THE CYCLE

Select the most suitable program according to the type of dishes and level of soiling (see PROGRAM DESCRIPTION) by pressing the P button. Select the desired options (see OPTIONS AND FUNCTIONS).

6. START

UNSUITABLE DISHES

• Wooden dishes and cutlery.
• Delicate decorated glasses, artistic handicrafts and antique dishes. Their decoration is not resistant.
• Parts made of synthetic material cannot withstand high temperatures.
• Copper and pewter dishes.
• Dishes stained with ash, wax, lubricating grease, or ink.

After cleaning the filters, reassemble the filter assembly and secure it properly in place; this is necessary for the efficient operation of the dishwasher.

CLEANING THE WATER INLET HOSE

To remove the upper spray arm, turn the plastic locking ring clockwise. The upper spray arm is reinstalled with the side with more holes facing upward.

DAILY

INFORMATION BOOKLET

THANK YOU FOR PURCHASING A WHIRLPOOL PRODUCT.

DAILY USE

CLEANING THE SPRAY ARMS
